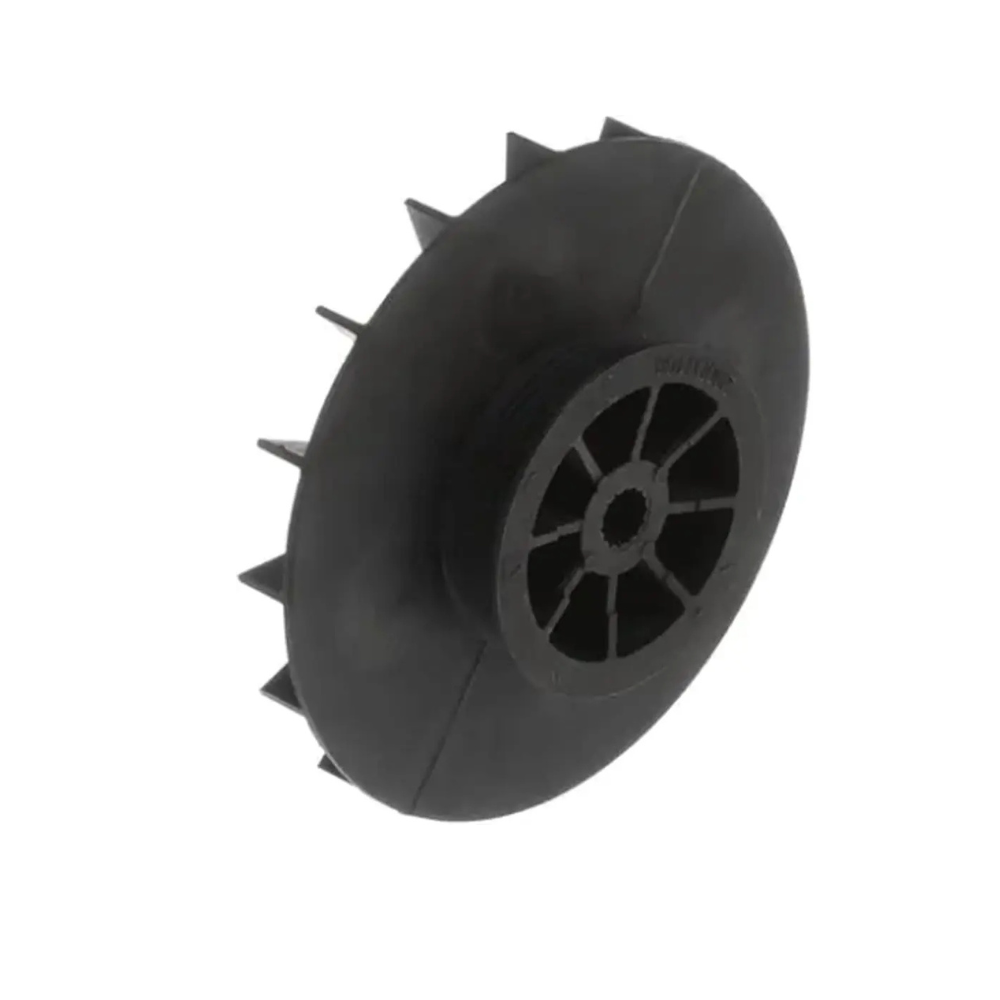

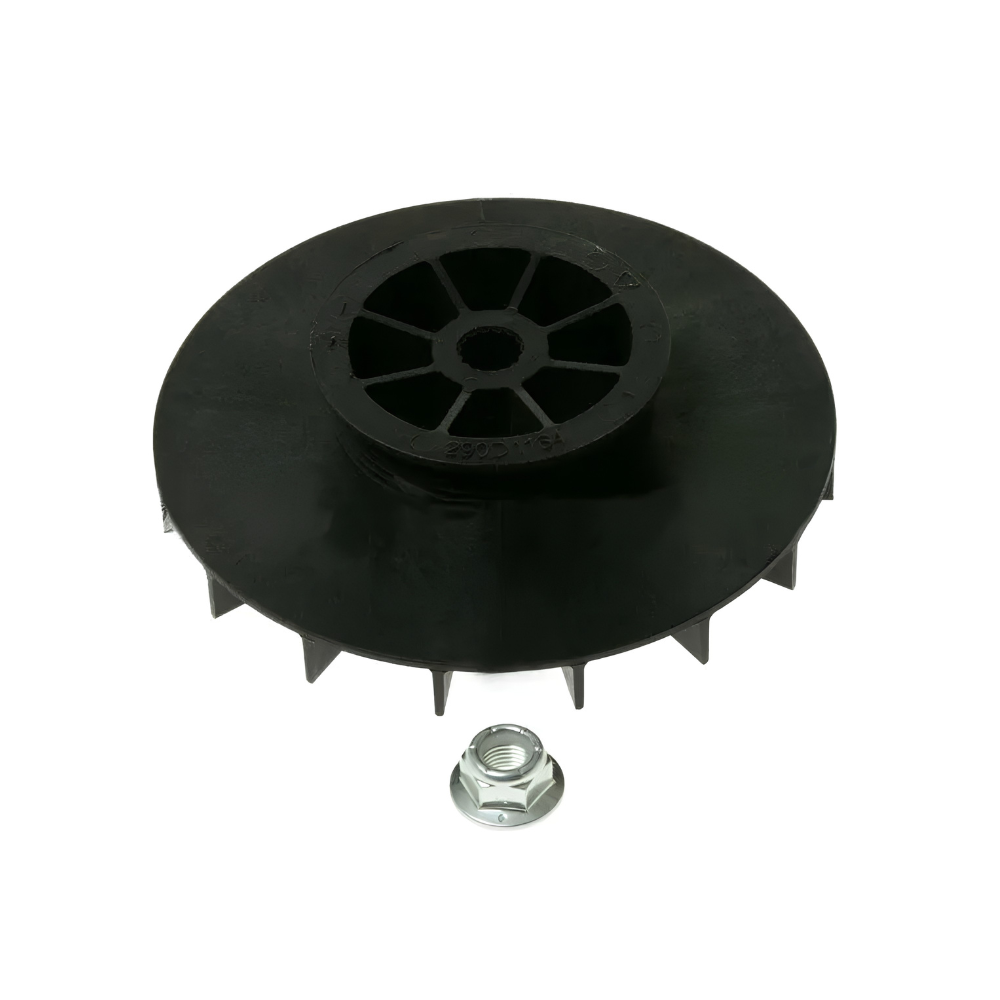

Genuine OEM WH03X32217 Washer Motor Pulley
The WH03X32217 is a genuine OEM 1/2 HP motor pulley and nut from GE for GE, Hotpoint, Kenmore, and RCA washers. The pulley mounts on the motor shaft and carries the drive belt that transfers the motor's power to the drum, and the nut secures it to the shaft. A pulley that cracks, wears, or strips its threads can slip on the shaft, squeal, or stop driving the belt, so the drum turns poorly or not at all.
This is a genuine OEM part, not an aftermarket equivalent, so the fit and the shaft connection match the original. This pulley is for the 1/2 HP motor. Washers with the smaller 1/3 HP motor use a different pulley, so match the part before you order.
Quick Answer
The Genuine OEM WH03X32217 Motor Pulley and Nut fixes a GE-built washer whose 1/2 HP motor pulley is cracked, worn, or has stripped threads, causing a loud squeal, belt slipping, or a drum that won't turn. Genuine OEM from GE Appliances. Classic symptom: the motor runs but the drum turns weakly or not at all, often with a squealing or slipping noise.
Common Problems This Part Fixes
- Loud squealing from the motor and belt area
- Drum not turning, or turning weakly, while the motor runs
- Cracked, worn, or damaged plastic pulley
- Stripped pulley threads or a pulley loose on the motor shaft
- Drive belt slipping or wearing quickly
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This motor pulley and nut replaces the following part numbers:
WH03X32217 replaces WH49X25377, WH07X24182, AGE25958, AP7018598, PD00069997, PS16554753
These are GE's earlier numbers for the 1/2 HP motor pulley and nut. If your old pulley or parts diagram shows either, match against this list.
Compatibility
This motor pulley is listed for washers from:
- GE
- Hotpoint
- Kenmore (GE-built)
- RCA
Note: This pulley is for washers with a 1/2 HP motor. Washers with a 1/3 HP motor, such as those using WH03X32218 or WH07X24695, use a different pulley. No model list is published for this part, so confirm fit by matching the number on your old pulley or your parts diagram against the Replaces list, or contact our support team with your model number and we'll verify before you order.
Key Features
- Genuine OEM GE motor pulley and nut, not an aftermarket equivalent
- For washers with a 1/2 HP motor
- Mounts on the motor shaft to carry the drive belt to the drum
- Restores a secure belt drive and eliminates pulley slipping and squeal
- Simple replacement, typically 15–60 minutes with hand tools
Product Specifications
| Part Number |
WH03X32217 |
| OEM Part Number |
WH03X32217 |
| Part Type |
Washer Motor Pulley and Nut |
| Condition |
Genuine OEM |
| Manufacturer |
GE Appliances |
| Motor Size |
1/2 HP |
| Application |
Select GE, Hotpoint, Kenmore & RCA Washers |
Installation Notes
⚠️ Unplug Power Before Installing Unplug the washer and turn off the water supply before starting. Following your model's service guide, remove the panel needed to reach the motor and drive belt. Release the belt from the old pulley, then remove the nut holding the pulley to the motor shaft and take the pulley off. Fit the new pulley on the shaft, secure it with the nut, and refit the belt. Check that the belt sits correctly and is not worn, since a worn belt or transmission pulley can cause the same symptoms. Replace the panel, restore power and water, and run a short cycle to confirm the drum turns smoothly. Common tools are pliers, screwdrivers, and a socket set.
Frequently Asked Questions
My washer squeals and the drum won't turn. Is this the part I need?
It can be. A cracked or worn motor pulley can slip and squeal. Inspect the pulley for cracks, wear, or damaged threads, and check the belt and transmission pulley at the same time, since they can fail together.
Is this the right pulley for a 1/2 HP or a 1/3 HP motor?
This one is for the 1/2 HP motor. Washers with a 1/3 HP motor use a different pulley, so check your parts diagram or contact our support team with your model number.
Does it come with the nut?
GE lists this part as a motor pulley and nut. Contact us if you need to confirm what's in the package for your order.
Is this a genuine GE part?
Yes. This is a genuine OEM part from GE Appliances, not an aftermarket equivalent.
