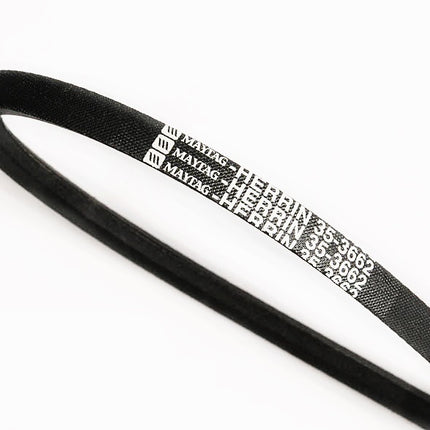

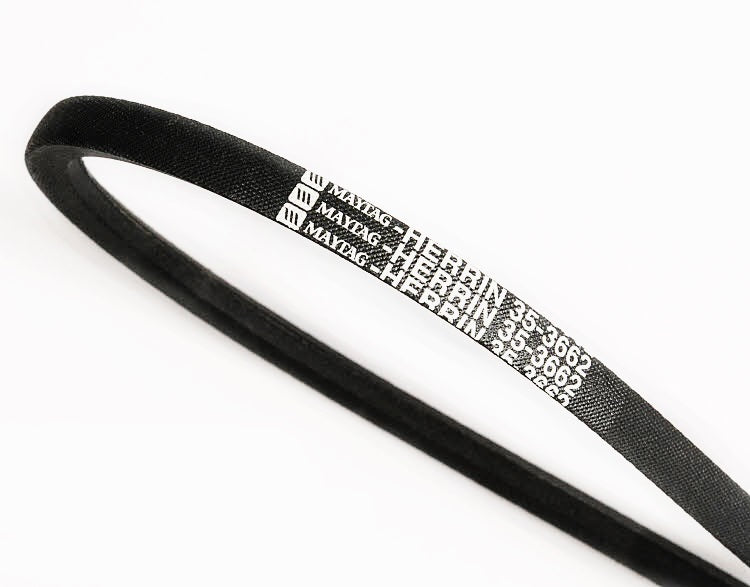

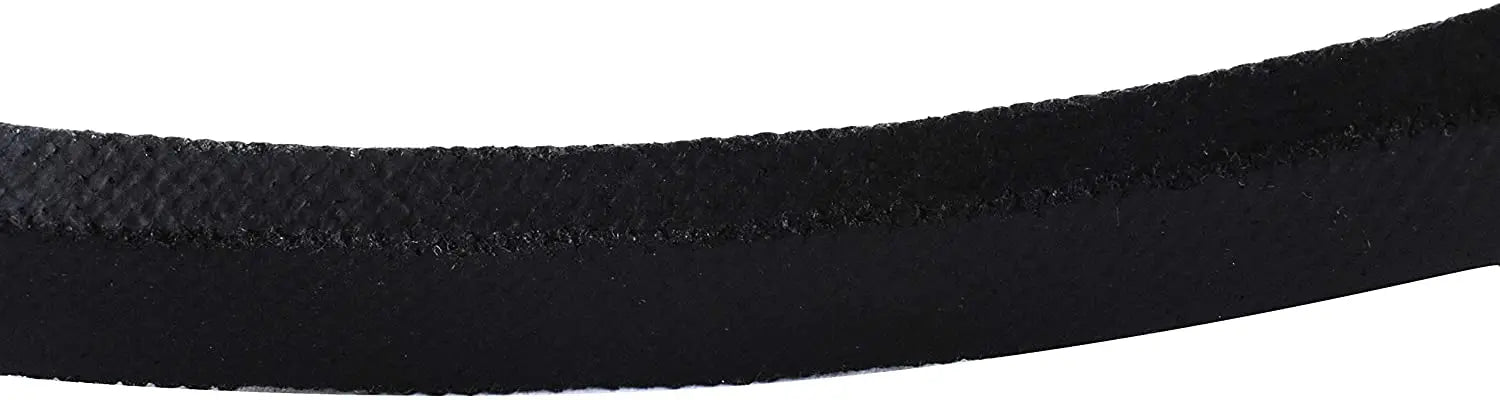

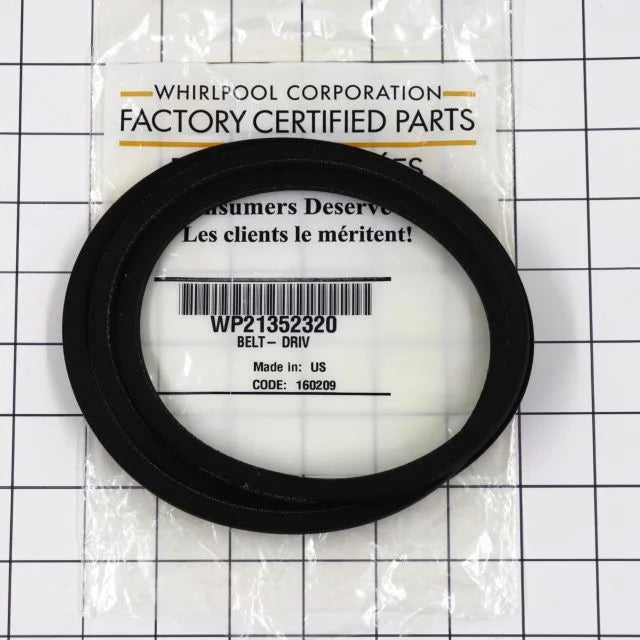

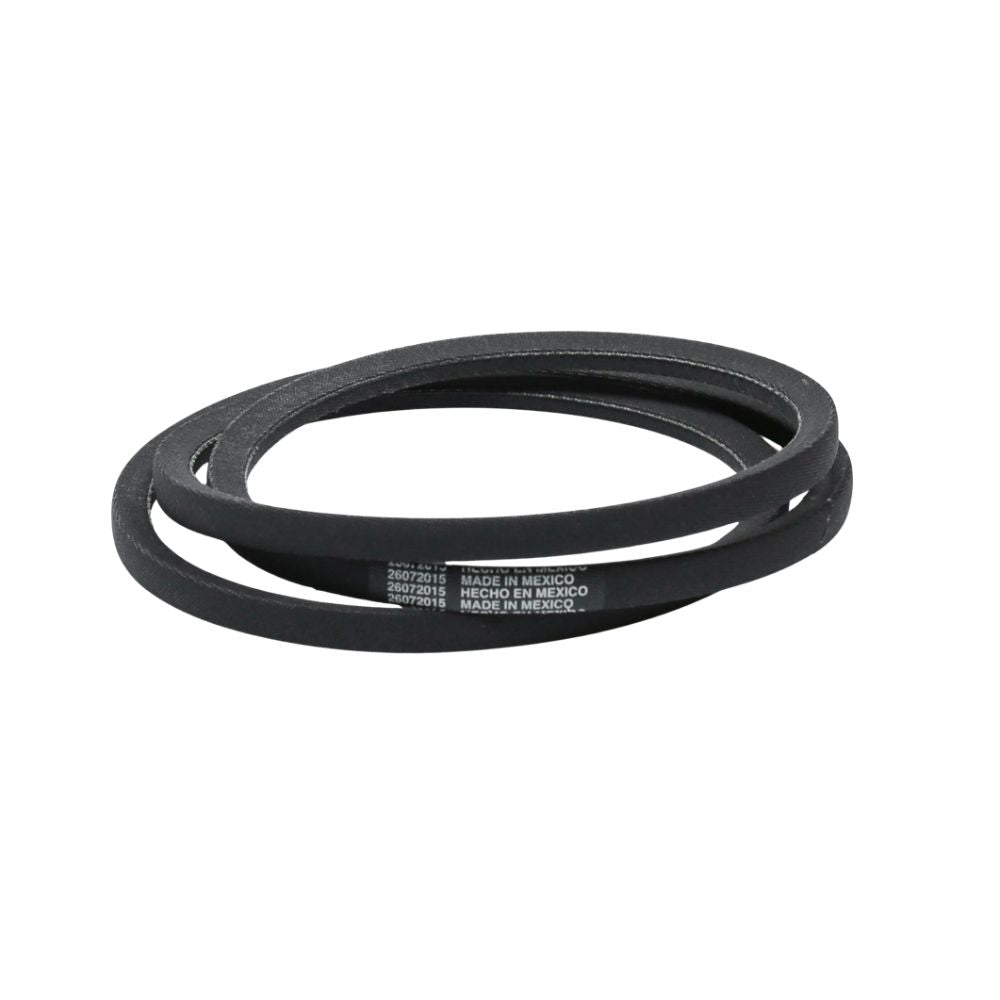

WP21352320 Genuine OEM Whirlpool Washer Drive Belt
The WP21352320 is a genuine Whirlpool OEM drive belt for Whirlpool top-load washers. This belt connects the drive motor to the transmission at the bottom of the washer, and it's what actually spins the basket during the wash and spin cycles. Unlike a dryer's drum belt, which simply tumbles a drum, this washer drive belt has to transfer real torque to spin a heavy, water-filled basket, which puts it under considerably more mechanical stress.
Measuring approximately 51" long and 3/8" wide. A worn or broken belt produces a distinctive set of symptoms: the washer may not spin at all, spin only slowly, agitate poorly or not at all, fail to drain properly since the pump relies on the same drive system, or produce a burning smell or loud grinding noise as a worn belt slips against the pulley. One useful diagnostic tip worth knowing: a belt can look intact at a glance but still be worn out — if the sides of the belt appear shiny or glazed rather than matte, that's a sign of slippage-related wear even without a visible crack. It directly replaces 21001478, 21352320, 35-2073, 35-2320, AP6005822, WP21352320VP, and PS11738882.
Quick Answer
The WP21352320 Genuine OEM Whirlpool Washer Drive Belt fixes Whirlpool, Maytag, Roper, Admiral, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Amana, Kenmore, KitchenAid, and Ikea top-load washers with a drum that won't spin, spins slowly, won't agitate, won't drain, or produces a burning smell or loud grinding noise. Approximately 51" long, 3/8" wide. Replaces 21001478, 21352320, 35-2073, 35-2320, AP6005822, WP21352320VP, PS11738882. A belt can look intact but still be worn out — check the sides for a shiny, glazed appearance, which indicates slippage wear even without a visible crack.
Common Problems This Part Fixes
- Washer drum won't spin, or spins only slowly
- Washer won't agitate during the wash cycle
- Washer won't drain properly
- Burning smell coming from the washer during operation
- Loud grinding noise from underneath the washer
- Washer that shakes or moves excessively during spin
- Washer that won't start or stalls partway through a cycle
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer drive belt directly replaces the following OEM and cross-reference part numbers:
WP21352320, 21352320, 21001478, 35-2073, 35-2320, 35-3662, PD00002418, EAP11738882, AP6005822, AWP46532, PS11738882, WP21352320VP
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This drive belt is compatible with select Whirlpool top-load washers, and also fits select Maytag, Roper, Admiral, Hardwick, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Modern Maid, Amana, Kenmore, KitchenAid, and Ikea washers built on the Whirlpool platform, including model numbers such as HAV3460AWW.
Note: Always verify your full model number before ordering, since Whirlpool uses several different drive belts across its top-load washer lineup. Contact our support team with your model number if you're unsure.
Key Features
- Genuine Whirlpool OEM part — factory-specified length, width, and material
- Connects the drive motor to the transmission to spin the basket
- Resolves "won't spin," "won't agitate," "won't drain," "burning smell," and "grinding noise" symptoms caused by belt failure
- Approximately 51" long, 3/8" wide
- Direct drop-in replacement matching the original belt routing
- Replaces 21001478, 21352320, 35-2073, 35-2320, AP6005822, WP21352320VP, and PS11738882
- Compatible with Whirlpool, Maytag, Roper, Admiral, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Amana, Kenmore, KitchenAid, and Ikea top-load washers
- Genuine OEM replacement — guaranteed fit, materials, and performance
Product Specifications
| Part Number |
WP21352320 |
| Part Type |
Washer Drive Belt |
| Condition |
Genuine OEM |
| Brand |
Whirlpool |
| Application |
Top-Load Washers |
| Length |
Approx. 51 in. |
| Width |
3/8 in. |
| Attaches To |
Motor pulley and transmission |
| Repair Difficulty |
Medium — basic hand tools required |
| Quantity |
1 drive belt |
| Compatible Brands |
Whirlpool, Maytag, Roper, Admiral, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Amana, Kenmore, KitchenAid, Ikea |
Installation Notes
⚠️ Unplug Washer And Shut Off Water Supply Before Starting — Consider The Motor Pulley While You're In There Disconnect power at the outlet or shut off the circuit breaker, and shut off both the hot and cold water supply valves before beginning. Pull the washer out from the wall for full access. Wear work gloves. Locate the drive belt around the motor at the bottom of the washer. Use a flathead screwdriver or hex wrench to remove the screws holding the motor bracket in place, which releases tension on the belt. Carefully slide the motor bracket off the motor, and use pliers if needed to work the old belt off the pulley. While the bottom of the washer is accessible, this is a good time to inspect the motor pulley for wear as well, since it's a related component you'll already have exposed. Install the new WP21352320 belt around the pulley and transmission, following the same routing as the old belt, and make sure it's seated securely and tightened properly — a loose or improperly seated belt will slip and wear out quickly. Reattach the motor bracket with its screws. Restore the water supply and power, then run a test cycle to confirm the washer spins, agitates, and drains normally with no unusual noise. Tools needed: multi-bit screwdriver, hex wrench, standard pliers, work gloves.
Frequently Asked Questions
My belt looks fine — no cracks or visible damage. Could it still need replacing?
Yes, and this is a common source of confusion. A belt can appear intact with no cracks and still be worn out. Check the sides of the belt closely: if they look shiny or glazed rather than having a matte, textured surface, that glazing indicates the belt has been slipping against the pulley, which is a clear sign of wear even without visible cracking.
My washer pumps and drains but the drum spins slowly or not at all. Is this the belt?
Yes, this is one of the most direct symptoms of a worn or slipping drive belt. Since this belt is what actually transfers the motor's power to spin the basket, a worn belt can slip under load, causing slow or absent spinning even though the motor itself and the drain pump are both working normally.
Should I replace the motor pulley at the same time?
It's worth inspecting while you have the bottom of the washer accessible, even if you don't end up replacing it. A worn pulley can accelerate wear on a brand-new belt, so checking its condition during this repair is a reasonable precaution, especially if your old belt showed the glazed, slipping-related wear pattern.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by Whirlpool to factory specifications — guaranteed fit, materials, and performance. It matches the original length, width, and routing configuration of the drive belt originally installed in your washer.
