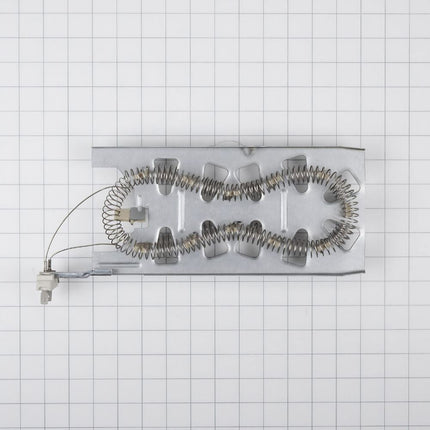

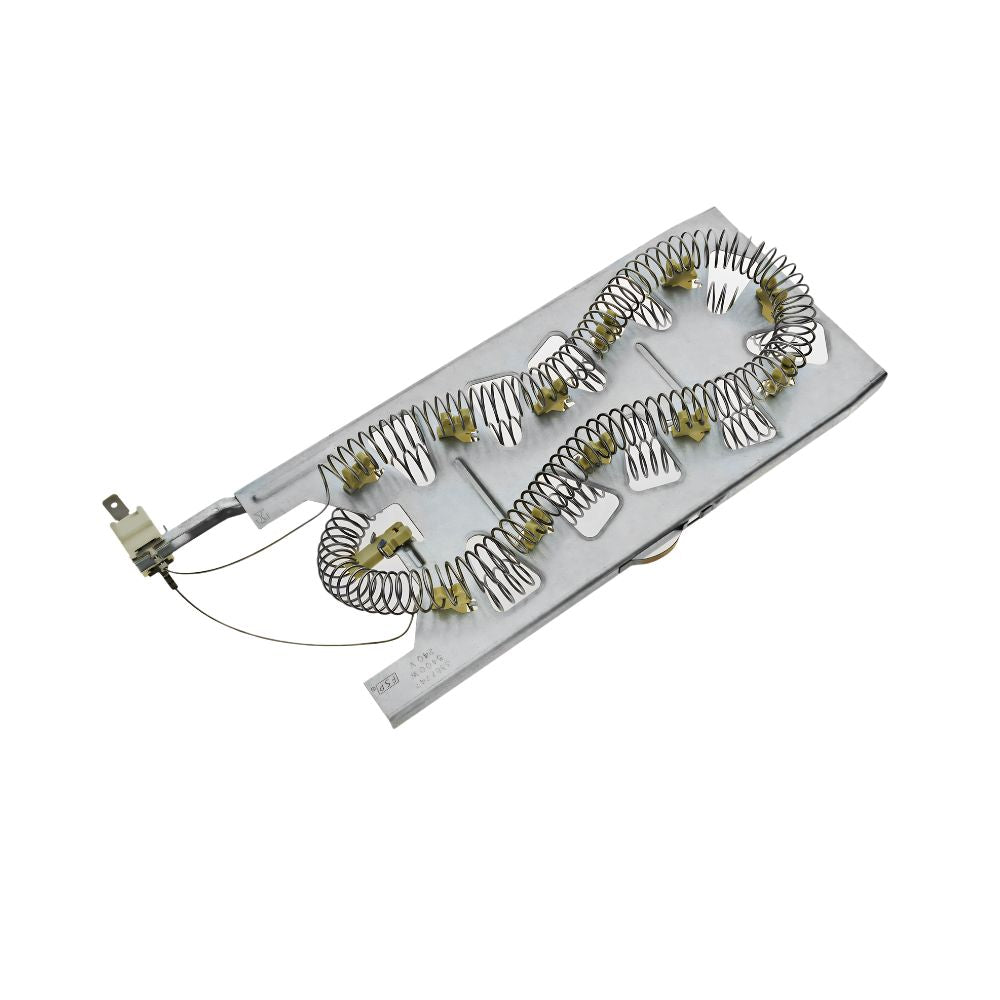

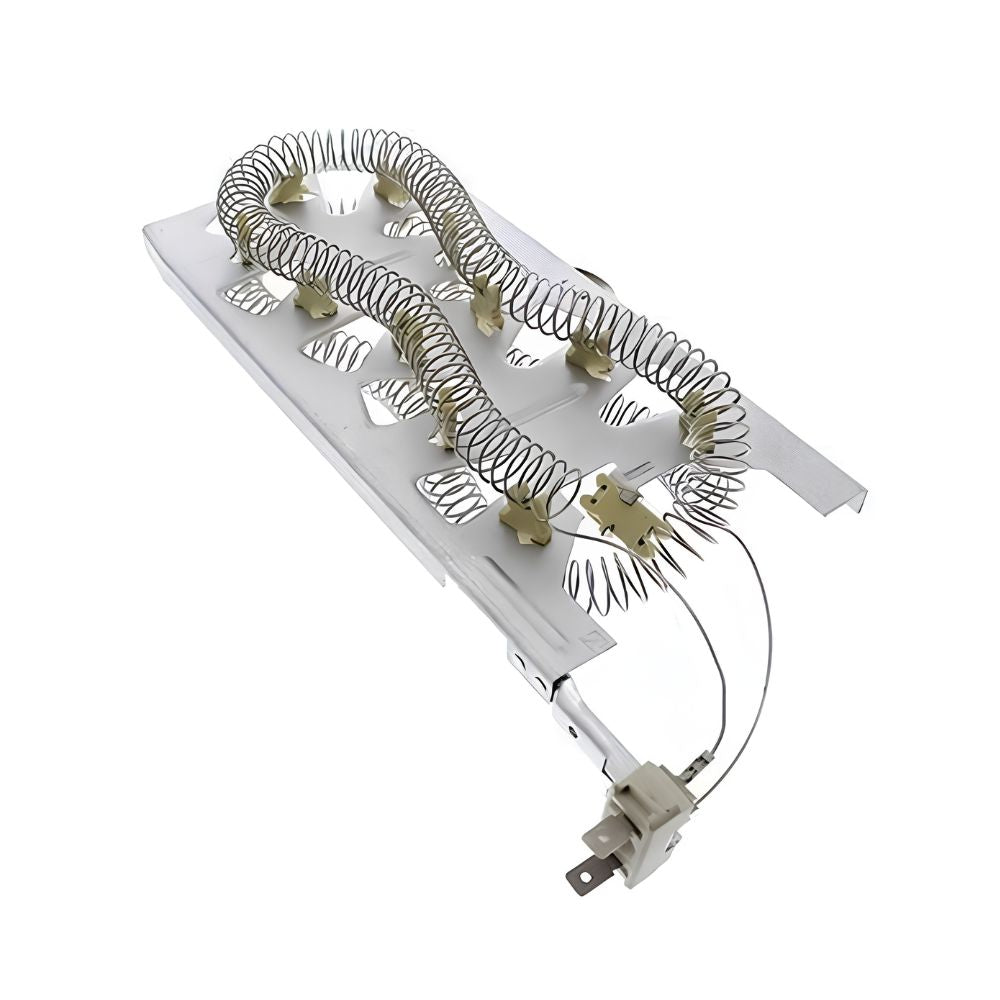

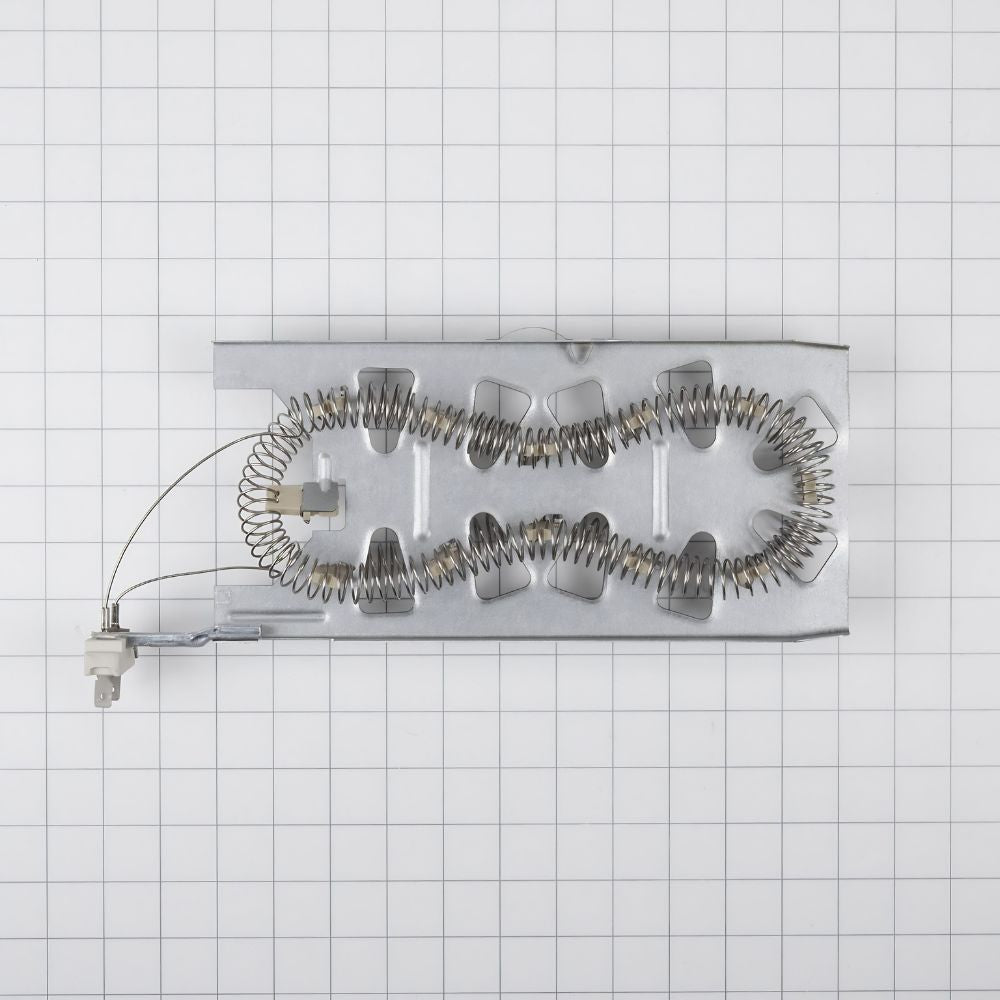

WP3387747 Genuine OEM Whirlpool Dryer Heating Element

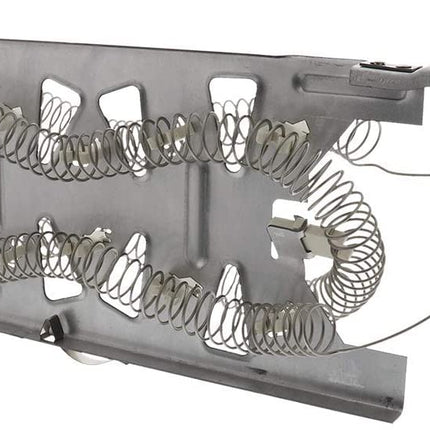

The WP3387747 is a Genuine OEM Whirlpool replacement dryer heating element assembly compatible with a wide range of Whirlpool, Kenmore, Maytag, Amana, KitchenAid, Roper, Estate, Crosley, Inglis, Admiral, Jenn-Air, and Magic Chef electric dryers — particularly higher-capacity and newer-generation Duet, Cabrio, HE, and GEW/GEQ series models. The heating element is the primary heat source in an electric dryer — a nickel-chromium resistance coil wound on ceramic insulators inside a steel housing. When the coil burns through, the circuit opens and the dryer produces no heat. When the coil shorts to the housing, the dryer runs too hot or heats continuously after the cycle ends — which is a fire hazard requiring immediate repair.
This Genuine OEM part is manufactured by Whirlpool to factory specifications and is rated at 5200W / 240V with two 5/16" male terminals. Note: Whirlpool updated the wattage of this element from the original 5400W down to 5200W — the WP3387747 at 5200W is the correct current OEM replacement for all compatible models. The thermostat and thermal fuse are not included and should be inspected and replaced separately if needed. It directly replaces 3387747, W11344457, W11045584, 80003, 525502, AP6008281, PS11741416, and additional cross-reference numbers. Installs in 20–45 minutes with basic hand tools.
Quick Answer
The WP3387747 Genuine OEM Whirlpool Dryer Heating Element fixes electric dryers that produce no heat, run too hot, heat continuously, or take too long to dry. 5200W / 240V, nickel-chromium coil, two 5/16" male terminals. Thermostat and thermal fuse not included. Genuine OEM. Replaces 3387747, W11344457, W11045584, 80003, AP6008281, PS11741416. Compatible with Whirlpool Duet/Cabrio/HE/GEW/GEQ, Kenmore, Maytag, Amana, KitchenAid, Roper, Estate, Inglis, and more.
Common Problems This Part Fixes
- Dryer produces no heat at all — element coil burned through
- Dryer takes much longer than normal to dry clothes
- Dryer tumbles normally but generates no heat during the cycle
- Dryer overheating or running hotter than normal — coil shorted to housing
- Dryer continues to heat after the cycle ends — shorted element (fire hazard)
- Visible break, burn spot, or sagging coil inside the housing
- Burning smell during operation — arcing at a weak point in the coil
- Dryer trips the circuit breaker when the heat cycle is selected
Replaces Part Numbers
This heating element directly replaces the following OEM and cross-reference part numbers:
WP3387747, 3387747, 80003, W11045584, W11344457, PD00002365, EAP11741416, AP6008281, AWP47520, FIX11741416, PS11741416, WP3387747VP.
Contact our support team with your model number if you need confirmation before ordering.
Compatibility
This heating element is compatible with select electric dryers only from the following brands and series:
- Whirlpool electric dryers — Duet (WED8xxx, WED9xxx), Cabrio (WED7xxx), HE series, GEW9xxx, GEQ9xxx, WED4xxx, WED5xxx and more
- Kenmore / Sears electric dryers — 110 series and Whirlpool-built models (including Kenmore HE2, HE3, Elite HE4, 90 series)
- Maytag electric dryers — MEDB, MED series
- Amana electric dryers
- KitchenAid electric dryers
- Roper electric dryers
- Estate electric dryers
- Crosley electric dryers
- Inglis electric dryers
- Admiral electric dryers
- Jenn-Air electric dryers
- Magic Chef electric dryers
Note: This is for electric dryers only. Gas dryers use a gas burner and do not have a heating element. Also: do not touch the new element's coil wire with bare hands — skin oils degrade the nickel-chromium wire and significantly shorten element life. Handle by the frame and terminals only.
Key Features
- Genuine OEM part manufactured by Whirlpool to factory specifications — guaranteed fit and performance
- Primary heat source for electric dryers — nickel-chromium resistance coil generates heat for every drying cycle
- Rated 5200W / 240V — current OEM wattage (updated from original 5400W by Whirlpool)

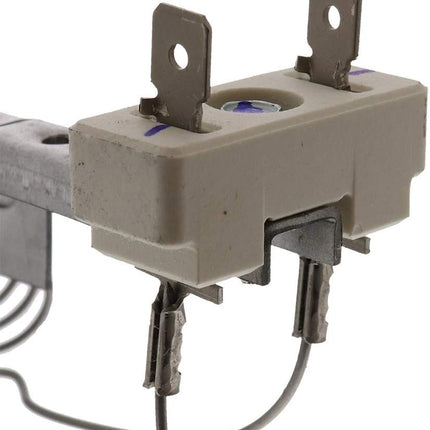

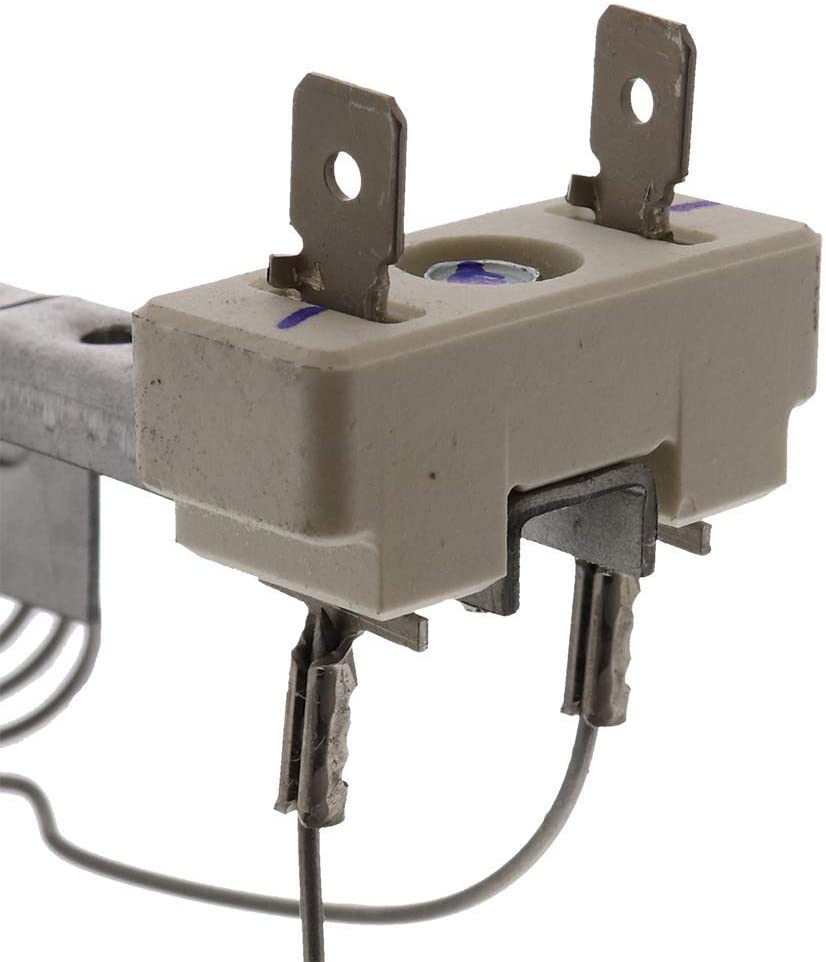

- Two 5/16" male terminals — matches original terminal configuration for direct wire connection
- Metal and ceramic construction — high-temp terminals and ceramic insulators resist heat fatigue
- Thermostat and thermal fuse are not included — inspect and replace separately if needed
- Do not touch the coil wire during installation — skin oils degrade nickel-chromium wire
- Replaces 3387747, W11344457, W11045584, 80003, AP6008281, and PS11741416
- Compatible with Whirlpool Duet, Cabrio, HE, GEW/GEQ series and 11 additional brand platforms
- DIY repair — installs in 20–45 minutes with basic hand tools
Product Specifications
| Part Number |
WP3387747 |
| Part Type |
Dryer Heating Element Assembly (Electric) |
| Condition |
Genuine OEM |
| Application |
Electric Dryers Only |
| Wattage |
5200W (updated from original 5400W — current OEM spec) |
| Voltage |
240V AC |
| Coil Material |
Nickel-chromium resistance wire |
| Terminals |
Two 5/16" male terminals |
| Material |
Metal / Ceramic |
| Color |
Black / Silver |
| Does Not Include |
Thermostat or thermal fuse — inspect and replace separately |
| Handling Note |
Do not touch coil wire — skin oils degrade nickel-chromium wire |
| Compatible Brands |
Whirlpool, Kenmore, Maytag, Amana, KitchenAid, Roper, Estate, Crosley, Inglis, Admiral, Jenn-Air, Magic Chef |
Installation Notes
⚠️ Unplug Dryer Before Starting — Do Not Touch the Coil Wire Disconnect power before beginning. The heating element housing is accessible from the lower front panel of the dryer on most Duet/Cabrio HE models — remove the front kick panel to access the heater housing without fully disassembling the dryer. For other models, remove the back panel. Before touching the new element, review the wiring layout of the old element so you can reconnect wires to the correct terminals. Do not touch the nickel-chromium coil wire with bare hands at any point — skin oils on the wire cause hot spots that will prematurely burn the element. Handle only by the frame, terminals, and housing. Photograph the existing wiring before disconnecting. Disconnect the element terminal wires and the thermostat and thermal fuse wires. Unscrew the housing and remove the old element. Install the new WP3387747 element, reconnect all wiring in the same positions, reinstall the housing and panels, restore power, and run a test heat cycle. Tools needed: Phillips screwdriver, 1/4" nut driver.
Frequently Asked Questions
My original element was 5400W but this one is 5200W — is that correct?
Yes — Whirlpool intentionally updated the wattage of this heating element from 5400W to 5200W during a design revision. The WP3387747 at 5200W is the current correct OEM replacement for all compatible models that previously used the higher-wattage element. While the wattage is slightly lower, the element is designed to provide equivalent drying performance within the thermal control system of compatible dryers. The updated wattage is by manufacturer design and does not indicate a defect or an incorrect part.
How do I test if the heating element has failed?
Unplug the dryer and disconnect the element terminals. Set your multimeter to continuity or resistance mode. A working element shows resistance — typically around 9–12 ohms for a 5200W/240V element. An open circuit confirms the coil has burned through. Also test each terminal individually against the metal housing frame — a working element shows no continuity between either terminal and the housing. If continuity exists between a terminal and the housing, the element coil is shorted to ground and must be replaced immediately — do not operate the dryer in this condition.
What is the difference between WP3387747 and 279838?
Both are Genuine OEM Whirlpool dryer heating elements, but they are for different model generations and are not interchangeable. The 279838 (5400W, 240V) is for standard-capacity Whirlpool-family dryers — many WTW/NED series and standard front-load models. The WP3387747 (5200W, 240V) is for higher-capacity and newer-generation models including Whirlpool Duet, Cabrio, HE, and GEW/GEQ series. Always verify your exact model number to confirm which heating element is correct for your dryer before ordering.
Why is it important not to touch the element coil wire?
The heating element coil is made of nickel-chromium wire that reaches very high temperatures during operation. Oils from skin contact leave microscopic residue on the wire that creates hot spots when the element heats up — these hot spots cause premature burnout at the contaminated area, often within a few months of installation. Handle the new element by its steel frame, ceramic insulators, and terminals only. If the coil wire is accidentally touched, wipe the contact area with a dry cloth or isopropyl alcohol before installation.
Is this a Genuine OEM or aftermarket part?
This is a Genuine OEM part manufactured by Whirlpool to factory specifications. It is the exact same heating element assembly installed in compatible Whirlpool, Kenmore, Maytag, and related brand electric dryers from the factory — guaranteed fit, materials, and performance.
