WP3946430 Washer Genuine Timer Control

Description

Genuine Whirlpool OEM

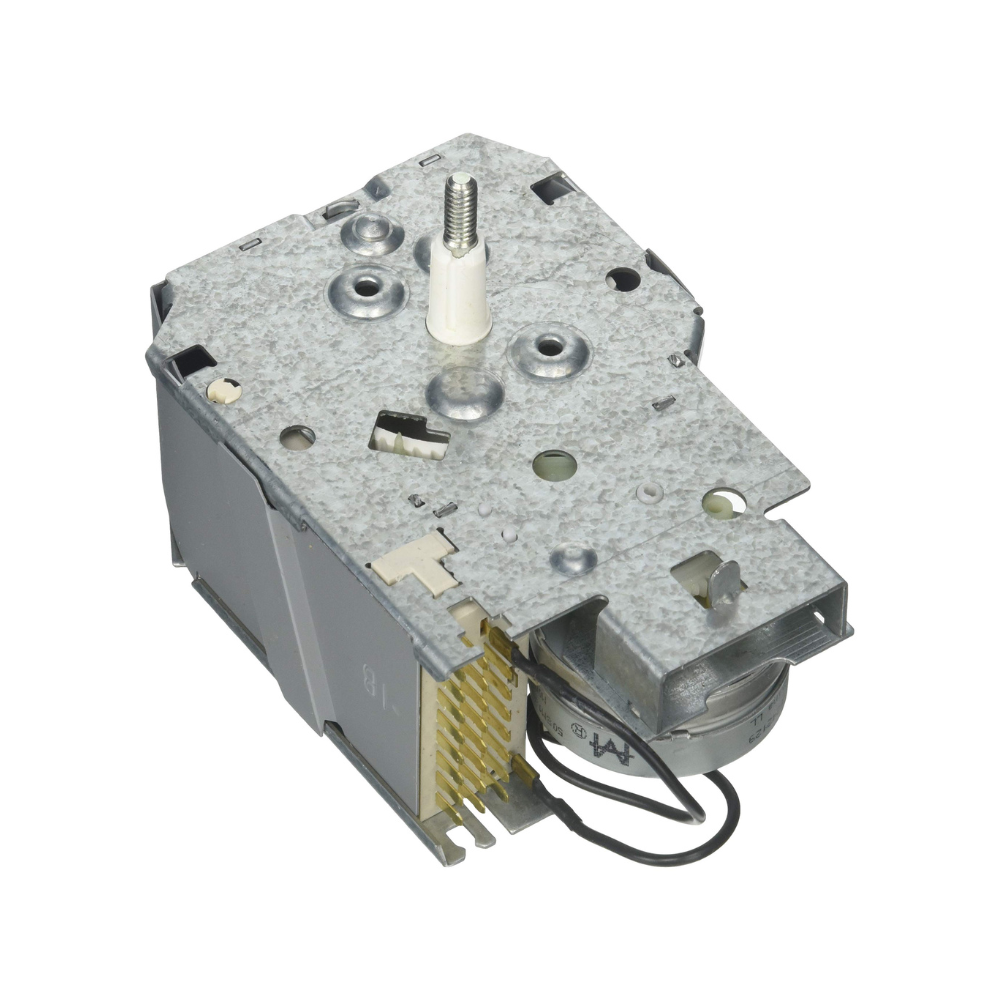

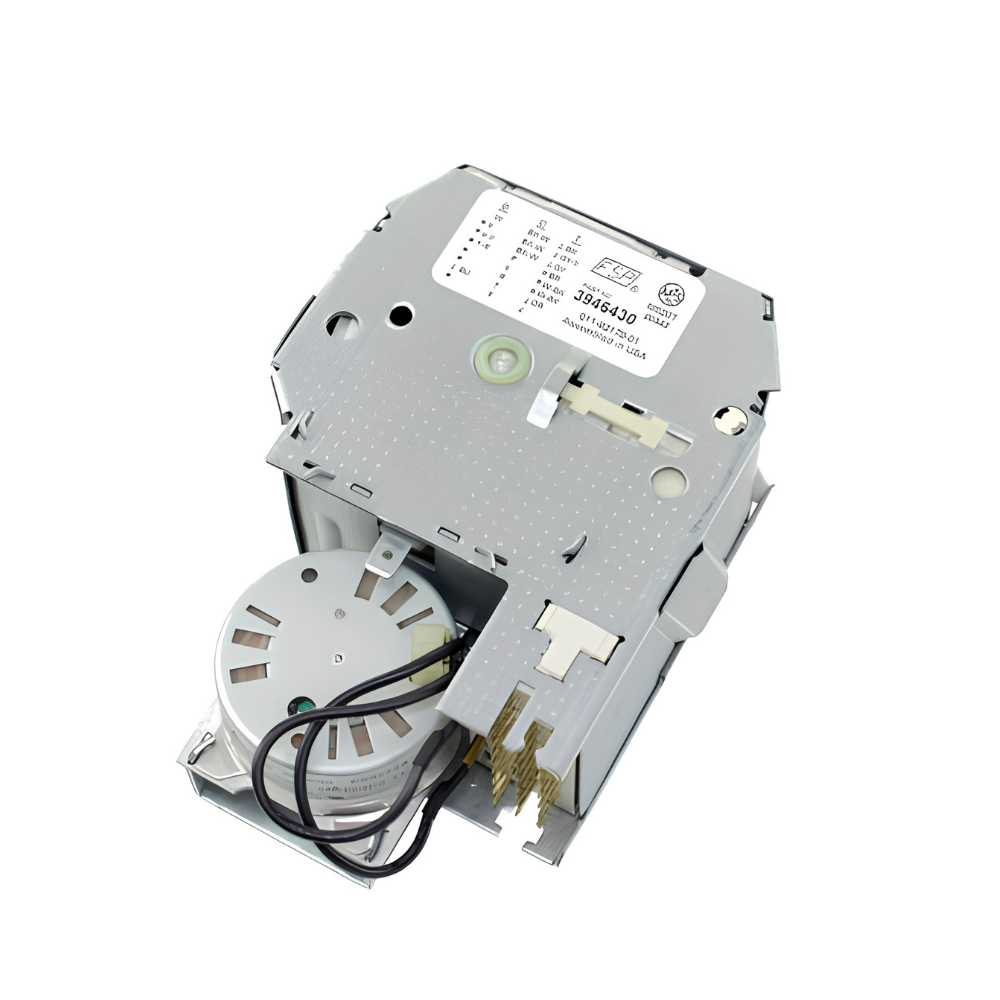

Whirlpool WP3946430 Washer Genuine OEM Timer Control

Factory-original quick-connect mechanical timer for select Whirlpool automatic washers.

Product Overview

WP3946430 is a Genuine Whirlpool OEM washer timer control. The timer controls the washer's electrical components and determines the duration and progression of the wash, rinse, drain, and spin portions of the selected cycle.

This is a quick-connect style timer designed for specific Whirlpool-built washer models. Match the complete washer model number and original timer part number before ordering.

Quick Answer

Yes — WP3946430 is a Genuine Whirlpool OEM washer timer. It replaces original timer numbers 3946430, 3351811, and 3347766.

Common Problems This Part May Fix

  • Washer will not advance through the cycle
  • Washer stops before completing a cycle
  • Selected cycle does not start or progresses incorrectly
  • Washer skips agitation, drain, rinse, or spin portions of a cycle
  • Timer contacts are worn, burned, or mechanically damaged

Timer failures can resemble lid-switch, motor, wiring, pump, or transmission problems. Diagnose the washer before replacing the timer.

Replaces and Cross-References

WP3946430, 3946430, 1126, 3347766, 3351811, J27-641, AP6008848, EAP11741989, PS11741989, AWP47890, PS11741989.

All cross-references are shown in one box for identification. Always verify by complete appliance model number.

Compatibility

Fits select Whirlpool automatic washers. Verified model examples include:

LA5500XSF1
LA5500XSG1
LA5500XSM1
LA5500XSN0
LA5500XSW0
LA5500XTG0
LA5580XTW0
LA6300XTM1
LA5668XTW0
LA8580XWG0
LA5580XSF2
LA5578XTN1

Important: This is a partial compatibility list. Whirlpool produced many similar washer timers with different internal contact sequences. Verify the complete washer model number and original timer number before purchase.

Key Features

  • Genuine Whirlpool OEM replacement part
  • Quick-connect washer timer
  • Controls cycle progression and timing
  • Controls electrical functions according to the selected cycle
  • Direct replacement for 3946430, 3351811, and 3347766

Product Specifications

Manufacturer Part Number WP3946430
Manufacturer Whirlpool
Part Type Washer Timer / Timer Control
Connection Style Quick Connect
Condition New
Quality Genuine OEM
Application Select Whirlpool Automatic Washers

Installation Notes

  1. Unplug the washer before service.
  2. Remove the control-panel access hardware according to the washer service procedure.
  3. Document the original timer wiring/connector positions before disconnecting the old timer.
  4. Transfer the timer knob or dial components if required by the model.
  5. Install the replacement timer and reconnect all plugs securely.
  6. Reassemble the console and test the washer through a complete cycle.

Safety: Disconnect electrical power before installation. If you are not comfortable servicing line-voltage washer controls, use a qualified appliance technician.

FAQ

Is WP3946430 a Genuine Whirlpool part?

Yes. WP3946430 is a Genuine Whirlpool OEM washer timer.

What does this washer timer control?

It controls electrical components and the duration/progression of the washer's selected cycle.

Does WP3946430 replace 3946430?

Yes. It also replaces 3351811 and 3347766.

Can I choose a timer only by appearance?

No. Similar-looking timers can have different contact sequences. Always verify the complete washer model number and part number.

Shop With Confidence

Factory-original Whirlpool replacement part for supported washer models. Verify your complete appliance model number before ordering.

Genuine Whirlpool OEMQuick-Connect TimerModel Verification Recommended
