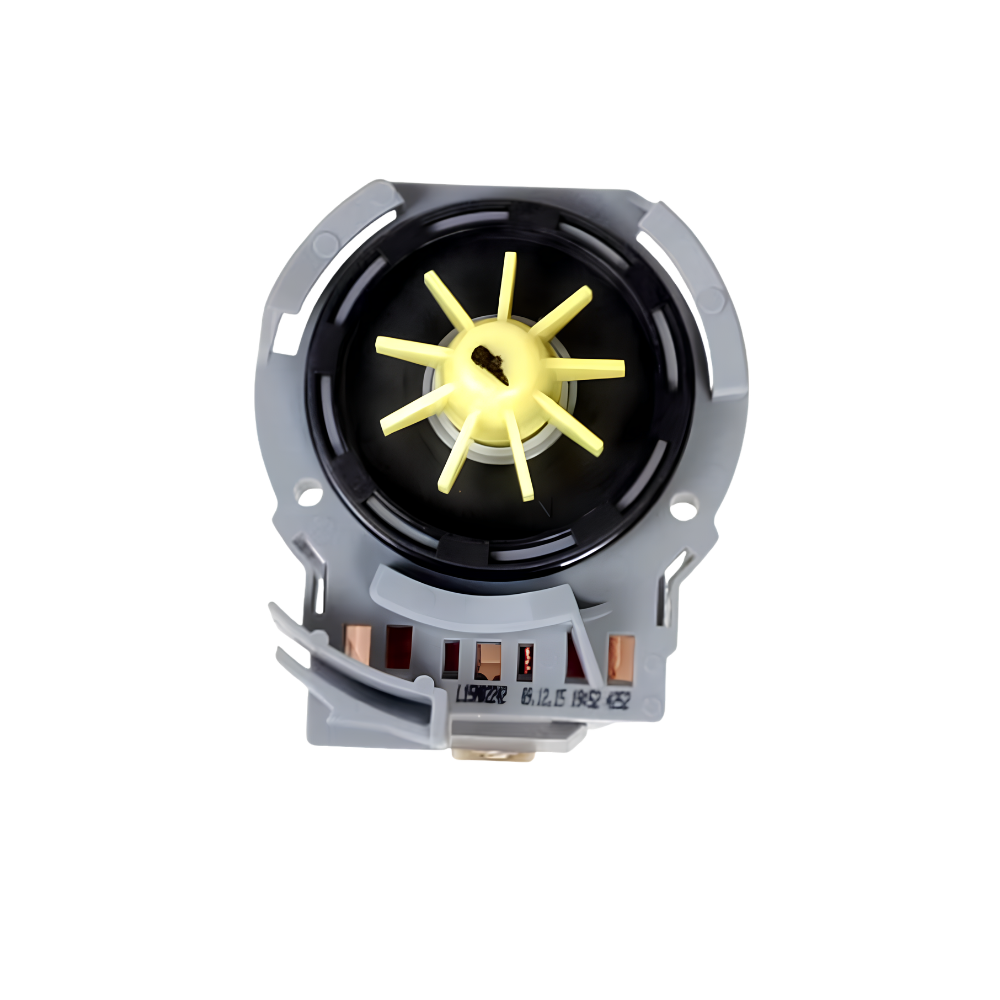

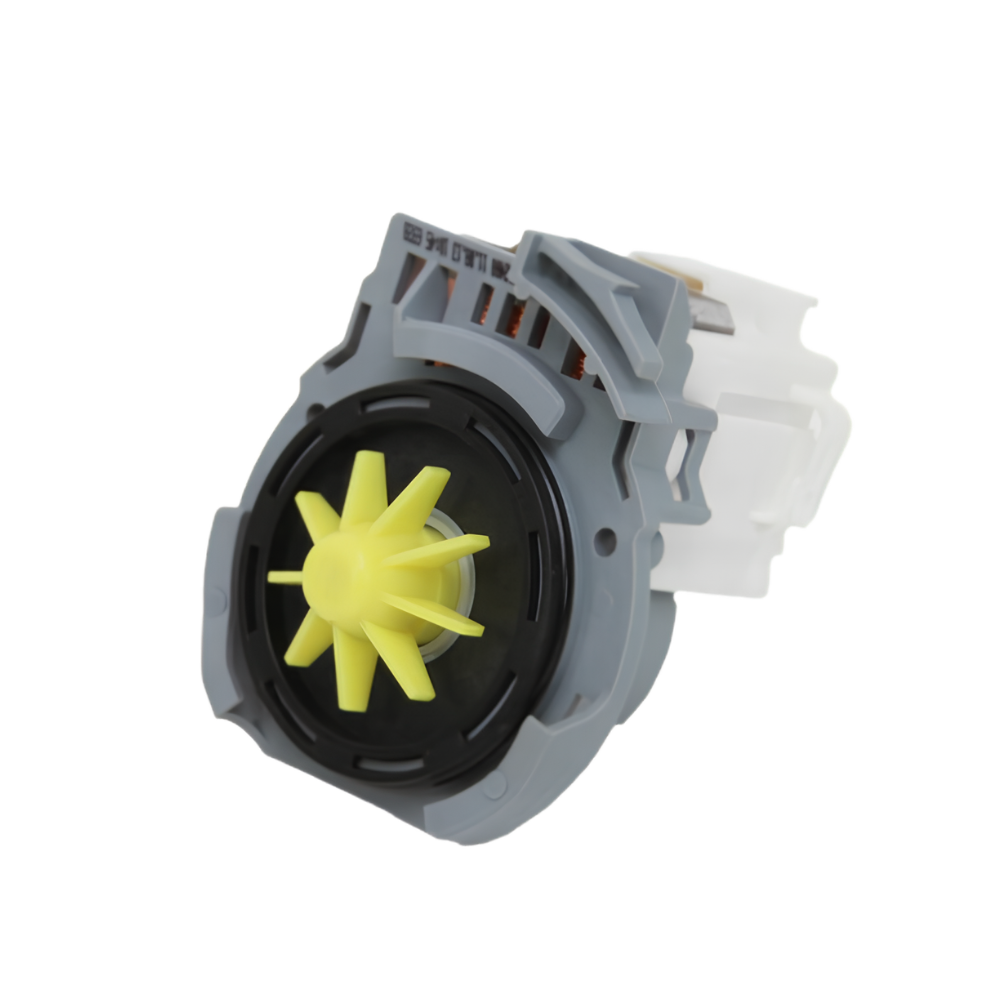

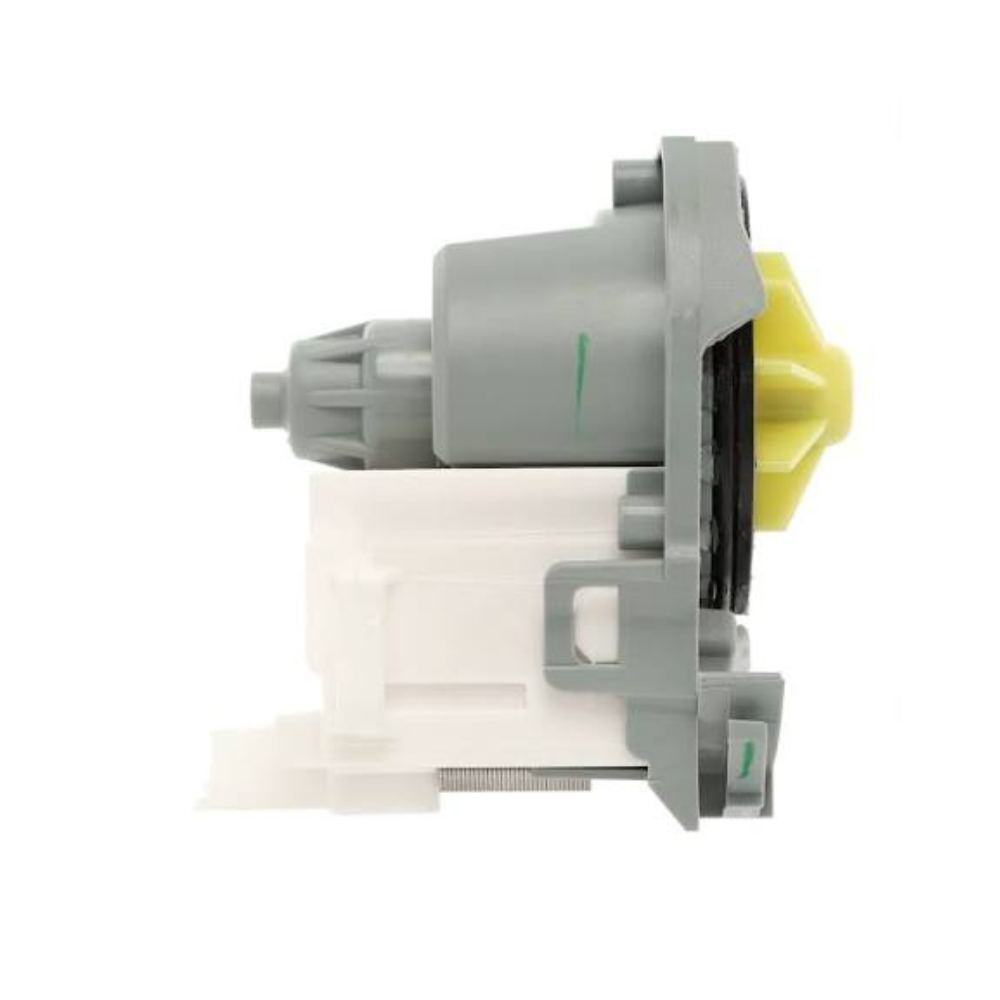

WPW10348269 Genuine OEM Whirlpool Dishwasher Drain Pump Motor
The WPW10348269 is a genuine Whirlpool OEM drain pump motor for Whirlpool, KitchenAid, Kenmore, Maytag, Amana, Crosley, Estate, Inglis, Jenn-Air, Magic Chef, and Roper dishwashers. This pump uses an electric motor to create suction, pulling wastewater out of the tub and expelling it through the drain hose at the end of each cycle. This is the dedicated drain pump, distinct from a circulation pump — such as our WPW10605057 listing — which handles spraying water through the spray arms during the wash itself rather than draining it afterward.
Rated 120VAC, 60Hz, 45W, 0.7A, with a run time pattern of 5 minutes on, 30 minutes off. Ships as a complete pump motor with impeller and O-ring. If the impeller becomes damaged or the motor shorts out and stops draining, the pump body itself can crack over time, leading to leakage — replacing the pump before that happens is the more reliable fix. Symptoms of a failing drain pump include water not draining from the tub, unusual noise such as grinding during the drain phase, or visible leaks from underneath the unit. It directly replaces W10348269, W10084573, 661662, 8558995, 8565839, W10158351, WPW10348269VP, AP6020066, AWP49992, PD00004898, PS11753379
Quick Answer
The WPW10348269 Genuine OEM Whirlpool Dishwasher Drain Pump Motor fixes Whirlpool, KitchenAid, Kenmore, Maytag, Amana, Crosley, Estate, Inglis, Jenn-Air, Magic Chef, and Roper dishwashers that aren't draining, are making grinding noise during the drain phase, or are leaking from underneath. 120VAC, 60Hz, 45W, 0.7A. Includes impeller and O-ring. Replaces W10348269, WPW10348269VP, W10084573, W10158351, 661662, 8558995, 8565839, 2813258, AP6020066, EAP11753379, PD00004898, PS11753379. This is the drain pump — a separate part from our WPW10605057 circulation pump listing, which handles spraying water rather than draining it.
Common Problems This Part Fixes
- Dishwasher not draining — standing water left in the tub after a cycle
- Grinding noise coming from the drain pump area
- Water leaking from underneath the dishwasher
- Cycle stalling or failing to advance past the drain step
- Dishes not getting cleaned as a downstream effect of drainage problems
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dishwasher drain pump motor directly replaces the following OEM and cross-reference part numbers:
WPW10348269, W10348269, W10084573, 661662, 8558995, 8565839, W10158351, WPW10348269VP, AP6020066, AWP49992, PD00004898, PS11753379
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This drain pump motor is compatible with select Whirlpool dishwashers, and also fits select KitchenAid, Kenmore, Maytag, Amana, Crosley, Estate, Inglis, Jenn-Air, Magic Chef, and Roper dishwashers built on the Whirlpool platform.
Note — drain pump, not circulation pump: This is the dedicated drain pump, which removes wastewater from the tub. It is a separate part from our WPW10605057 listing, which is the circulation pump and diverter motor responsible for spraying water through the spray arms during the wash itself. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which pump your dishwasher needs.
Key Features
- Genuine Whirlpool OEM part — factory-specified motor and impeller design
- Pumps wastewater out of the tub through the drain hose
- Resolves "not draining," "grinding noise," and "leaking underneath" symptoms caused by pump failure
- Complete assembly — includes pump motor, impeller, and O-ring
- Rated 120VAC, 60Hz, 45W, 0.7A
- Run time: 5 minutes on, 30 minutes off
- Dimensions: approximately 3-1/2"L x 3"W x 3-1/2"H
- Direct drop-in replacement — matches the original mounting and hose connections
- Replaces W10348269, W10084573, 661662, 8558995, 8565839, W10158351, WPW10348269VP, AP6020066, AWP49992, PD00004898, PS11753379
- Genuine OEM replacement — guaranteed fit, materials, and performance
Product Specifications
| Part Number |
WPW10348269 |
| Part Type |
Dishwasher Drain Pump Motor (with Impeller and O-Ring) |
| Condition |
Genuine OEM |
| Brand |
Whirlpool |
| Function |
Pumps wastewater out of the tub through the drain hose |
| Voltage |
120VAC |
| Frequency |
60 Hz |
| Wattage |
45 W |
| Amperage |
0.7 A |
| Run Time |
5 min ON / 30 min OFF |
| Dimensions |
Approx. 3-1/2"L x 3"W x 3-1/2"H |
| Color |
White / Gray / Black / Yellow |
| Related Part |
WPW10605057 circulation pump & diverter motor (different function, sold separately) |
| Repair Difficulty |
Beginner to Moderate |
| Quantity |
1 drain pump motor |
| Compatible Brands |
Whirlpool, KitchenAid, Kenmore, Maytag, Amana, Crosley, Estate, Inglis, Jenn-Air, Magic Chef, Roper |
Installation Notes
⚠️ Unplug Dishwasher Before Starting — Removing The Unit Makes Access Easier Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. This repair can be done without pulling the dishwasher out from under the counter, but many technicians find it considerably easier to access the pump if you do pull the unit out first. Remove the lower rack and any components blocking access to the tub floor, then work from underneath the dishwasher to reach the drain pump. Test the old pump for continuity with a multimeter before removing it — if it shows no continuity, or if it's getting power but still won't run, that confirms the pump has failed. Photograph the wiring and hose connections before disconnecting anything. Disconnect the electrical connector and the drain hose connection from the old pump, remove its mounting hardware, and pull it free. Install the new WPW10348269 in the same position, reconnect the drain hose connection securely, and reconnect the electrical connector fully. Reinstall any components removed for access and the lower rack. Restore power, run a test cycle, and check underneath for leaks while confirming the tub drains completely at the end. Tools needed: Phillips screwdriver, 5/16" nut driver, 5/8" wrench, flathead screwdriver, multimeter, work gloves.
Frequently Asked Questions
Do I need to pull the dishwasher out from under the counter for this repair?
Not strictly — this pump can be replaced without fully removing the dishwasher. That said, several customers who've done this repair note that pulling the unit out first makes access considerably easier, since you're working from underneath the appliance either way. If you have the space to pull it out, it's worth doing to make the job smoother.
How do I know if the pump has actually failed?
Test the pump motor with a multimeter set to continuity before replacing it. If there's no continuity, or if the pump is receiving power but still won't run, that confirms the motor has failed and the pump should be replaced. This quick check avoids replacing a part that isn't actually the problem.
My old pump was leaking. Why does that happen?
If the impeller becomes damaged or the motor shorts out and stops running, the pump body itself can develop a crack over time, which leads to leakage. Rather than trying to repair a leaking pump, replacing the complete assembly resolves both the drainage failure and the leak at the same time.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by Whirlpool to factory specifications — guaranteed fit, materials, and performance. It matches the original motor, impeller, and hose connection configuration of the drain pump originally installed in your dishwasher.
