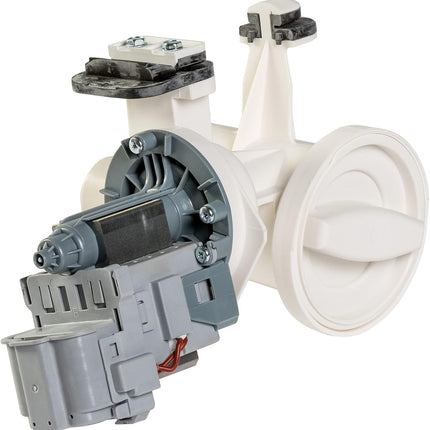

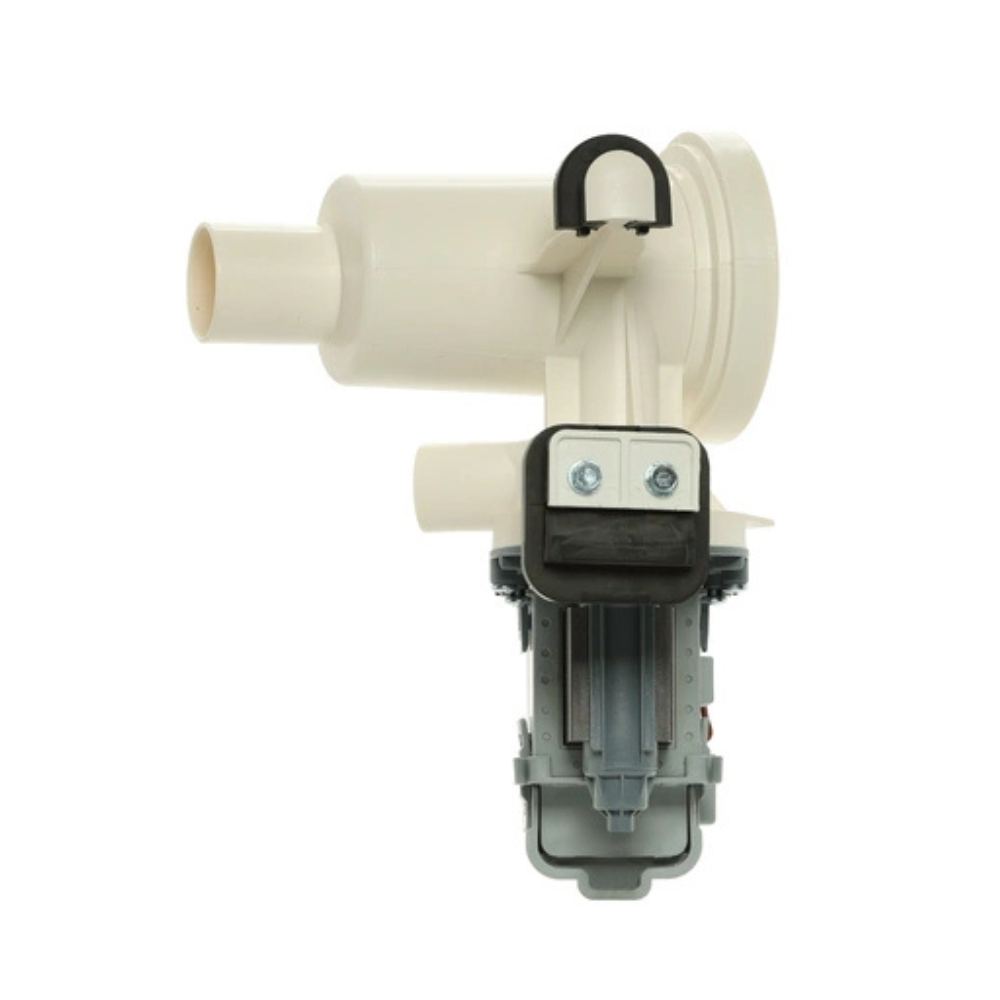

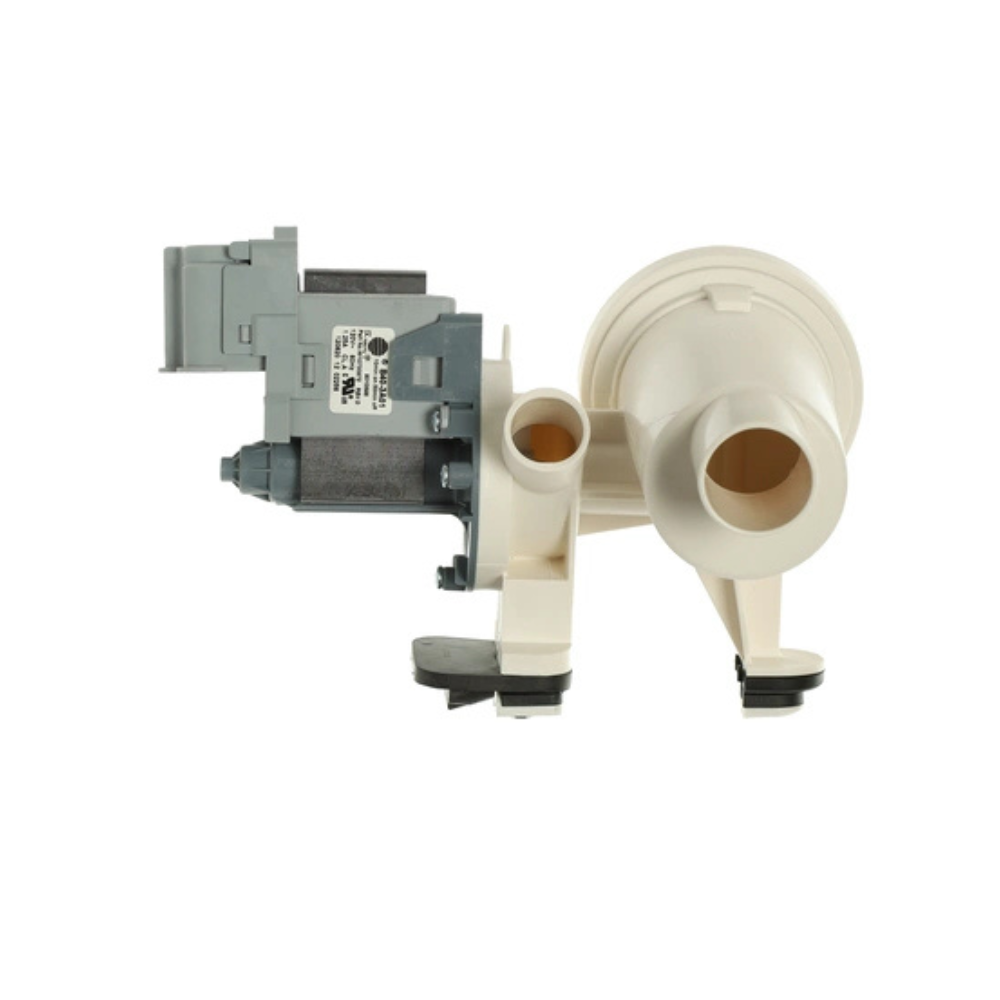

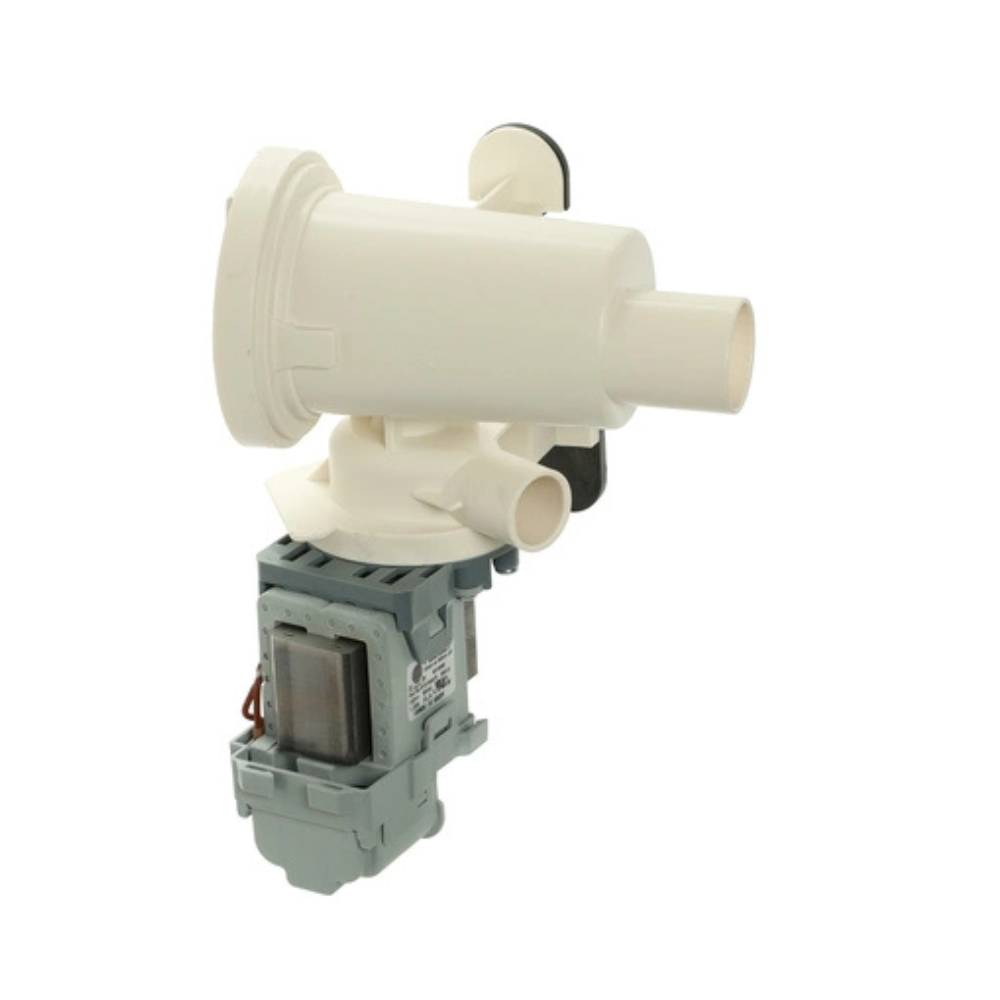

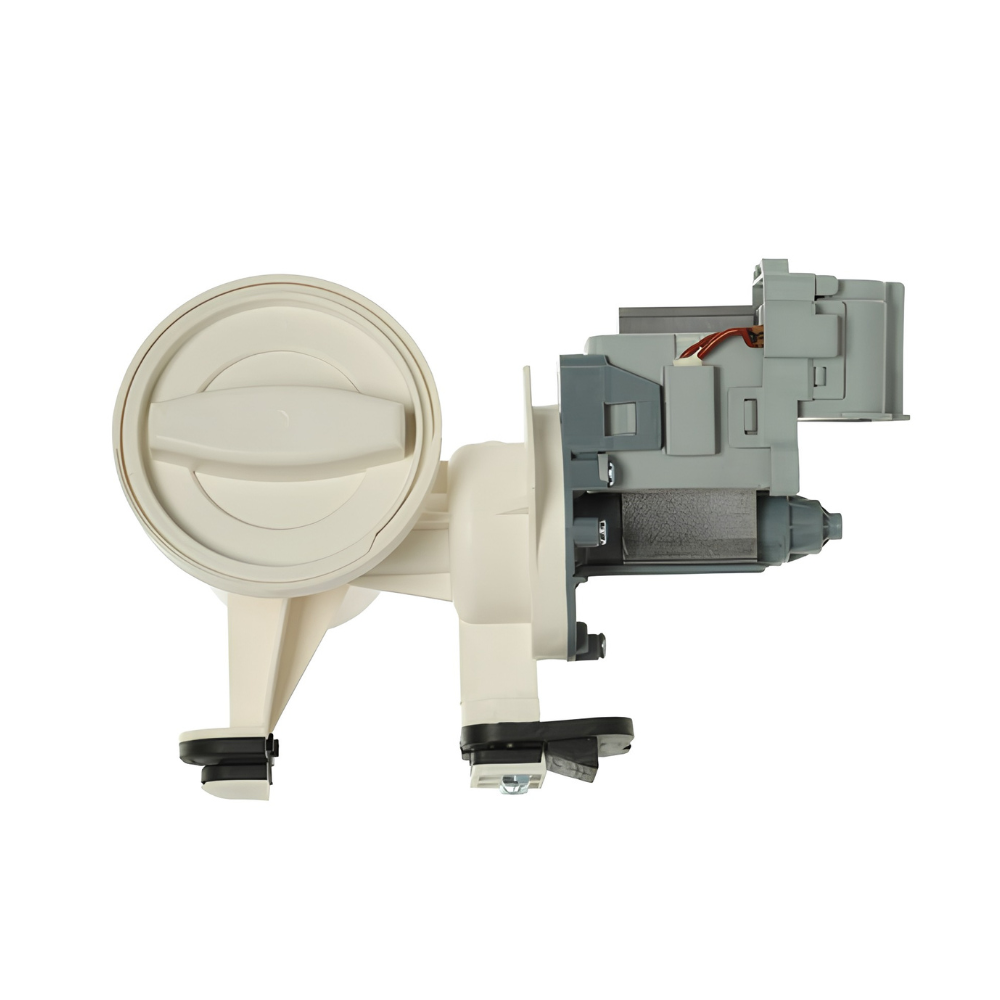

Genuine OEM WPW10730972 Washer Drain Pump
The Genuine OEM Whirlpool WPW10730972 is the drain pump assembly for select Whirlpool, Maytag, Kenmore and Inglis washers. The pump removes water from the washer during the drain portion of the cycle. It has two ports and includes a removable filter. When it fails, the washer may not drain or may leak.
This is the original Whirlpool part, not an aftermarket equivalent. It is sold individually. Check your model number before ordering.
Quick Answer
The Genuine OEM WPW10730972 Drain Pump replaces the drain pump on a compatible washer when it has failed. Replaces W10730972, W10130913, W10117829, W10183434, W10190647, W10190648, W10201457, 8540024, 8540025, 8540027, 8540028 and 8540996. Classic symptoms: the washer won't drain, or water leaks from the pump area.
Common Problems This Part Fixes
- Washer won't drain
- Water draining slowly or poorly
- Leaking from the pump
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This drain pump replaces or supersedes the following part numbers:
WPW10730972, W10730972, W10130913, 8540024, 8540025, 8540027, 8540028, 8540996, W10117829, W10183434, W10190647, W10190648, W10201457, WPW10730972VP, B40-3A01, AP6023956, AWP50633, EAP11757304, PD00025949, PS11757304
If your old pump shows a different number, contact our support team and we'll check whether it matches.
Compatibility
This drain pump is listed for Whirlpool, Maytag, Kenmore and Inglis washers, including these examples:
- Whirlpool WFW9200SQ10, WFW9400SWA10, WFW8500SR00, CET8000AQ1, CGT9000GQ0
- Maytag MHWZ400TQ00, MLE20PDAZW0, MLG20PDCWW0
- Kenmore 11046462501, 11047512601, 11047542603
Note: The models above are a sample of a much longer list, not a full list. Some models list the pump as an optional part, not one included with the washer. Check your full model number against your parts diagram, or contact our support team to verify fit before ordering.
Key Features
- Genuine OEM Whirlpool part, not an aftermarket equivalent
- Complete drain pump assembly with a removable filter
- Replaces twelve earlier Whirlpool pump part numbers
- Sold individually
Product Specifications
| Part Number |
WPW10730972 |
| OEM Part Number |
WPW10730972 |
| Part Type |
Washer Drain Pump |
| Condition |
Genuine OEM |
| Manufacturer |
Whirlpool |
| Quantity |
1 Pump |
| Application |
Select Whirlpool, Maytag, Kenmore and Inglis Washers |
Installation Notes
⚠️ Disconnect Power Before Installing Unplug the washer and wear work gloves. Remove the bottom front panel, and have a pan ready to catch the water left in the pump and hoses. Release the hose clamps with pliers, disconnect the hoses and the electrical connector, then remove the two mounting nuts or screws and slide the old pump out. Install the new pump, reconnect the hoses and wiring, and run a rinse cycle to check for leaks before you replace the panel.
Frequently Asked Questions
My washer won't drain. Is this the part I need?
It can be. Owners often find coins, hairpins and other small objects in the pump, so check the trap and pump for debris first. If the impeller has broken or the pump is noisy or hot to the touch, replace the pump.
Is this an OEM or aftermarket part?
This is a genuine OEM part from Whirlpool, not an aftermarket equivalent.
Is the filter sold separately?
No. The filter is part of the pump, so you replace the whole assembly if the filter needs replacing.
Will this fit my washer?
It is listed for many Whirlpool-built models, but the model list above is only a sample. Check your full model number against your parts diagram, or contact our support team and we'll verify it before you order.
