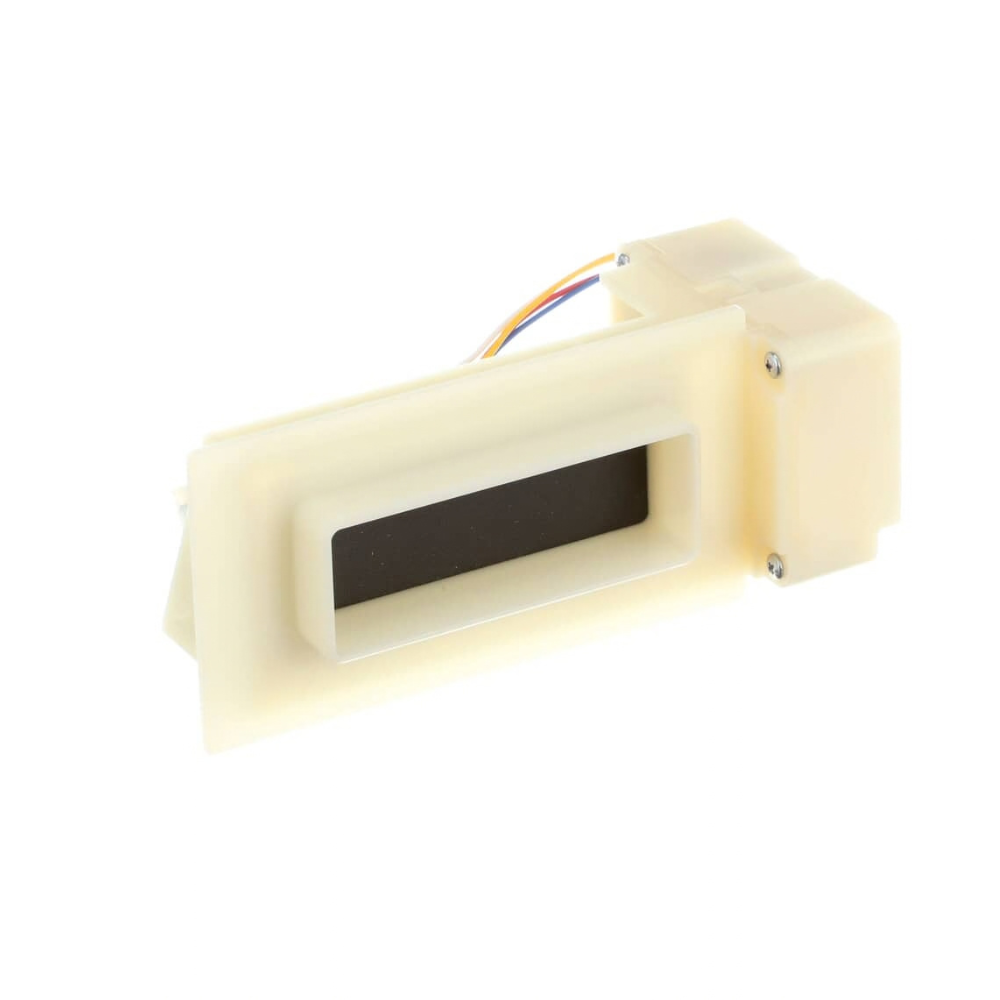

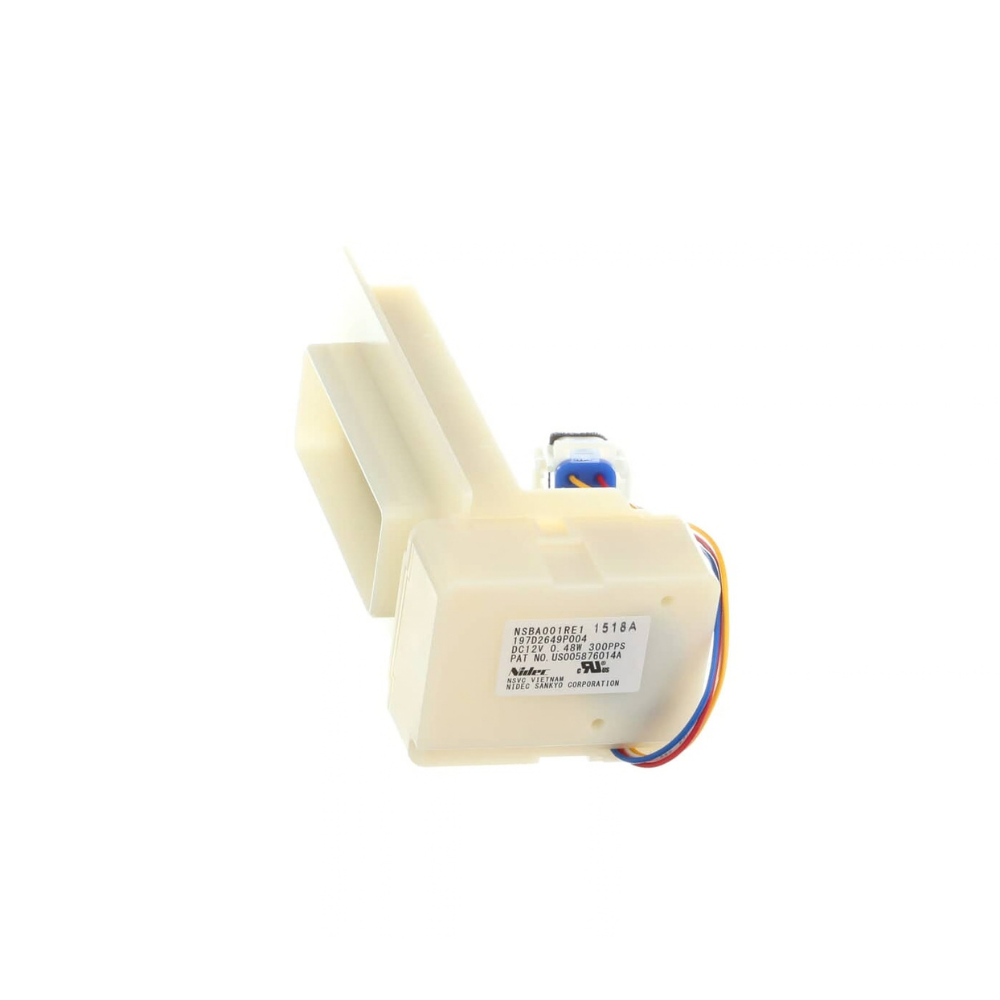

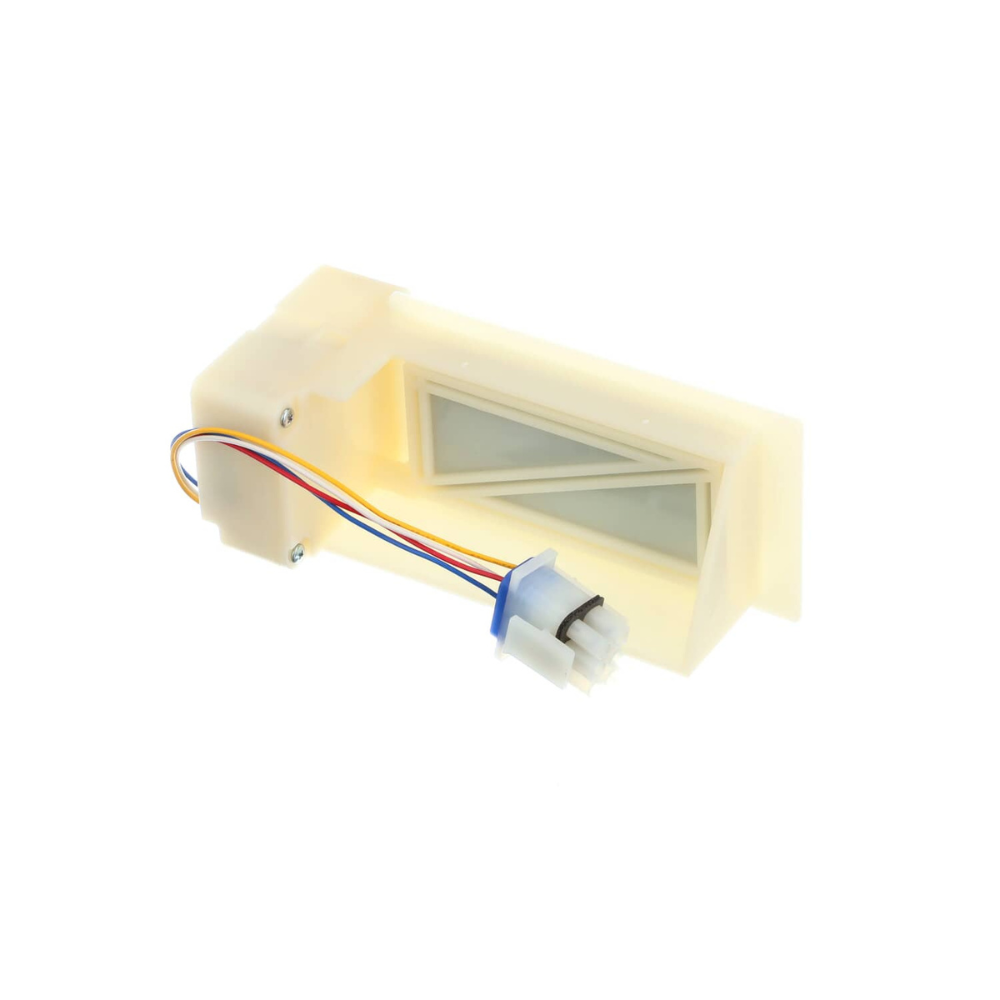

Genuine OEM WR60X27396 Refrigerator Air Damper Assembly
The WR60X27396 is a genuine OEM air damper assembly for GE refrigerators, including side-by-side and bottom-mount models. The damper is a motorized flap that opens and closes to direct cold air from the freezer into the fresh food compartment, which is how the refrigerator keeps the fresh food section at the right temperature. When it sticks open or closed, or its motor stops working, the compartments fall out of balance: the fresh food section can run too warm or too cold, frost can build up, and the damper may make noise as it moves.
This is a genuine OEM part from GE Appliances, not an aftermarket equivalent, so the fit and operation match the original. It supersedes the earlier WR31X20918 damper assembly.
Quick Answer
The Genuine OEM WR60X27396 Air Damper Assembly fixes a GE refrigerator whose fresh food section is too warm or too cold, or has uneven temperatures, frost buildup, or damper noise because the damper is stuck or has failed. Genuine OEM from GE Appliances. Classic symptom: the freezer is cold but the fresh food section is warm, or the fresh food section freezes items, even with normal settings.
Common Problems This Part Fixes
- Fresh food section too warm while the freezer stays cold
- Fresh food section too cold, freezing food
- Damper stuck open or closed, causing a temperature imbalance
- Unusual clicking or buzzing noises when the damper moves
- Frost or ice buildup that interferes with the damper
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This air damper assembly replaces the following part numbers:
WR60X27396, 4590355, WR09X10065, WR31X20918, WR9X10065, AGE29713, AP6280910, EAP12172988, PD00047584, PS12172988.
WR60X27396 is GE's current number for this damper, superseding WR31X20918. If your old damper or parts diagram shows WR31X20918, this is the matching replacement.
Compatibility
This damper assembly is listed for GE refrigerators, including:
- Side-by-side models such as ZISS360DNKSS, ZIS420NNEII, and ZISS480DPESS
- Bottom-mount models such as CFE26KP2NLS1, CDB36LP2RBS1, GDE21EGKARWW, and ZIC360NHDLH
Note: The model list above is only a sample, since one retailer lists over 150 compatible models. Confirm fit by matching the number on your old damper or your parts diagram against the Replaces list, or contact our support team with your model number and we'll verify before you order.
Key Features
- Genuine OEM GE damper assembly, not an aftermarket equivalent
- Motorized damper that regulates cold airflow from the freezer into the fresh food section
- Restores even temperatures between compartments
- Authorized by GE for refrigerators using flammable refrigerant such as R600a
- Supersedes the earlier WR31X20918
Product Specifications
| Part Number |
WR60X27396 |
| OEM Part Number |
WR60X27396 |
| Part Type |
Refrigerator Air Damper Assembly (Motorized) |
| Condition |
Genuine OEM |
| Manufacturer |
GE Appliances |
| Supersedes |
WR31X20918 |
| Application |
Select GE Refrigerators |
Installation Notes
⚠️ Unplug Power Before Installing Unplug the refrigerator before starting, and move perishable food to a cooler or another refrigerator so it stays safe during the repair. Following your model's service guide, remove the panels or covers needed to reach the damper, which sits in the air path between the freezer and the fresh food section. Note the position of the old damper, disconnect its wiring connector, and remove the fasteners holding it in place. Install the new damper in the same position, reconnect the connector, and replace the panels. Restore power and allow time for the temperatures to stabilize before judging the repair.
Frequently Asked Questions
My freezer is cold but the fresh food section is warm. Is this the part I need?
It can be. If the damper is stuck closed, not enough cold air reaches the fresh food section. Before replacing it, check that the vents aren't blocked by food and that frost isn't jamming the damper. A stuck or failed damper is a likely cause when those are clear.
My fresh food section is freezing my food. Could this be the damper?
Yes. A damper stuck open lets too much cold air in from the freezer, which can freeze items in the fresh food section.
My old damper is marked WR31X20918. Will this work?
Yes. WR31X20918 is on the Replaces list, and WR60X27396 is its current replacement. If you're unsure, contact our support team with your model number and we'll confirm.
Is this a genuine GE part?
Yes. This is a genuine OEM part from GE Appliances, not an aftermarket equivalent.
