XPARTCO 131763310 Washer Door Striker
The XPARTCO 131763310 is an aftermarket replacement door striker (also called a door strike or door catch) compatible with select Frigidaire, Kenmore, Electrolux, Crosley, Gibson, White-Westinghouse, Kelvinator, and Tappan front-load washers. The door striker is a small plastic tab mounted on the washer door that engages with the door lock assembly on the front of the washer when the door is closed — activating the door switch and allowing the washer to start, fill, and spin. When the striker breaks or wears down, the door will not properly activate the door lock, causing the washer not to start, not to fill, or to display a door-related error code.

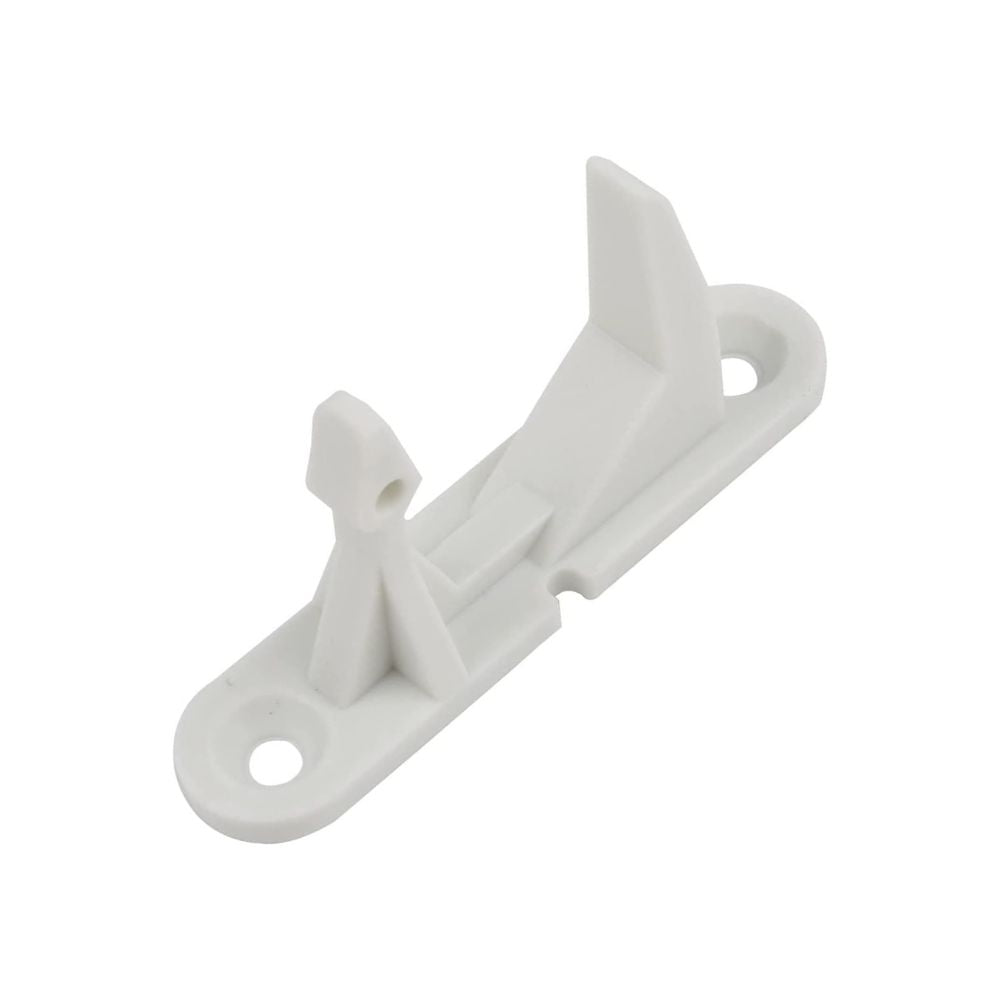

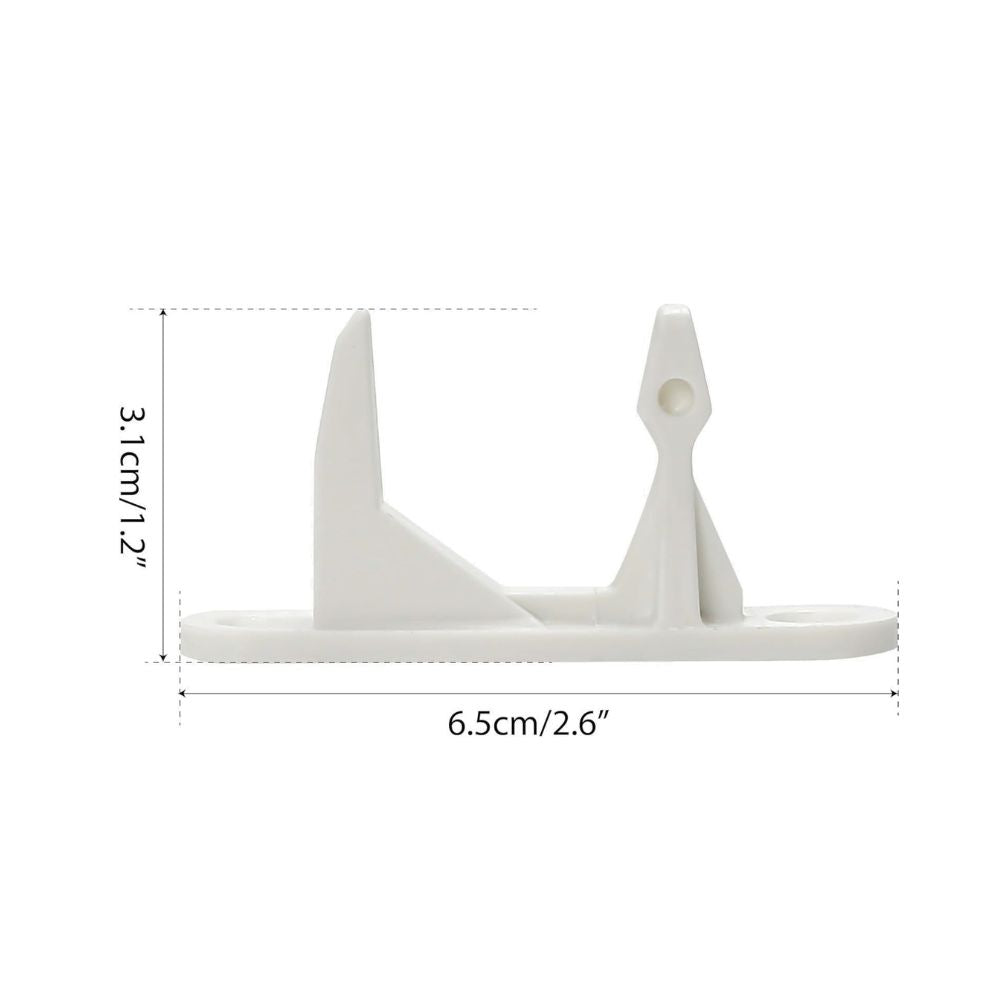

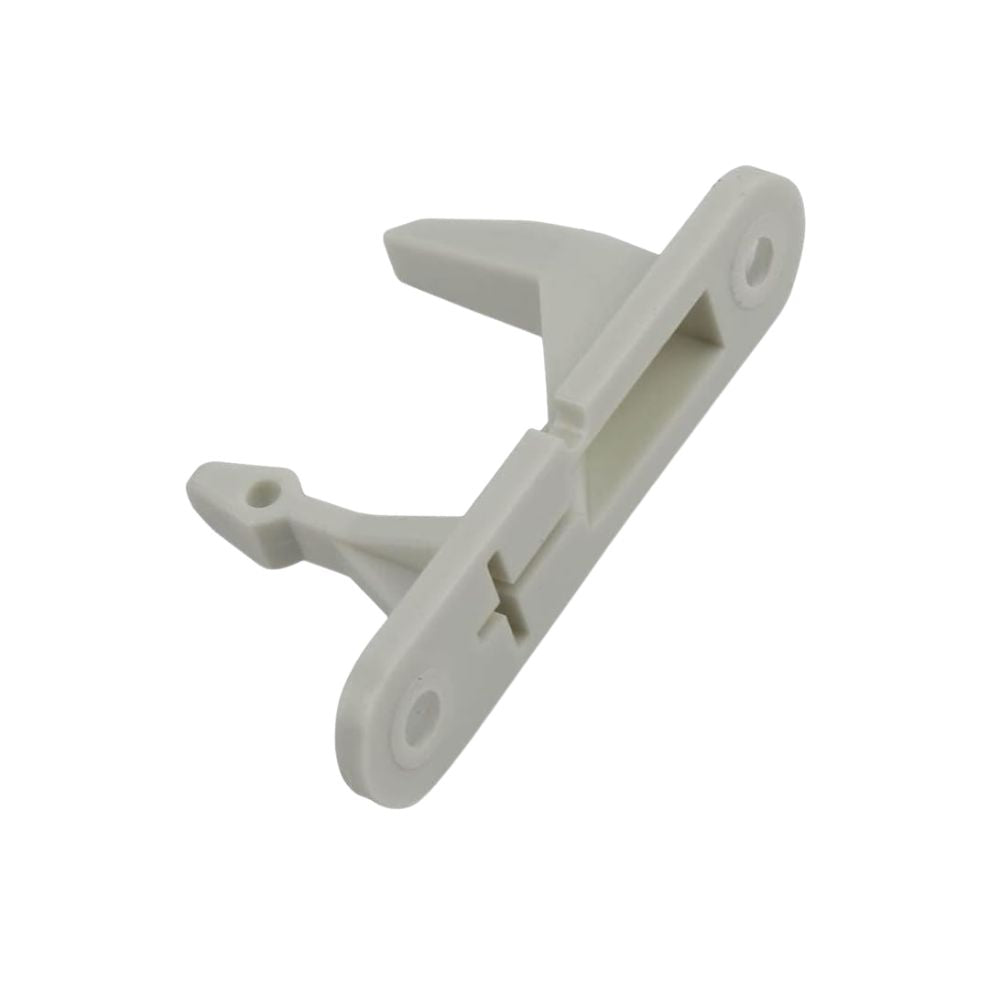

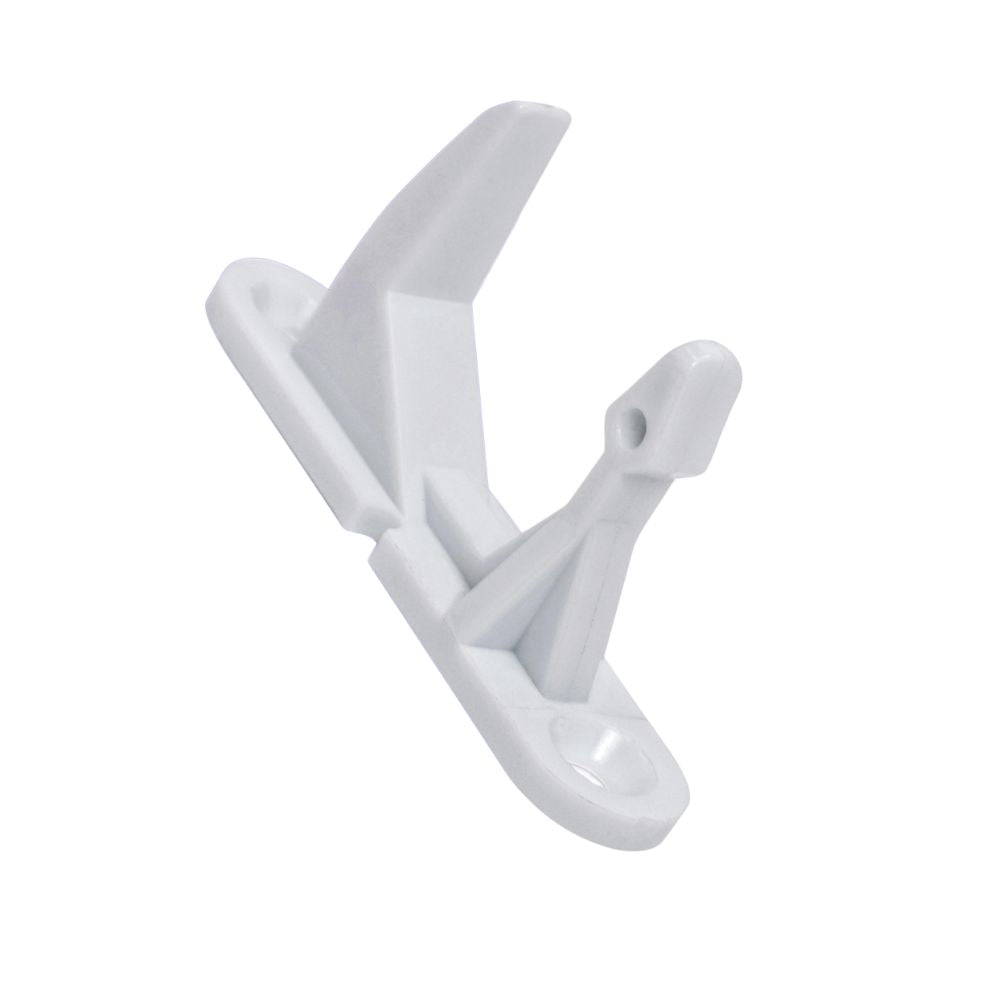

Made from durable white plastic, this striker measures approximately 1-1/4" L x 9/16" W x 2-9/16" H with approximately 2 inches between mounting holes (center to center). It directly replaces 131763300, 134456600, 1032664, LP3310, AP3580441, and several additional cross-reference numbers. Sold individually. Installs in under 15 minutes with a Phillips screwdriver.
Quick Answer
The XPARTCO 131763310 Washer Door Striker fixes Frigidaire-platform front-load washers where the door won't activate the door lock, the washer won't start, won't fill, leaks from the door, or shows a door-related error code. White plastic, approx. 1-1/4" L x 9/16" W x 2-9/16" H, ~2" between mounting holes. Sold individually. Phillips screwdriver only — installs in under 15 minutes. Compatible with Frigidaire, Kenmore, Electrolux, Crosley, Gibson, and more.
Common Problems This Part Fixes
- Washer door will not properly latch or activate the door lock when closed
- Washer will not start — door switch not being triggered by the striker
- Washer will not fill with water — door lock not engaged
- Washer will not spin — door lock fault preventing cycle completion
- Water leaking from the door area due to door not sealing properly
- Door-related error codes displayed on compatible models
- Broken, cracked, or missing door striker visible on the washer door
Replaces Part Numbers
This door striker directly replaces the following OEM and cross-reference part numbers:
131763310, 134456600, 131763302, 1032664, 131763300, AH890617, EA890617, AP3580441, PS890617, AFR14210, PD00000391, EAP2378364, AP4508273, PS2378364, WH10X10004, 824421, AH269392, EA269392, AP2621447, PS269392.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This door striker is compatible with select front-load washers from the following brands:
- Frigidaire front-load washers (ATF, ATFB, BLTF, GLTF, LTF, FTF, FAFW, FRFW series and more)
- Kenmore / Sears front-load washers (select Frigidaire-built models)
- Electrolux front-load washers (select models)
- Crosley front-load washers (CFW, CLCE series)
- Gibson front-load washers (GTF series)
- White-Westinghouse front-load washers
- Kelvinator front-load washers
- Tappan front-load washers
Note: The 131763310 (white) and 131763302 (gray) are interchangeable and functionally identical — the only difference is color. Either part will work as a replacement regardless of which color was originally installed.
Key Features
- Engages with the door lock assembly to activate the door switch, allowing the washer to start, fill, and run
- Critical safety component — washer will not operate without a properly functioning door striker
- Durable white plastic construction — strong and wear-resistant for long service life
- Dimensions: approx. 1-1/4" L x 9/16" W x 2-9/16" H; ~2" between mounting holes (center to center)
- Sold individually — one striker per order
- Direct replacement for 131763300, 134456600, 1032664, and LP3310
- Compatible with Frigidaire, Kenmore, Electrolux, Crosley, Gibson, White-Westinghouse, Kelvinator, and Tappan washers
- Aftermarket replacement built to OEM-equivalent quality standards
- Quick DIY repair — installs in under 15 minutes with a Phillips screwdriver only
Product Specifications
| Part Number |
131763310 |
| Part Type |
Washer Door Striker (Door Strike / Door Catch) |
| Condition |
Aftermarket Replacement |
| Application |
Front-Load Washers |
| Dimensions |
Approx. 1-1/4" L x 9/16" W x 2-9/16" H |
| Mounting Hole Spacing |
Approx. 2" center to center |
| Color |
White |
| Material |
Plastic |
| Sold As |
Single striker |
| Compatible Brands |
Frigidaire, Kenmore, Electrolux, Crosley, Gibson, White-Westinghouse, Kelvinator, Tappan |
Installation Notes
⚠️ Unplug Washer Before Starting Disconnect power before beginning any repair. Open the washer door and locate the door striker — it is the small plastic tab mounted on the inside of the door, typically near the top or center of the door panel. Remove the two Phillips screws securing the old striker to the door. If the striker is broken, the screws may already be loose or missing. Align the new 131763310 striker with the mounting holes in the door and secure it with the two Phillips screws. Close the door to confirm it clicks firmly into the door lock assembly. Restore power and run a short cycle to verify the washer starts, fills, and runs normally. Tools needed: Phillips screwdriver only.
Frequently Asked Questions
What does the washer door striker do?
The door striker is the small plastic tab on the washer door that engages with the door lock assembly mounted on the front of the washer when the door is closed. As the door closes, the striker pushes into the door lock, activating the door switch — a signal to the control board that the door is securely closed. The washer will not start, fill, or spin unless the door switch is activated by the striker. A broken or worn striker means the door lock is never properly engaged, so the washer appears to be in a constant "door open" state even when the door is physically shut.
What is the difference between the 131763310 and 131763302 door strikers?
Both are Frigidaire-platform door strikers, they are different color and interchangeable. The 131763310 is used on older Frigidaire front-load washer models (ATF, GLTF, FAFW series and others). The 131763302 is a gray color used on newer Frigidaire and Electrolux models. Always compare your existing striker's shape and dimensions to confirm, or contact our support team with your model number.
Should I also replace the door lock assembly when replacing the striker?
Not necessarily — in most cases the striker is the only part that needs replacement. The striker is a small plastic tab that takes repeated impact every time the door is closed, making it the most commonly worn part in the door latch system. The door lock assembly (131763202) is more durable and less prone to failure. Inspect the door lock for any cracks, burn marks, or a latch that does not spring back after pressing — if it appears damaged, replace it as well. If the lock looks intact, the 131763310 striker alone should resolve the issue.
My washer door closes but the washer still won't start — is it the striker?
It may be. If the striker is cracked, worn, or broken, it may appear to engage the door lock but not push far enough into the lock assembly to fully activate the door switch. In other cases, a fully intact striker may not be the cause — the door lock assembly itself (131763202) or the door latch on the frame side may also be the culprit. Visually inspect the striker first — if it is visibly broken, replace it. If it appears intact, the issue may be with the door lock assembly or wiring.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Frigidaire OEM part, but is manufactured from durable plastic to match the dimensions and function of the original 131763310 door striker.
