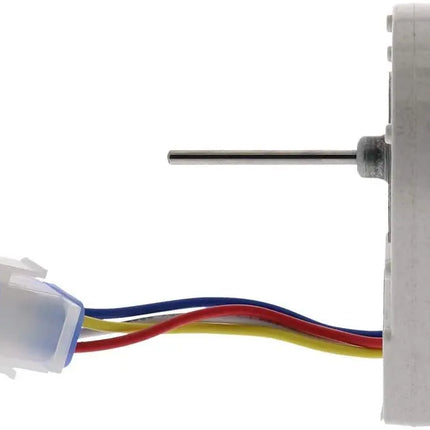

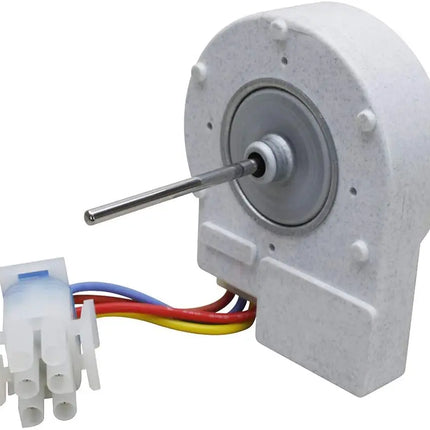

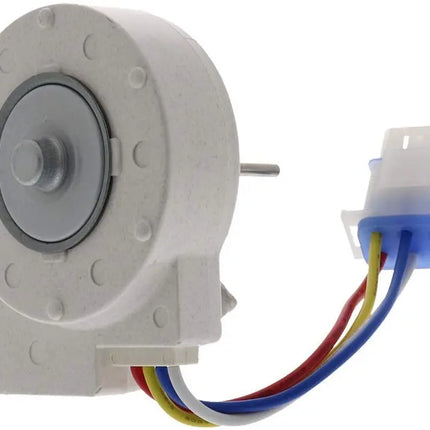

XPARTCO 241509402 Refrigerator Evaporator Fan Motor – Replaces 809069220 – Compatible with Frigidaire, Electrolux, and Kenmore Refrigerators
Product Description
Restore proper airflow and consistent cooling with the XPARTCO 241509402 Refrigerator Evaporator Fan Motor replaces 809069220. This Evaporator Fan Motor is a replacement part for specific Electrolux, Frigidaire refrigerator models. It is responsible for circulating air throughout the refrigerator’s interior to maintain consistent cooling and optimal temperature distribution. This motor works to move air over the evaporator coils, aiding in the cooling process and ensuring that the refrigerator and freezer compartments remain at the desired temperature.
Replaces Part Numbers
809069220, 241509402, 1196443, 241509401, 7241509402, AH1526073, AP3958808, PD00091055, OEM31753846, EA1526073, PS1526073, AP7938461, PS1526073.
Compatibility
This replacement evaporator fan motor fits select Frigidaire, Electrolux, and Kenmore refrigerators.
Example compatible models include (but are not limited to):
Frigidaire FFHS2611PFCA, LFSS2612TF0
Electrolux EI23BC65KS6
Kenmore 253.70413411
Always verify your refrigerator’s model number before ordering.
Contact our support team if you’re unsure.
✅ Key Features
-
🔄 Aftermarket Replacement – Designed to match OEM airflow and electrical performance
-
❄️ Restores Proper Cooling – Circulates cold air evenly throughout compartments
-
🔇 Quiet Operation – Balanced motor reduces vibration and noise
-
💰 Cost-Effective Alternative – Reliable performance without OEM pricing
-
🛡️ Fixes Common Issues – Solves warm fridge/freezer, frost buildup, or fan noise
📐 Product Specification
-
Part Number: 241509402
-
Component Type: Refrigerator Evaporator Fan Motor
-
Voltage: 120V AC
-
Mounting: Direct-fit evaporator housing installation
-
Rotation: OEM-matched direction
-
Compliance: Built to OEM-equivalent quality standards (not OEM)
🛠️ Installation Notes
Tools Needed: Phillips screwdriver, nut driver
⚠️ Safety First: Unplug the refrigerator before servicing to prevent electrical shock.
Steps:
-
Disconnect power and remove freezer shelves and rear panel.
-
Locate the evaporator fan motor assembly.
-
Disconnect the wiring harness and remove mounting screws.
-
Install the new XPARTCO 241509402 fan motor in the same position.
-
Reconnect wiring, reinstall panels and shelves.
-
Restore power and confirm proper airflow.
⏱️ Time Required: 20–30 minutes
