XPARTCO 285753A Washer Motor Coupler

Description

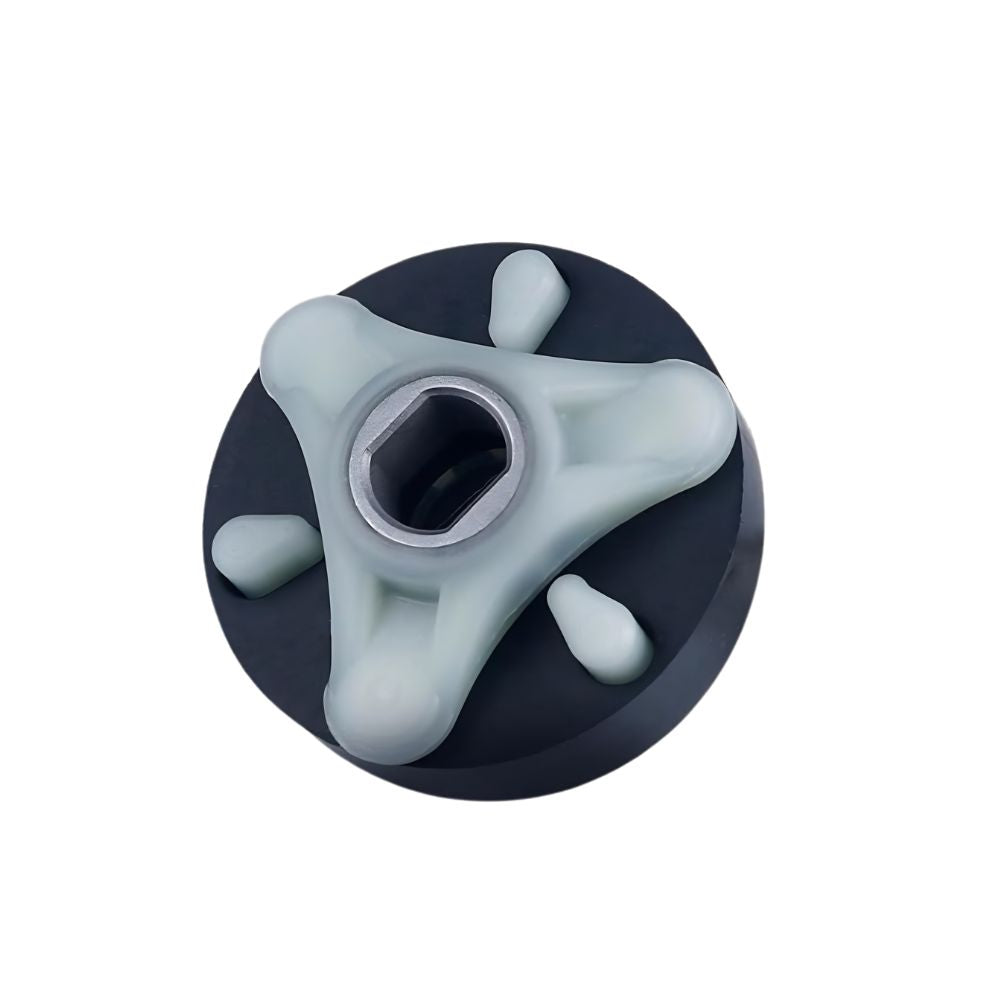

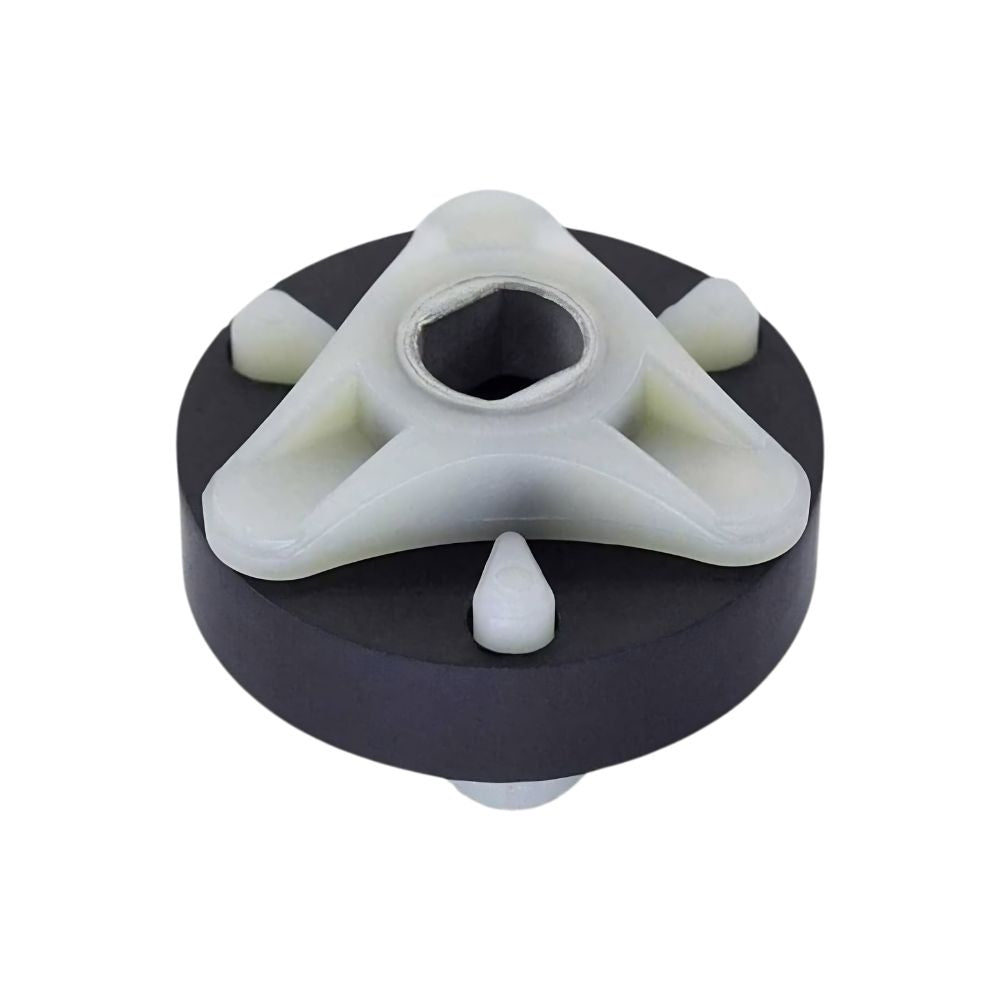

XPARTCO 285753A Washer Direct Drive Motor Coupler

The XPARTCO 285753A is an aftermarket replacement direct drive motor coupler (also called a motor coupling or drive coupler) compatible with a wide range of Whirlpool-family top-load washers including Whirlpool, Kenmore, KitchenAid, Maytag, Amana, Roper, Admiral, Estate, Crosley, Inglis, and Magic Chef. The motor coupler connects the drive motor shaft to the transmission — transferring the motor's power to the transmission to drive the agitator and spin the drum during wash and spin cycles. It is a deliberate weak point in the drivetrain: if the washer is overloaded, the coupler breaks apart first, protecting the far more expensive motor and transmission from damage.

This is the updated 285753A design with metal sleeves for added strength — it replaces all previous coupler styles and versions including the original 285753, 280152, 285743, and 285140. This kit includes 2 plastic coupling halves and 1 rubber isolation dampener. Dimensions approximately 2" L x 1-1/4" W x 2" H. Fits direct-drive top-load washers only — not compatible with belt-drive machines. Installs in 30–45 minutes with basic hand tools.

Quick Answer

The XPARTCO 285753A Washer Motor Coupler fixes top-load washers that fill and drain normally but will not agitate or spin. The motor coupler connects the motor to the transmission — when it breaks, the motor runs but neither the agitator nor the drum moves. Kit includes 2 plastic coupling halves and 1 rubber dampener. Updated design with metal sleeves. Replaces all previous coupler versions including 285753, 280152, 285743, 285140. Compatible with Whirlpool, Kenmore, KitchenAid, Maytag, Amana, Roper, Admiral, and more direct-drive top-load washers.

Common Problems This Part Fixes

  • Washer fills with water and drains but will not agitate or spin
  • Motor runs (you can hear it) but agitator and drum do not move
  • Washer spins slowly or incompletely — clothes still very wet after spin cycle
  • Loud humming or buzzing from the motor area without agitation or spin
  • Burning rubber or plastic smell during the wash or spin cycle
  • Washer shakes excessively — broken coupler causing uneven power transfer
  • Broken plastic or rubber pieces visible inside the bottom of the washer cabinet

Replaces Part Numbers

This motor coupler directly replaces the following OEM and cross-reference part numbers:

285753A, 1195967, 21003, 280152, 285140, 285743, 285753, 285753AVP, 3352470, 3363664, 3364002, 3364003, 62672, 62693, 661560, 80008, 8559748, AWP39583, PD00002353, AH1485646, EAP1485646, EA1485646, TJ285753, ER285753, AP3963893, PS1485646.

The 285753A replaces all previous motor coupler styles and versions. If your parts diagram shows any of the older numbers above, the 285753A is the correct current replacement.

Compatibility

This motor coupler is compatible with select direct-drive top-load washers from the following brands:

  • Whirlpool top-load washers (direct drive — no belt)
  • Kenmore / Sears top-load washers — 70 series, 80 series, 90 series, and 110 series (Whirlpool-built)
  • KitchenAid top-load washers
  • Maytag top-load washers (direct drive models)
  • Amana top-load washers
  • Roper top-load washers
  • Admiral top-load washers
  • Estate top-load washers
  • Crosley top-load washers
  • Inglis top-load washers
  • Magic Chef top-load washers

Important: The 285753A is for direct-drive top-load washers only — machines where the motor connects directly to the transmission without a belt. It is not compatible with front-load washers or older belt-drive top-load washers. If you can see a drive belt inside your washer cabinet, this is not the correct part.

Key Features

  • Connects the drive motor shaft to the transmission — transfers motor power to drive the agitator and spin drum
  • Intentional sacrificial part — designed to break before the motor or transmission during overload, saving far more expensive components
  • Updated 285753A design with metal sleeves — stronger than original all-plastic versions; replaces all previous coupler styles

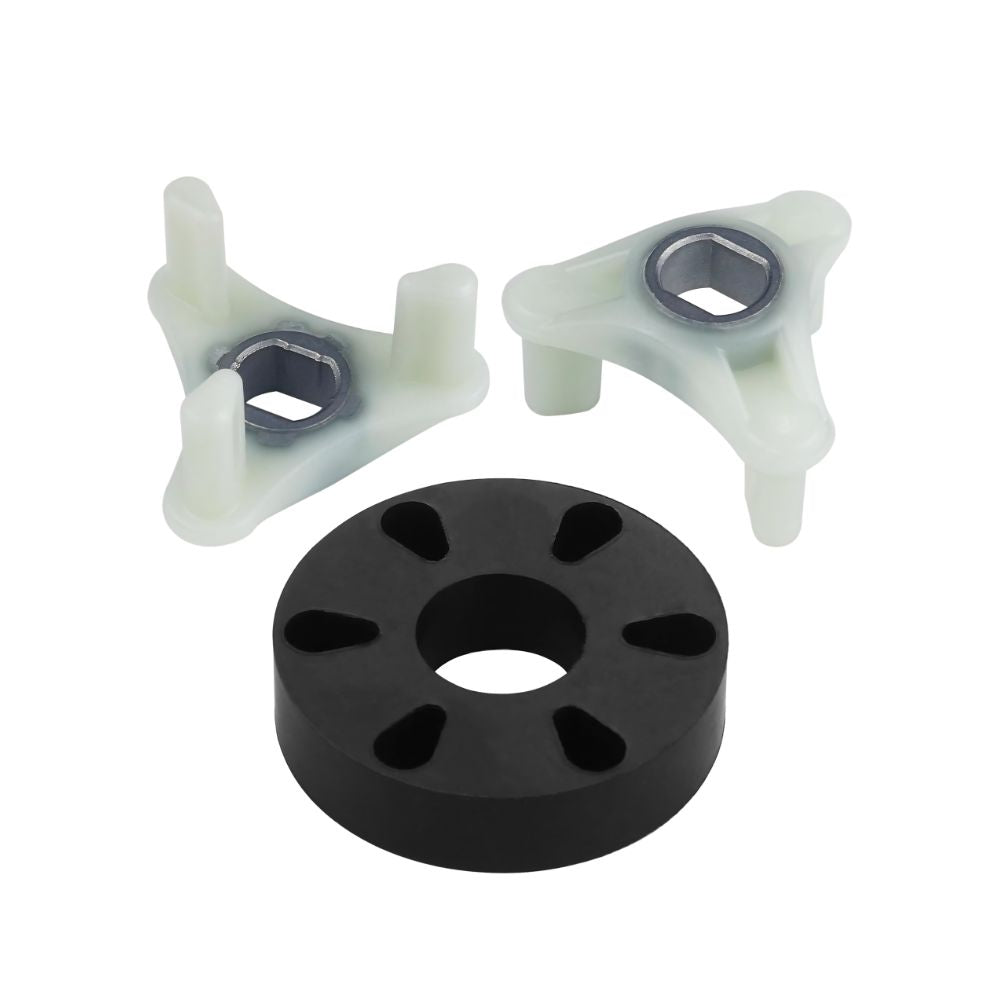

  • Kit includes 2 plastic coupling halves and 1 rubber isolation dampener — complete assembly

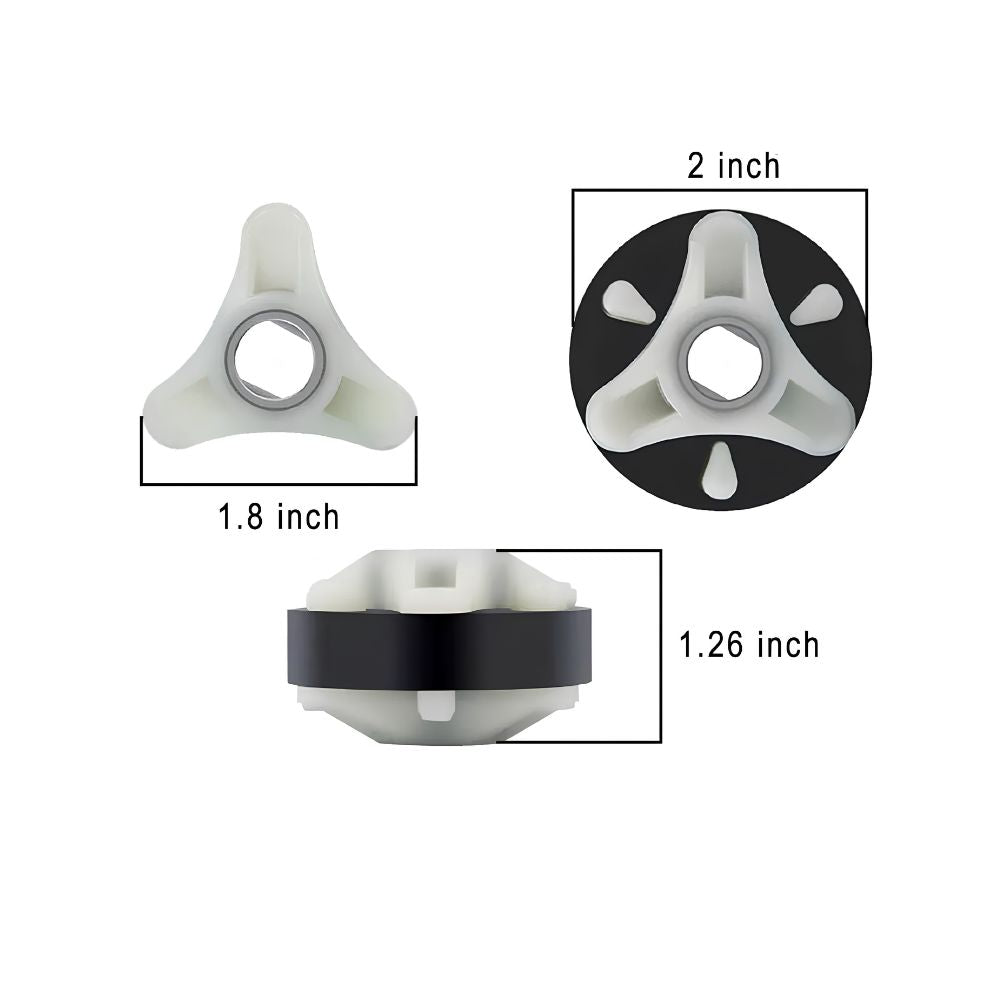

  • Dimensions: approximately 2" L x 1-1/4" W x 2" H
  • Compatible with Whirlpool, Kenmore, KitchenAid, Maytag, Amana, Roper, Admiral, Estate, Crosley, Inglis, and Magic Chef direct-drive washers
  • Replaces all previous coupler versions including 285753, 280152, 285743, and 285140
  • Aftermarket replacement built to OEM-equivalent quality standards
  • Cost-effective DIY repair — typically under $15 and 30–45 minutes of work

Product Specifications

Part Number 285753A
Part Type Washer Direct Drive Motor Coupler (Motor Coupling Kit)
Condition Aftermarket Replacement
Application Direct-Drive Top-Load Washers (no belt)
Dimensions Approx. 2" L x 1-1/4" W x 2" H
Color Black / Off-White
Material Rubber / Plastic / Metal (metal sleeve inserts)
Kit Includes 2 plastic coupling halves, 1 rubber isolation dampener
Compatible Brands Whirlpool, Kenmore, KitchenAid, Maytag, Amana, Roper, Admiral, Estate, Crosley, Inglis, Magic Chef

Installation Notes

⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off the water supply before beginning. Remove the washer's cabinet by releasing the top panel clips and removing the front panel screws — the motor and transmission are at the bottom of the machine. The motor coupler is a three-piece assembly between the motor shaft and the transmission input shaft. Pull the motor forward to release it from the mounting clips. The broken coupler pieces will likely fall out at this point — inspect the motor shaft and transmission shaft for any remaining plastic debris and clear it. Press the new rubber dampener onto the motor shaft coupling half first, then onto the transmission shaft coupling half, and snap the motor back into the mounting clips. Verify both coupler halves are seated securely and the rubber dampener is centered between them. Reassemble the front panel and top panel. Restore power and run a short cycle to confirm the agitator and spin function normally. Work gloves recommended — sharp sheet metal edges inside the cabinet. Tools needed: Phillips screwdriver, 1/4" nut driver, flat-head screwdriver, work gloves.

Frequently Asked Questions

What does the motor coupler do?

The motor coupler is a three-piece assembly — two plastic coupling halves and a rubber dampener — that connects the drive motor shaft to the transmission input shaft in direct-drive washing machines. The motor spins the coupler, which transfers that rotation to the transmission, which in turn drives the agitator and drum. The rubber dampener absorbs shock and vibration between the rigid motor and transmission shafts during direction changes. The coupler is intentionally designed as the weakest link in the drivetrain — if the washer is overloaded or the transmission seizes, the coupler breaks first to protect the far more expensive motor and transmission from damage.

My washer fills and drains but won't agitate or spin — is the motor coupler the cause?

Yes — this is the classic symptom of a broken motor coupler. Because the pump is typically driven directly by the motor before the coupler connection, a broken coupler allows the motor to run and the pump to drain normally, but neither the agitator nor the spin drum receives any power. If you can hear the motor running but nothing moves, open the washer cabinet and inspect the coupler — you will likely find broken plastic pieces at the bottom of the cabinet near the motor and transmission.

Why does the motor coupler break?

The most common cause is overloading — packing too many heavy items into the washer creates enough mechanical resistance that the coupler snaps rather than allowing the motor to be damaged. Other causes include a worn or seized transmission, a worn motor, normal wear over many years of use, or a single sudden jam caused by a foreign object. If your coupler breaks a second time shortly after replacement, inspect the transmission for signs of wear or binding — a stiff or seized transmission will continue to break new couplers.

What is the difference between 285753 and 285753A?

The 285753A is the updated current version that superseded the original 285753. The A version incorporates metal sleeve inserts in the plastic coupling halves for improved strength and durability compared to the original all-plastic design. The 285753A replaces all previous versions — including 285753, 280152, 285743, and 285140 — and is the correct part to order regardless of which older number is listed in your washer's parts diagram.

Is this an OEM or aftermarket part?

This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured from rubber, plastic, and metal to match the dimensions and performance of the original 285753A motor coupler.

Shop With Confidence

A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.

✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
