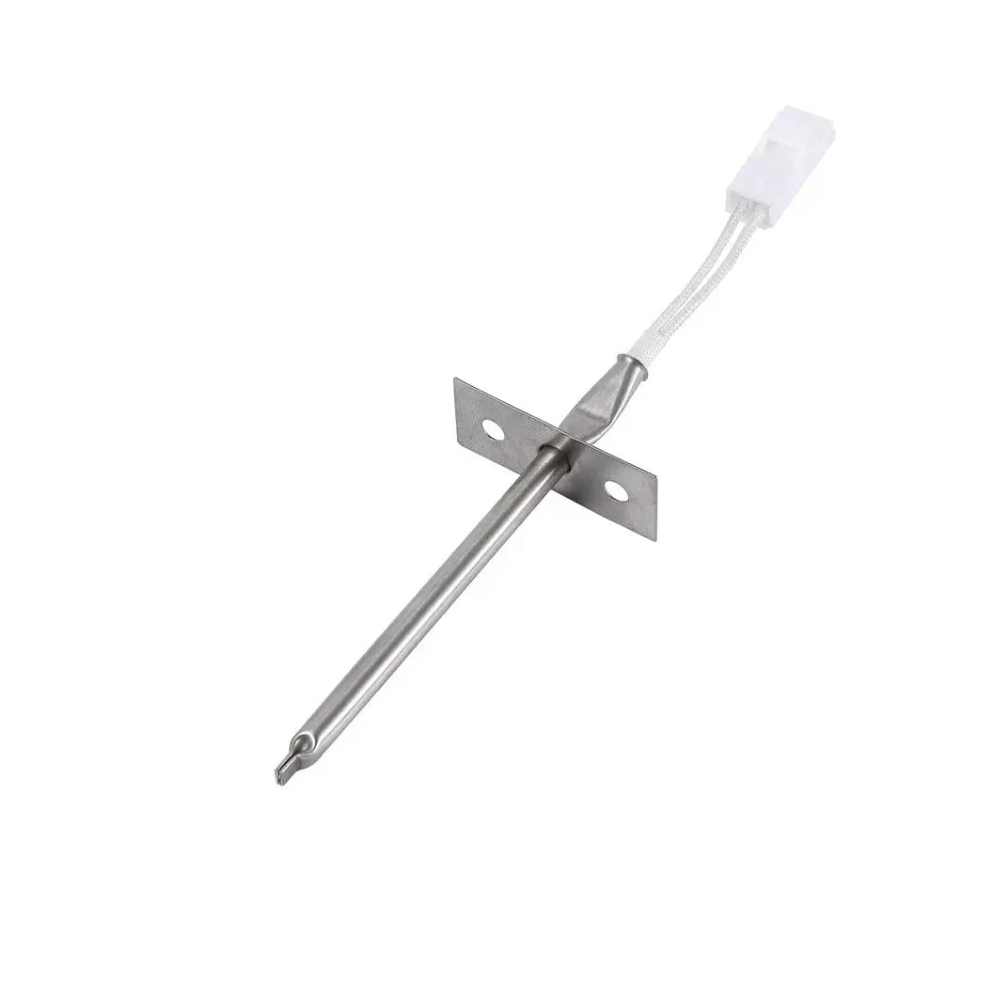

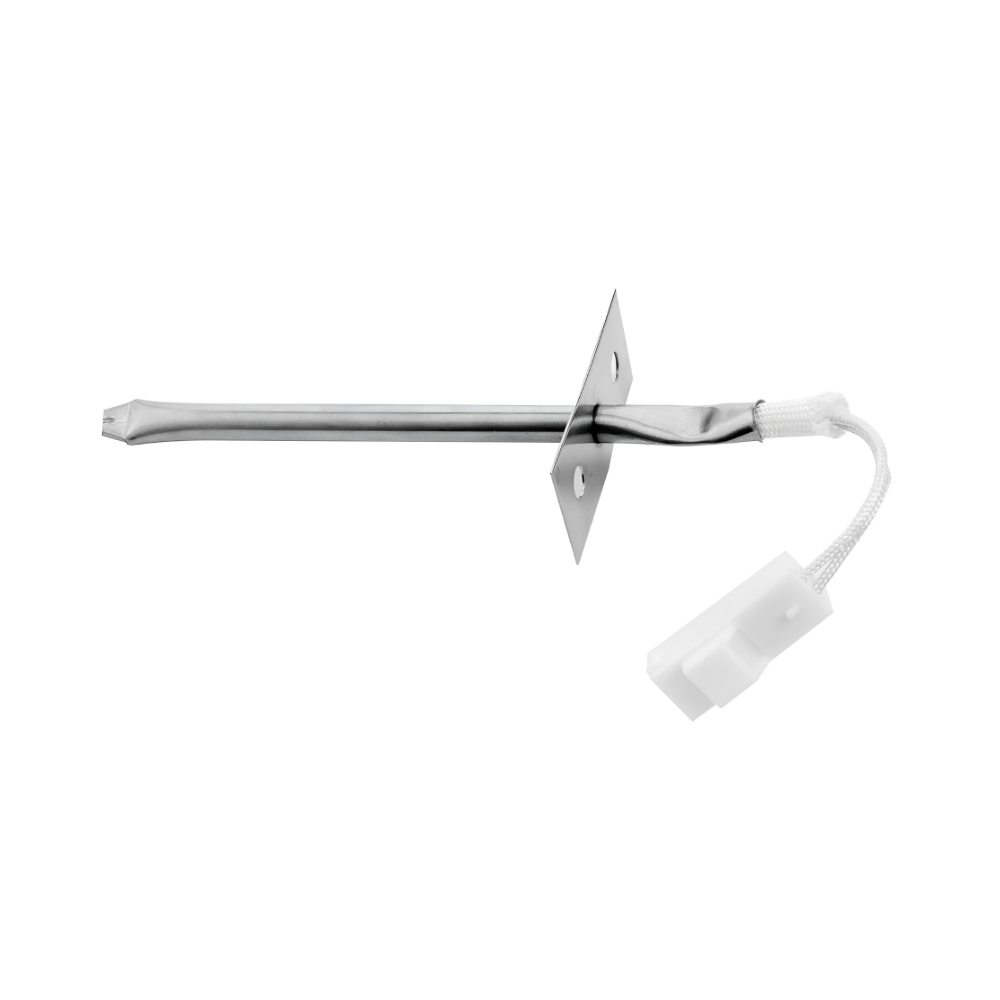

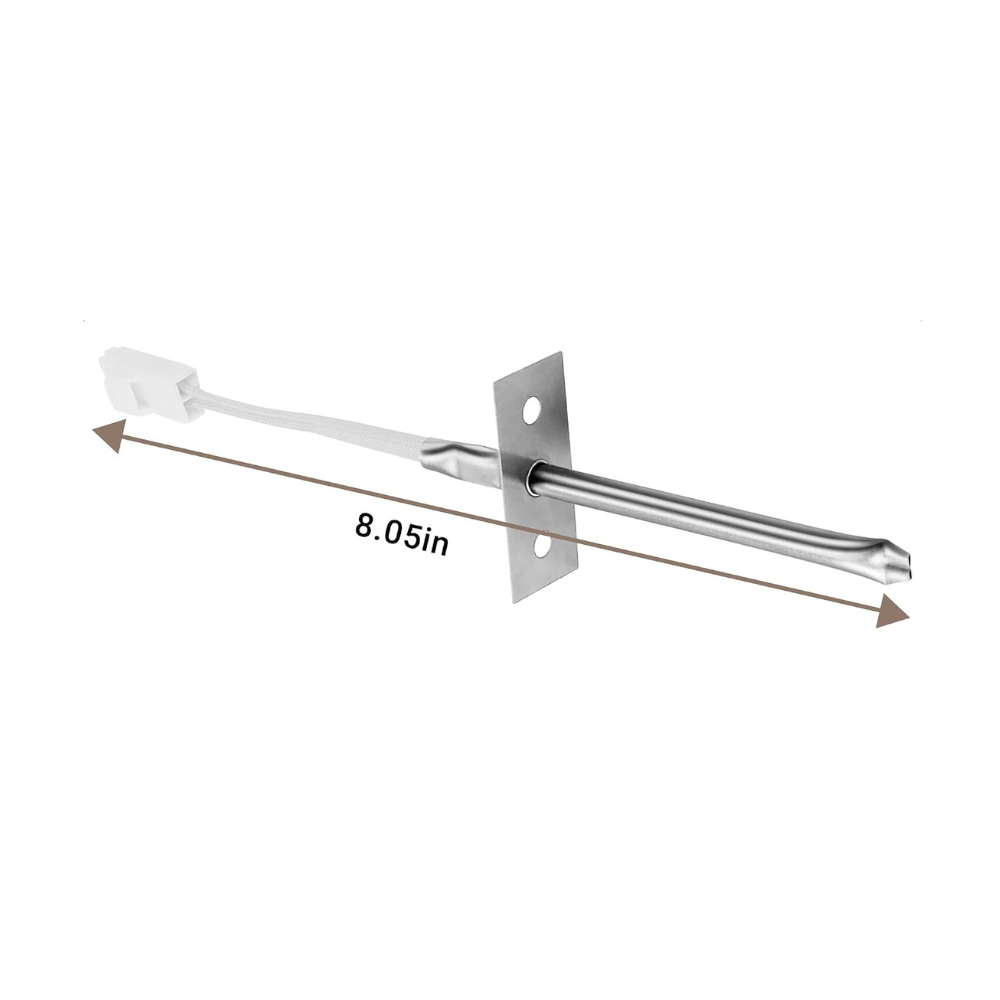

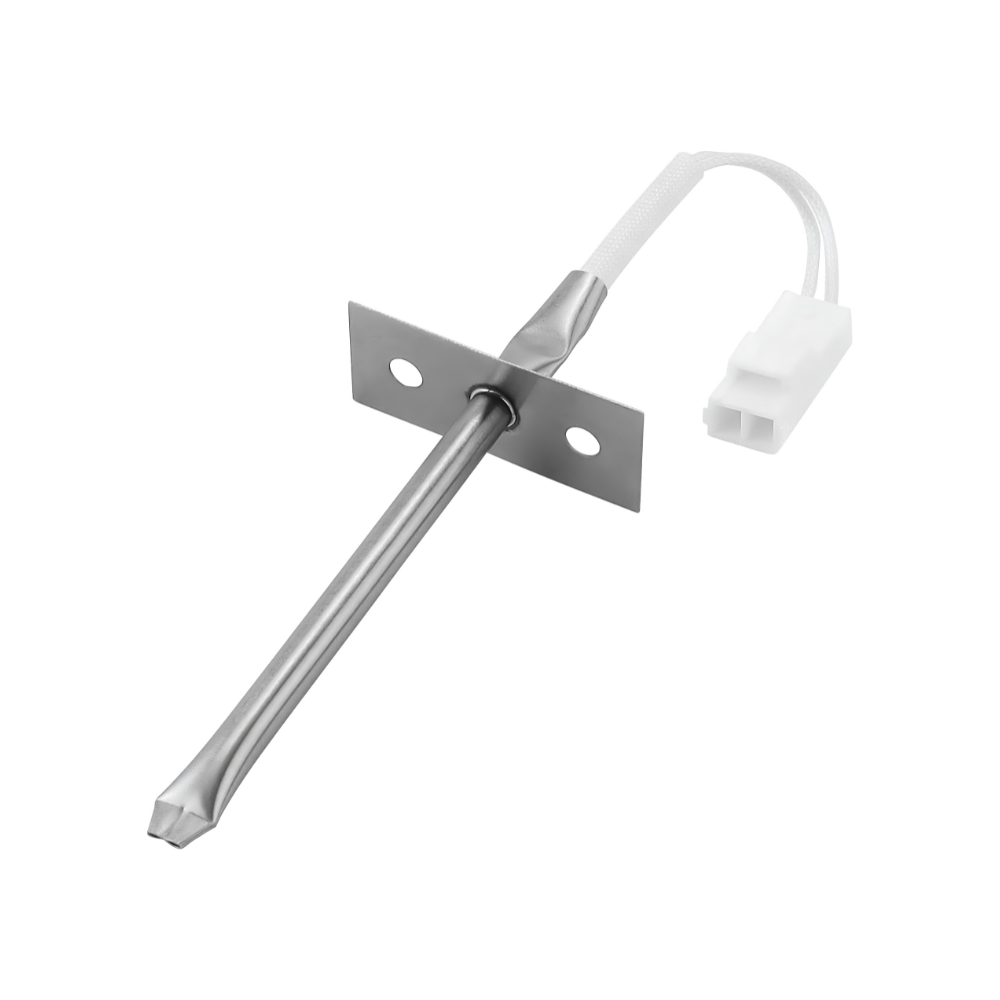

XPARTCO 316233903 Oven Temperature Sensor
The XPARTCO 316233903 is an aftermarket replacement oven temperature sensor (probe), made to replace Frigidaire part 316233903, for select Frigidaire, Kenmore, Tappan, Crosley and White-Westinghouse gas and electric ranges. The sensor constantly monitors the temperature inside the oven and sends signals to the control board, which uses them to hold the set temperature for baking, roasting and broiling. When it fails, the oven may not heat properly, may not hold temperature, or may run too hot.
This is an aftermarket replacement from XPARTCO, not a genuine Frigidaire part. It is sold individually. Check your model number before ordering, and compare the sensor's plug with your old one, because connectors can differ.
Quick Answer
The XPARTCO 316233903 Oven Temperature Sensor replaces the oven sensor probe on a compatible range when it has failed. Replaces 316217008, 316233900 and 316233902. Classic symptoms: little or no heat when baking, uneven heating, an oven that runs too hot, or an oven that won't start.
Common Problems This Part Fixes
- Little or no heat when baking
- Oven not heating evenly
- Oven running too hot
- Oven won't start
- Inaccurate oven temperature
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This oven temperature sensor is made to replace the following Frigidaire part numbers:
316233903, 316217008, 316233902, 316233900, AFR16108, AP5998652, OEM17995965, PD00027614, PS11731754
If your old sensor shows a different number, contact our support team and we'll check whether it matches.
Compatibility
This oven temperature sensor is listed for Frigidaire, Kenmore, Tappan, Crosley and White-Westinghouse gas and electric ranges, including these examples:
- Frigidaire CFEF3043RSD, CFEF3043RSC, CWEF3007TWB, FFLF3049SSB, FFGF3052TSA, TGF328GSF
- Crosley CRG3150SSA, CRG3150SSB, CCRE3530LWG
- White-Westinghouse WWEF3001TWA, WWGF3008TWA, WWGF3008TWB
- Kenmore 79073033314, 79073033315, 79073033316, 79061750100

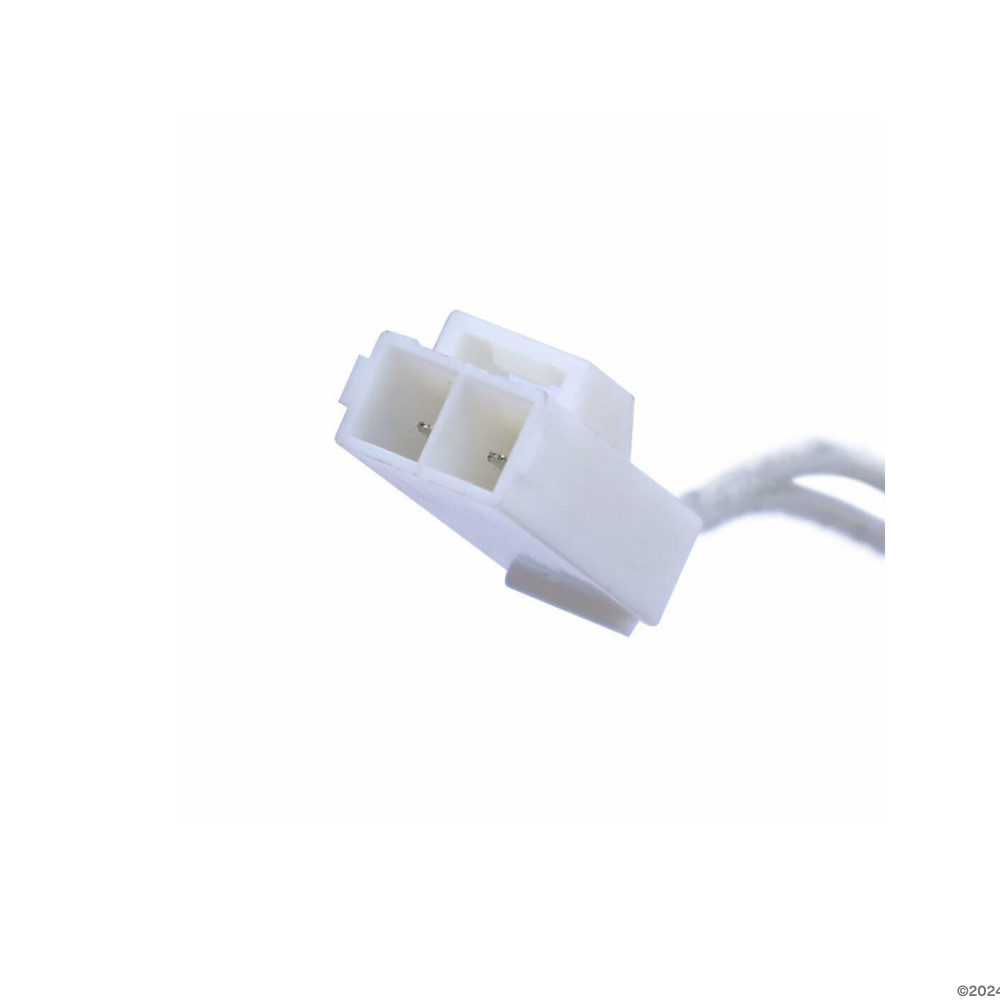

Note: The models above are a sample, not a full list. This sensor may require cutting and splicing the wire connector, and some buyers report that the plug on their range did not match, so compare it with your old sensor. Check your full model number against your parts diagram, or contact our support team to verify fit before ordering.
Key Features
- Aftermarket replacement for the Frigidaire 316233903 oven temperature sensor
- Monitors oven temperature and signals the control board
- Cross-references three earlier Frigidaire sensor part numbers
- Sold individually
Product Specifications
| Part Number |
XP316233903 |
| OEM Part Number |
316233903 |
| Part Type |
Oven Temperature Sensor (Probe) |
| Condition |
Aftermarket Replacement |
| Quantity |
1 Sensor |
| Application |
Select Gas and Electric Ranges |
Installation Notes
⚠️ Disconnect Power Before Installing Unplug the range or shut off its circuit breaker, let the oven cool, and wear work gloves. Pull the range out to reach the back panel, remove the panel, then unscrew the old sensor and disconnect its wiring. Mount the new sensor in the same position and reconnect the wiring. Note: this sensor may require cutting and splicing the wire connector. If the plug differs from your old one, cut the connector and splice the wires with porcelain wire nuts. Refit the panel, restore power, and check oven temperature accuracy.
Frequently Asked Questions
My oven isn't heating right. Is the sensor the problem?
It can be, but not always. Some customers found the real fault was the igniter, bake element or control board. Test the sensor and check those parts before replacing it.
Is this an OEM or aftermarket part?
This is an aftermarket replacement from XPARTCO, made to replace Frigidaire part 316233903. If you specifically need a genuine Frigidaire part, contact our support team.
Will I need to cut and splice the wire connector?
Yes, it may. This sensor may require cutting and splicing the wire connector, depending on your range. Compare your old sensor with this one before ordering. Customers have spliced the wires with porcelain wire nuts when the plug differed. Contact our support team if you are unsure.
Will this fit my range?
It is listed for many Frigidaire-built models, but the model list above is only a sample. Check your full model number against your parts diagram, or contact our support team and we'll verify it before you order.
