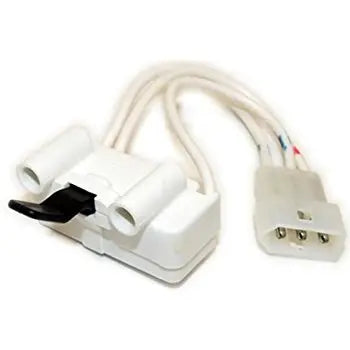

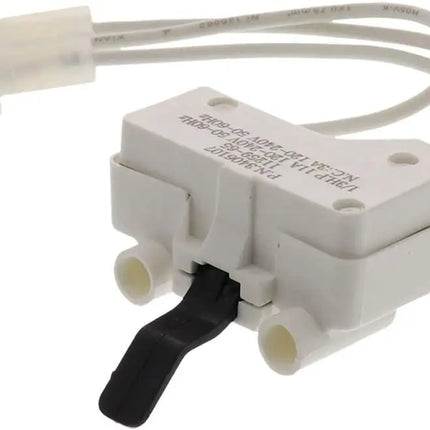

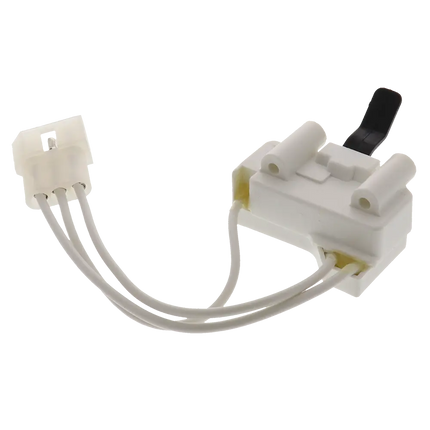

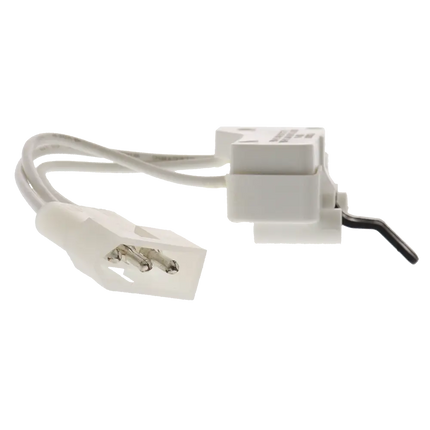

XPARTCO 3406107 Dryer Door Switch – Replaces WP3406107 – Compatible with Whirlpool, Kenmore, Maytag, and Amana Dryers
Product Description
Ensure your dryer starts safely and operates correctly with the XPARTCO 3406107 Dryer Door Switch. This high-quality aftermarket replacement detects when the dryer door is closed, enabling the motor to run and heat to activate. A defective switch can prevent your dryer from starting or cause it to stop mid-cycle. Replacing it with this reliable XPARTCO switch restores normal operation and dependable performance.
Replaces Part Numbers
WP3406107, WPW10569603, 3406107, 3406109, W10569603, 3405100, 3405101, 3406100, 3406101, ES6107, 528948, 11259-65, PD00002378, EAP11741701, AP6008561, PS11741701.
Compatibility
This replacement door switch fits select Whirlpool, Kenmore, Maytag, Amana, Crosley, and Estate dryers.
Example compatible models include (but are not limited to): Whirlpool WED4815EW1, Kenmore 110.60902990, and Maytag MEDC200XW1.
Always verify your dryer’s model number before ordering. Contact our support team if you’re unsure.
✅ Key Features
-
🔄 Aftermarket Replacement – Engineered to match OEM safety and electrical performance
-
🚪 Restores Start Function – Ensures dryer runs only when the door is fully closed
-
💰 Affordable Solution – Quality replacement at a lower cost than OEM parts
-
🛠️ Quick Installation – Simple plug-in wiring and snap-in mounting
-
🛡️ Fixes Common Issues – Solves dryer not starting, shutting off mid-cycle, or running with door open
📐 Product Specification
-
Part Number: 3406107
-
Component Type: Dryer Door Switch Assembly
-

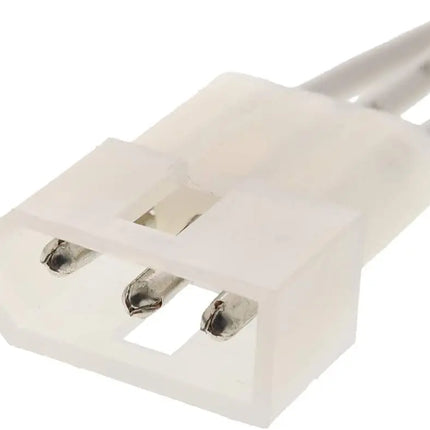

Material: Plastic body with metal actuator lever and 3-pin terminal
-
Mounting: Snap-in installation behind front panel
-
Electrical Rating: 15A / 125-250V AC
-
Compliance: Built to OEM-equivalent quality standards (not OEM)
🛠️ Installation Notes
Tools Needed: Phillips screwdriver, nut driver
⚠️ Safety First: Always unplug the dryer before servicing to prevent electrical shock.
Steps:
-
Disconnect power and open the dryer door.
-
Remove the top or front panel (depending on model).
-
Unplug the old switch’s wire connectors.
-
Press the locking tabs and remove the old switch.
-
Install the new XPARTCO 3406107 switch, reconnect wires, and secure panels.
-
Restore power and test dryer start function.
⏱️ Time Required: 10–15 minutes
