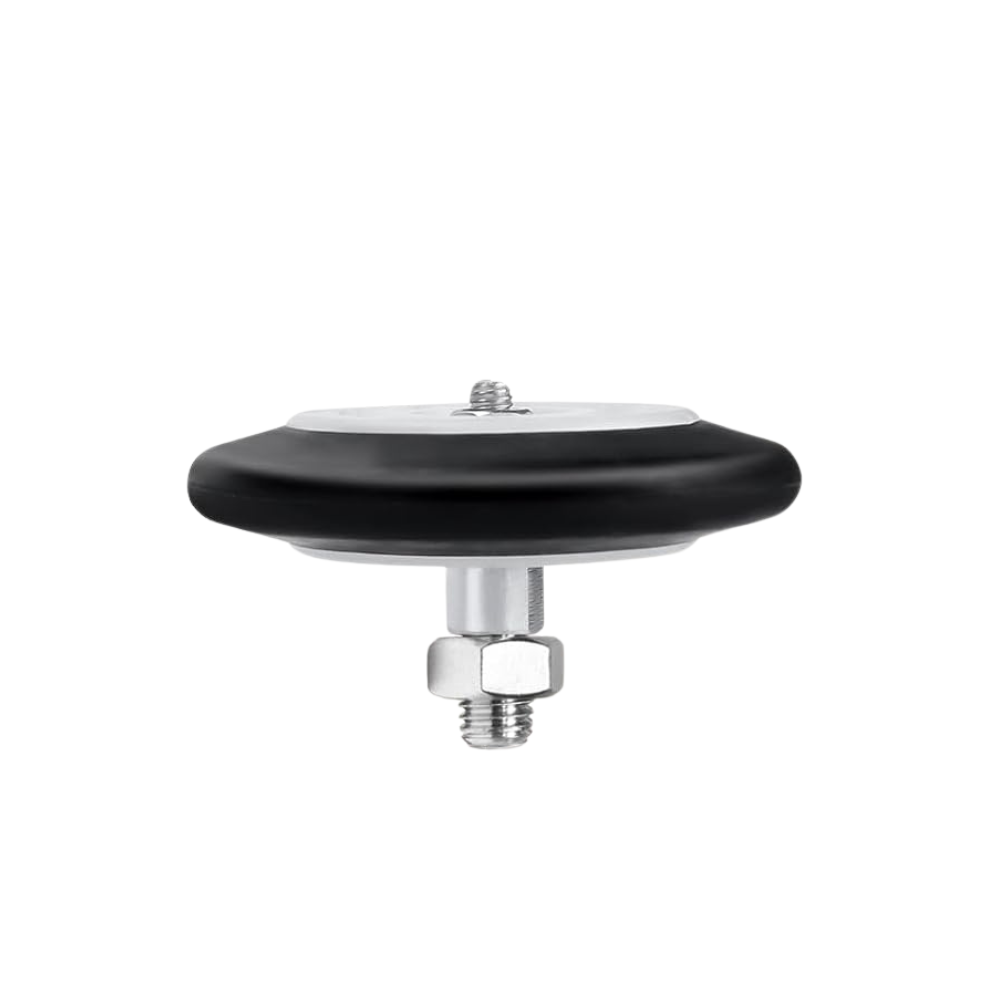

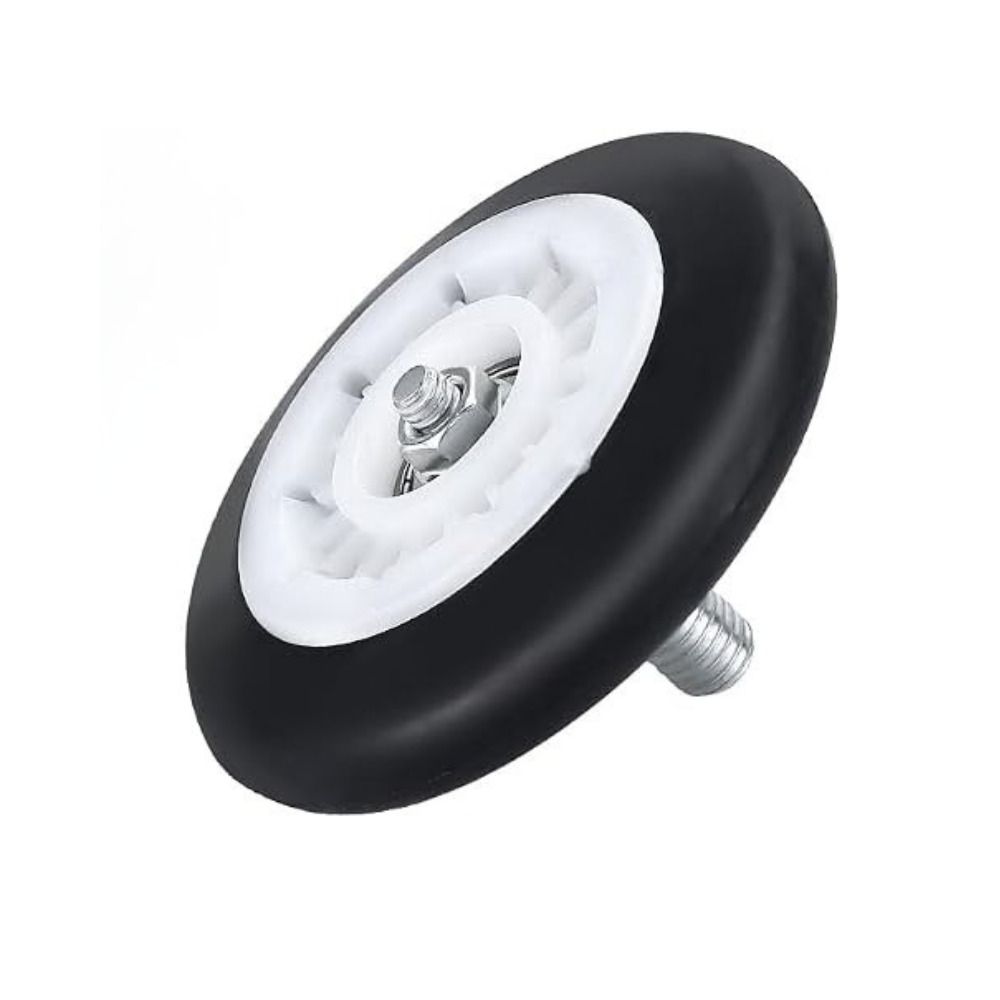

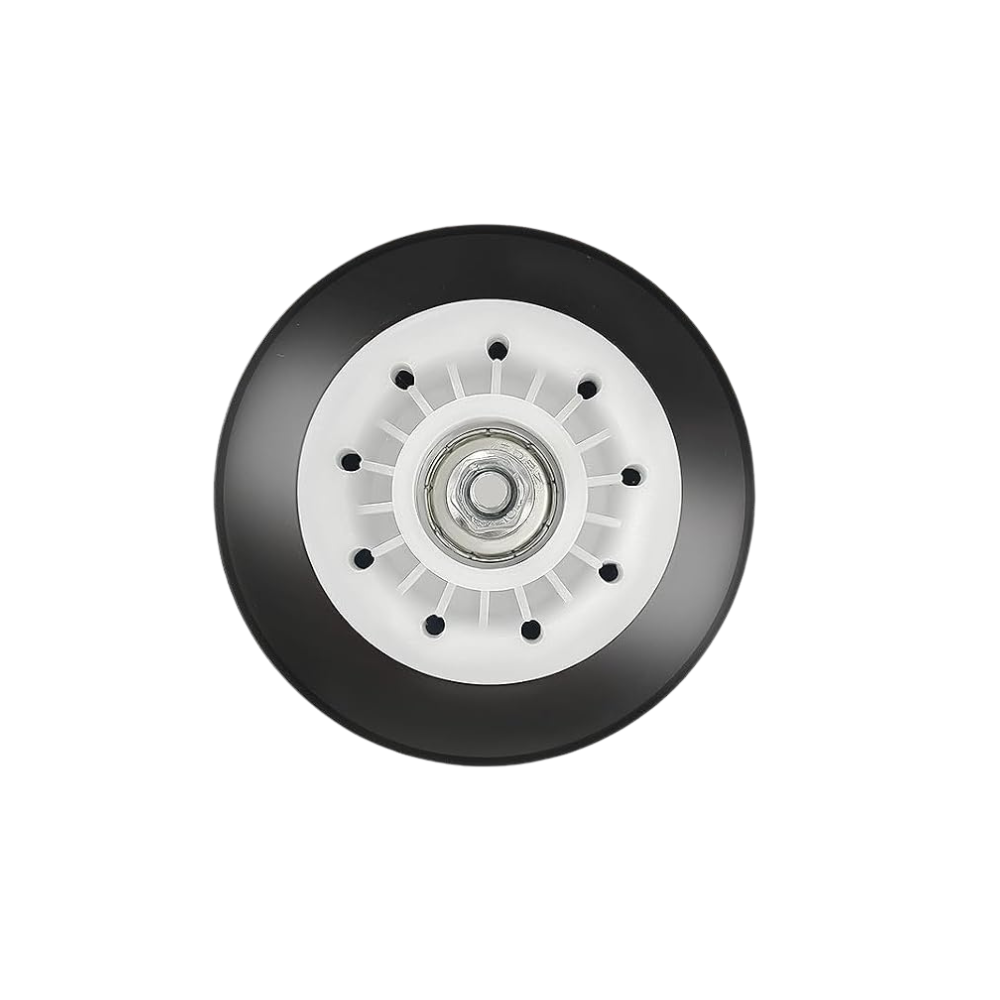

XPARTCO 4581EL2002H Dryer Drum Roller w/ Bearing Replaces 4581EL2002L, 4581EL2002C
The XPARTCO 4581EL2002H is an aftermarket replacement drum support roller for LG-built dryers sold under the LG, Kenmore, and GE brands. This roller sits under the drum and lets it rotate smoothly against the dryer's frame. As the roller's internal bearing wears out, it commonly starts producing a loud rumbling, squeaking, or thumping noise, and in more advanced cases the drum can start riding unevenly or vibrating during the cycle.
This version includes a self-lubricating bearing built into the roller wheel, along with the mounting shaft, nut, and washer needed for installation. It's sold as a single roller assembly — check your dryer's parts diagram to confirm whether you need one roller or a full set, since most drums use two or four rollers and it's common practice to replace them as a set even if only one has failed. It directly replaces 4581EL2002L, 4581EL2002A, 4581EL2002B, 4581EL2002C, 4581EL2002D, 4581EL2002E, 4581EL3001A, 4581EL3001C, 4581EL3001D, 4581EL3001F, AP6985402, AP7220429, AGM75510755, EAP12749664, PD00064735, and PS12749664. Installs in 30–60 minutes with basic hand tools.
Quick Answer
The XPARTCO 4581EL2002H Dryer Drum Roller w/ Bearing fixes LG, Kenmore, and GE (LG-built) dryers with a loud rumbling, squeaking, or thumping noise, or a drum that vibrates or rides unevenly during the cycle. 3-1/8" diameter x 2-3/8" width, self-lubricating bearing, sold as a single roller with shaft, nut, and washer. Replaces 4581EL2002L, 4581EL2002A/B/C/D/E, 4581EL3001A/C/D/F, AP6985402, AP7220429, AGM75510755, EAP12749664, PD00064735, PS12749664. Classic symptom: rhythmic thumping or squeaking noise that speeds up and slows down with drum rotation.
Common Problems This Part Fixes
- Loud rumbling, squeaking, or squealing noise from the dryer during operation
- Rhythmic thumping noise that tracks with drum rotation speed
- Drum riding unevenly or wobbling during the cycle
- Excessive vibration felt through the cabinet
- Visible wear, cracking, or flat spots on the roller wheel
- Drum dragging or binding as it rotates
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This drum roller directly replaces the following OEM and cross-reference part numbers:
4581EL2002H, 4581EL2002L, 4581EL2002A, 4581EL2002B, 4581EL2002C, 4581EL2002D, 4581EL2002E, 4581EL3001A, 4581EL3001C, 4581EL3001D, 4581EL3001F, AP6985402, AP7220429, AGM75510755, EAP12749664, PD00064735, PS12749664
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This drum roller is compatible with select LG-built dryers from the following brands:
- LG dryers (including DLG59988S, DLE9577SM, DLE0442W, DLE8377NW, and related models)
- Kenmore / Sears dryers (select LG-built models)
- GE dryers (select LG-built models)
Worth Noting: Our sourcing found 4581EL2002L currently listed by the manufacturer as a 4-roller kit that itself lists 4581EL2002H among the numbers it replaces — while 4581EL2002H (this listing) is sold as a single roller assembly. Rather than one version cleanly superseding the other, these appear to be the same roller design sold under two different SKUs at two different quantities (single vs. 4-pack). Confirm how many rollers your dryer's parts diagram calls for, and contact our support team with your model number if you want to verify which listing fits your order best.
Key Features
- Direct-fit LG-platform dryer drum support roller with self-lubricating bearing
- Resolves "rumbling noise," "thumping," "squeaking," and "uneven drum" symptoms caused by roller wear
- 3-1/8" diameter x 2-3/8" width — matches original roller dimensions
- Includes mounting shaft, nut, and washer for a complete installation
- Plastic/rubber wheel with metal shaft construction
- Replaces 4581EL2002L, 4581EL2002A/B/C/D/E, 4581EL3001A/C/D/F, AP6985402, AP7220429, AGM75510755, EAP12749664, PD00064735, and PS12749664
- Compatible with LG, Kenmore, and GE (LG-built) dryers
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Part Number |
XP4581EL2002H |
| OEM Part Number |
4581EL2002L / 4581EL2002C |
| Part Type |
Dryer Drum Support Roller with Bearing |
| Condition |
Aftermarket Replacement |
| Quantity |
1 Roller Assembly (with shaft, nut) |
| Diameter |
3-1/8" |
| Width |
2-3/8" |
| Bearing Type |
Self-Lubricating |
| Compatible Brands |
LG, Kenmore, GE |
Installation Notes
⚠️ Unplug Dryer Before Starting Disconnect power before beginning. Remove the front panel (typically held by spring clips or screws behind the door frame) to access the drum. Support the drum from the front so it doesn't drop once the front panel is off. Locate the roller assemblies on the support shafts at the rear or bottom of the drum cavity. Remove the retaining nut/clip holding the old roller onto its shaft, and slide the old roller off. Slide the new 4581EL2002H roller onto the shaft and secure it with the nut and washer, matching the original orientation. If replacing multiple rollers, repeat for each one — most technicians replace all rollers at once even if only one has failed, since the others are usually not far behind in wear. Reinstall the front panel and drum, restore power, and run a test cycle to confirm the noise is gone and the drum spins smoothly. Tools needed: nut driver or socket set, putty knife (for spring clips, if applicable).
Frequently Asked Questions
My dryer makes a loud thumping or squeaking noise that speeds up with the drum — is this the part?
This is one of the most common symptoms of a worn drum roller bearing. As the bearing wears, the roller develops flat spots or excess play, producing a noise that tracks with drum rotation speed. Confirm by looking at the roller wheels through the front panel opening for visible wear, cracking, or flat spots before ordering.
Do I need one roller or a full set?
Check your dryer's parts diagram — most LG-platform drums use either two or four support rollers. This listing is for a single roller assembly. Even if only one roller is worn, many technicians replace the full set at once since the remaining originals are usually close behind in wear and it saves a repeat repair.
Is 4581EL2002H the same as 4581EL2002L?
They're the same roller design, but sold under different SKUs at different quantities — 4581EL2002H as a single roller, and 4581EL2002L as a 4-roller kit. Our sourcing found these numbers cross-referencing each other rather than one being a strict newer replacement for the other. Order based on how many rollers you actually need rather than assuming one number is more "current" than the other.
Do I need to replace the drum belt or idler pulley at the same time?
Not necessarily, but if your dryer has significant runtime, it's worth inspecting the drum belt and idler pulley (4400EL2001F and 4561EL3002A on this platform) while you have the drum out, since they're subject to similar wear and are far easier to replace with the drum already accessible.
