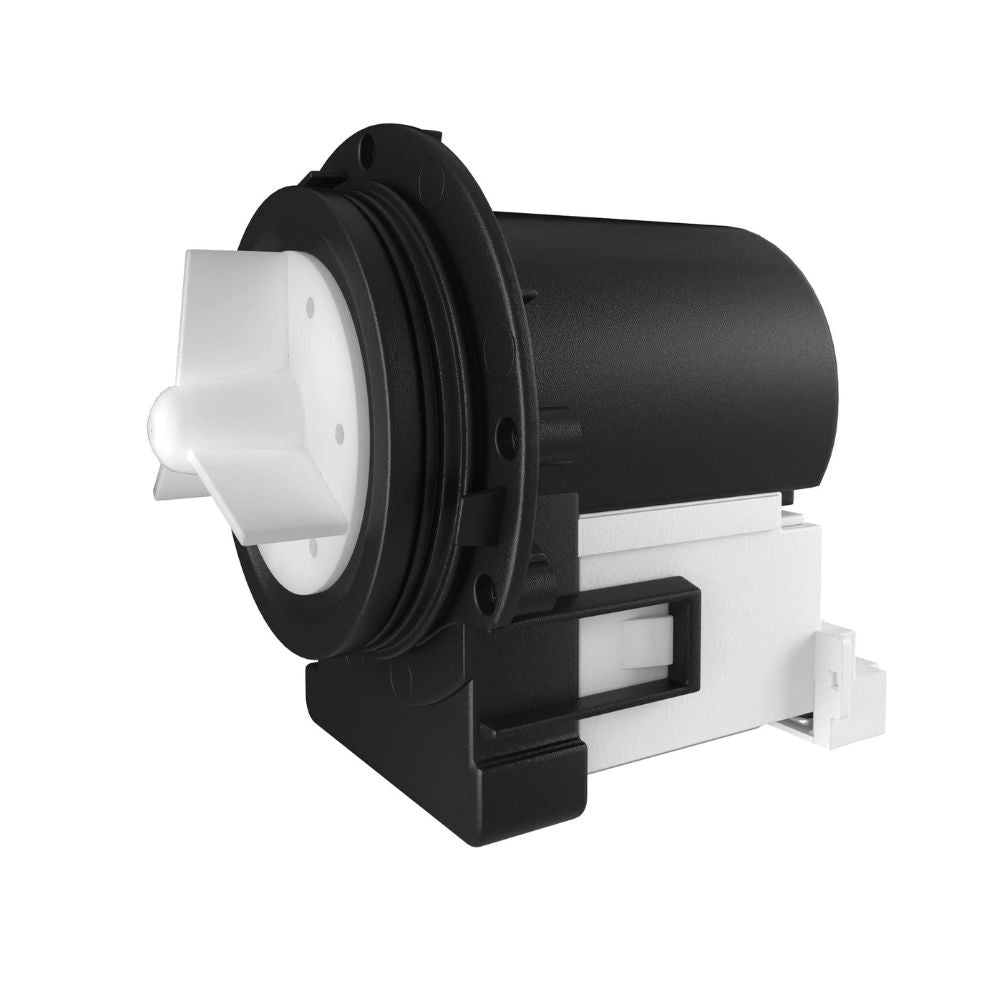

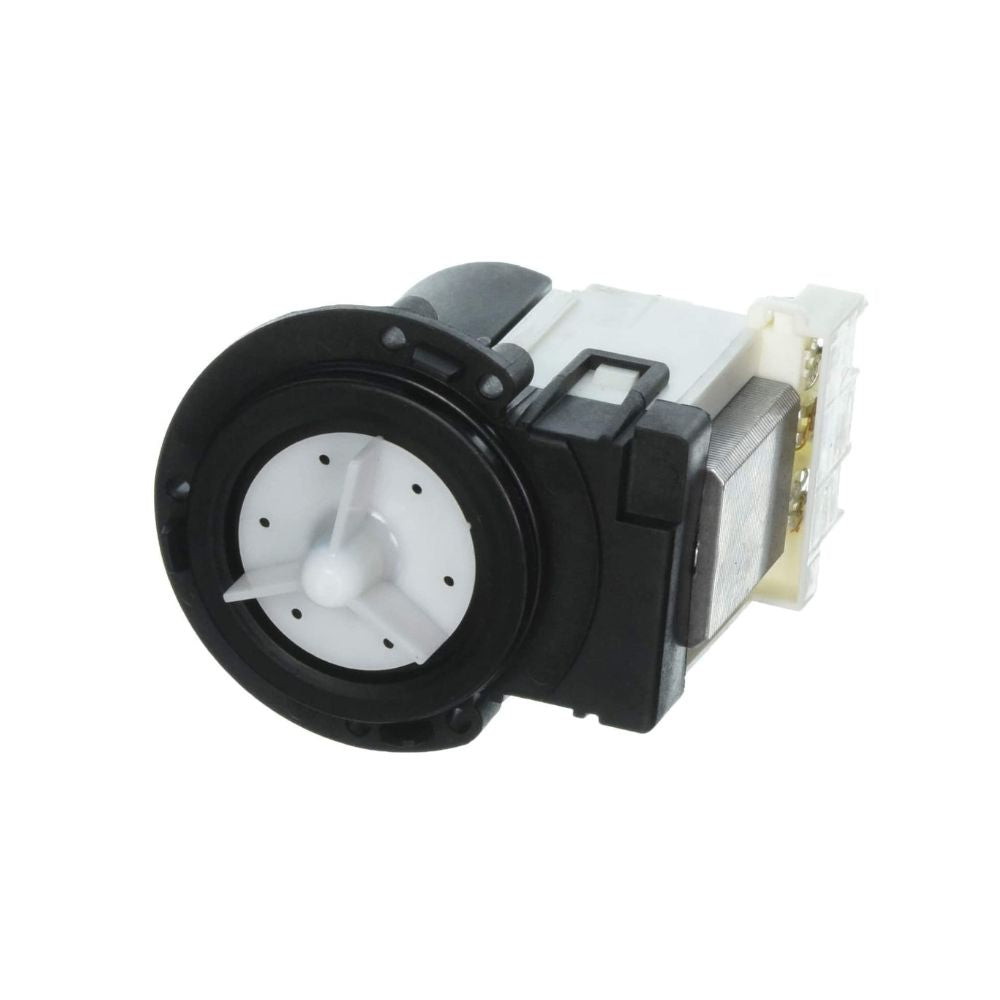

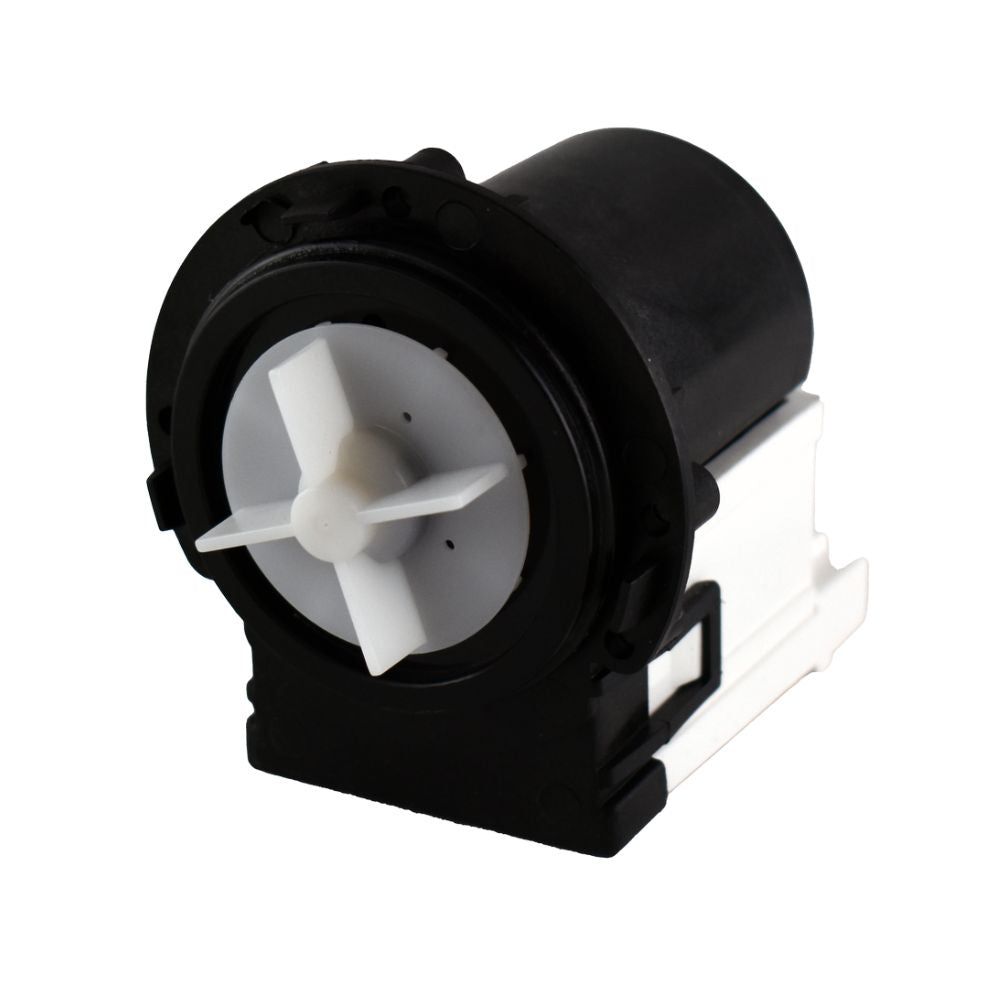

XPARTCO 4681EA2001T Washer Drain Pump Motor
The XPARTCO 4681EA2001T is an aftermarket replacement drain pump motor assembly compatible with a wide range of LG and Kenmore front-load washers. The drain pump motor forces water out of the washer drum through the drain hose during and after the wash and spin cycles — when it fails, the washer will not drain, will display an OE error code, leave standing water in the drum, or produce a loud humming or grinding noise during the drain phase.
This drain pump motor is rated at 120V–127V, 60Hz, 85W, 1.4A with a flow rate of 45 liters per minute and a spin speed of 1,100–1,200 RPM. It is made from durable metal and ABS plastic and includes the pump impeller and a removable filter housing with sealing ring for quieter, smoother operation. Note: this is the motor assembly only — it reuses the existing pump housing from your washer. It directly replaces 4681EA2001N, 4681EA1007G, 4681EA1007D, AP5328388, and several additional cross-reference numbers. Installs in 30–60 minutes with basic hand tools.
Quick Answer
The XPARTCO 4681EA2001T Washer Drain Pump Motor fixes LG and Kenmore front-load washers showing OE error codes, not draining, leaving standing water, or making loud humming or grinding sounds during the drain cycle. Rated 120V–127V/60Hz/85W/1.4A, 45L/min, 1,100–1,200 RPM. Includes impeller and removable filter housing. Motor assembly only — reuses existing pump housing. Replaces 4681EA2001N, AP5328388, 4681EA1007G, and more.
Common Problems This Part Fixes
- OE error code displayed — washer cannot drain within the allotted time
- Washer not draining — standing water remaining in the drum after a cycle
- Loud humming or buzzing during the drain cycle — motor running but impeller not turning
- Grinding or rattling noise during draining — physical damage to pump components
- Washer stopping mid-cycle due to a drain fault
- Washer draining very slowly — worn pump motor below rated flow
- Water leaking from the drain pump area
Replaces Part Numbers
This drain pump motor directly replaces the following OEM and cross-reference part numbers:
4681EA2001T, 4681EA1007G, 2003273, 4681EA1007D, 4681EA2001D, 4681EA2001N, 4681EA2001U, DP040-038, ALG51292, AH3579318, EA3579318, PD00001722, EAP3579318, AP5328388, PS3579318.
4681EA2001T is the current updated part number — it is the manufacturer-approved replacement for the older 4681EA2001N. If your washer or parts diagram shows 4681EA2001N, order 4681EA2001T.
Compatibility
This drain pump motor is compatible with select front-load washers from the following brands:
- LG front-load washers — WM2xxx, WM3xxx, WM4xxx, WM5xxx, WM8xxx, WM9xxx series
- Kenmore / Sears front-load washers (select LG-built models, including 796-series)
Important: This is the pump motor assembly only — it installs into your washer's existing pump housing. The pump housing is not included and is reused from your old assembly. Always verify your model number before ordering. Contact our support team if you're unsure.
Key Features
- Forces water out of the drum through the drain hose during wash and spin cycles at 45 liters per minute
- Rated 120V–127V, 60Hz, 85W, 1.4A — correct electrical specifications for compatible LG and Kenmore models
- Spin speed: 1,100–1,200 RPM for powerful, efficient drainage
- Includes pump impeller and removable filter housing with sealing ring
- Removable filter housing allows easy cleaning without full pump disassembly
- Sealing ring reduces vibration and noise during operation
- Durable metal and ABS plastic construction — built to withstand repeated high-volume drainage cycles
- Motor assembly only — installs into existing pump housing, no housing replacement needed
- Resolves OE error code on compatible LG and Kenmore front-load washers
- Aftermarket replacement built to OEM-equivalent quality standards
- DIY repair — installs in 30–60 minutes with basic hand tools
Product Specifications
| Part Number |
4681EA2001T |
| Also Replaces |
4681EA2001N (updated current replacement) |
| Part Type |
Washer Drain Pump Motor Assembly |
| Condition |
Aftermarket Replacement |
| Application |
LG and Kenmore Front-Load Washers |
| Voltage |
120V – 127V AC |
| Frequency |
60 Hz |
| Wattage |
85W |
| Amperage |
1.4A |
| Flow Rate |
45 liters per minute |
| Spin Speed |
1,100 – 1,200 RPM |
| Material |
Metal / ABS Plastic |
| Includes |
Motor assembly, impeller, removable filter housing, sealing ring |
| Note |
Motor assembly only — existing pump housing is reused |
| Compatible Brands |
LG, Kenmore |
Installation Notes
⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off the water supply before beginning any repair. Place towels and a shallow pan at the front of the washer to catch residual water. Open the small access panel at the lower front of the washer and drain any remaining water through the drain hose or filter port. Remove the front panel of the washer by unscrewing the top panel screws, then removing the door gasket retaining wire and door latch screws to free the front panel. With the front panel removed, the drain pump assembly is now visible at the lower front. Use a flat-head screwdriver to release the pump mounting clip, then disconnect the drain hoses using pliers to loosen the clamps. Disconnect the wire harness from the pump motor. Pull the motor assembly out of the pump housing. Install the new 4681EA2001T motor into the existing housing, reconnect the hoses and wire harness, secure the pump clip, and reassemble the front panel. Restore power and water supply, then run a drain/spin cycle to verify proper drainage. Tools needed: Phillips screwdriver, flat-head screwdriver, needle-nose pliers, slip-joint pliers, shallow pan.
Frequently Asked Questions
What is the difference between 4681EA2001T and 4681EA2001N?
These are the same drain pump motor — 4681EA2001T is the updated current part number that replaced the older 4681EA2001N. LG issued the updated number during a production cycle revision. If your washer or its documentation shows 4681EA2001N, 4681EA2001D, or any other older variant, the 4681EA2001T is the correct replacement to order.
What does the OE error code mean on an LG washer?
OE (or OE error) stands for "Outlet Error" — it means the washer was unable to drain within the expected time. Common causes include a clogged drain filter, a blocked or kinked drain hose, or a failed drain pump motor. Before replacing the motor, check and clean the drain filter and inspect the drain hose for kinks or blockages. If both are clear and the washer still shows OE, the pump motor has likely failed and needs replacement.
Does this include the pump housing?
No — the 4681EA2001T is the motor assembly only. It installs into your washer's existing pump housing, which is not included and does not need to be replaced in most cases. If your pump housing is cracked or damaged, you will need to source it separately. In most repairs, the housing is reused and only the motor assembly is replaced.
Should I check the drain filter before replacing the pump motor?
Yes — always check and clean the drain filter first. LG front-load washers have a coin trap and filter at the lower front that should be cleaned regularly. A heavily clogged filter or a foreign object jammed in the impeller can cause OE errors and loud humming without the pump motor being permanently damaged. Remove the filter, clear debris from the impeller area, and test the washer. If the problem persists after cleaning, the motor is the likely culprit.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured from durable metal and ABS plastic to match the electrical specifications and performance of the original 4681EA2001T drain pump motor assembly.
