XPARTCO 5220FR2075V Washer Water Valve Replaces 5221ER1003M

Description

XPARTCO Washer Replacement Part

XPARTCO 5220FR2075V Washer Water Valve Replaces 5221ER1003M

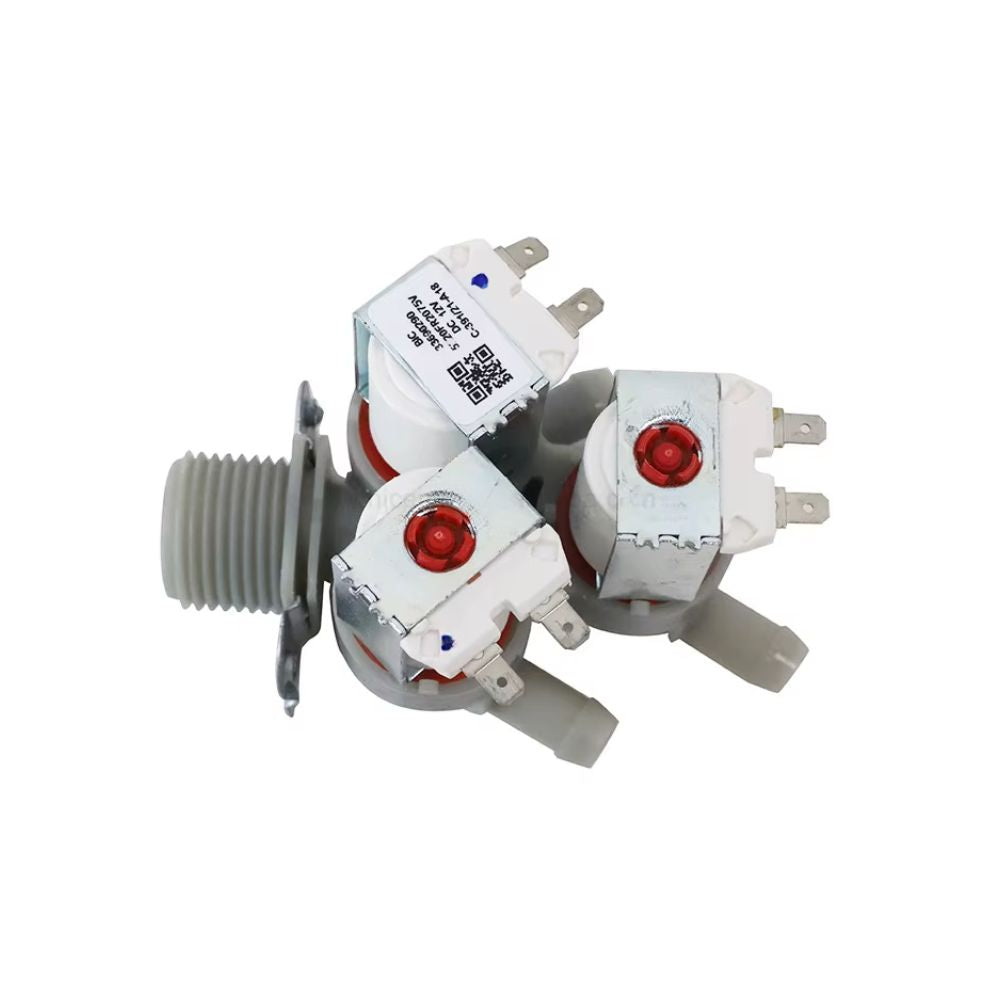

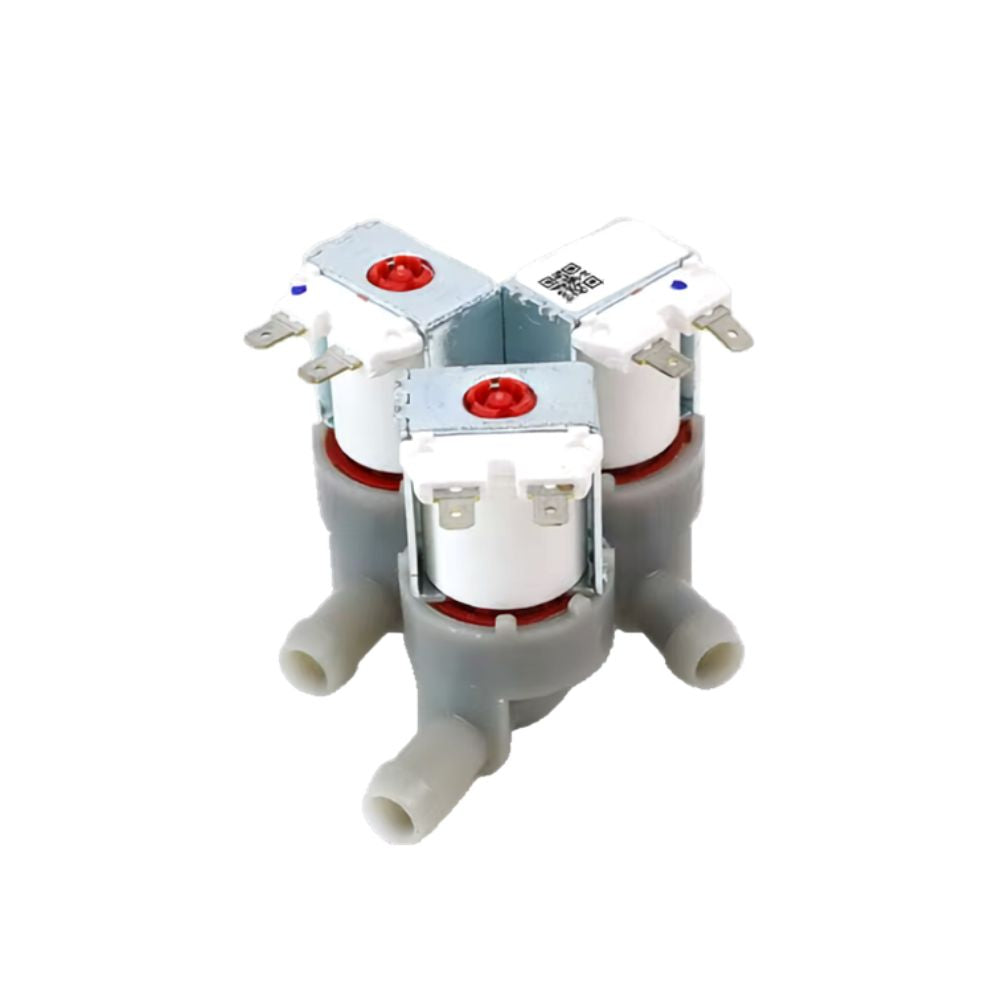

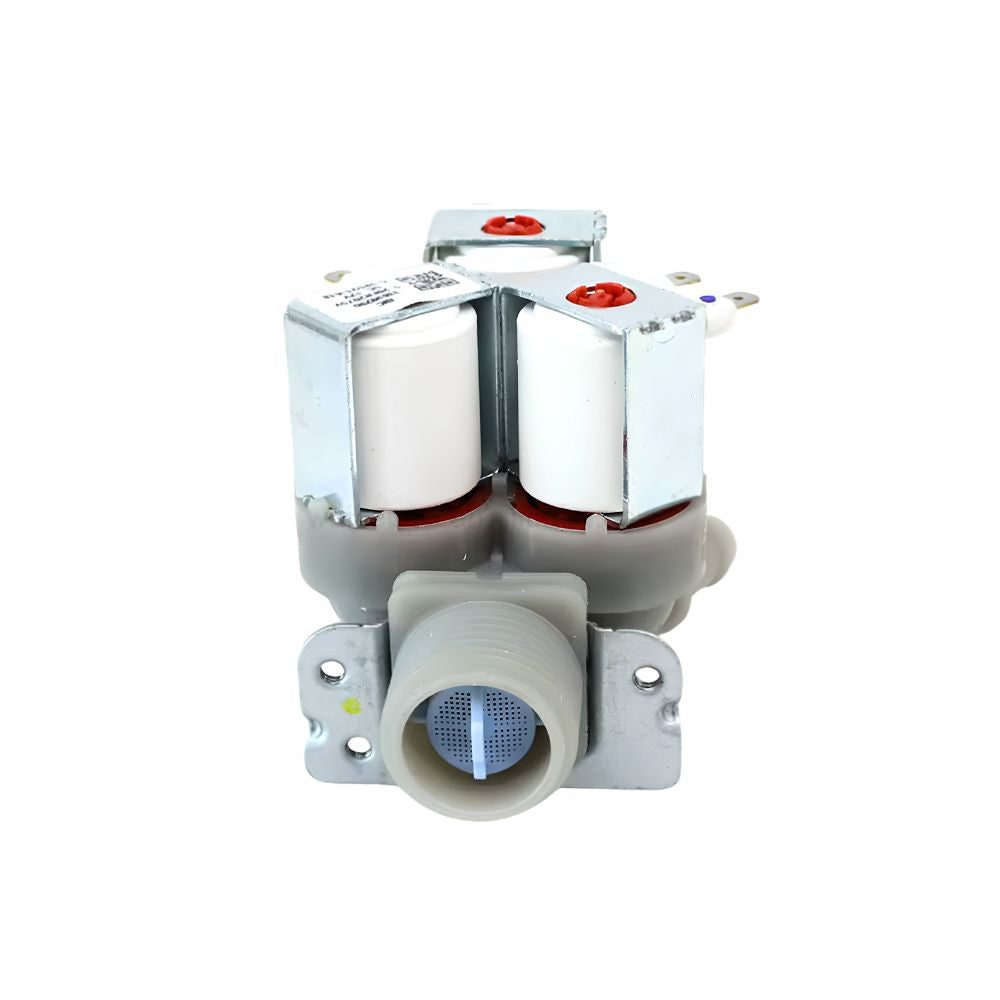

Three-solenoid, DC12V water inlet valve assembly for select LG-built front-load washing machines.

Product Overview

The XPARTCO 5220FR2075V Washer Water Inlet Valve controls the flow of water entering compatible front-load washing machines. When energized by the washer control, the valve opens the required water path and directs water through the dispenser and into the tub.

This is a new XPARTCO aftermarket replacement part designed to replace compatible LG inlet valve assemblies, including part number 5221ER1003M.

Quick Answer

XPARTCO 5220FR2075V is a three-solenoid, DC12V washer water inlet valve for select LG and LG-built Kenmore front-load washers. It replaces 5221ER1003M. Verify the complete washer model number, valve configuration, electrical connectors, and hose outlets before ordering.

Common Problems This Part May Fix

  • Washer does not fill with water
  • Slow or restricted water filling
  • Water continues entering after the washer is turned off
  • Leaking from the inlet-valve area
  • Incorrect water flow through the dispenser
  • IE or another water-inlet-related error
  • One or more valve solenoids do not open

Replaces and Cross-References

5220FR2075V, ALG312873, AP7003066, PD00074485, PS16544738, 5221ER1003M, AP6334246, 4869495, ALG51888, EAP12579227, PD00050119, PS12579227

Cross-reference numbers help identify the compatible component. XPARTCO is an aftermarket replacement brand and is not manufactured by LG.

Compatibility

Designed for select LG and LG-built Kenmore front-load washers that specify 5220FR2075V, 5221ER1003M, or an approved equivalent. Compatible model examples associated with this valve family.

Important: This is only a partial compatibility list. LG water valves can look nearly identical while using different voltages, solenoid counts, mounting tabs, connectors, or outlet arrangements. Confirm the full washer model and original valve number before purchase.

Key Features

  • High-quality XPARTCO aftermarket replacement
  • Replaces LG valve number 5221ER1003M
  • DC12V, Three-solenoid inlet valve design
  • Controls water entering the washer
  • Directs water through the dispenser system
  • Threaded inlet connection for the supply hose
  • Designed for select LG-built front-load washers

Product Specifications

XPARTCO Part Number 5220FR2075V
Replaces 5221ER1003M
Brand XPARTCO
Part Type Washer Water Inlet Valve Assembly, DC12V, 3 solenoid.
Condition New
Part Quality Aftermarket Replacement
Valve Configuration Three Solenoids, DC12V
Application Front-Load Washing Machine
Included One Water Inlet Valve Assembly

Installation Notes

  1. Unplug the washer and close both water-supply valves.
  2. Disconnect the inlet hose and prepare for residual water.
  3. Remove the washer top panel according to the appliance service procedure.
  4. Photograph the electrical connectors and outlet-hose locations before disconnecting them.
  5. Release the wire connectors, hose clamps, and mounting screws from the original valve.
  6. Install the replacement valve in the same orientation and reconnect every hose and wire.
  7. Open the water supplies slowly, check for leaks, restore power, and test the washer.

Diagnostic tip: Confirm that the household water valves are open, inlet hoses are not kinked, and the inlet screens are not clogged before replacing the valve.

Frequently Asked Questions

Is XPARTCO 5220FR2075V a Genuine OEM LG part?

No. It is an XPARTCO aftermarket replacement designed for compatible LG-built washers.

What does the water inlet valve do?

It opens and closes electrically to control water entering the washer and directs water through the dispenser system.

Does this valve replace 5221ER1003M?

Yes, this XPARTCO valve is sold as a replacement for 5221ER1003M on compatible washer models.

Can a bad inlet valve cause an IE error?

Yes. A failed solenoid, restricted valve, clogged inlet screen, or water-supply problem can cause slow filling or an inlet-related error.

Will this fit every LG washer?

No. Confirm the complete model number and compare the original valve number, connectors, mounting points, and hose outlets before ordering.

Shop With Confidence

Verify your washer model and original valve number before ordering. Our compatibility support team can help determine whether XPARTCO 5220FR2075V is correct for your appliance.

XPARTCO Replacement PartFast U.S. ShippingCompatibility SupportSecure Checkout
Product form

XPARTCO 5220FR2075V Washer Water Valve Replaces 5221ER1003M

Free Pickup in In Stock Parts-O-Matic - WB Store 1820 Featherstone Road Woodbridge, VA 22191 Usually ready in 1 hour
Online Shipped Price $65.00 List Price $49.80You Save: $15.20Delivered to your address
Store Walk-In
Discounted Price $42.75Walk-In Savings: $7.05In-store purchase only — not valid for online checkout
✓ IN STOCK
Ships Today if ordered within --:--:--
Free Pickup in our Store • Usually ready in 1 hour
Pickup Store: Parts-O-Matic — Woodbridge, VA
🔍 CHECK YOUR MODEL COMPATIBILITY

Enter your appliance model number to check compatibility.

View Full Compatibility List ↓
  • Shipped today? Order within: Oct 18, 2026 14:00:00 -0400

Description

XPARTCO Washer Replacement Part

XPARTCO 5220FR2075V Washer Water Valve Replaces 5221ER1003M

Three-solenoid, DC12V water inlet valve assembly for select LG-built front-load washing machines.

Product Overview

The XPARTCO 5220FR2075V Washer Water Inlet Valve controls the flow of water entering compatible front-load washing machines. When energized by the washer control, the valve opens the required water path and directs water through the dispenser and into the tub.

This is a new XPARTCO aftermarket replacement part designed to replace compatible LG inlet valve assemblies, including part number 5221ER1003M.

Quick Answer

XPARTCO 5220FR2075V is a three-solenoid, DC12V washer water inlet valve for select LG and LG-built Kenmore front-load washers. It replaces 5221ER1003M. Verify the complete washer model number, valve configuration, electrical connectors, and hose outlets before ordering.

Common Problems This Part May Fix

  • Washer does not fill with water
  • Slow or restricted water filling
  • Water continues entering after the washer is turned off
  • Leaking from the inlet-valve area
  • Incorrect water flow through the dispenser
  • IE or another water-inlet-related error
  • One or more valve solenoids do not open

Replaces and Cross-References

5220FR2075V, ALG312873, AP7003066, PD00074485, PS16544738, 5221ER1003M, AP6334246, 4869495, ALG51888, EAP12579227, PD00050119, PS12579227

Cross-reference numbers help identify the compatible component. XPARTCO is an aftermarket replacement brand and is not manufactured by LG.

Compatibility

Designed for select LG and LG-built Kenmore front-load washers that specify 5220FR2075V, 5221ER1003M, or an approved equivalent. Compatible model examples associated with this valve family.

Important: This is only a partial compatibility list. LG water valves can look nearly identical while using different voltages, solenoid counts, mounting tabs, connectors, or outlet arrangements. Confirm the full washer model and original valve number before purchase.

Key Features

  • High-quality XPARTCO aftermarket replacement
  • Replaces LG valve number 5221ER1003M
  • DC12V, Three-solenoid inlet valve design
  • Controls water entering the washer
  • Directs water through the dispenser system
  • Threaded inlet connection for the supply hose
  • Designed for select LG-built front-load washers

Product Specifications

XPARTCO Part Number 5220FR2075V
Replaces 5221ER1003M
Brand XPARTCO
Part Type Washer Water Inlet Valve Assembly, DC12V, 3 solenoid.
Condition New
Part Quality Aftermarket Replacement
Valve Configuration Three Solenoids, DC12V
Application Front-Load Washing Machine
Included One Water Inlet Valve Assembly

Installation Notes

  1. Unplug the washer and close both water-supply valves.
  2. Disconnect the inlet hose and prepare for residual water.
  3. Remove the washer top panel according to the appliance service procedure.
  4. Photograph the electrical connectors and outlet-hose locations before disconnecting them.
  5. Release the wire connectors, hose clamps, and mounting screws from the original valve.
  6. Install the replacement valve in the same orientation and reconnect every hose and wire.
  7. Open the water supplies slowly, check for leaks, restore power, and test the washer.

Diagnostic tip: Confirm that the household water valves are open, inlet hoses are not kinked, and the inlet screens are not clogged before replacing the valve.

Frequently Asked Questions

Is XPARTCO 5220FR2075V a Genuine OEM LG part?

No. It is an XPARTCO aftermarket replacement designed for compatible LG-built washers.

What does the water inlet valve do?

It opens and closes electrically to control water entering the washer and directs water through the dispenser system.

Does this valve replace 5221ER1003M?

Yes, this XPARTCO valve is sold as a replacement for 5221ER1003M on compatible washer models.

Can a bad inlet valve cause an IE error?

Yes. A failed solenoid, restricted valve, clogged inlet screen, or water-supply problem can cause slow filling or an inlet-related error.

Will this fit every LG washer?

No. Confirm the complete model number and compare the original valve number, connectors, mounting points, and hose outlets before ordering.

Shop With Confidence

Verify your washer model and original valve number before ordering. Our compatibility support team can help determine whether XPARTCO 5220FR2075V is correct for your appliance.

XPARTCO Replacement PartFast U.S. ShippingCompatibility SupportSecure Checkout
