8544742 Dryer Blower Belt - Compatible with Whirlpool, Maytag, Kenmore, Amana Dryers
Product Description

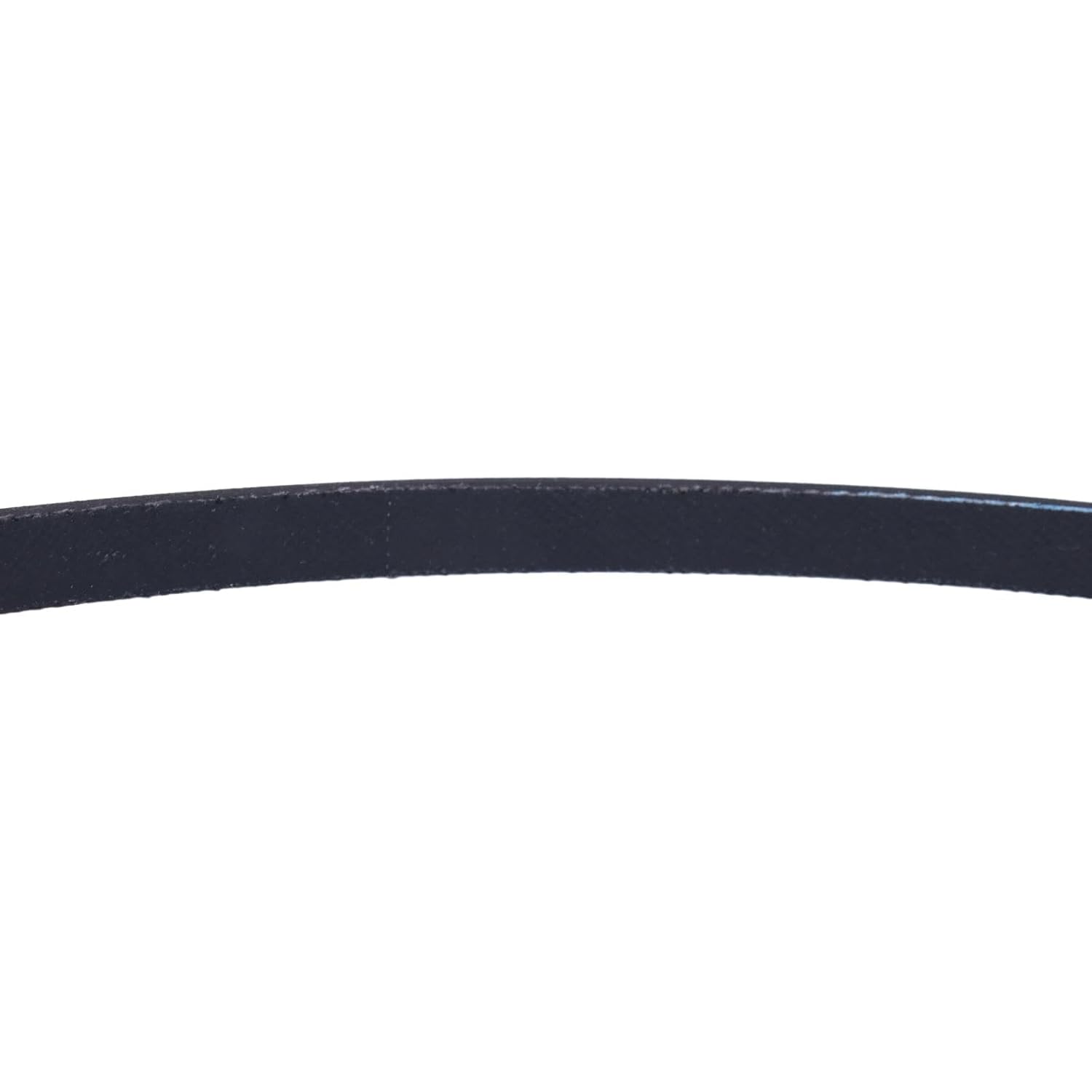

Restore your dryer’s airflow with the replacement 8544742 Dryer Blower Belt. This high-quality replacement flat belt replaces the Whirlpool 8544742, designed for select Whirlpool, Maytag, Kenmore, Amana, and other brand dryers with a rear blower and top lint filter. Measuring approximately 23.9" long with 3 ribs and 2 grooves, this durable rubber belt connects the motor to the blower wheel, ensuring proper air circulation for efficient drying. It fixes issues like no heat, insufficient heat, long drying times, noisy operation (squeaking or rattling), or the dryer failing to start. Note: The belt is intentionally tight (may appear 1/2" to 1" short) and may require stretching during installation. Inspect the idler pulley (e.g., W10547292) and drum belt (e.g., 8547157) for wear, as they often fail together.
Replaces part numbers: WP8544742, 8544742, AP6013111, PS11746333.
Compatibility:
Compatible with models including but not limited to:
-
Whirlpool: WED8300SW0, WED8300SW1, WED8500SR0, WGD8300SW0, WGD8300SW1, MEDB850WL, MEDB850WB
-
Maytag: 7MMGDB850WL0, 7MMGDB850WL1, MEDB200VQ0, MEDB400VQ1, MEDB700VQ0, MEDB750YW0, MEDB800VB0, MEDB800VQ0, MEDB800VU0, MEDB850WB0
-
Kenmore: 110.67042600, 110.77086600, 110.87081601
-
Amana: NED5800DW0, YNED5800DW0
Verify your model number or contact support for assistance.
Key Features:
-
✅ Brand and Models Compatibility: Fits select Whirlpool, Maytag, Kenmore, Amana, Roper, Admiral, Jenn-Air, Estate, Inglis, KitchenAid, and other dryer models with rear blower and top lint filter.
-
🔥 Specifications: Flat blower belt, 23.9" long, 0.25" wide, 3 ribs, 2 grooves, made of durable rubber with reinforced construction for stretch resistance.
-
💰 Cost-Effective Alternative: Replacement belt offers OEM-equivalent performance at a lower price.
-
🛠️ Easy Installation: Requires a Phillips screwdriver, 5/16" nut driver, pliers, and work gloves; typically installed in 30–60 minutes.
-
🛡️ Reliable Fixes: Resolves no heat, insufficient heat, long drying times, noisy operation, burning smell, or dryer failing to start.
Installation Notes:
-
Tools Needed: Phillips screwdriver, 5/16" nut driver, pliers, work gloves, flathead screwdriver.
-
Safety First: Unplug the dryer from the power source and, for gas dryers, shut off the gas valve before installation.
-
Handle with Care: Take photos during disassembly to note belt routing and component placement. Inspect the idler pulley and drum belt for wear, as they can cause blower belt failure. The belt may seem 1/2" to 1" short but is designed to be stretched for a tight fit.
-
Installation Steps: Remove the dryer’s top panel by releasing clips with a putty knife and unscrewing rear screws. Remove the front panel and bulkhead to access the blower assembly (consult your model’s manual for specific screws). Disconnect the old belt from the motor pulley and blower wheel, noting routing. Install the new belt on the blower wheel first, then stretch it onto the motor pulley using pliers or a screwdriver for leverage. Ensure the belt is seated in the grooves. Reassemble in reverse order and test the dryer with a short cycle to confirm proper operation and no leaks or noises. Note: A second person can help with stretching the tight belt. If the belt slips, check for oil on the pulleys or a worn idler pulley.
