XPARTCO AGM30045804 Dryer Thermostat Kit
The XPARTCO AGM30045804 is an aftermarket replacement high-limit thermostat and thermistor kit for LG dryers. These two components work together in the same temperature-regulation circuit: the thermistor is a temperature sensor, mounted in the blower housing with its wire harness included, that continuously reports drum temperature to the control board so it can fine-tune heat output throughout the cycle. The high-limit thermostat is a safety switch that automatically shuts off the heating element if temperatures climb past a safe threshold, then resets itself once the dryer cools, without needing to be replaced the way a thermal fuse does.
Because these two parts share the same circuit and tend to wear or fail around a similar timeline, LG sells and services them together as one kit rather than as separate individual parts. Symptoms of failure in this circuit include the dryer overheating (which can scorch clothing or, left unaddressed, pose a fire risk), the dryer running with little or no heat, drying times that have become inconsistent, an error code related to temperature control on the display, or clothes coming out damp after a full cycle. It directly replaces 6931EL3003C, 6323EL2001B, 6931EL3003F, 6931EL3004B, AP7206815, EAP16732335, and PS16732335. As an aftermarket replacement, the AGM30045804 kit is built to OEM-equivalent quality standards.
Quick Answer
The XPARTCO AGM30045804 Dryer Thermostat Kit fixes LG (and select Kenmore, GE-branded LG-built) dryers with overheating, little or no heat, inconsistent drying times, a temperature-related error code, or clothes coming out damp after a full cycle. High-limit thermostat + thermistor with wire harness. Replaces 6931EL3003C, 6323EL2001B, 6931EL3003F, 6931EL3004B, AP7206815, EAP16732335, PS16732335. If you've already replaced the high-limit thermostat alone and the problem returns, this combined kit — which also addresses the thermistor — is the next step.

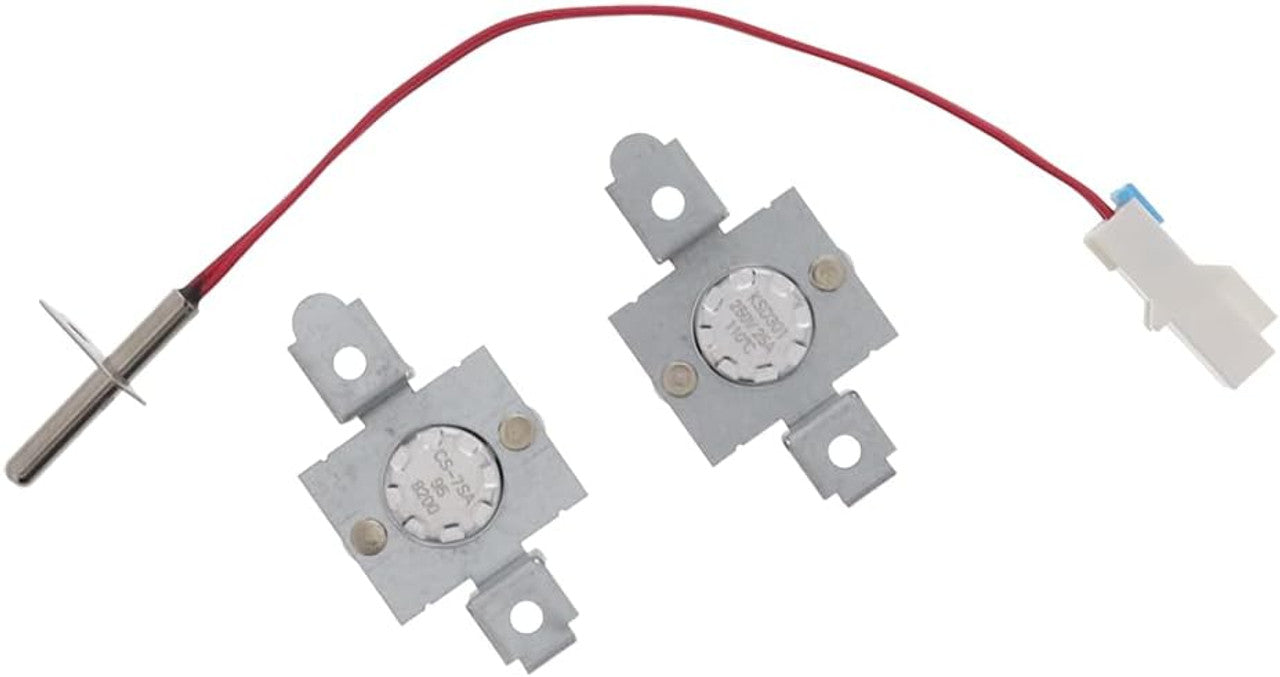

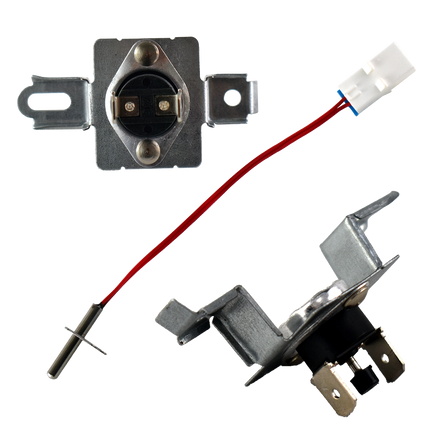

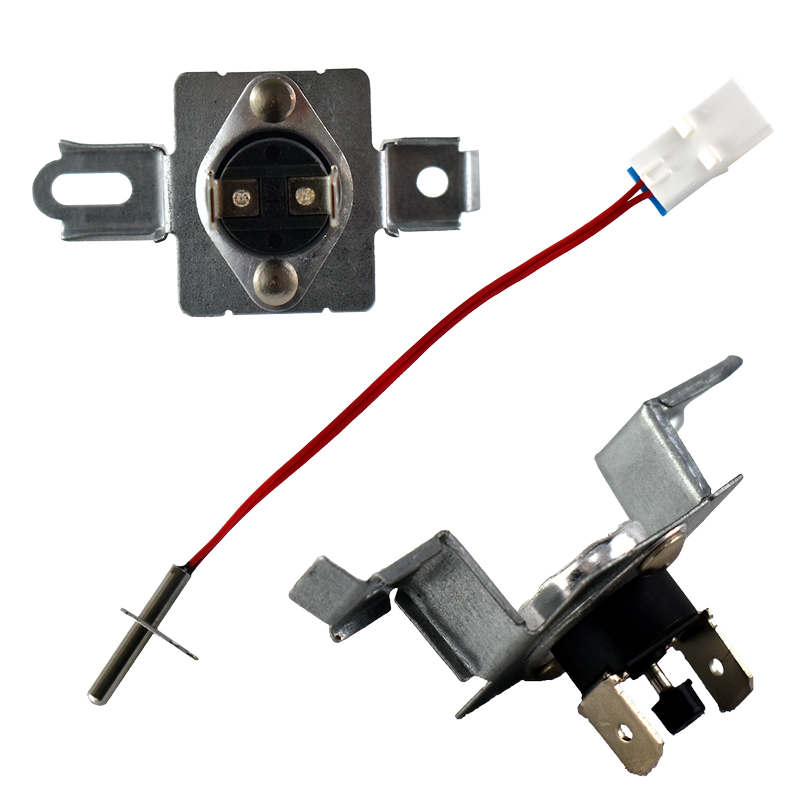

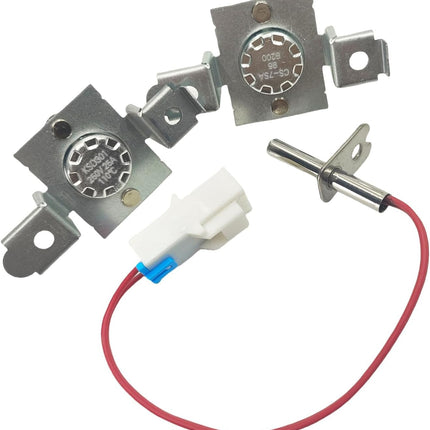

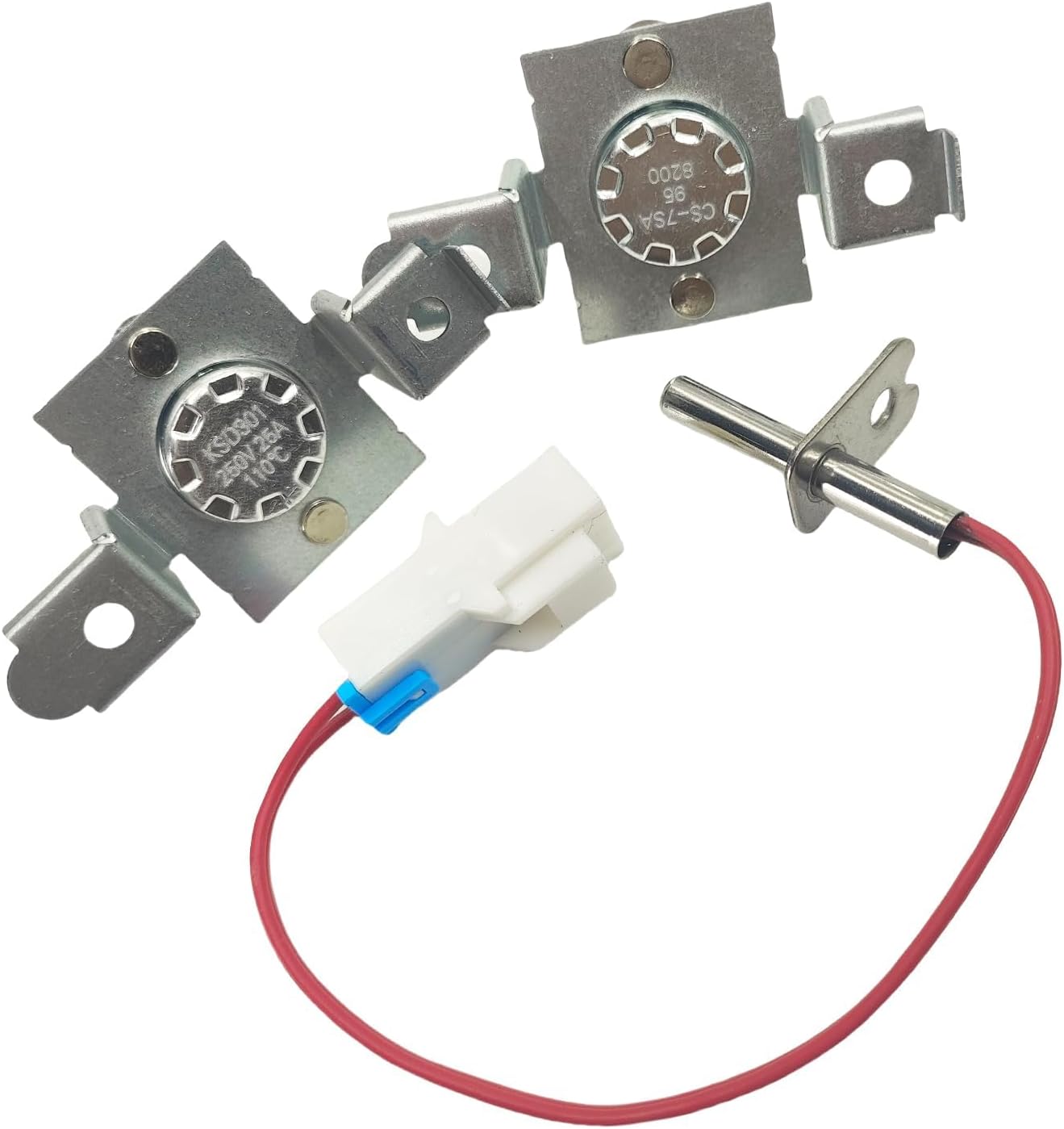

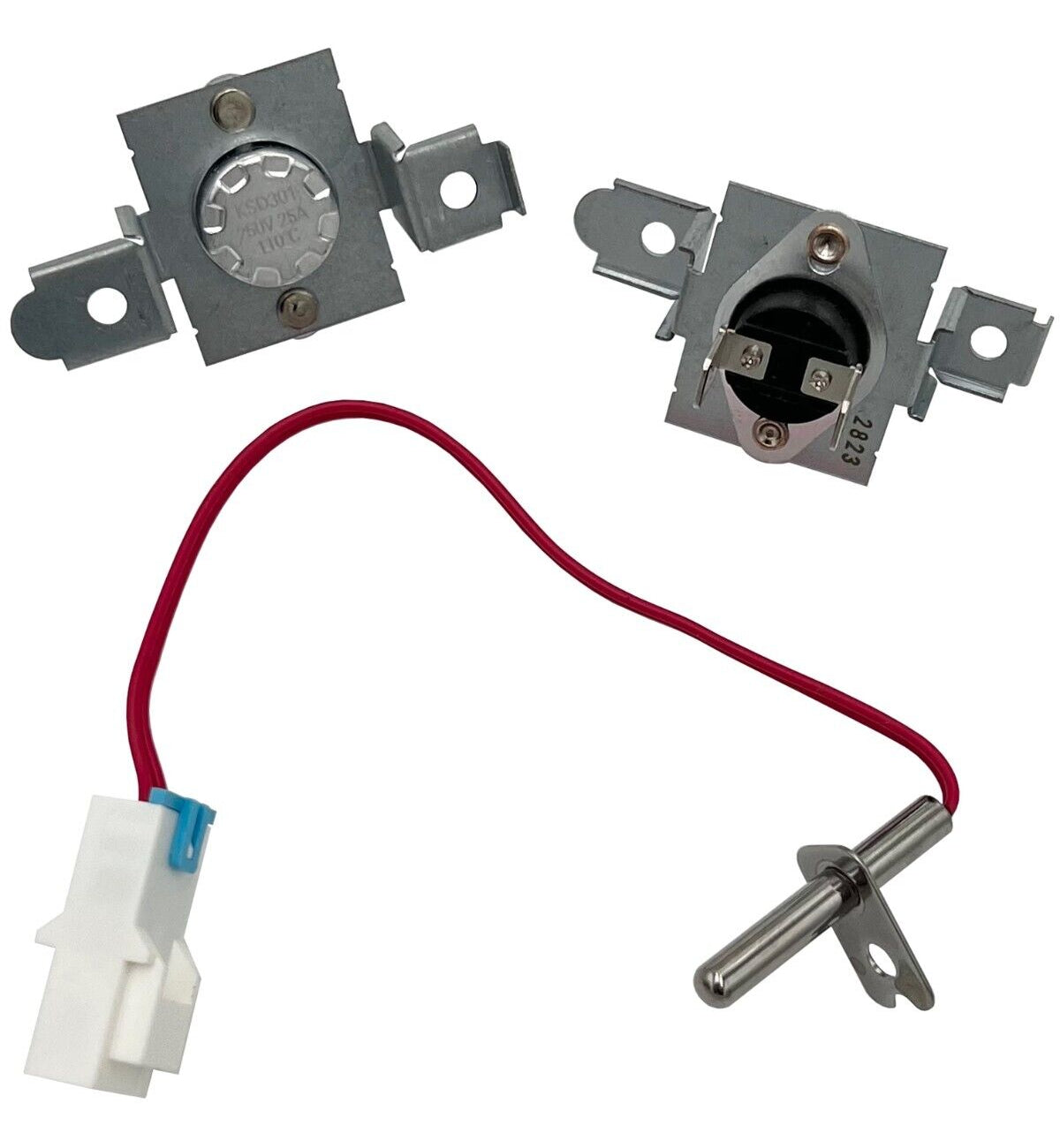

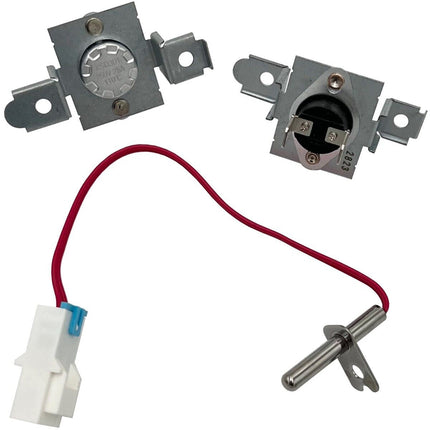

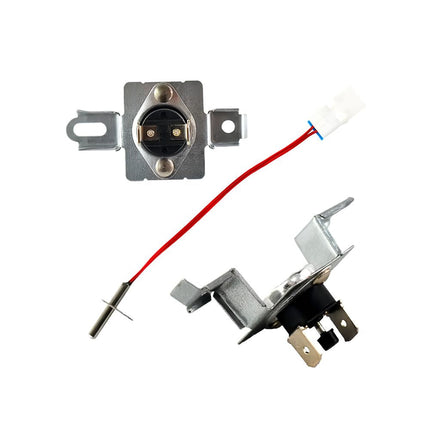

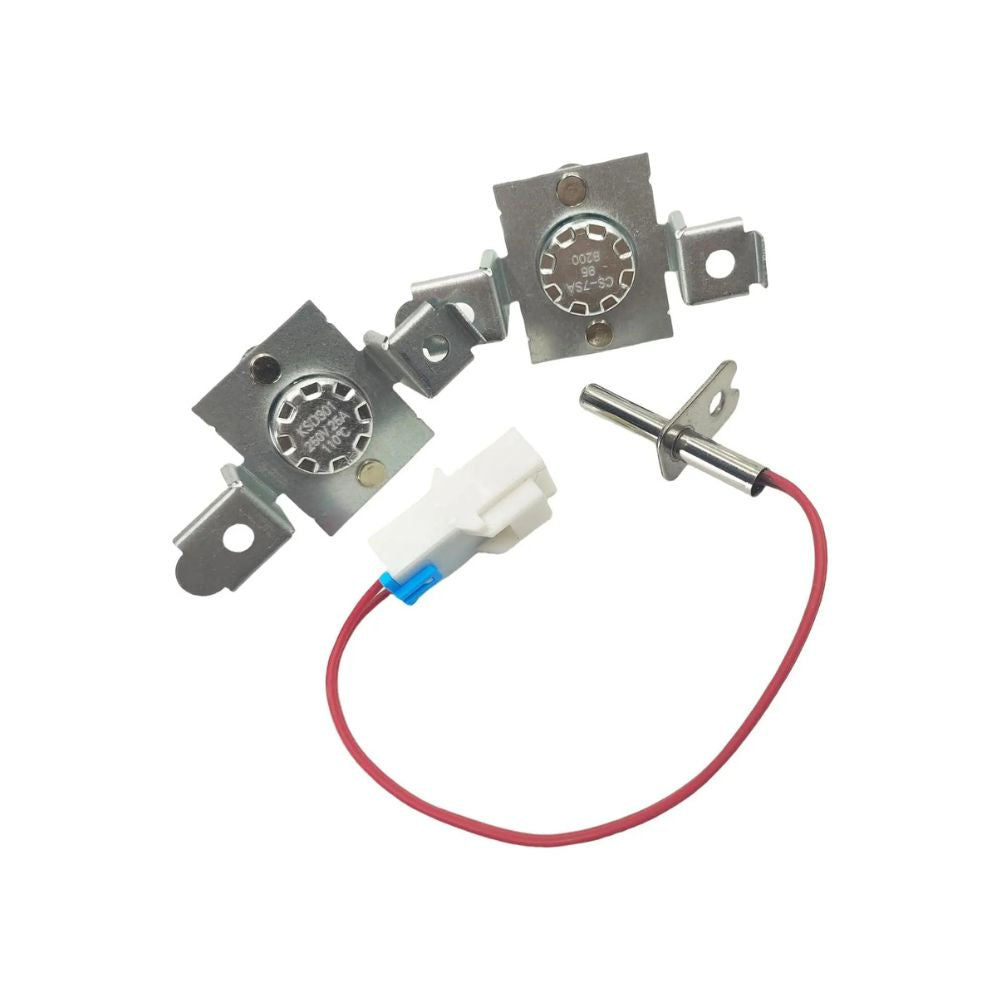

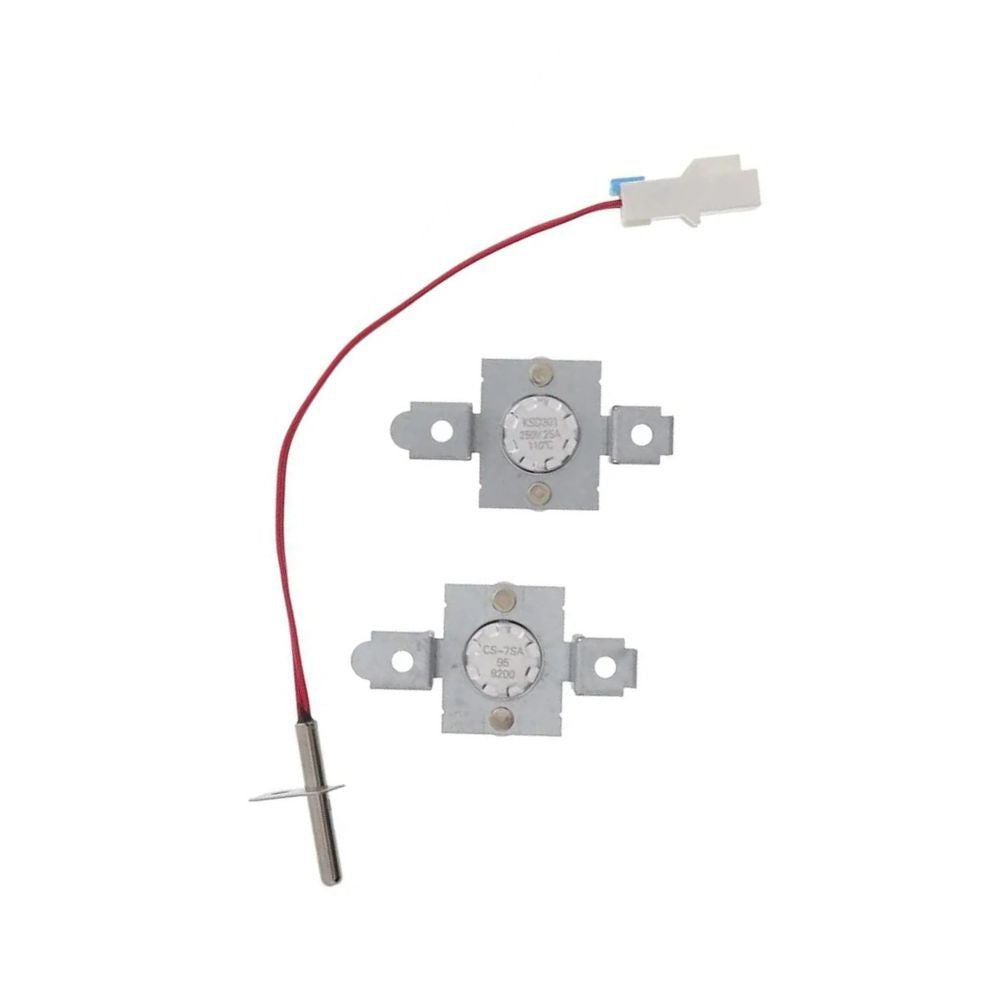

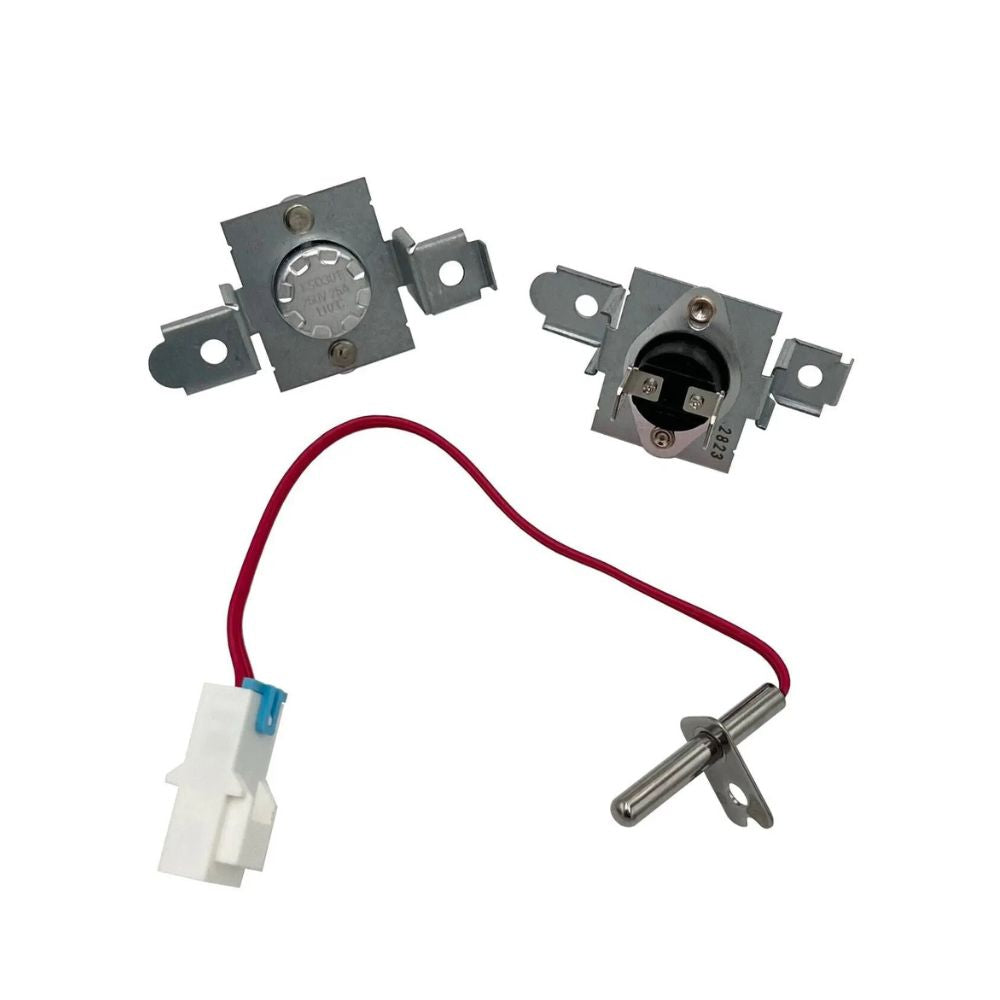

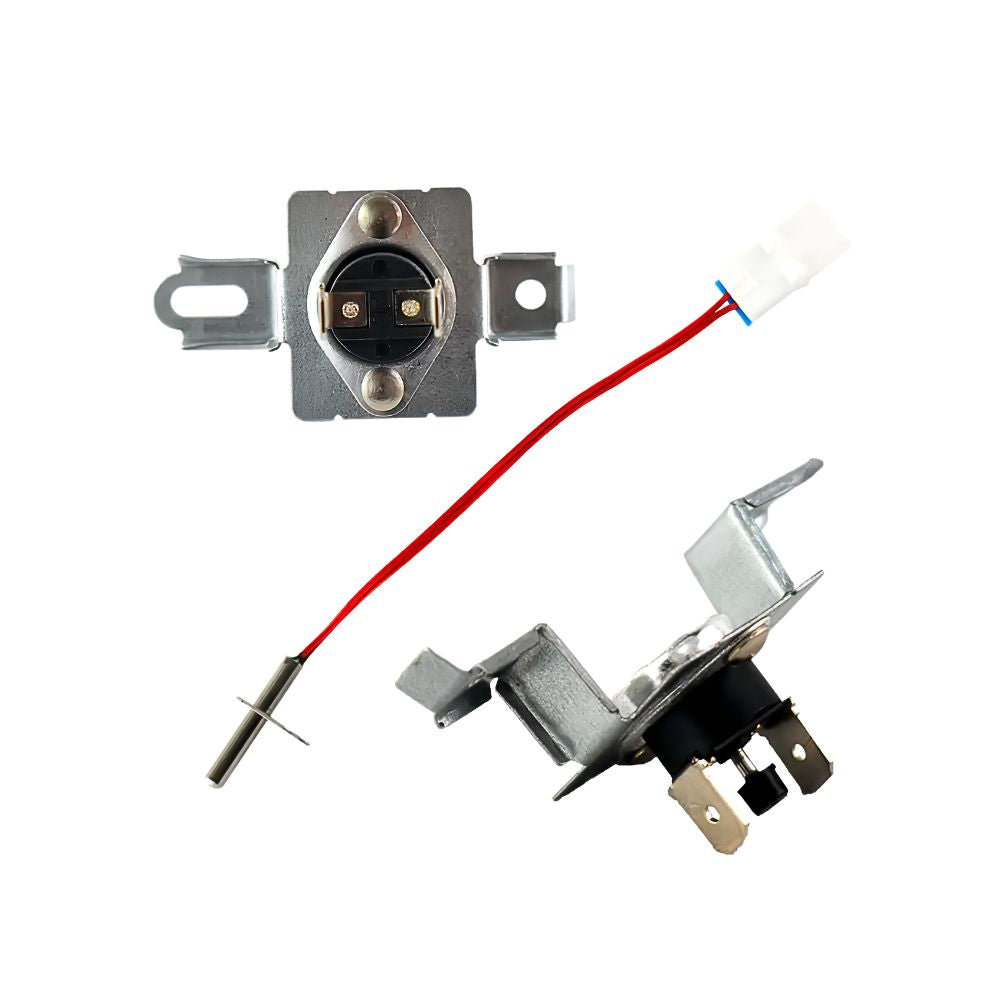

What's In The Kit
| Component |
Function |

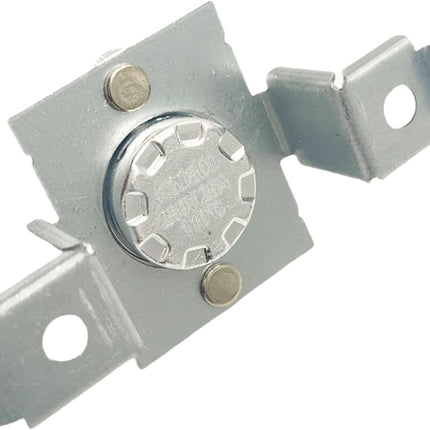

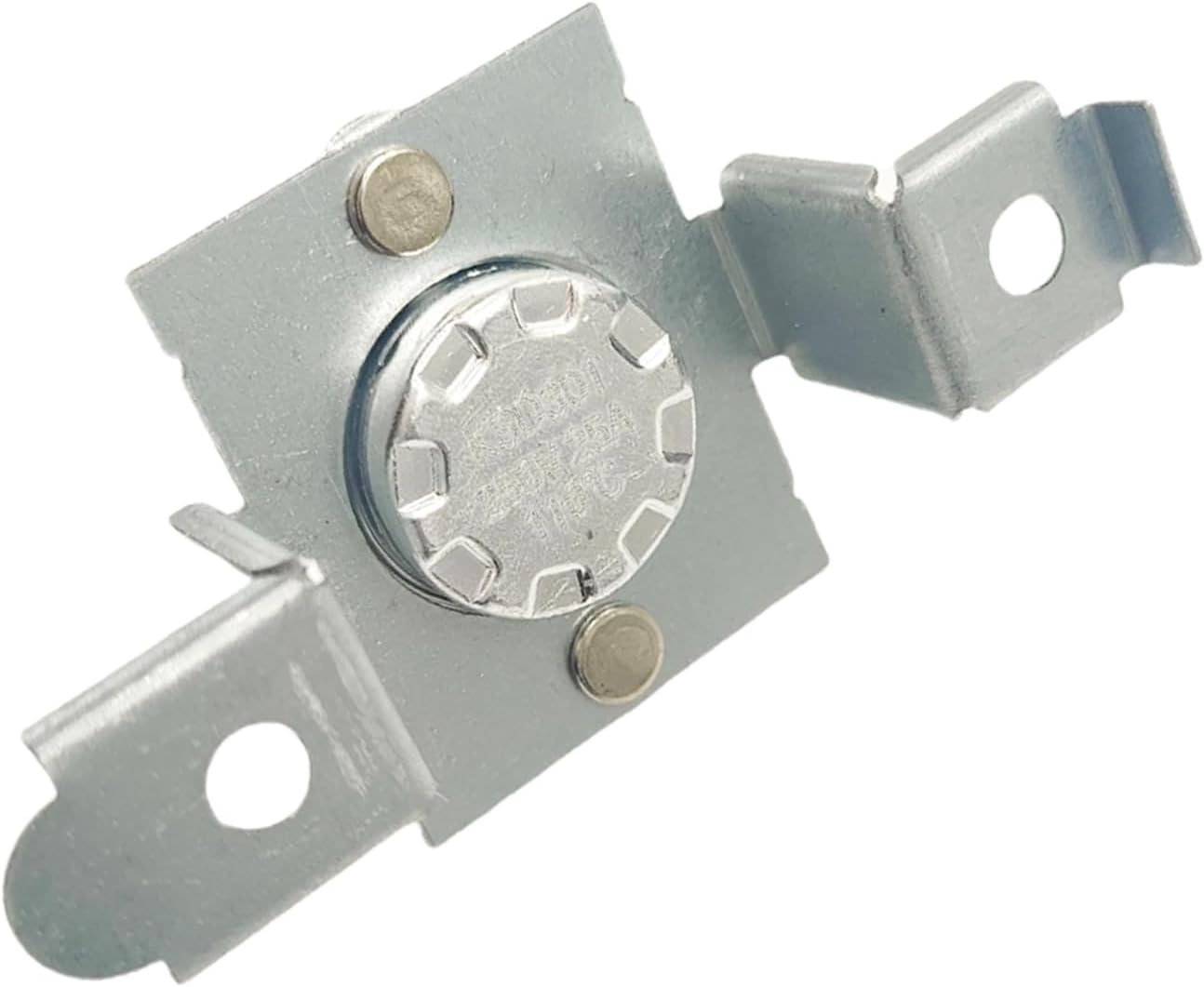

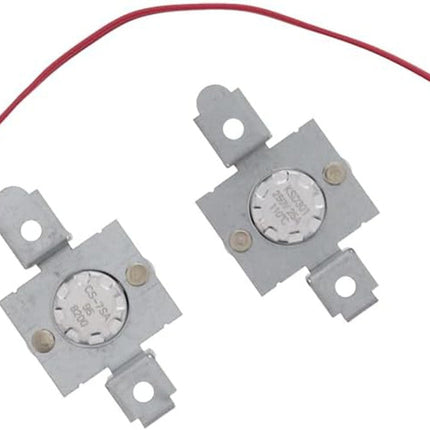

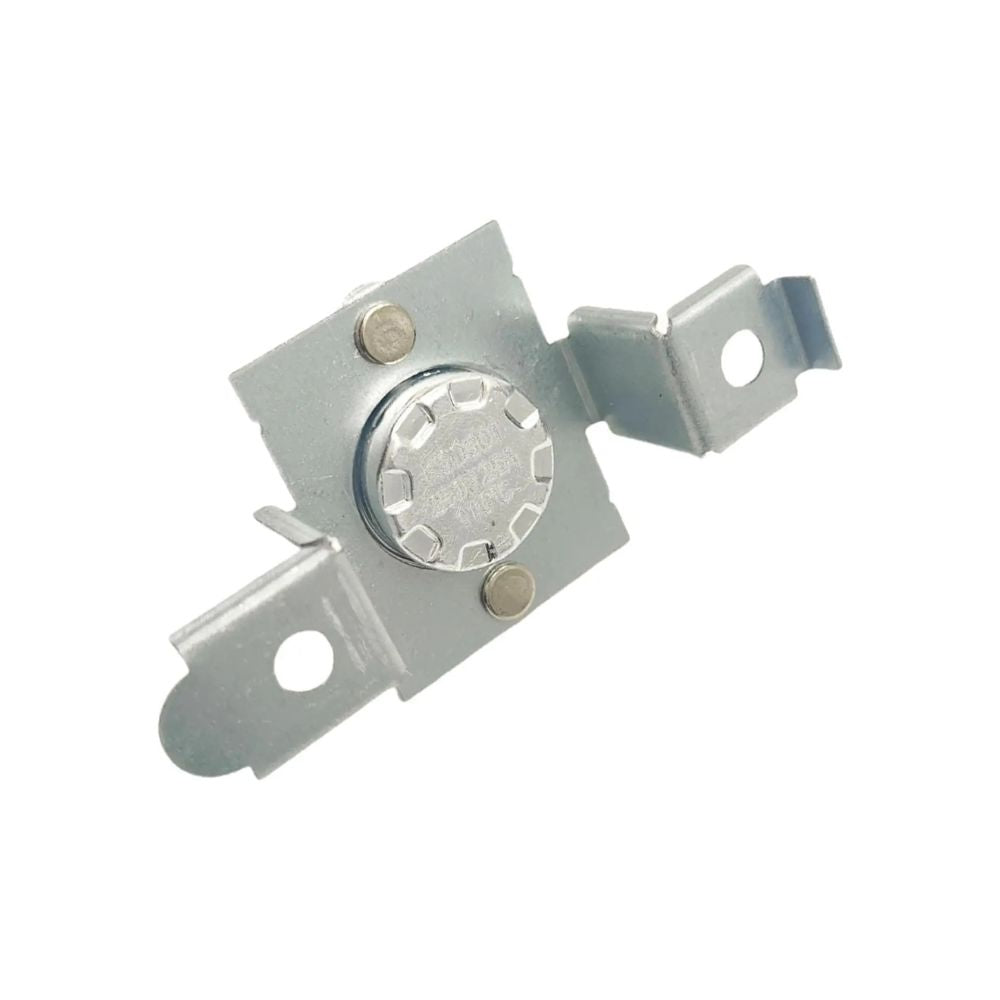

| High-Limit Thermostat |
Automatically shuts off the heating element if temperature exceeds safe limits, then resets itself once the dryer cools. |

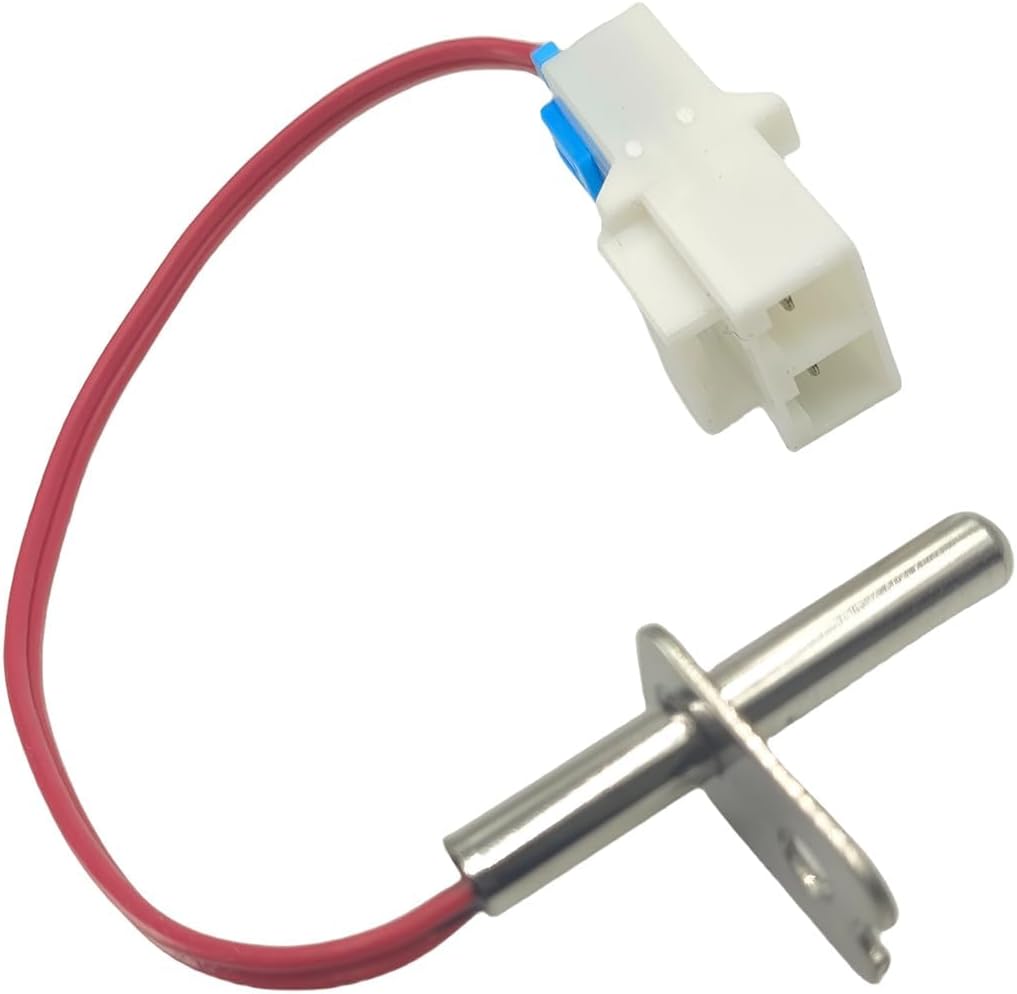

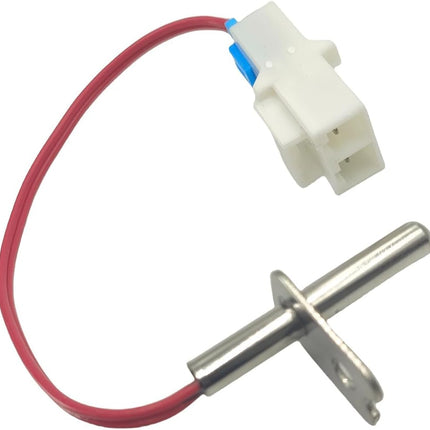

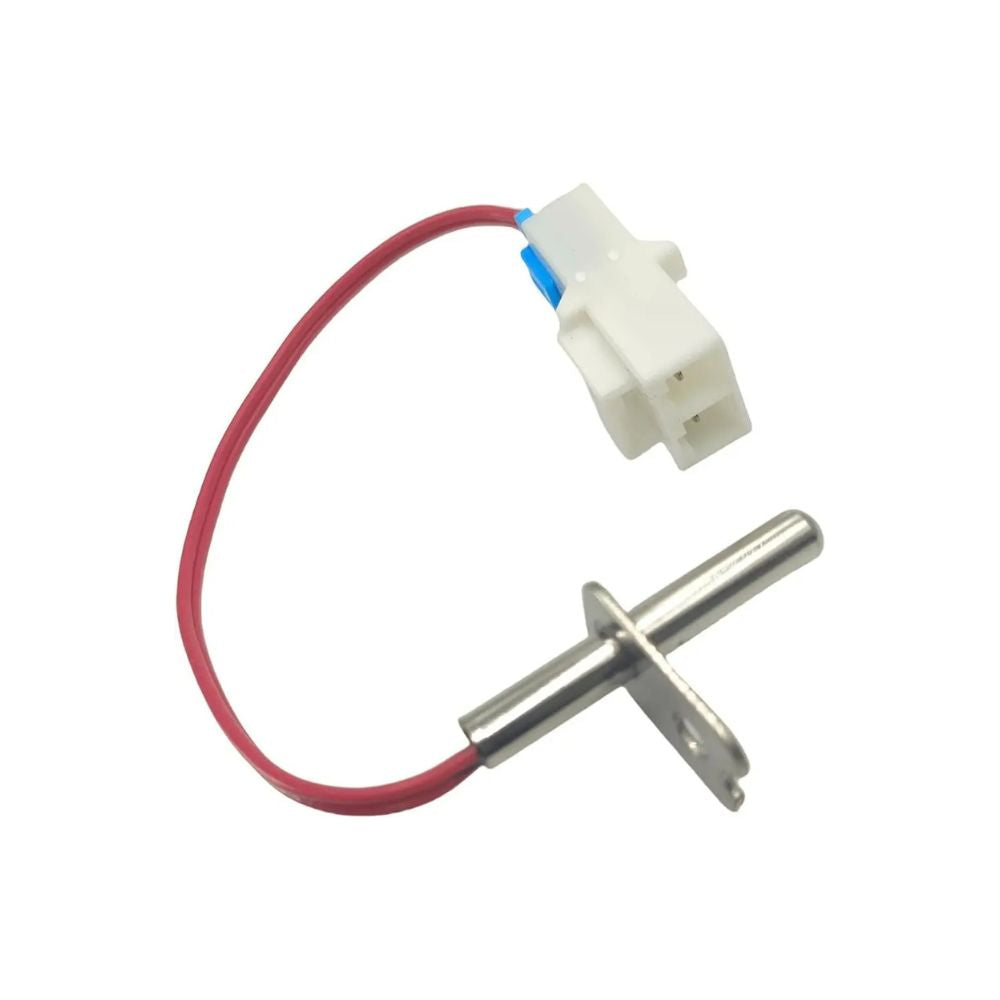

| Thermistor (with wire harness) |
Continuously senses drum/blower housing temperature and reports it to the control board to regulate heat output throughout the cycle. |
Common Problems This Kit Fixes
- Dryer overheating, sometimes scorching or damaging clothing
- Dryer running with little or no heat
- Inconsistent drying times — cycle shuts off too early or runs longer than necessary
- Temperature-related error code displayed on the control panel
- Clothes remaining damp after a full drying cycle
- High-limit thermostat that keeps tripping repeatedly
- Dryer that has already had its high-limit thermostat replaced once but the problem returned
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dryer thermistor and thermostat kit directly replaces the following OEM and cross-reference part numbers:
AGM30045804, 6931EL3003C, 6931EL3004B, 6931EL3002B, 6931EL3003F, 6931EL3003G, 6323EL2001B, ALG53406, AP7206815, EAP16732335, PD00079467, PS16732335, AGM75510744, EAP16746326, PD00083166, ALG53211, AP7195784, PS16746326.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This kit is compatible with select LG dryers, and also fits select Kenmore and GE-branded dryers built on the LG platform.
Note: A specific verified model list was not consistently available across sources at the time this page was built. Some parts diagrams reference additional related thermostat components (such as a separate blower thermostat) beyond what's included in this kit — if your repair involves more than a high-limit thermostat and thermistor, or if you're unsure exactly what's failed on your model, contact our support team with your model number and we'll help confirm which parts you need before you order.
Key Features
- Aftermarket replacement built to match LG's factory-specified resistance values and switch thresholds
- Combined kit addresses the high-limit thermostat and thermistor together, since both share the same temperature-regulation circuit
- Resolves "overheating," "little or no heat," "inconsistent drying," and "damp clothes after a full cycle" symptoms
- Thermistor ships with its wire harness included
- High-limit thermostat resets automatically after tripping — no replacement needed after each trip
- Direct drop-in replacement for both original components
- Replaces 6931EL3003C, 6323EL2001B, 6931EL3003F, 6931EL3004B, AP7206815, EAP16732335, and PS16732335
- Compatible with LG and select Kenmore and GE-branded LG-built dryers
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Part Number |
AGM30045804 |
| Part Type |
Dryer High-Limit Thermostat and Thermistor Kit |
| OEM Part Number |
AGM30045804 |
| Condition |
Aftermarket Replacement |
| Brand |
LG |
| Kit Contents |
High-limit thermostat + thermistor with wire harness |
| Thermistor Location |
Blower housing |
| High-Limit Thermostat Type |
Automatically resetting |
| Repair Difficulty |
Easy to Moderate — 30 to 60 minutes |
| Compatible Brands |
LG, select Kenmore, GE (LG-built models) |
Installation Notes
⚠️ Unplug Dryer Before Starting — Let It Cool Fully First Disconnect power at the outlet or shut off the circuit breaker before beginning, and allow the dryer to cool completely if it was recently run. Wear work gloves. Access on many LG models follows this general sequence: remove the lint screen, then remove the two front panel screws underneath it, the two screws on the face of the panel, and the two screws holding the blower cover in place. Disconnect the door switch connector and remove the front panel. With the front open, release the drive belt from the tensioner and remove the drum to access the blower housing where the thermistor is located. Photograph the wiring connections before disconnecting anything, since the thermistor and high-limit thermostat can be easy to confuse with other similar-looking components nearby. Disconnect and remove the old thermistor and high-limit thermostat, noting their exact mounting positions. Install the new components from this kit in the same positions, reconnecting wiring exactly as photographed. Reinstall the drum, re-tension the belt over the tensioner, and reassemble the front panel, blower cover, and lint screen area in reverse order. Restore power and run a full test cycle to confirm normal, consistent heating with no premature shutoffs. Tools needed: Phillips screwdriver, nut driver, work gloves.
Frequently Asked Questions
I already replaced the high-limit thermostat, but it keeps tripping. Why would I need this kit instead?
This is a well-documented pattern. If the thermistor — the sensor that reports temperature to the control board — is misreading heat, the control can keep driving the heating element past the point where the high-limit thermostat has to trip repeatedly to protect the dryer, even with a brand-new thermostat installed. Replacing the thermistor alongside the thermostat addresses the root cause rather than just the symptom, which is exactly why LG packages them together as one kit.
What's the difference between the thermistor and the high-limit thermostat?
The thermistor is a sensor, not a switch — it's a variable resistor whose resistance changes with temperature, and the control board reads that value continuously to regulate heat output throughout the cycle. The high-limit thermostat is a safety switch that does one job: it shuts off the heating element automatically if temperature exceeds a safe limit, then resets itself once things cool down. A failing thermistor causes inconsistent or inaccurate heat regulation; a failing high-limit thermostat causes the dryer to shut off unexpectedly or fail to protect against overheating.
My parts diagram shows more thermostat-like parts than what's in this kit. Did I order the wrong thing?
Not necessarily — some LG dryer models have additional related components, such as a separate blower thermostat, that are not part of this specific kit. This kit covers the high-limit thermostat and thermistor. If your repair calls for additional related parts, or if you're not sure exactly which components your model needs, contact our support team with your model number and we'll help you confirm the complete parts list before you order.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured to match the resistance values, switch threshold, and wire harness configuration of the original AGM30045804 high-limit thermostat and thermistor kit used in compatible LG, Kenmore, and GE-branded LG-built dryers.
