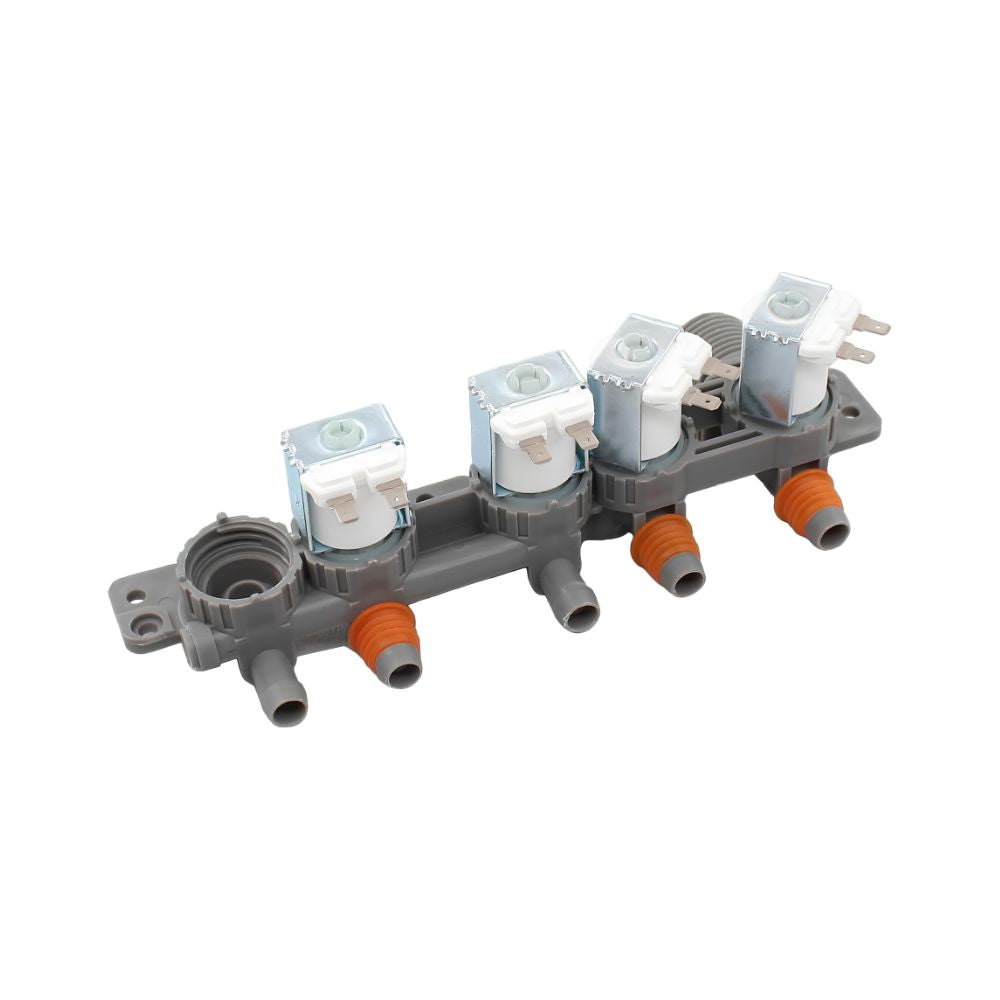

XPARTCO AJU75152602 Washer Water Inlet Valve
The XPARTCO AJU75152602 is an aftermarket replacement washer water inlet valve assembly compatible with select LG and Kenmore top-load washers in the larger-capacity WT7 series — including the WT7060, WT7100, WT7150, WT7155, WT7250, WT7300, WT7305, WT7400, WT7405, WT7800, WT7880, and WT7900 series. The water inlet valve is a multi-port solenoid valve mounted on the back of the washer that controls the flow of hot and cold water into the tub and dispenser compartments during fill and rinse cycles. When any valve port fails, the washer may not fill at all, fill too slowly, fill with the wrong water temperature, overfill, or leak from the valve body.
This valve assembly directly replaces 5221EA1008S, 4873914, AP6335382, EAP12580369, PS12580369, and PD00060681. It includes two integrated inlet screens to filter debris from the supply lines. Installs in 15–25 minutes with basic hand tools. Note: the AJU75152602 is for the WT7xxx larger-capacity LG top-load series — it is not the same valve as the AJU75152601, which is used on the earlier and smaller-capacity WT1xxx through WT5xxx series. Verify your model number before ordering.
Quick Answer
The XPARTCO AJU75152602 Washer Water Inlet Valve fixes LG WT7xxx-series top-load washers that won't fill, fill slowly, fill with wrong temperature, overfill, or leak from the valve. Includes 2 inlet screens. Replaces 5221EA1008S, 4873914, AP6335382, EAP12580369, PS12580369, PD00060681. Compatible with LG WT7060, WT7100, WT7150, WT7300, WT7305, WT7400, WT7405, WT7800, WT7880, WT7900 series and Kenmore (LG-built). Note: not the same as AJU75152601 — different model series.
Common Problems This Part Fixes
- Washer not filling with water at all when a cycle is started
- Washer filling very slowly — taking much longer than normal to reach water level
- Washer filling with only cold water on a warm or hot cycle — hot solenoid failed
- Washer filling with only hot water on a cold cycle — cold solenoid failed
- Washer overfilling or filling continuously — valve port stuck open
- Water temperature incorrect despite correct cycle selection
- Water dripping into the tub between cycles — valve not sealing completely
- Water leaking from the back of the washer near the valve body
Replaces Part Numbers
This water inlet valve directly replaces the following OEM and cross-reference part numbers:
AJU75152602, 4873914, 5221EA1008S, U8EONG(9F), IV-248-103, PD00060681, FIX12580369, ALG53788, AP6335382, PS12580369, DC12V 6W, IV-248-103, U8EONG(9F).
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This water inlet valve is compatible with select LG WT7 series top-load washers and related Kenmore models:
- LG WT7060CV, WT7060CW
- LG WT7100CW
- LG WT7150CW, WT7155CW
- LG WT7250CW
- LG WT7300CV, WT7300CW
- LG WT7305CV, WT7305CW
- LG WT7400CV, WT7400CW
- LG WT7405CV, WT7405CW
- LG WT7800CV, WT7800CW
- LG WT7880HWA
- LG WT7900HBA
- Kenmore 31452 and select LG-built Kenmore models
Important — AJU75152602 vs AJU75152601: These are two different valves for different LG washer generations. The AJU75152602 is for the larger-capacity WT7xxx series. The AJU75152601 is for the earlier and smaller-capacity WT1xxx through WT5xxx series. They are not interchangeable. Always verify your model number before ordering.
Key Features
- Multi-port solenoid valve — controls hot water, cold water, and dispenser ports to deliver the correct water temperature and volume for each cycle phase
- Includes two integrated inlet screens — filter debris and mineral deposits from the supply lines before they reach the valve seat
- ABS plastic and stainless steel construction — durable and resistant to mineral buildup and corrosion
- Replaces 5221EA1008S, 4873914, AP6335382, EAP12580369, PS12580369, and PD00060681
- Compatible with LG WT7060, WT7100, WT7150, WT7300, WT7305, WT7400, WT7405, WT7800, WT7880, WT7900 series and Kenmore LG-built models
- For WT7xxx series only — not the same as AJU75152601 (WT1xxx–WT5xxx series)
- Aftermarket replacement built to OEM-equivalent quality standards
- DIY repair — installs in 15–25 minutes with basic hand tools
Product Specifications
| Part Number |
AJU75152602 |
| Part Type |
Washer Water Inlet Valve Assembly (Multi-Port) |
| Condition |
Aftermarket Replacement |
| Application |
LG WT7xxx Series Top-Load Washers |
| Material |
ABS plastic / Stainless steel |
| Kit Includes |
Valve assembly + 2 integrated inlet screens |
| Note |
WT7xxx series only — not interchangeable with AJU75152601 (WT1xxx–WT5xxx) |
| Compatible Brands |
LG, Kenmore (LG-built) |
Installation Notes
⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off both the hot and cold water supply valves before beginning. Pull the washer away from the wall to access the back panel. The water inlet valve is mounted on the upper rear of the washer. Photograph all wire harness connections and hose positions before disconnecting. Disconnect the two external supply hoses from the valve inlet ports. Disconnect the internal outlet hoses by squeezing the retaining clips and pulling free. Disconnect the wiring harness connectors from each solenoid port. Unscrew the mounting screws and remove the old valve. Install the new AJU75152602 valve in the same position, reconnect all internal hoses, wire harnesses, and external supply hoses in the documented positions. Restore water supply and power, then run a fill cycle to verify normal filling and check for leaks. Tools needed: Phillips screwdriver, pliers.
Frequently Asked Questions
What is the difference between AJU75152602 and AJU75152601?
These are two different water inlet valve assemblies for different generations of LG top-load washers. The AJU75152601 (which also replaces AJU73213301 and 5221EA1008F) is used on LG's earlier and smaller-capacity top-load washers in the WT1xxx, WT4xxx, and WT5xxx series. The AJU75152602 (which replaces 5221EA1008S) is for LG's larger-capacity WT7xxx series. Despite appearing similar, they have different port configurations and are not interchangeable. Always verify your specific model number before ordering.
How do I know if the water inlet valve has failed?
Common signs are the washer not filling, filling only on one temperature setting, overfilling, dripping between cycles, or leaking from the valve area. Before replacing the valve, check that both supply valves are fully open and the hoses are not kinked. You can test each solenoid coil with a multimeter — a working coil shows resistance (typically 200–500 ohms); an open circuit confirms that coil has failed. Also inspect and clean the inlet screens inside the supply port openings — mineral-clogged screens can restrict flow enough to cause the same symptoms as a failed valve.
What are the two inlet screens included with the valve?
The two mesh screens that come with the AJU75152602 install inside the hot and cold water inlet ports of the valve. They catch sediment, mineral particles, and debris from the household water supply before they can reach the solenoid valve seats. Installing fresh screens along with the new valve helps extend the valve's service life, especially in areas with hard water. If the previous valve failed due to mineral buildup rather than an electrical fault, cleaning the supply hoses before installation is also recommended.
My LG WT7300CW is only filling with cold water — is this the valve?
Filling with only cold water on a warm or hot cycle is a classic sign that the hot water solenoid coil on the inlet valve has failed. Each temperature port is controlled by its own independent solenoid — when the hot solenoid fails, only the cold port opens. Before replacing the valve, also confirm that the household hot water supply valve is fully open and that hot water is reaching the back of the washer in the supply hose. If hot water supply is confirmed and the cold-only fill persists, replace the AJU75152602 valve.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured from ABS plastic and stainless steel to match the port configuration and specifications of the original AJU75152602 water inlet valve assembly.
