XPARTCO DA81-06013A Refrigerator Evaporator Fan Motor
The XPARTCO DA81-06013A is an aftermarket replacement evaporator fan motor compatible with a wide range of Samsung French door and bottom-mount refrigerators across the RF18, RF22, RF23, RF24, RF25, RF26, RF28, RF30, and RF34 series. The evaporator fan motor is the "heart" of the refrigerator's cooling cycle — it pulls air across the cold evaporator coils in the freezer section and circulates it throughout the freezer and fresh food compartments. This constant airflow is what keeps temperatures even and food fresh. When the fan motor fails, cooling efficiency drops, compartments run warm, frost can build up on the coils, and the ice maker may stop working properly.

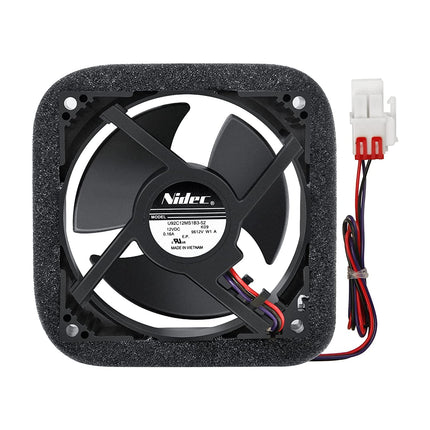

This is an axial evaporator fan and motor assembly with a 3-wire harness. Electrical specs: 12V DC, 0.16A. Frame dimensions: 3-5/8"L x 1-3/4"W x 3-5/8"H, with the harness and plug extending 10-3/4" from the frame. Black with a multi-colored harness, plastic and metal construction. It directly replaces DA31-00287A, U92C12MS1B3-52, 3612JL-04W-S49, 3967908, AP5914786, EAP9603956, PD00031112, and PS9603956. Important: Samsung uses several different evaporator fan motors across its refrigerator lineup with different connectors and voltages — always match your old motor's part number and connector before ordering. Installs in 30–45 minutes with basic hand tools.
Quick Answer
The XPARTCO DA81-06013A Refrigerator Evaporator Fan Motor fixes Samsung French door and bottom-mount refrigerators where the fridge or freezer is too warm, cooling is poor, frost builds up on the evaporator coils, unusual noise comes from the freezer, or the ice maker stops working. Axial fan + motor assembly, 3-wire harness. 12V DC, 0.16A. Frame 3-5/8"L x 1-3/4"W x 3-5/8"H. Replaces DA31-00287A, U92C12MS1B3-52, 3612JL-04W-S49, 3967908, AP5914786, EAP9603956, PD00031112, PS9603956. Compatible with Samsung RF18/RF22/RF23/RF24/RF25/RF26/RF28/RF30/RF34 series. Match your old motor's connector before ordering — Samsung uses several different evaporator fan motors.
Common Problems This Part Fixes
- Refrigerator or freezer section too warm — fan not circulating cold air
- Poor cooling effect — inadequate airflow across the evaporator coils
- Uneven or abnormal temperatures throughout the refrigerator
- Frost or ice buildup on the evaporator coils or in the freezer
- Unusual noise (grinding, squealing, clicking) from the freezer compartment — failing motor bearings or the blade rubbing on frost
- Ice maker not working properly due to inadequate cooling
- Refrigerator running continuously trying to compensate for poor air circulation
- Fan motor not spinning at all when the compressor is running
- Food spoiling faster than normal
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This evaporator fan motor directly replaces the following OEM and cross-reference part numbers:
DA81-06013A, 3612JL-04W-S49, 3967908, DA31-00287A, MX9232ABM1, U92C12MS1B3-52, AP5914786, ASM1162115, EAP9603956, OEM17744367, PD00031112, PS9603956.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Note: Samsung uses several different evaporator fan motors with different connectors — verify your original motor's part number before ordering.
Compatibility
This evaporator fan motor is compatible with select Samsung French door and bottom-mount refrigerators, including:
- Samsung RF28 series — RF28HMEDBSR, RF28HFEDTSR, RF28HFEDBSR, RF28HDEDBSR, RF28HDEDPWW, RF28HFEDBSG, RF28HMEDBBC, RF28HMEDBWW, RF28JBEDBSG, RF28JBEDBSR, RF28R7201SR, RF28R6241SR series
- Samsung RF26 series — RF26HFENDSL, RF26HFENDSR, RF26HFENDWW, RF26HFENDBC, RF26J7500SR, RF26J7500BC, RF26J7500WW series
- Samsung RF25 series — RF25HMEDBSR, RF25HMEDBBC, RF25HMEDBSG series
- Samsung RF263 series — RF263BEAESR, RF263BEAESG, RF263BEAEBC, RF263TEAESR, RF263TEAESG, RF263TEAEBC, RF263TEAEWW series
- Samsung RF260/RF261/RF265 series — RF260BEAESR, RF260BEAESG, RF260BEAEWW, RF261BEAESR, RF261BEAEBC, RF261BEAEWW, RF265BEAESR, RF265BEAESG series
- Samsung RF23/RF24 series — RF23HCEDBSR, RF23HCEDTSR, RF23HTEDBSR, RF24FSEDBSR, RF24J9960S4 series
- Samsung RF22/RF30/RF32/RF34/RF42 series — RF22KREDBSR, RF22KREDBSG, RF22NPEDBSR, RF22NPEDBSG, RF30HBEDBSR, RF30KMEDBSR, RF323TEDBSR, RF323TEDBBC, RF4267HARS series
- Samsung RF18 series — RF18HFENBSR and related bottom-mount models

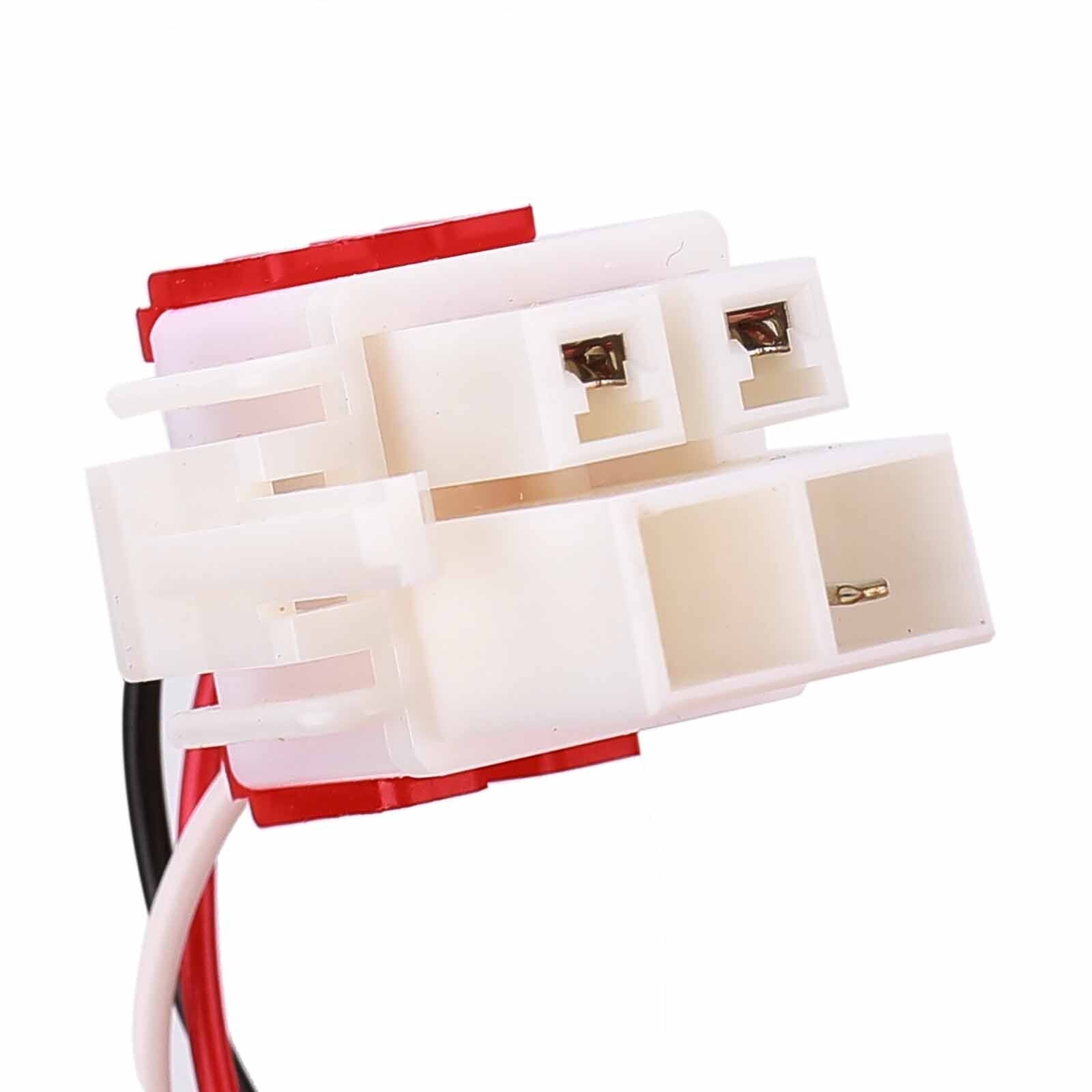

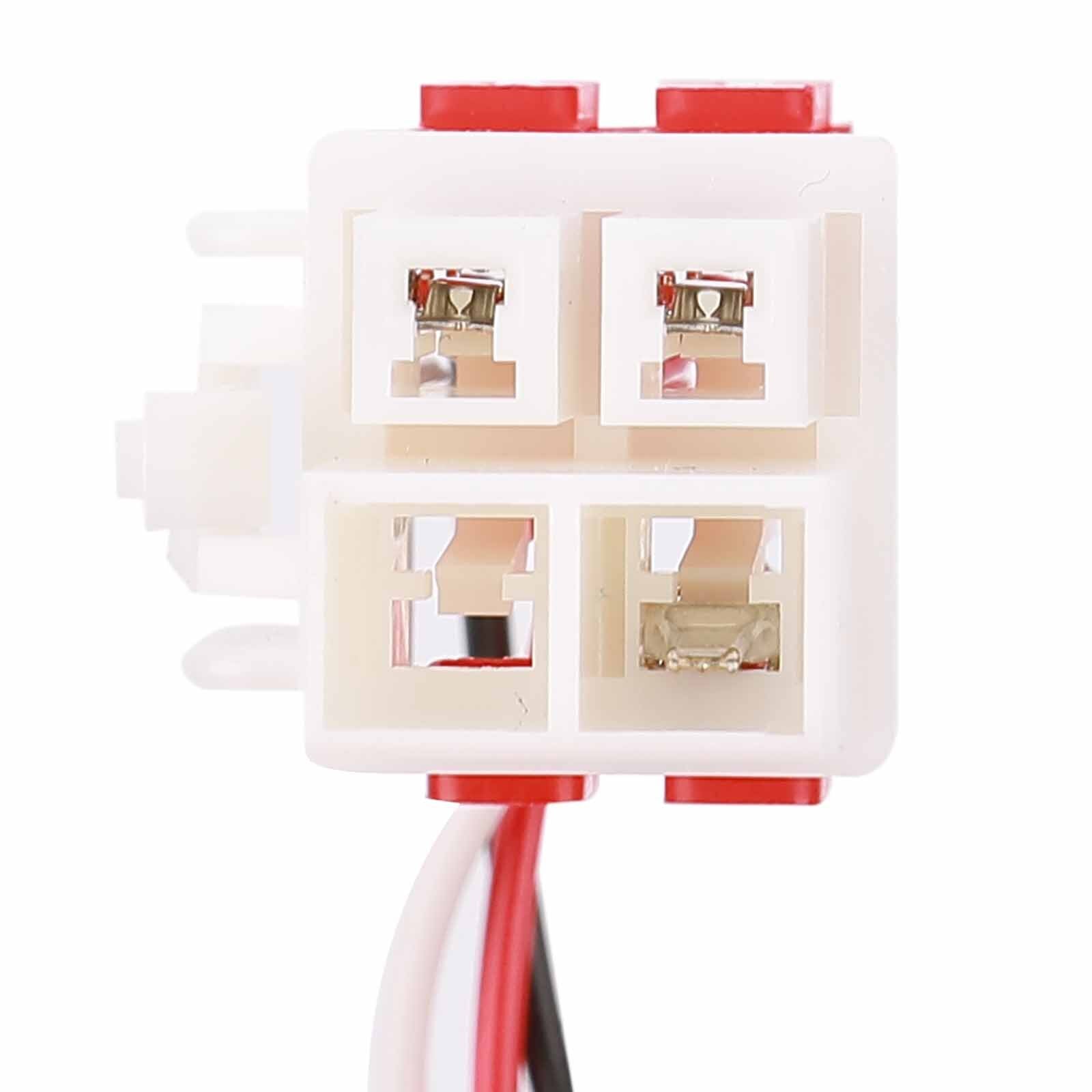

Important — Match Your Connector Before Ordering: Samsung uses several different evaporator fan motors across its refrigerator lineup, with different voltages (12V DC here) and connector styles. This DA81-06013A is a 12V DC motor with a 3-wire harness. Before ordering, compare your old motor's part number and connector to this part — a similar-looking motor with a different connector or voltage (such as the BLDC DA31-00342A used in some RS-series models) is NOT interchangeable. Contact our support team with your model number if you're unsure.
Key Features
- Evaporator fan motor — pulls air across the evaporator coils and circulates it through the freezer and fresh food compartments for even cooling
- Resolves "too warm," "poor cooling," "frost buildup," "noisy freezer," and "ice maker not working" symptoms when caused by fan motor failure
- Axial evaporator fan and motor assembly with 3-wire harness
- Electrical specs: 12V DC, 0.16A
- Frame dimensions: 3-5/8"L x 1-3/4"W x 3-5/8"H · harness and plug extend 10-3/4" from the frame

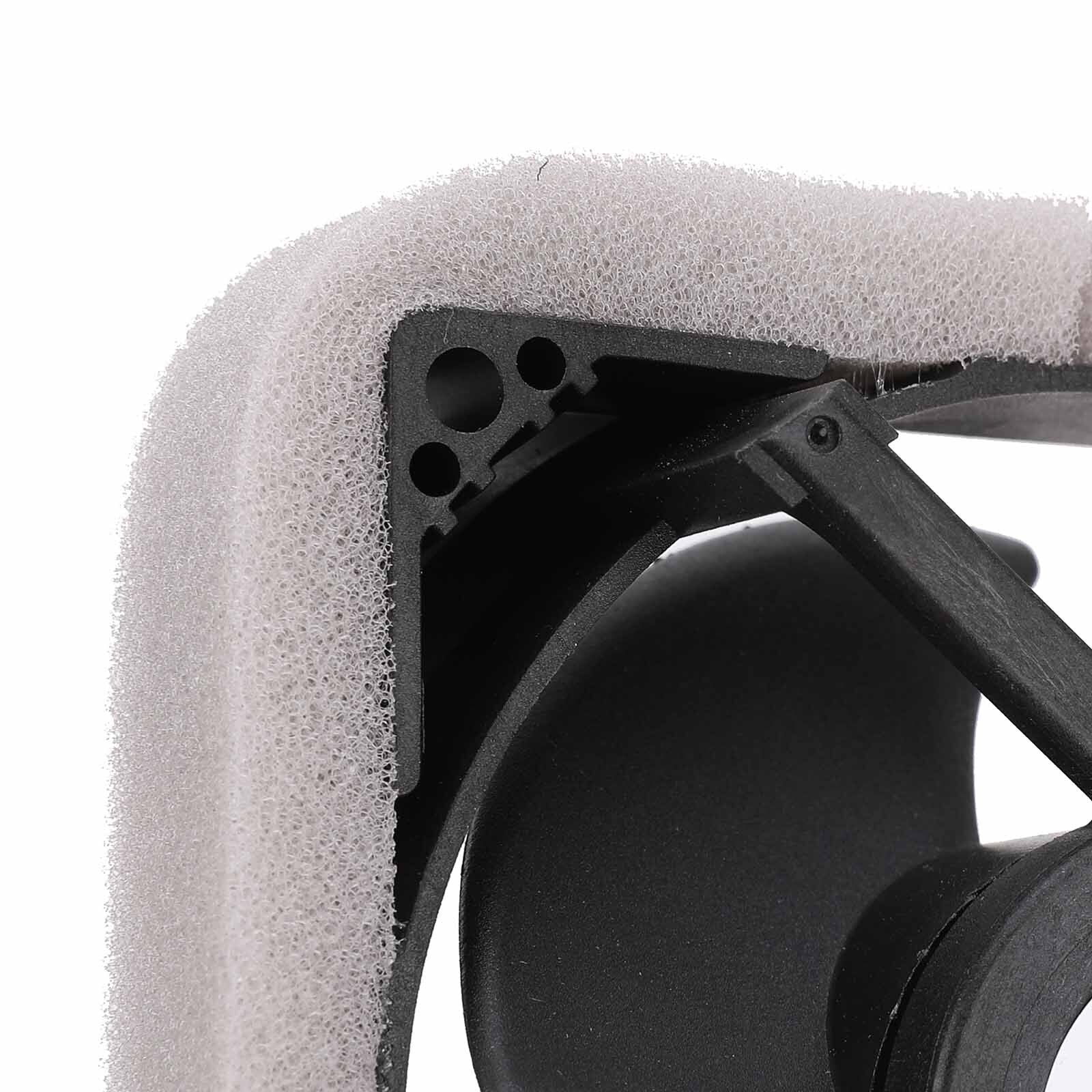

- Black with multi-colored harness, durable plastic and metal construction
- No software or firmware update required — direct drop-in replacement
- Replaces DA31-00287A, U92C12MS1B3-52, 3612JL-04W-S49, 3967908, AP5914786, EAP9603956, PD00031112, and PS9603956
- Compatible with Samsung RF18/RF22/RF23/RF24/RF25/RF26/RF28/RF30/RF34 series French door and bottom-mount refrigerators
- Aftermarket replacement built to OEM-equivalent quality standards
- DIY repair — installs in 30–45 minutes with basic hand tools
Product Specifications
| Part Number |
DA81-06013A |
| Part Type |
Refrigerator Evaporator Fan Motor Assembly |
| Condition |
Aftermarket Replacement |
| Application |
French Door & Bottom-Mount Refrigerators (Samsung platform) |
| Fan Type |
Axial evaporator fan |
| Voltage |
12V DC |
| Current |
0.16A |
| Wiring |
3-wire harness |
| Frame Dimensions |
3-5/8"L x 1-3/4"W x 3-5/8"H |
| Harness/Plug Reach |
10-3/4" from frame |
| Color |
Black with multi-colored harness |
| Material |
Plastic / Metal |
| Location |
Freezer section, behind rear evaporator panel |
| Compatible Brands |
Samsung |
Installation Notes
⚠️ Unplug Refrigerator and Move Perishable Food Before Starting — Wear Work Gloves — Match the Connector Unplug the refrigerator and safely store any food that could spoil while the power is off. Wear work gloves to protect your hands. The evaporator fan motor is located in the freezer section behind the rear access panel. Remove all freezer shelves, drawers, and the ice maker (if equipped) to clear access to the back wall. If there's frost or ice buildup on the rear panel or coils, allow the freezer to thaw completely before continuing — never chip or pry ice off the evaporator coils, as the aluminum fins damage easily. Remove the screws securing the rear evaporator access panel and lift it away to expose the fan motor. Photograph the wiring harness connection and fan motor orientation before disconnecting anything. Before installing, compare the new motor's connector and part number to your old one — they must match. Disconnect the wiring harness by gently pulling the plug, and remove the two mounting screws holding the fan motor assembly in place. Remove the old motor. Install the new DA81-06013A in the same position and orientation, secure with the two mounting screws, and reconnect the wiring harness by firmly pushing the plug in until it seats. Confirm the fan blade spins freely by hand without rubbing on any surrounding surface. Reinstall the rear access panel, shelves, drawers, and ice maker. Plug the refrigerator back in and allow several hours for the unit to return to its set temperature before reloading with food. No software or firmware update is required. Tools needed: Phillips screwdriver (or electric screwdriver), work gloves.
Frequently Asked Questions
How do I know if my evaporator fan motor has failed?
The most common signs are a refrigerator or freezer that's too warm despite the compressor running, poor or uneven cooling, and frost building up on the evaporator coils because air isn't being circulated. You may also hear unusual noise (grinding, squealing, or clicking) from the freezer compartment as the motor bearings fail or the blade rubs on accumulated frost. To confirm: with the refrigerator running, open the freezer and listen/look for the fan behind the rear panel — if it's not spinning while the compressor runs, or it's making noise, the motor has likely failed. You can also test the motor with a 12V DC power source; a working motor will spin when powered.
Samsung has several similar-looking fan motors — how do I know this is the right one?
This is the critical thing to get right. Samsung uses several different evaporator fan motors across its refrigerator lineup, and while they look similar, they differ in voltage and connector style and are NOT interchangeable. The DA81-06013A is a 12V DC motor with a 3-wire harness, used across the RF18/RF22/RF23/RF24/RF25/RF26/RF28/RF30/RF34 French door and bottom-mount series. A different motor — such as the BLDC DA31-00342A used in some RS-series side-by-side models — has a different connector and won't work here. Before ordering, find the part number printed on your old motor, or match your refrigerator's model number against the compatibility list. When in doubt, send us your model number and we'll confirm.
Do I need to update any software or firmware after installing this?
No — this is a simple mechanical fan motor with no electronics that require programming. Unlike some Samsung refrigerator control boards or main PCBs, the evaporator fan motor is a direct drop-in replacement: disconnect the old one, connect the new one, and it works immediately. There's no pairing, calibration, or firmware update needed. Just make sure the connector matches and the fan blade spins freely after installation.
Should I defrost the freezer before installing this?
If there's frost or ice buildup on the rear freezer panel or evaporator coils, yes — clear it before installing the new motor. Leave the freezer empty and unplugged with the door open for several hours (longer for heavy ice) to let everything thaw naturally, with towels at the base to catch melt water. Never chip or pry ice off the evaporator coils with a tool — the aluminum fins are delicate and a damaged coil is a far more expensive repair. If heavy frost keeps returning after the fan motor is replaced, the defrost system (defrost heater, sensor, or control) should be investigated as a secondary issue.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured to match the electrical specifications (12V DC, 0.16A), 3-wire harness, connector, frame dimensions (3-5/8"L x 1-3/4"W x 3-5/8"H), and cooling function of the original DA81-06013A evaporator fan motor used in compatible Samsung French door and bottom-mount refrigerators.
