XPARTCO DA82-01415A Refrigerator Water Leak Service Kit

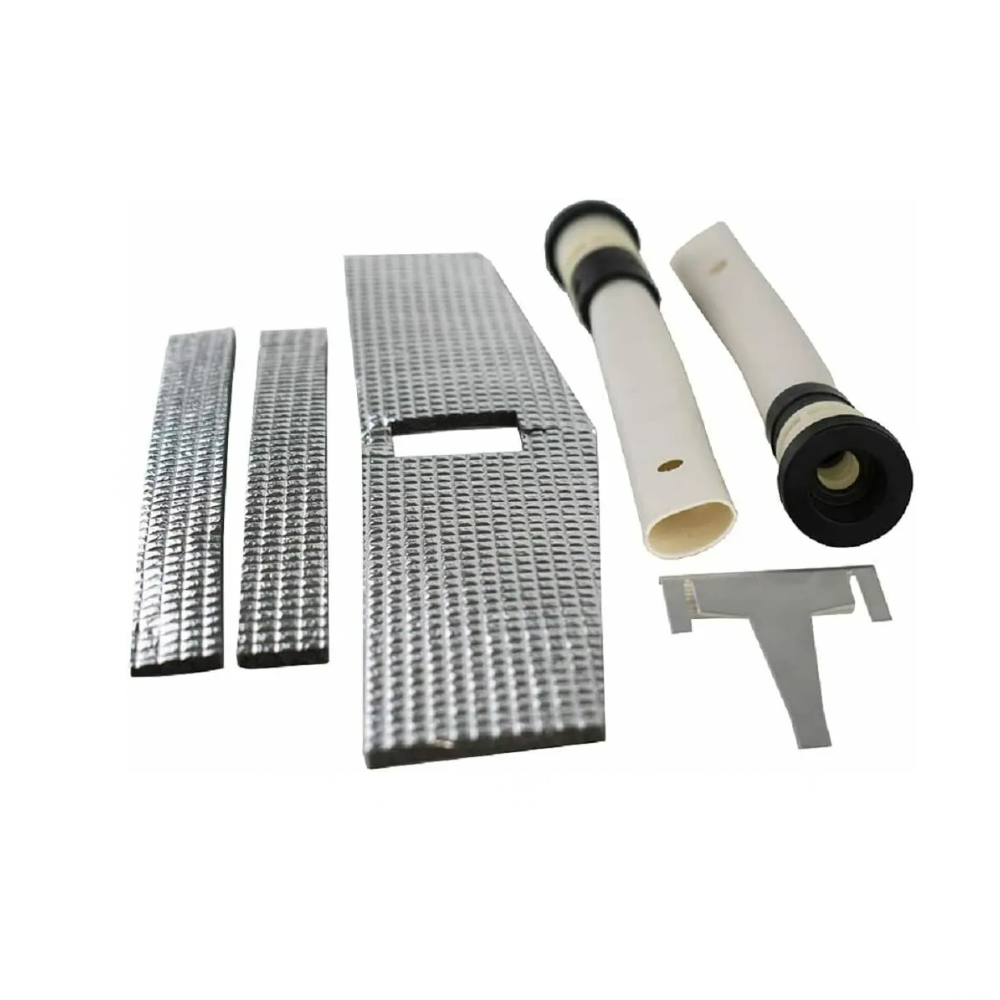

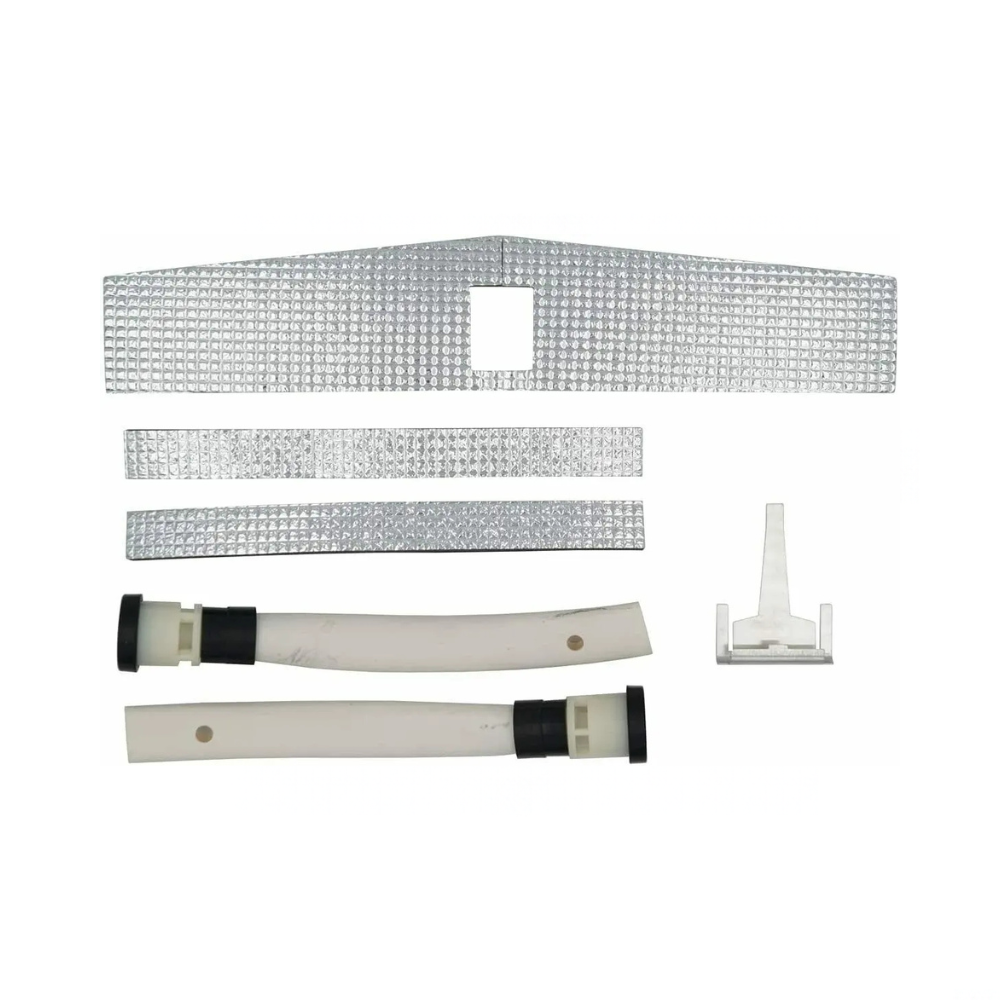

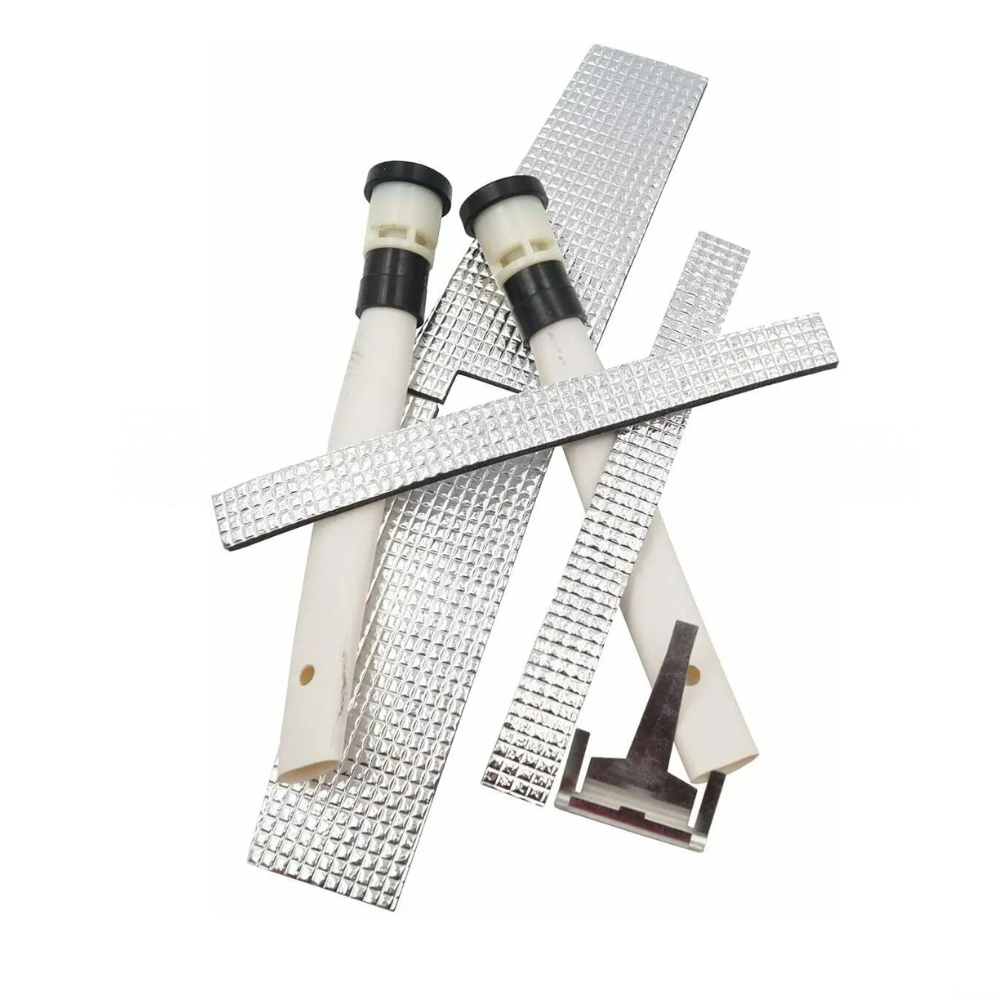

The XPARTCO DA82-01415A is an aftermarket replacement water leak service kit, made to replace Samsung part DA82-01415A, for select Samsung bottom-freezer and French door refrigerators. It addresses water leaking from the defrost drain, where a frozen or poorly sealed drain lets ice build up on the evaporator and meltwater overflow under the crisper drawers. The kit includes a replacement drain tube with cap and foam sealing pieces for the evaporator drain plate.
This is an aftermarket replacement from XPARTCO, not a genuine Samsung part. It is sold as a kit. Check your model number before ordering.
Quick Answer
The XPARTCO DA82-01415A Water Leak Service Kit repairs the defrost drain on a compatible Samsung refrigerator that is leaking water. Classic symptoms: water pooling at the bottom of the refrigerator or under the crisper drawers, frost building up on the evaporator, or a frozen drain tube.
Common Problems This Kit Fixes
- Water pooling at the bottom of the refrigerator or under the crisper drawers
- Condensate leaking around the evaporator
- Excess frost forming on the evaporator cover
- Frozen or iced-over defrost drain tube
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This water leak service kit is made to replace the following Samsung part number:
DA82-01415A, DA62-03441A, 3436781, AP5957964, ASM31603, EAP10058968, PD00024858, PS10058968
If your old kit shows a different number, contact our support team and we'll check whether it matches.
Compatibility
This kit is listed for Samsung bottom-freezer and French door refrigerators with dual evaporators. Retailers do not publish a full model list for this kit.
Note: Samsung sells similar-looking leak kits and drain parts under different part numbers, and newer refrigerators may already have a factory-installed drain tube. Send us your full model number, or check it against your parts diagram, and we'll verify fit before you order.
Key Features
- Aftermarket replacement for the Samsung DA82-01415A water leak service kit
- Replacement defrost drain tube with cap
- Foam sealing pieces for the evaporator drain plate
- Sold as a kit
Product Specifications
| Part Number |
XPDA82-01415A |
| OEM Part Number |
DA82-01415A |
| Part Type |
Refrigerator Water Leak Service Kit |
| Condition |
Aftermarket Replacement |
| Quantity |
1 Kit |
| Application |
Select Samsung Bottom-Freezer and French Door Refrigerators |
Installation Notes
⚠️ Disconnect Power Before Installing Unplug the refrigerator and remove any food that could spoil. Remove the evaporator cover and check that the defrost heater and defrost sensor work, because a failed heater or sensor will cause the drain to freeze again. Take care when moving the evaporator and drain plate, because damage to the evaporator coil can ruin the sealed system. Fit the new drain tube and foam seals, put the cover back, and fully thaw any ice in the drain before you restore power. Reviewers suggest having Phillips and flat-head screwdrivers and pliers on hand and consulting your model's service manual.
Frequently Asked Questions
My refrigerator is leaking water. Is this kit the fix?
It can be, if the leak comes from a frozen or poorly sealed defrost drain. Before buying, check that the defrost heater and defrost sensor work, because a failed heater or sensor can cause the same leak.
Is this an OEM or aftermarket part?
This is an aftermarket replacement from XPARTCO, made to replace Samsung part DA82-01415A. If you specifically need a genuine Samsung part, contact our support team.
What is in the kit?
It includes a replacement drain tube with cap and foam sealing pieces for the evaporator drain plate. Retailers describe the full contents differently, so contact our support team if you need to confirm them before ordering.
Will this fit my refrigerator?
It is listed for Samsung bottom-freezer and French door refrigerators with dual evaporators, but no model list is published. Send us your full model number, or check it against your parts diagram, and we'll verify it before you order.
