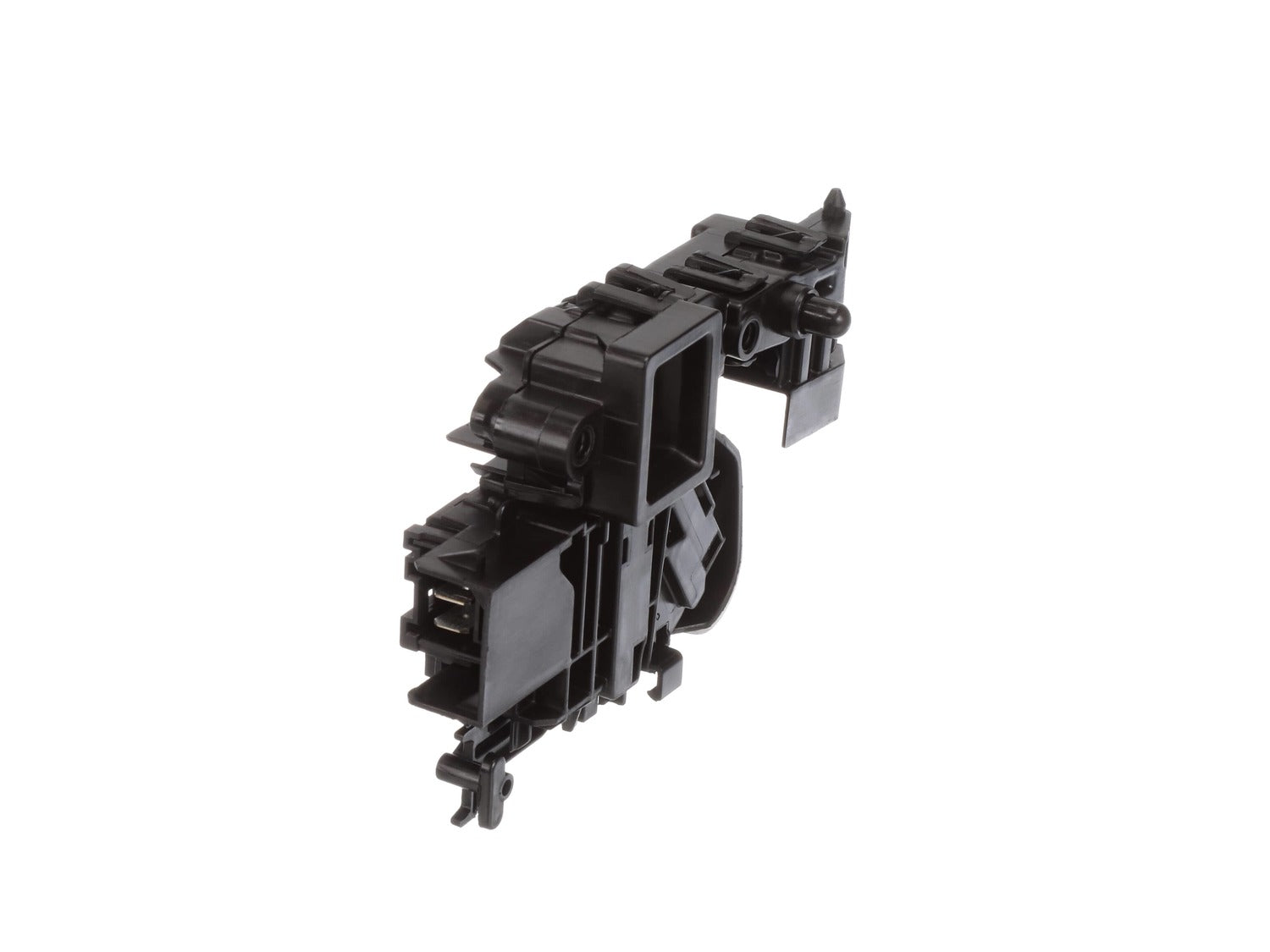

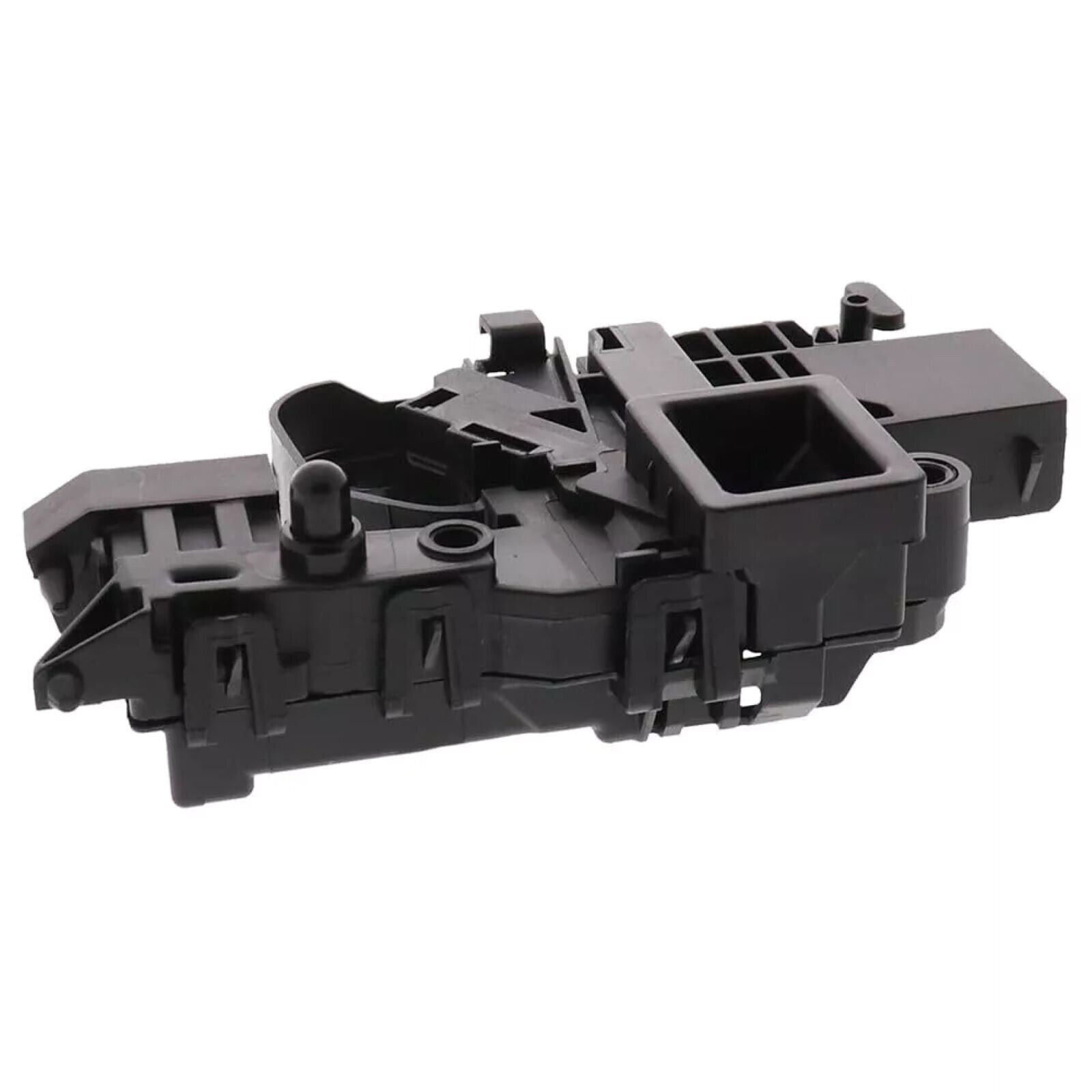

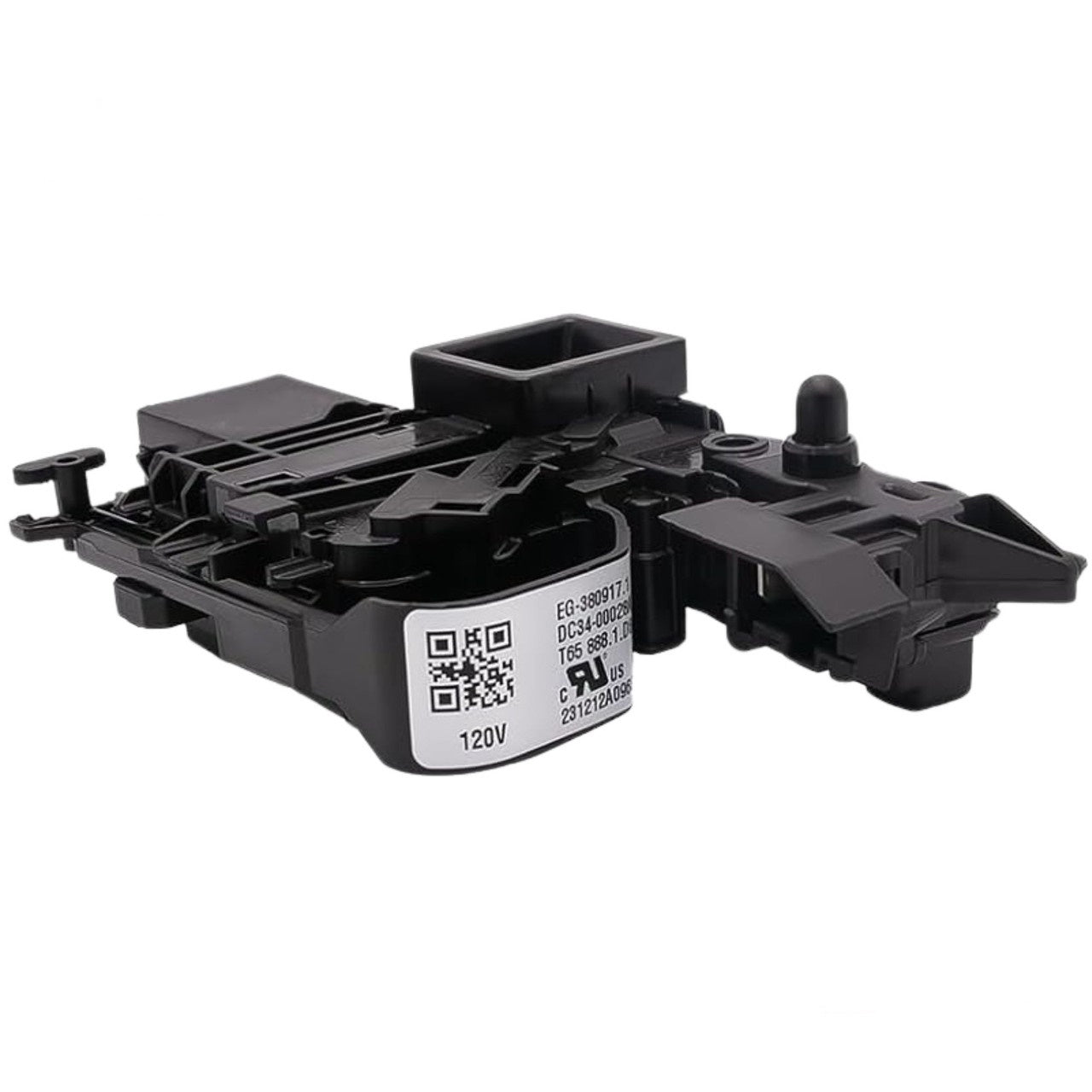

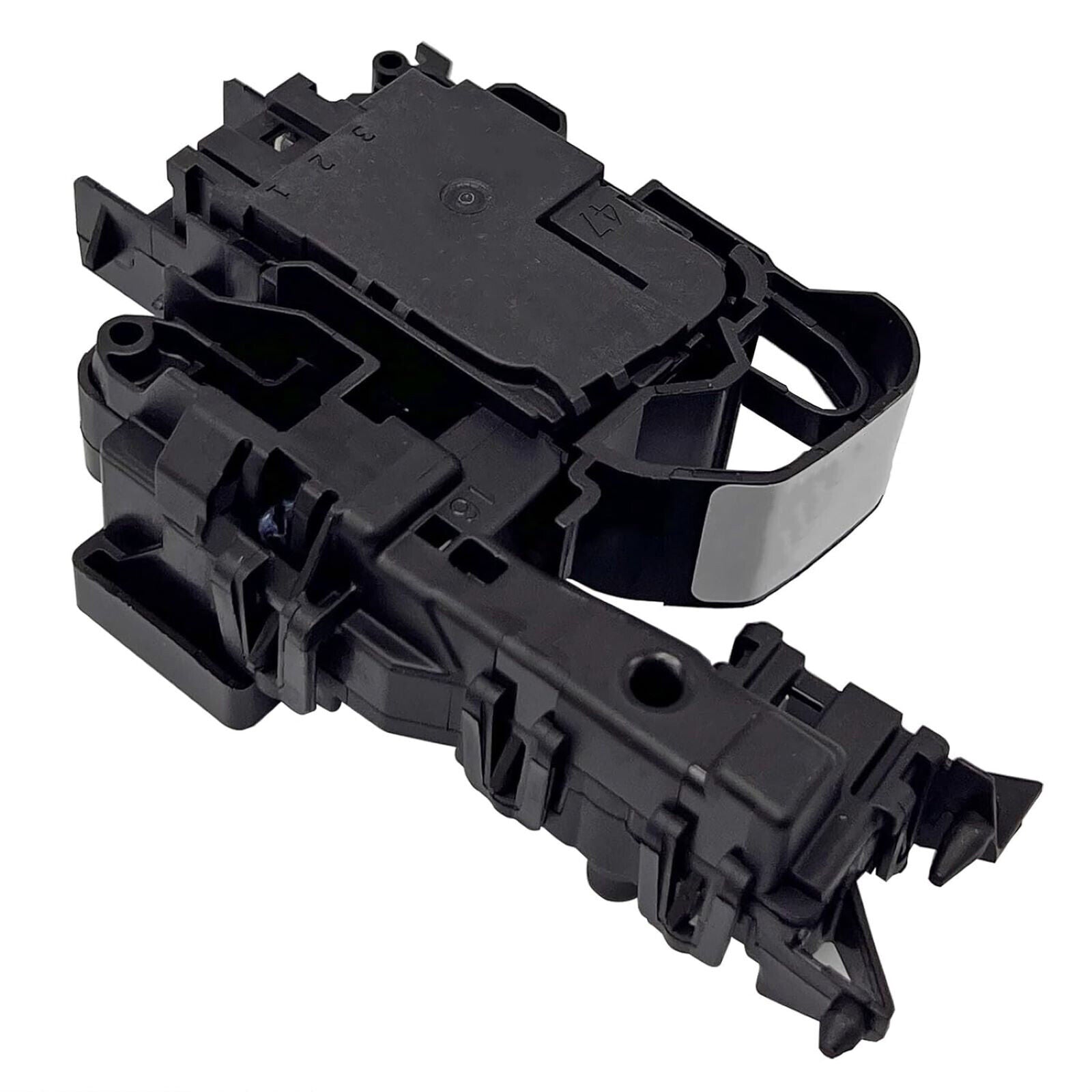

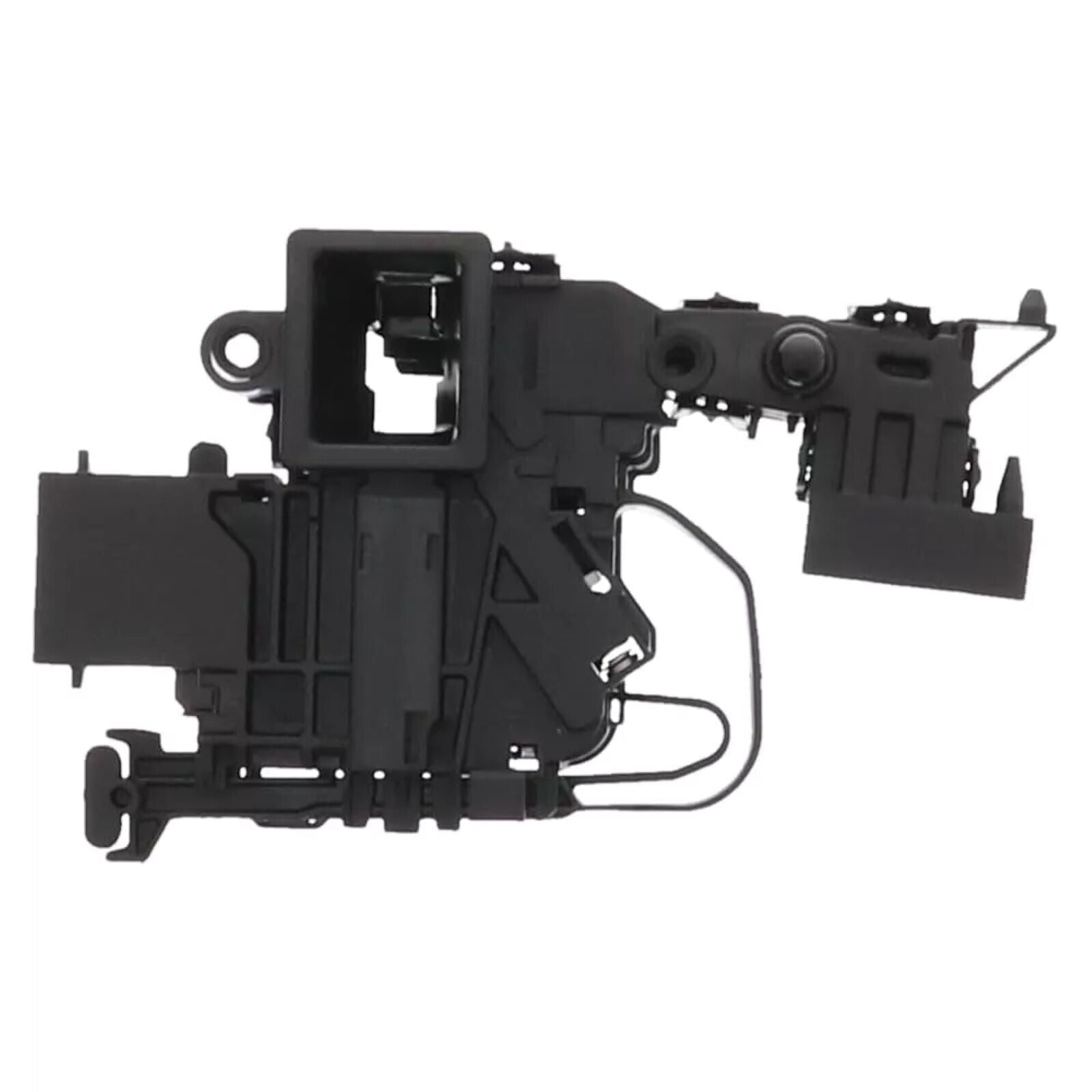

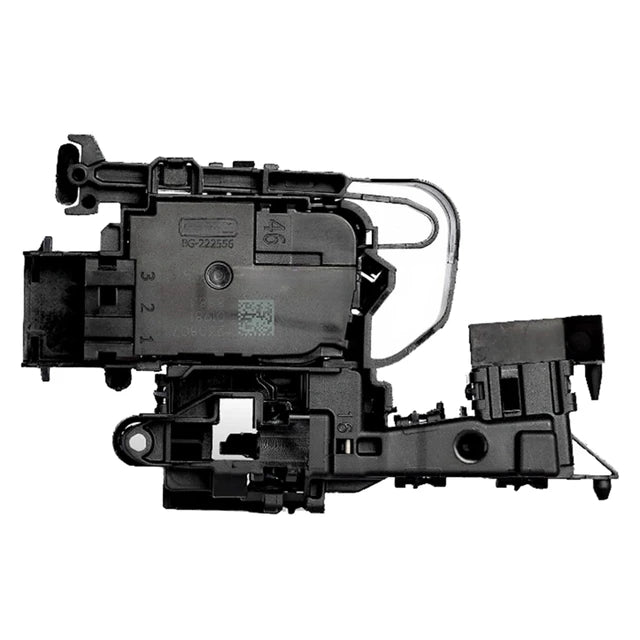

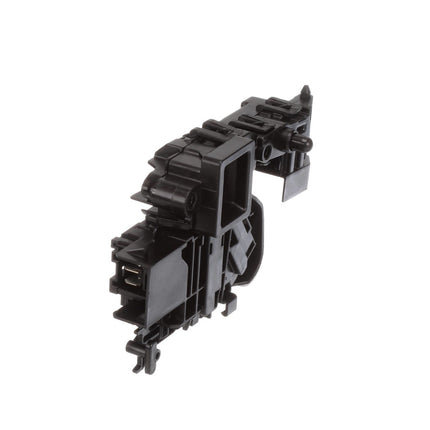

XPARTCO XPDC34-00028A Washer Door Lock
The XPARTCO XPDC34-00028A is a door lock switch for select Samsung front-load washers. It locks the door when a cycle starts and keeps it closed through the wash and spin, then releases it when the cycle ends. When the lock fails, the door may not latch, the washer may not start, or the door may stay locked after the cycle.
This is an aftermarket replacement from XPARTCO, made to replace Samsung part DC34-00028A. If you specifically need a genuine Samsung part, contact our support team. It is sold individually. Match the part number on your old lock to DC34-00028A before ordering.
Quick Answer
The XPARTCO XPDC34-00028A Washer Door Lock replaces a failed door lock switch on a compatible Samsung front-load washer. Made to replace Samsung DC34-00028A. Classic symptoms: the door won't lock or won't unlock after the cycle, the cycle won't start because of a door-lock error, or the lock works only intermittently.
Common Problems This Part Fixes
- Door won't unlock after the spin cycle
- Door doesn't lock properly or opens during wash or spin
- Cycle won't start because of a door-lock error
- Door locks and unlocks intermittently
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Part Number
This door lock is made to replace Samsung part:
DC34-00028A, AP6975226, ASM653368, EAP12740237, PD00070256, PS12740237
If your old lock shows a different number, contact our support team and we'll check whether it matches.
Compatibility
This door lock is listed for select Samsung front-load washers, including these examples:
- Samsung WF45R6100AC, WF45R6100AP, WF45R6100AW, WF45R6300AW
- Samsung WF45B6300AC, WF45B6300AP, WF45B6300AW
- Samsung WF45A6400AV, WF45A6400AW, WF45T6200AW
- Samsung WF50A8500AV, WF50A8600AE, WF50R8500AV, WV60A9900AV, WW25B6900AW
Note: The models above are a sample, not a full list. Samsung uses different door locks on other models under different part numbers. Check your full model number against your parts diagram, or contact our support team to verify fit before ordering.
Key Features
- Aftermarket replacement from XPARTCO, made to replace Samsung DC34-00028A
- Locks the door during wash and spin and releases it at the end of the cycle
- Replaces the lock switch without replacing the whole door assembly
- Sold individually
Product Specifications
| Part Number |
XPDC34-00028A |
| OEM Part Number |
DC34-00028A |
| Part Type |
Washer Door Lock Switch |
| Condition |
Aftermarket Replacement |
| Quantity |
1 Door Lock |
| Application |
Select Samsung Front-Load Washers |
Installation Notes
⚠️ Unplug The Washer First Unplug the washer and wear work gloves before you start. The door lock is wired to household power. Pull back the door gasket to reach the lock, note how the wiring connectors are attached, and disconnect them before removing the screws. Install the new lock, reconnect the harness, refit the gasket, then restore power and test that the door locks and unlocks.
Frequently Asked Questions
My washer door won't unlock after the cycle. Is it the lock?
A lock switch that fails to release is a common cause. Wait a few minutes after the cycle ends, since the lock can stay engaged briefly. If the door stays locked, the lock may need replacing.
Is this an OEM or aftermarket part?
This is an aftermarket replacement from XPARTCO, made to replace Samsung part DC34-00028A. If you specifically need a genuine Samsung part, contact our support team.
Is this for a washer or a dryer?
This lock is listed for Samsung front-load washers. Samsung dryers use different parts, so contact our support team if you are unsure.
Will this fit my washer?
It is listed for select Samsung front-load washers, but the model list above is only a sample. Match the number on your old lock to DC34-00028A, check your full model number against your parts diagram, or contact our support team and we'll verify it before you order.
