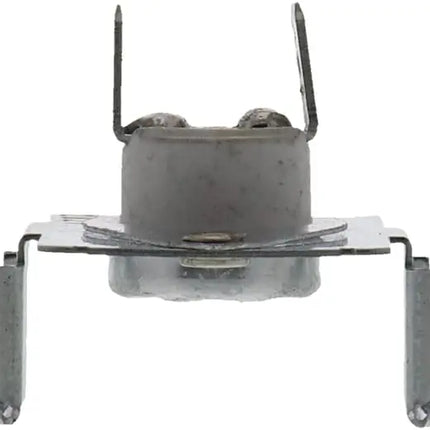

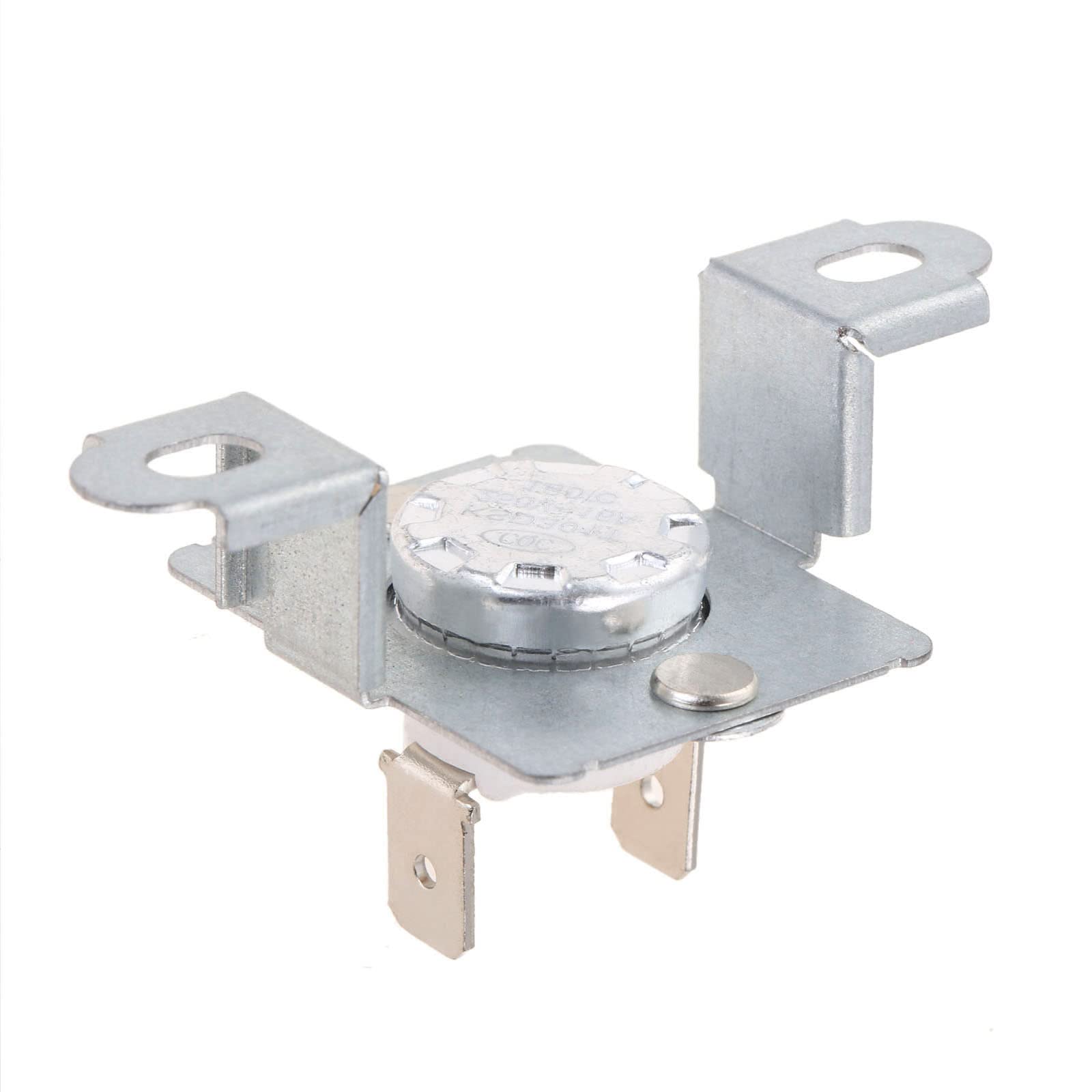

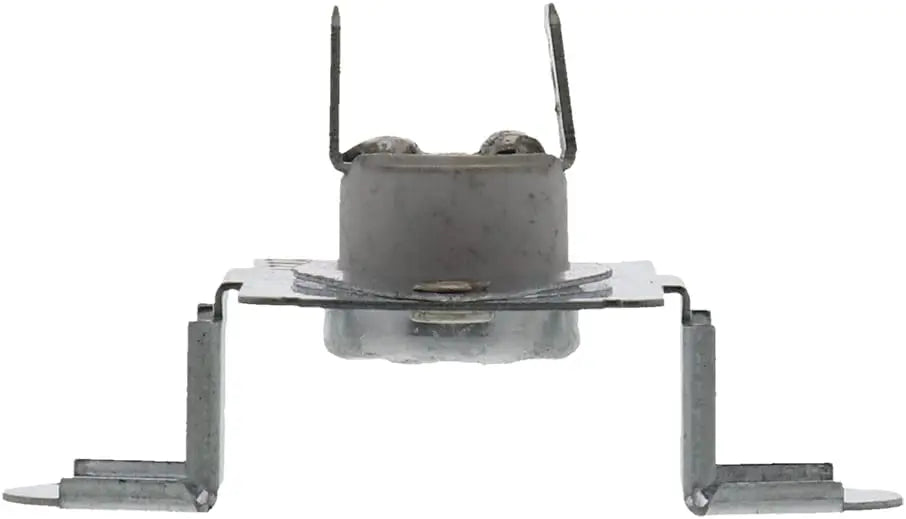

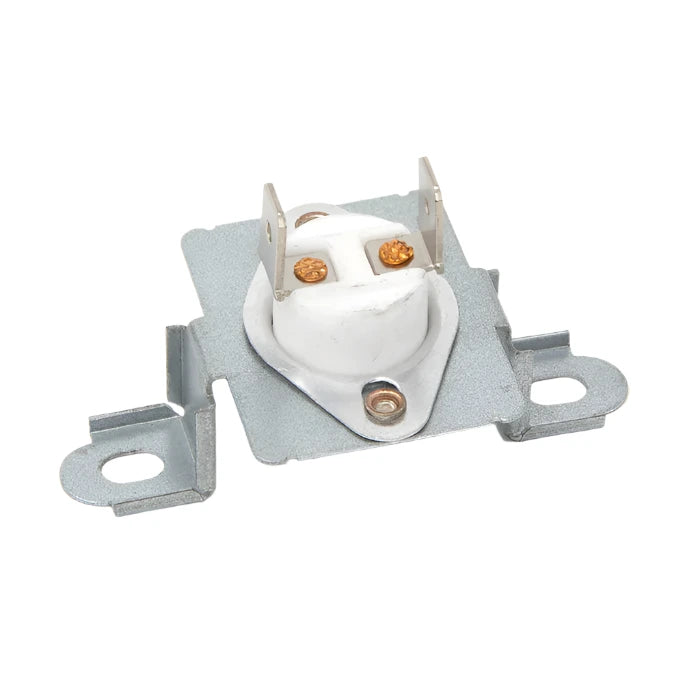

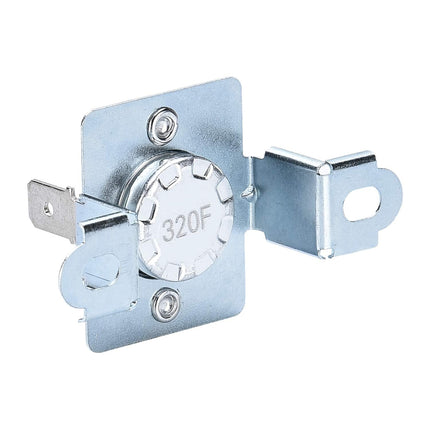

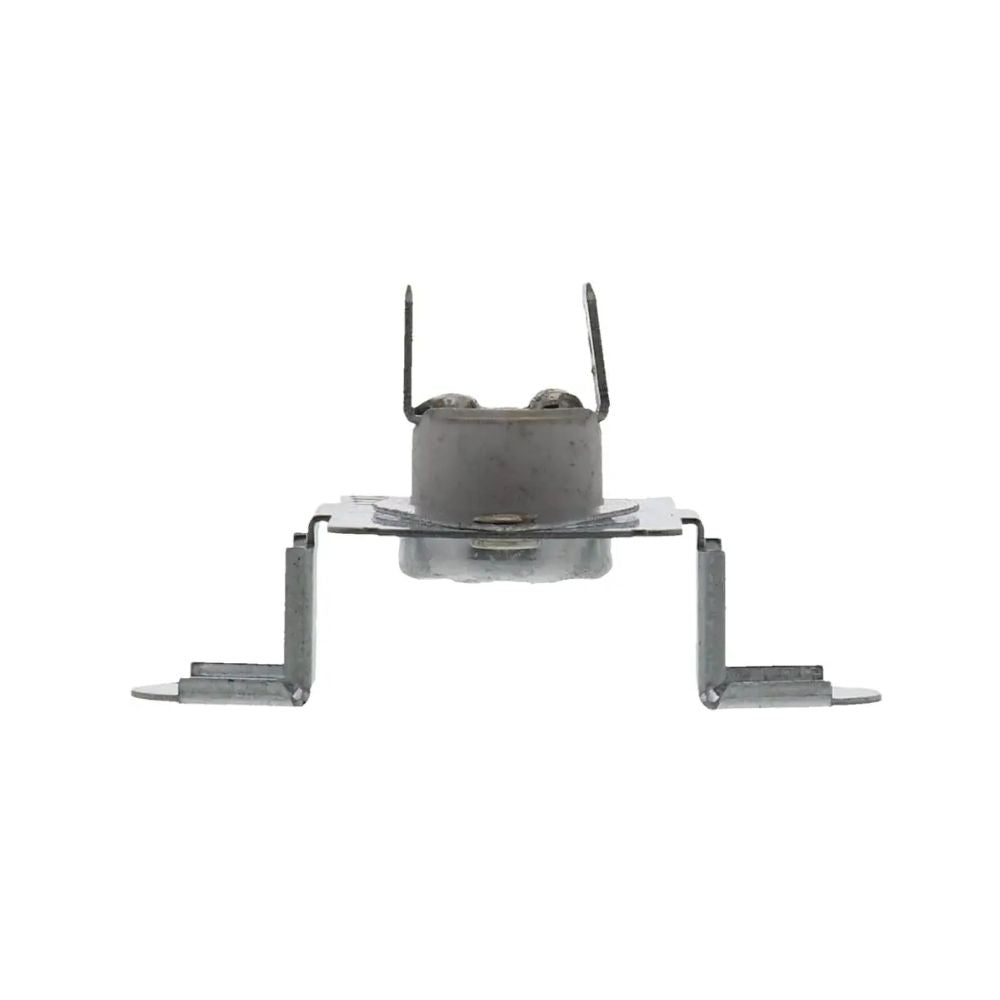

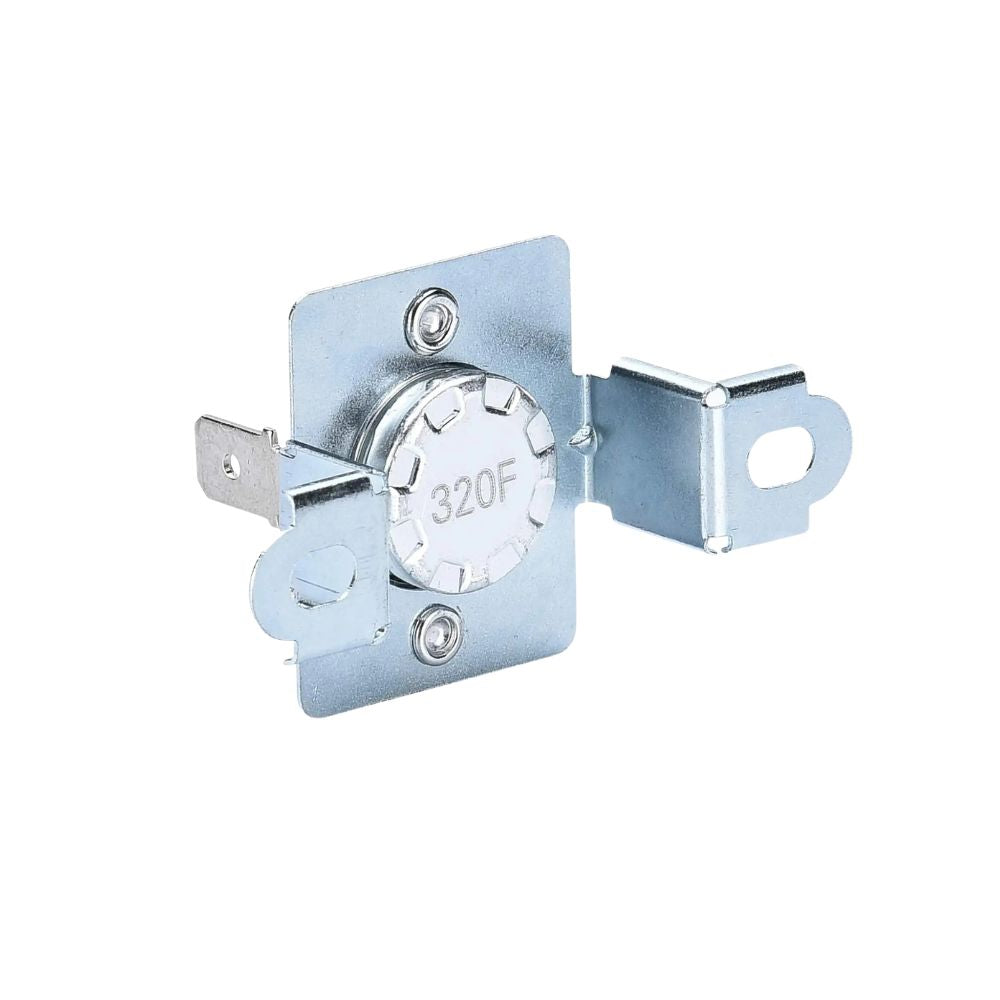

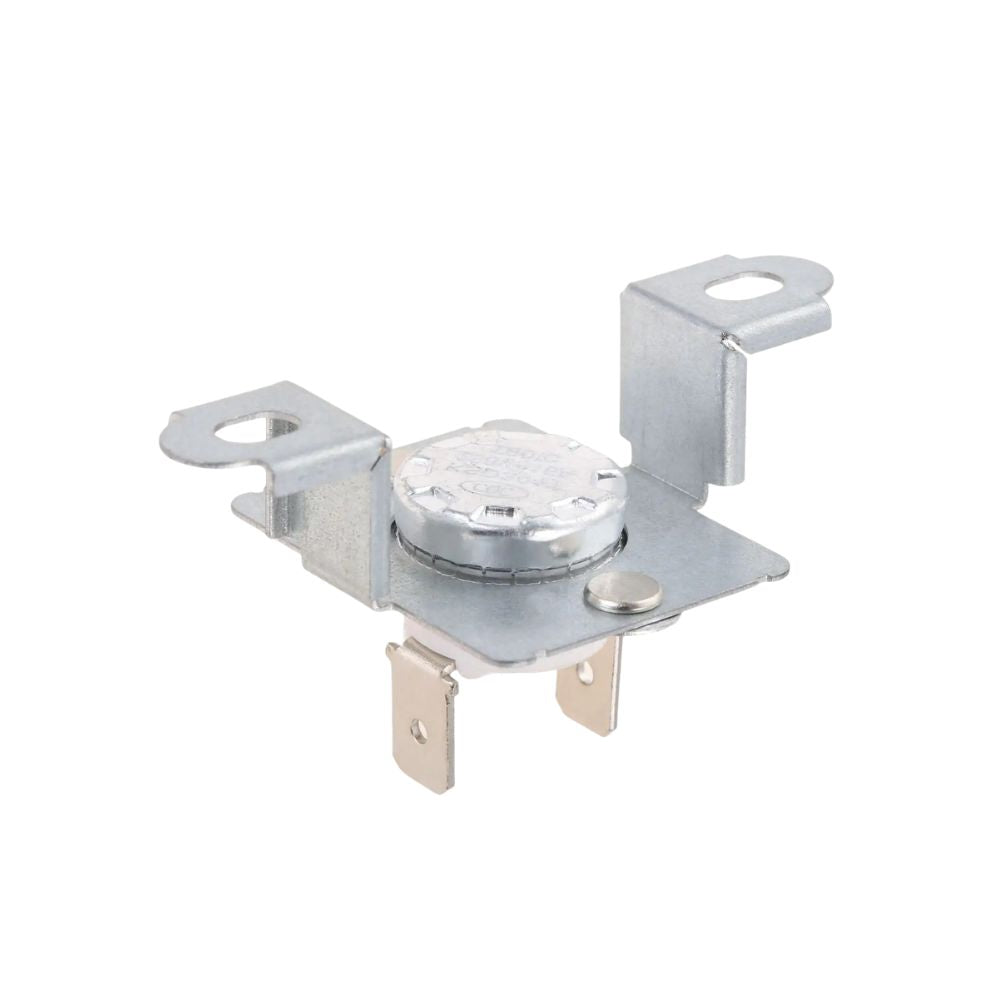

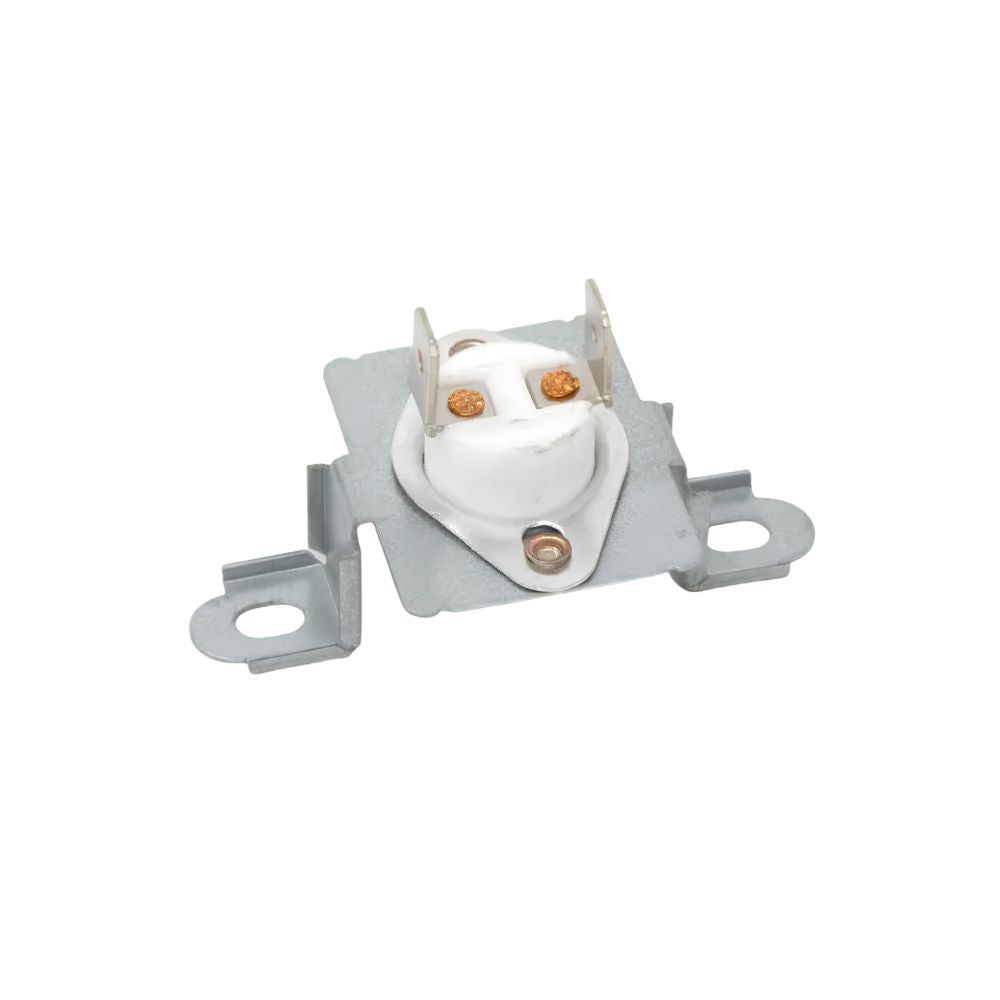

XPARTCO DC96-00887C Dryer Thermal Cut Off Fuse
The XPARTCO DC96-00887C is an aftermarket replacement thermal cut-off fuse for Samsung and select Kenmore electric dryers, mounted with its bracket on the blower housing. This fuse is a one-time safety device: as long as temperatures around the blower stay within normal range, it does nothing at all, but the instant they climb high enough — almost always from restricted airflow — the fuse permanently opens the circuit and cuts power to protect the dryer. That's why a blown fuse at this location produces such a specific symptom: the dryer won't start at all, with no lights, no tumble, and no response, even though the outlet has power.
Despite frequently being labeled a "thermostat" on third-party marketplaces, this is genuinely a fuse, not a thermostat — once it opens from excess heat, it stays open permanently and cannot reset itself. It ships complete with its mounting bracket for a direct plug-in fit. A blown thermal fuse is almost always a symptom rather than a random failure: restricted exhaust venting is the leading cause, since trapped heat is exactly what this fuse is designed to react to. It directly replaces DC96-00887A, AP5966894, 2074129, AP4207819, PS4216838, EAP4216838, WP35001193, 35001193, PS11741822, PS11741829, and AP6008689.
Quick Answer
The XPARTCO DC96-00887C Dryer Thermal Cut Off Fuse fixes Samsung and select Kenmore electric dryers that won't start at all — no lights, no tumble, no response to any button. Mounted with bracket on the blower housing. Replaces DC96-00887A, AP5966894, 2074129, AP4207819, PS4216838, EAP4216838, WP35001193, 35001193, PS11741822, PS11741829, AP6008689. This is a different fuse from our DC47-00016A listing, which mounts on the heater can rather than the blower housing — always verify which fuse your dryer's parts diagram calls for.
Common Problems This Part Fixes
- Dryer won't start at all — no lights, no tumble, no response to any button
- Dryer that stopped working suddenly, especially after running unusually hot
- Dryer runs a short time then shuts off completely and won't restart
- Repeated blown fuses on a dryer with a known venting or airflow restriction
- Clothes coming out extremely hot right before the dryer stopped working
- Continuity test shows an open circuit across the old fuse
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dryer thermal cut-off fuse directly replaces the following OEM and cross-reference part numbers:
DC96-00887C, DC96-00887A, PD00035400, EAP4216838, AP5966894, ASM65115, PD00035400, PS4276292, WP35001193, 35001193, PD00003365, EAP11741829, AP6008689, AWP47381, PD00003365, PS11741829.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This thermal cut-off fuse is compatible with select Samsung electric dryers, and also fits select Kenmore dryers built on the Samsung platform, including model numbers such as:
- DV5471AEW/XAA
- DV40J3000EW/A2, DV42H5000EW/A3, DV45H7000EW/A2, DV48H7400EW/A2
- DV400EWHDWR/AA
- DVE50M7450W/A3
Note — not the same as DC47-00016A: This fuse mounts on the blower housing. Our DC47-00016A listing is a separate thermal fuse that mounts on the heater can instead — the two guard different points in the same circuit and are not interchangeable. Always verify your full model number and check your parts diagram for the exact mounting location before ordering. Contact our support team with your model number if you're unsure which fuse your dryer needs.
Key Features
- Aftermarket replacement thermal cut-off fuse — one-time safety device that cuts power if the dryer overheats
- Mounted with its bracket on the blower housing for a direct plug-in fit
- Resolves "won't start at all," "stopped working suddenly," and "clothes came out extremely hot before it died" symptoms caused by a blown fuse
- Genuinely a fuse, not a thermostat, despite common marketplace mislabeling — non-resettable once blown
- Replaces DC96-00887A, AP5966894, 2074129, AP4207819, PS4216838, EAP4216838, WP35001193, 35001193, PS11741822, PS11741829, and AP6008689
- Compatible with Samsung and select Kenmore electric dryers
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Part Number |
DC96-00887C |
| OEM Part Number |
DC96-00887C |
| Part Type |
Dryer Thermal Cut-Off Fuse (with Bracket) |
| Condition |
Aftermarket Replacement |
| Location |
Blower housing |
| Resettable |
No — one-time use, must be replaced once blown |
| Related Component |
DC47-00018A high-limit thermostat (different device, same circuit, sold separately) |
| Quantity |
1 thermal fuse with bracket |
| Compatible Brands |
Samsung, select Kenmore |
Installation Notes
⚠️ Unplug Dryer Before Starting — Inspect And Clean The Venting Before Reassembling Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Access is typically through the rear panel: remove the screws securing the panel to reach the blower housing where the fuse is mounted. Photograph the wiring before disconnecting the old fuse's connectors. Remove the mounting screw holding the fuse and bracket in place, and pull it free, disconnecting both wire terminals. Before installing the new fuse, test it for continuity with a multimeter to confirm it's good out of the box, and test the old one to confirm it's actually blown (no continuity) rather than assuming. This is the most important step: fully inspect and clean the dryer's exhaust vent, from the lint trap housing all the way to the exterior vent hood, checking for lint buildup, crushed sections, or excessive length. A blown thermal fuse is a symptom of restricted airflow, and skipping this step means the new fuse is likely to blow again. Install the new DC96-00887C in the same mounting position, reconnect both wire terminals, and secure the mounting screw. Reinstall the rear panel, restore power, and run a test cycle to confirm normal heating and shutoff behavior. Tools needed: Phillips or nut driver (model-dependent), multimeter, vent brush or vacuum attachment for cleaning ductwork, work gloves.
Frequently Asked Questions
Some listings call this a "thermostat." Is it really a fuse?
Yes, genuinely a fuse. This is a common point of confusion across the marketplace — many third-party sellers label DC96-00887C a "thermostat," but it functions as a one-time thermal cut-off fuse. Once it opens from excess heat, it stays open permanently and cannot reset itself, unlike a true thermostat, which closes again automatically once temperatures drop. If your fuse has blown, replacement is the only option regardless of what a given listing calls it.
I replaced the fuse and it blew again. What's going on?
This is a strong sign that the underlying cause — almost always restricted airflow — was never addressed. Thermal fuses don't fail from age; they blow because the dryer overheated. If a new fuse keeps blowing, thoroughly inspect and clean the entire exhaust path from the lint trap housing to the outside vent hood, checking for lint buildup, crushed or kinked ductwork, or a vent run that's too long. If airflow checks out and the fuse still blows, have the high-limit thermostat and thermistor checked as well, since a struggling thermostat can push this fuse to blow as the last line of defense.
How is this different from your DC47-00016A listing?
Both are one-time thermal fuses in the same dryer, but they mount in different locations and protect different points in the heating circuit. This DC96-00887C fuse is mounted on the blower housing; the DC47-00016A fuse is mounted on the heater can. They are not interchangeable, so check your parts diagram or the physical mounting location on your dryer to confirm which one you need.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured to match the electrical specifications, bracket configuration, and mounting position of the original DC96-00887C thermal fuse used in compatible Samsung and Kenmore electric dryers.
