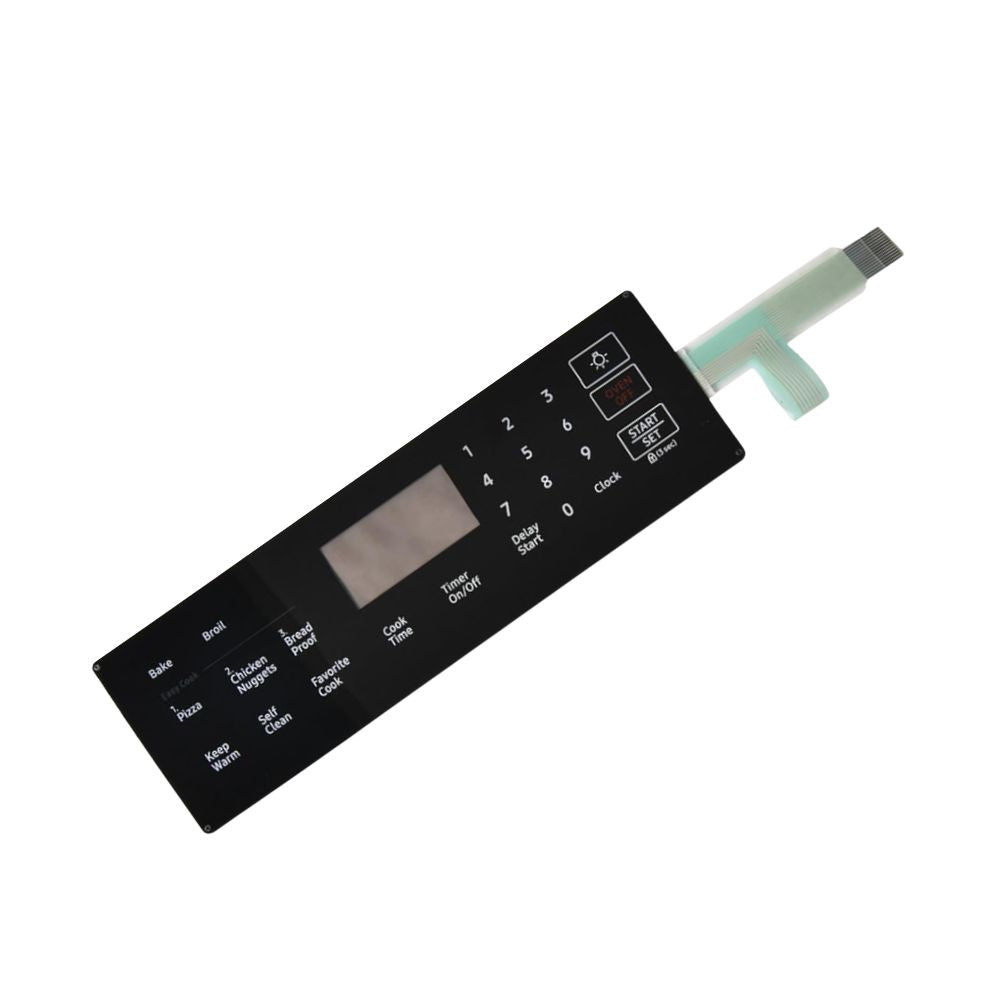

XPARTCO DG34-00025C Range Switch Membrane (Touchpad)
The XPARTCO DG34-00025C is an aftermarket replacement membrane switch touchpad for Samsung gas ranges. This is the keypad panel itself — the touch-sensitive overlay you press to select temperature, set the time, and choose oven or cooktop functions. When you press a button, the membrane switch reads that touch and transmits the signal to the range's main control board, which then activates the corresponding function. This touchpad doesn't process or execute anything on its own — it's purely the physical interface between your finger and the electronics behind the panel.
Because of that division of labor, a failing membrane switch produces a distinct pattern that's easy to tell apart from a control board failure: individual buttons or specific functions stop responding while the rest of the panel, including the clock and display, keeps working normally. If instead the entire display goes blank or the whole panel becomes unresponsive at once, that points to the range's main control board rather than this touchpad — for example, our DE92-02588G listing, which serves some of the same NX58R4311 models this touchpad fits. It directly replaces 4963022, AP6885265, PS12721647, and EAP12721647. As an aftermarket replacement, the DG34-00025C is built to OEM-equivalent quality standards.
Quick Answer
The XPARTCO DG34-00025C Range Switch Membrane (Touchpad) fixes Samsung gas ranges where certain buttons don't respond, specific functions can't be selected, or the panel behaves erratically — while the clock, display, and other buttons keep working normally. Replaces 4963022, AP6885265, PS12721647, EAP12721647. If the entire display is blank or completely unresponsive, the problem is more likely the main control board rather than this touchpad.
Common Problems This Part Fixes
- Certain buttons on the control panel don't respond when pressed
- Specific cooking functions or modes can't be selected
- Panel behaves erratically — registers presses inconsistently or activates the wrong function
- Some buttons work fine while others are unresponsive or intermittent
- Touchpad requires repeated presses to register a command
- Visible wear, cracking, or bubbling on the touchpad overlay surface
- Buttons that used to work reliably have become inconsistent over time
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This range switch membrane touchpad directly replaces the following OEM and cross-reference part numbers:
DG34-00025C, 4963022, AP6885265, ASM608484, EAP12721647, PD00066594, PS12721647.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This switch membrane touchpad is compatible with select Samsung gas ranges, including model numbers such as:
- NX58R4311SS/AA, NX58R4311SS/AA-00, NX58R4311SS/AA-01
- NX58R4311SG/AA, NX58R4311SG/AA-00, NX58R4311SG/AA-01, NX58R4311SG/AA-02
Note: Samsung uses several similarly-numbered membrane switch touchpads across its range lineup — including DG34-00025A (for NX58F5300SS/NX58F5500SS/NX58F5500SB), DG34-00027B (for NX58H5600SS/NX58J5600SG/NX58F5700WS/NX58M5600SB), DG34-00020A (for NE594R0/NE59J3420/NE59J3421), and DG96-00850E/DG96-00850H (for NX60A6111/NE63A6511) — each for different model groups and not interchangeable with this one. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which touchpad fits your range.
Key Features
- Aftermarket replacement built to match Samsung's factory-specified button layout and overlay material
- Touch-sensitive keypad interface that transmits button signals to the main control board
- Resolves "certain buttons unresponsive," "can't select specific functions," and "erratic panel behavior" symptoms caused by a worn or damaged membrane
- Waterproof overlay construction for durability against spills and cleaning
- Direct drop-in replacement — matches the original control panel mounting
- Replaces 4963022, AP6885265, PS12721647, and EAP12721647
- Aftermarket replacement built to OEM-equivalent quality standards
- Straightforward DIY repair with basic tools

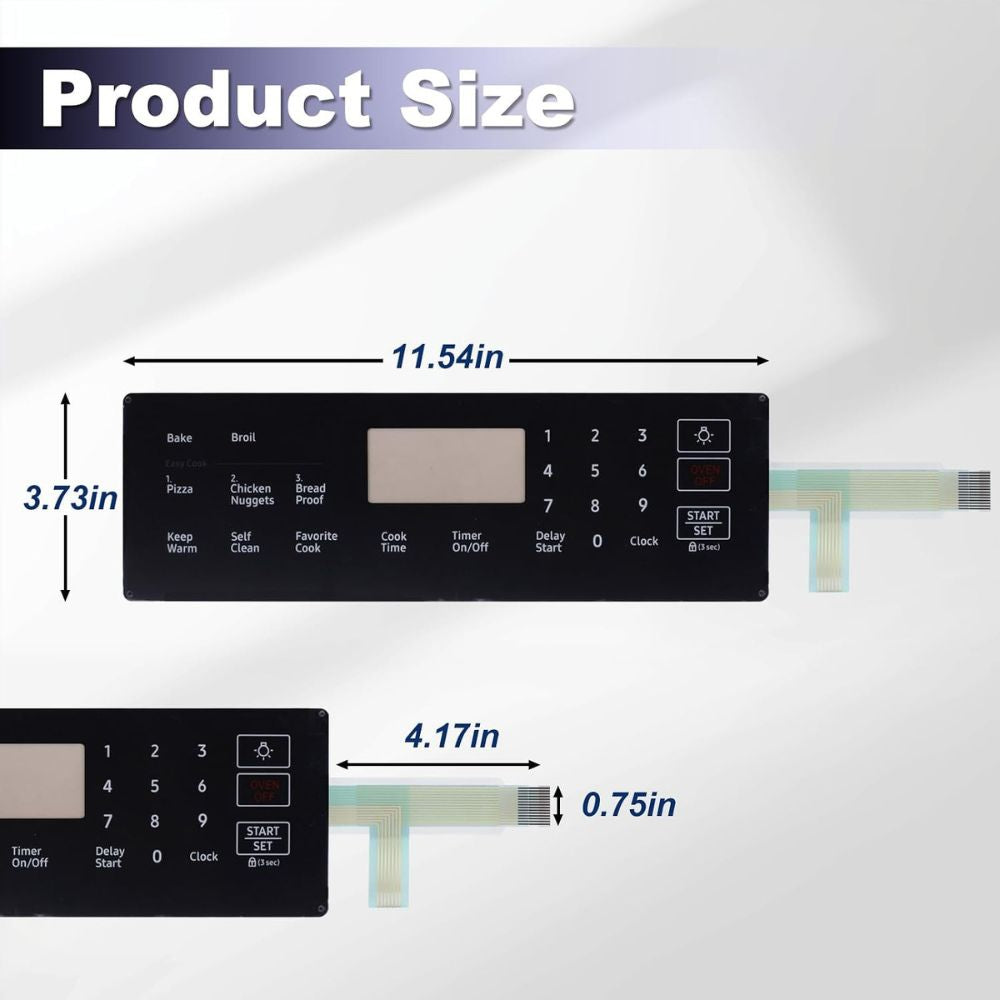

Product Specifications
| Part Number |
DG34-00025C |
| OEM Part Number |
DG34-00025C |
| Part Type |
Range Switch Membrane (Touchpad) |
| Condition |
Aftermarket Replacement |
| Brand |
Samsung |
| Application |
Gas Ranges |
| Color |
Black |
| Construction |
Waterproof overlay |
| Function |
Touch-sensitive keypad interface; passes button signals to the main control board |
| Quantity |
1 switch membrane touchpad |
| Compatible Brand |
Samsung |
Installation Notes
⚠️ Unplug Range Or Shut Off Breaker Before Starting — Small Parts, Keep Away From Children Unplug the range or shut off the house circuit breaker before beginning to avoid electrical hazards. Wear work gloves. This part includes small components — keep them away from young children during installation. Access is typically through the front of the control panel: remove the screws or clips securing the panel trim, then carefully separate the old touchpad overlay from its mounting surface, since some models use an adhesive backing that may require gentle, even pressure to release cleanly without damaging the surrounding panel. Photograph the ribbon cable or connector routing before disconnecting anything. Disconnect the touchpad's ribbon cable or connector from the control board, and remove the old membrane switch fully. Position the new DG34-00025C so its buttons align correctly with the control panel cutout, press it into place evenly to seat any adhesive backing, and reconnect the ribbon cable or connector to the control board. Reinstall the panel trim and its screws or clips. Restore power and test every button on the touchpad to confirm each one now responds correctly. Tools needed: Phillips or flat-blade screwdriver (model-dependent), work gloves.
Frequently Asked Questions
Some buttons work but others don't. Is this the right part?
Yes, this is the classic symptom this touchpad addresses. Because the membrane switch is purely the physical button interface, individual sections of it can wear out or fail independently, leaving some buttons responsive while others stop working. If your clock, display, and some functions still work normally but specific buttons or settings don't respond, this touchpad — not the main control board — is the most likely cause.
My whole display is blank and nothing on the panel responds. Do I need this part?
Probably not. A completely blank or entirely unresponsive display points to the main control board rather than this touchpad, since the touchpad itself has no display and can't cause a total blackout on its own. This touchpad is the correct part specifically when some buttons or functions fail while the rest of the panel, including the display, continues working. Our DE92-02588G control board listing covers some of the same models this touchpad fits, in case that's the part you actually need.
How do I know which specific membrane switch touchpad my range needs?
Samsung uses several different touchpads that look similar but serve different model groups — always check your full model number before ordering. This DG34-00025C fits NX58R4311SS and NX58R4311SG specifically; other Samsung ranges use different part numbers such as DG34-00025A, DG34-00027B, DG34-00020A, or DG96-00850E/DG96-00850H. Contact our support team with your model number if you want to confirm before ordering.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured to match the button layout, overlay material, and mounting configuration of the original DG34-00025C switch membrane used in compatible Samsung gas ranges.
