XPARTCO EAU63103201 Refrigerator Evaporator Fan Motor
The XPARTCO EAU63103201 is an aftermarket replacement evaporator fan motor for LG and select Kenmore/Kenmore Elite refrigerators. On this platform, the fan sits behind a panel near the crisper drawers and circulates air specifically through the fresh food compartment — a different physical location than the freezer-mounted evaporator fans found on many other brands. When this motor slows down or fails, the fresh food section is the part of the refrigerator most directly affected, since it depends on this fan to keep cold air moving across the compartment.

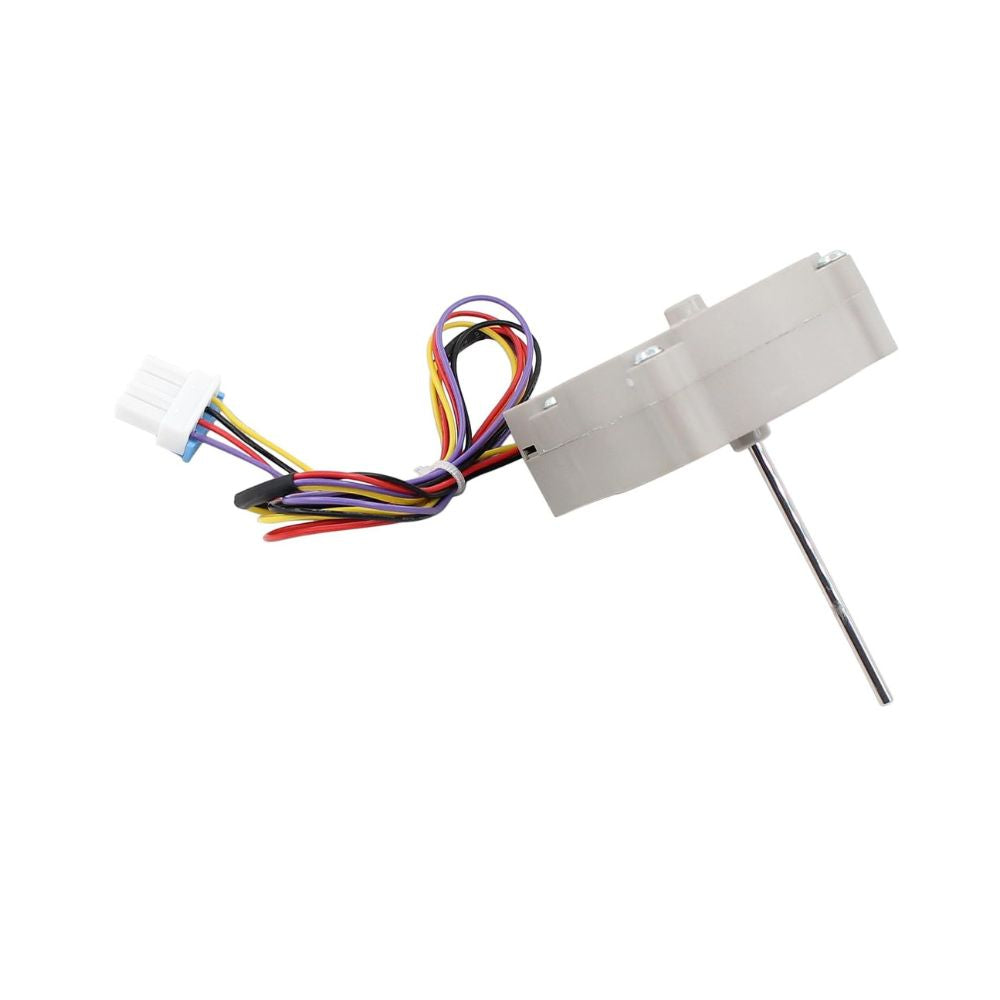

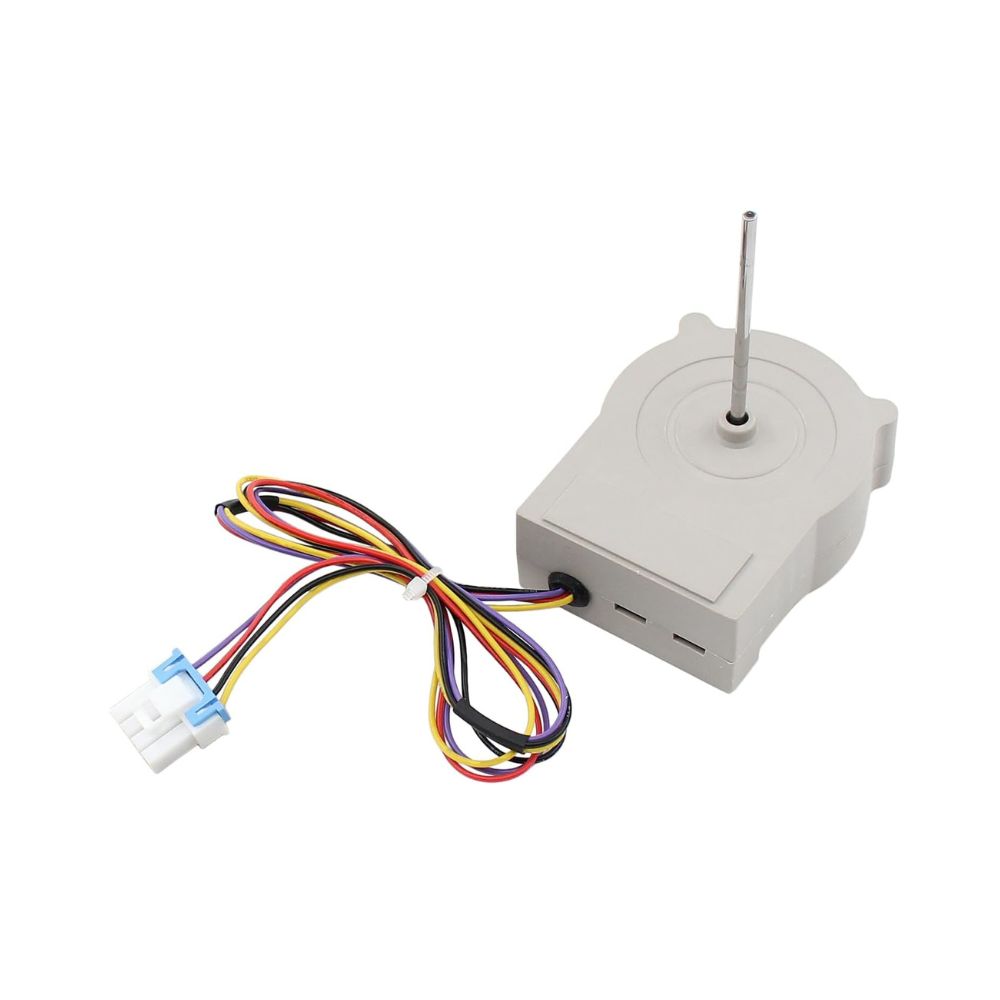

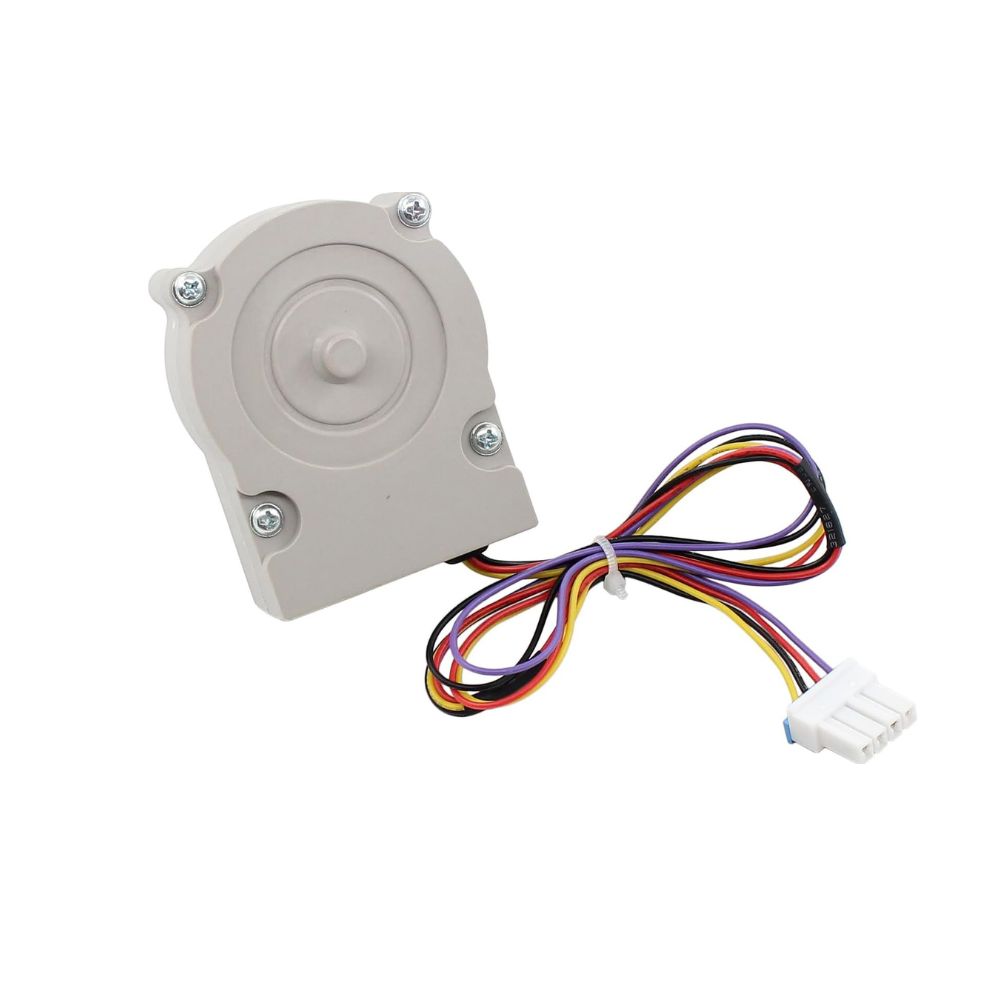

Rated 12V DC at 1A with a 4-pin connector, this motor has a 2.36" (60mm) shaft length and a 0.12" (3.16mm) shaft diameter, with roughly a 20.5" (56cm) wire lead. Common failure modes include worn motor bearings that let the blade wobble or bind, and general electrical wear from age. A fridge running warm, not cold at all, or making unusual noise from behind the crisper area are all signs pointing to this motor. It directly replaces 4391461, AP6317185, PS11761147, EAP11761147, and PD00051700. Also identified by its production number, ODM-001F-41.
Quick Answer
The XPARTCO EAU63103201 Refrigerator Evaporator Fan Motor fixes LG and select Kenmore/Kenmore Elite refrigerators where the fresh food compartment runs too warm or isn't cooling at all, or there's unusual noise from behind the crisper drawer area. DC 12V, 1A, 4-pin connector, 2.36" (60mm) shaft length, 0.12" (3.16mm) shaft diameter. Replaces 4391461, AP6317185, PS11761147, EAP11761147, PD00051700. LG uses several similarly-numbered EAU-prefix fan motors across its lineup — this is a different part from the EAU63923603/EAU65058305 assembly used on other LG models, so verify your exact model number before ordering.
Common Problems This Part Fixes
- Fresh food compartment running too warm
- Refrigerator not cooling at all in the fresh food section
- Unusual noise coming from behind the crisper drawer area
- Fan motor that won't run due to aging or internal damage
- Refrigerator running constantly as it struggles to maintain temperature
- Fan blade that doesn't spin freely, or spins with noticeable resistance, when checked by hand
- Frost or condensation forming near the fan location behind the crisper panel
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This refrigerator evaporator fan motor directly replaces the following OEM and cross-reference part numbers:
EAU63103201, ODM-001F-41, 4391461, ALG1473540, AP6317185, PS11761147, OEM18086529, EAP11761147, PD00051700
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This evaporator fan motor is compatible with select LG refrigerators, and also fits select Kenmore and Kenmore Elite refrigerators built on the LG platform, including model numbers such as:
- LG LRSES2706V, LRSPS2706V
- LG LSXC22396D, LSXC22396S, LSXC22426S, LSXC22436S
- LG LSXC22486D, LSXC22486S
- LG LSXS26326B, LSXS26326S, LSXS26326W
- LG LSXS26336S, LSXS26336V, LSXS26336D
- LG LSXS26386S, LSXS26396S
- Kenmore 795.5173381, 795.5173781, 795.5183241, 795.5183242, 795.5183341, 795.5183941, 795.5183942, 795.5185361, 795.5185761, 795.5186261, 795.5186361, 795.5186761, 795.5186961
Note: LG uses several different evaporator fan motors across its refrigerator lineup with similar EAU-prefix part numbers. This EAU63103201 motor is a separate, distinct part from the EAU63923603 / EAU65058305 fan motor assembly used on other LG models (such as the LFXS28596S, LMXS28626S, LFXS26596S, and LFXS26973D series) — the two are not interchangeable. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which fan motor your refrigerator needs.
Key Features
- Aftermarket replacement evaporator fan motor — circulates air through the fresh food compartment
- Resolves "fresh food too warm," "not cooling at all," and "noise behind the crisper drawer" symptoms caused by fan motor failure

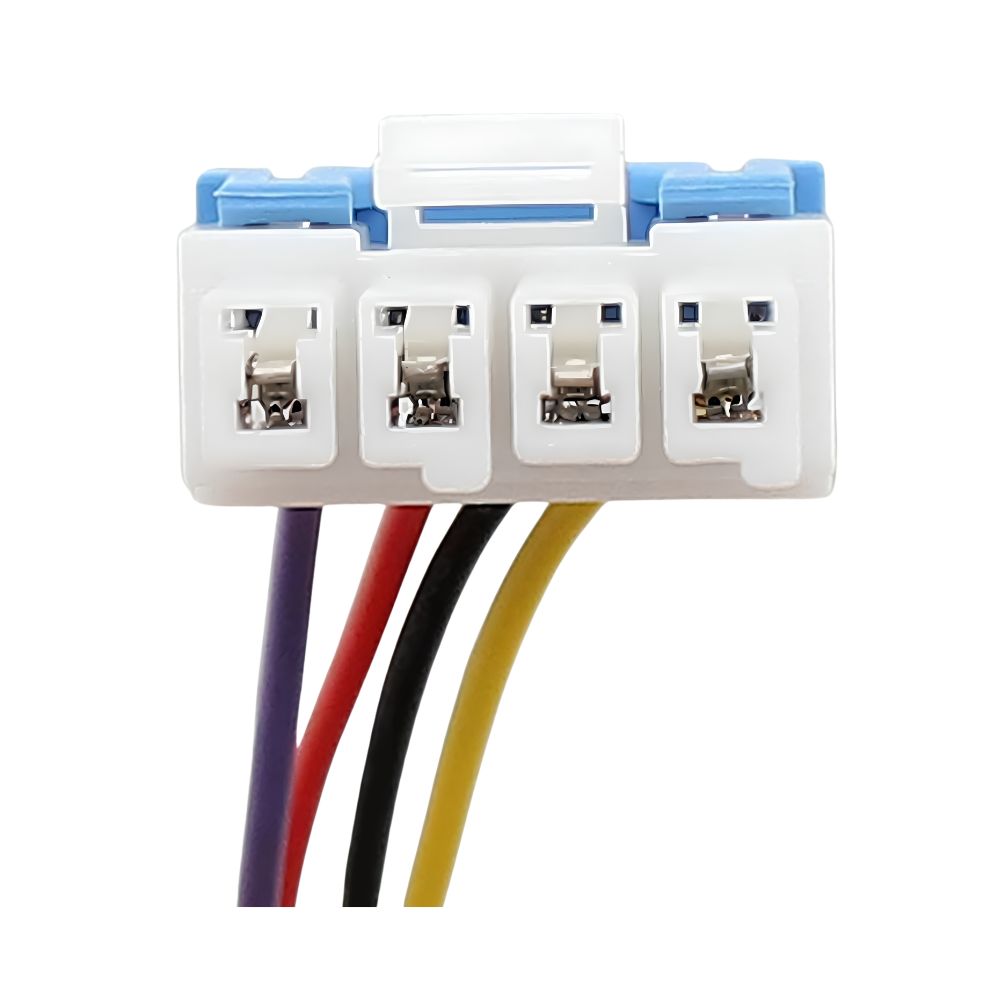

- Rated 12V DC, 1A, with a 4-pin connector for direct plug-and-play electrical fit
- 2.36" (60mm) shaft length, 0.12" (3.16mm) shaft diameter
- Approximately 20.5" (56cm) wire lead
- Direct drop-in replacement matching the original mounting and blade fitment
- Replaces 4391461, AP6317185, PS11761147, EAP11761147, and PD00051700
- Compatible with LG and select Kenmore/Kenmore Elite refrigerators
- Aftermarket replacement built to OEM-equivalent quality standards
- Straightforward DIY repair — just a screwdriver needed on most models
Product Specifications
| Part Number |
XPEAU63103201 |
| OEM Part Number |
EAU63103201 (ODM-001F-41) |
| Part Type |
Refrigerator Evaporator Fan Motor |
| Condition |
Aftermarket Replacement |
| Compatible Brand |
LG, Kenmore |
| Location |
Behind panel near the crisper drawers, fresh food compartment |
| Voltage |
12V DC |
| Amperage |
1 A |
| Connector |
4-pin |
| Shaft Length |
2.36 in. (60mm) |
| Shaft Diameter |
0.12 in. (3.16mm) |
| Wire Lead Length |
Approx. 20.5 in. (56cm) |
| Color |
Gray |
| Material |
Plastic and metal |
| Quantity |
1 fan motor |
| Compatible Brands |
LG, Kenmore, Kenmore Elite |
Installation Notes
⚠️ Unplug Refrigerator Before Starting Disconnect power at the outlet before beginning. Wear work gloves. Access on this platform is different from many other brands: rather than removing a rear panel inside the freezer, slide the crisper drawer out fully, then remove the panel behind or above the drawer area to expose the fan motor. Photograph the wiring connector and the fan blade's position before disconnecting anything. Disconnect the 4-pin electrical connector from the old motor, remove the mounting screws or clips holding the motor bracket in place, and carefully pull the motor and fan blade assembly free. Transfer the fan blade to the new motor if a blade isn't included, matching the original orientation on the 60mm shaft. Mount the new EAU63103201 in the same position, reconnect the 4-pin connector fully, and confirm the blade spins freely by hand without contacting the housing before reassembling the panel and sliding the crisper drawer back into place. Restore power and monitor the fresh food compartment over the next several hours to confirm normal cooling has returned. Tools needed: Phillips screwdriver, work gloves.
Frequently Asked Questions
Why is this fan located near the crisper drawers instead of in the freezer?
LG's refrigerator platform routes cold air to the fresh food compartment differently than many other brands, with this particular fan positioned behind a panel near the crisper drawer area rather than inside the freezer compartment. That's simply a difference in refrigerator design between manufacturers — it doesn't affect the fan's job, which is still to keep cold air circulating through the fresh food section, but it does mean the access point for this repair looks different from what you might expect if you've worked on a different brand before.
My fridge section is warm but everything else seems fine. Is this the right part?
Yes, this is the classic symptom this motor addresses. Since this fan specifically circulates air through the fresh food compartment, a failure here tends to affect that section directly — a warm fridge with an otherwise normally-functioning freezer points squarely at this motor rather than at the compressor or refrigerant system.
There are several similar LG fan motor part numbers online. How do I know I have the right one?
LG's EAU-prefix fan motors can look similar at a glance, but they aren't interchangeable — for example, the EAU63923603/EAU65058305 assembly used on models like the LFXS28596S and LMXS28626S is a completely different part from this EAU63103201 motor. The safest way to confirm is to check your refrigerator's full model number against a verified compatibility list, or contact our support team with your model number before ordering.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured to match the electrical specifications (12V DC, 1A, 4-pin connector), shaft dimensions, and mounting configuration of the original EAU63103201 evaporator fan motor used in compatible LG and Kenmore refrigerators.
