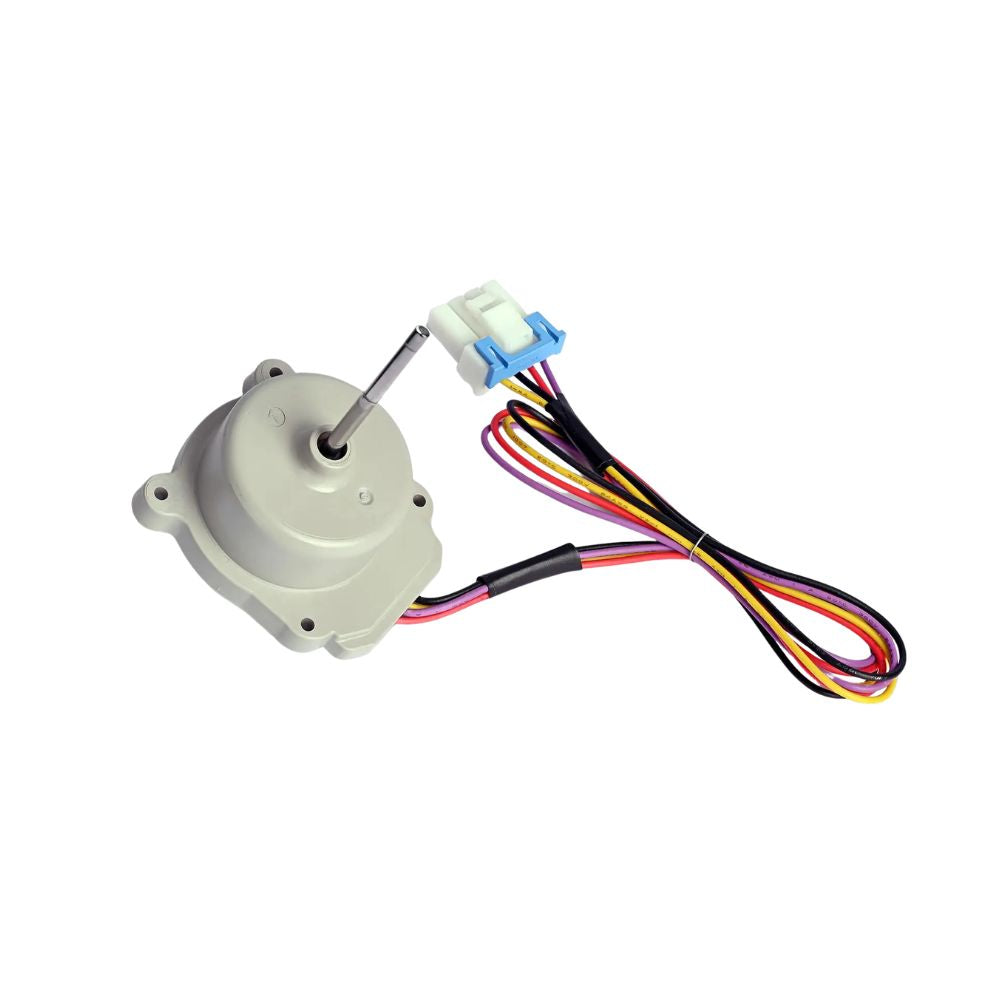

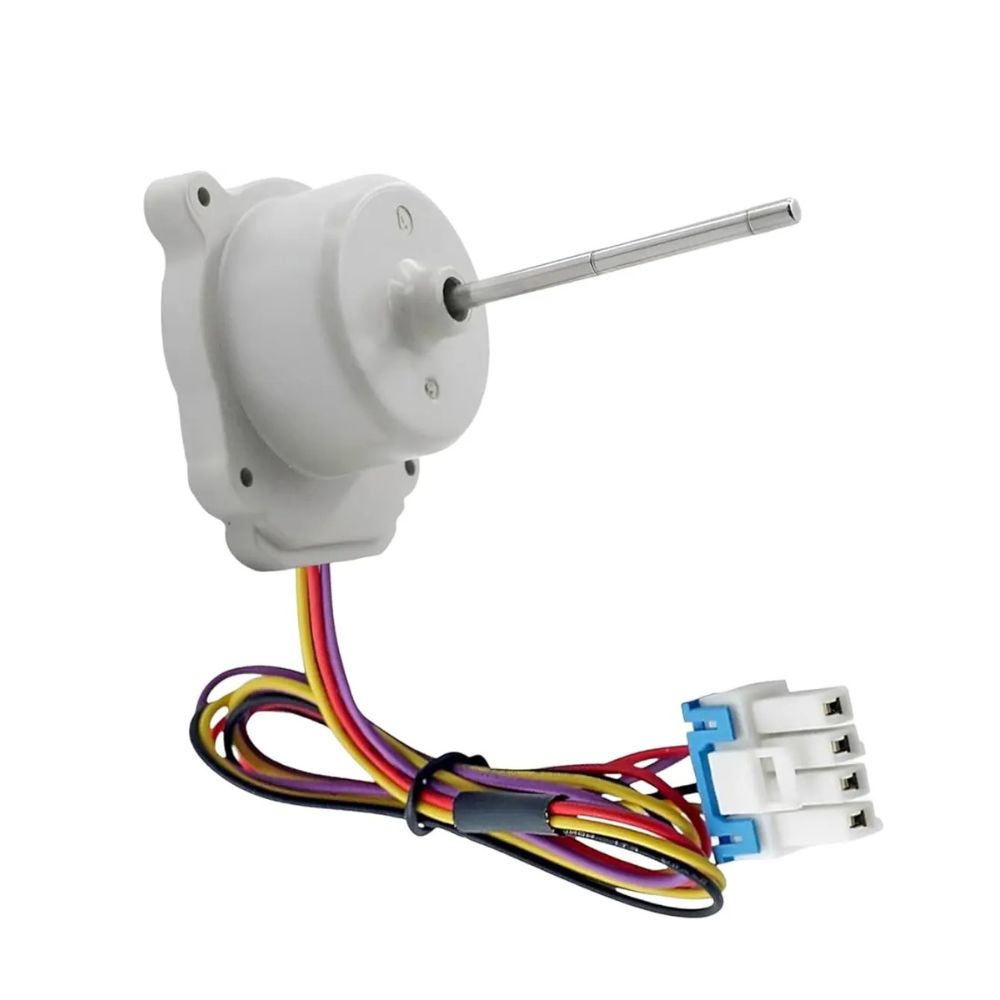

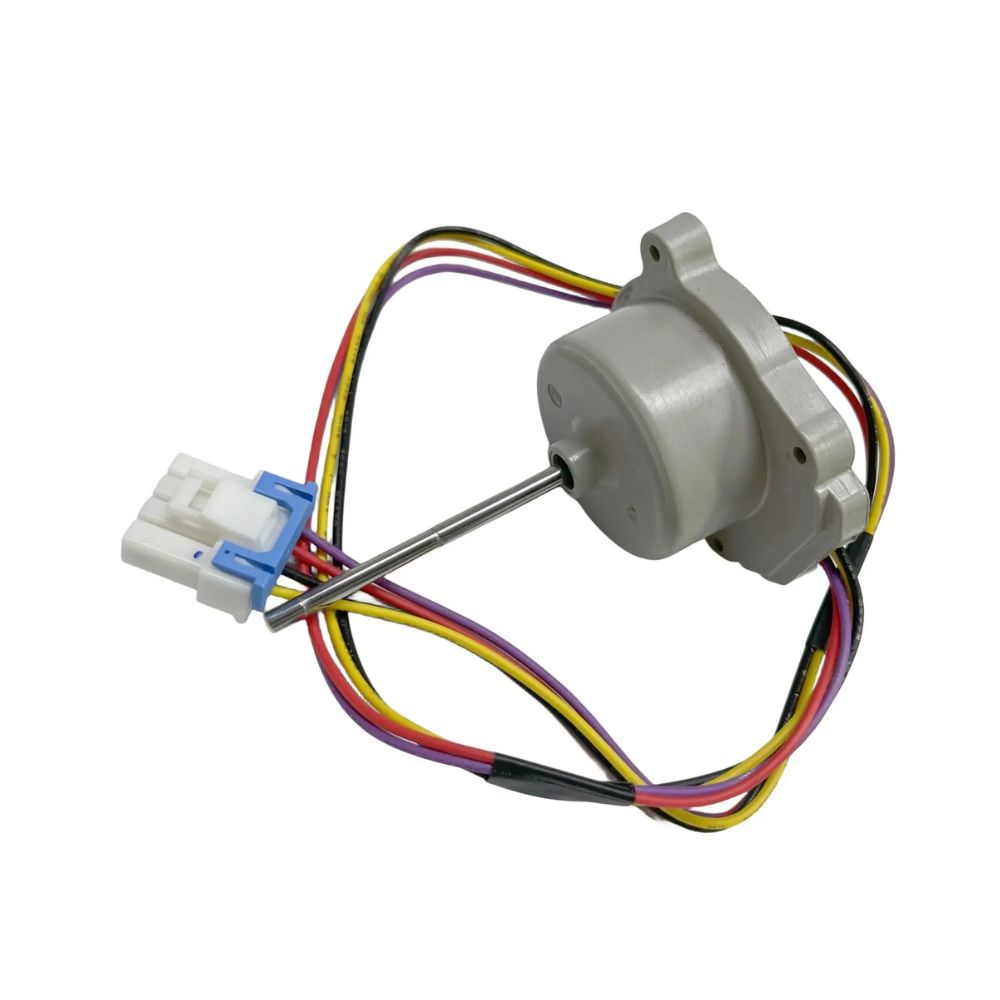

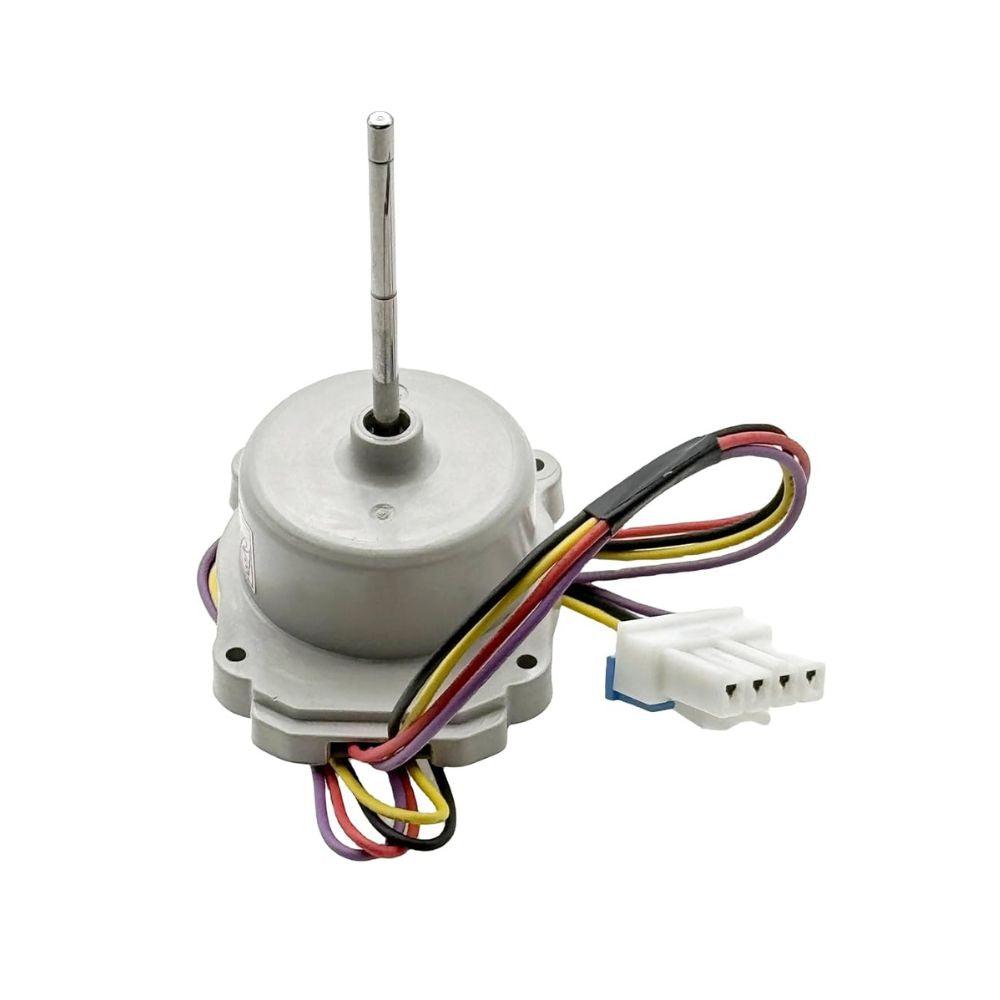

XPARTCO EAU65058313 Refrigerator Evaporator Fan Motor
The XPARTCO EAU65058313 is an aftermarket replacement evaporator fan motor assembly for LG bottom-freezer and top-mount refrigerators, and also fits select Kenmore refrigerators built on the LG platform. This motor circulates cold air across the evaporator coil and distributes it throughout the freezer and fresh food compartments, keeping temperatures even and helping prevent frost buildup on the coil itself.
Rated 12V DC, 1A, with a 4-wire 4-pin connector. The motor's center shaft measures approximately 1.77" (45mm) long with a 0.12" (3.15mm) diameter, and the wire lead runs approximately 16.2" (41cm). Common failure causes include worn motor bearings, dust or debris buildup restricting the blade, and general wear in the motor winding over many operating hours. A failing motor produces a specific and telling symptom pattern: the freezer may stay reasonably cold while the fresh food section runs warm, since the fresh food compartment depends entirely on this fan to receive circulated cold air. Other symptoms include a noisy or loud fridge, or a fan that has become inactive altogether. It directly replaces EAU63103001, ODM-056F-13, AP7178307, OEM28713230, PS16662420, and EAP16662420.
Quick Answer
The XPARTCO EAU65058313 Refrigerator Evaporator Fan Motor fixes LG and select Kenmore refrigerators where the freezer stays cold but the fresh food section runs warm, the fridge is noisy or loud, or the fan has stopped working. 12V DC, 1A, 4-wire 4-pin connector, 1.77" (45mm) shaft length, 0.12" (3.15mm) shaft diameter, ~16.2" (41cm) wire lead. Replaces EAU63103001, ODM-056F-13, AP7178307, OEM28713230, PS16662420, EAP16662420. Not the same motor as our EAU63103201 listing — that one has a longer shaft and wire lead for a different LG model group.
Common Problems This Part Fixes
- Freezer stays cold but the fresh food compartment runs warm
- Refrigerator or freezer sections too warm overall
- Fridge fan inactive or not running at all
- Refrigerator is noisy or loud during operation
- Slow cooling — the refrigerator takes longer than usual to reach temperature
- Frost buildup accumulating on or around the evaporator coil
- Fan blade that doesn't spin freely, or spins with resistance, when checked by hand
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This refrigerator evaporator fan motor directly replaces the following OEM and cross-reference part numbers:
EAU65058313, EAU63103001, AP7178307, ODM-056F-13, PS16662420, ALG54085, PD00082459.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This evaporator fan motor is compatible with select LG bottom-freezer and top-mount refrigerators, and also fits select Kenmore refrigerators built on the LG platform, including model numbers such as:
- LG LBNC15231P, LBNC15231V, LRTLS2403S
- LG LTCS20020B, LTCS20020S, LTCS20020W, LTCS20030S
- LG LTCS20120S, LTCS20120W, LTCS20220B, LTCS20220S, LTCS20220W
- LG LTCS24223B, LTCS24223D, LTCS24223S, LTCS24223W
- LG LTNC08121V, LTNS20220S, LTNS20220W, LTWS24223S
- Kenmore 79568039218, 79578032218, 79578033218, 79578039218, 79579433219, 79579439218
Note: LG uses several similarly-numbered EAU-prefix evaporator fan motors across its refrigerator lineup with different shaft and wire dimensions. This EAU65058313 motor (45mm shaft, 41cm wire lead) is a separate, distinct part from our EAU63103201 listing (60mm shaft, 56cm wire lead), which serves a different group of LG models. The two are not interchangeable. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which motor your refrigerator needs.
Key Features
- Aftermarket replacement evaporator fan motor assembly — circulates cold air to the freezer and fresh food compartments
- Resolves "freezer cold but fridge warm," "noisy or loud fridge," and "inactive fan" symptoms caused by fan motor failure
- Rated 12V DC, 1A, with a 4-wire 4-pin connector for direct plug-and-play electrical fit
- 1.77" (45mm) shaft length, 0.12" (3.15mm) shaft diameter
- Approximately 16.2" (41cm) wire lead
- ABS plastic housing with a copper-wound motor core for durability and long service life
- Direct drop-in replacement matching the original mounting and blade fitment
- Replaces EAU63103001, ODM-056F-13, AP7178307, OEM28713230, PS16662420, and EAP16662420
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Part Number |
EAU65058313 |
| OEM Part Number |
EAU65058313 (ODM-056F-13) |
| Part Type |
Refrigerator Evaporator Fan Motor Assembly |
| Condition |
Aftermarket Replacement |
| Brand |
LG |
| Application |
Bottom-Freezer and Top-Mount Refrigerators |
| Voltage |
12V DC |
| Amperage |
1 A |
| Connector |
4-wire, 4-pin |
| Shaft Length |
1.77 in. (45mm) |
| Shaft Diameter |
0.12 in. (3.15mm) |
| Wire Lead Length |
Approx. 16.2 in. (41cm) |
| Color |
Gray |
| Material |
ABS plastic housing |
| Quantity |
1 fan motor |
| Compatible Brands |
LG, Kenmore |
Installation Notes
⚠️ Unplug Refrigerator Before Starting Disconnect power at the outlet before beginning, and move perishable food to a cooler for the duration of the repair. Wear work gloves. Access is typically through the freezer's rear interior panel: remove shelving and bins as needed, then remove the screws securing the back panel to expose the evaporator coil and fan assembly. If there's significant frost or ice around the fan or coil, let the unit sit unplugged with the door open for a few hours, or run a manual defrost, before continuing. Photograph the wiring harness connector and the fan blade's orientation before disconnecting anything. Unplug the 4-pin wiring harness connector from the old motor, remove the mounting screws or clips holding the motor bracket in place, and pull the motor and fan blade assembly free. Transfer the fan blade to the new motor if a blade isn't included, matching the original orientation on the 45mm shaft. Mount the new EAU65058313 in the same position, reconnect the 4-pin connector fully, and confirm the blade spins freely by hand without contacting the housing before reassembling the back panel. Restore power and monitor both compartments over the next 24 hours to confirm even, consistent cooling has returned. Tools needed: Phillips screwdriver, work gloves.
Frequently Asked Questions
My freezer is cold but the fridge section is warm. Is this the right part?
Yes, this is a very common and telling symptom pattern. The freezer sits close to the evaporator coil and can stay reasonably cold through proximity even with weakening air circulation, but the fresh food compartment depends entirely on this fan pushing cold air through the ducting to reach it. When the fan motor fails or slows down, the fresh food side is usually the first and most noticeably affected area.
How is this different from your EAU63103201 listing?
They are separate motors built for different LG model groups, even though the part numbers look similar at a glance. This EAU65058313 motor has a shorter 45mm shaft and a 41cm wire lead, while our EAU63103201 listing has a longer 60mm shaft and a 56cm wire lead. Always check your full model number, or measure your old motor's shaft and wire length, before ordering either one.
My fridge is noisy but still seems to be cooling. Should I still replace the fan?
Noise from a struggling motor often precedes a full failure, so it's worth investigating rather than waiting. A motor with worn bearings can still turn and move some air while making noise, but that noise typically indicates the bearings are on their way out. Check whether the fan blade spins freely and smoothly by hand — if it wobbles, binds, or grinds, replacing the motor now can prevent a complete cooling failure later.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured to match the electrical specifications (12V DC, 1A, 4-pin connector), shaft dimensions, and mounting configuration of the original EAU65058313 evaporator fan motor used in compatible LG and Kenmore refrigerators.
