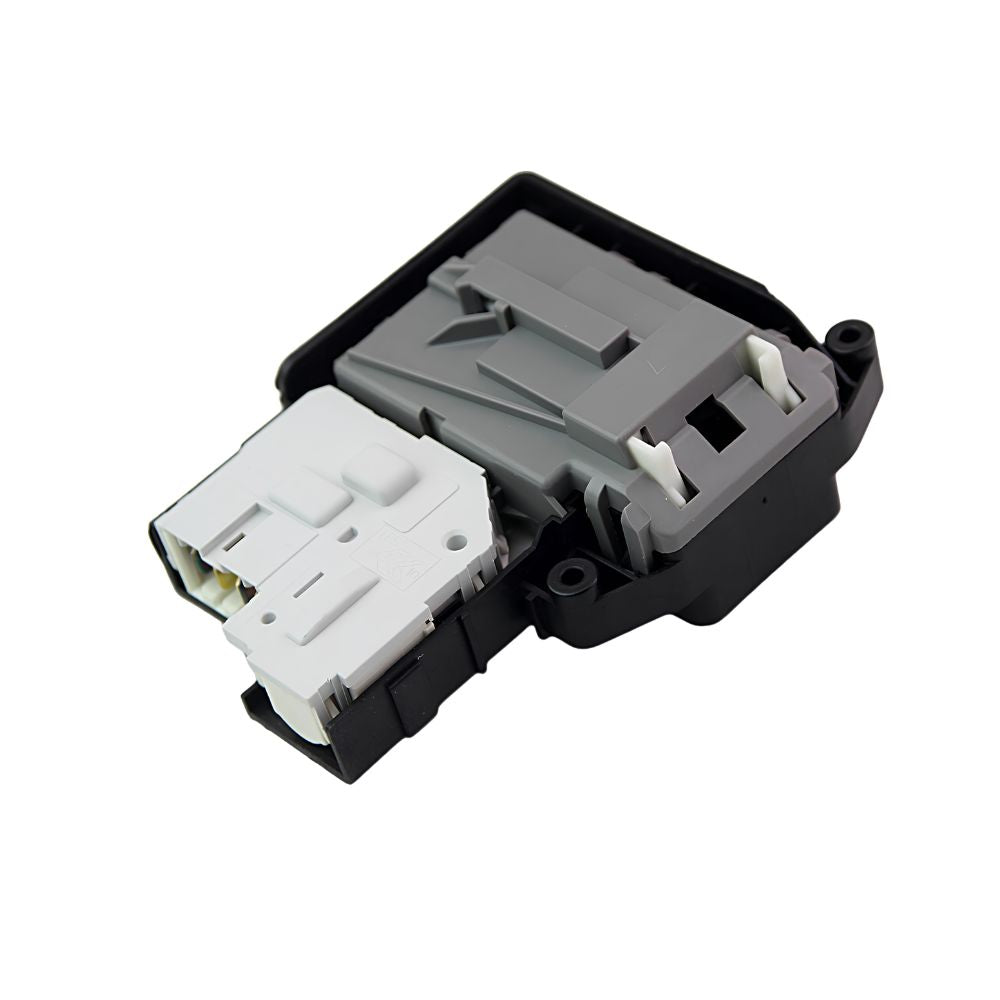

XPARTCO EBF61315802 Washer Door Lock Switch
The XPARTCO EBF61315802 is an aftermarket replacement washer door lock switch assembly compatible with a wide range of LG front-load washers and Kenmore 796-series front-load washing machines. The door lock switch is mounted on the front panel just inside the door opening — when the door is closed, the door's striker engages the lock and the switch reports back to the control board that the door is securely closed. The lock then engages electromagnetically to physically prevent the door from being opened during the wash and spin cycles, eliminating the risk of water leaks and protecting the user from the high-speed spinning drum.
When this part fails, the washer will not start (since the control board can't confirm the door is locked), will stop mid-cycle, may display DE1 or DE2 error codes, may not actually lock the door (allowing it to open during a cycle), or may leak water around the door. Rated 125V AC, 60Hz, with a 3-pin connector. It directly replaces EBF62534401, AP5672154, AP6992889, PS7792232, PS16223547, EAP7792232, 2667085, and PD00008063. Often replaced alongside the door lock strike (MFG63099101, sold separately), which is the matching component on the door itself. Installs in 15–20 minutes with basic hand tools — no full front panel removal needed on most models.
Quick Answer
The XPARTCO EBF61315802 Washer Door Lock Switch fixes LG and Kenmore 796-series front-load washers that won't start, won't lock the door, stop mid-cycle, display DE1 or DE2 error codes, allow the door to open during a cycle, or leak water around the door. 125V AC, 60Hz, 3-pin connector. Replaces EBF62534401, AP5672154, AP6992889, PS7792232, PS16223547, EAP7792232, 2667085, PD00008063. Often paired with the door lock strike (MFG63099101, sold separately).
Common Problems This Part Fixes
- Washer won't start — control board not detecting a locked door
- Door fails to lock at the start of the cycle
- DE1 or DE2 error codes displayed on the control panel
- Washer stops mid-cycle due to a door lock fault
- Door pops open or unlatches during the wash or spin cycle (safety concern)
- Water leaking around the door during operation — door not sealing because the lock isn't fully engaging
- Stuck, aged, worn, or broken door lock
- Door open/close action no longer smooth — lock binding
- Repeated mid-cycle shutdowns or interruptions
Replaces Part Numbers
This door lock switch directly replaces the following OEM and cross-reference part numbers:
EBF61315802, EBF62534401, AP6992889, PS16223547, ALG54705, AP5672154, PD00008063, PS7792232, B088MG37Y9
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This door lock switch is compatible with select LG and Kenmore 796-series front-load washers, including:
- LG front-load washers — WM1388HW, WM1455HWA series
- LG front-load washers — WM3050CW, WM3080CW, WM3170CW, WM3180CW series
- LG front-load washers — WM3250HRA, WM3250HVA, WM3250HWA, WM3270CW series
- LG front-load washers — WM3370HRA, WM3370HVA, WM3370HWA, WM3400CW, WM3460CV, WM3488HS, WM3488HW, WM3499HVA, WM3500CW, WM3555HWA series
- LG front-load washers — WM3570HVA, WM3570HWA, WM3600HVA, WM3670HVA, WM3670HWA, WM3700HVA, WM3700HWA series
- LG front-load washers — WM3770HVA, WM3770HWA, WM3900HBA, WM3900HWA, WM3997HWA, WM3998HBA series
- LG front-load washers — WM4070HVA, WM4070HWA, WM4200HBA, WM4200HWA, WM4270HVA, WM4270HWA, WM4370HKA, WM4370HWA, WM4500HBA series
- LG front-load washers — WM5000HVA, WM5000HWA, WM8000HVA, WM8000HWA, WM8100HVA, WM8100HWA, WM8500HVA series
- LG front-load washers — WM9000HVA, WM9000HWA, WM9500HKA series
- LG WashTower units — WKE100HVA, WKE100HWA, WKEX200HBA, WKEX200HWA, WKG101HVA, WKG101HWA, WKGX201HBA series
- LG Studio models — GCWP1069CD/CD1/CD2/CD3, GCWW1069CD7, GCWW1069CS7 series
- Kenmore / Sears front-load washers — 796-series (79641002610, 79641072310, 79641073310, 79641182310, 79641183310, 79641262610, 79641282310, 79641283310, 79641302610, 79641303610, 79641382410, 79641383410, 79641392610, 79641482410, 79641572210, 79641573210, 79641582410, 79641962610, 79641963610, 79641982410, and many related models)
Note: The door lock switch (EBF61315802) and the door lock strike (MFG63099101) are two separate components that work together — if both have failed or are worn, replacing them together as a matched set ensures reliable door locking and prevents premature wear on the new switch. Always verify your model number before ordering.
Key Features
- Door lock switch assembly — detects when the door is closed and electromagnetically locks it during wash and spin cycles
- Resolves DE1 and DE2 error codes caused by door lock failure on compatible LG and Kenmore washers
- Prevents water leaks and protects the user by ensuring the door cannot open during operation
- 125V AC, 60Hz — correct electrical specifications for compatible LG and Kenmore washers
- 3-pin connector for secure wire harness fit
- Replaces EBF62534401, AP5672154, AP6992889, PS7792232, PS16223547, EAP7792232, 2667085, and PD00008063
- Compatible with LG WM1388, WM3050, WM3170, WM3250, WM3370, WM3500, WM3570, WM3670, WM3770, WM3900, WM3997, WM4070, WM4270, WM4370, WM5000, WM8000, WM8100, WM8500, WM9000, WM9500 series and Kenmore 796-series front-load washers
- Compatible with LG WashTower (WKEX, WKE, WKG, WKGX) units
- Often replaced together with the door lock strike (MFG63099101, sold separately)
- Aftermarket replacement built to OEM-equivalent quality standards
- Quick DIY repair — installs in 15–20 minutes with basic hand tools (no full front panel removal needed on most models)
Product Specifications
| Part Number |
EBF61315802 |
| Part Type |
Washer Door Lock Switch Assembly |
| Condition |
Aftermarket Replacement |
| Application |
Front-Load Washers (LG / Kenmore Samsung-built platform) |
| Voltage |
125V AC |
| Frequency |
60 Hz |
| Connector |
3-pin connector |
| Lock Type |
Electromagnetic |
| Error Codes Resolved |
DE1, DE2 (door lock errors) |
| Often Paired With |
Door Lock Strike (MFG63099101, sold separately) |
| Compatible Brands |
LG, Kenmore (LG-built) |
Installation Notes
⚠️ Unplug Washer Before Starting — Wear Work Gloves Disconnect power before beginning. Wear work gloves to protect your hands. On most LG and Kenmore front-load models, you can replace the door lock switch without removing the whole front panel — a much faster repair than expected. Open the washer door (if the door is stuck locked, use a putty knife to pry the white latch on the door lock assembly through the bottom service opening, then open the door). Remove the spring-loaded wire clamp securing the door boot to the front panel — needle-nose pliers help here. Peel back the rubber door boot from the front panel to expose the rear of the door lock switch. Remove the 2 Phillips screws holding the switch to the front panel. Reach in and pull the switch out through the boot opening. Disconnect the wire harness from the old switch. Connect the wire harness to the new EBF61315802, position it in place, and secure with the 2 mounting screws. Press the rubber door boot back fully into the groove at the front panel — this is the trickiest part of the install (an extra pair of hands helps). Reinstall the spring-loaded wire clamp around the boot to secure it. Restore power and test by closing the door and starting a cycle. Tools needed: Phillips screwdriver, needle-nose pliers, putty knife (for stuck doors), work gloves.
Frequently Asked Questions
What do error codes DE1 and DE2 mean on LG washers?
DE (Door Error) codes on LG front-load washers indicate the control board cannot confirm the door is properly closed and locked. DE1 typically appears when the door switch reports the door as open at the start of a cycle, and DE2 typically appears when the door signal is lost during a cycle. Both can be caused by a failed door lock switch, a worn or broken door lock strike (MFG63099101) on the door itself, or a damaged wiring harness. Replacing the EBF61315802 door lock switch resolves these codes when the switch is the cause; if the codes return after replacement, the strike on the door or the harness should be inspected next.
Do I need to replace the door lock strike (MFG63099101) too?
Not always, but often. The door lock strike is the matching component mounted on the door itself — it's the part that the switch's electromagnetic lock grips when the door closes. If the strike is worn, cracked, or its plastic teeth are broken, the new switch won't lock reliably even if it's working perfectly. Inspect the strike on the door for visible damage before replacing just the switch. Many repair scenarios call for replacing both at the same time, since both wear together and the parts complement each other.
My washer door is stuck closed — how do I get it open to install this?
If the door is stuck in the locked position because the existing switch has failed, you can use a putty knife or thin flat tool to manually release the door lock through the bottom service opening of the washer. Reach in through the access panel at the lower front of the unit and locate the white plastic latch on the back of the door lock assembly — gently push or pry it to release the mechanism. The door should then open. Once open, you can proceed with the installation. Always disconnect power from the washer before attempting this.
Do I really not need to remove the front panel?
Correct — on most LG and Kenmore front-load models, you can replace the door lock switch by working through the door opening after pulling back the rubber door boot. This avoids the much more involved process of removing the entire front panel. The trickiest part of the repair is pressing the rubber door boot back into its groove on the front panel after the switch is installed — an extra pair of hands is helpful for this step. The whole repair typically takes 15–20 minutes.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured to match the electrical specifications (125V AC, 60Hz), 3-pin connector configuration, electromagnetic lock function, and dimensions of the original EBF61315802 door lock switch used in compatible LG and Kenmore 796-series front-load washers.
