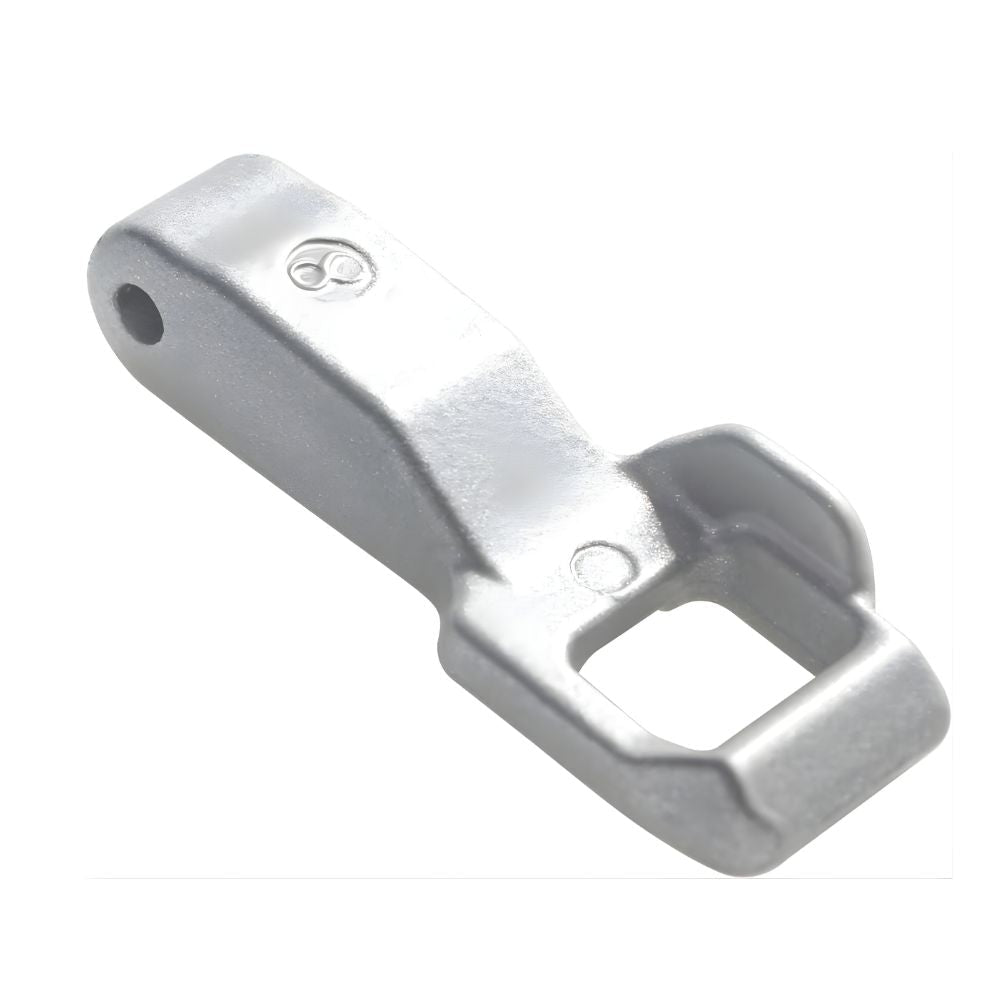

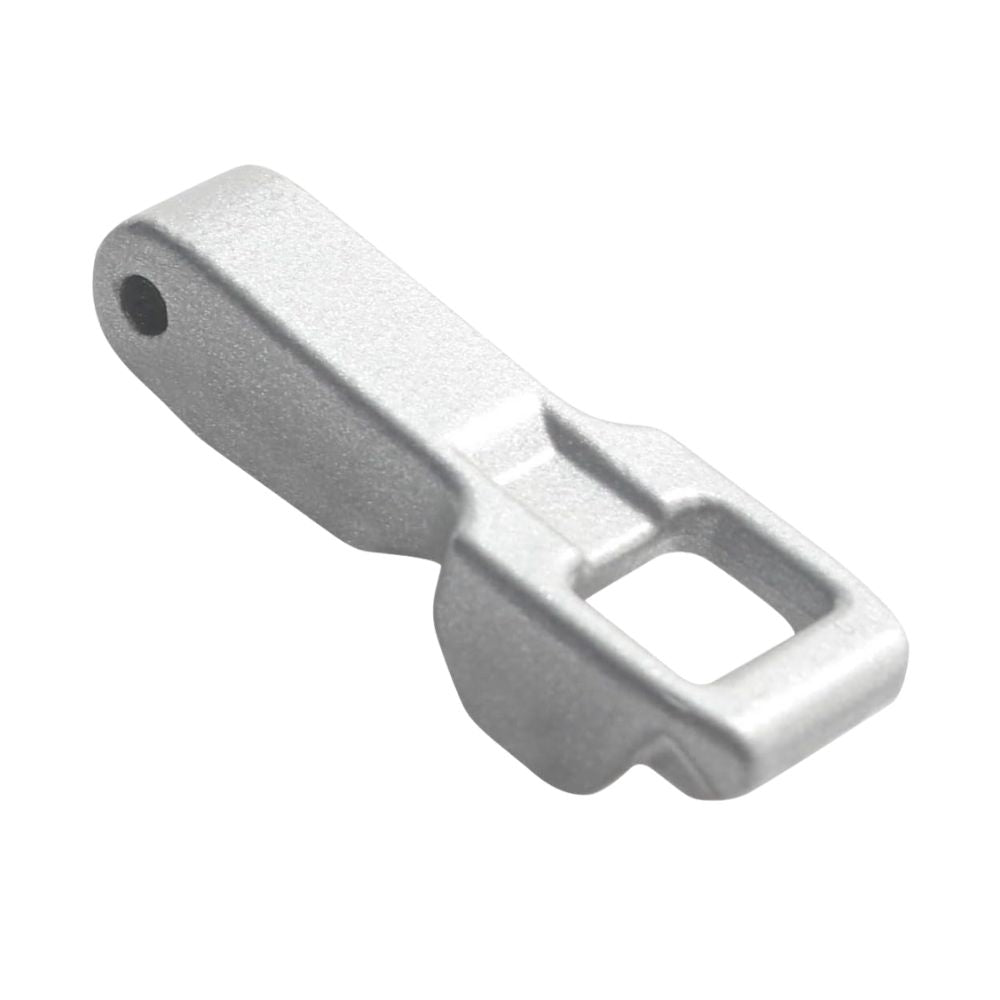

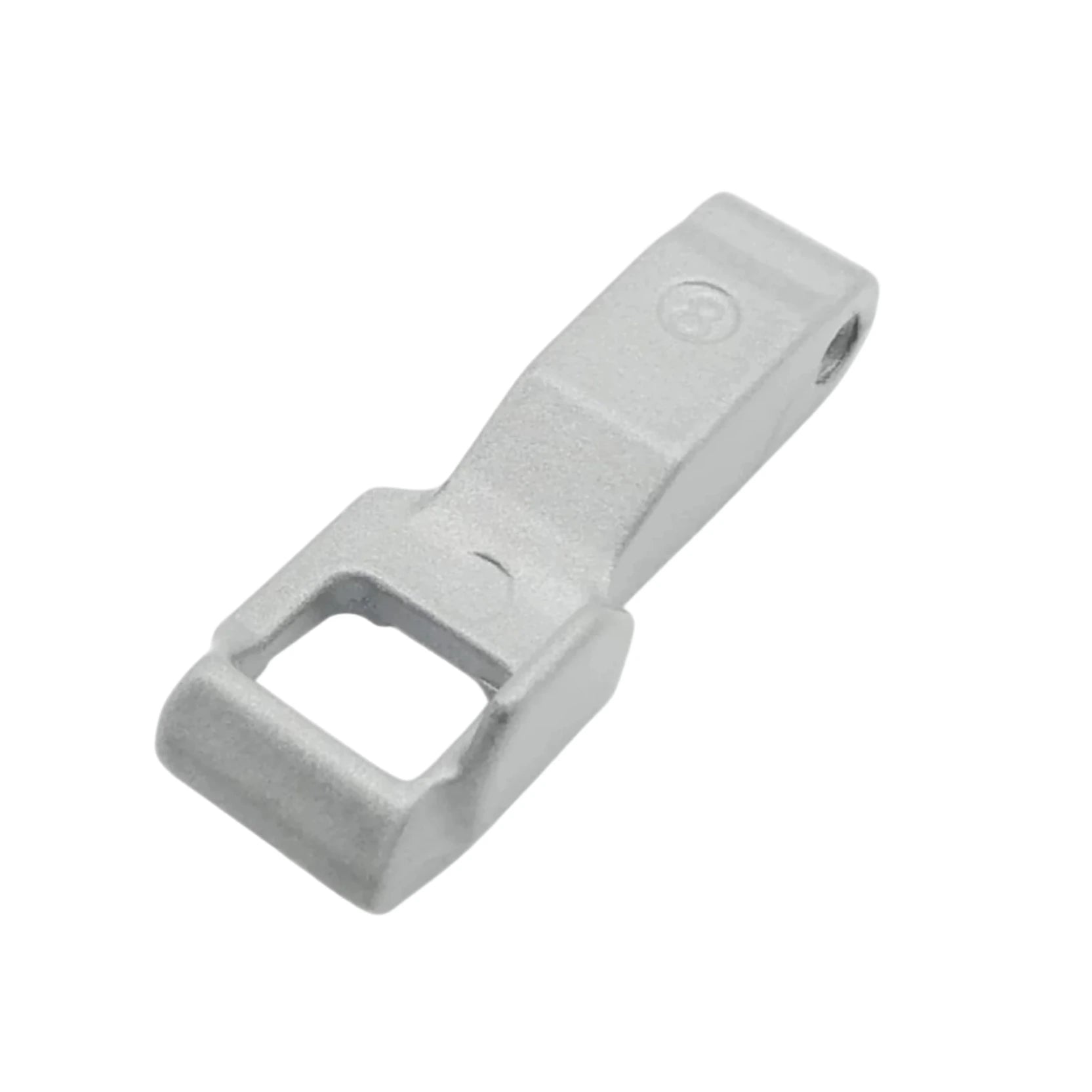

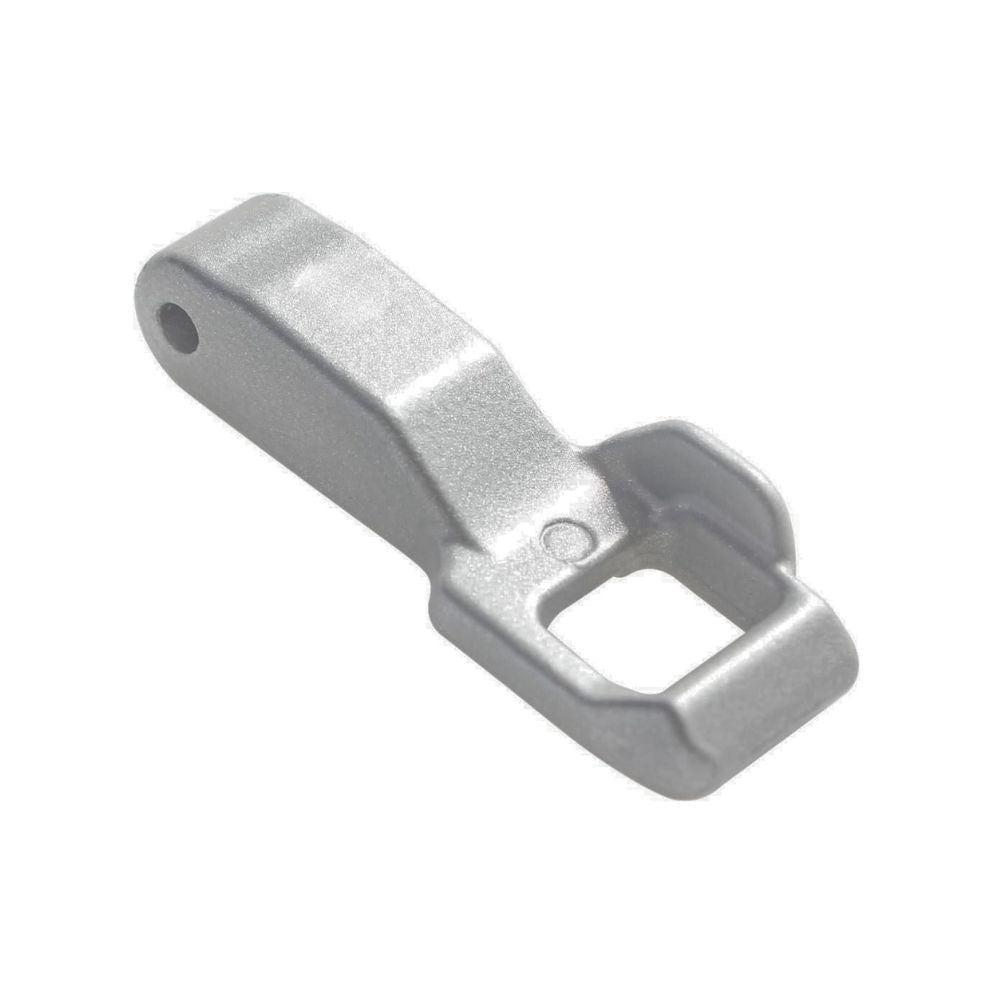

XPARTCO MFG63099101 Washer Door Strike (Door Lock Hook)
The XPARTCO MFG63099101 is an aftermarket replacement washer door strike — also called a door lock hook or door latch hook — compatible with a wide range of LG front-load washers and Kenmore 796-series washing machines. The door strike is the metal hook component mounted on the inside edge of the washer door. When the door closes, the hook enters the door lock switch on the front panel and engages the electromagnetic lock mechanism, signaling the control board that the door is closed and locking it for safe operation during wash and spin cycles. Without an intact door strike, the lock can't grip anything, and the washer will not start.
When the strike breaks — typically from repeated use, sudden impact, or stress over thousands of door cycles — the washer will not start, may stop mid-cycle, may display DE1 or DE2 error codes, leak water around the door, or fail to lock altogether. It directly replaces MFG63099101, AGF77417823, AP5787149, 2759645, PS8752721, EAP8752721, and PD00046132. Important: replacing the strike requires removing the inside door panel to access the hook — note that the inner glass insert is loose during disassembly and must be handled carefully. Often replaced alongside the matching door lock switch (EBF61315802, sold separately). Installs in 15–20 minutes with basic hand tools.
Quick Answer
The XPARTCO MFG63099101 Washer Door Strike fixes LG and Kenmore 796-series front-load washers where the door won't lock, won't start, stops mid-cycle, displays DE1 or DE2 errors, or leaks at the door. Metal hook attaches to the inside of the washer door — engages the lock switch when the door closes. Replaces MFG63099101, AGF77417823, AP5787149, 2759645, PS8752721, EAP8752721, PD00046132. Often paired with the door lock switch (EBF61315802, sold separately).
Common Problems This Part Fixes
- Washer door not latching properly — strike broken or worn down
- Washer not starting because the door isn't detected as locked
- Washer stopping mid-cycle due to a door fault
- DE1 or DE2 error codes displayed on the control panel
- Minor water drips or leaks around the door during operation — door not sealing because the strike isn't fully engaging
- Door strike visibly broken, chipped, or missing on the inside edge of the door
- Door not staying closed — strike worn from repeated impact
- Washer not powering on
Replaces Part Numbers
This washer door strike directly replaces the following OEM and cross-reference part numbers:
MFG63099101, 2759645, AGF77417823, PD00046132, EAP8752721, AP5787149, PS8752721.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Note: the number printed on your original door hook may be a production batch code rather than the OEM part number — this does not affect fit.
Compatibility
This door strike is compatible with select LG and Kenmore 796-series front-load washers, including:
- LG front-load washers — WM1388HW, WM1455HWA series
- LG front-load washers — WM3050CW, WM3080CW, WM3170CW, WM3170CW/00, WM3180CW series
- LG front-load washers — WM3250HVA, WM3250HWA, WM3270CW series
- LG front-load washers — WM3370HRA, WM3370HVA, WM3370HVA/01, WM3370HWA, WM3370HWA/01, WM3370HWA/00 series
- LG front-load washers — WM3400CW, WM3500CW, WM3500CW/00, WM3555HWA, WM3555HWA/00 series
- LG front-load washers — WM3570HVA, WM3570HVA/00, WM3575CW series
- LG front-load washers — WM3600HVA, WM3600HWA, WM3600HWA/00, WM3670HRA, WM3670HRA/00, WM3670HVA, WM3670HWA series
- LG front-load washers — WM3700HVA, WM3700HWA, WM3770HVA, WM3770HWA series
- LG front-load washers — WM3900HBA, WM3900HWA series
- LG front-load washers — WM4000HBA, WM4000HWA, WM4270HVA, WM4270HVA/00, WM4370HKA, WM4370HWA series
- Kenmore / Sears washers — 796-series (79641162410, 79641162411, 79641262610, 79641283310, 79641283311, 79641302610, 79641303610, 79641382410, 79641382411, 79641383410, 79641383411, 79641482410, 79641482411, 79641483410, 79641483411, 79641582410, 79641582411, 79641583211, 79641583410, 79641583411, 79641962610, 79641963610 and many related models)
Note: If both the door strike (MFG63099101) and the door lock switch (EBF61315802) have failed or are worn, replacing them together as a matched set ensures reliable door locking and prevents premature wear on the new strike. Always verify your model number before ordering.
Key Features

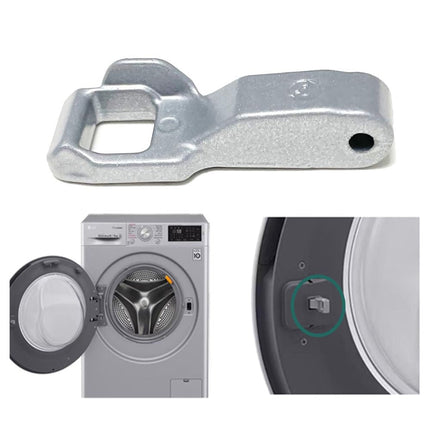

- Metal door strike (door lock hook) — mounts to the inside edge of the washer door and engages the door lock switch when the door closes
- Resolves DE1 and DE2 error codes when caused by a broken door strike on compatible LG and Kenmore washers
- Restores the proper engagement between the door and latch assembly for a firm, consistent connection every cycle
- Durable metal construction — designed to withstand repeated opening and closing impact
- Replaces MFG63099101, AGF77417823, AP5787149, 2759645, PS8752721, EAP8752721, and PD00046132
- Compatible with LG WM1388, WM3050, WM3170, WM3270, WM3370, WM3500, WM3570, WM3600, WM3670, WM3700, WM3770, WM3900, WM4000, WM4270, WM4370 series and Kenmore 796-series front-load washers
- Often replaced together with the door lock switch (EBF61315802, sold separately)
- Aftermarket replacement built to OEM-equivalent quality standards
- Quick DIY repair — installs in 15–20 minutes with basic hand tools
Product Specifications
| Part Number |
MFG63099101 |
| Part Type |
Washer Door Strike (Door Lock Hook / Latch Hook) |
| Condition |
Aftermarket Replacement |
| Application |
Front-Load Washers (LG / Kenmore LG-built platform) |
| Location |
Inside edge of washer door |
| Material |
Metal |
| Often Paired With |
Door Lock Switch (EBF61315802, sold separately) |
| Error Codes Resolved |
DE1, DE2 (when caused by broken strike) |
| Compatible Brands |
LG, Kenmore (LG-built) |
Installation Notes
⚠️ Unplug Washer Before Starting — Don't Drop the Inner Glass Disconnect power before beginning. Wear work gloves to protect your hands. Open the washer door — if the door is stuck locked because of a broken strike, use a putty knife to pry the white latch on the door lock through the bottom service opening to release the door. With the door open, locate the screws around the perimeter of the inner door panel. Remove the screws to release the inner door panel from the outer frame. Important: the inner glass insert is loose once the panel is unscrewed — support the glass with one hand as you pry the panel away to prevent it from falling out and breaking. Note the orientation of the old door strike (the direction it points and how it's seated). Use needle-nose pliers or tweezers to pull out the retaining pin holding the old strike in place, then remove the broken strike. Install the new MFG63099101 strike in the same direction and orientation as the old one — installing it backwards will prevent the lock from engaging. Reinsert the retaining pin to secure it. Carefully reposition the glass insert into the door, reinstall the inner door panel, and tighten the screws. Restore power and run a test cycle to confirm the door locks properly and there are no leaks. Tools needed: Phillips screwdriver, needle-nose pliers or tweezers, putty knife (for stuck doors), work gloves.
Frequently Asked Questions
What's the difference between the door strike and the door lock switch?
These are two separate parts that work together to lock the washer door. The door strike (MFG63099101) is the metal hook attached to the inside edge of the washer door — when the door closes, the hook is what physically enters the lock assembly. The door lock switch (EBF61315802) is the assembly mounted on the front panel just inside the door opening — it contains the electromagnetic mechanism that grips and locks the strike, and the electrical sensor that tells the control board the door is closed. If the strike is broken, the lock has nothing to grip and the washer won't start. If the switch is broken, the strike can still enter the slot but the lock won't engage or send the right signal. Both can fail independently, and often wear together — many repairs call for replacing both at the same time.
My washer door is stuck closed — how do I get it open to install this?
If the door is stuck in the locked position because the existing strike has broken off inside the lock or the lock won't release, you can use a putty knife or thin flat tool to manually release the door lock through the bottom service opening of the washer. Reach in through the access panel at the lower front of the unit and locate the white plastic latch on the back of the door lock assembly — gently push or pry it to release the mechanism. The door should then open. Once open, you can proceed with the strike installation. Always disconnect power from the washer first.
The number on my old strike doesn't match — is it still compatible?
In many cases, yes. LG sometimes prints production batch codes on door strikes that look like part numbers but don't match the official OEM part number. As long as your washer's parts diagram lists MFG63099101 (or one of its cross-references: AGF77417823, AP5787149, 2759645, PS8752721, EAP8752721, PD00046132), this strike is the correct fit. If you're unsure, contact our support team with your washer model number and we'll verify before you order.
Should I replace the door lock switch (EBF61315802) at the same time?
Not always, but often. The strike and the lock switch work together as a pair — if one is worn, the other has typically experienced the same load over thousands of cycles and is approaching the end of its service life. When a broken strike is the cause of the failure, examine the lock switch when the panel is open: if the lock mechanism shows visible wear, doesn't grip the new strike firmly, or has corroded contacts, replace it at the same time. Since the door is already partially disassembled and you have the washer apart, doing both at once saves a second repair session.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured from durable metal to match the dimensions, mounting configuration, and lock-engagement function of the original MFG63099101 door strike used in compatible LG and Kenmore 796-series front-load washers.
