XPARTCO PB04001 Oven Bake Igniter for Viking Replaces 065650-000
The XPARTCO PB04001 is an aftermarket replacement oven bake igniter compatible with select Viking gas ranges with hot surface ignition systems, including the CVDSC, EVGIC, EVGRT, VDSC, VGIC, VGRT, VGSC, VGSS, and VGGT series. The oven bake igniter is a flat glow bar hot surface igniter — it draws electrical current through the oven's gas safety valve to open it, then heats to ignition temperature to light the gas burner. When the igniter weakens or fails, the oven will not heat, will take too long to reach temperature, or the igniter will glow but the burner will never light.

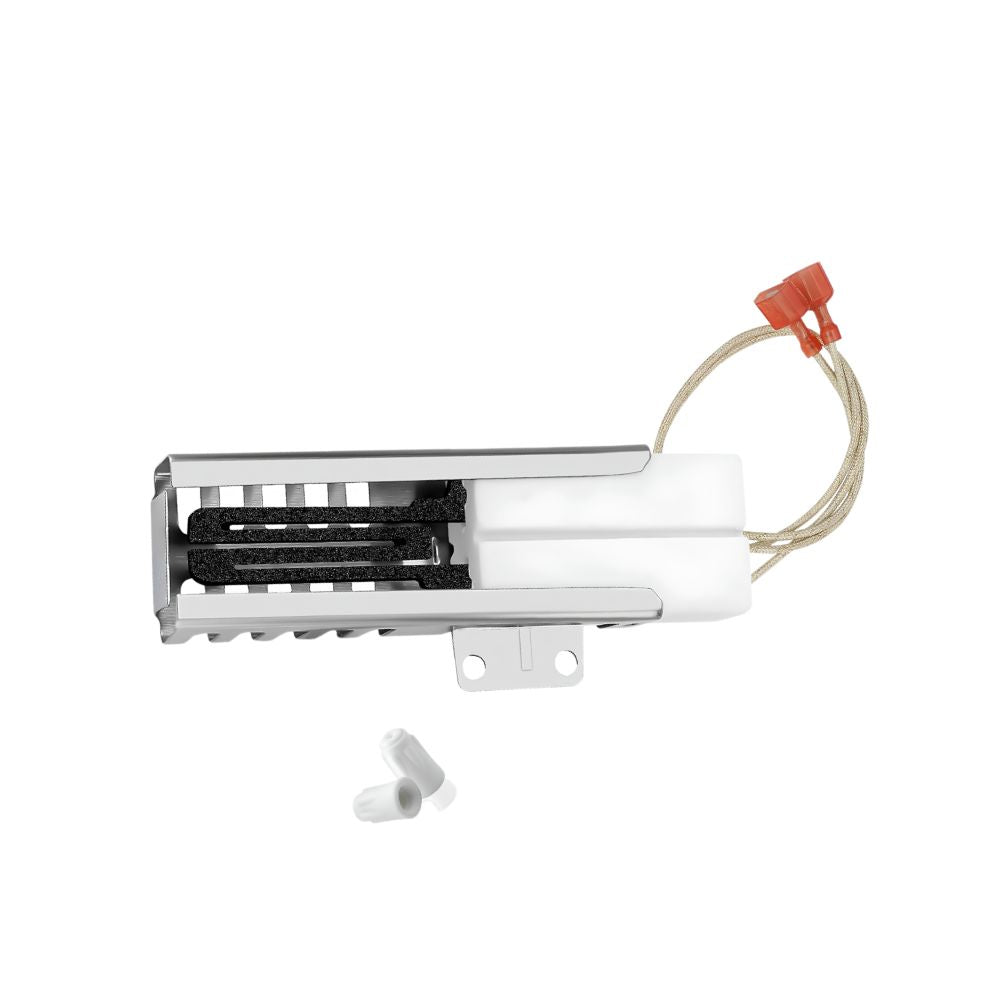

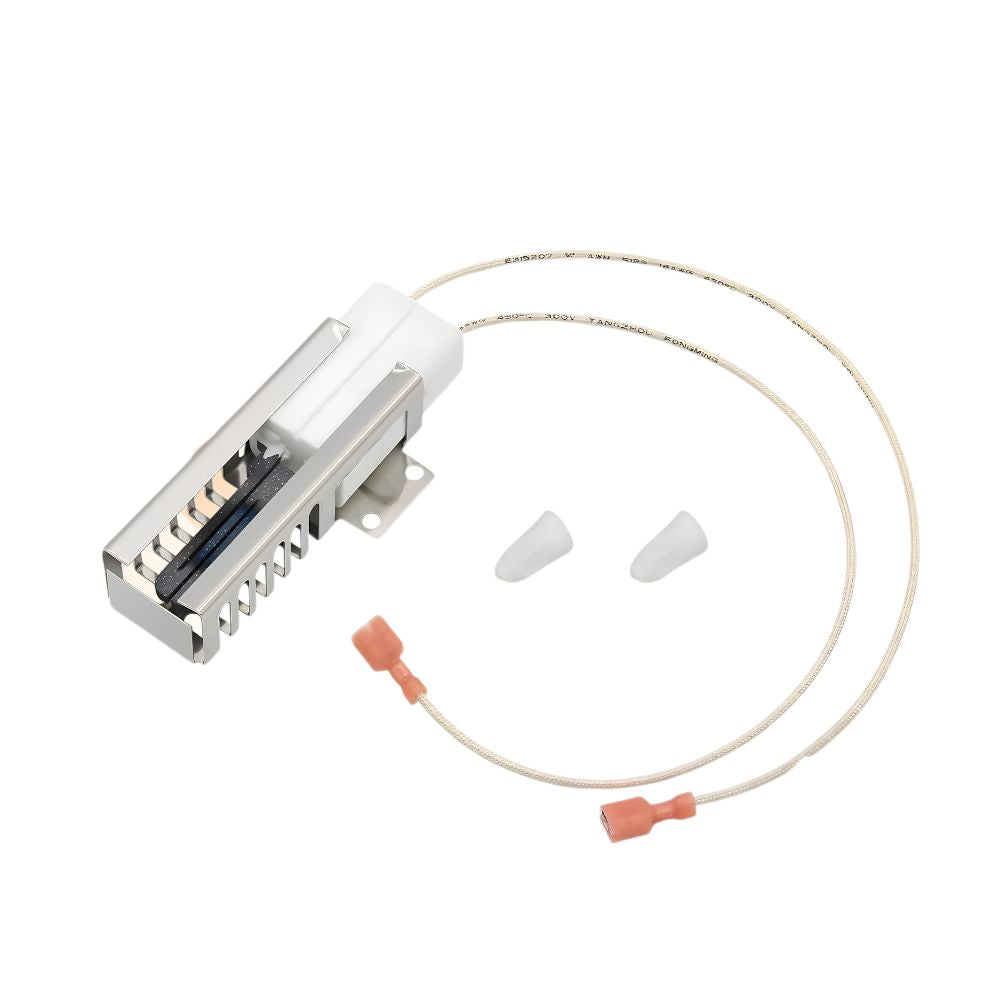

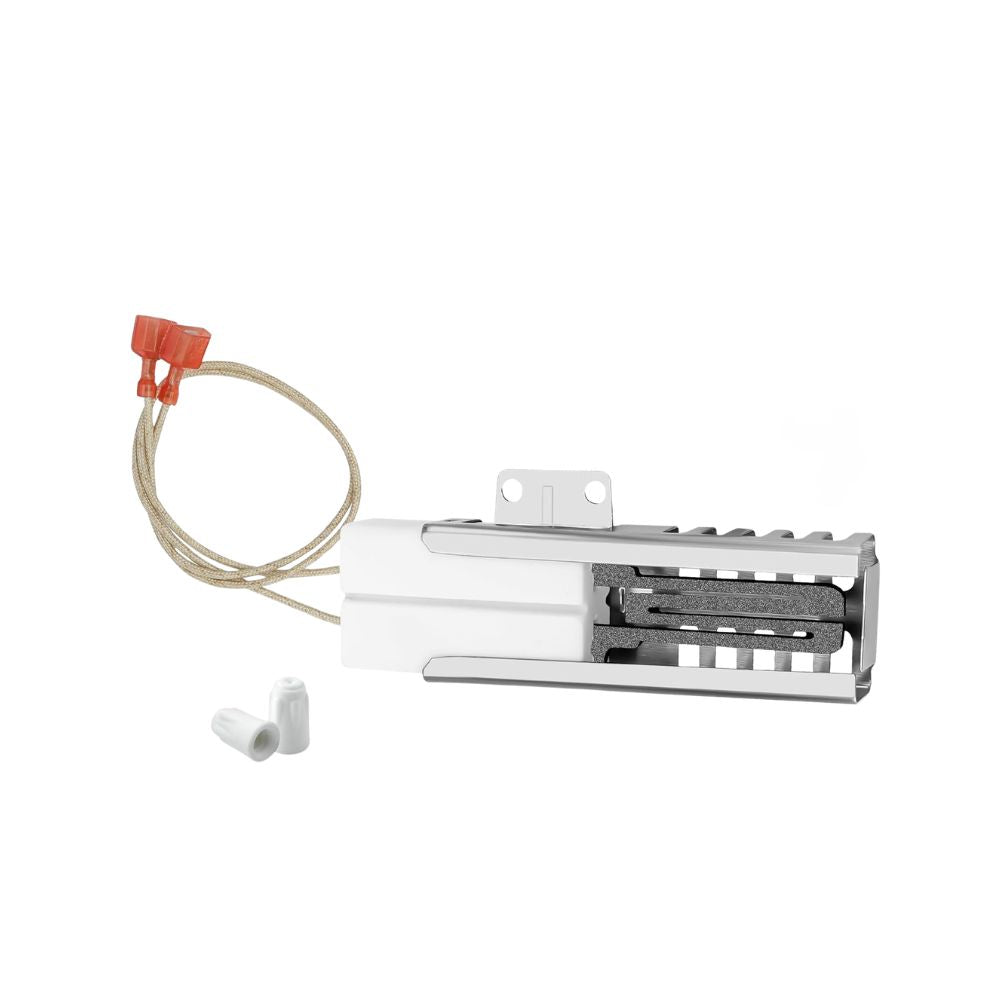

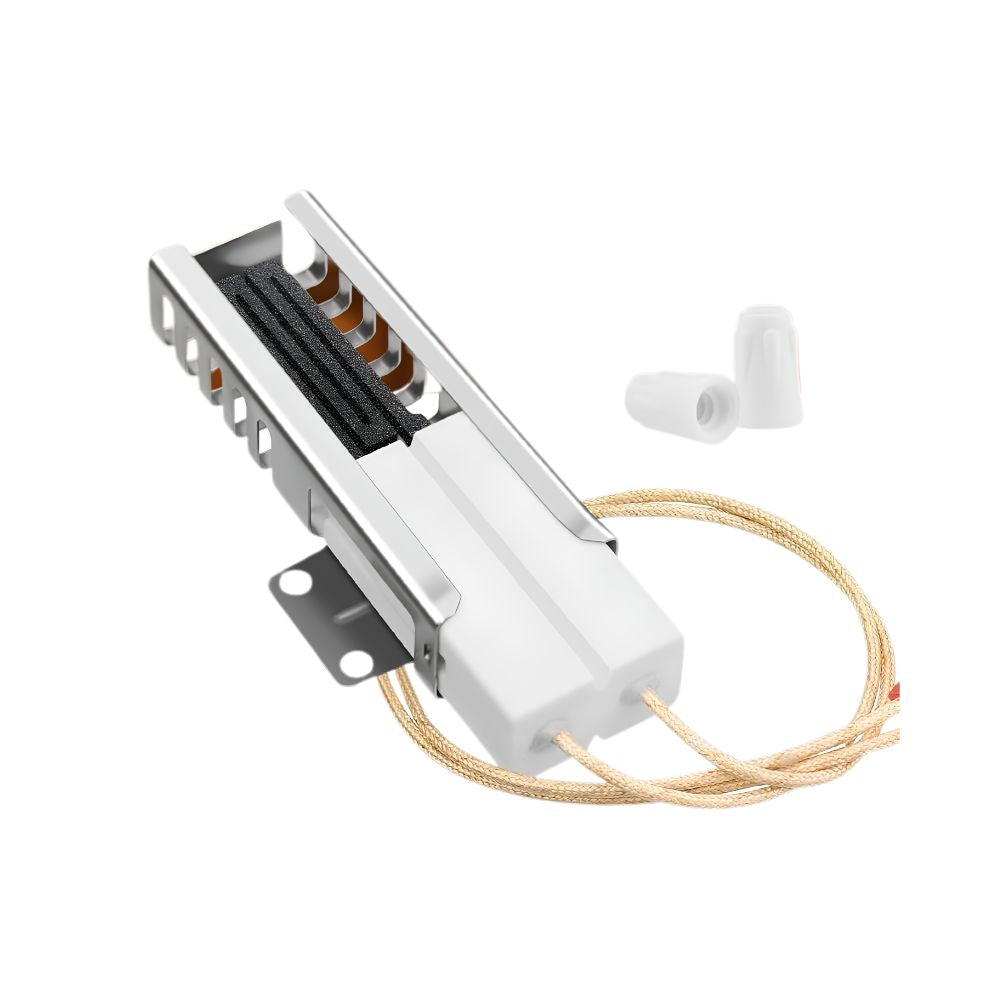

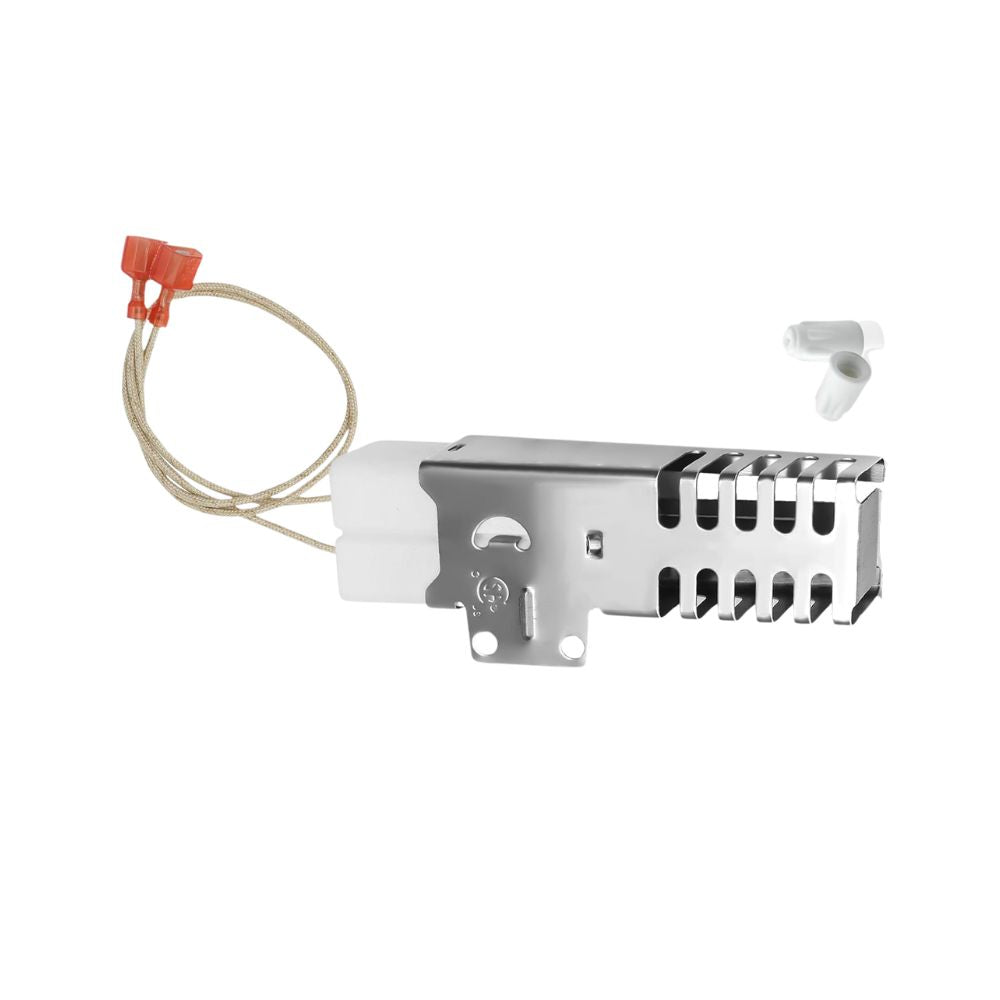

This is a silicon carbide flat-style igniter with a 2.25-inch white ceramic body and 4.5-inch overall length. Wire leads extend approximately 12.5 inches from the igniter body with female insulated terminals for plug-in installation. Ceramic wire nuts for spliced installation are included. Rated 3.2–3.6 amps at 120V AC — the correct amperage range to open the Viking oven gas safety valve. It directly replaces 065650-000, PB040001, 792263, AP5315579, AP7180264, SGR4001, SGR40001, GR40001, RP712, and AR402. Sold individually. Installs in 15–25 minutes with basic hand tools.
Quick Answer
The XPARTCO PB04001 Oven Bake Igniter fixes Viking gas ranges where the oven won't heat, takes too long to preheat, or the igniter glows but the burner never lights. Flat silicon carbide glow bar, 3.2–3.6A, 120V AC. Ceramic body 2.25", overall 4.5", leads 12.5" with female terminals. Ceramic wire nuts included. Sold individually. Compatible with Viking CVDSC, EVGIC, EVGRT, VDSC, VGIC, VGRT, VGSC, VGSS, VGGT series. Replaces 065650-000, PB040001, 792263, AP5315579, AP7180264, SGR4001.
Common Problems This Part Fixes
- Oven not heating at all — igniter has failed or burned out
- Oven takes much longer than normal to preheat
- Igniter glows orange but the gas burner never lights
- Gas smell when oven is turned on but burner does not light
- Oven heats on first use but fails to relight during subsequent heat cycles
- Igniter visibly cracked, broken, or dark/charred at the ends
- Oven baking inconsistently or shutting off heat mid-cycle
Replaces Part Numbers
This oven igniter directly replaces the following OEM and cross-reference part numbers:
065650-000, AP7180264, PB040001, PB04001, 792263, SGR40001, GR40001, RP712, AR402
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This oven igniter is compatible with select Viking gas ranges with hot surface ignition (glow bar) systems, including the following series:
- Viking CVDSC series — CVDSC365-4G, CVDSC485-6G and related models
- Viking EVGIC series — EVGIC305, EVGIC365, EVGIC485 and related models
- Viking EVGRT series — EVGRT360, EVGRT480, EVGRT600 and related models
- Viking VDSC series — VDSC365, VDSC367, VDSC485, VDSC487 and related models
- Viking VGIC series — VGIC245, VGIC245G, VGIC245K, VGIC245Q, VGIC305, VGIC367 and related models
- Viking VGSC series — VGSC300, VGSC305 and related models
- Viking VGSS series — VGSS300, VGSS480 and related models
- Viking VGRT and VGGT series — VGRT360, VGGT240 and related models
Note: This igniter is for Viking ranges with hot surface (glow bar) ignition systems only. Not all Viking ranges use this style of igniter — verify your model number before ordering. Always verify compatibility before purchasing.
Key Features
- Flat glow bar hot surface igniter — draws current through the oven gas safety valve to open it, then heats to ignition temperature to light the oven burner
- Silicon carbide construction — superior heat resistance, reaches 1,800°F–3,100°F operating temperature in approximately 60 seconds
- Draws 3.2–3.6 amps at 120V AC — correct amperage range to open the Viking oven gas safety valve
- Ceramic body: 2.25 inches; overall length: 4.5 inches; wire leads: approximately 12.5 inches with female insulated terminals
- Plug-in installation with female terminals; ceramic wire nuts included for spliced installation if needed
- Sold individually — one igniter per order
- Replaces 065650-000, PB040001, 792263, AP5315579, AP7180264, SGR4001, and more
- Fragile silicon carbide element — handle only by the bracket and wires; never touch the ceramic body with bare hands
- Aftermarket replacement built to OEM-equivalent quality standards
- DIY repair — installs in 15–25 minutes with basic hand tools
Product Specifications
| Part Number |
PB04001 |
| Also Known As |
PB040001 |
| Part Type |
Gas Oven Bake Igniter (Flat Glow Bar Hot Surface Igniter) |
| Condition |
Aftermarket Replacement |
| Application |
Viking Gas Ranges with Hot Surface Ignition |
| Igniter Style |
Flat glow bar, silicon carbide |
| Amperage Draw |
3.2 – 3.6 Amps |
| Voltage |
120V AC |
| Operating Temperature |
1,800°F – 3,100°F (approximately 60-second heat-up) |
| Ceramic Body Length |
2.25 inches |
| Overall Length |
4.5 inches |
| Lead Length |
Approximately 12.5 inches (female insulated terminals) |
| Includes |
Igniter and ceramic wire nuts |
| Sold As |
Single igniter |
| Compatible Brands |
Viking |
Installation Notes
⚠️ Gas Appliance Safety Warning This part is used in gas ranges. Always shut off the gas supply at the shutoff valve and unplug the range from the electrical outlet before beginning any repair. If you smell gas at any point during or after installation, leave the area immediately and contact your gas utility provider. If you are not confident working on gas appliances, have this part installed by a qualified appliance technician.
⚠️ Handle With Extreme Care — Fragile Silicon Carbide Element The silicon carbide igniter element is extremely fragile and will crack or break with minimal force. Never touch the ceramic bar with bare hands — oils from skin will damage the element and cause premature failure. Handle only by the bracket, wires, and ceramic wire nut connectors. To install: unplug the range and shut off gas. Remove the oven racks and oven bottom panel. Disconnect the old igniter's wire connector (or cut wires if splicing). Unscrew the mounting bracket from the burner assembly and remove the old igniter. Position the new PB04001 igniter on the burner bracket and secure with the mounting screws. If the female terminals plug directly into the existing wiring, connect them. If wires need to be spliced, use the included ceramic wire nuts — never use standard plastic wire nuts near the oven burner. Reinstall the oven bottom panel and racks. Restore gas and power, then run a test cycle to confirm the igniter heats and the burner lights within 60 seconds. Tools needed: Phillips screwdriver, work gloves.
Frequently Asked Questions
How does a hot surface igniter work on a Viking gas oven?
The hot surface igniter is wired in series with the oven's gas safety valve. When the oven is turned on, electrical current flows through the igniter, heating the silicon carbide element until it reaches ignition temperature — typically glowing bright orange. As the element heats, its electrical resistance changes and the current draw increases to 3.2–3.6 amps. At that amperage level, the gas safety valve opens and gas flows to the burner, where the glowing igniter ignites it. If the igniter weakens and can no longer draw enough current to open the safety valve, the oven will glow but the burner will never fire — this is the most common cause of a Viking oven not heating.
What is the difference between PB04001 and PB040001?
PB04001 and PB040001 are the same oven igniter — PB04001 is the shortened version of the PB040001 part number. Both refer to the same flat silicon carbide glow bar igniter used on compatible Viking gas ranges. This listing covers both designations and the part functions identically regardless of which number is referenced.
How do I know if my oven igniter has failed?
The most common sign is an oven that glows orange but the burner never lights. A healthy igniter glows bright orange and ignites the burner within about 60 seconds. If it glows dimly, stays on indefinitely without the burner lighting, or does not glow at all when the oven is turned on, the igniter has failed. You can also test with a multimeter — with the oven cold and unplugged, a working igniter shows resistance of approximately 40–90 ohms; an open circuit confirms failure. Visually inspect the element for cracks, dark spots, or a broken ceramic bar.
Why must I use ceramic wire nuts instead of standard plastic ones?
Standard plastic wire nuts are not rated for the temperatures inside an oven cavity — they will melt or degrade near the burner, exposing bare wires and creating a safety hazard. Ceramic wire nuts (included with this igniter) are heat-rated for oven burner temperatures and provide a safe, permanent connection when splicing is required. Always use only ceramic wire nuts for any wiring connections near the oven burner.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Viking OEM part, but is manufactured from silicon carbide and high-temperature materials to match the electrical specifications and dimensions of the original 065650-000 oven bake igniter.
