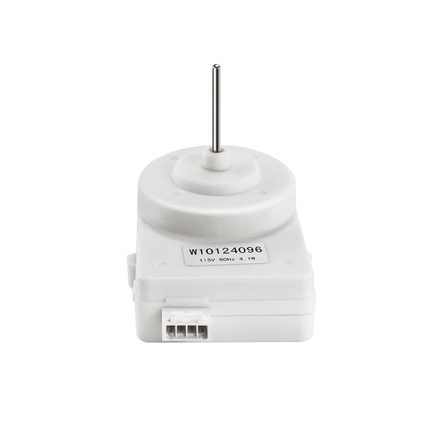

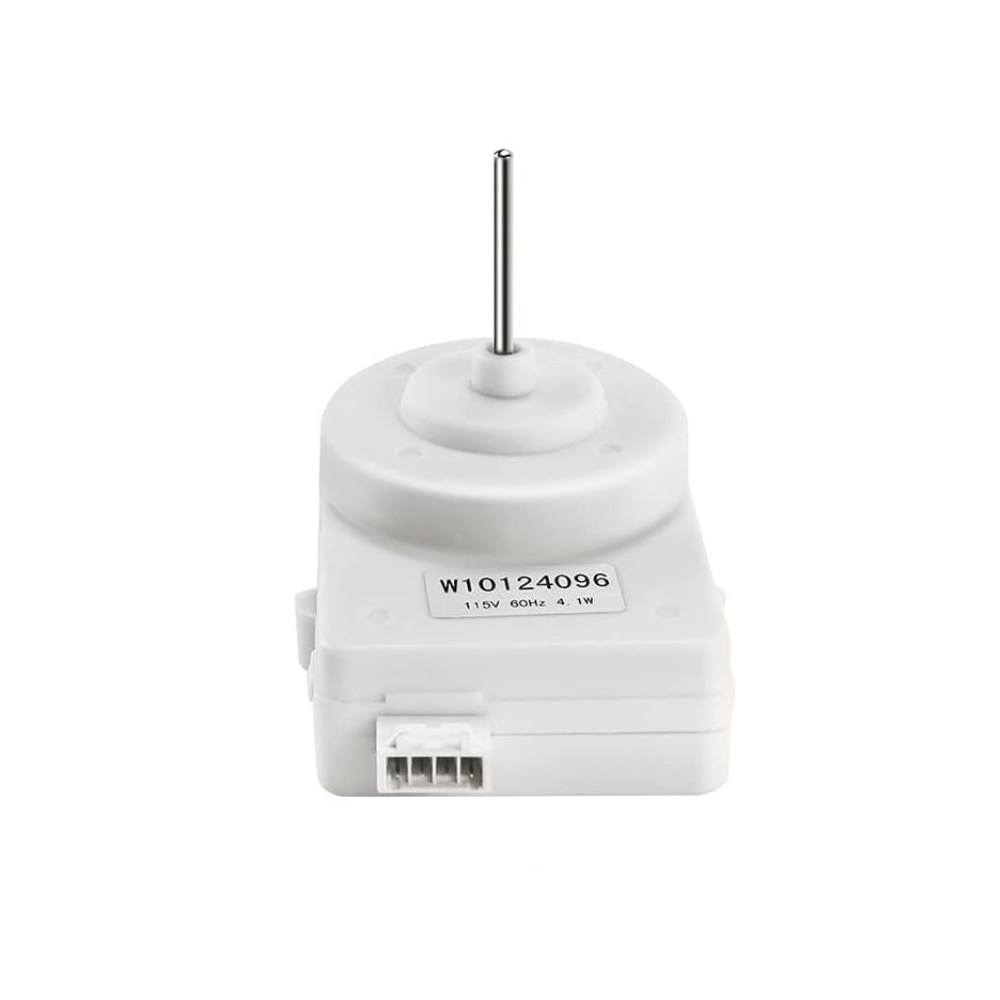

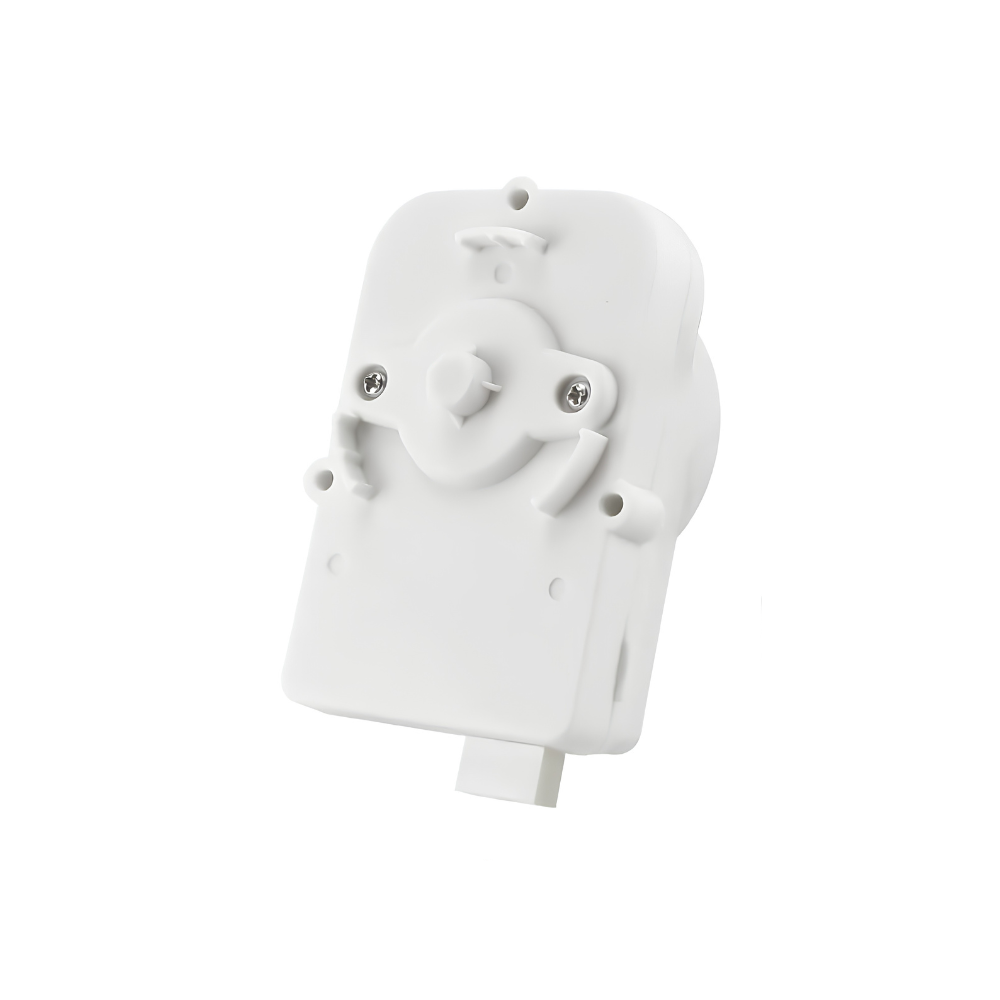

XPARTCO W10124096 Refrigerator Condenser Fan Motor
The XPARTCO W10124096 is an aftermarket replacement condenser fan motor kit for Whirlpool-built refrigerators, including Kenmore, Maytag, KitchenAid, Amana, and Jenn-Air models. The condenser fan motor pulls air across the condenser coils to carry heat away from the refrigerant. When the motor wears out or fails, the refrigerator may run warmer than normal, cool poorly, or make unusual noise.

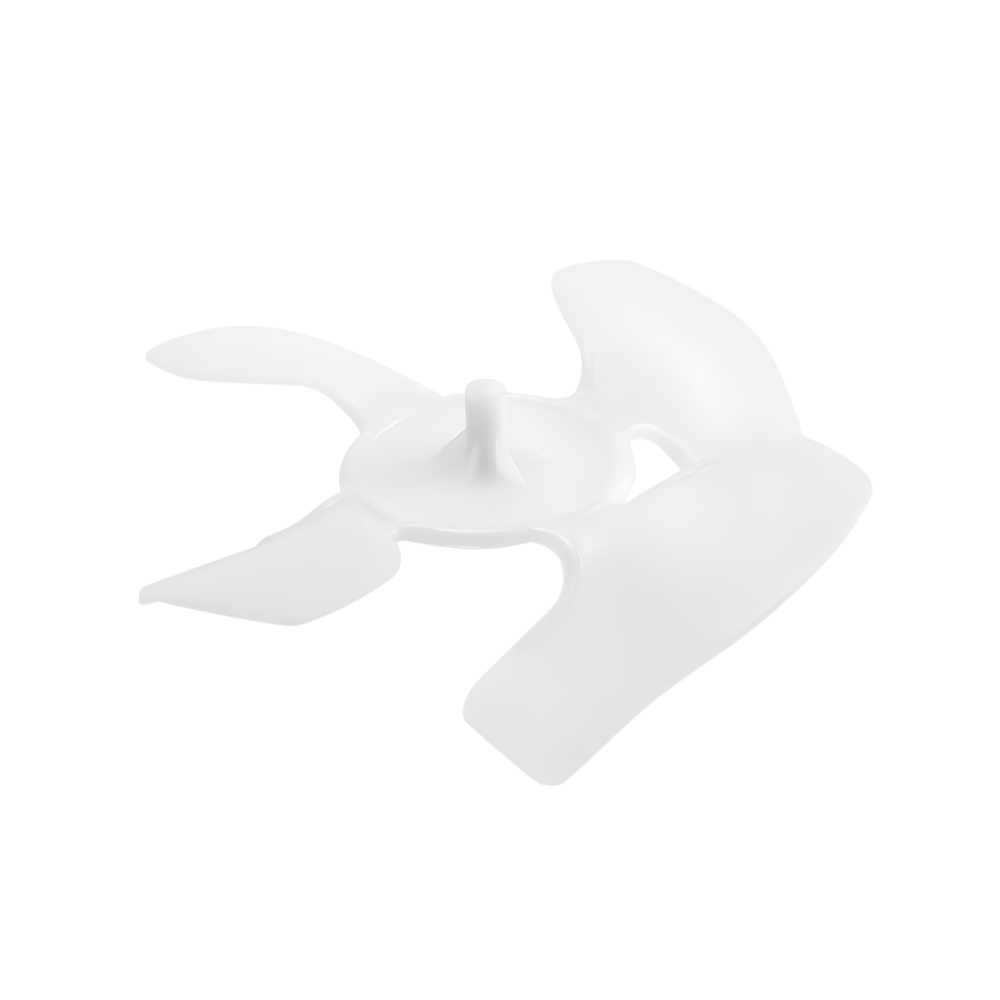

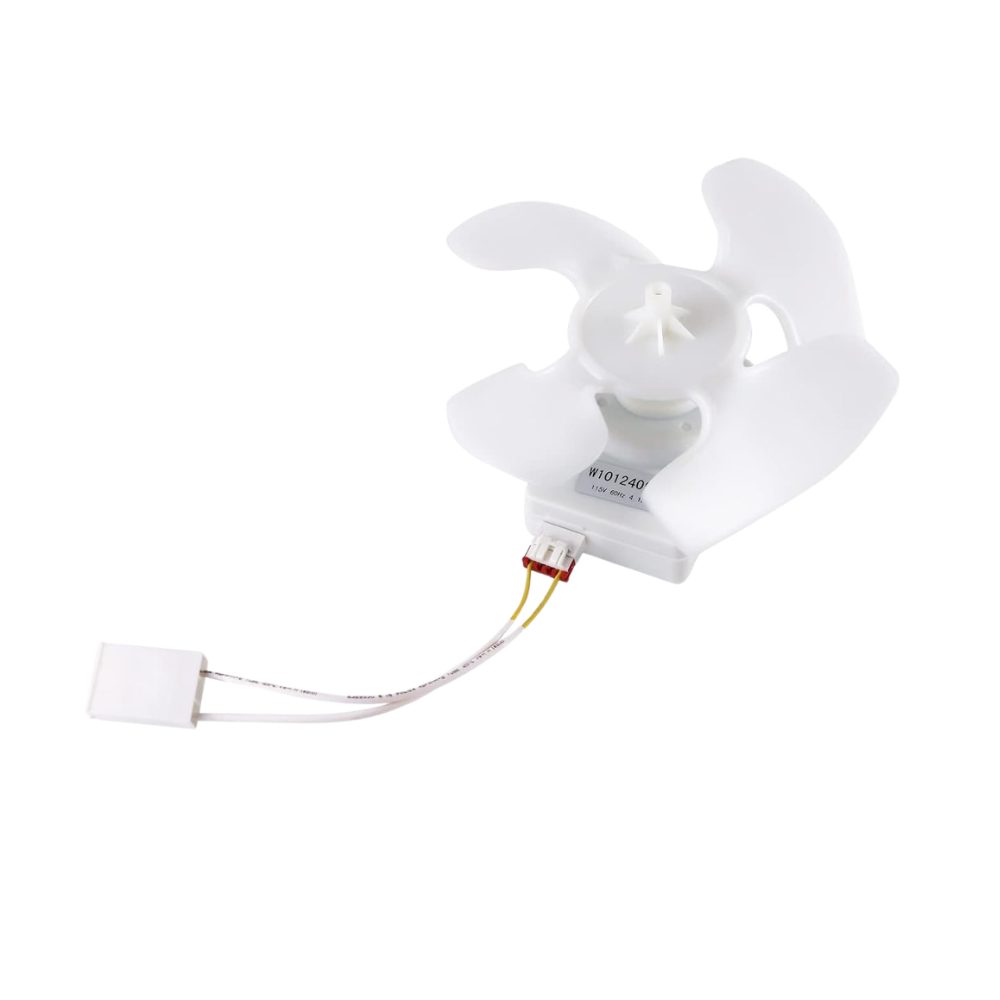

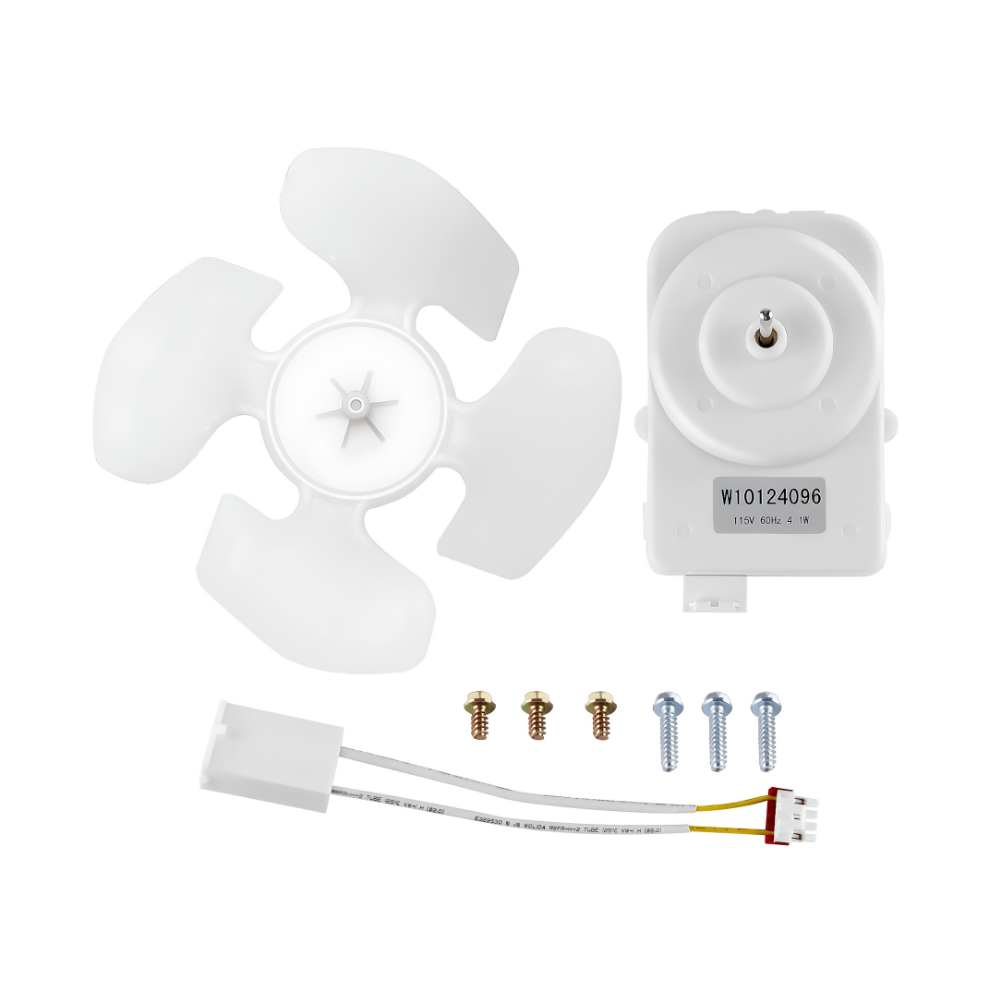

The kit includes the fan motor, a fan blade, and a jumper wire harness for installations where the original motor used a 3-pin connector. It replaces many earlier Whirlpool motor numbers, so the new kit may look different from your original motor. This is the condenser fan, near the compressor, not the evaporator fan inside the freezer or fresh food compartment.
Quick Answer
The XPARTCO W10124096 Condenser Fan Motor Kit fixes a Whirlpool-built refrigerator that runs warm, cools poorly, or makes noise because the condenser fan motor has failed. Kit includes the motor, fan blade, and jumper harness. Classic symptom: the compressor area is noisy, or the condenser fan doesn't spin while the compressor runs.
Common Problems This Part Fixes
- Refrigerator running warmer than usual or cooling poorly
- Noisy refrigerator near the compressor
- Condenser fan not running
- Worn or damaged condenser fan motor or blade
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This condenser fan motor kit directly replaces the following part numbers:
W10124096, 1378525, 2188538, 2188727, 2188728, 2188729, 2188732, 2188891, 2206005, 2315538, 2315558, W10124096VP, W10130108, W10204250, W10509333, W10861645, AH1957416, AP4318657, AWP40429, EA1957416, EAP1957416, PD00002509, PS1957416
These numbers span several generations of Whirlpool's own part numbering for this motor. Confirm against your refrigerator's parts diagram, or contact our support team, if your model calls out a different number.
Compatibility
This condenser fan motor kit is listed for Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Roper, Crosley, Estate, Inglis, and Jenn-Air refrigerators, including these examples:
- Models ED5FHAXSB03, 8ET1FTKXKT05, GI15NDXTB0, 7GD27DIXHB00
- Models 10644022600, 10653254200, BRS62ABANA00, MSD2658KES02
Note: The models above are a small sample of a list of hundreds, not a full list. Some retailer lists include drawer and bin models, so verify fit with your full model number. Contact our support team to confirm fit before ordering.
Key Features
- Aftermarket replacement condenser fan motor kit for Whirlpool-built refrigerators
- Kit includes the fan motor, fan blade, and a jumper wire harness for 3-pin connectors
- Moves air across the condenser coils to help the refrigerator cool
- Resolves warm-running and noise problems caused by a failed motor
- Replaces 13 earlier Whirlpool part numbers
Product Specifications
| Part Number |
XPW10124096 |
| OEM Part Number |
W10124096 |
| Part Type |
Refrigerator Condenser Fan Motor Kit |
| Condition |
Aftermarket Replacement |
| Kit Includes |
Fan Motor, Fan Blade, Jumper Wire Harness |
| Application |
Whirlpool, Kenmore, Maytag, KitchenAid, Amana & Jenn-Air Refrigerators |
Installation Notes
⚠️ Unplug Power Before Installing Unplug the refrigerator before beginning, and move perishable food to a cooler or another refrigerator. Wear work gloves. Follow your model's service guide to reach the condenser fan, which is near the compressor. Note how the wiring is connected, disconnect it, and remove the old motor and blade. Fit the new motor and blade in the same position and reconnect the wiring. Use the supplied jumper harness only if your original motor used a 3-pin connector. Restore power and check that the fan runs.
Frequently Asked Questions
My refrigerator is running warm. Is this the part I need?
A failed condenser fan motor is one possible cause, since the condenser can't shed heat without airflow. Check that the condenser coils are clean and that the fan turns freely. If the fan doesn't run or the motor is noisy or worn, this kit is the repair.
Is this the condenser fan or the evaporator fan?
This is the condenser fan motor, which cools the condenser coils near the compressor. The evaporator fan is a different part located inside the cabinet. Check your parts diagram if you are unsure.
When do I use the jumper wire harness?
The kit includes a jumper harness for installations where the original motor used a 3-pin connector. If your original connector is different, compare it to the new motor, or contact our support team.
Will this fit my refrigerator?
It is listed for hundreds of Whirlpool-built refrigerators, but the model list above is only a sample. Check your model number against your parts diagram, or contact our support team and we'll verify it before you order.
