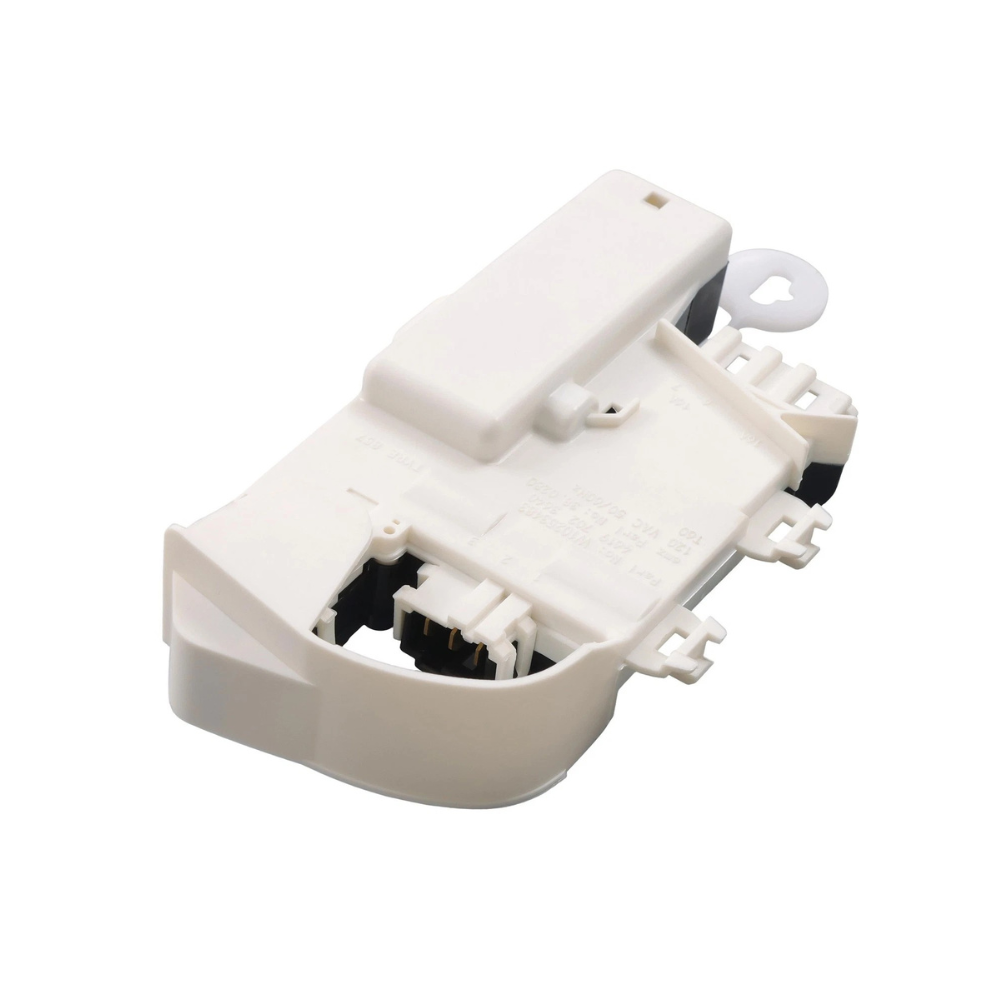

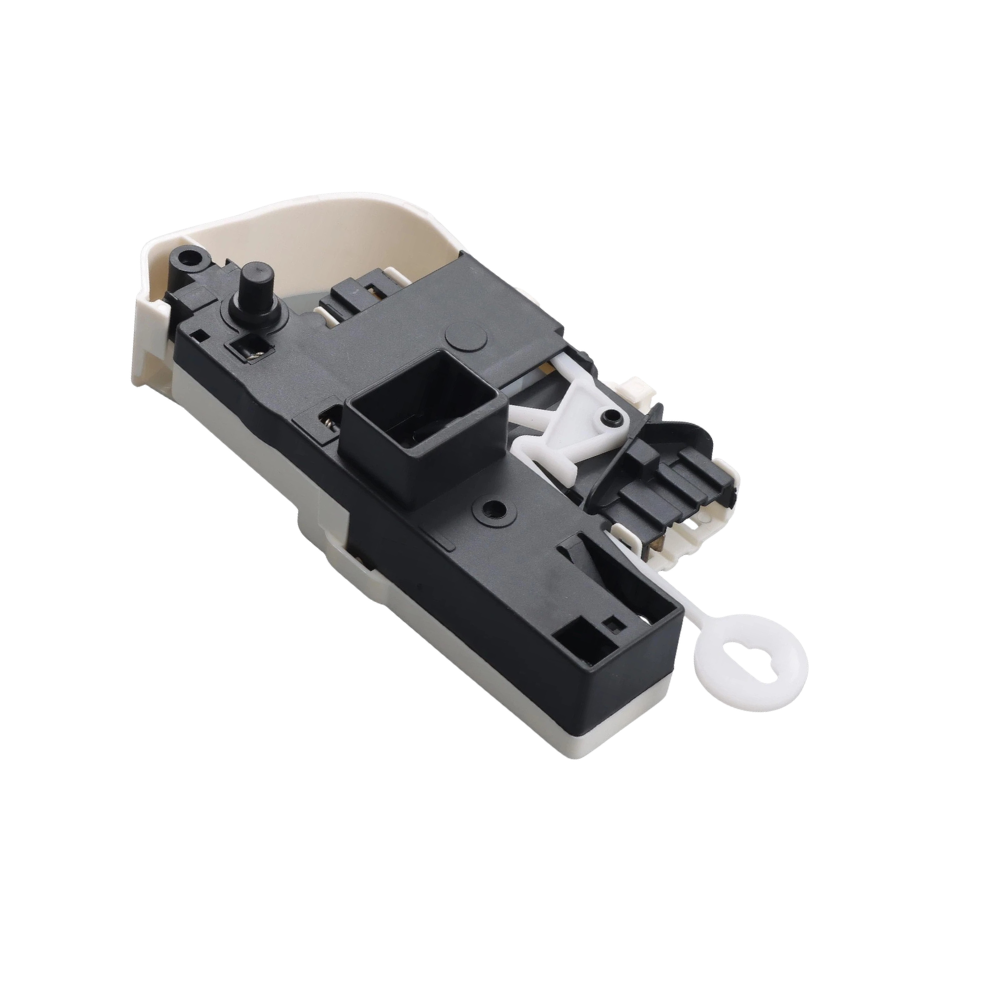

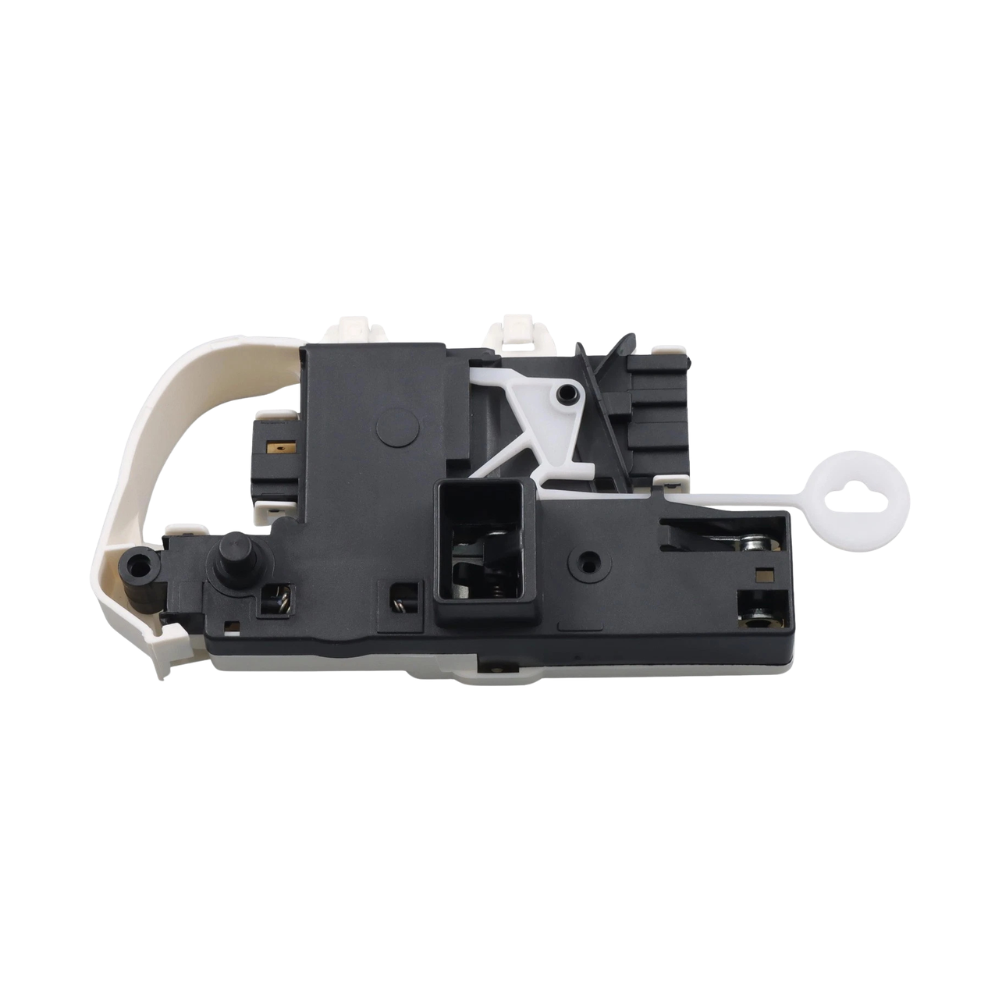

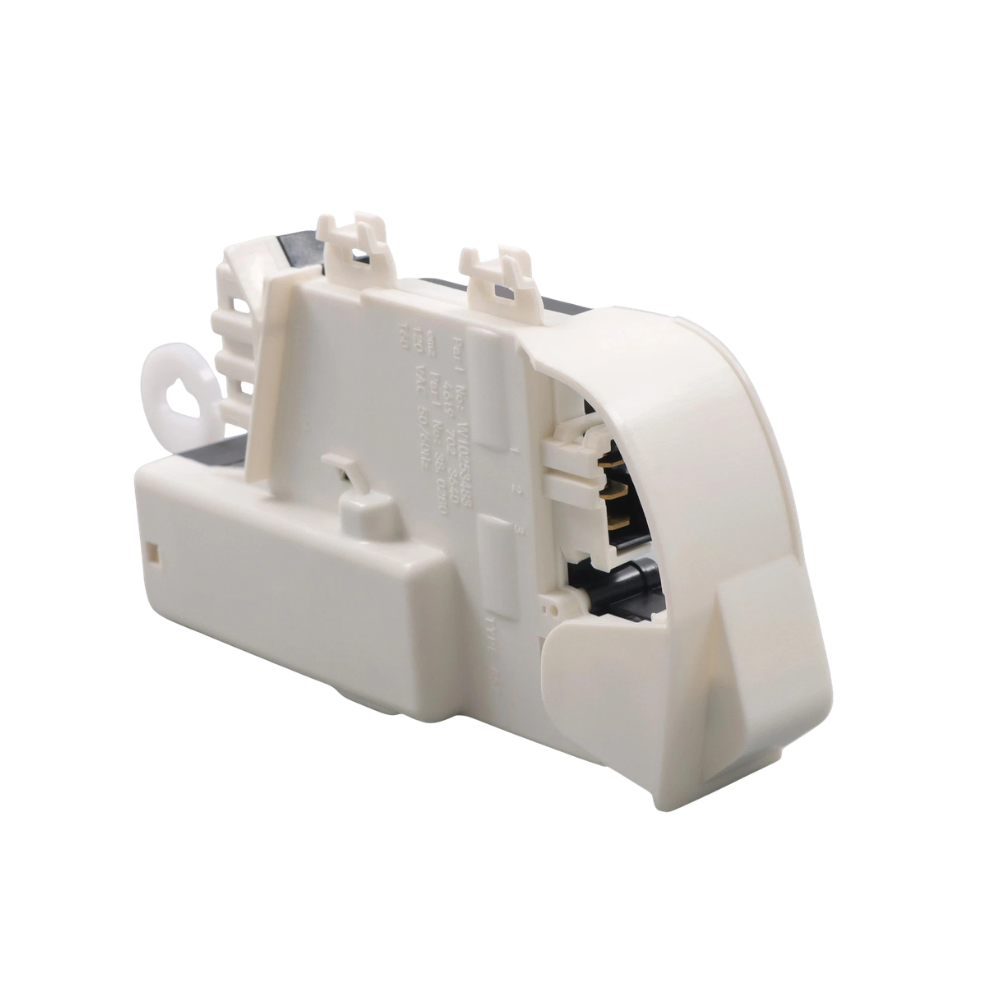

XPARTCO W10253483 Washer Door Latch Assembly
The XPARTCO W10253483 is an aftermarket replacement door latch assembly, made to replace Whirlpool part W10253483 (now WPW10253483), for select Whirlpool, Maytag, Kenmore, Amana and Inglis front-load washers. The door lock keeps the door from opening during the wash and spin cycles, and it keeps the washer from running unless the door is closed and locked. When it fails, the washer may not start, the door may not lock, or the cycle may stop partway through.
This is an aftermarket replacement from XPARTCO, not a genuine Whirlpool part. It is sold individually. Check your model number before ordering.
Quick Answer
The XPARTCO W10253483 Door Latch Assembly replaces the door lock on a compatible front-load washer when it has failed. Replaces WPW10253483, 8540222 and 8540772. Classic symptoms: the washer won't start, the door won't lock or close, or the cycle stops mid-wash.
Common Problems This Part Fixes
- Washer won't start
- Door won't lock or won't close
- Door locking problems during the wash or spin cycle
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This door latch assembly is made to replace the following Whirlpool part numbers:
WPW10253483, 1515091, 4619 702 3640, 8540222, 8540772, emz Part No: 38.0280, W10253483, AP6017910, AWP49969, EAP11751211, PD00003164, PS11751211
If your old latch shows a different number, contact our support team and we'll check whether it matches.
Compatibility
This door latch assembly is listed for Whirlpool, Maytag, Kenmore, Amana and Inglis front-load washers, including these examples:
- Whirlpool WFW9250WW00, WFW9250WL00, WFW8400TW02, WFW8200TW00
- Maytag MHWZ400TQ00, MHWZ600TW00
- Kenmore 11047542602, 11047532600, 11047512600, 11047081600
Note: The models above are a sample, not a full list. Whirlpool sells similar door latches under other part numbers, such as WP8183270, which may not fit every model. Check your full model number against your parts diagram, or contact our support team to verify fit before ordering.
Key Features
- Aftermarket replacement for the Whirlpool W10253483 door latch assembly
- Holds the door locked during the wash and spin cycles
- Cross-references WPW10253483, 8540222 and 8540772
- Sold individually
Product Specifications
| Part Number |
W10253483 |
| OEM Part Number |
WPW10253483 |
| Part Type |
Washer Door Latch Assembly |
| Condition |
Aftermarket Replacement |
| Quantity |
1 Assembly |
| Application |
Select Front-Load Washers |
Installation Notes
⚠️ Disconnect Power Before Installing Unplug the washer before you begin. Remove the parts needed to reach the latch for your model, which on some washers includes the door boot or flex gasket. Disconnect the electrical plugs, remove the screws holding the old latch, and pull it out. Install the new latch, reconnect the plugs, and reassemble in reverse order. Restore power and run a test cycle to confirm the door locks. If the door is locked shut, unplug the washer, remove the bottom front service panel and pull the release tab on the bottom of the door lock to open it.
Frequently Asked Questions
My washer won't start or the door won't lock. Is this the part I need?
It can be. Check that the door closes fully and that the door strike is not damaged first. Other parts, such as the control board or wiring, can cause similar symptoms, so confirm the latch is the problem before replacing it.
Is this an OEM or aftermarket part?
This is an aftermarket replacement from XPARTCO, made to replace Whirlpool part W10253483. If you specifically need a genuine Whirlpool part, contact our support team.
Does this replace WPW10253483?
Yes. W10253483 is now listed under the number WPW10253483, and this latch is made to replace both, as well as 8540222 and 8540772. Substitute parts can look different from the original.
Will this fit my washer?
It is listed for many Whirlpool-built front-load models, but the model list above is only a sample. Check your full model number against your parts diagram, or contact our support team and we'll verify it before you order.
