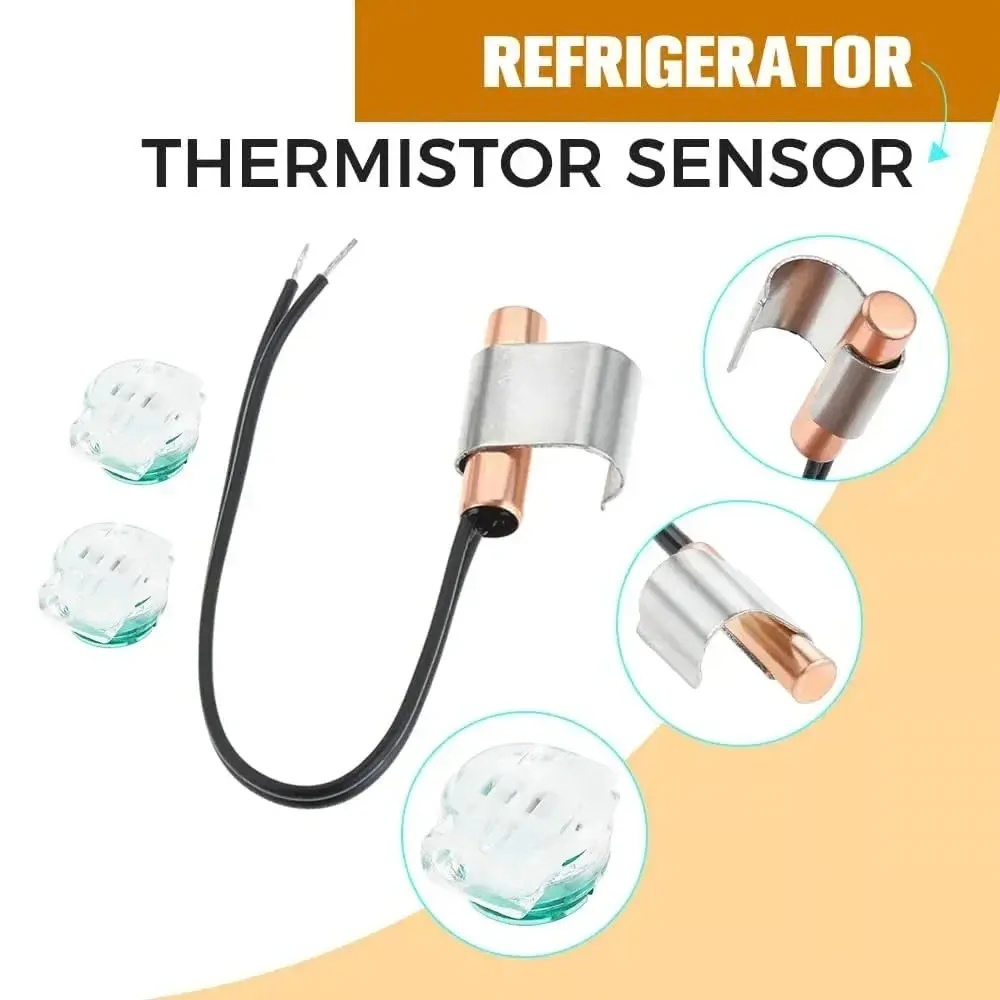

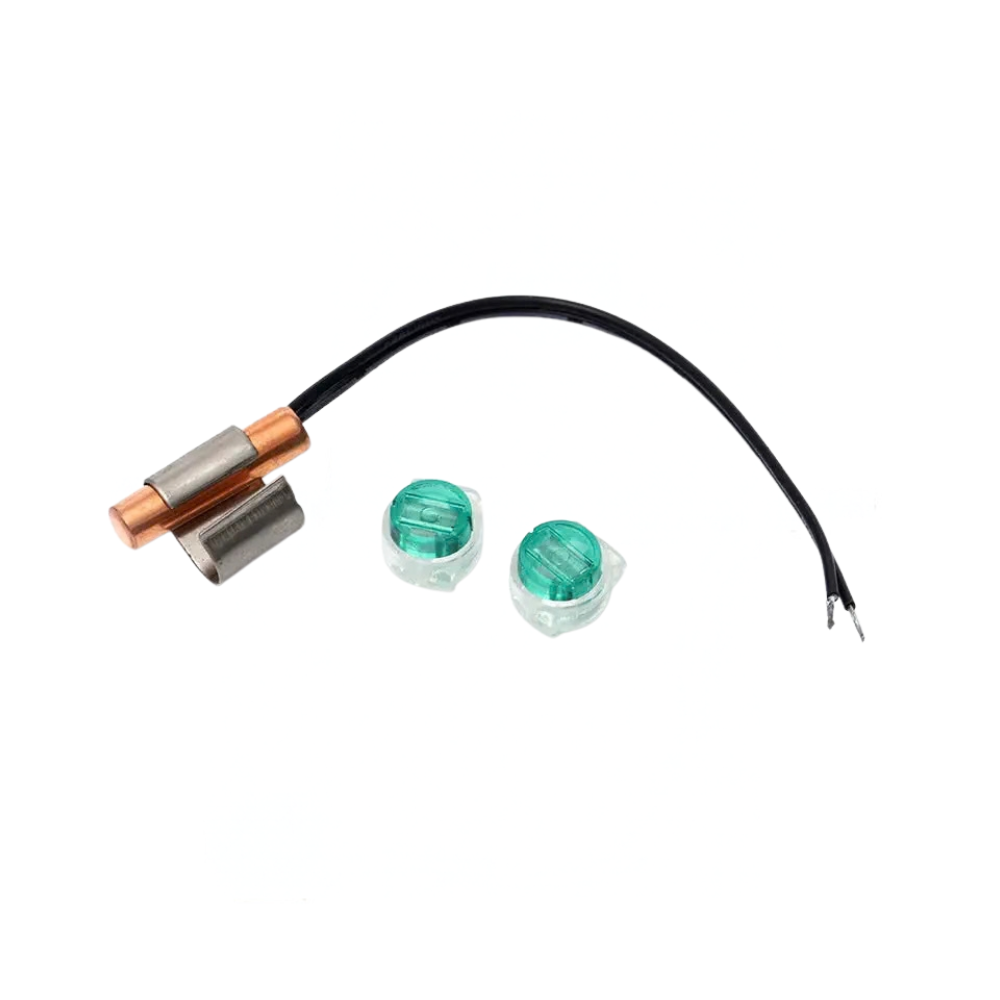

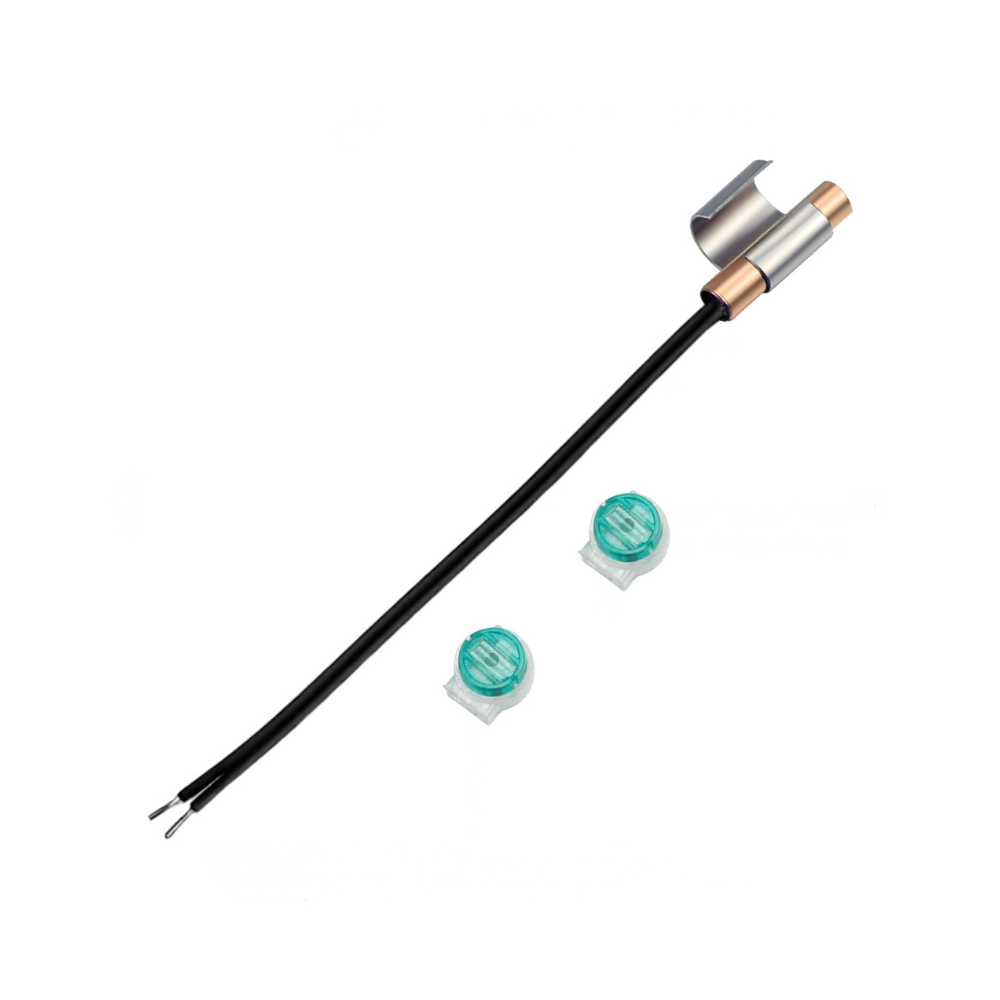

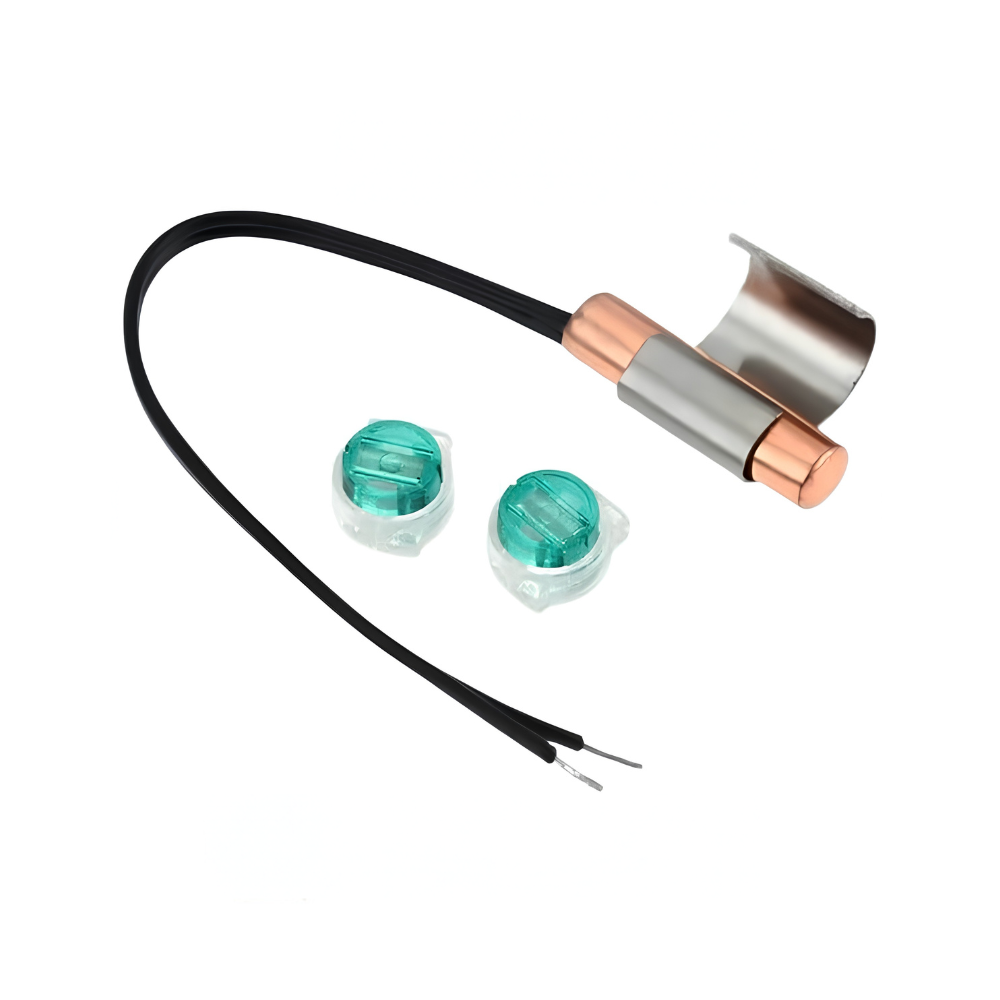

XPARTCO W10316760 Refrigerator Thermistor Sensor – Compatible with Whirlpool, Kenmore, Maytag, and KitchenAid Refrigerators
Product Description
Maintain accurate refrigerator temperature control with the XPARTCO W10316760 Refrigerator Thermistor Sensor. This Refrigerator Thermistor Sensor is a replacement part for select Kenmore, KitchenAid, Maytag, Whirlpool refrigerator models. It is a crucial component responsible for accurately monitoring and regulating the temperature inside the refrigerator and freezer compartments.
Replaces Part Numbers
W10316760, WPW10323459, W10323459, 12791417, 12791417SP, 12791419SP, 1876627, W10280385, W10280386, W10308052, W10316760VP, W10438639, W10438761, W10452402, AH2580944, EA2580944, PD00006590, EAP2580944, AP4538142, PS2580944,
Compatibility
This replacement thermistor sensor fits select Whirlpool, Kenmore, Maytag, Amana, Jenn-Air, and KitchenAid refrigerators.
Example compatible models include (but are not limited to): Whirlpool WRS322FDAW04, Maytag MSS25N4MKZ00, and Kenmore 106.51133213.
Always verify your refrigerator’s model number before ordering. Contact our support team if you’re unsure.
✅ Key Features
-
🔄 Aftermarket Replacement – Matches OEM temperature accuracy and response rate
-
❄️ Precision Cooling Control – Helps maintain stable refrigerator and freezer temperatures
-
💰 Affordable Alternative – Cost-effective solution versus expensive OEM sensors
-
🛠️ Simple Installation – Plug-in design for fast, hassle-free replacement
-
🛡️ Fixes Common Issues – Solves warm fridge, over-cooling, ice buildup, or erratic temperature cycling
📐 Product Specification
-
Part Number: W10316760
-
Component Type: Refrigerator Thermistor / Temperature Sensor
-
Material: Plastic probe housing with insulated wiring harness
-
Resistance: ~2.7 kΩ at 77°F (varies with temperature)
-
Mounting: Clips or adhesive tape depending on model location
-
Compliance: Built to OEM-equivalent quality standards (not OEM)
🛠️ Installation Notes
Tools Needed: Phillips screwdriver, needle-nose pliers (optional)
⚠️ Safety First: Always unplug the refrigerator before performing any repairs to prevent electrical shock.
Steps:
-
Disconnect power and remove interior shelves for access.
-
Locate the existing thermistor near the evaporator or liner wall.
-
Disconnect the wiring harness and remove any clips or tape.
-
Install the new XPARTCO W10316760 thermistor in the same location.
-
Reconnect the harness, secure wiring, and reassemble interior panels.
-
Restore power and allow several hours for temperatures to stabilize.
⏱️ Time Required: 10–20 minutes
