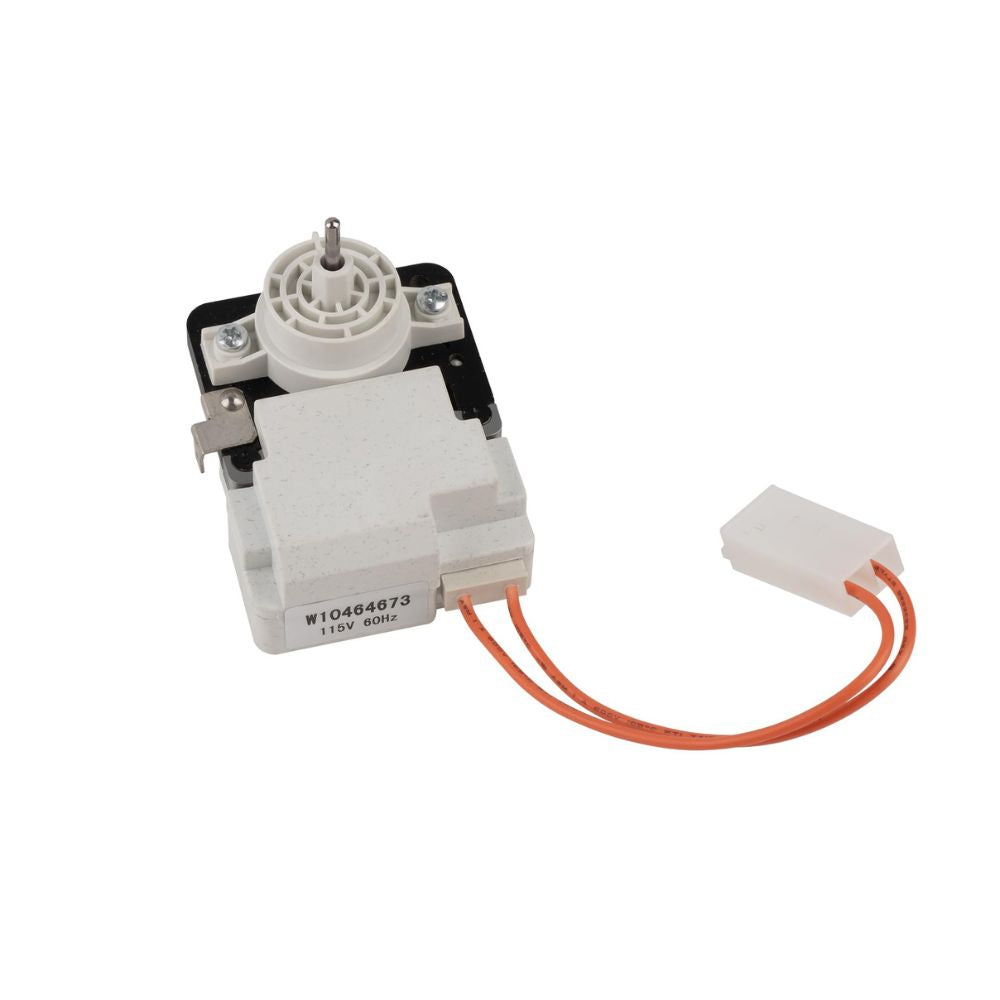

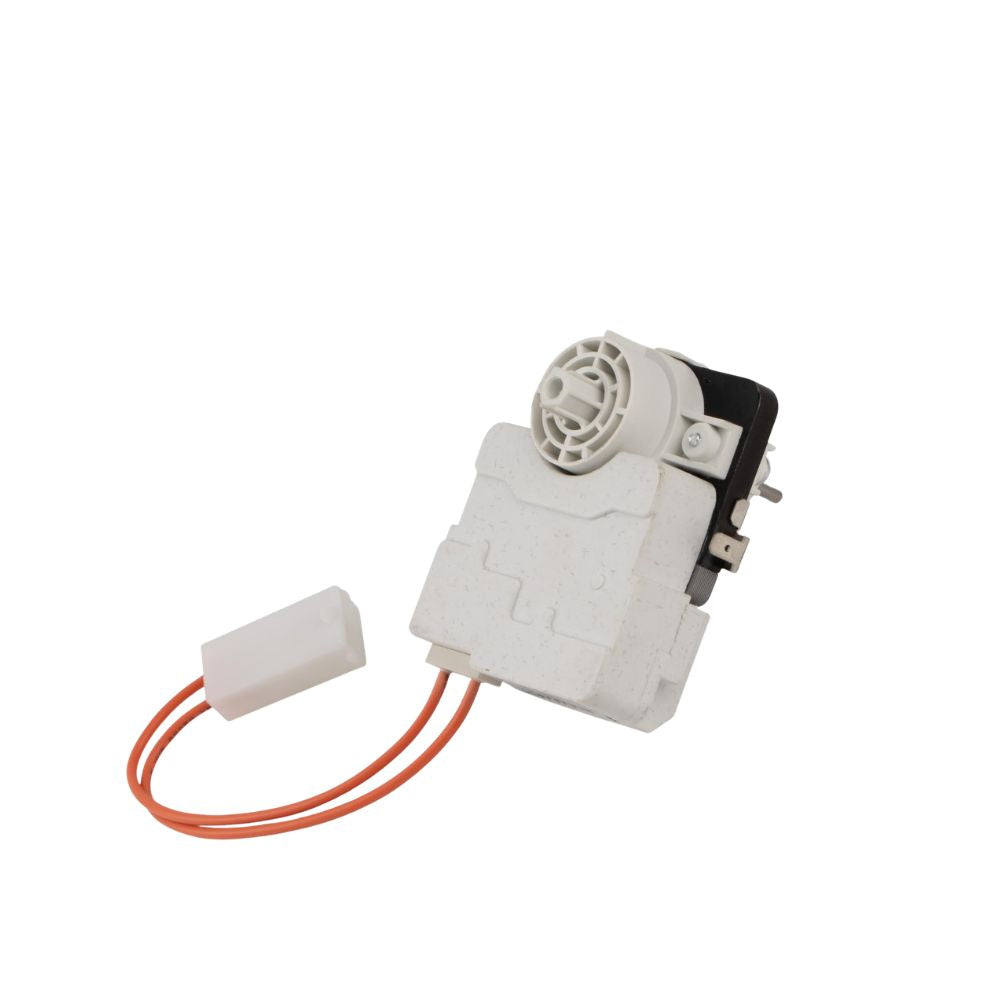

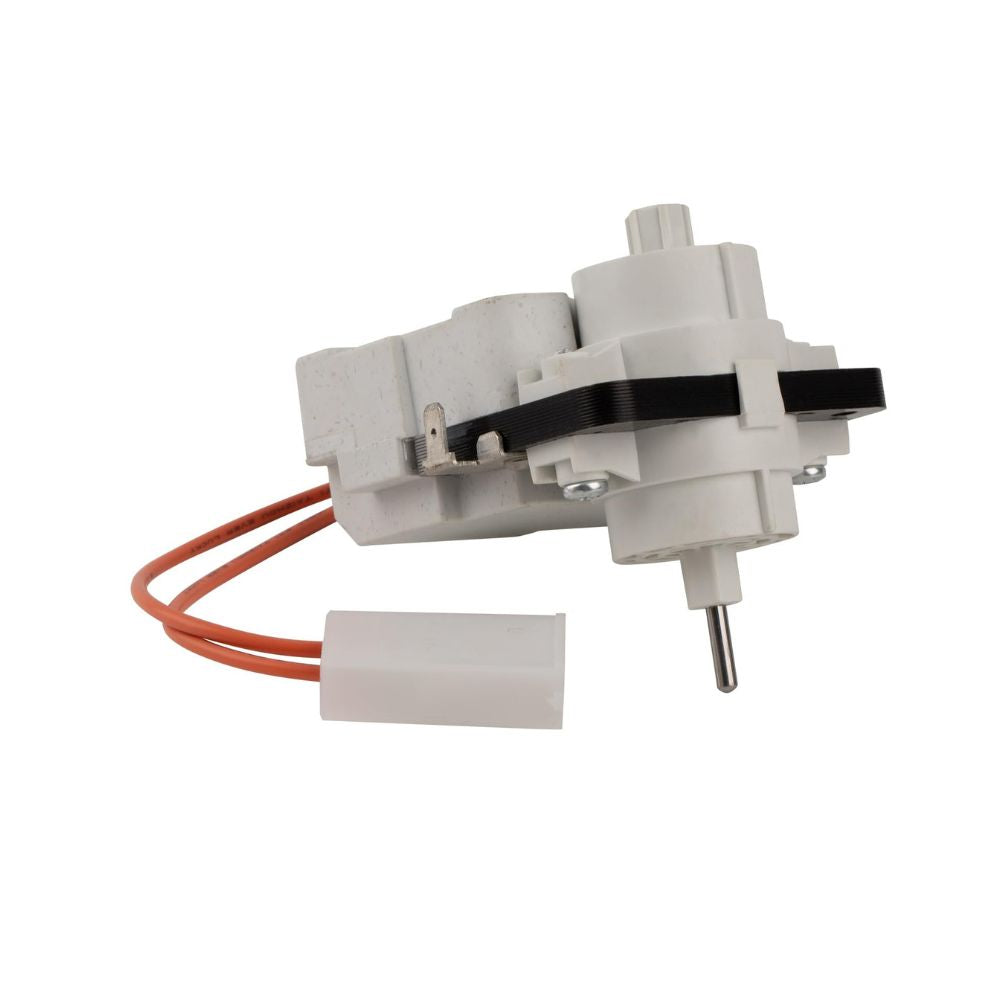

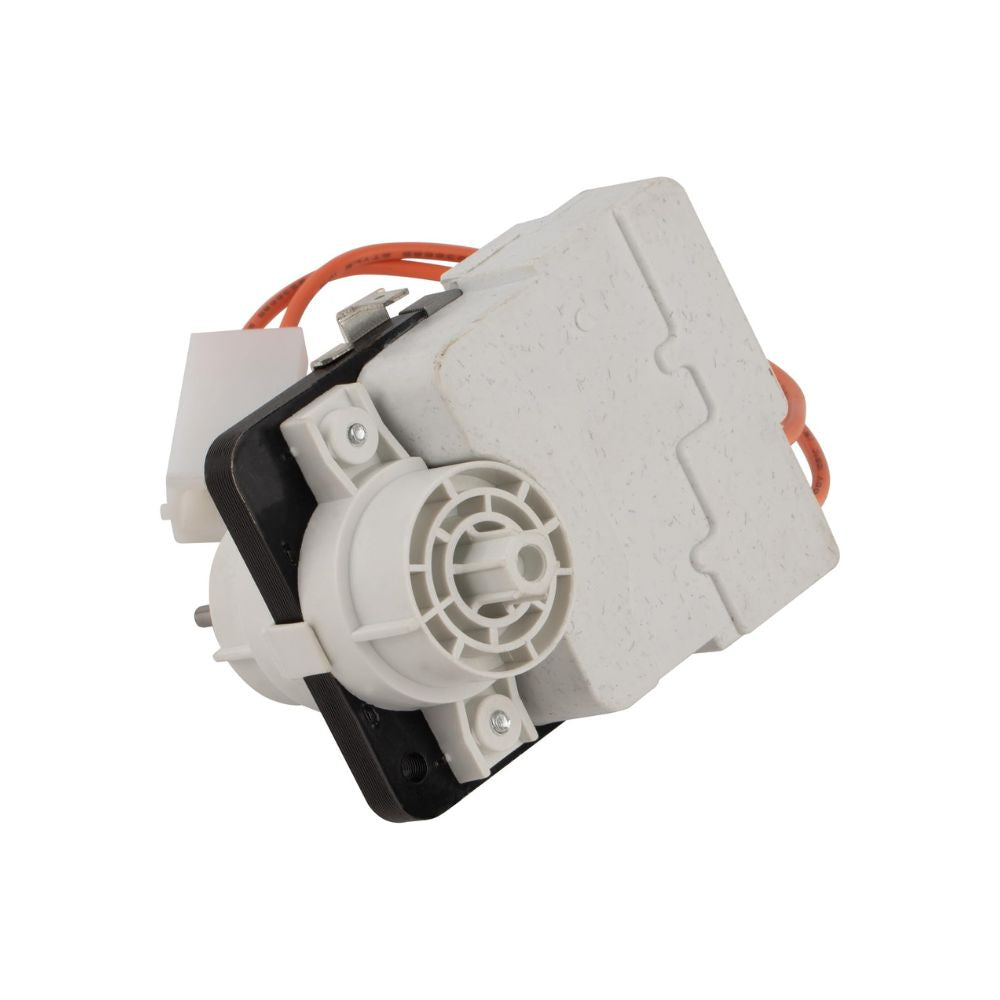

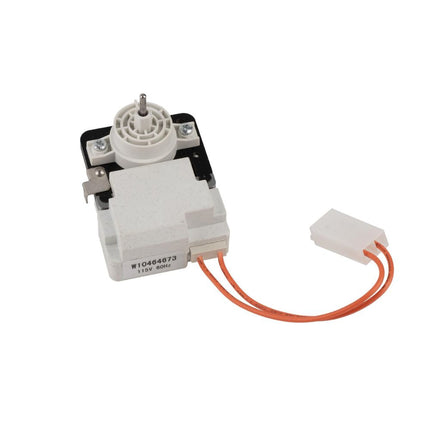

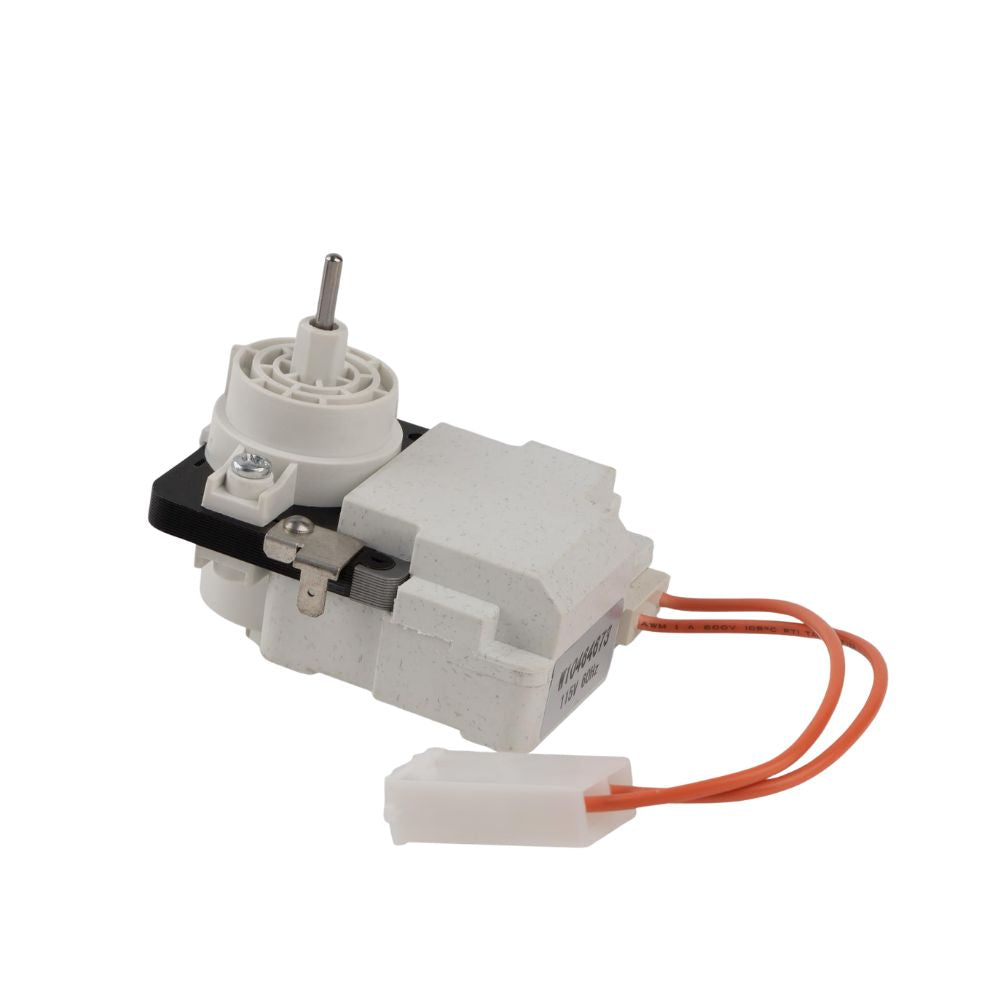

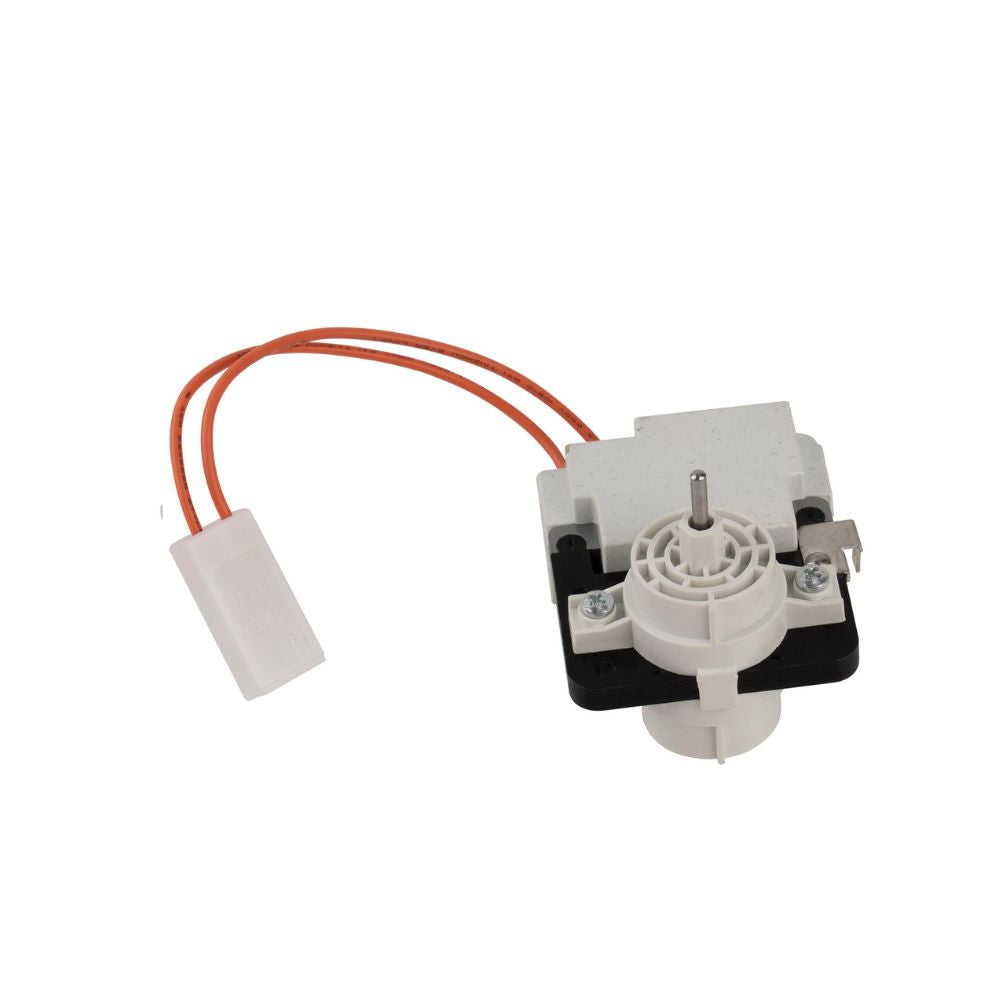

XPARTCO W10464673 Refrigerator Evaporator Fan Motor Replaces WPW10464673
The XPARTCO W10464673 is an aftermarket replacement refrigerator evaporator fan motor compatible with select Whirlpool, KitchenAid, Maytag, Kenmore, and Ikea bottom-freezer and French door refrigerators. The evaporator fan motor is located inside the freezer compartment and circulates cold air from the evaporator coils throughout both the freezer and fresh food sections. Without the evaporator fan running, cold air cannot be distributed — even if the compressor and evaporator are working correctly, both compartments will gradually warm up. A failed evaporator fan motor is one of the most common causes of a refrigerator that runs but does not cool.
Rated 115V, 60Hz with a 2-pin connector, this motor features a 14mm shaft length, 3mm shaft diameter, and approximately 13cm (5.1") of wire lead. It is constructed from ABS plastic housing with a metal motor core. It directly replaces WPW10464673, 3020513, AP6021839, PS7320664, PS11755167, and EAP11755167. Compatible models include KitchenAid KFFS and KRFF series, Maytag MFB and MFF series, and several Kenmore 106/596-series models. Installs in 20–30 minutes with basic hand tools.
Quick Answer
The XPARTCO W10464673 Refrigerator Evaporator Fan Motor fixes refrigerators where both compartments are too warm, the refrigerator runs but doesn't cool, or there is unusual noise from inside the freezer. 115V/60Hz, 2-pin connector, 14mm shaft, 3mm shaft diameter, 13cm leads. ABS/metal construction. Compatible with KitchenAid KFFS/KRFF, Maytag MFB/MFF, Whirlpool, and Kenmore 106/596-series. Replaces WPW10464673, 3020513, AP6021839, PS7320664, PS11755167.
Common Problems This Part Fixes
- Both refrigerator and freezer compartments too warm — evaporator fan not circulating cold air
- Refrigerator running continuously but not cooling — compressor on but no air circulation
- Freezer section cold but fresh food section warm — fan not moving air between compartments
- Unusual buzzing, squealing, or grinding noise coming from inside the freezer
- No airflow felt inside the refrigerator or freezer when the compressor is running
- Fan blade visible inside the freezer but not spinning when the compressor runs
- Ice buildup on the evaporator coils causing the fan blade to stop
Replaces Part Numbers
This evaporator fan motor directly replaces the following OEM and cross-reference part numbers:
WPW10464673, W10464673, 3020513, AWP50481, EAP11755167, PD00030978, AP6021839, PS11755167, FDQC16WP2A.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This evaporator fan motor is compatible with select refrigerators from the following brands and series:
- KitchenAid refrigerators — KFFS20 and KRFF300 series (KFFS20EYMS02, KFFS20EYBL02, KFFS20EYBL04, KRFF300EBL00, KRFF300EBS00 and related models)
- Maytag refrigerators — MFB2055 and MFF2055 series (MFB2055YEB01, MFB2055YEB02, MFB2055YEM01, MFB2055YEM02, MFB2055YEW02, MFF2055DRE00, MFF2055YEB02, MFF2055YEW00, MFW2055FRH00, MFB2055FRW00 and related models)
- Whirlpool refrigerators (select bottom-freezer and French door models)
- Kenmore / Sears refrigerators — 106 series and 596 series (10673002510, 10673002511, 10673003510, 10673003511, 59673002510, 59673003510, 59673003511, 59673009510, 10679472411, 10679473411 and related models)
- Ikea refrigerators (select models)
Always verify your appliance model number before ordering. Contact our support team if you're unsure.
Key Features
- Circulates cold air from the evaporator coils throughout the freezer and fresh food compartments — essential for maintaining set temperatures in both sections
- 115V, 60Hz — correct electrical specifications for compatible models
- 2-pin connector — direct plug-in replacement on compatible models
- Shaft: 14mm length, 3mm diameter — matches original motor shaft dimensions for fan blade compatibility
- Wire lead length: approximately 13cm (5.1 inches)
- ABS plastic housing with metal motor core — durable and designed for continuous freezer-temperature operation
- Replaces WPW10464673, 3020513, AP6021839, PS7320664, PS11755167, and FDQC16WP2A
- Compatible with KitchenAid KFFS/KRFF, Maytag MFB/MFF, Kenmore 106/596, Whirlpool, and Ikea refrigerators
- Aftermarket replacement built to OEM-equivalent quality standards
- DIY repair — installs in 20–30 minutes with basic hand tools
Product Specifications
| Part Number |
W10464673 |
| OEM Part Number |
WPW10464673 |
| Part Type |
Refrigerator Evaporator Fan Motor |
| Condition |
Aftermarket Replacement |
| Application |
Bottom-Freezer and French Door Refrigerators |
| Voltage |
115V AC |
| Frequency |
60 Hz |
| Connector |
2-pin plug |
| Shaft Length |
14mm (0.55 inches) |
| Shaft Diameter |
3mm (0.12 inches) |
| Wire Lead Length |
Approximately 13cm (5.1 inches) |
| Material |
ABS plastic housing / Metal motor core |
| Compatible Brands |
Whirlpool, KitchenAid, Maytag, Kenmore, Ikea |
Installation Notes
⚠️ Unplug Refrigerator and Shut Off Water Before Starting Unplug the refrigerator and shut off the water supply before beginning. Remove all food and shelving from the freezer compartment. On most compatible models, the evaporator fan is located behind the freezer back panel. Remove the screws securing the freezer back panel and carefully slide it out to expose the evaporator coils and fan assembly. If ice has built up on the fan or coils, use a hair dryer to melt it before attempting to remove the fan — do not force a frozen fan free. Disconnect the 2-pin wire connector from the old motor. Remove the fan blade by pulling it straight off the motor shaft, then unscrew the motor mounting brackets and remove the old motor. Install the new W10464673 motor in the same position, secure the mounting brackets, press the fan blade back onto the shaft, and reconnect the 2-pin connector. Reinstall the freezer back panel, restore power and water, and verify the fan runs when the compressor starts. Tools needed: Phillips screwdriver, hair dryer (if coils are iced), work gloves.
Frequently Asked Questions
What does the evaporator fan motor do?
The evaporator fan motor drives a fan blade inside the freezer compartment that draws air across the evaporator coils — the cold coils remove heat from the air, and the fan distributes the chilled air throughout both the freezer and fresh food sections via a duct system. Without the evaporator fan running, the evaporator coils still get cold and the compressor still runs, but no cold air is circulated. This causes both compartments to gradually warm up even though the refrigeration system itself may be functioning correctly. A failed evaporator fan motor is one of the most common and most frequently misdiagnosed causes of poor refrigerator cooling.
How do I know if the evaporator fan motor has failed?
Open the freezer door and press the door switch (the small button or tab that tells the refrigerator the door is closed) — this should start the evaporator fan if the compressor is running. If you hear no fan noise and feel no airflow from inside the freezer with the compressor running, the fan motor has likely failed. You can also remove the freezer back panel and physically check whether the fan blade spins freely by hand — if it is stuck or wobbles, inspect for ice buildup or a seized motor bearing. If the blade spins freely but the motor does not run when powered, the motor has burned out.
What is the difference between W10464673 and WPW10464673?
These are the same evaporator fan motor. WPW10464673 is the updated Whirlpool OEM part number that superseded the original W10464673. The 3020513 is also a cross-reference for this same motor. This aftermarket replacement is compatible with all of these numbers.
My freezer is cold but my fridge is warm — could it be the evaporator fan?
Yes — this is a classic evaporator fan failure symptom. When the fan motor fails partially, the freezer may still receive some cold air passively from the evaporator, but not enough air is circulated to reach the fresh food section through the duct system. A failed evaporator fan is frequently the cause of this hot-fridge-cold-freezer pattern. Check the fan as described above — if it is not spinning, replacing the W10464673 motor will restore cooling to both compartments.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured from ABS plastic and metal to match the electrical specifications and shaft dimensions of the original W10464673 evaporator fan motor.
