XPARTCO W10515058B Refrigerator LED Light Driver Board for WPW10515058

Description

XPARTCO Refrigerator Replacement Part

XPARTCO W10515058B Refrigerator LED Light Driver Board for WPW10515058

Aftermarket LED driver/circuit board only for compatible 2-plug WPW10515058-style refrigerator light assemblies.

Product Overview

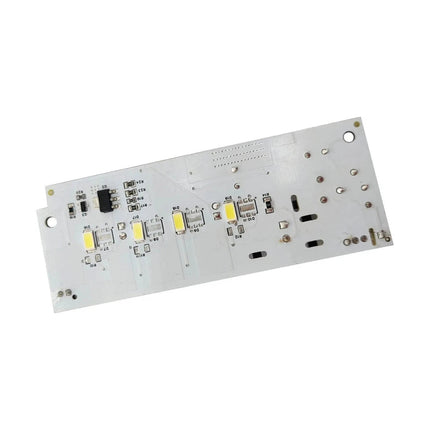

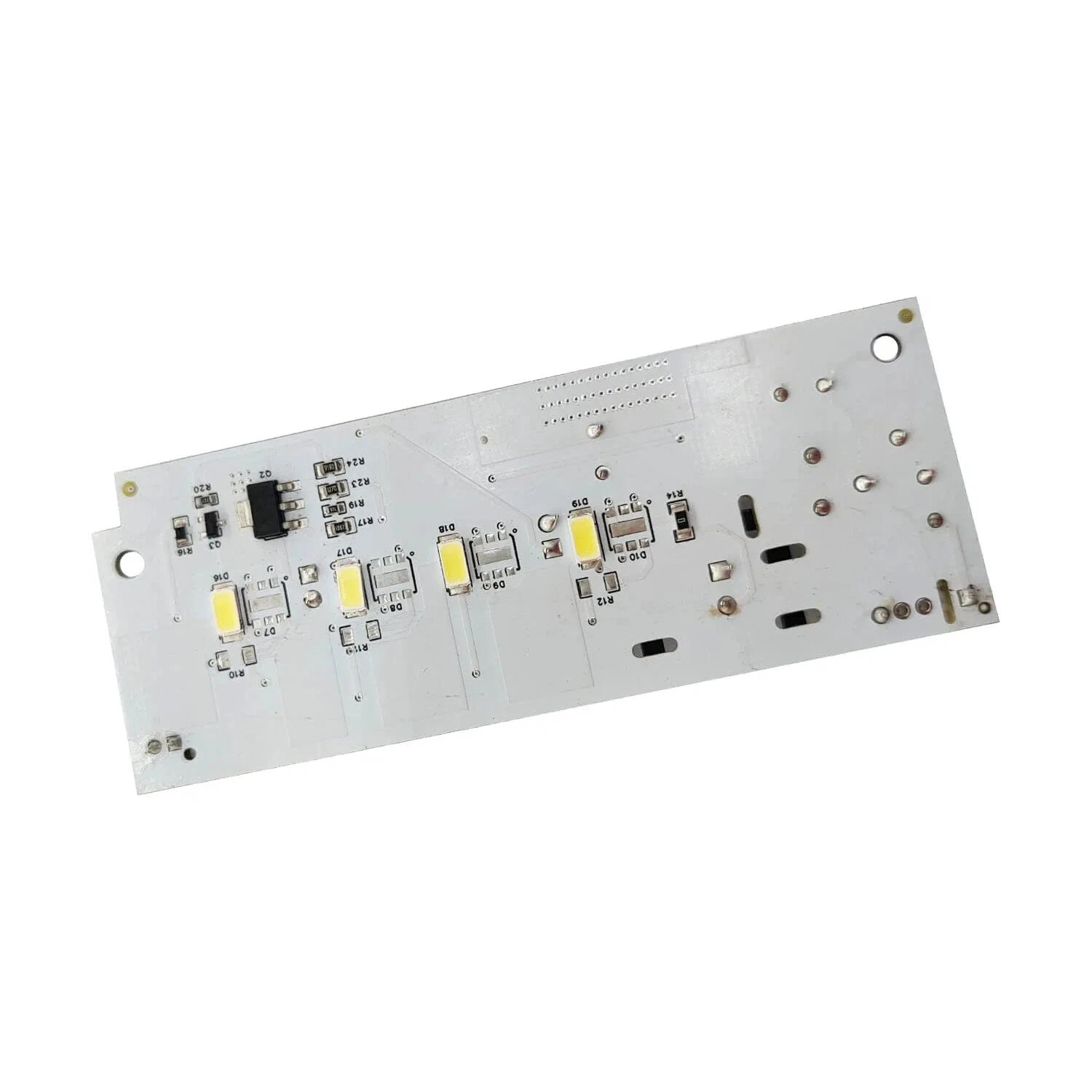

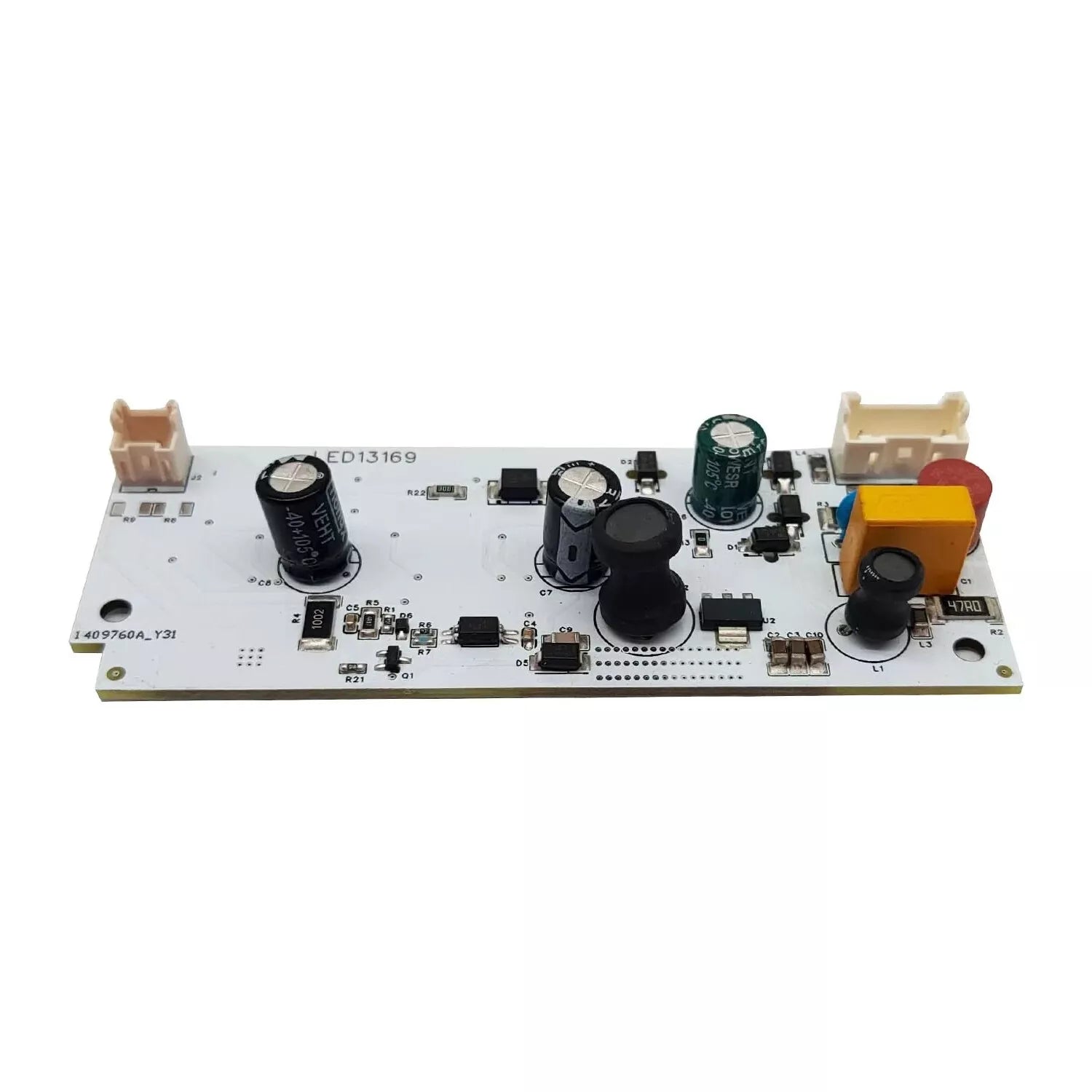

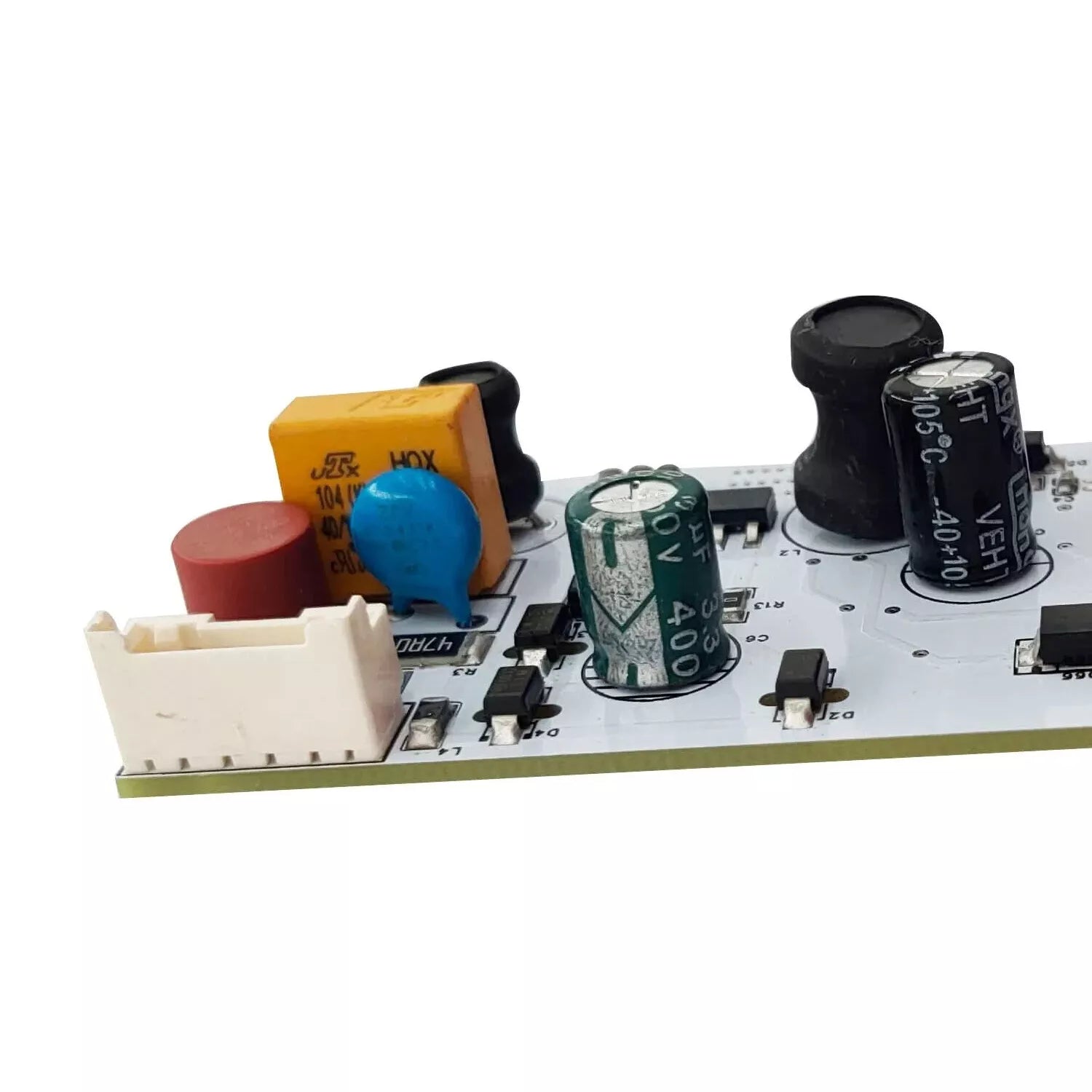

The XPARTCO W10515058B Refrigerator LED Light Driver Board is an aftermarket replacement circuit/driver board for select refrigerator light assemblies that use the WPW10515058 / W10515058 2-plug configuration.

Board only: the plastic light housing and lens/cover are not included.

Quick Answer

Use W10515058B when the compatible WPW10515058-style light assembly has a failed electronic board but the existing housing and lens can be reused. Verify your original part number and connector configuration before ordering.

Common Problems This Part May Fix

  • Refrigerator interior LED light does not illuminate
  • LED light flickers or operates intermittently
  • Light remains dim despite a good connection
  • Existing light housing and lens are reusable but the electronic board has failed

Replaces and Cross-References

WPW10515058, W10515058, W10465957, W10522611, AP6022534, AWP993990, EAP11755867, PD00030078, PS11755867

These numbers identify the compatible OEM light assembly family. W10515058B is an XPARTCO aftermarket driver board only, not the complete Whirlpool light housing/lens assembly.

Compatibility

Designed for refrigerators that use the WPW10515058 2-plug LED light assembly. Compatible model examples include:

MSF25D4MDE03
MSF21D4MDH00
MSF25D4MDM02
WRS325FDAB02
WRS325FDAM04
KSF22C4CYY01
106.41122211
106.51139214
106.51799411
106.41152211
106.51722410
106.41159211

Important: Partial model list only. Confirm the complete refrigerator model and original light part number before ordering. WPW10515058 uses a 2-plug configuration; WPW10515057 is a different 1-plug light and should not be substituted by appearance alone.

Key Features

  • XPARTCO aftermarket replacement
  • Electronic LED driver/circuit board only
  • For compatible WPW10515058 2-plug light assemblies
  • Allows reuse of the original housing and lens when serviceable
  • Designed for select Whirlpool-built refrigerator platforms

Product Specifications

XPARTCO Part Number W10515058B
Part Type Refrigerator LED Light Driver / Circuit Board
Brand XPARTCO
Condition New
Replacement Type Aftermarket
Compatible OEM Assembly WPW10515058 / W10515058
Connector Family 2-Plug WPW10515058 Style
Housing Included No
Lens / Cover Included No
Package Quantity 1 Driver Board

Installation Notes

  1. Disconnect refrigerator power before service.
  2. Remove the existing LED light assembly according to the appliance service procedure.
  3. Confirm the original assembly is WPW10515058 / W10515058 or a verified equivalent and uses the 2-plug configuration.
  4. Transfer the replacement board into the existing serviceable housing/lens as applicable.
  5. Reconnect wiring securely and reinstall the light assembly.
  6. Restore power and verify proper lighting operation.

Diagnostic note: Multiple dark or flickering refrigerator LEDs can sometimes be caused by another failed module, wiring problem, or control issue. Diagnose the lighting circuit before replacing parts unnecessarily.

Frequently Asked Questions

Does W10515058B include the plastic light housing and lens?

No. This listing is for the LED driver/circuit board only. Reuse your existing housing and lens if they are in serviceable condition.

Does it replace WPW10515058?

It is designed as a board-only aftermarket repair option for compatible WPW10515058-style 2-plug light assemblies. It is not a complete OEM light assembly.

Is this the same as WPW10515057?

No. WPW10515057 is the similar 1-plug light family. WPW10515058 is the 2-plug family.

Is this Genuine Whirlpool OEM?

No. W10515058B is an XPARTCO aftermarket replacement board.

Shop With Confidence

Verify your refrigerator model, original light part number, and connector configuration before ordering.

XPARTCO ReplacementBoard Only2-Plug Light FamilyCompatibility Support
Product form

XPARTCO W10515058B Refrigerator LED Light Driver Board for WPW10515058

Free Pickup in In Stock Parts-O-Matic - WB Store 1820 Featherstone Road Woodbridge, VA 22191 Usually ready in 1 hour
Online Shipped Price $26.00 List Price $16.22You Save: $9.78Delivered to your address
Store Walk-In
Discounted Price $12.37Walk-In Savings: $3.85In-store purchase only — not valid for online checkout
✓ IN STOCK
Ships Today if ordered within --:--:--
Free Pickup in our Store • Usually ready in 1 hour
Pickup Store: Parts-O-Matic — Woodbridge, VA
  • Shipped today? Order within: Sep 12, 2026 14:00:00 -0400

Description

XPARTCO Refrigerator Replacement Part

XPARTCO W10515058B Refrigerator LED Light Driver Board for WPW10515058

Aftermarket LED driver/circuit board only for compatible 2-plug WPW10515058-style refrigerator light assemblies.

Product Overview

The XPARTCO W10515058B Refrigerator LED Light Driver Board is an aftermarket replacement circuit/driver board for select refrigerator light assemblies that use the WPW10515058 / W10515058 2-plug configuration.

Board only: the plastic light housing and lens/cover are not included.

Quick Answer

Use W10515058B when the compatible WPW10515058-style light assembly has a failed electronic board but the existing housing and lens can be reused. Verify your original part number and connector configuration before ordering.

Common Problems This Part May Fix

  • Refrigerator interior LED light does not illuminate
  • LED light flickers or operates intermittently
  • Light remains dim despite a good connection
  • Existing light housing and lens are reusable but the electronic board has failed

Replaces and Cross-References

WPW10515058, W10515058, W10465957, W10522611, AP6022534, AWP993990, EAP11755867, PD00030078, PS11755867

These numbers identify the compatible OEM light assembly family. W10515058B is an XPARTCO aftermarket driver board only, not the complete Whirlpool light housing/lens assembly.

Compatibility

Designed for refrigerators that use the WPW10515058 2-plug LED light assembly. Compatible model examples include:

MSF25D4MDE03
MSF21D4MDH00
MSF25D4MDM02
WRS325FDAB02
WRS325FDAM04
KSF22C4CYY01
106.41122211
106.51139214
106.51799411
106.41152211
106.51722410
106.41159211

Important: Partial model list only. Confirm the complete refrigerator model and original light part number before ordering. WPW10515058 uses a 2-plug configuration; WPW10515057 is a different 1-plug light and should not be substituted by appearance alone.

Key Features

  • XPARTCO aftermarket replacement
  • Electronic LED driver/circuit board only
  • For compatible WPW10515058 2-plug light assemblies
  • Allows reuse of the original housing and lens when serviceable
  • Designed for select Whirlpool-built refrigerator platforms

Product Specifications

XPARTCO Part Number W10515058B
Part Type Refrigerator LED Light Driver / Circuit Board
Brand XPARTCO
Condition New
Replacement Type Aftermarket
Compatible OEM Assembly WPW10515058 / W10515058
Connector Family 2-Plug WPW10515058 Style
Housing Included No
Lens / Cover Included No
Package Quantity 1 Driver Board

Installation Notes

  1. Disconnect refrigerator power before service.
  2. Remove the existing LED light assembly according to the appliance service procedure.
  3. Confirm the original assembly is WPW10515058 / W10515058 or a verified equivalent and uses the 2-plug configuration.
  4. Transfer the replacement board into the existing serviceable housing/lens as applicable.
  5. Reconnect wiring securely and reinstall the light assembly.
  6. Restore power and verify proper lighting operation.

Diagnostic note: Multiple dark or flickering refrigerator LEDs can sometimes be caused by another failed module, wiring problem, or control issue. Diagnose the lighting circuit before replacing parts unnecessarily.

Frequently Asked Questions

Does W10515058B include the plastic light housing and lens?

No. This listing is for the LED driver/circuit board only. Reuse your existing housing and lens if they are in serviceable condition.

Does it replace WPW10515058?

It is designed as a board-only aftermarket repair option for compatible WPW10515058-style 2-plug light assemblies. It is not a complete OEM light assembly.

Is this the same as WPW10515057?

No. WPW10515057 is the similar 1-plug light family. WPW10515058 is the 2-plug family.

Is this Genuine Whirlpool OEM?

No. W10515058B is an XPARTCO aftermarket replacement board.

Shop With Confidence

Verify your refrigerator model, original light part number, and connector configuration before ordering.

XPARTCO ReplacementBoard Only2-Plug Light FamilyCompatibility Support
WPW10515058, W10515058, W10465957, W10522611, AP6022534, AWP993990, EAP11755867, PD00030078, PS11755867
