XPARTCO W10613606 Refrigerator Compressor Start Relay - Compatible with Whirlpool, Kenmore, Jenn-Air, Amana, Maytag, KitchenAid Refrigerators
Product Description

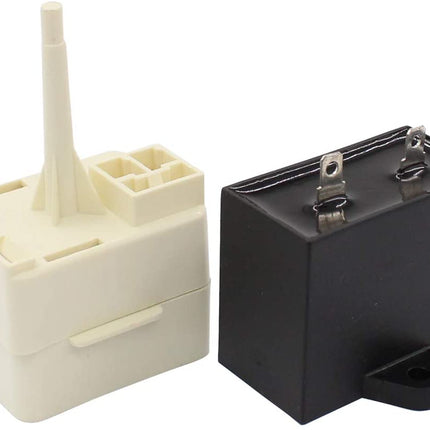

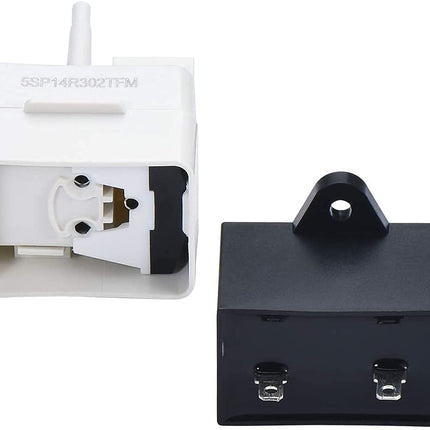

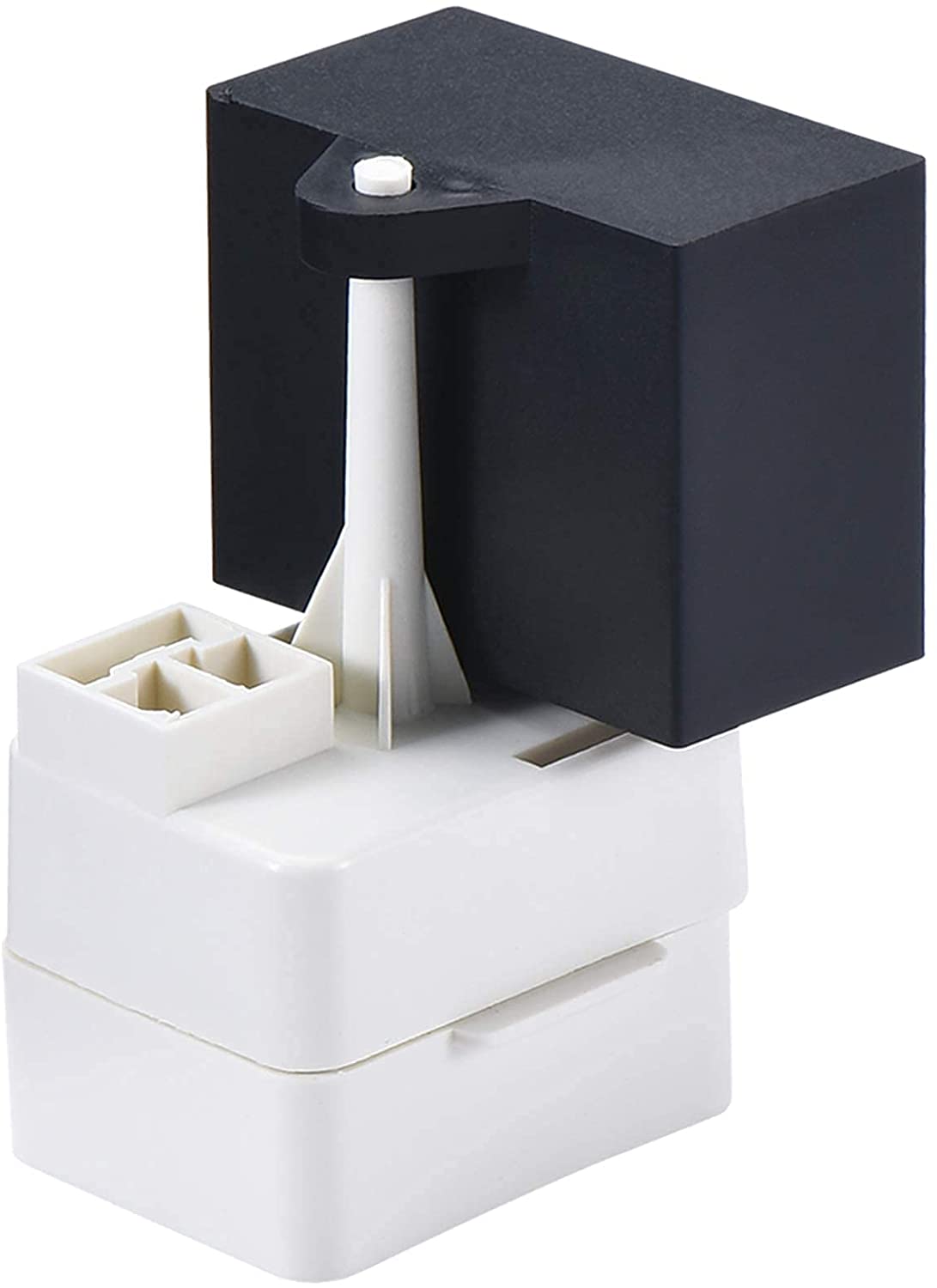

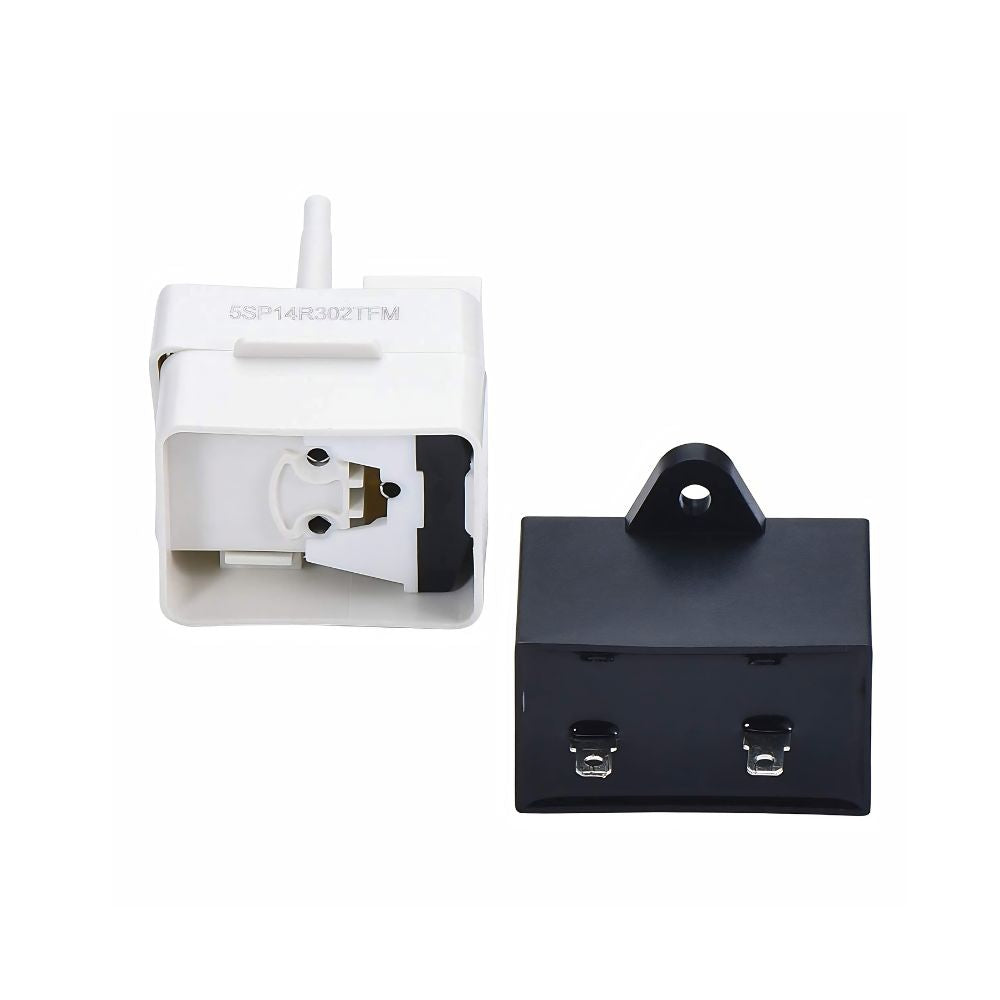

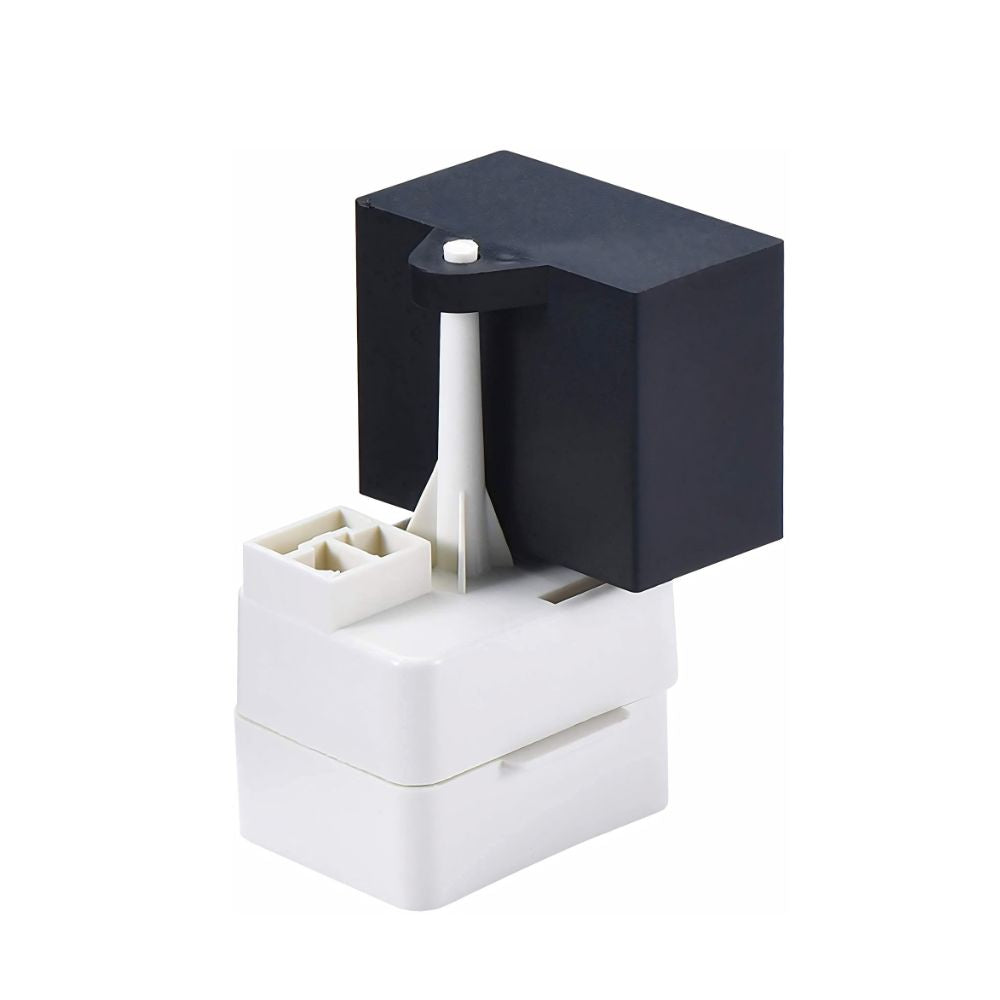

Keep your refrigerator running smoothly with the replacement W10613606 Refrigerator Compressor Start Relay and Capacitor. This high-quality kit, designed for Whirlpool, Kenmore, Jenn-Air, Amana, Maytag, KitchenAid, Admiral, Crosley, and Magic Chef refrigerators, includes a start relay and run capacitor to boost the compressor during startup and maintain consistent cooling. Constructed with durable materials, this kit (15µF ±5% capacitance) addresses issues like the refrigerator not cooling, compressor not starting, or frequent cycling.
Note: Includes one start relay and one run capacitor. Disconnect power before installation. Take photos of wiring during disassembly for accurate replacement.
Replaces part numbers: W10613606, 67005560, 3023300, 67003186, 67003764, 67005561, 67005562, W10416065, 8171210, 8208290, 8208368, C8931605, PD00004905, EAP8746522, AP5787784, PS8746522.
Compatibility:
Compatible with models including but not limited to:
-
Whirlpool: ED5VHEXVB01, ED5VHEXVQ01, WRS325FDAM02
-
Kenmore: 106.51102110, 106.56542400, 106.58582890, 596.73503200
-
Jenn-Air, Amana, Maytag, KitchenAid, Admiral, Dacor, Crosley, Magic Chef: Models requiring W10613606 or compatible relay and capacitor kits
-
Specific Kenmore Models: 1999A, 1999W, 2599A, 2599W, 35271, 35278, 35501, 35508, 35541, 35548, 36051, 36058, 36061, 36068, 36271, 36278, 36501, 36508, 36511, 36518, 36521, 36528, 36541, 36548, 36761, 36768, 36791, 36795, 36798
Verify your model number or contact our support team for assistance.
Key Features:
-
✅ Brand and Models Compatibility: Fits select Whirlpool, Kenmore, Jenn-Air, Amana, Maytag, KitchenAid, Admiral, Crosley, and Magic Chef refrigerator models.
-
🔥 Specifications: replacement compressor start relay and capacitor, 15µF ±5% capacitance, 250VAC rated voltage, 50/60Hz frequency, 120V, 40/85/21 temperature rating, screw terminals, normally open contact, plastic/metal construction, 3.07" x 2.6" x 2.32".
-
💰 Cost-Effective Alternative: replacement kit offers OEM-equivalent performance at a lower price.
-
🛠️ Easy Installation: Requires screwdriver, needle-nose pliers, work gloves; typically installed in 15–30 minutes.
-
🛡️ Reliable Fixes: Resolves issues like refrigerator not cooling, compressor not starting, clicking noises, or frequent start-stop cycles.
Installation Notes:
