XPARTCO W10810403 Washer Lid Switch Assembly
The XPARTCO W10810403 is an aftermarket replacement lid lock assembly for Whirlpool Cabrio and Maytag Bravos XL top-load washers. Positioned on the underside of the washer lid, this assembly detects whether the lid is open or closed and locks it shut during the wash cycle, preventing the washer from spinning or agitating — and preventing the lid from being opened — while the cycle is running. This is a safety mechanism as much as a functional one, keeping users from contacting moving parts or being splashed by water or detergent mid-cycle.

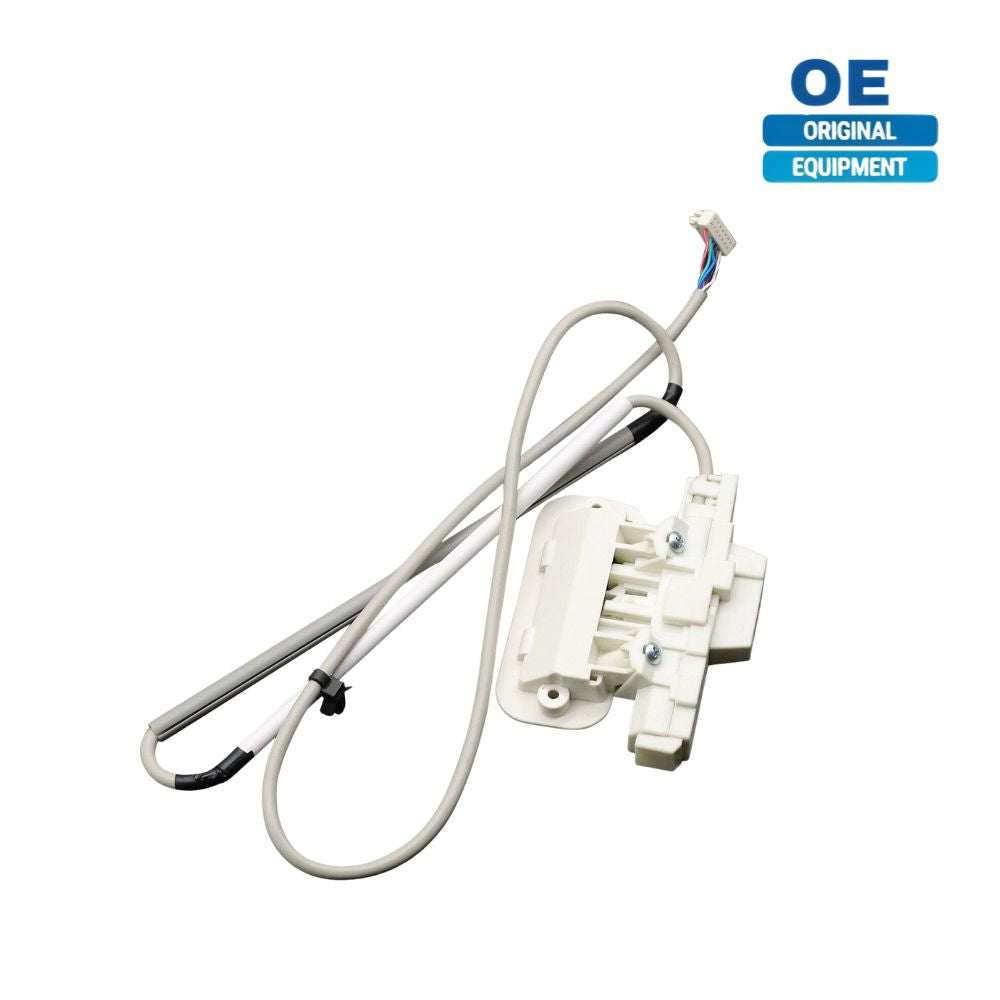

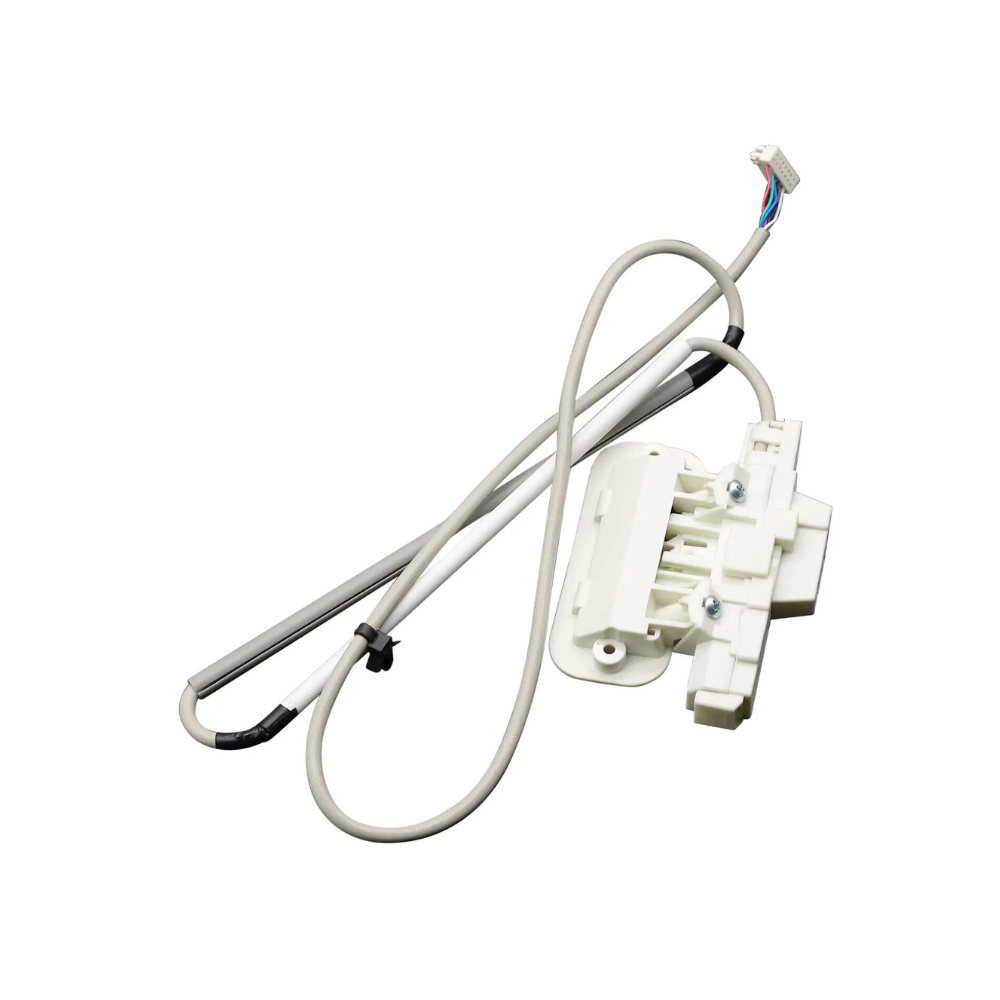

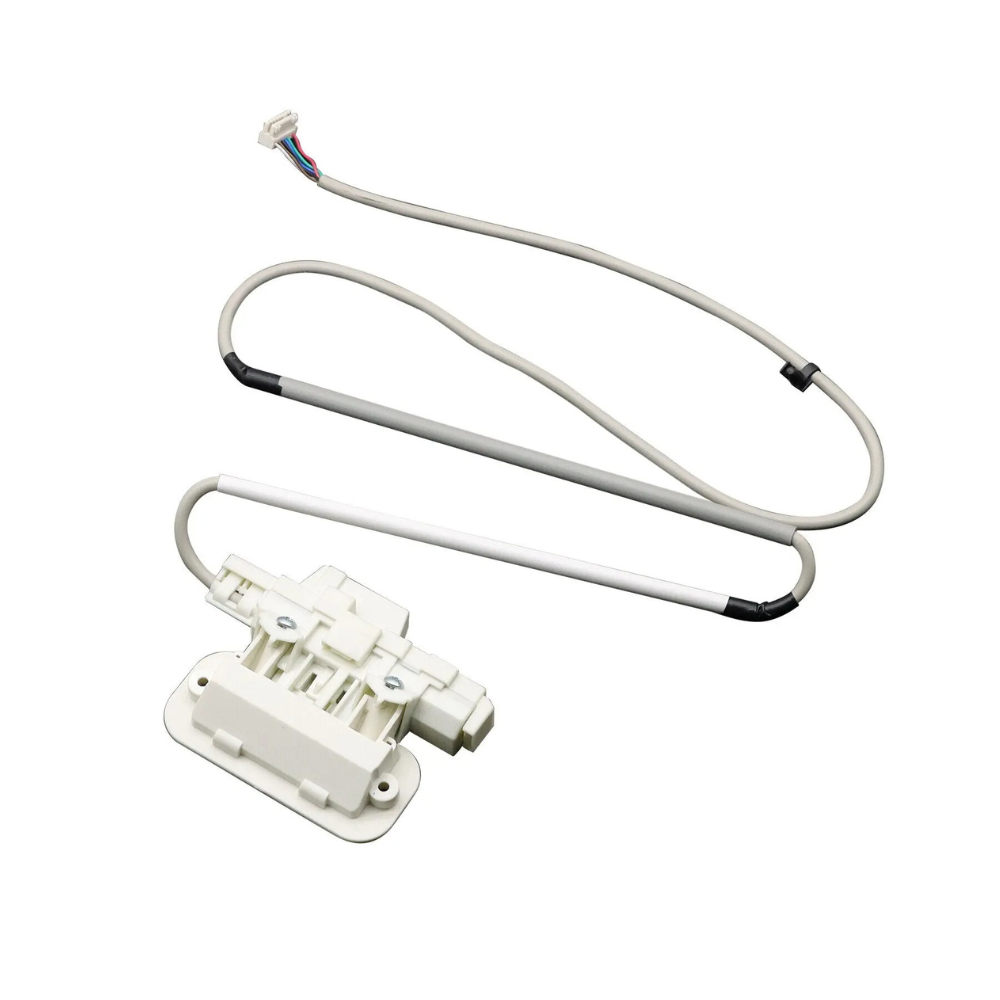

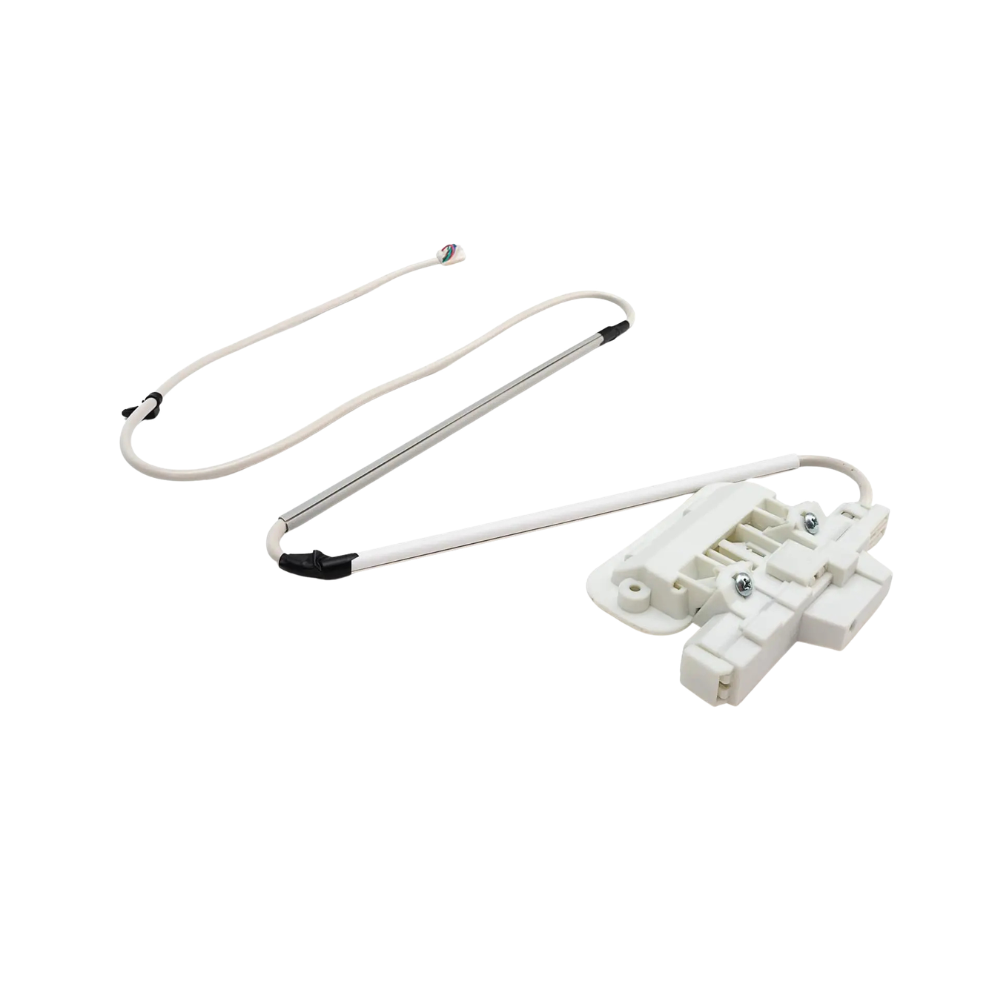

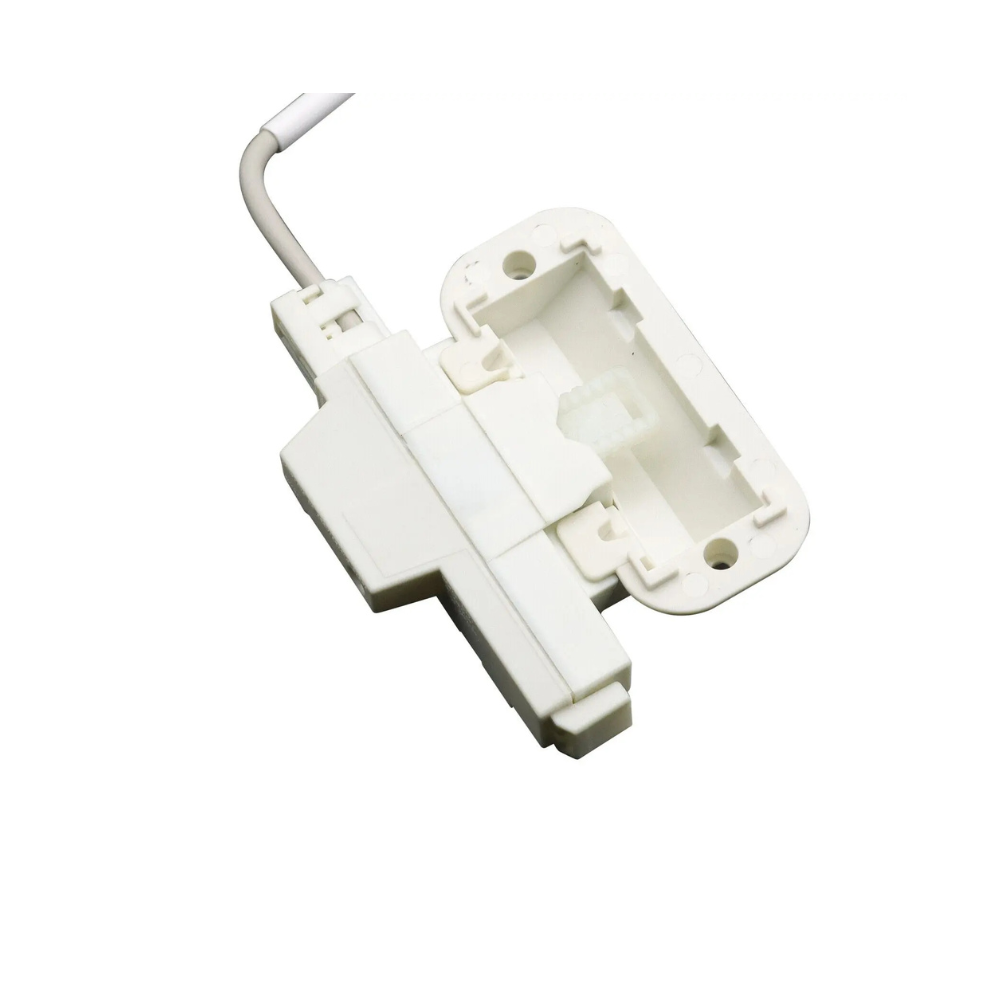

This assembly includes the lid lock mechanism and its wiring harness, and ships with a white bezel. Many of these lid locks also contain an internal fuse as part of the switch circuit — if that fuse blows, the symptom isn't limited to lid-related errors; it can prevent the entire control board from powering up at all, since the switch sits in the same circuit path. A failing lid lock typically shows up as the lid not closing or locking properly, the washer failing to start, the cycle stopping mid-way, or in more severe cases, a completely unresponsive control panel with no lights at all. It directly replaces AP5984435, PS11722981, W10648012, W10787878, W10697793, W10787880, AP5999414, and PS11731620.
Quick Answer
The XPARTCO W10810403 Washer Lid Switch Assembly fixes Whirlpool Cabrio, Maytag Bravos XL, and select Kenmore 600/700 Series top-load washers where the lid won't lock, the washer won't start, the cycle stops mid-way, or the control panel is completely unresponsive with no lights. White bezel. Replaces AP5984435, PS11722981, W10648012, W10787878, W10697793, W10787880, AP5999414, PS11731620. If your original lock has a grey bezel, you need part number W10861642 instead — same mechanism, different bezel color, so match the color of your existing lock before ordering.
Common Problems This Part Fixes
- Lid won't lock or lock reliably during the cycle
- Lid won't open after a cycle finishes
- Washer won't start
- Washer won't agitate or spin because the lid isn't sensed as locked
- Cycle stops partway through
- Washer pumps but won't spin
- Control panel completely unresponsive with no lights, potentially from an internal fuse in the switch circuit
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer lid switch assembly directly replaces the following OEM and cross-reference part numbers:
W10810403, 4283179, W10632841, W10637463, W10648012, W10787836, W10787878, AP5984435, AWP41491, EAP11722981, PD00028176, PS11722981
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This lid switch assembly is compatible with select Whirlpool Cabrio and Maytag Bravos XL top-load washers, and also fits select Roper, Admiral, Hardwick, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Modern Maid, Amana, Kenmore, KitchenAid, Caloric, and Ikea washers built on the same platform, including model numbers such as MVWB855DW1, MVWB865GW1, MVWB835DW3, and MVWB765FW4.
Note — bezel color and lid lock platform both matter: This assembly has a white bezel. If your original lock has a grey bezel, order W10861642 instead — same lock mechanism, different bezel color. Separately, Whirlpool has used several distinct lid lock designs across its Cabrio-era washer lineup, including a different 3-wire electronic lock (our W11670519 listing) used on other Cabrio/MVW models. These are not the same part despite both serving Cabrio-platform washers. Always verify your full model number and match your original lock's exact part number before ordering. Contact our support team with your model number if you're unsure.
Key Features
- Aftermarket replacement lid lock assembly — includes the lock mechanism and wiring harness
- Resolves "lid won't lock," "washer won't start," "cycle stops mid-way," and "unresponsive control panel" symptoms
- White bezel finish
- Safety mechanism that prevents lid opening and drum movement from occurring at the same time
- Direct drop-in replacement — mounts to the original position on the underside of the lid
- Replaces W10810403, 4283179, W10632841, W10637463, W10648012, W10787836, W10787878, AP5984435, AWP41491, EAP11722981, PD00028176, PS11722981
- Compatible with Whirlpool, Maytag, Roper, Admiral, Hardwick, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Modern Maid, Amana, Kenmore, KitchenAid, Caloric, and Ikea top-load washers
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Part Number |
XPW10810403 |
| OEM Part Number |
W10810403 |
| Part Type |
Washer Lid Lock/Switch Assembly |
| Condition |
Aftermarket Replacement |
| Application |
Whirlpool Cabrio / Maytag Bravos XL Top-Load Washers |
| Bezel Color |
White (grey bezel = W10861642) |
| Included Components |
Lid lock mechanism + wiring harness |
| Location |
Underside of the washer lid |
| Repair Difficulty |
Easy — basic hand tools |
| Quantity |
1 lid switch assembly |
| Compatible Brands |
Whirlpool, Maytag, Roper, Admiral, Hardwick, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Modern Maid, Amana, Kenmore, KitchenAid, Caloric, Ikea |
Installation Notes

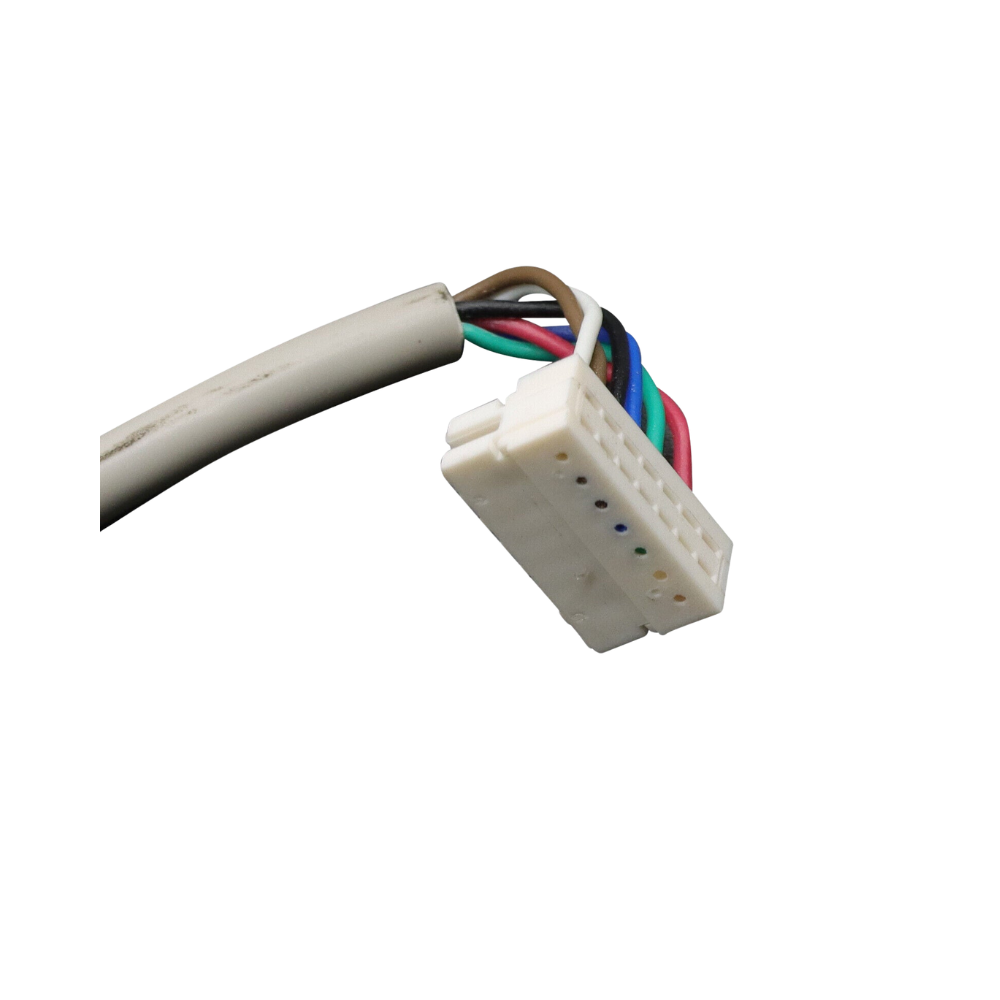

⚠️ Unplug Washer Before Starting Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Open the washer lid and locate the lid lock assembly mounted on its underside, typically secured with a couple of screws. Photograph the wiring harness connection before disconnecting anything. Remove the mounting screws, disconnect the wiring harness connector from the old assembly, and pull it free. Install the new W10810403 in the same position, reconnect the wiring harness connector fully, and secure the mounting screws. Restore power and run a test cycle to confirm the lid locks securely, the washer starts and completes a full cycle, and the lid unlocks normally once finished. Tools needed: multi-screwdriver, work gloves.
Frequently Asked Questions
My control panel has no lights at all. Could the lid lock really cause that?
Yes, and this is a less obvious but documented cause. Some of these lid lock assemblies include an internal fuse as part of the switch circuit. If that fuse blows, it can prevent the control board from powering up entirely, producing a completely dark, unresponsive panel rather than a symptom that's obviously tied to the lid. If your washer has no lights and no response at all, this lock assembly is worth checking alongside the more obvious suspects.
My old lock has a grey bezel. Can I still use this part?
This specific listing has a white bezel. If your original lock is grey, order part number W10861642 instead — it's the same lock mechanism, just finished with a grey bezel to match certain washer trim colors. Using the wrong bezel color won't affect function, but it will look mismatched against your washer's lid.
Is this the same lock used on all Cabrio washers?
No — Whirlpool has used more than one lid lock design across its Cabrio-era lineup. This W10810403 is a distinct assembly from other Cabrio/MVW-platform locks, such as our W11670519 listing, which uses a different 3-wire electronic locking design. Always match your exact original part number rather than assuming any "Cabrio lock" will fit, since the mounting and electrical interface can differ between designs.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the locking mechanism, wiring harness, and bezel design of the original W10810403 lid lock assembly used in compatible Whirlpool Cabrio, Maytag Bravos XL, and related top-load washers.
