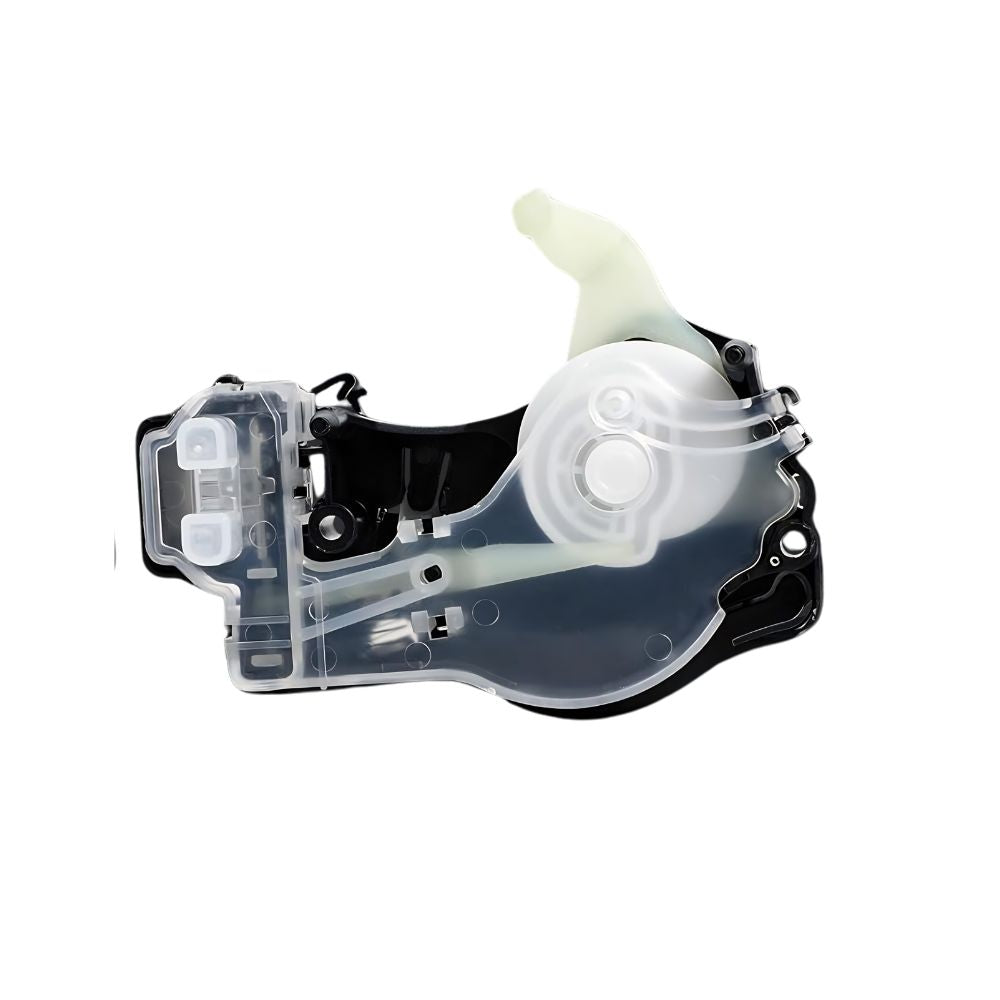

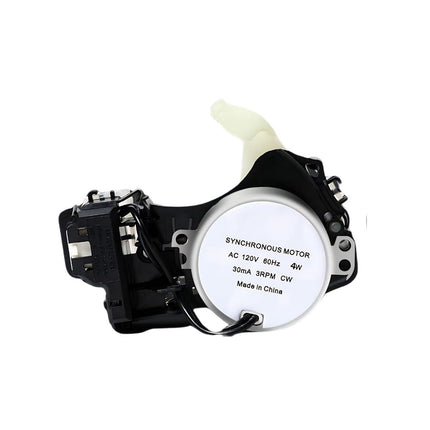

XPARTCO W10913953 Washer Shift Actuator
The XPARTCO W10913953 is an aftermarket replacement washer shift actuator assembly compatible with select Whirlpool, Maytag, Kenmore, Amana, Crosley, Inglis, and Roper top-load washers with VM (variable motor) transmissions — including Whirlpool Cabrio, Maytag Centennial, and Maytag Bravos series. The shift actuator is a small synchronous gearmotor assembly located beneath the washer tub that controls how the transmission shifts between agitation mode and spin mode during the wash cycle. It moves the arm on the cam ring assembly to engage the basket (for spinning) or disengage it and engage only the agitator or wash plate (for agitation). The shift actuator also contains an internal tachometer that continuously reports the basket's rotational speed to the control board.

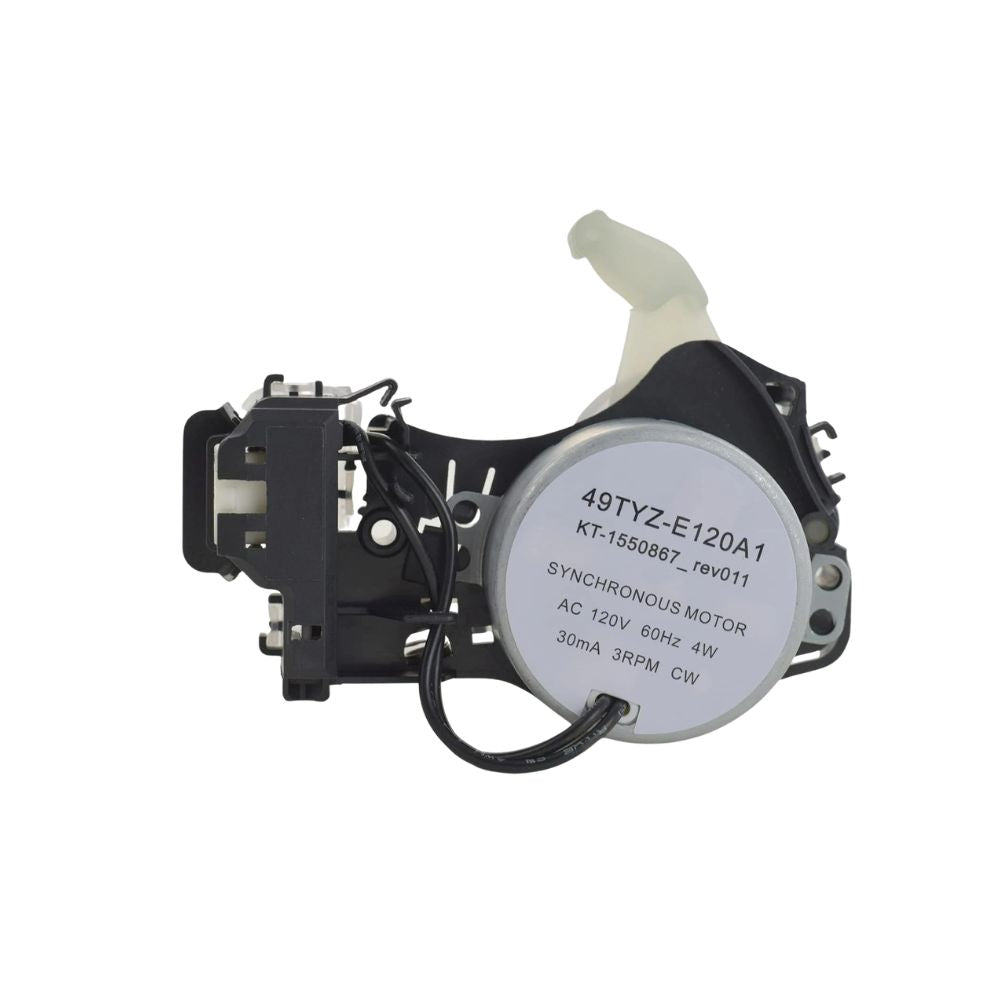

When the shift actuator fails — most commonly due to a stripped or broken gear inside the gearmotor — the washer may not agitate, not spin, get stuck in one phase of the cycle, display error codes F7E1 or F7E5, or produce a loud grinding or clicking noise as the gears fail. This 6-pin plug assembly is rated 120V, 60Hz, 4W with a synchronous motor running at 3 RPM clockwise rotation. It measures 4-1/4"L x 2-3/4"W x 1-7/8"H and directly replaces W10815026, W10597177, WPW10597177, 4455082, 49TYZ-E120A1, 50SM21-1-221B, AP6037270, and PS11769864. Installs in 20–30 minutes with basic hand tools.
Quick Answer
The XPARTCO W10913953 Washer Shift Actuator fixes Whirlpool Cabrio, Maytag Centennial, and Maytag Bravos top-load washers that won't agitate, won't spin, display error codes F7E1 or F7E5, or make grinding/clicking noises when trying to shift cycles. 6-pin plug, 120V/60Hz/4W synchronous motor, 3 RPM CW, 4-1/4"L x 2-3/4"W x 1-7/8"H. Replaces W10815026, W10597177, WPW10597177, 4455082, 49TYZ-E120A1, AP6037270, PS11769864. Compatible with Whirlpool, Maytag, Kenmore, Amana, Crosley, Inglis, and Roper VM-transmission top-load washers.
Common Problems This Part Fixes
- Washer not agitating — basket fills with water but agitator or wash plate does not move
- Washer not spinning — cycle advances to spin but basket does not rotate
- Washer getting stuck in one phase — completing wash or fill but not advancing to spin
- Clothes soaking wet after a full cycle — washer is not reaching high-speed spin
- Error codes F7E1 or F7E5 displayed — motor shift or basket speed sensing fault
- Loud grinding, clicking, or buzzing noise during cycle transitions between agitate and spin
- Washer pumping normally but basket not spinning after draining
Replaces Part Numbers
This shift actuator directly replaces the following OEM and cross-reference part numbers:
W10913953, W10815026, 4455082, 49TYZ-E120A1, 50SM21-1-221B, KT-155867_rev011, EAP11769864, AP6037270, AWP42172, PD00032232, PS11769864.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This shift actuator is compatible with select top-load washers with VM transmissions from the following brands and series:
- Whirlpool top-load washers — Cabrio series (WTW5000, WTW4816, WTW4850, WTW4915, WTW4950, WTW4955 and related models)
- Maytag top-load washers — Centennial series (MVWC215, MVWC415, MVWC416, MVWC465, MVWC555, MVWC565 and related models)
- Maytag top-load washers — Bravos series (MVWX655 and related models)
- Kenmore / Sears top-load washers (select Whirlpool-built models)
- Amana top-load washers — NTW series (NTW4516, NTW4655 and related models)
- Crosley top-load washers (select models)
- Inglis top-load washers (select models)
- Roper top-load washers (select models)
Note: The W10913953 is for VM (variable motor) transmission top-load washers. It is not compatible with older Whirlpool top-load washers using a different transmission type. Always verify your model number before ordering. The shift actuator works in conjunction with the pulley clutch kit (W10721967 / W10006384) — if the actuator is good but the issue persists, the clutch kit should also be inspected.
Key Features
- Controls transmission shifting between agitation mode and spin mode during the wash cycle
- Moves the cam ring arm to engage the basket for spinning, or disengage it to allow only the agitator/wash plate to move
- Integrated tachometer — continuously reports basket rotational speed to the control board for cycle management

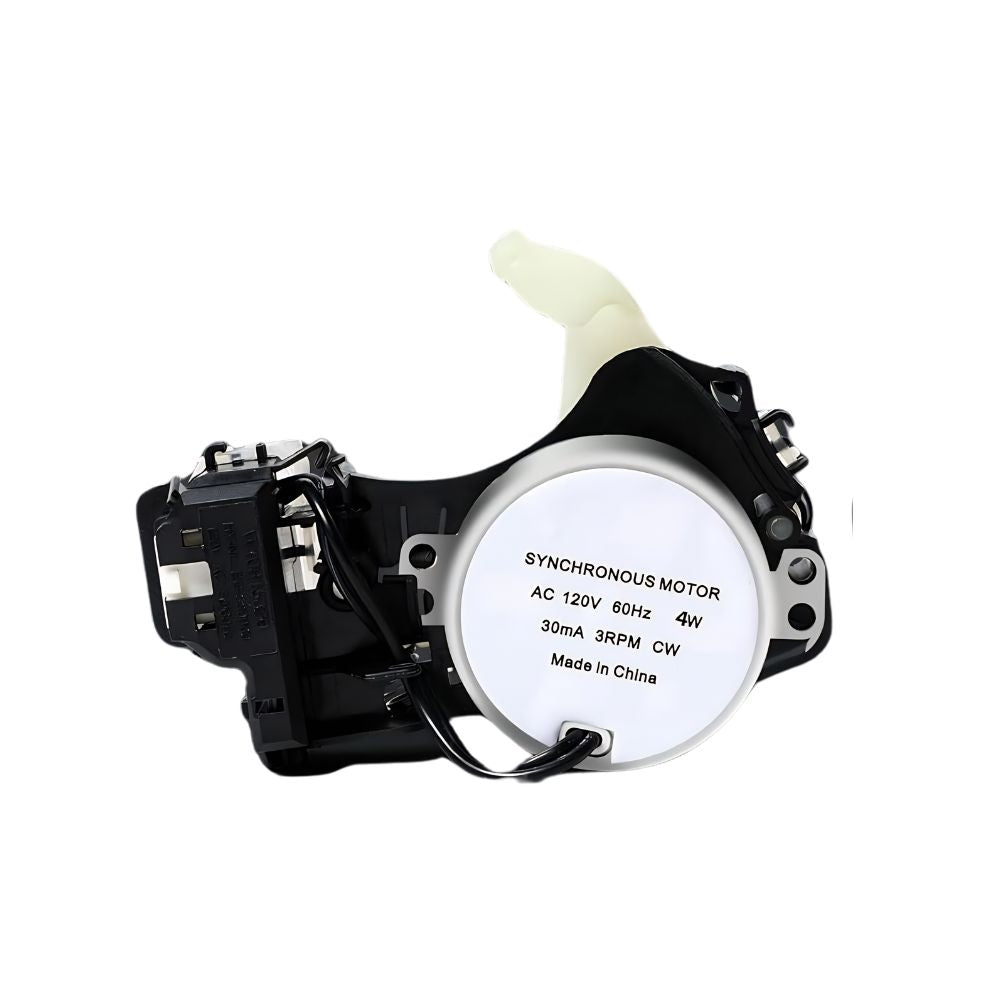

- Synchronous gearmotor — 120V, 60Hz, 4W, 3 RPM clockwise rotation

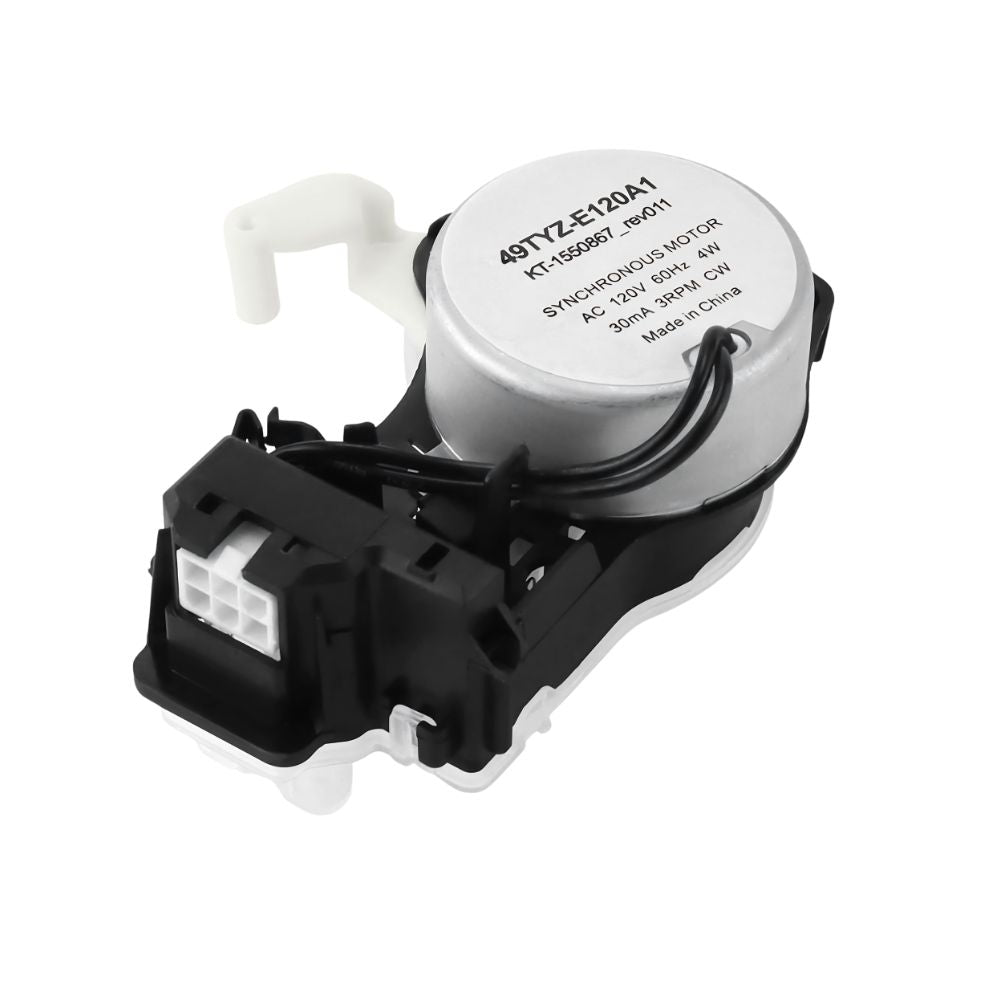

- 6-pin plug connector — direct plug-in installation on compatible models
- Dimensions: 4-1/4"L x 2-3/4"W x 1-7/8"H
- Resolves F7E1 and F7E5 error codes on compatible Whirlpool and Maytag top-load washers
- Replaces W10815026, W10597177, WPW10597177, 4455082, 49TYZ-E120A1, and AP6037270
- Compatible with Whirlpool Cabrio, Maytag Centennial, Maytag Bravos, Amana NTW, and Kenmore VM-transmission top-load washers
- Aftermarket replacement built to OEM-equivalent quality standards
- DIY repair — installs in 20–30 minutes with basic hand tools
Product Specifications
| Part Number |
W10913953 |
| Also Replaces |
W10815026, W10597177 (prior versions) |
| Part Type |
Washer Shift Actuator Assembly (Mode Shift Actuator) |
| Condition |
Aftermarket Replacement |
| Application |
Top-Load Washers with VM Transmission (Cabrio, Centennial, Bravos) |
| Motor Type |
Synchronous gearmotor |
| Voltage |
120V AC |
| Frequency |
60 Hz |
| Wattage |
4W |
| Speed |
3 RPM, clockwise rotation |
| Connector |
6-pin plug |
| Dimensions |
4-1/4"L x 2-3/4"W x 1-7/8"H |
| Includes |
Integrated tachometer for basket speed sensing |
| Error Codes Resolved |
F7E1, F7E5 |
| Compatible Brands |
Whirlpool, Maytag, Kenmore, Amana, Crosley, Inglis, Roper |
Installation Notes
⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off the water supply before beginning. The shift actuator is located beneath the washer tub on the drive shaft assembly. To access it, remove the washer cabinet by unscrewing the top panel and releasing the front panel, or lay the washer on its back if your model requires it. The shift actuator is mounted to the bottom of the drive shaft assembly with mounting screws and connects to the washer's control harness via a 6-pin plug. Photograph the wiring before disconnecting. Remove the mounting screws, disconnect the 6-pin harness, and slide the old actuator off the shaft. Install the new W10913953 actuator in the same position and orientation, secure the mounting screws, and reconnect the 6-pin harness. Reassemble the cabinet, restore power and water, and run a test cycle through both agitation and spin to confirm normal operation. Note: if grinding noise continues after replacing the actuator, inspect the pulley clutch kit (W10721967 / W10006384) for wear. Tools needed: Phillips screwdriver, 1/4" nut driver, Torx screwdriver (T20 on some models).
Frequently Asked Questions
What does the shift actuator do in a top-load washer?
The shift actuator is a small synchronous gearmotor that controls the transmission shifting in Whirlpool Cabrio, Maytag Centennial, and Bravos-style VM-transmission top-load washers. During a wash cycle, the control board signals the actuator to move the cam ring arm — this engages or disengages the drive connection between the motor and the basket. When the cam moves one way, only the agitator or wash plate moves (agitation mode). When it moves the other way, the basket engages and spins at high speed (spin mode). The actuator also contains a tachometer that tells the control board how fast the basket is rotating, which the board uses to manage spin speed and detect imbalance.
What are error codes F7E1 and F7E5?
On compatible Whirlpool Cabrio and Maytag Centennial/Bravos top-load washers, F7E1 indicates a motor shift error — the actuator failed to complete the shift between agitate and spin mode within the expected time. F7E5 indicates a basket speed sensing fault — the tachometer inside the actuator is not providing a valid speed signal to the control board. Both codes are commonly caused by a failed shift actuator, though a failed drive motor, clutch assembly, or control board can also produce these codes. Replacing the shift actuator resolves both error codes in most cases.
Should I also check the pulley clutch kit?
Yes — if the shift actuator is replaced but the grinding noise persists, or if the washer still does not agitate or spin properly after the new actuator is installed, inspect the pulley clutch kit (W10721967 / W10006384). The clutch kit is a separate assembly that works in conjunction with the shift actuator to engage the drum. A worn or stripped clutch can produce the same symptoms as a failed actuator and is a common companion failure. Since the washer is already disassembled to replace the actuator, it is a good opportunity to inspect the clutch for wear.
What is the difference between W10913953 and W10815026?
The W10815026 was an earlier version of this shift actuator, and the W10913953 is the updated current replacement. Both are the same functional component — Whirlpool updated the part number during a production revision. The W10597177 and WPW10597177 are also cross-references for this same actuator. If your washer's parts diagram shows any of these older numbers, the W10913953 is the correct current replacement to order.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured with a synchronous gearmotor and ABS housing to match the electrical specifications and dimensions of the original W10913953 shift actuator.
