XPARTCO W11165546 Washer Water Inlet Valve

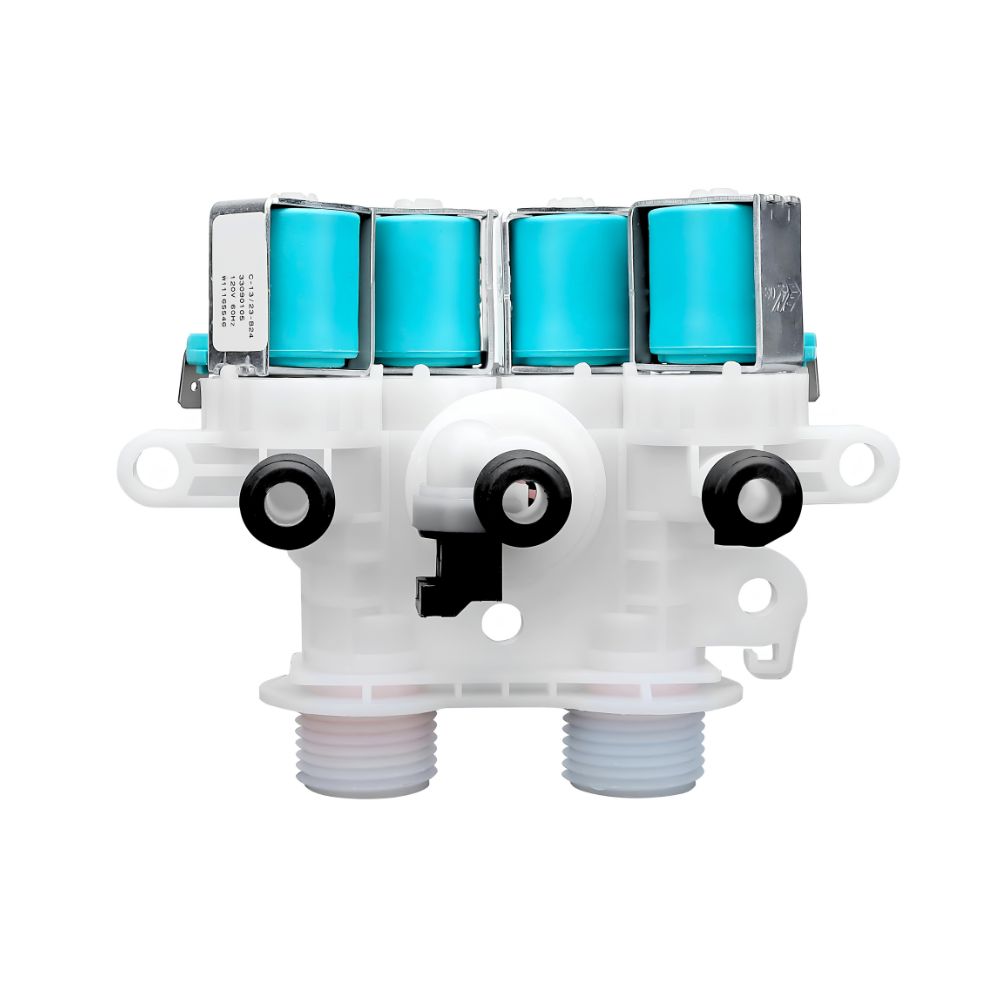

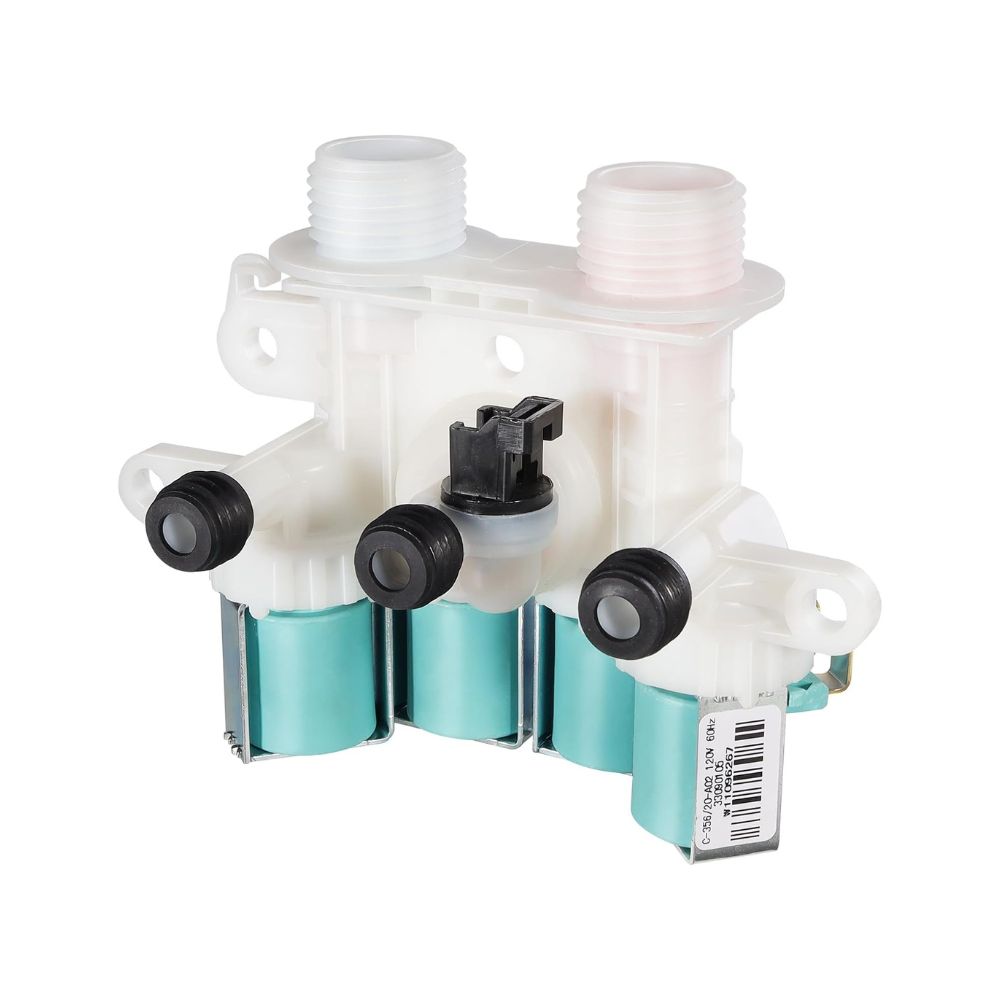

The XPARTCO W11165546 is an aftermarket replacement washer water inlet valve assembly compatible with Maytag Bravos XL, Whirlpool Cabrio, Kenmore 700-series, and related Whirlpool-platform HE top-load washers. This 4-solenoid assembly controls the flow of hot and cold water from the household supply lines into the washer tub and dispenser compartments. It includes an integrated thermistor on the center outlet that monitors incoming water temperature and communicates it to the control board so the washer can achieve the correct wash temperature. When the valve fails — or when a single solenoid coil burns out — the washer may not fill, fill too slowly, fill with the wrong temperature, overfill, or display error codes F8E1, LF, or LO FL.
Rated 120V, 60Hz, with 2 inlet ports and 3 outlet ports, this assembly measures 5-3/8"L x 4-1/4"W x 3"H. The valve body may be blue or green in color depending on production run — both are functionally identical. It is compatible with 1/2" ID supply hoses. It directly replaces W10599423, W10758828, W10839828, W11096267, W11165546VP, WV5546, 33090105, 4545980, AP6284346, EAP12348013, PD00037668, and PS12348013. Installs in 15–25 minutes with basic hand tools.
Quick Answer
The XPARTCO W11165546 Washer Water Inlet Valve fixes Maytag Bravos XL and Whirlpool Cabrio/WTW HE top-load washers that won't fill, fill slowly, fill with wrong temperature, overfill, or display error codes F8E1, LF, or LO FL. 4-solenoid valve with thermistor. 120V/60Hz. 2 inlet / 3 outlet ports. 5-3/8"L x 4-1/4"W x 3"H. Compatible with 1/2" ID supply hoses. Replaces W10599423, W10758828, W10839828, W11096267, W11165546VP, 33090105, 4545980, AP6284346, PS12348013.
Common Problems This Part Fixes
- Washer not filling with water — error code F8E1, LF, or LO FL displayed
- Washer filling very slowly — taking much longer than normal to reach water level
- Washer filling with only cold water on a warm or hot cycle — hot solenoid failed
- Washer filling with only hot water on a cold cycle — cold solenoid failed
- Washer overfilling or filling continuously — valve port stuck open
- Water temperature incorrect despite correct cycle selection — thermistor failed
- Water dripping into the tub between cycles — valve not closing completely
- Water leaking from the back of the washer near the valve
Replaces Part Numbers
This water inlet valve directly replaces the following OEM and cross-reference part numbers:
W10839828, 33090105, 4545980, W10599423, W10758828, W11096267, W11165546VP, AP6284346, AWP43457, EAP12348013, PD00037668, PS12348013.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This water inlet valve is compatible with select HE top-load washers from the following brands and series:
- Maytag top-load washers — Bravos XL series (MVWB765FW0, MVWB765FW1, MVWB765FW2, MVWB765FW3, MVWB765FC1, MVWB765FC2, MVWB766FW0, MVWB766FW1, MVWB835DW1, MVWB835DW2, MVWB835DW3, MVWB835DW4, MVWB855DC2, MVWB855DC3, MVWB865GC0, MVWB865GW0, MVW6230HW2, MVW7230HW0, MVW7232HW0 and related models)
- Whirlpool top-load washers — Cabrio / WTW series (WTW7500GC0, WTW7500GW0, WTW8500DC2, WTW8500DC4, WTW8500DC5, WTW8500DR4, WTW8500DR5, WTW8500DW4, WTW8500DW5, WTW8700EC1, 7MWTW8500EC2 and related models)
- Kenmore / Sears top-load washers — 700 series (11028132410, 11028132411, 11028132412, 11028132413, 11028133410, 11028133411, 11029132411, 11029133410 and related models)
- Crosley top-load washers (select models)
Note: The valve body color may be blue or green depending on production run — both are functionally identical. This valve is for HE top-load washers only. Always verify your model number before ordering.
Key Features
- 4-solenoid valve assembly — controls hot water, cold water, and additional dispenser/recirculation ports to fill the tub with the correct temperature water for each cycle
- Integrated thermistor on center outlet — monitors incoming water temperature and communicates with the control board to achieve the correct wash temperature
- Resolves F8E1, LF, and LO FL error codes on compatible Maytag and Whirlpool HE top-load washers
- Rated 120V, 60Hz — correct electrical specifications for compatible models
- Dimensions: 5-3/8"L x 4-1/4"W x 3"H
- 2 inlet ports, 3 outlet ports — compatible with 1/2" ID supply hoses
- Valve body color (blue or green) varies by production run — functionally identical
- Replaces W10599423, W10758828, W10839828, W11096267, and W11165546VP
- Compatible with Maytag Bravos XL MVWB series, Whirlpool WTW7xxx/WTW8xxx, Kenmore 700 series, and Crosley top-load washers
- Aftermarket replacement built to OEM-equivalent quality standards
- DIY repair — installs in 15–25 minutes with basic hand tools
Product Specifications
| Part Number |
W11165546 |
| Part Type |
Washer Water Inlet Valve Assembly (4-Solenoid with Thermistor) |
| Condition |
Aftermarket Replacement |
| Application |
HE Top-Load Washers — Bravos XL, Cabrio, WTW series |
| Solenoids |
4-coil (hot, cold, and additional ports) |
| Thermistor |
Integrated on center outlet — monitors water temperature |
| Voltage |
120V AC |
| Frequency |
60 Hz |
| Dimensions |
5-3/8"L x 4-1/4"W x 3"H |
| Inlet Ports |
2 (hot and cold) |
| Outlet Ports |
3 |
| Supply Hose ID |
1/2 inch |
| Color |
White / Blue or Green (production run dependent — functionally identical) |
| Error Codes Resolved |
F8E1, LF, LO FL |
| Compatible Brands |
Maytag, Whirlpool, Kenmore, Crosley |
Installation Notes
⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off both the hot and cold water supply valves before beginning. Pull the washer away from the wall to access the back panel. The water inlet valve is mounted on the upper rear of the washer. Photograph all wire harness connections and hose routing before disconnecting. Disconnect the two external supply hoses from the valve inlet ports using pliers to loosen any stuck connections. Disconnect the internal outlet hoses by squeezing the retaining clips and pulling free. Disconnect the wiring harness connectors from all solenoid coils and the thermistor. Unscrew the mounting hardware and remove the old valve. Install the new W11165546 valve in the same position, reconnect all internal hoses, wire harnesses, and external supply hoses in the same positions as documented. Restore water supply and power, then run a fill cycle to verify normal filling and check for leaks. Tools needed: Phillips screwdriver, pliers, channel-lock pliers for stubborn hose connections.
Frequently Asked Questions
What do error codes F8E1, LF, and LO FL mean on Maytag and Whirlpool washers?
F8E1 (also displayed as LF or LO FL on some models) indicates a long fill fault — the washer was unable to fill to the required water level within the expected time. The most common causes are a failed water inlet valve (solenoid coil burned out or valve seat clogged), low household water pressure, or kinked supply hoses. Before replacing the valve, confirm both supply valves are fully open, the supply hoses are not kinked, and household water pressure is adequate. If all supply conditions are good and the error persists, the water inlet valve is the most likely cause.
What is the difference between W11165546 and W11096267?
These are the same water inlet valve assembly. W11096267 was an earlier version, and W11165546 is the current updated part number. The W10599423 and W10758828 are also cross-references to earlier versions of this same valve. The W11165546VP is the Whirlpool factory-packaged version. All of these are covered by this aftermarket replacement.
Why does this valve have 4 solenoids?
Modern HE top-load washers like the Maytag Bravos XL and Whirlpool Cabrio use multiple water paths for different wash functions — hot water inlet, cold water inlet, a bleach dispenser port, and a fabric softener/recirculation port. Each path is controlled by its own independent solenoid coil on the same valve assembly. This allows the control board to independently open any combination of ports needed for a given cycle phase. When any single solenoid coil fails, only the function controlled by that coil is affected — which is why the washer might fill normally with cold water but not hot, or fail to activate only one dispenser.
Does the valve color (blue vs green) matter?
No — the blue and green valve body colors are simply the result of different production runs at the factory. Both colors are the same part number (W11165546) with identical electrical specifications, port configuration, thermistor, and dimensions. Either color will function correctly in your washer. There is no functional difference between the two.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured with 4 solenoid coils and an integrated thermistor to match the electrical specifications and port configuration of the original W11165546 water inlet valve assembly.
