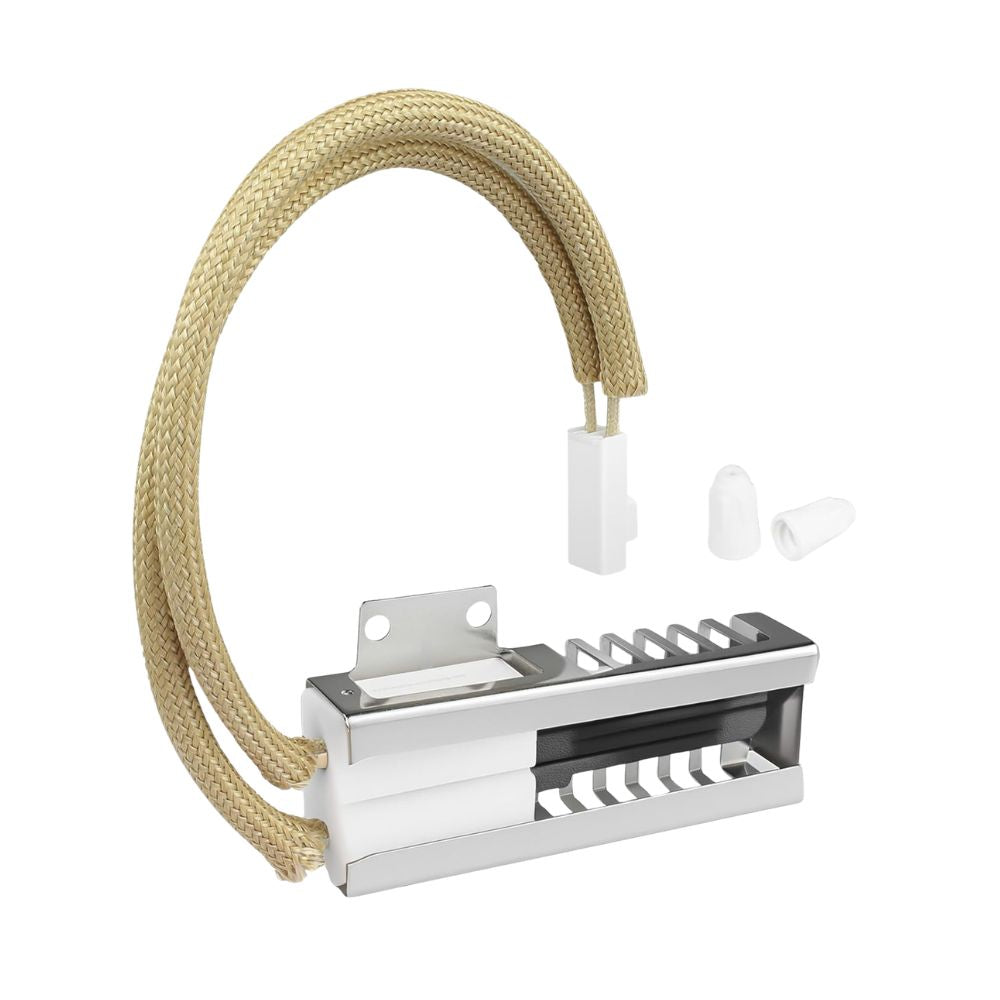

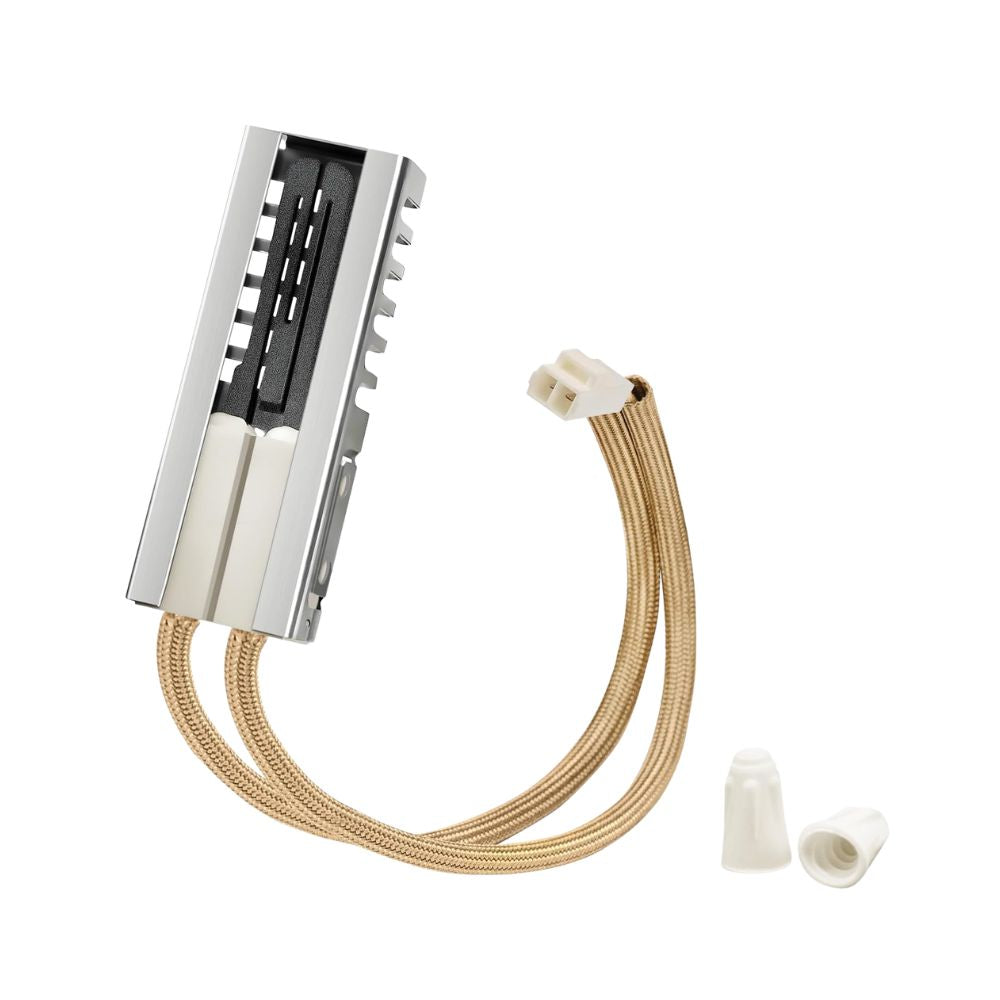

XPARTCO W11176454 Gas Range Oven Igniter
The XPARTCO W11176454 is an aftermarket replacement oven burner igniter compatible with select Whirlpool, Maytag, and Amana gas ranges. The igniter is a hot surface igniter made from silicon carbide that draws electrical current through the oven safety valve to open it, then heats to ignition temperature to light the gas burner. When the igniter weakens or fails, the oven will not heat, will take too long to preheat, or the igniter will glow without lighting the burner.
This igniter draws 3.3–3.6 amps at 120V AC and reaches operating temperatures of 1,800°F–3,100°F with a heating time of approximately 17 seconds. The igniter body measures 3-7/10 inches (Length A) with 9-1/2 inch leads and two separate connectors. It directly replaces OEM part numbers W11176454 and W10914411, and is compatible with Whirlpool WFG and WFG505 series, Amana AGR and AGG series, and select Maytag gas range models. Installs in 10–20 minutes with basic hand tools.
Quick Answer
The XPARTCO W11176454 Gas Range Oven Igniter fixes Whirlpool, Maytag, and Amana gas ovens that won't heat, take too long to preheat, or have an igniter that glows but never lights the burner. Silicon carbide construction. Draws 3.3–3.6A at 120V. Igniter body 3-7/10" with 9-1/2" leads and 2 separate connectors. Replaces W10914411.
Common Problems This Part Fixes
- Oven not heating at all — gas is not igniting
- Oven takes excessively long to preheat (weak igniter not reaching ignition temperature)
- Igniter glows orange or red but never lights the gas burner
- Smell of gas when oven is turned on but burner does not light
- Oven heats inconsistently or shuts off mid-cycle
- Clicking sounds from the oven without successful ignition
- Oven element will not heat despite other components functioning normally
Replaces Part Numbers
This oven igniter directly replaces the following OEM and cross-reference part numbers:
W11176454, 4547416, W10914411, EAP12348439, AWP43029, PD00044759, AP6327293, PS12348439.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This igniter is compatible with select gas ranges from the following brands:
- Whirlpool gas ranges — WFG320 and WFG505 series (freestanding)
- Amana gas ranges — AGR and AGG series
- Maytag gas ranges — select AGR series models
Always verify your model number before ordering. Contact our support team if you're unsure.
Key Features
- Hot surface igniter — draws current through the oven safety valve to open it, then ignites the gas burner
- Silicon carbide construction — superior heat resistance vs. standard ceramic igniters
- Draws 3.3–3.6 amps at 120V AC — correct range to open the Whirlpool gas safety valve
- Operating temperature: 1,800°F – 3,100°F with approximately 17-second heat-up time
- Igniter body length: 3-7/10 inches; lead length: 9-1/2 inches
- Two separate connectors for easy plug-in installation
- Directly replaces W11176454 and W10914411 — no modification required
- Aftermarket replacement built to OEM-equivalent quality standards
- Quick DIY repair — installs in 10–20 minutes with a screwdriver
Product Specifications
| Part Number |
W11176454 |
| Also Replaces |
W10914411 |
| Part Type |
Oven Burner Igniter (Hot Surface Igniter) |
| Condition |
Aftermarket Replacement |
| Application |
Gas Ranges and Ovens |
| Material |
Silicon Carbide |
| Amperage Draw |
3.3 – 3.6 Amps |
| Voltage |
120V AC |
| Resistance |
40 – 800 Ohms |
| Operating Temperature |
1,800°F – 3,100°F |
| Heat-Up Time |
Approximately 17 seconds |
| Igniter Body Length (A) |
3-7/10 inches |
| Lead Length |
9-1/2 inches |
| Connectors |
2 separate connectors |
| Compatible Brands |
Whirlpool, Amana, Maytag |
Installation Notes
⚠️ Gas Appliance Safety Warning This part is used in gas ranges. Working with gas appliances carries risk of gas leaks, fire, and explosion if installed incorrectly. Always shut off the gas supply at the shutoff valve and unplug the range before beginning any repair. If you smell gas at any point during or after installation, leave the area immediately and contact your gas utility provider. If you are not confident working on gas appliances, have this part installed by a qualified appliance technician.
⚠️ Installation Instructions Unplug the range and shut off the gas supply before beginning. Open the oven door and remove the oven racks. Lift and remove the oven bottom panel by unscrewing the retaining screws. Remove the heat shield (if present) to expose the burner and igniter assembly. Unscrew the igniter mounting screws — typically one or two — and carefully disconnect the wire connector. Connect the new W11176454 igniter to the wire harness using the two separate connectors, secure it to the burner bracket with the mounting screws, then reinstall the heat shield and oven bottom panel. Restore gas supply and power and run a test cycle to confirm the oven lights correctly. Important: Do not touch the silicon carbide igniter element with bare hands — oils from skin reduce its lifespan. Handle only by the bracket and leads. Tools needed: Phillips screwdriver, work gloves.
Frequently Asked Questions
What is the difference between W11176454 and W10914411?
The W11176454 is the updated part number that directly supersedes the older W10914411. Both are the same hot surface igniter for compatible Whirlpool, Amana, and Maytag gas ranges. This aftermarket replacement is compatible with both part numbers.
How do I know if my oven igniter needs to be replaced?
The most common signs are the oven not heating at all, taking much longer than usual to preheat, or the igniter glowing orange but never lighting the burner. A working igniter reaches ignition temperature within about 30–90 seconds and glows bright orange. If it glows dimly or stays on indefinitely without the burner lighting, the igniter has weakened and is no longer drawing enough current to open the gas safety valve.
Why does my igniter glow but the oven still won't heat?
This is the classic symptom of a weak igniter. The gas safety valve requires a minimum amperage draw — typically around 3.2 amps — to open and allow gas to flow to the burner. As the igniter ages, its resistance increases and amperage drops below this threshold. The igniter still glows because it has some current, but not enough to open the valve. Replacing the igniter resolves this in nearly all cases.
Is the W11176454 compatible with my Amana or Maytag range?
Yes — the W11176454 is compatible with select Amana AGR and AGG series gas ranges and select Maytag AGR series models in addition to Whirlpool WFG320 and WFG505 series ranges. Always verify your specific model number before ordering to confirm compatibility.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is made from silicon carbide to match the electrical specifications and performance of the original W11176454 igniter.
