XPARTCO W11457841 Washer Lid Latch Strike

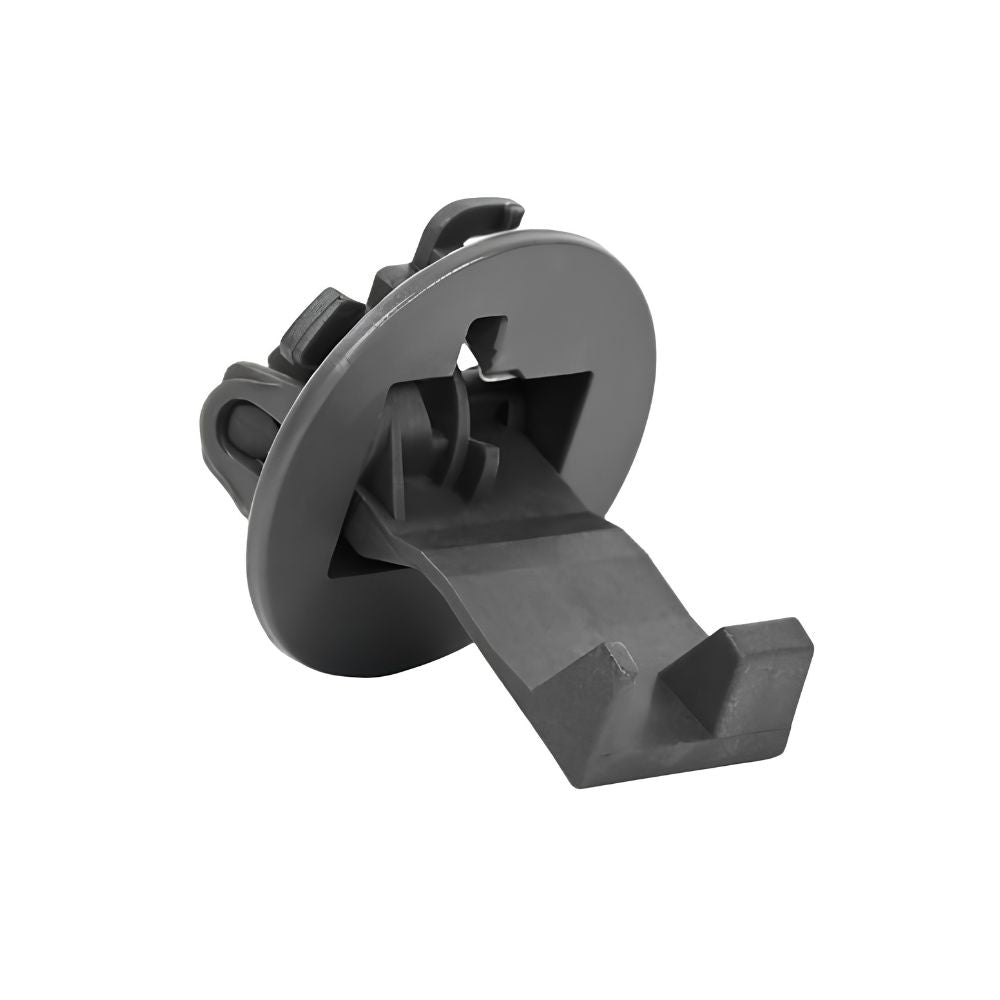

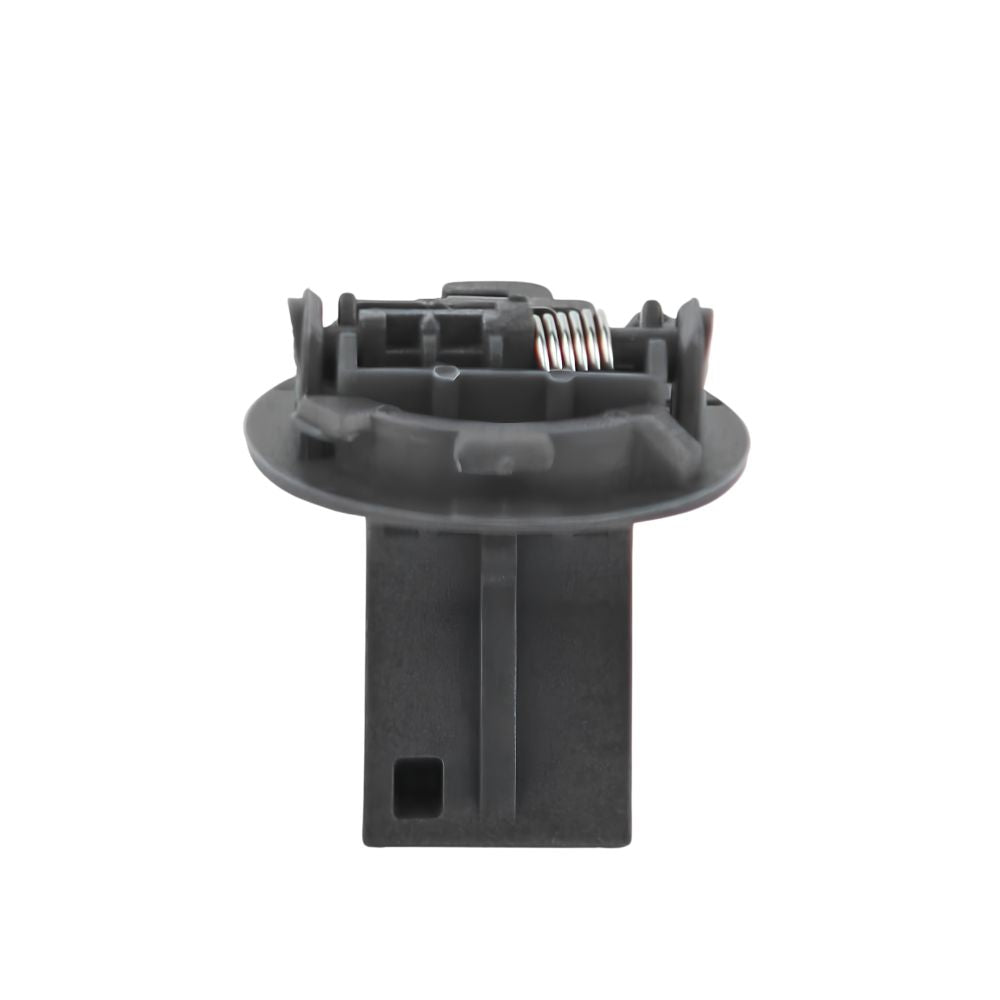

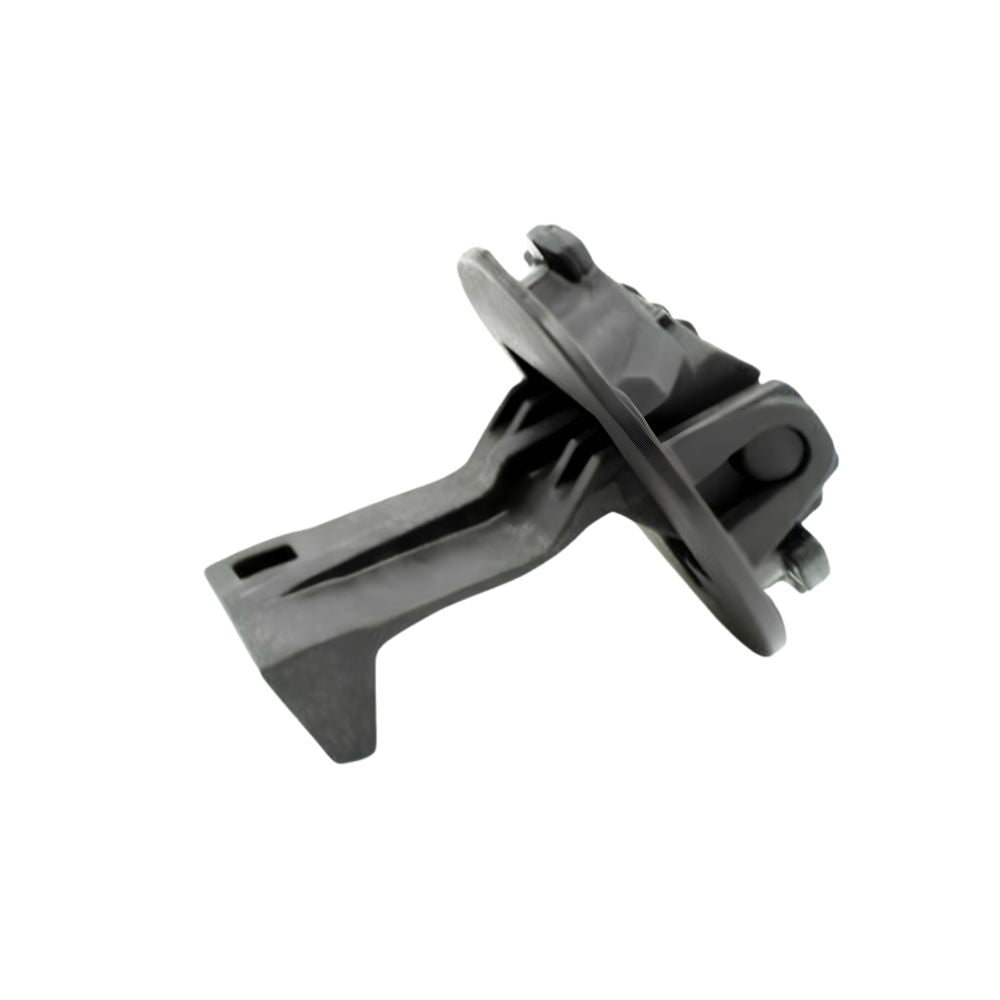

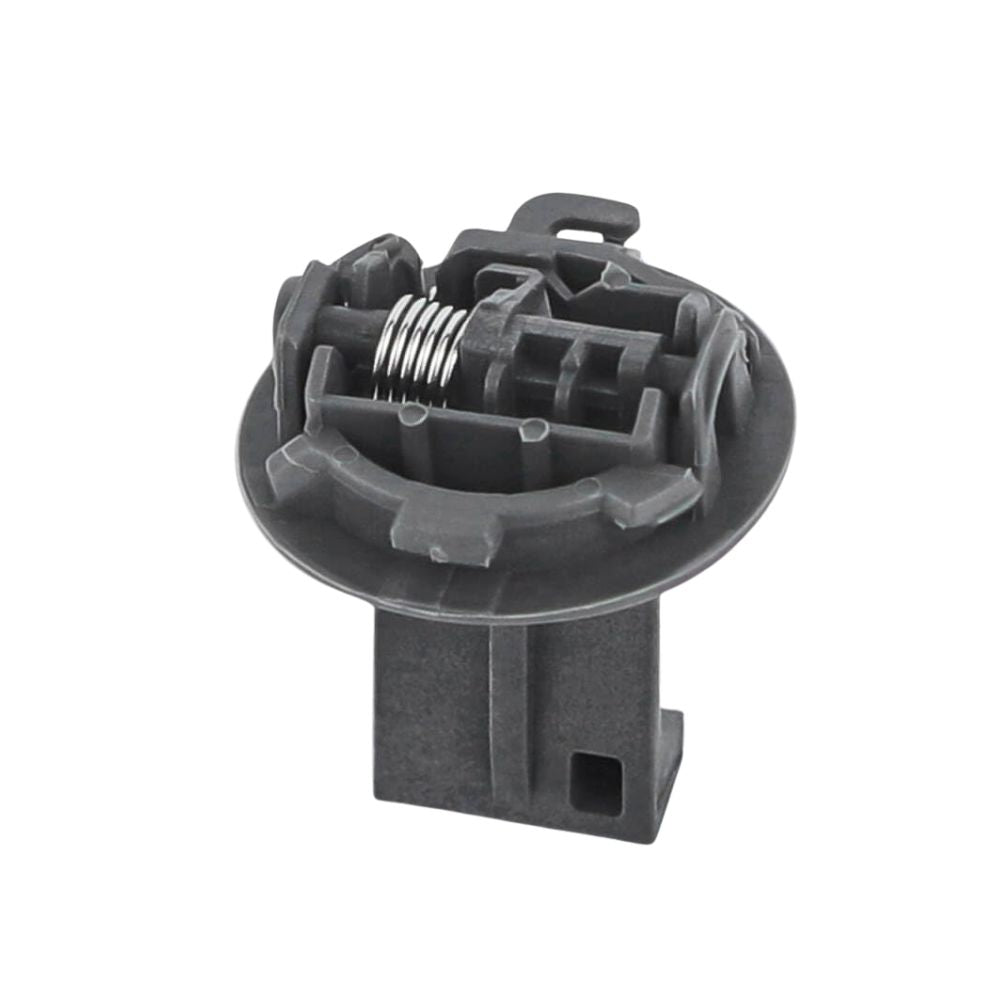

The XPARTCO W11457841 is an aftermarket replacement washer lid latch strike compatible with select Whirlpool, Maytag, and Kenmore HE top-load washers — including the Whirlpool WTW5100, WTW5105, WTW6120, WTW7120, WTW8120, WTW8127 series, and the Maytag MVW6200, MVW6230, MVW7230, MVW7232, MVW8230 series. The lid latch strike is the plastic component attached to the underside of the washer lid that physically engages the lid lock mechanism when the lid is closed. As the lid lowers into place, the latch strike enters the lock slot and activates the lid switch — signaling the control board that the lid is securely closed and the washer is safe to start agitation and spin.
When the lid latch strike fails — typically by breaking off, cracking, or wearing down — the lid lock can't be properly activated, and the washer will not start, will stop mid-cycle, or will refuse to advance to the spin cycle. This W11457841 aftermarket replacement is built to OEM-equivalent specifications and supersedes the earlier W11091027. It also replaces 4959179, AP6987306, EAP16218028, PD00061788, and PS16218028. Installation is fast and simple — a counterclockwise twist removes the old strike, and a clockwise twist installs the new one. Installs in under 5 minutes, no special tools required.
Quick Answer
The XPARTCO W11457841 Washer Lid Latch Strike fixes Whirlpool, Maytag, and Kenmore HE top-load washers that won't start, won't lock the lid, stop mid-cycle, or won't advance to spin because the lid strike is broken or worn. Plastic latch strike that attaches to the underside of the washer lid and activates the lid lock and switch. Twist-in installation. Genuine OEM. Replaces W11091027, 4959179, AP6987306, EAP16218028, PD00061788, PS16218028. Compatible with Whirlpool WTW5100/5105/6120/7120/8120/8127 and Maytag MVW6200/6230/7230/7232/8230 series.
Common Problems This Part Fixes
- Washer not starting — lid latch strike not engaging the lid lock
- Lid won't lock at the start of the cycle
- Washer stops mid-cycle with a lid-related fault
- Washer fills with water but won't agitate or advance to spin
- Lid latch strike visibly broken, cracked, or missing on the underside of the lid
- Latch strike worn down — physically fits the lock slot but no longer activates the lid switch
- Repeated lid lock errors despite the lid appearing to close normally
Replaces Part Numbers
This washer lid latch strike directly replaces the following OEM and cross-reference part numbers:
W11457841, W11091027, AP6987306, AWP44638, PD00061788, EAP16218028, PS16218028.
W11457841 is the current production part superseding W11091027. Contact our support team with your model number if you need confirmation before ordering.
Compatibility
This lid latch strike is compatible with select HE top-load washers from the following brands and series:
- Whirlpool top-load washers — WTW5100HC0, WTW5100HC1, WTW5100HC2, WTW5100HW0, WTW5100HW1, WTW5100HW2 series
- Whirlpool top-load washers — WTW5105HC0, WTW5105HC1, WTW5105HC2, WTW5105HW0, WTW5105HW1, WTW5105HW2 series
- Whirlpool top-load washers — WTW6120HC0, WTW6120HC1, WTW6120HC2, WTW6120HW0, WTW6120HW1, WTW6120HW2 series
- Whirlpool top-load washers — WTW7120HC0, WTW7120HW0 series
- Whirlpool top-load washers — WTW8120HC0, WTW8120HW0 series
- Whirlpool top-load washers — WTW8127LC0, WTW8127LC1, WTW8127LW0 series
- Maytag top-load washers — MVW6200KW0, MVW6200KW1, MVW6200KW2, MVW6200KW3 series
- Maytag top-load washers — MVW6230HC0, MVW6230HC1, MVW6230HC2, MVW6230HW0, MVW6230HW1, MVW6230HW2 series
- Maytag top-load washers — MVW6230RHW0, MVW6230RHW1, MVW6230RHW2 series
- Maytag top-load washers — MVW7230HC0, MVW7230HW0, MVW7230HW1 series
- Maytag top-load washers — MVW7232HC0, MVW7232HW0, MVW7232HW2 series
- Maytag top-load washers — MVW8230HC0 series
- Kenmore / Sears top-load washers (Whirlpool-built — select 110-series models)
Always verify your appliance model number before ordering. Contact our support team if you're unsure.
Key Features
- Aftermarket replacement built to OEM-equivalent quality standards — direct fit for compatible Whirlpool platform washers
- Plastic latch strike attaches to the underside of the washer lid and engages the lid lock mechanism when the lid closes
- Activates the lid switch to signal the control board that the lid is securely closed and the washer is safe to start
- Twist-in/twist-out installation — no tools or hardware required; counterclockwise to remove, clockwise to install
- Current production part — directly supersedes W11091027
- Replaces W11091027, 4959179, AP6987306, EAP16218028, PD00061788, and PS16218028
- Compatible with Whirlpool WTW5100/5105/6120/7120/8120/8127 and Maytag MVW6200/6230/7230/7232/8230 series HE top-load washers, plus select Kenmore Whirlpool-built models
- Fast DIY repair — installs in under 5 minutes
Product Specifications
| Part Number |
W11457841 |
| Supersedes |
W11091027 |
| Part Type |
Washer Lid Latch Strike |
| Condition |
Aftermarket Replacement |
| Application |
HE Top-Load Washers (Whirlpool/Maytag/Kenmore platform) |
| Material |
High-strength plastic |
| Installation |
Twist-in (clockwise) / twist-out (counterclockwise) — no tools required |
| Mounting Location |
Underside of washer lid |
| Compatible Brands |
Whirlpool, Maytag, Kenmore |
Installation Notes
⚠️ Unplug Washer Before Starting — Wear Work Gloves Disconnect power before beginning. Wear work gloves to protect your hands. Open the washer lid and locate the lid latch strike on the underside of the lid — it's the small plastic peg that drops into the lock slot when the lid is closed. To remove the old latch strike: rotate it counterclockwise until the retaining tab breaks free and pulls back, then pull the old latch strike straight out. To install the new W11457841: align it with the mounting hole in the same orientation as the old one, and rotate clockwise until you hear or feel the retainer tab click into place. Close the lid and confirm the latch strike engages the lock slot properly. Restore power, start a test cycle, and confirm the lid locks and the washer begins normal operation. Tools needed: work gloves only — no tools required for the strike itself.
Frequently Asked Questions
What's the difference between the lid strike, lid lock, and lid switch?
These three components work together as a safety system. The lid latch strike (W11457841) is the small plastic peg attached to the underside of the lid that physically enters the lock slot when the lid closes. The lid lock is the mechanism in the washer cabinet that grips the strike and physically locks the lid closed during the spin cycle. The lid switch is the electrical sensor inside the lock assembly that signals the control board when the strike is engaged. If the strike is broken or missing, none of the three can do their job — even if the lock and switch are working perfectly. Replacing just the strike often resolves "won't start" issues without needing to replace the more expensive lock assembly.
What is the difference between W11457841 and W11091027?
These are the same lid latch strike across production revisions. W11091027 was the earlier OEM part number, and W11457841 is the current part number that superseded it. Both are physically and functionally identical — if your washer's parts diagram shows W11091027, the W11457841 is the correct current replacement, and this aftermarket part covers both numbers.
My washer won't start and the lid seems to close normally — could this be the strike?
Yes, this is one of the most common symptoms of lid latch strike failure on compatible Whirlpool and Maytag washers. Even though the lid appears to close, if the strike has cracked or worn down it may not physically engage the lock or activate the switch correctly. Visually inspect the latch strike on the underside of the lid — if it's broken, missing, or chipped, replacement is straightforward. If the latch strike looks intact and the washer still won't start, the lid lock assembly itself or the wiring harness may need attention.
Do I really not need any tools to install this?
Correct — the W11457841 lid latch strike uses a twist-in design with no screws or hardware. To remove the old latch strike, rotate it counterclockwise until the internal retaining tab breaks free, then pull it out. To install the new one, push it into the mounting hole and twist clockwise until it clicks into place. The whole replacement typically takes under 5 minutes once you have the new part in hand. Work gloves are recommended to protect your hands while gripping the small plastic part, but no other tools are needed.
Is this a Genuine OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the dimensions, twist-in mounting design, and lid switch activation function of the original W11457841 lid latch strike used in compatible Whirlpool, Maytag, and Kenmore HE top-load washers.
