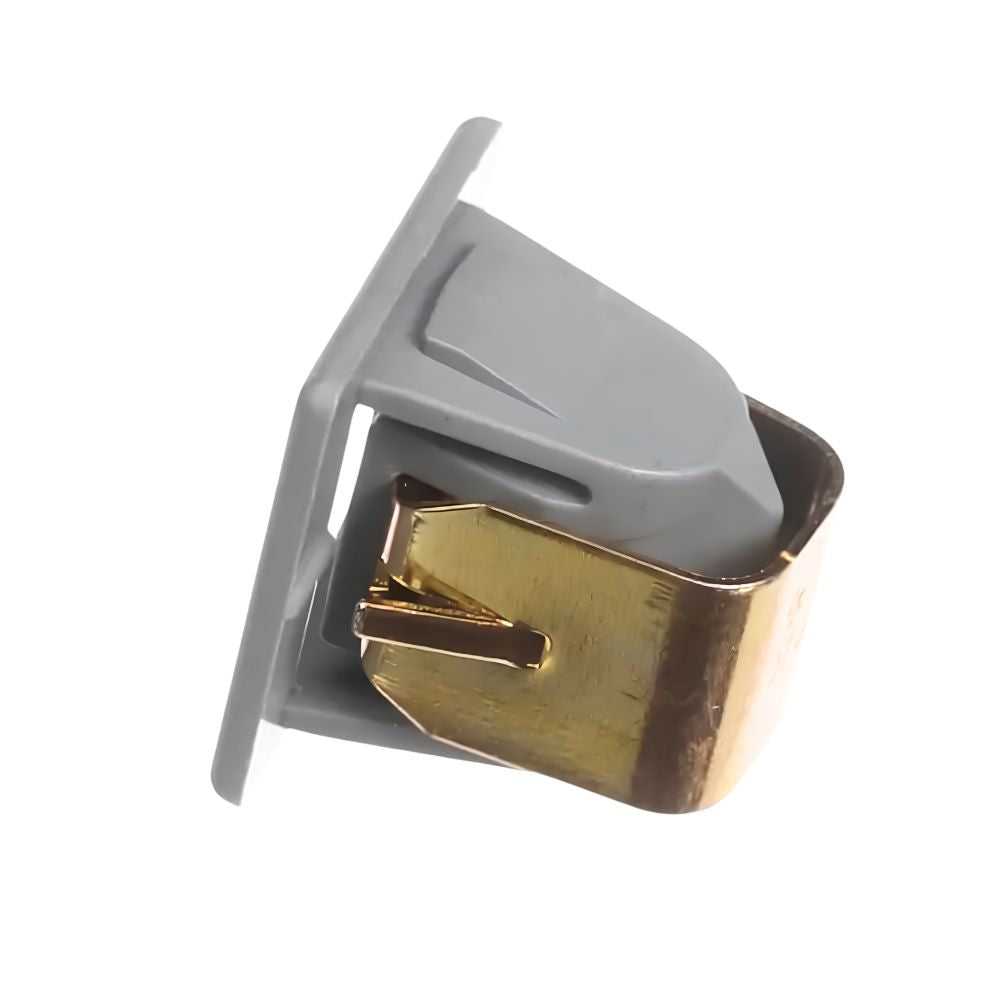

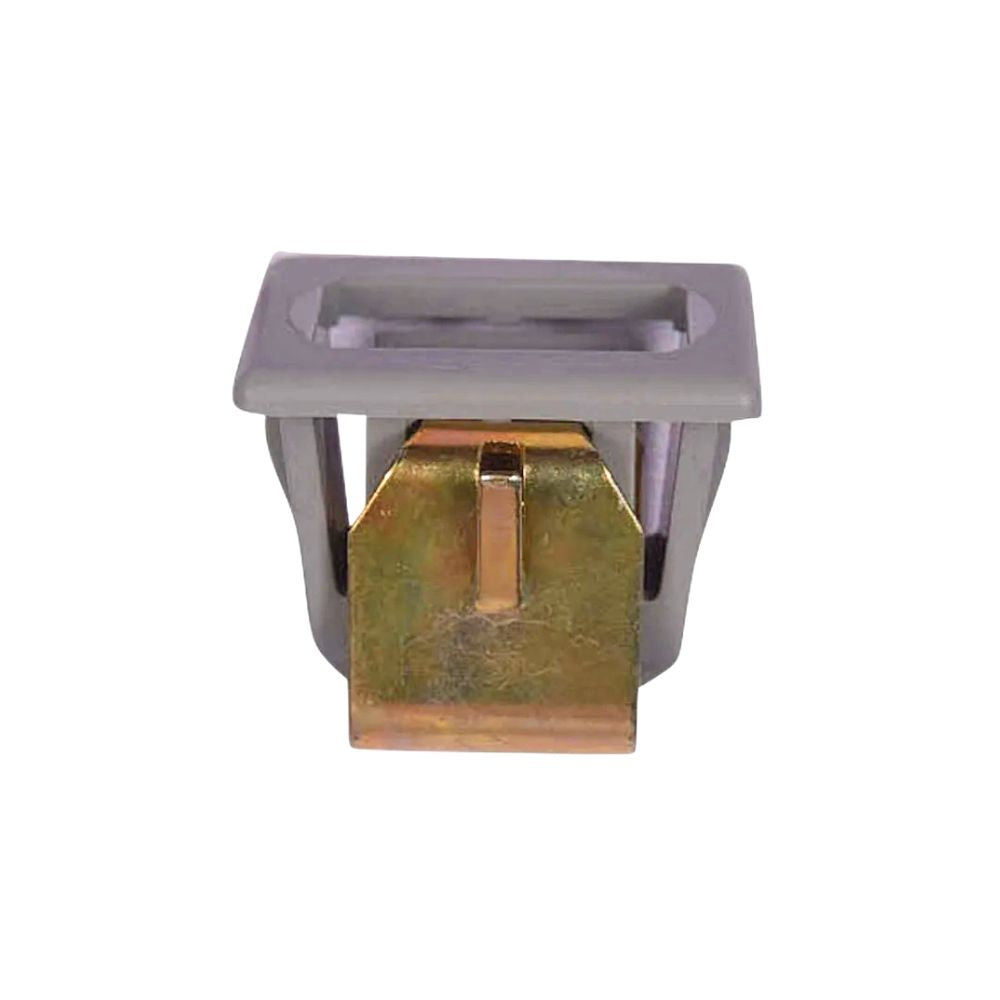

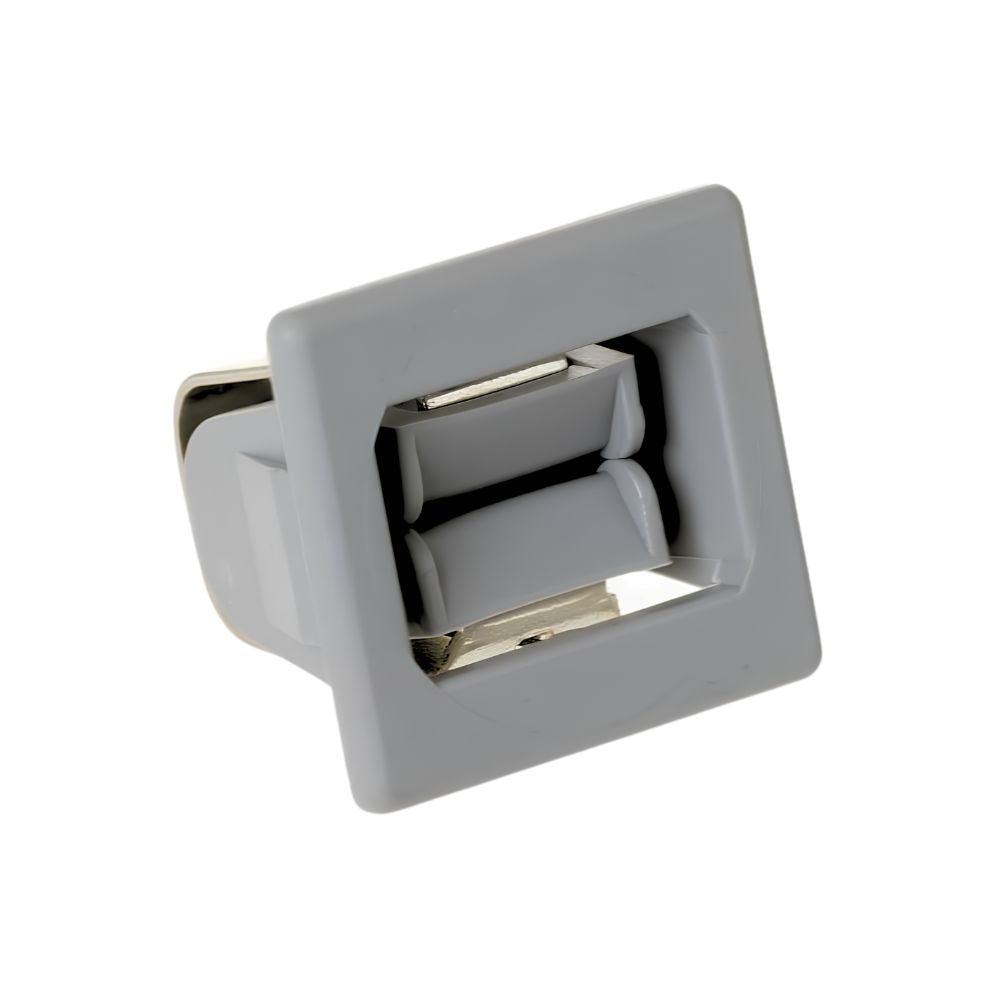

XPARTCO WE01X25316 Dryer Door Catch
The XPARTCO WE01X25316 is an aftermarket replacement dryer door catch (also called a door latch) compatible with a wide range of GE and Hotpoint electric and gas dryers in the GTD, GTX, ETD, HTX, NTX, PTD, and YTD series. The door catch is the spring-loaded latch mechanism mounted inside the dryer door panel that snaps onto the door strike on the dryer cabinet when the door is closed, holding the door securely shut during operation and activating the door switch so the dryer can run. When the catch breaks or loses its spring tension, the door will not stay closed, the dryer will not start, or the door will pop open during a drying cycle.
This replacement catch is constructed from toughened nylon with a hardened manganese steel spring — materials chosen for superior wear resistance and spring durability compared to standard nylon. It is sold individually and mounts inside the dryer door panel using a snap-in clip retained by a metal retaining ring. Installation requires partially disassembling the dryer door to access the catch from the inside. It directly replaces 4512762, AP6037347, EAP11766999, PD00042653, and PS11766999. Installs in 15–30 minutes with basic tools.
Quick Answer
The XPARTCO WE01X25316 Dryer Door Catch fixes GE and Hotpoint dryers where the door won't stay closed, pops open mid-cycle, or won't activate the door switch to start. Toughened nylon body with manganese steel spring. Sold individually. Mounts inside the door panel — door must be partially disassembled for installation. Compatible with GE GTD3–GTD8, GTX, ETD, HTX, NTX, PTD, and YTD series dryers. Replaces 4512762, AP6037347, EAP11766999, PD00042653, PS11766999.
Common Problems This Part Fixes
- Dryer door will not stay closed during the drying cycle
- Door pops open mid-cycle, stopping the dryer
- Dryer will not start — door switch not being activated by worn or broken catch
- Door feels loose or does not click firmly when closed
- Door catch visibly cracked, broken, or spring missing
- Door requires being held or pushed closed to keep the dryer running
Replaces Part Numbers
This door catch directly replaces the following OEM and cross-reference part numbers:
WE01X25316, 4512762, AGE24874, AP6037347, EAP11766999, PD00042653, PS11766999
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This door catch is compatible with select GE and Hotpoint gas and electric dryers from the following series:
- GE dryers — GTD3, GTD4, GTD5, GTD6, GTD7, GTD8 series (GTD33EASK0WW, GTD42EASJ1WW, GTD58EBSV0WS, GTD65EBPL0DG, GTD72EBSN0WS, GTD75ECPL0DG, GTD84ECPN0DG and related models)
- GE dryers — GTX2, GTX3, GTX4, GTX6 series (GTX22EASK0WW, GTX33EASK0WW and related models)
- GE dryers — ETD48 series (ETD48GASW0WB and related models)
- GE dryers — PTD6, PTD7, PTD9 series (PTD60EBPR1DG and related models)
- GE dryers — YTD7 series (YTD74E2PN2DG and related models)
- GE dryers — XTD series (XTD72E8ST1WS and related models)
- Hotpoint dryers — HTX2, HTX24 series (HTX21EASK0WW, HTX24EASK0WW, HTX24GASK0WS and related models)
- Hotpoint dryers — NTX6 series (NTX62E8ST0WW and related models)
Always verify your appliance model number before ordering. Contact our support team if you're unsure.
Key Features
- Holds the dryer door closed and activates the door switch so the dryer can run safely
- Toughened nylon body — superior wear resistance compared to standard nylon catches
- Hardened manganese steel spring — provides reliable, durable spring tension for thousands of open/close cycles
- Snap-in design — mounts inside the door panel with a metal retaining clip
- Replaces 4512762, AP6037347, EAP11766999, and PS11766999
- Sold individually — one door catch per order
- Compatible with GE GTD, GTX, ETD, HTX, NTX, PTD, and YTD series dryers
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Part Number |
WE01X25316 |
| Part Type |
Dryer Door Catch (Door Latch) |
| Condition |
Aftermarket Replacement |
| Application |
GE and Hotpoint Gas and Electric Dryers |
| Material |
Toughened nylon / Hardened manganese steel spring |
| Mounting |
Snap-in inside the door panel — metal retaining clip secures in place |
| Sold As |
Single door catch |
| Compatible Brands |
GE, Hotpoint |
Installation Notes
⚠️ Unplug Dryer Before Starting — Door Disassembly Required Unplug the dryer before beginning. Unlike simpler snap-in door catches, the WE01X25316 is mounted inside the dryer door panel and requires partially disassembling the door to access it. Open the dryer door and remove the screws on the latch side of the door (typically three screws) and the screws on the hinge side (typically five screws). Gently pry the door inner and outer panels apart — work carefully around the edge. With the panels separated, locate the old catch — use pliers to squeeze the gray retaining tabs together and push downward to release the catch from the inner panel. With needle-nose pliers, squeeze the metal retaining clip and apply downward force until the clip is free. Insert the new WE01X25316 catch into the panel opening and snap it into place, then press the retaining clip back on to lock it. Reassemble the door panels and reinstall all screws. Close the door to confirm it latches firmly. Restore power and run a short cycle to verify normal operation. Tools needed: drill driver with 1/4" bit, #1 square head bit, pliers, needle-nose pliers.
Frequently Asked Questions
Why does installation require disassembling the door?
Unlike the snap-in door catches found on many Whirlpool-family dryers — which clip into a slot accessible from the front without disassembly — the WE01X25316 mounts inside the GE door panel between the inner and outer door skins. This is a GE-specific design that provides a cleaner door exterior but requires separating the two door panels to access and replace the catch. While it is more involved than a simple snap-in replacement, it is a well-documented DIY repair that most homeowners can complete in 15–30 minutes with the right tools.
My dryer door closes but the dryer still won't start — is it the catch?
It may be — a worn or cracked catch may not push far enough into the door strike to fully activate the door switch, even if the door appears closed. However, if the catch appears intact and snaps firmly onto the strike, the issue may be with the door switch itself rather than the catch. The door switch (located inside the dryer cabinet at the door opening) can be tested with a multimeter for continuity in the open and closed positions. If the switch tests open in both positions, it has failed and needs replacement independently of the door catch.
Is this compatible with older GE dryers that have a different door catch style?
The WE01X25316 is for newer GE GTD, GTX, HTX, and related series dryers. Older GE dryers used a different door catch kit — most notably the WE01X1158 / WE1M536 / WE1M1011 style, which is a separate catch and strike kit. If your GE dryer is an older model not in the GTD/GTX/HTX series listed above, verify your model number before ordering to confirm this is the correct catch for your dryer.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured from toughened nylon with a hardened manganese steel spring to match the dimensions and function of the original WE01X25316 door catch.
