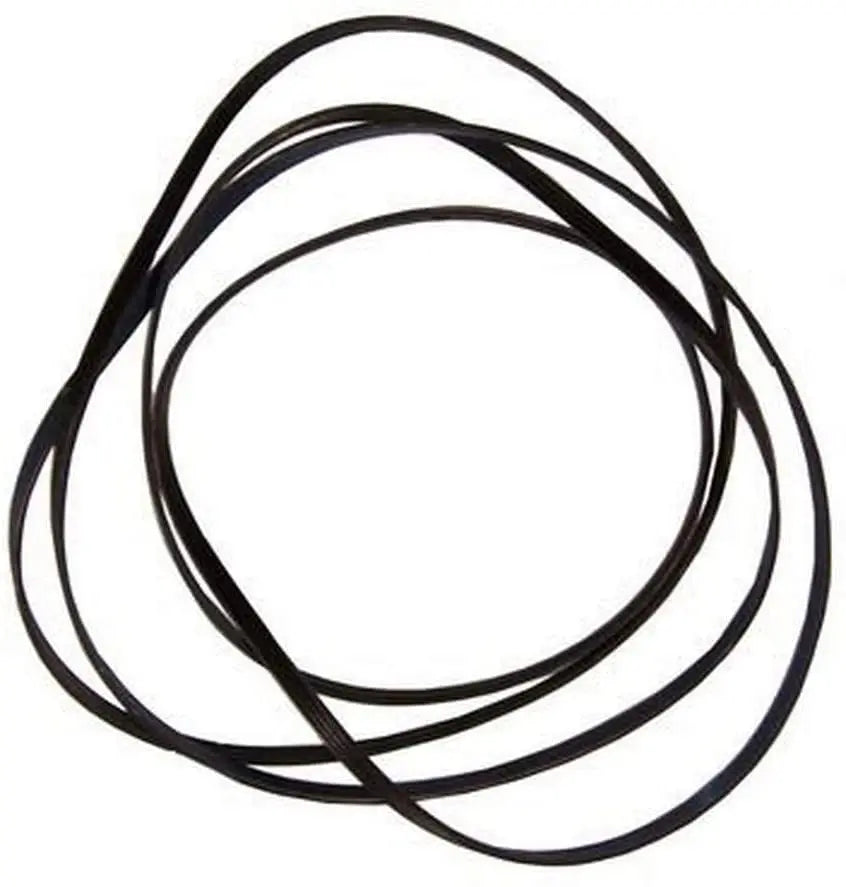

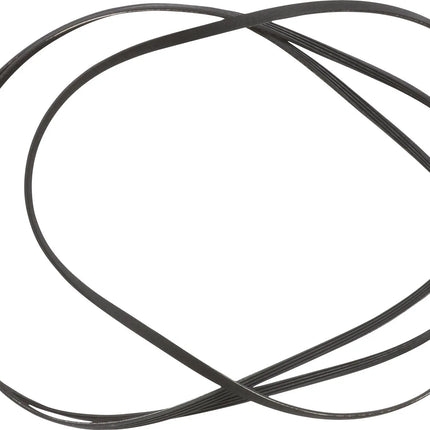

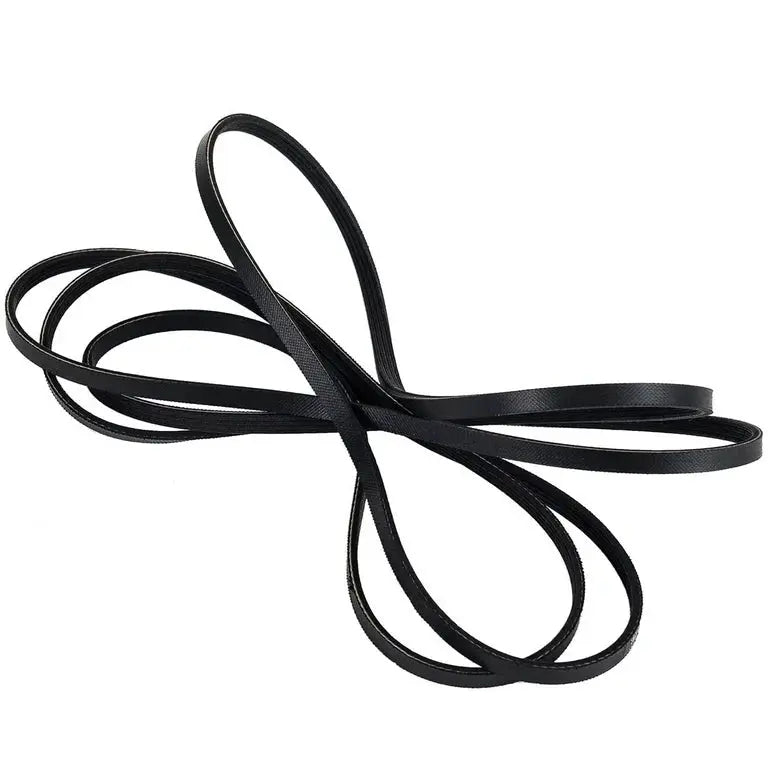

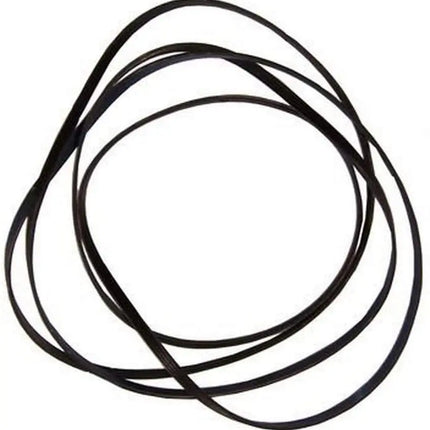

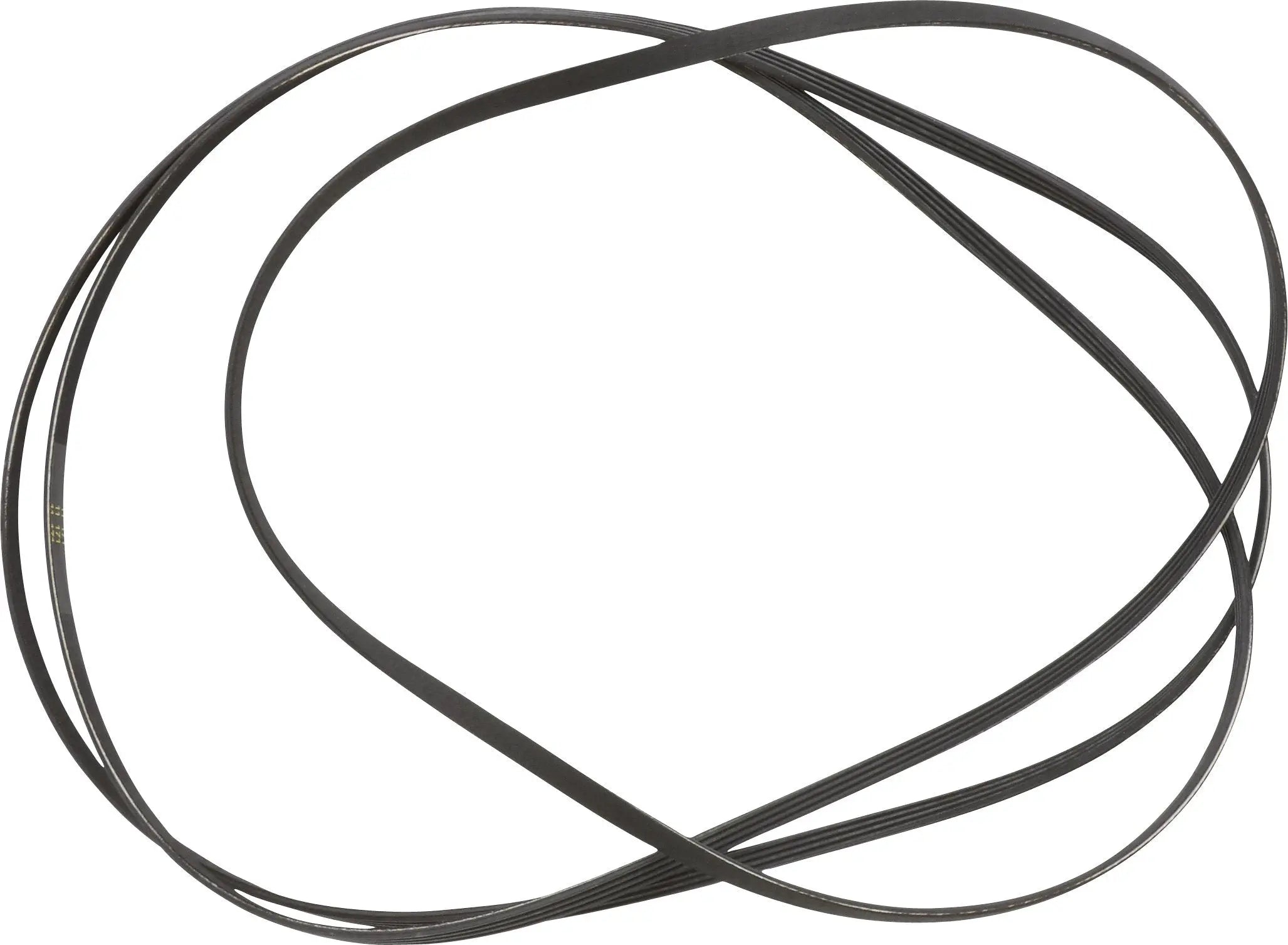

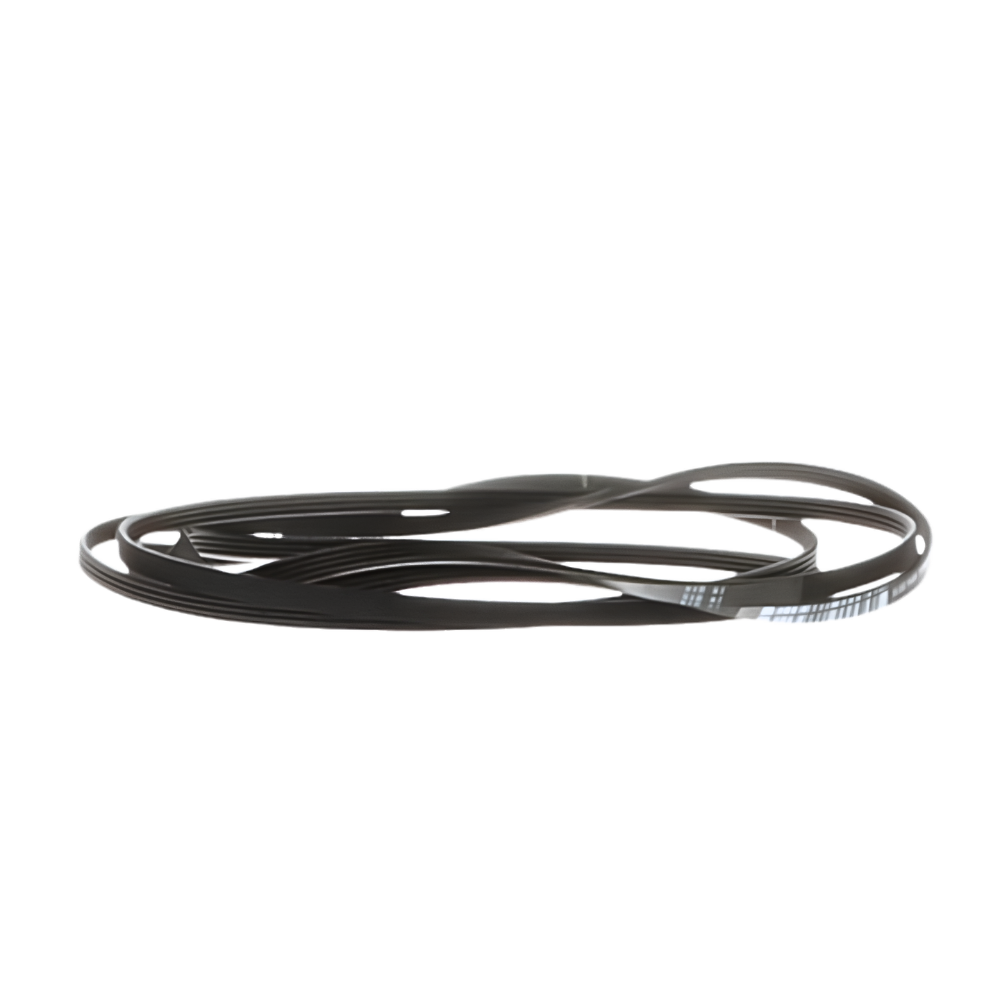

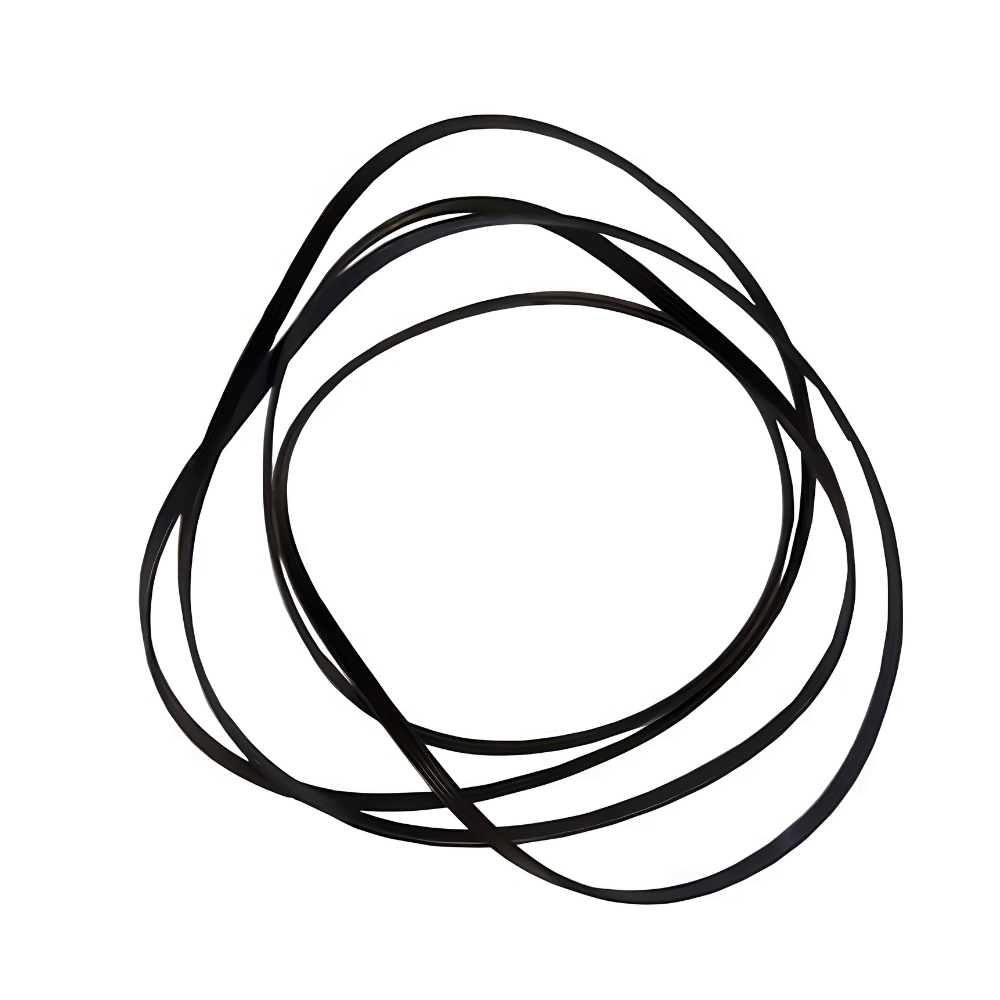

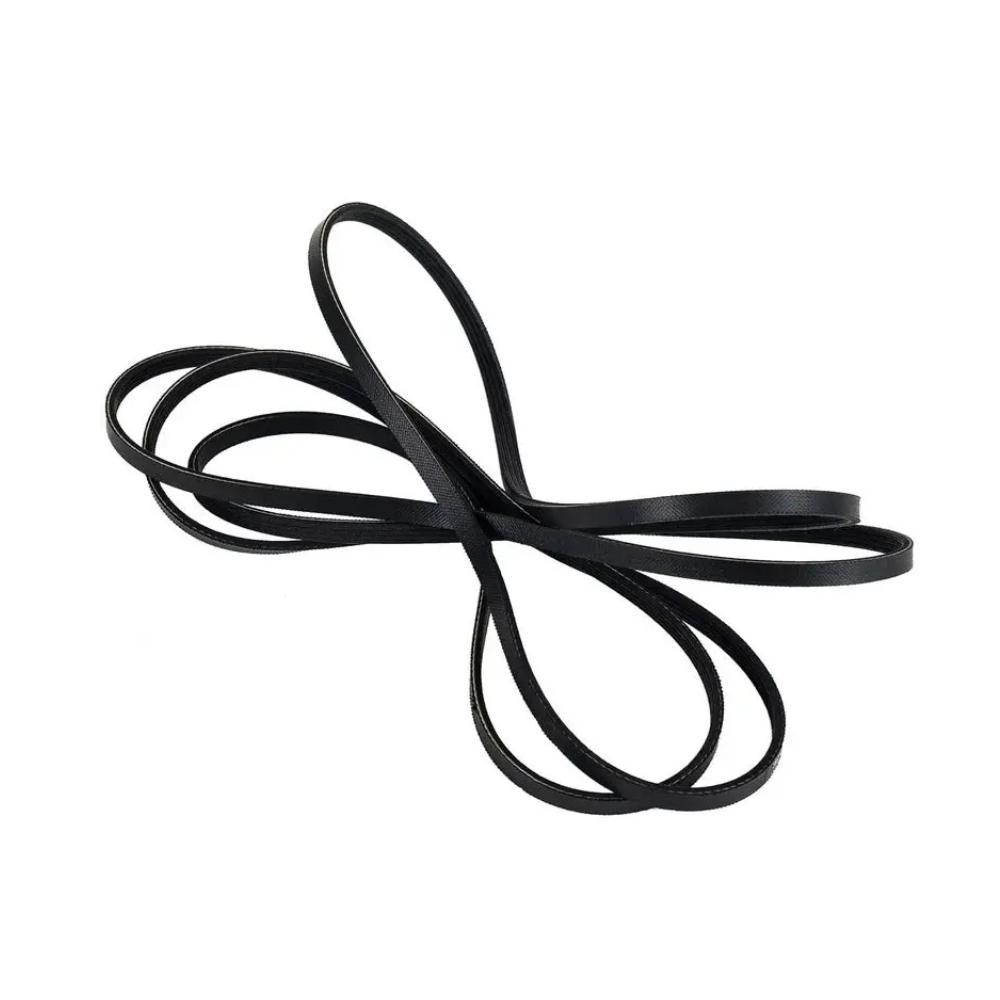

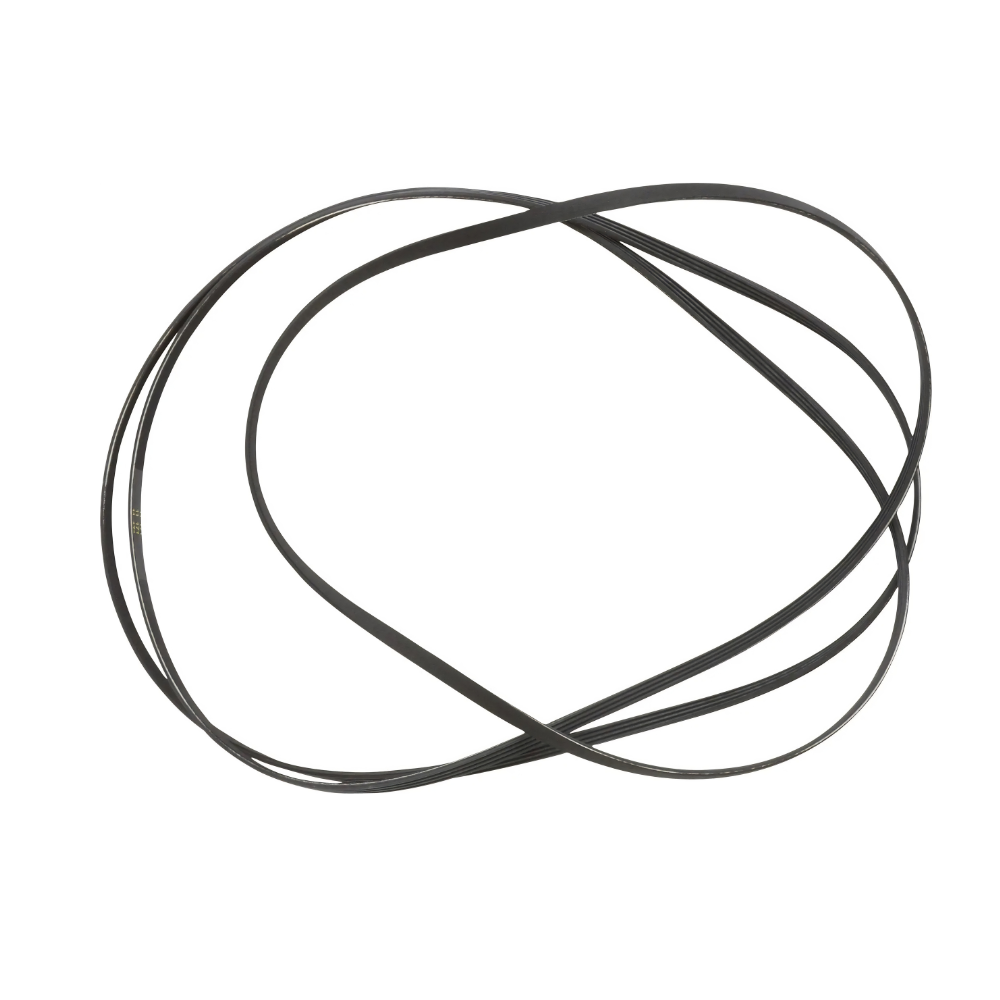

XPARTCO WE03X29897 Dryer Drum Belt
The XPARTCO WE03X29897 is an aftermarket replacement drum drive belt for GE, Hotpoint, and Kenmore dryers. It is a four-rib belt, approximately 89-1/2 inches long, that wraps around the drum, the tension pulley, and the drive motor pulley, so the motor can turn the drum. A worn, stretched, or broken belt can cause noise, a drum that won't turn, or a dryer that won't start.
This is a direct-fit aftermarket replacement for the original GE belt. Because the drum has to be moved to fit a new belt, it is also a good time to inspect the tension pulley, idler, and drum rollers and replace any that look worn.
Quick Answer
The XPARTCO WE03X29897 Drum Belt fixes a GE, Hotpoint, or Kenmore dryer whose drum won't turn, that makes a noisy thumping or squealing sound, or that won't start because the belt is worn or broken. Classic symptom: the dryer hums or the motor runs, but the drum stays still.
Common Problems This Part Fixes
- Drum does not turn although the motor runs
- Noisy dryer, with thumping or squealing as the drum turns
- Dryer won't start
- Heat stays on after the drum has stopped
- Visibly stretched, cracked, or broken belt
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This drum belt directly replaces the following part numbers:
WE03X29897, WE12M29, WE12X21574, WE21M29, 559C197P001, 559C197P003, 254C1413P002, 3516321, 4 PH 2275, SH210T, 4975431, WE12M0022, WE12M22, WE12M33, 559C197P004, 559C197P005, 559C197P006, WE120122, AGE25601, AP7012633, EAP10065160, PD00074201, PS16542496
These numbers span several generations of GE's own part numbering for this belt. Confirm against your dryer's parts diagram, or contact our support team, if your model calls out a different number.
Compatibility
This drum belt is listed for GE, Hotpoint, and Kenmore dryers and washer-dryer combos, including these examples:
- GE DBB3300EA0AA, DBLR333EE0CC, DNCK440GG9WC, DWXR473GT5WW
- GE DDC4400T3WH, DRSR495EG0WW, DX2300EB1WW, DX4500EG1WW
- GE 2661532210 and 3636154241, Kenmore 36371542
Note: The models above are a small sample of a list of hundreds, not a full list. Compare your old belt's length to this one (approximately 89-1/2 inches), and contact our support team to verify fit before ordering.
Key Features
- Direct-fit aftermarket drum drive belt for GE, Hotpoint, and Kenmore dryers
- Four-rib design, approximately 89-1/2 inches long
- Wraps around the drum, tension pulley, and motor pulley
- Resolves drum-not-turning, noise, and no-start problems caused by a worn belt
- Straightforward repair, typically 30 minutes to 1 hour
Product Specifications
| Part Number |
XPWE03X29897 |
| OEM Part Number |
WE03X29897 |
| Part Type |
Dryer Drum Drive Belt |
| Condition |
Aftermarket Replacement |
| Belt Length |
Approx. 89-1/2 Inches |
| Belt Profile |
4-Rib |
| Application |
GE, Hotpoint & Kenmore Dryers |
Installation Notes
⚠️ Unplug Power Before Installing Unplug the dryer before beginning, and shut off the gas supply first on gas models. Wear work gloves, as internal parts and cabinet edges can be sharp. Remove the top and front panel as shown in your model's service guide, then slide the drum out, which is easier with a second person. Remove the old belt and route the new belt around the drum, the tension pulley, and the motor pulley as the old one ran, then reassemble in reverse order. Check the tension pulley and drum rollers while the drum is out and replace any that are worn.
Frequently Asked Questions
My dryer runs but the drum won't turn. Is this the part I need?
That is the classic sign of a broken drum belt. If the motor runs and you can turn the drum freely by hand, check the belt first.
How long is this belt?
It is approximately 89-1/2 inches long, with four ribs. Small differences are normal, but if your old belt is a very different length, check your model number before ordering.
Should I replace anything else while the drum is out?
Inspect the tension pulley and the drum rollers or glides. These wear along with the belt, and they are much easier to replace now than later.
Will this fit my dryer?
It is listed for hundreds of GE, Hotpoint, and Kenmore dryers, but the model list above is only a sample. Check your model number against your parts diagram, or contact our support team and we'll verify it before you order.
