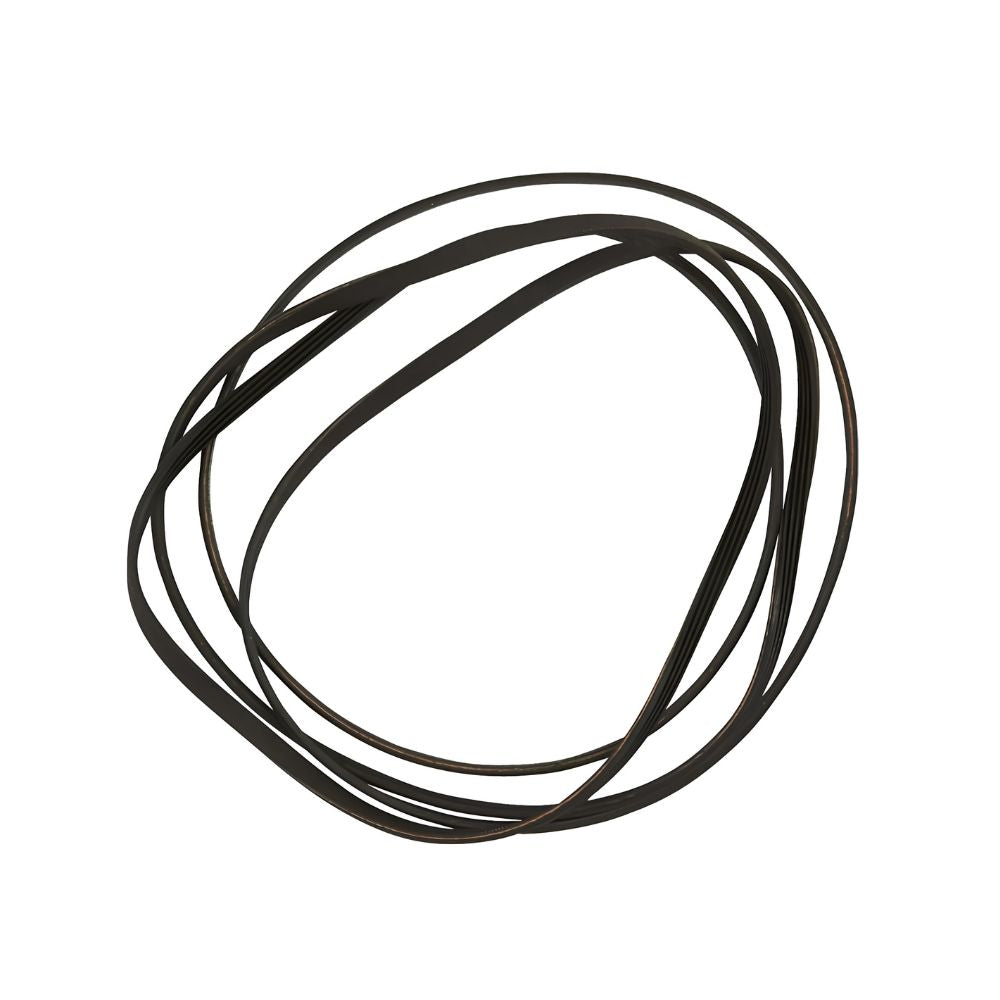

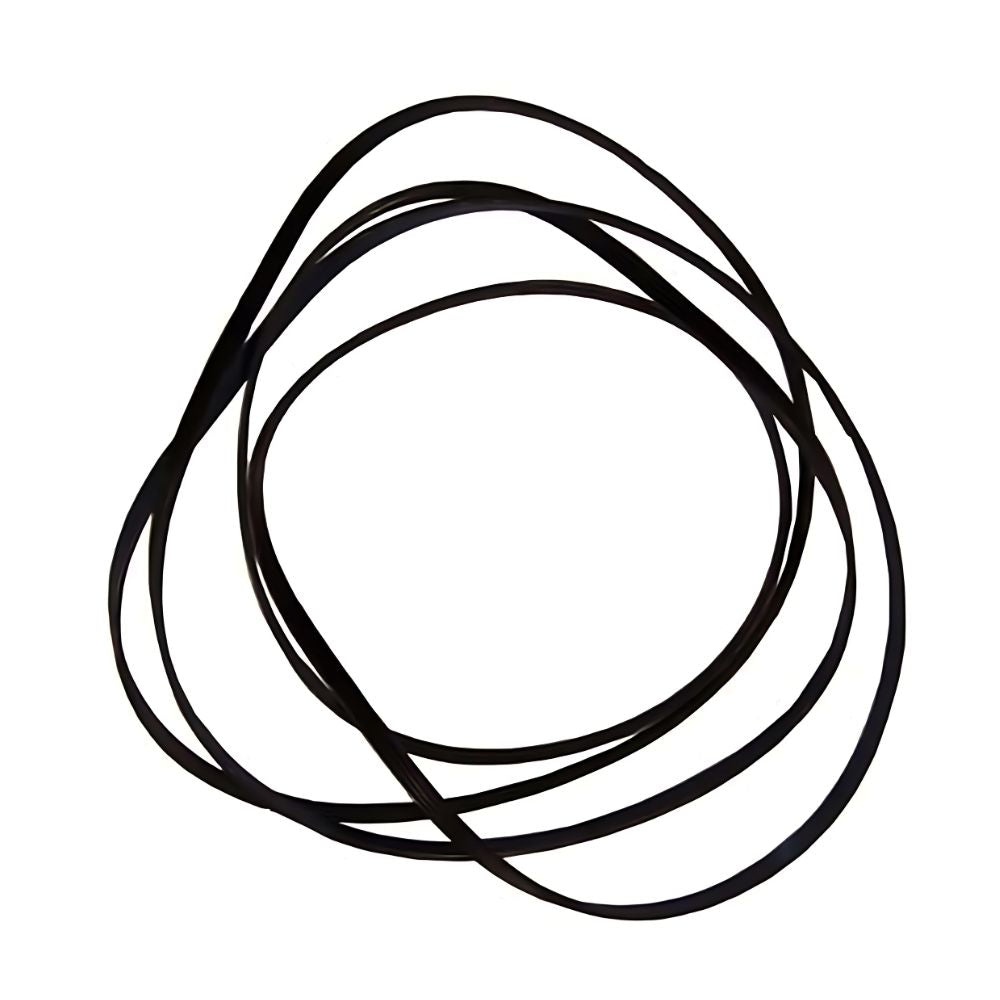

XPARTCO WE03X32037 Dryer Drum Belt Replaces WE12M24
The XPARTCO WE03X32037 is an aftermarket replacement drum drive belt for GE, Hotpoint, and RCA portable, compact, and unitized stack dryers. The belt is a long, slender loop that wraps all the way around the outside of the drum, passes around the idler tension pulley, and finishes around the small drive motor pulley. That belt is the only mechanical link between the motor and the drum — there are no gears and no direct coupling — so when it breaks, the dryer behaves in a very specific way: the console lights up, the motor runs, the blower moves air, and the drum simply sits there. Open the door and spin the drum by hand and it coasts freely with no resistance at all.
This belt measures approximately 79 inches long and about 1/4 inch wide, with a 4-rib multi-groove profile molded into the inner face. The 79" length is the defining specification here — GE uses several visually similar 4-rib dryer belts across its lineup, and the difference between them is length. Belts fail from heat and age: the rubber hardens, the ribs glaze and begin slipping under a heavy wet load, and eventually the belt cracks through or snaps. Fraying edges, a squeal at startup, a rhythmic thump timed to drum rotation, or black rubber dust in the bottom of the cabinet all point to a belt nearing the end of its life. It directly replaces WE12M24, WE12M9, WE12X79, WE12X0079, AP3418890, AP7186820, PS755943, and related numbers. Installs in 45–90 minutes with basic hand tools.
Quick Answer
The XPARTCO WE03X32037 Dryer Drum Belt fixes GE, Hotpoint, and RCA portable, compact, and stack dryers where the motor runs but the drum won't turn, the drum spins freely by hand, or the dryer squeals, thumps, or rumbles during a cycle. Approximately 79" long, 1/4" wide, 4 ribs, black rubber. Fits DDP1370/DDP1375/DDP1380 portable and DSKP333/DSKS333/DSKS433 stack models. Replaces WE12M24, WE12M9, WE12X79, WE12X0079, AP3418890, AP7186820, PS755943. Not the same belt as the 89-1/2" full-size GE WE12M29 — length is what separates them.
Common Problems This Part Fixes
- Dryer runs and hums but the drum does not turn — the classic broken belt symptom
- Drum spins freely by hand with no resistance when the door is open
- Loud squealing or screeching that begins as soon as the cycle starts
- Rhythmic thumping or slapping noise timed to drum rotation — cracked or split belt
- Grinding or rumbling from inside the cabinet as a frayed belt drags
- Drum turns slowly, intermittently, or stalls under a heavy wet load — glazed belt slipping
- Clothes not drying because the drum isn't tumbling to expose them to airflow
- Black rubber dust or belt fragments in the bottom of the cabinet
- Visible cracking, fraying, glazing, or stretching on the old belt
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dryer drum belt directly replaces the following OEM and cross-reference part numbers:
WE03X32037, WE12M24, WE12M9, WE12X79, WE12X0079, AP3418890, AP7186820, PS755943, PS16729246, EAP16729246, AH755943, EA755943, 943874, AGE25647, PD00074729
WE03X32037 is the current GE part number; WE12M24 is the long-running legacy number that most service diagrams and older belts still carry. If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This drum belt is compatible with select portable, compact, and unitized stack dryers from the following brands:
- GE portable and compact electric dryers — DDP1370, DDP1375, and DDP1380 series
- GE unitized stack and Spacemaker laundry centers — DSKP333, DSKS333, and DSKS433 series
- Hotpoint compact and stack dryers (select GE-built models)
- RCA compact and stack dryers (select GE-built models)
- Select Kenmore compact dryers built on the GE platform
Verified model numbers include: DDP1370GAM, DDP1370SAM, DDP1370SBM, DDP1375GAM, DDP1375GBM, DDP1375GCM, DDP1375GDM, DDP1375GEM, DDP1375SAM, DDP1375SBM, DDP1380GAM, DDP1380GBM, DDP1380GCM, DDP1380GDM, DDP1380GFM, DDP1380SAM, DDP1380SBM, DDP1380SCM, DDP1380SDM, DDP1380TAM, DSKP333EC0WH, DSKP333EC0WW, DSKP333EC2WW, DSKP333EC3WW, DSKP333EC4WW, DSKP333EC5WW, DSKP333EC6WW, DSKS333EC0WH, DSKS333EC0WW, DSKS333EC2WW, DSKS333EC3WW, DSKS333EC4WW, DSKS333EC5WW, DSKS333EC6WW, DSKS433EA0AA, DSKS433EB3WW, DSKS433EB5WW, DSKS433EB6WW, and DSKS433EB7WW.
Note — 79" portable/compact belt only: GE uses several visually identical 4-rib dryer belts that differ only in length, and they are NOT interchangeable. This belt is approximately 79 inches, for portable, compact, and stack units. It is NOT the WE12M29 / WE03X29897 belt (89-1/2") used on full-size GE dryers, NOT the WE12X10009 belt (87"), and NOT the WE12X10014 / WE12X42 belt (87-13/16"). Fitting a longer belt leaves slack the idler cannot take up, and the belt will slip or walk off the pulley within minutes. Measure your old belt end to end, or verify your full model number, before ordering. Contact our support team with your model number if you're unsure.
Key Features
- Aftermarket replacement drum drive belt — transfers motor rotation to the dryer drum
- Approximately 79" long, the correct length for GE portable, compact, and unitized stack dryers
- 4-rib multi-groove profile molded into the inner face for positive grip on the motor pulley
- 1/4" width matched to the original belt track and idler pulley
- Durable black rubber construction that resists heat hardening and cracking
- Resolves "motor runs but drum won't turn," "squealing," "thumping," and "drum spins freely by hand" symptoms
- Multi-rib design prevents slipping under heavy wet loads where a worn belt would stall
- Direct drop-in replacement — no cutting, splicing, or modification required
- Replaces WE12M24, WE12M9, WE12X79, WE12X0079, AP3418890, AP7186820, PS755943, AH755943, EA755943, and 943874
- Compatible with GE, Hotpoint, RCA, and select Kenmore compact and stack dryers
- Aftermarket replacement built to OEM-equivalent quality standards
- Straightforward DIY repair — installs in 45–90 minutes with basic hand tools
Product Specifications
| Part Number |
XPWE03X32037 |
| OEM Part Number |
WE03X32037 (formerly WE12M24) |
| Part Type |
Dryer Drum Drive Belt |
| Condition |
Aftermarket Replacement |
| Application |
GE Portable, Compact, and Unitized Stack Dryers |
| Length |
Approx. 79 in. |
| Width |
1/4 in. |
| Ribs |
4 ribs / 3 grooves |
| Material |
Rubber |
| Color |
Black |
| Rib Orientation |
Ribbed side faces the drum |
| Routing |
Around drum → idler tension pulley → drive motor pulley |
| Fuel Type |
Electric and gas dryers |
| Quantity |
1 belt |
| Compatible Brands |
GE, Hotpoint, RCA, select Kenmore |
Installation Notes
⚠️ Unplug Dryer Before Starting — Photograph Belt Routing First Disconnect power at the outlet or shut off the circuit breaker before beginning. On a gas model, also close the gas shutoff valve before moving the cabinet. Wear work gloves — the sheet metal edges inside the cabinet are sharp. Before removing anything, photograph how the old belt routes around the drum, around the idler tension pulley, and around the motor pulley. If the belt is already broken and the routing isn't visible, note that the ribbed side of the belt faces toward the drum, with the smooth back riding against the idler pulley. Access on these compact and stack units is generally from the front: remove the top panel, then the control panel and front panel, which frees the drum enough to lift or tilt it forward. Vacuum out accumulated lint while the cabinet is open — restricted airflow and lint packed around the motor are what cook belts prematurely. Slip the new belt around the drum roughly one-third of the way back from the front lip, ribbed side against the drum, and seat it in the polished wear track the old belt left behind. Reach underneath, route the belt around the idler pulley, then loop it around the small motor pulley. Useful trick: tape the belt loosely to the drum with a strip of masking tape before you reach underneath, so it can't slide off while you work the idler into position. Many GE idler arms have a locked or pre-loaded position — if yours does, remember to release it after the belt is seated, or the belt will have no tension and the drum will stall under load. Once routed, rotate the drum several full turns by hand and confirm the belt tracks straight and stays centered without walking toward an edge. While you're in there, spin the idler pulley and each drum roller by hand; if any is noisy, gritty, or has side-to-side play, replace it now, because a seized idler or flat-spotted roller will destroy the new belt quickly. Reassemble, restore power, and run a short empty cycle listening for squeal or thump before loading it. Tools needed: Phillips screwdriver, nut driver or socket set, putty knife, masking tape, flashlight, work gloves.
Frequently Asked Questions
How do I confirm the belt is broken and not the motor?
With the dryer unplugged, open the door and try to spin the drum by hand. An intact belt gives firm resistance, because you're turning the motor and idler through the belt. If the drum coasts freely like a bicycle wheel, the belt is broken or has jumped off its pulleys. Sound is the other tell: with a broken belt the motor hums and the blower whooshes normally, so the dryer sounds like it's running perfectly while the drum sits still. A failed motor usually buzzes and does nothing, or trips the breaker outright.
What's the difference between WE03X32037 and WE12M24?
They are the same belt across production revisions. WE12M24 was the long-running legacy GE number and WE03X32037 is the current number that supersedes it. If your dryer's parts diagram or the old belt itself shows WE12M24, WE12M9, WE12X79, or WE12X0079, this listing is the correct replacement. The remaining cross-references (AP3418890, AP7186820, PS755943, AH755943, EA755943, 943874) are catalog identifiers used by various parts distributors for the same belt.
Can I use a longer GE belt if this one is out of stock?
No. GE's 4-rib dryer belts look nearly identical and differ mainly in length, which is precisely why they get substituted by mistake. This belt is about 79"; the full-size GE belt WE12M29 is 89-1/2", and WE12X10009 and WE12X10014 are around 87". On a compact or portable drum, that extra 8 to 10 inches is far more slack than the idler arm can absorb, so the belt runs loose, slips on the motor pulley, and typically walks off within minutes. If you're unsure, lay your old belt flat in a loop and measure its circumference before ordering.
Which way do the ribs face?
On this GE platform the ribbed side faces toward the drum, so the ribs grip the drum surface while the smooth back of the belt rides against the idler pulley. This is worth stating plainly because rib orientation is not universal across manufacturers — some other platforms run the grooves against the motor pulley instead. Whenever possible, photograph the old belt before removing it. The polished wear track on the drum will also show you exactly where the belt is meant to sit.
The dryer squeals but the drum still turns. Belt or something else?
Could be either, and it's worth diagnosing before you order. A glazed or hardening belt squeals as it slips on the motor pulley, usually loudest at startup and under a heavy wet load. But a dry idler pulley bearing makes a very similar squeal, and worn drum rollers add a low rumble underneath. With the cabinet open, spin the idler and each roller by hand — they should turn smoothly and silently. If they're gritty, noisy, or have play, replace them along with the belt, since they share the same teardown and you'd otherwise be opening the dryer twice.
Why did my belt fail in the first place?
Usually heat and age — rubber hardens over years of thermal cycling until it cracks. Two things accelerate it sharply. Restricted airflow from a lint-clogged vent makes the whole cabinet run far hotter than designed, which cooks the belt. And a seized idler pulley or a flat-spotted drum roller forces the belt to drag against a stationary surface, shredding it in short order. If your belt failed unusually early, clean the vent ducting end to end and inspect the idler and rollers rather than assuming the new belt will simply last longer.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the dimensions (approximately 79" length, 1/4" width), 4-rib profile, rubber construction, and drum-drive function of the original WE03X32037 / WE12M24 belt used in compatible GE, Hotpoint, RCA, and related portable, compact, and unitized stack dryers.
