XPARTCO WE03X37317 - WE03X37318 Dryer Drum Glide Set
The XPARTCO WE03X37317 - WE03X37318 is an aftermarket replacement drum glide set for GE and Hotpoint dryers, also used on select Whirlpool and Kenmore dryers and washer-dryer combos. These plastic bearing slides are the wear pads at the front of the dryer that the drum rides on as it turns. As they wear down, the drum no longer sits and rolls smoothly, and the dryer starts to squeak, squeal, or rumble. In worse cases the drum catches or drags, and clothes can get snagged or marked between the drum and the front frame.

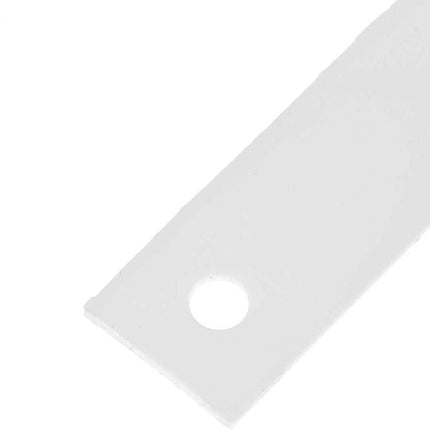

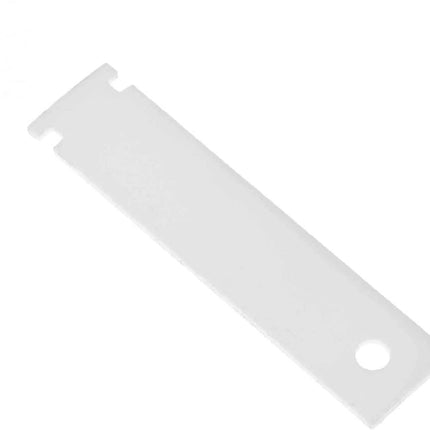

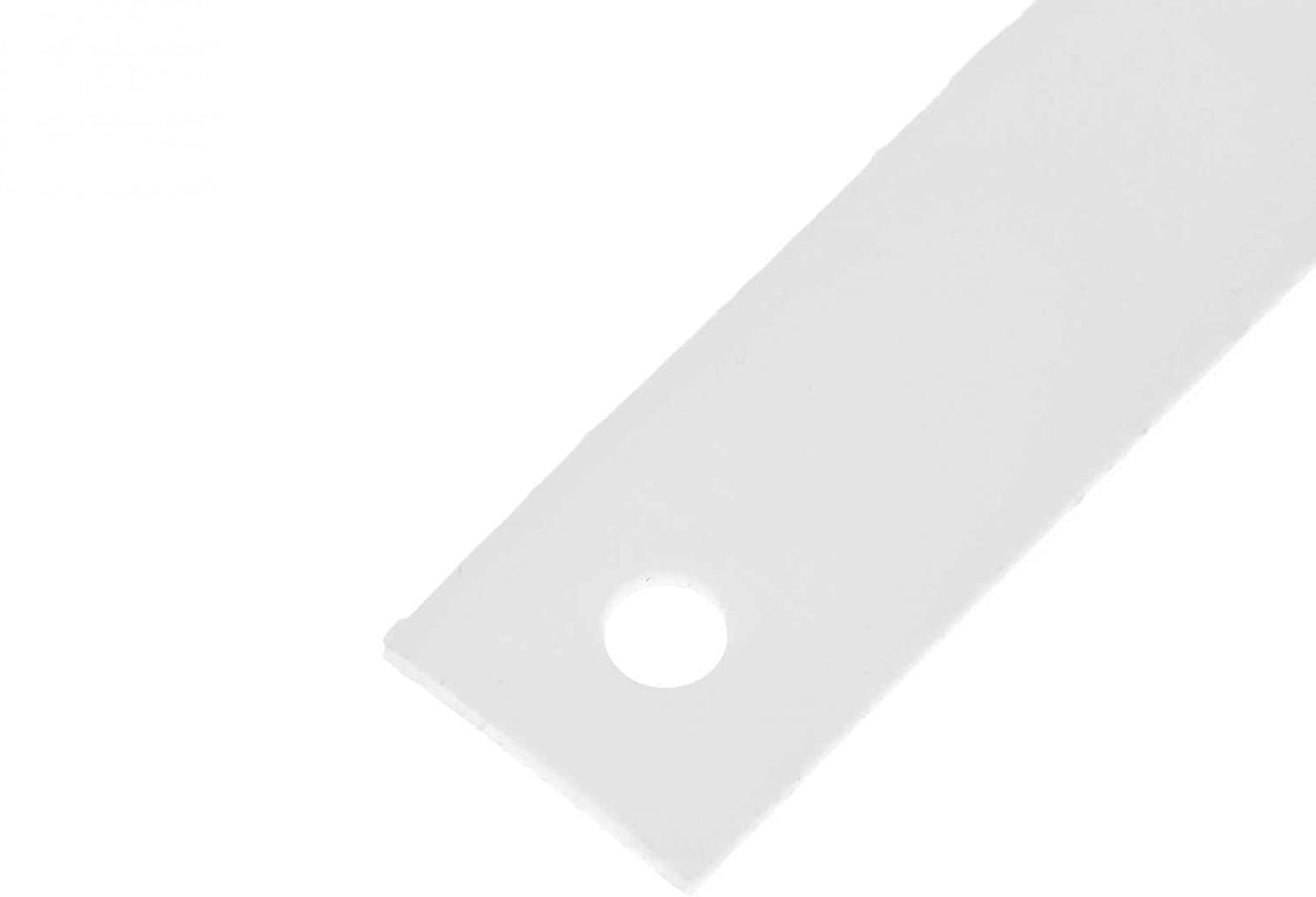

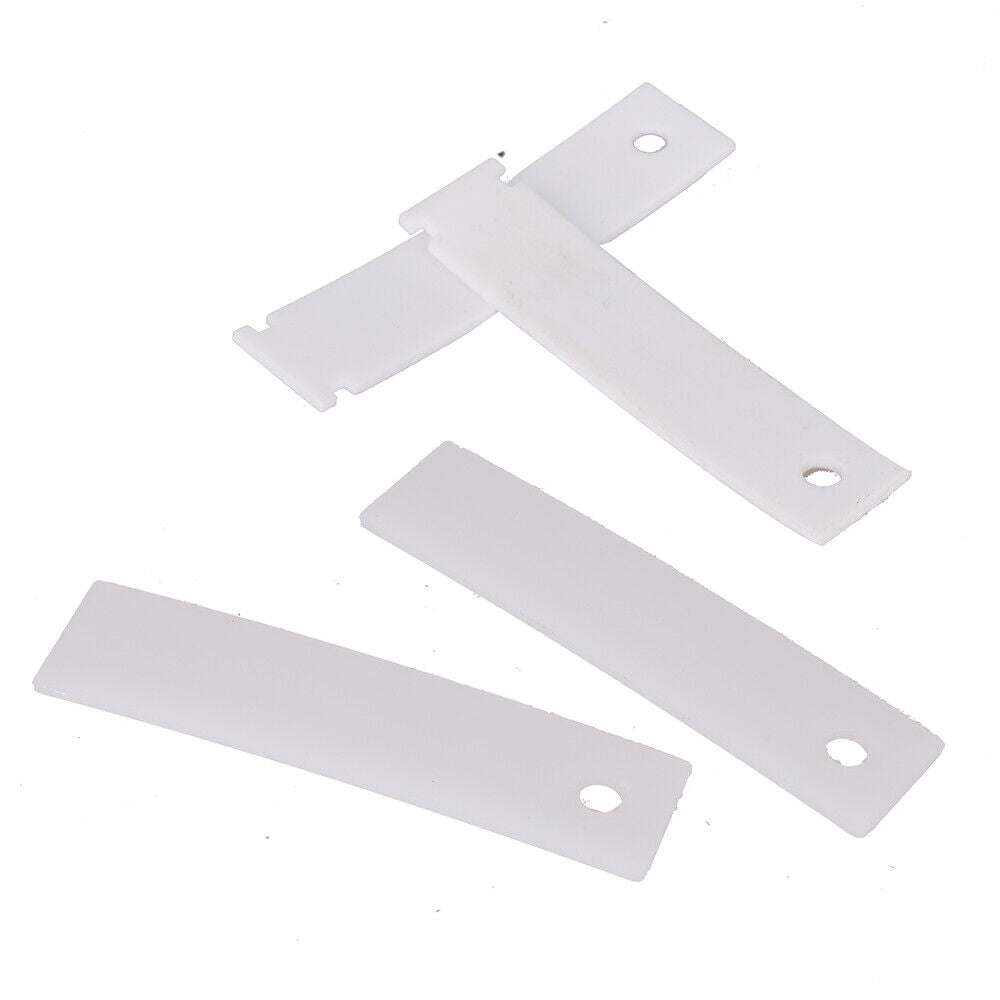

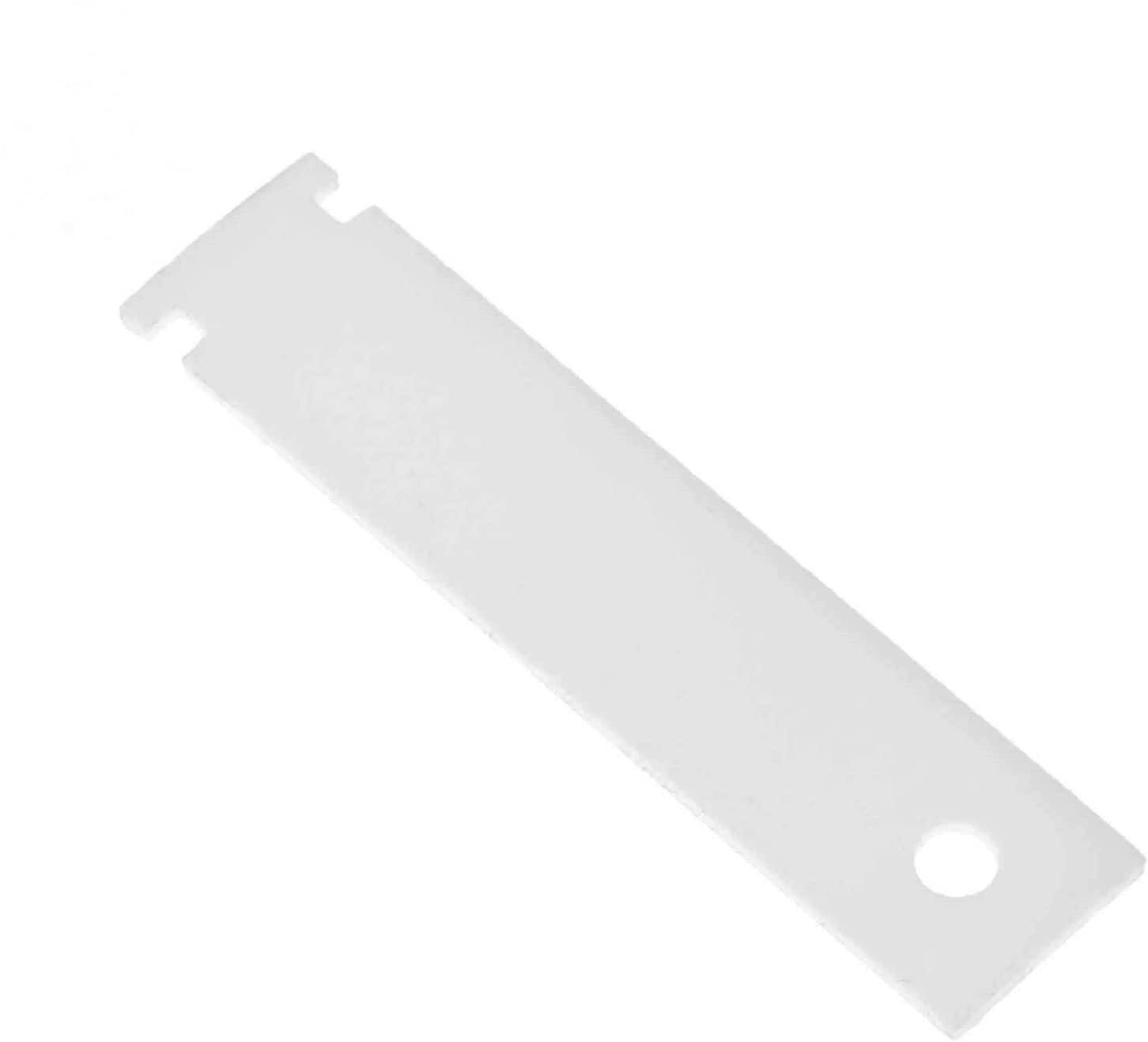

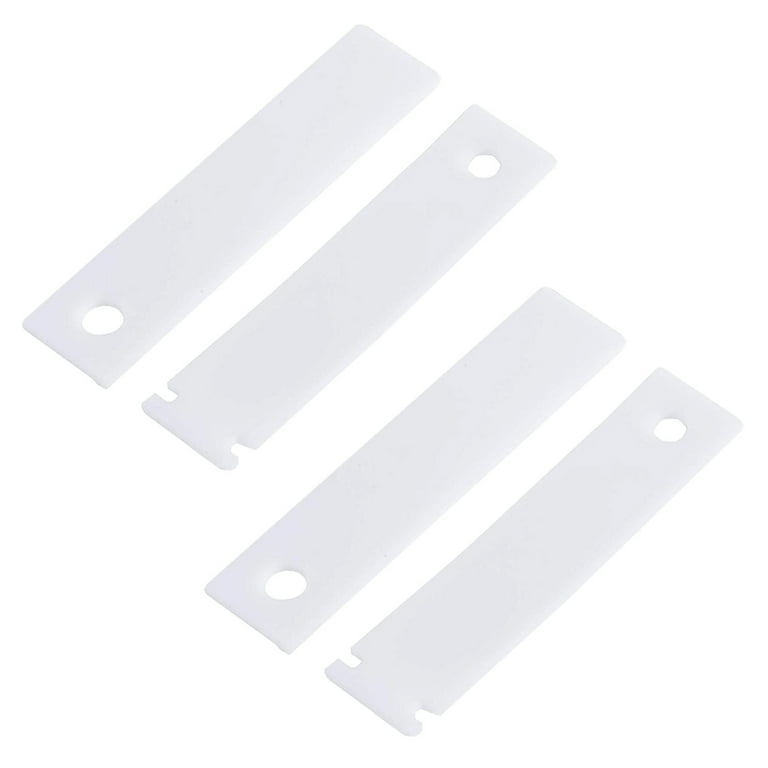

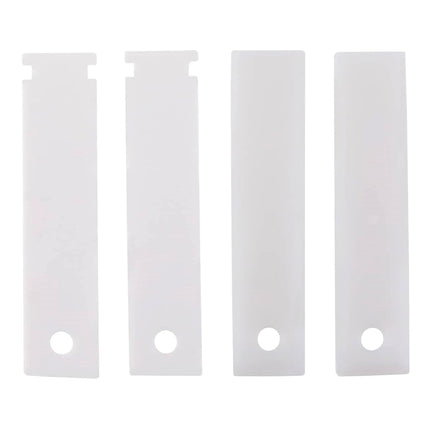

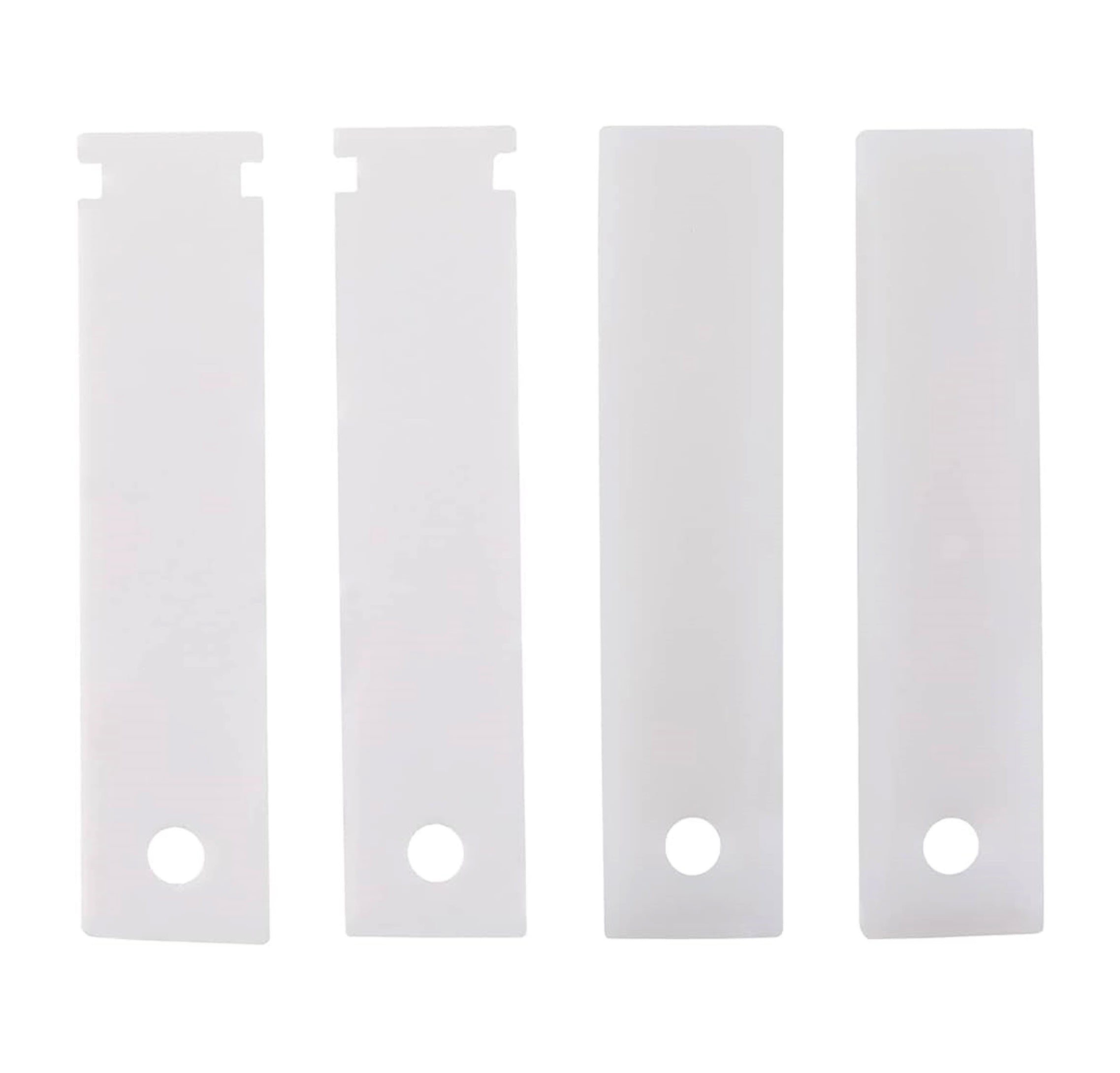

This set pairs both glide types used on these dryers: the WE03X37317 and the WE03X37318 front bearing slides. Because the slides wear at the same rate, replacing them together restores smooth, quiet drum rotation and avoids a repeat repair. Easy to install, typically 30–60 minutes.
Quick Answer
The XPARTCO WE03X37317 - WE03X37318 Drum Glide Set fixes a GE or Hotpoint dryer that squeaks, squeals, or rumbles loudly as the drum turns, or whose drum drags or catches. Replaces both the WE03X37317 and WE03X37318 front bearing slides. Classic symptom: a loud squeal or scraping noise from the drum area that gets worse over the cycle, sometimes with marks or snags on clothes.
Common Problems This Part Fixes
- Loud squeaking, squealing, or scraping noise while the drum tumbles
- Drum not spinning smoothly, or dragging and catching
- Marks, wrinkles, or snags on clothes from items catching between the drum and the front frame
- Excessive drum noise during drying cycles
- Visibly worn, thin, or chewed-up plastic glides at the front of the drum
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This glide set replaces the following part numbers:
WE03X37317, WE1M1067, WE01M0316, WE03X37317-50PK, WE1M1067-100PK, WE1M316, WE1M481, WE1M507, AGE25692, AP5668531, AP7217723, FIX17137203, PD00089026, PS6447706, PS17137203, WE03X37318, WE1M504, WE01M0333, WE1M333, TJDE504, TJWE1M333, DE504, DE775, TJDE775, AH755842, EA755842, ERWE1M333, AGE25703, AP7217724, PD00088960, PS17137205

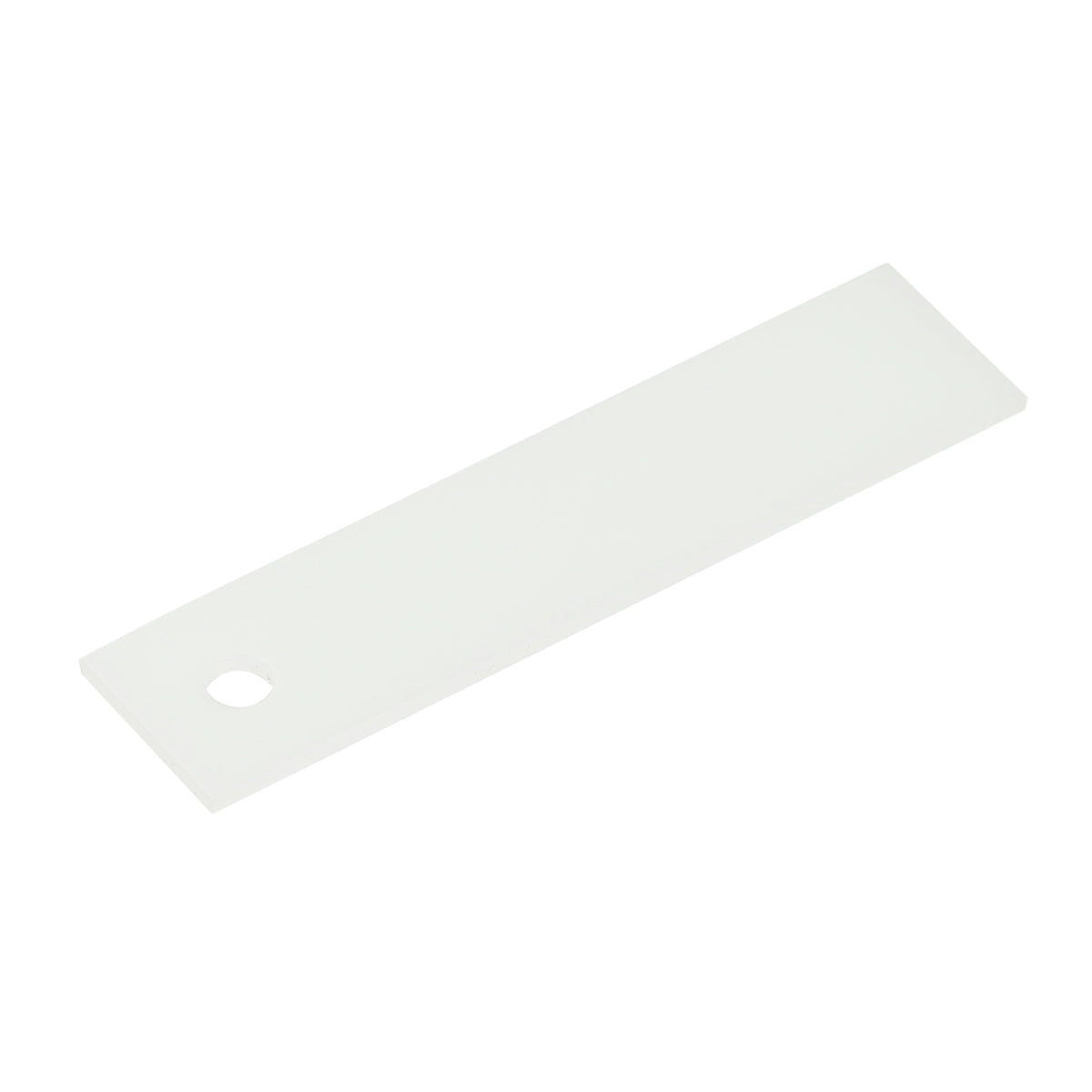

The first group of numbers (WE03X37317, WE1M1067, WE1M316, WE1M481, WE1M507, AP7217723, PS17137203) is for the gray glide. The second group (WE03X37318, WE1M504, WE01M0504, WE01M0333, WE1M333, AP7217724, PS17137205) is for the white glide. The AP/PS-prefixed numbers are third-party catalog cross-references for the same physical parts.
Compatibility
These glides are used on GE, Hotpoint, Whirlpool, and Kenmore dryers and washer-dryer combos, including models such as:
- GE 61140418, 61140419, 61148418, 61148419
- Numerous additional GE and Hotpoint dryer and washer-dryer combo models
Note: These glides fit a wide range of models, so the list above is only a sample. Compare the glides in your dryer, or your parts diagram, against the Replaces list above, or contact our support team with your model number and we'll verify fit before you order.
Key Features
- Aftermarket replacement drum glide set covering both the WE03X37317 and WE03X37318 front bearing slides
- Durable plastic bearing slides that let the drum rotate smoothly
- Resolves squeaking, squealing, and dragging drum symptoms
- Helps prevent clothes from being marked or snagged at the front of the drum
- Replacing both glide types together avoids a repeat repair
- Easy installation — typically 30–60 minutes
Product Specifications
| Part Number |
XPWE03X37317-WE03X37318 |
| OEM Part Number |
WE03X37317, WE03X37318 |
| Part Type |
Dryer Drum Glide (Front Bearing Slide) Set |
| Condition |
Aftermarket Replacement |
| Set Includes |
WE03X37317 and WE03X37318 Front Bearing Slides |
| Material |
Plastic |
| Application |
GE, Hotpoint, Whirlpool & Kenmore Dryers and Washer-Dryer Combos |
Installation Notes
⚠️ Unplug Power Before Installing Unplug the dryer or switch off its circuit breaker, and shut off the gas supply first if it's a gas model. Remove the top and front panels per your model's service guide to expose the front of the drum, and disconnect any wiring that's in the way. Lift or support the drum enough to reach the worn glides, which are held in place at the front bearing support. Pull out the old glides, noting the position and orientation of each, and fit the new ones in the same positions. Reassemble the dryer and spin the drum by hand to confirm it turns smoothly before restoring power. Replace the glides as a set, since they wear at the same rate.
Frequently Asked Questions
My dryer squeals or rumbles loudly while tumbling — is this the part I need?
Worn drum glides are a very common cause of squeaking and scraping from the drum area. If the plastic glides look thin, grooved, or chewed up, replacing them should quiet the dryer and restore smooth rotation. Also check the drum rollers and idler pulley, which can cause similar noises.
Why are there two different part numbers?
GE uses two glide types at the front of the drum: glide (WE03X37317) and glide (WE03X37318). This set covers both, so you can replace the full set in one go.
Should I replace all the glides or just the worn ones?
Replace them together. The glides wear at about the same rate, so if one is worn the others are usually close behind.
Will this fit my Whirlpool or Kenmore dryer?
These glides are cross-listed for select Whirlpool and Kenmore dryers and washer-dryer combos as well as GE and Hotpoint. Compare the part numbers on your parts diagram against the Replaces list, or contact our support team with your model number and we'll confirm.
