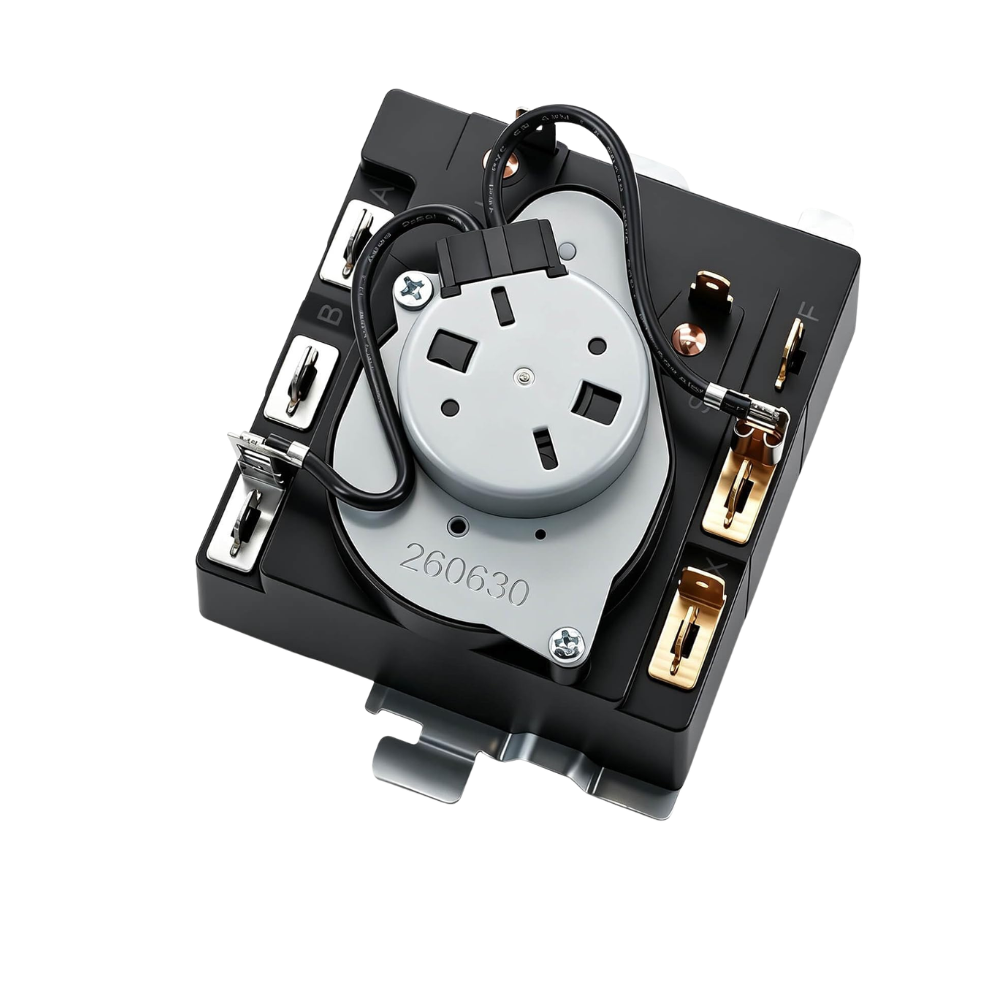

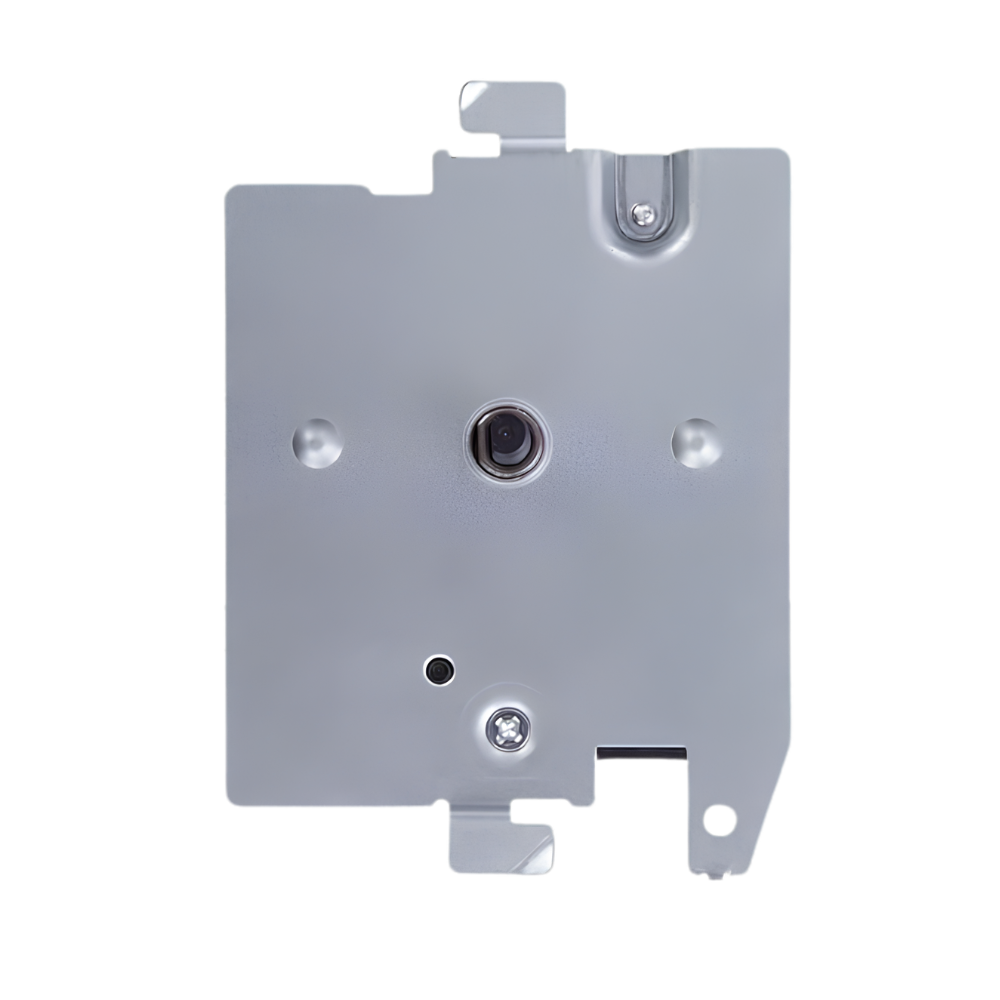

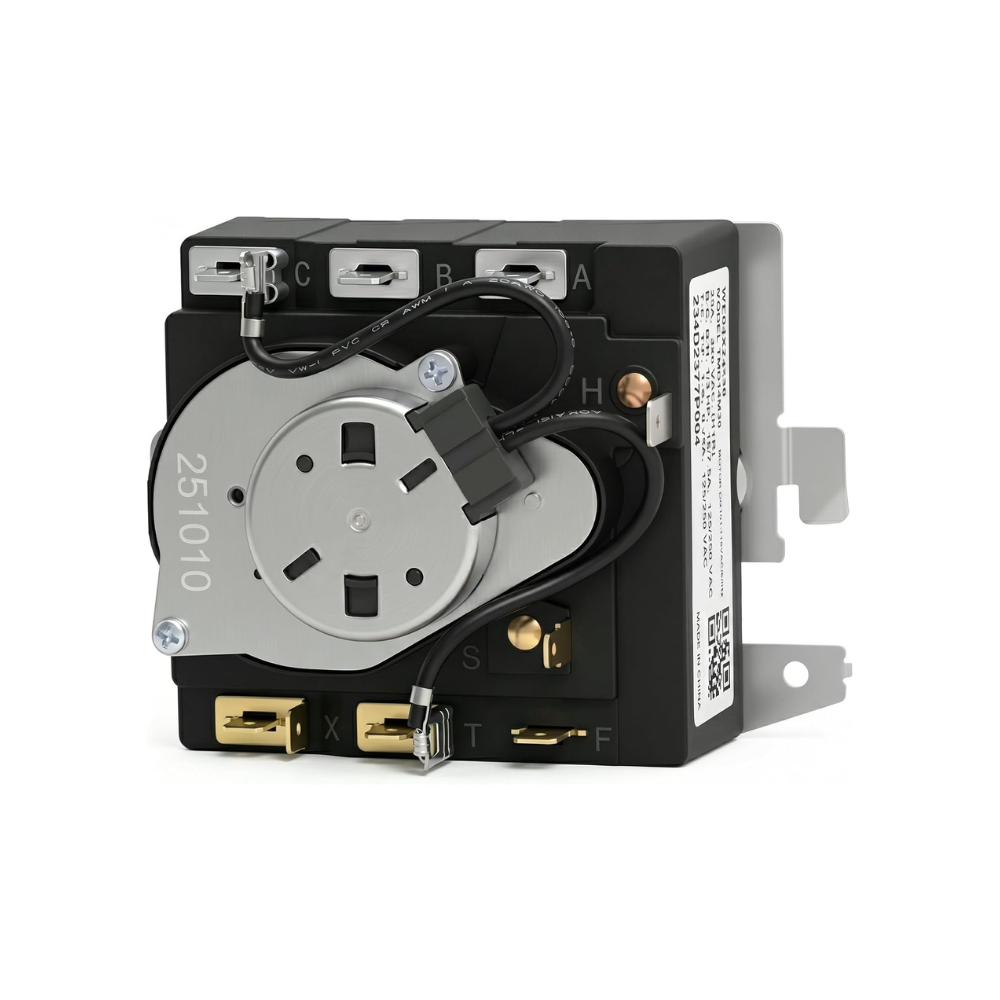

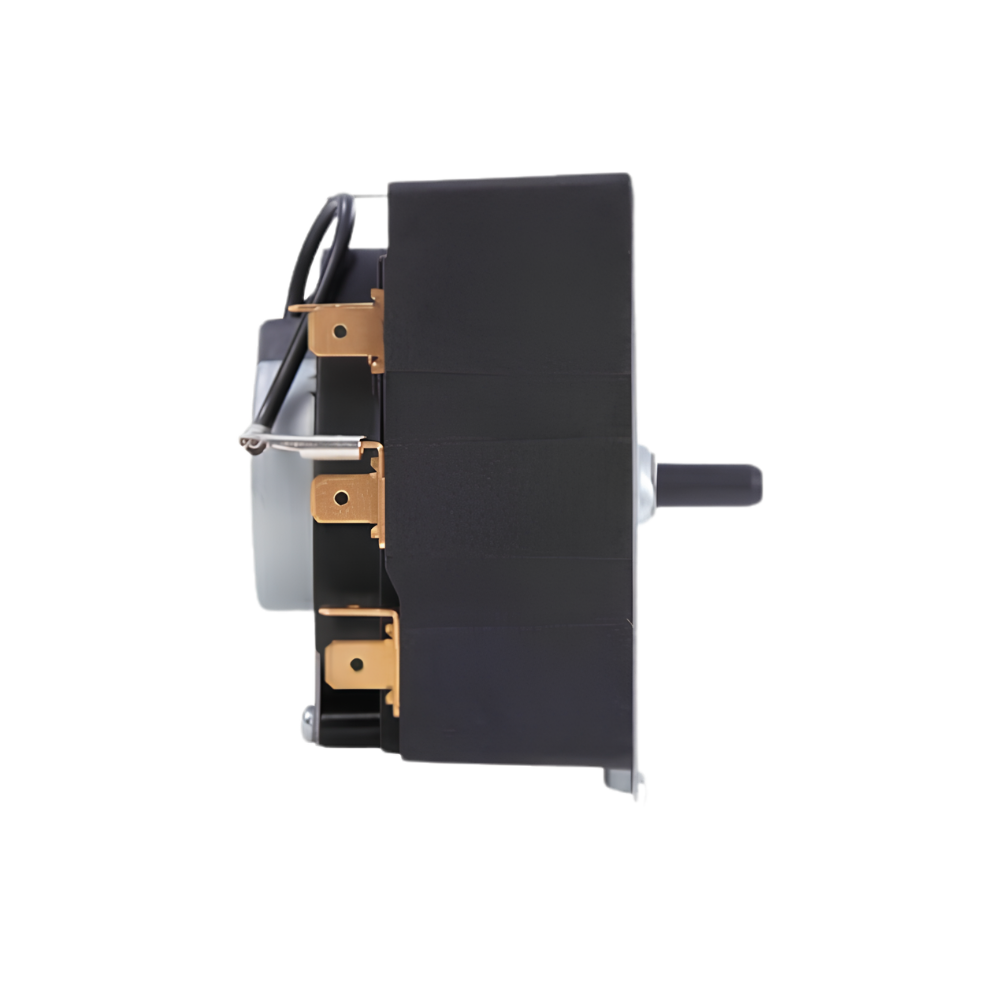

XPARTCO WE04X24550 Dryer Timer
The XPARTCO WE04X24550 is an aftermarket replacement dryer timer for select GE dryers, replacing GE part WE04X24550. The timer controls the dryer's electrical components and the length of each drying cycle. When it fails, the dryer may not start, may stop partway through a cycle, or may not respond to the controls.
A faulty timer is a less common cause of a drum that won't turn, so check the other common parts first. If they test fine, test the timer against your wiring diagram and replace it only if it is defective. Check your model number before ordering.
Quick Answer
The XPARTCO WE04X24550 Dryer Timer replaces the cycle timer on a compatible GE dryer when it has failed. Replaces WE04X24549. Classic symptoms: the dryer starts and then stops, the controls don't work, or the dryer overheats.
Common Problems This Part Fixes
- Dryer starts and then stops
- Dryer controls don't work
- Drum not turning (check other parts first)
- Dryer overheating
- Dryer starts on its own
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dryer timer directly replaces the following part numbers:
WE04X24550, WE04X24549, 234D2377P003, 234D2377P004, 4546121, TMD14M30, TMD16M12, AGE25986, AP6031056, FIX11763064, OEM18093177, PD00039467, PS11763064
If your old timer shows a different number, contact our support team and we'll check whether it matches.
Compatibility
This timer is listed for select GE dryers, including these examples:
- GE GTD42GASJ0WW, GTD42GASJ1WW, GTX42GASJ0WW, GTX42GASJ1WW, GTX42GASJ2WW
- GE GTD42EASJ0WW, GTD42EASJ3WW, GTX42EASJ1WW
- GE GTD48EASW0WB, XTD72E8ST1WS
Note: The models above are a small sample, not a full list. Check your full model number against your parts diagram, or contact our support team to verify fit before ordering.
Key Features
- Aftermarket replacement for the GE WE04X24550 dryer timer
- Controls the dryer's electrical components and cycle length
- Replaces the earlier GE part WE04X24549
Product Specifications
| Part Number |
XPWE04X24550 |
| OEM Part Number |
WE04X24550 |
| Part Type |
Dryer Timer |
| Condition |
Aftermarket Replacement |
| Application |
Select GE Dryers |
Installation Notes
⚠️ Unplug Power Before Installing Unplug the dryer before you begin, and wear work gloves. Remove the console panel to reach the timer, note where each wire connects, and remove the knob and old timer. Install the new timer, reconnect the wiring in the same positions, and refit the knob and console. Restore power and test the dryer.
Frequently Asked Questions
My dryer drum stopped turning. Is this the part I need?
Probably not first. A faulty timer is rarely the cause of a drum that stops turning. Check the drive belt, motor and thermal fuse first. If those work, test the timer with a multimeter against your wiring diagram.
Is this an OEM or aftermarket part?
This is an aftermarket replacement from XPARTCO, made to replace GE part WE04X24550. If you specifically need a genuine GE part, contact our support team.
Will this fit my dryer?
It is listed for select GE dryers, but the model list above is only a sample. Check your full model number against your parts diagram, or contact our support team and we'll verify it before you order.
Is this the same as other GE dryer timers?
Not necessarily. GE uses different timer numbers for different dryers, so match the part number and your model number rather than assuming a similar-looking timer fits.
