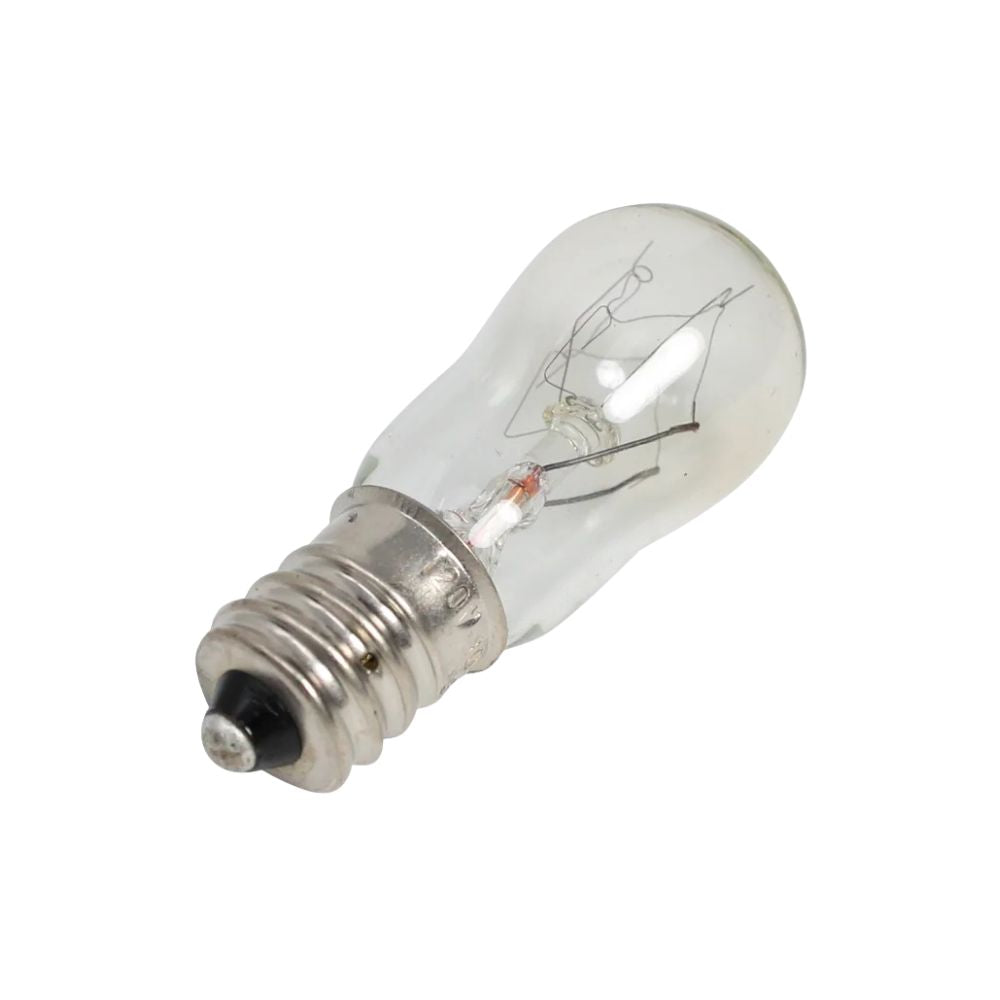

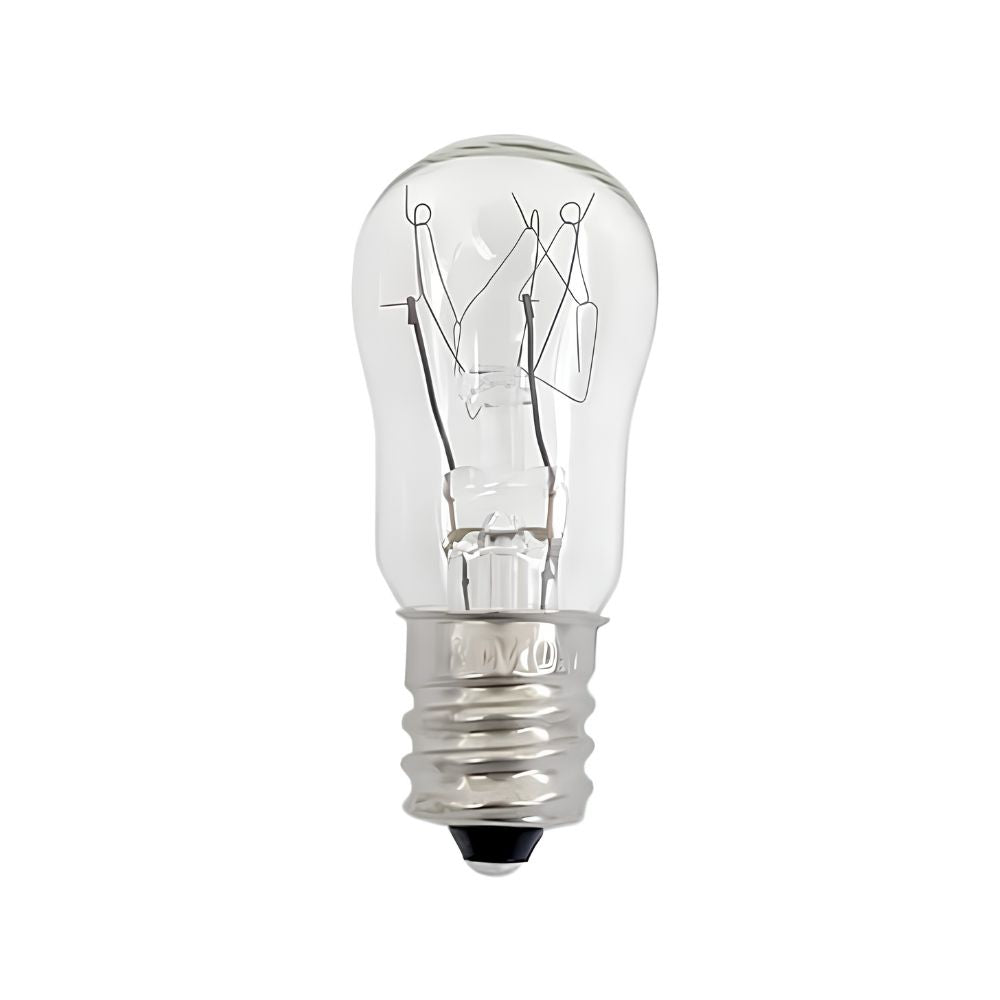

XPARTCO WE05X20431 Dryer Light Bulb
The XPARTCO WE05X20431 is an aftermarket replacement drum light bulb for GE, Hotpoint, Whirlpool, and Kenmore dryers. Also called a drum lamp, this small bulb mounts inside the dryer cabinet and illuminates the drum whenever the door is opened, making it easy to spot small items and confirm the drum is fully empty before starting a new load. It's a simple part, but when it burns out it's easy to notice — you open the door and the interior stays dark.

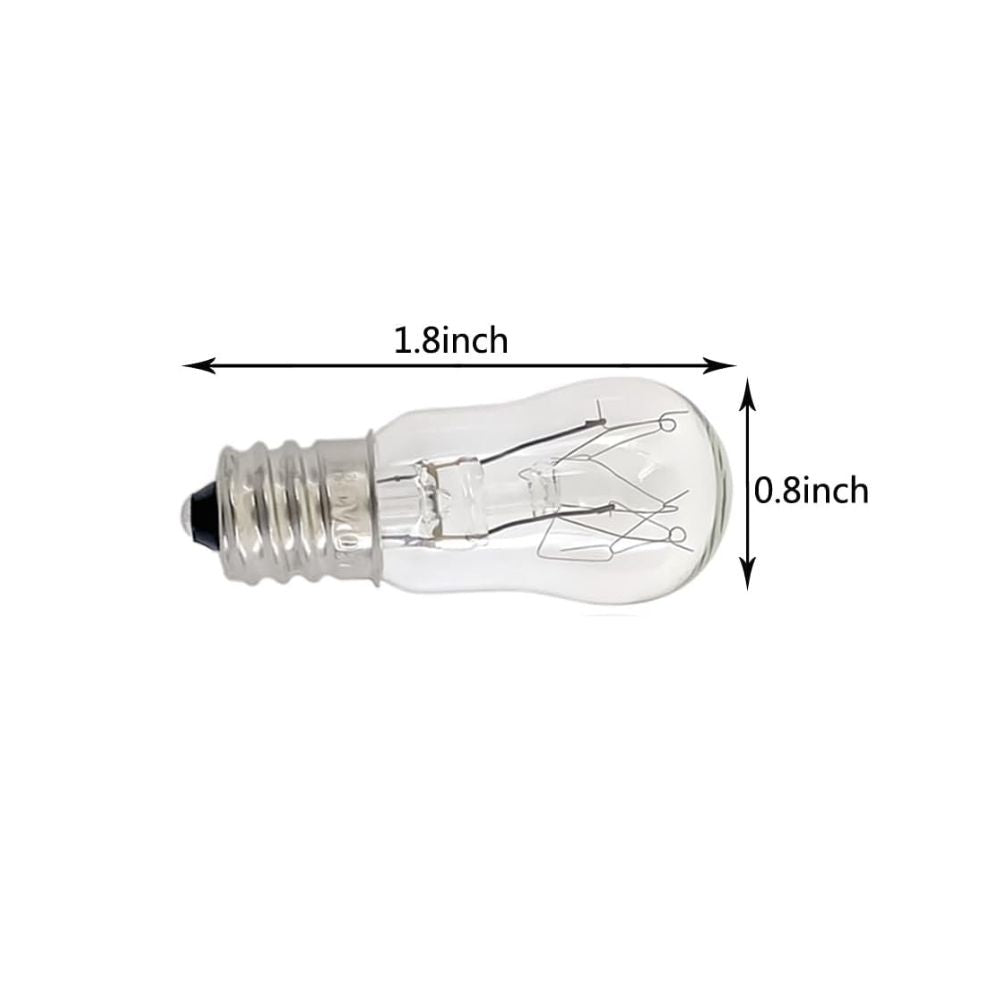

Rated 10W at 120V with an E12 (candelabra) base, measuring approximately 1-5/8"H x 5/8"W x 5/8"D. Like any incandescent bulb, it will eventually burn out from normal use and the heat it's exposed to inside a working dryer. It directly replaces WE4M305, WE4X718, WE04X718, WE04X0718, WE04M0305, AP3794707, AP5956400, 1063664, AH960329, EA960329, PS960329, and PS10063224.
Quick Answer
The XPARTCO WE05X20431 Dryer Light Bulb fixes GE, Hotpoint, Whirlpool, and Kenmore dryers where the interior drum light doesn't turn on when the door is opened. 10W, 120V, E12 base. Replaces WE4M305, WE4X718, WE04X718, WE04X0718, WE04M0305, AP3794707, AP5956400, 1063664, AH960329, EA960329, PS960329, PS10063224. No tools required — the bulb installs at a slight angle, not straight in.
Common Problems This Part Fixes
- Dryer drum light doesn't turn on when the door is opened
- Interior lighting is dim, flickering, or inconsistent
- Bulb has visibly burned out or gone dark
- Difficulty seeing small items left in the drum before starting a load
- Light worked before but stopped after normal use over time
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dryer light bulb directly replaces the following OEM and cross-reference part numbers:
WE05X20431, WE4M305, WE4X718, WE04X718, WE04X0718, WE04M0305, AP3794707, AP5956400, 1063664, EAP10063224, PS10063224, AGE25386, PD00028741
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This drum light bulb is compatible with select GE and Hotpoint dryers, and also fits select Whirlpool and Kenmore dryers using the same E12-base bulb, including model numbers such as GTD42EASJ2WW and DCVH680GJ2MS.
Note: Always verify your full model number before ordering, since dryer light bulbs vary in base type and wattage across different platforms. Contact our support team with your model number if you're unsure.
Key Features
- Aftermarket replacement drum light bulb — illuminates the dryer interior when the door is opened
- Resolves "light doesn't turn on," "dim or flickering light," and "burned-out bulb" symptoms
- 10W, 120V, E12 (candelabra) base
- Compact size: approximately 1-5/8"H x 5/8"W x 5/8"D
- Built to withstand the heat and vibration of normal dryer operation
- No tools required — simple screw-in installation
- Replaces WE4M305, WE4X718, WE04X718, WE04X0718, WE04M0305, AP3794707, AP5956400, 1063664, AH960329, EA960329, PS960329, and PS10063224
- Compatible with GE, Hotpoint, Whirlpool, and Kenmore dryers
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Part Number |
WE05X20431 |
| OEM Part Number |
WE05X20431 |
| Part Type |
Dryer Drum Light Bulb (Drum Lamp) |
| Condition |
Aftermarket Replacement |
| Wattage |
10 W |
| Voltage |
120V |
| Base Type |
E12 (candelabra) |
| Dimensions |
1-5/8"H x 5/8"W x 5/8"D |
| Repair Difficulty |
Very Easy — no tools required |
| Quantity |
1 bulb |
| Compatible Brands |
GE, Hotpoint, Whirlpool, Kenmore |
Installation Notes
⚠️ Unplug Dryer Before Starting — Let The Old Bulb Cool First Disconnect power at the outlet or shut off the circuit breaker before beginning. If the dryer was recently run, allow the bulb to cool before touching it. Locate the light fixture inside the top section of the dryer interior. Unscrew the old bulb by turning it three to four turns to release it from the socket. When installing the new bulb, it cannot be screwed straight in — lean it at roughly a 45-degree angle to engage the socket threads, then turn it to seat and tighten. Avoid touching the glass directly with bare fingers if possible, since oils can shorten bulb life. Restore power and open the dryer door to confirm the light turns on. Tools needed: none.
Frequently Asked Questions
Why won't the new bulb screw in straight?
This is normal for this fixture — the socket is angled, so the bulb needs to go in at roughly a 45-degree tilt to catch the threads properly rather than straight on. Once you find that angle, it threads in and seats normally.
Do I need any tools to replace this bulb?
No. This is a simple screw-in bulb replacement with no tools required — just unplug the dryer, unscrew the old bulb, and screw in the new one at the correct angle.
The light still doesn't work after I replaced the bulb. What else could it be?
If a new bulb doesn't resolve the issue, check the door switch that controls the light circuit, and confirm the socket and wiring aren't damaged. These are separate components from the bulb itself and would need to be diagnosed independently.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the wattage, voltage, base type, and dimensions of the original WE05X20431 bulb used in compatible GE, Hotpoint, Whirlpool, and Kenmore dryers.
