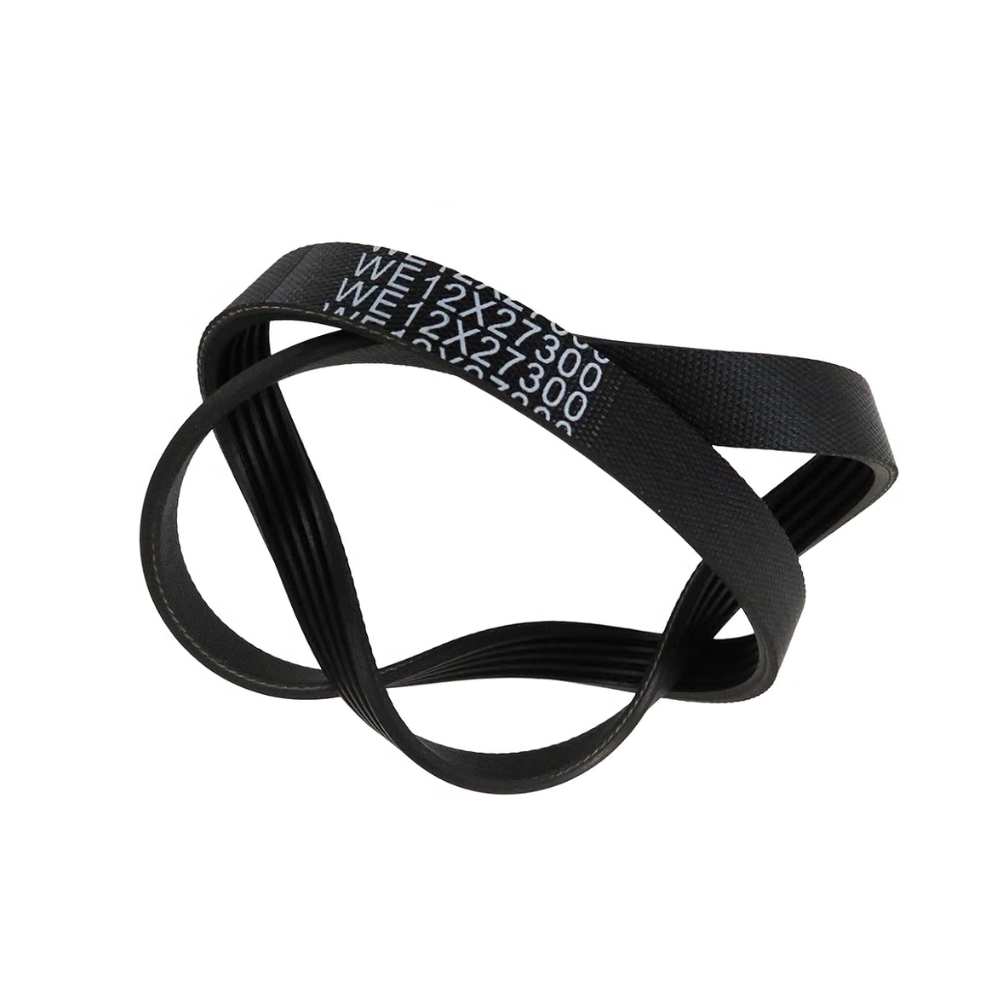

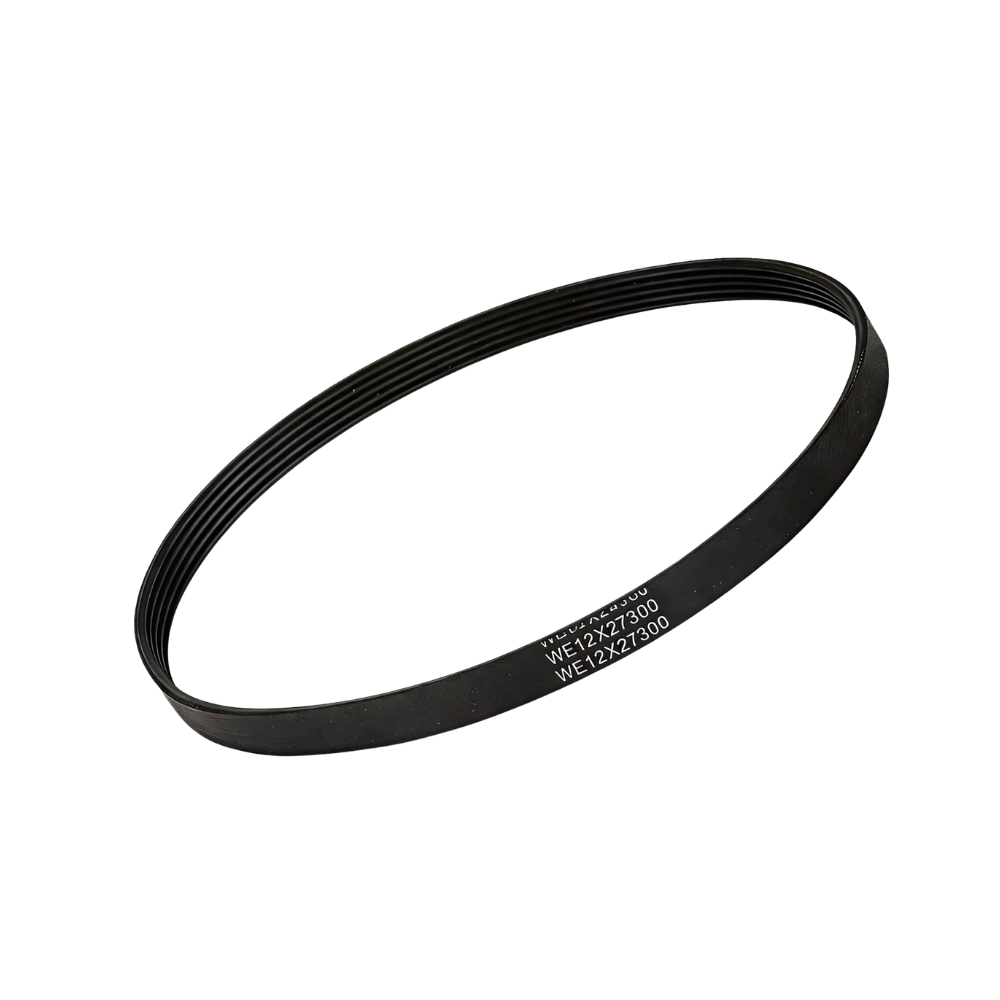

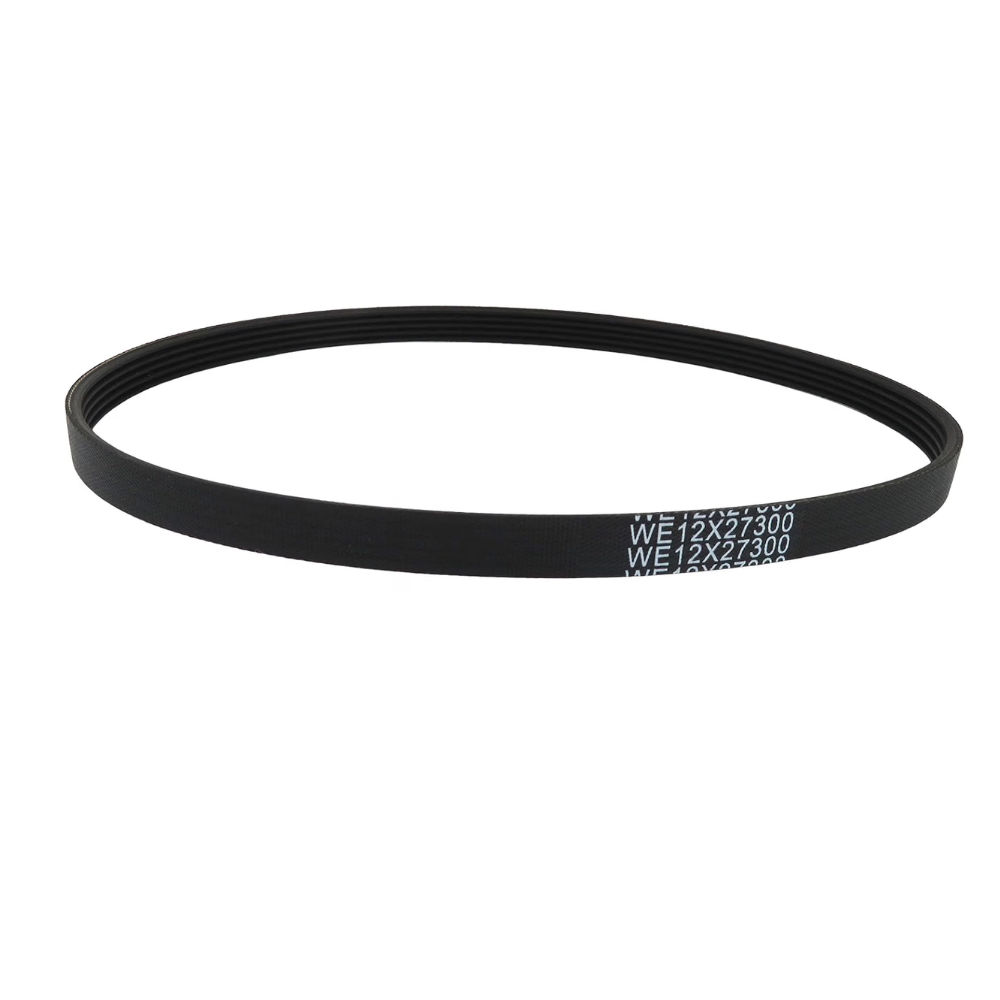

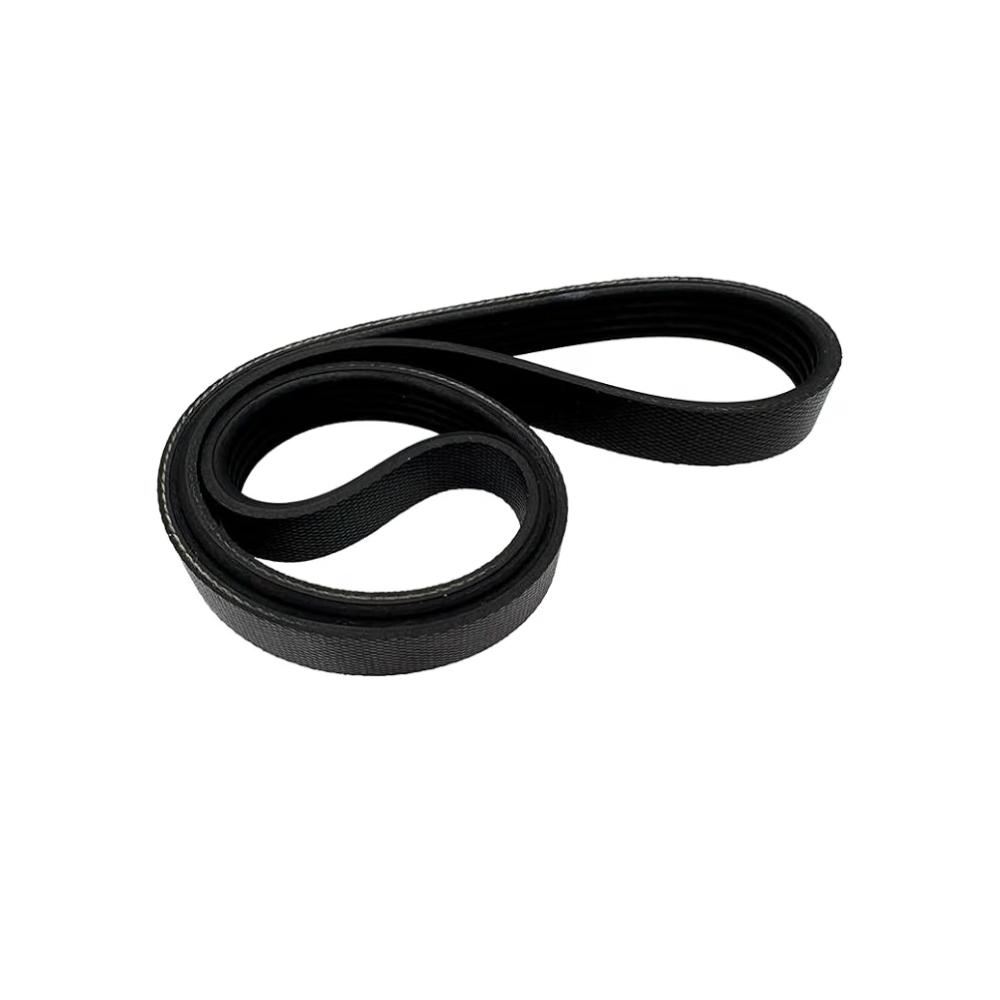

XPARTCO WE12X27300 Washer Drive Belt
The XPARTCO WE12X27300 is an aftermarket replacement washer drive belt for GE stacked laundry center (combination washer/dryer) units, and also fits select Whirlpool, Amana, Hotpoint, Haier, and Kenmore combo models. This belt connects the motor pulley to the washer's drive system, transmitting rotation to spin the basket during agitation and spin cycles.
Made of neoprene rubber for corrosion resistance, low temperature resistance, wear resistance, and stability. Measures approximately 23" long, 0.5" wide, and 0.12" thick. Over time, the belt stretches, cracks, or wears through from age and regular use. Symptoms of a failing belt include the washer spinning extremely slowly, the washer failing to agitate, excessive noise during operation, or complete belt failure leaving the basket unable to move at all. It directly replaces 4587578, AP6328196, PS12342956, EAP12342956, FIX12342956, 253C1275P001, 5PJ587SJ161, WE12X27300-50PK, AGE25036, and PD00054473.
Quick Answer
The XPARTCO WE12X27300 Washer Drive Belt fixes GE, Whirlpool, Amana, Hotpoint, Haier, and Kenmore stacked laundry center units where the washer spins extremely slowly, won't agitate, or makes excessive noise. Neoprene rubber, approx. 23" long, 0.5" wide, 0.12" thick. Replaces 4587578, AP6328196, PS12342956, EAP12342956, FIX12342956, 253C1275P001, 5PJ587SJ161, WE12X27300-50PK, AGE25036, PD00054473. This is a laundry center (combo unit) belt — a different application from a standalone washer belt. Since a worn belt sometimes runs alongside a failing speed sensor, it's worth checking that component too if the belt has clearly worn out.
Common Problems This Part Fixes
- Washer spinning extremely slowly
- Washer failing to agitate
- Excessive noise during operation
- Belt completely failed — basket not moving at all
- Inconsistent or jerky basket movement
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer drive belt directly replaces the following OEM and cross-reference part numbers:
WE12X27300, 253C1275P001, 4587578, 5 PJ 587 SJ161, 5PJ587SJ161, AGE25036, AP6328196, EAP12342956, FIX12342956, PD00054473, PS12342956
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This washer drive belt is compatible with select GE stacked laundry center units, and also fits select Whirlpool, Amana, Hotpoint, Haier, and Kenmore combo units built on the same platform, including model numbers such as GUD24ESSM0WW, GUD24ESSM1WW, GUD27ESSM0WW, GUV27ESSM0WW, GUV27ESSM1WW, GUD24GSSM0WW, GUD24GSSM1WW, GUD27GSSM0WW, GUD27GSSM1WW, GUD27GSSM2WW, GUD27ESPM0DG, GUD27ESPM1DG, GUD27GSPM0DG, GUD27GSPM1DG, GUD27EESN0WW, and GUD27GESN0WW.
Note: This is a laundry center (stacked washer/dryer combo) belt, distinct from standalone GE washer belts like WH01X24180 or WH01X24697. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
- Aftermarket replacement washer drive belt for laundry center (combo) units
- Resolves "spins extremely slowly," "won't agitate," and "excessive noise" symptoms caused by belt failure
- Neoprene rubber — corrosion resistant, low temperature resistant, wear resistant

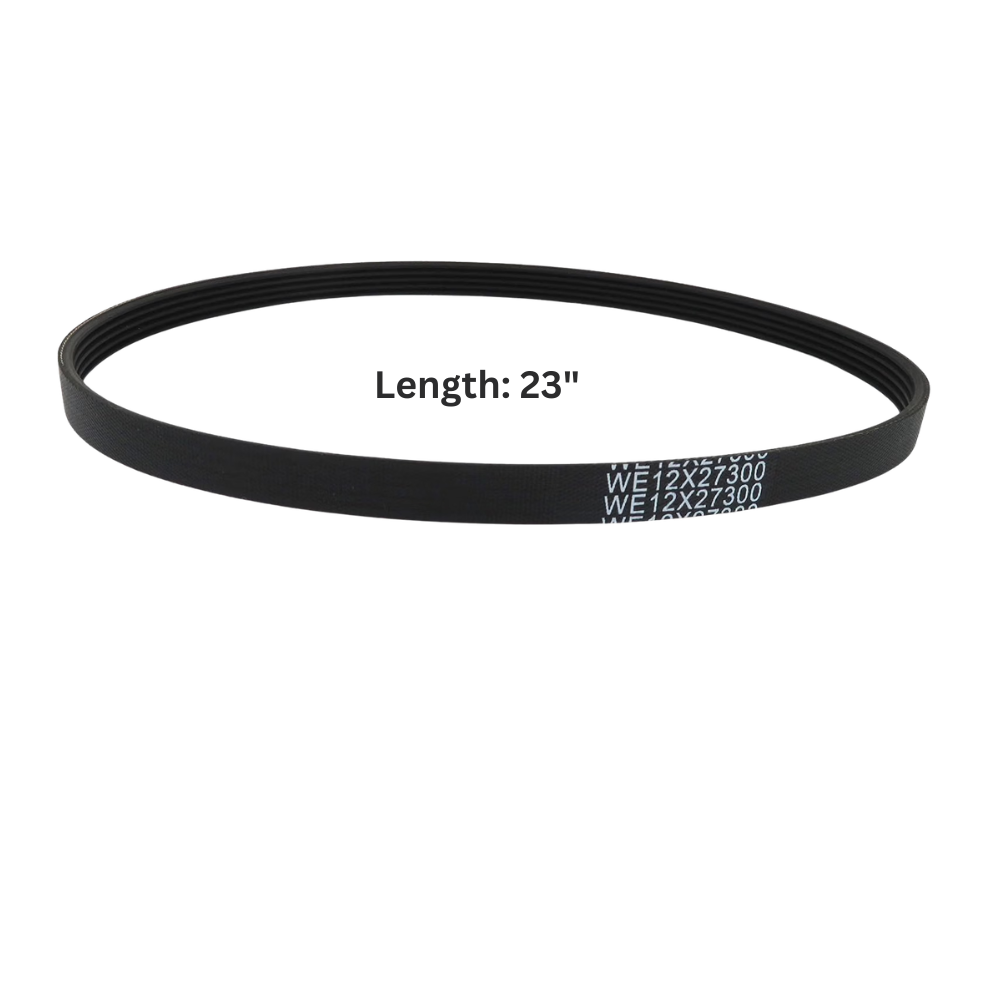

- Approximately 23" long, 0.5" wide, 0.12" thick
- Direct drop-in replacement matching the original length and profile
- Replaces 4587578, AP6328196, PS12342956, EAP12342956, FIX12342956, 253C1275P001, 5PJ587SJ161, WE12X27300-50PK, AGE25036, and PD00054473
- Compatible with GE, Whirlpool, Amana, Hotpoint, Haier, and Kenmore laundry center units
- Aftermarket replacement built to OEM-equivalent quality standards
- Typical repair takes 0 to 15 minutes
Product Specifications
| Part Number |
WE12X27300 |
| OEM Part Number |
WE12X27300 |
| Part Type |
Laundry Center Washer Drive Belt |
| Condition |
Aftermarket Replacement |
| Application |
Stacked Washer/Dryer Laundry Centers |
| Material |
Neoprene rubber |
| Length |
Approx. 23" |
| Width |
Approx. 0.5" |
| Thickness |
Approx. 0.12" |
| Repair Difficulty |
Easy — 0 to 15 minutes |
| Quantity |
1 drive belt |
| Compatible Brands |
GE, Whirlpool, Amana, Hotpoint, Haier, Kenmore |
Installation Notes
⚠️ Unplug The Laundry Center Before Starting Disconnect power to the laundry center unit at the outlet before beginning. Wear work gloves. Access the washer's drive belt through the appropriate access panel for your model — since this is a combined washer/dryer unit, take care to work only in the washer section. Locate the old belt connecting the motor pulley to the drive system. Slide the old belt off the pulleys. Fit the new WE12X27300 belt around the pulleys in the same path as the old one, making sure it seats correctly and is properly tensioned. Reassemble the access panel. Restore power and run a test cycle to confirm the washer agitates and spins normally with no excessive noise. Tools needed: basic hand tools, work gloves.
Frequently Asked Questions
My laundry center's washer spins very slowly. Is this the belt I need?
Yes, this is a documented symptom of a worn drive belt. As the belt stretches or wears down, it can no longer grip the pulleys effectively, resulting in a noticeably slower spin than normal, along with possible noise or agitation problems.
Should I check anything else while I'm replacing this belt?
It's worth checking the speed sensor if your unit has one. One customer specifically noted they were replacing their speed sensor and noticed the belt was also worn, so they replaced both at the same time — a worn belt and a failing speed sensor can sometimes develop around the same time on the same unit.
Is this the same as a standalone GE washer belt?
No, this belt is specifically for GE-style stacked laundry center units, where the washer and dryer are combined into one appliance. It's a different part from standalone GE washer belts, such as WH01X24180 or WH01X24697, used on separate washing machines. Confirm your unit type and model number before ordering.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the length, width, thickness, and material of the original WE12X27300 drive belt used in compatible GE, Whirlpool, Amana, Hotpoint, Haier, and Kenmore laundry center units.
