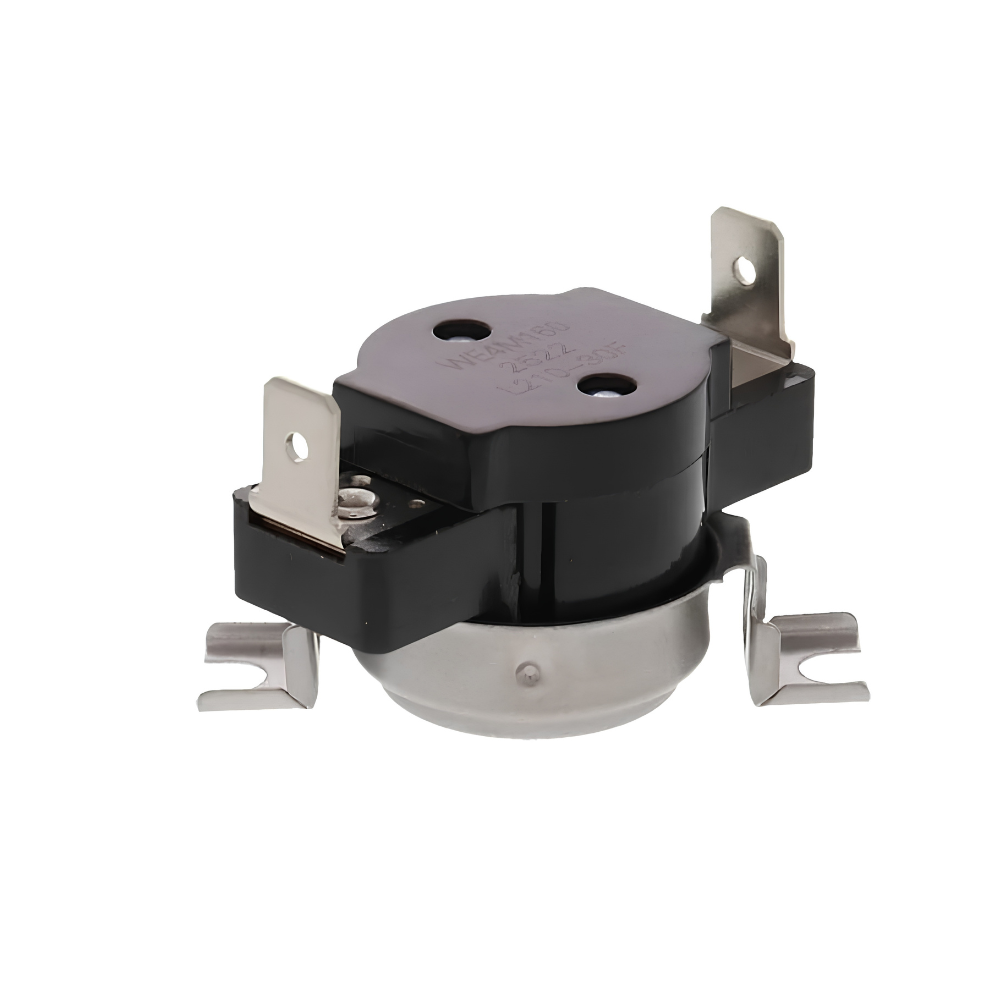

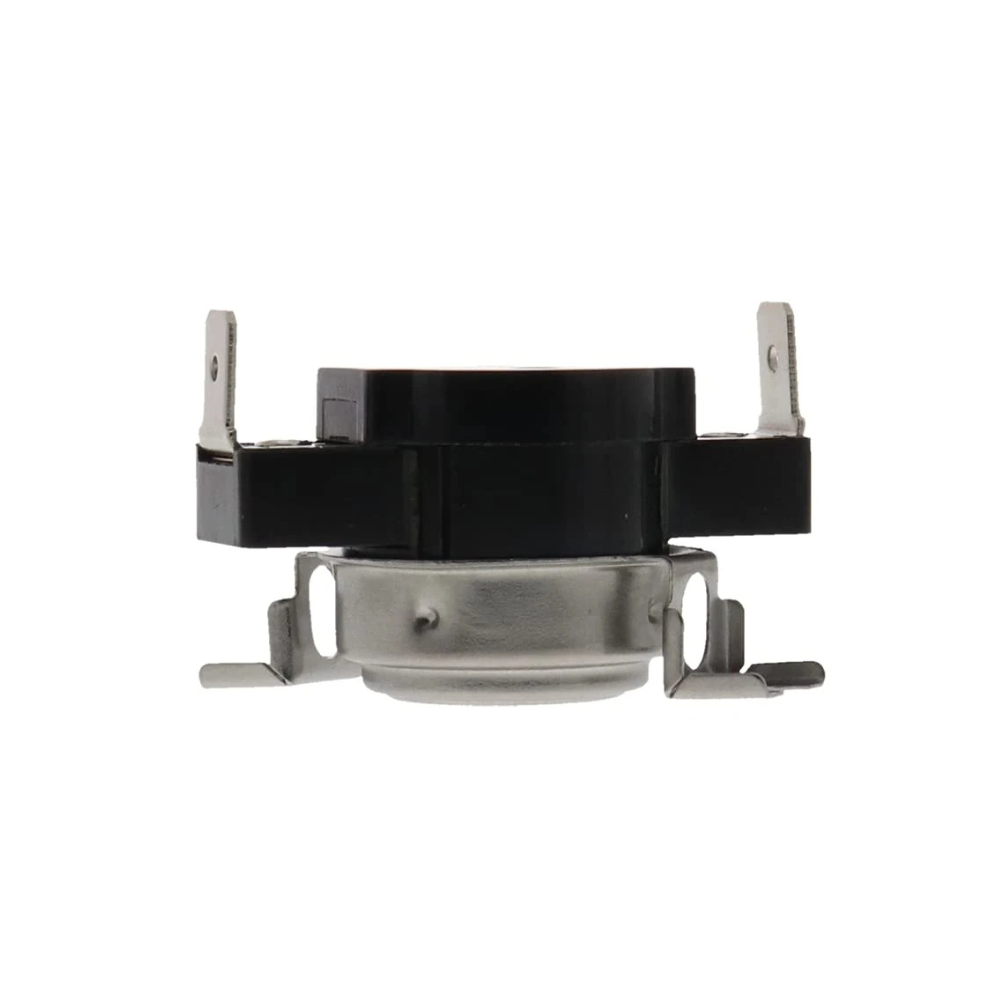

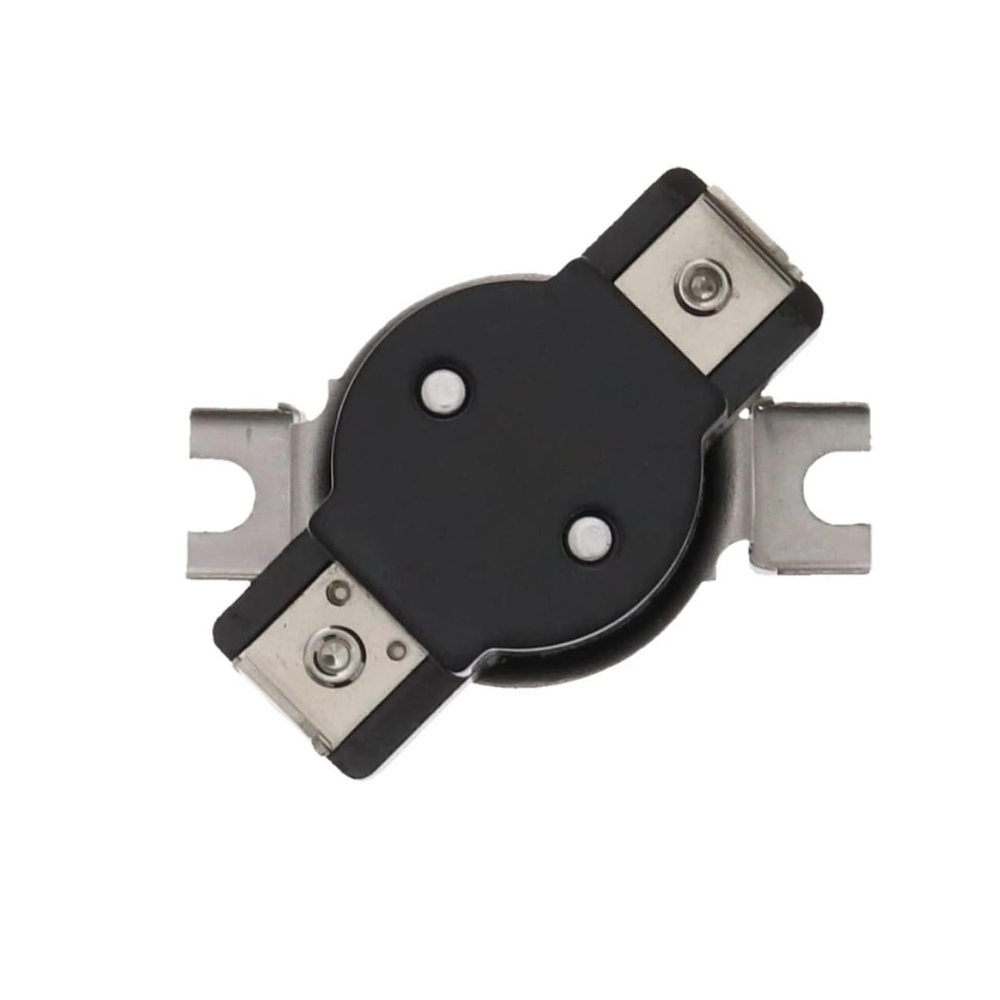

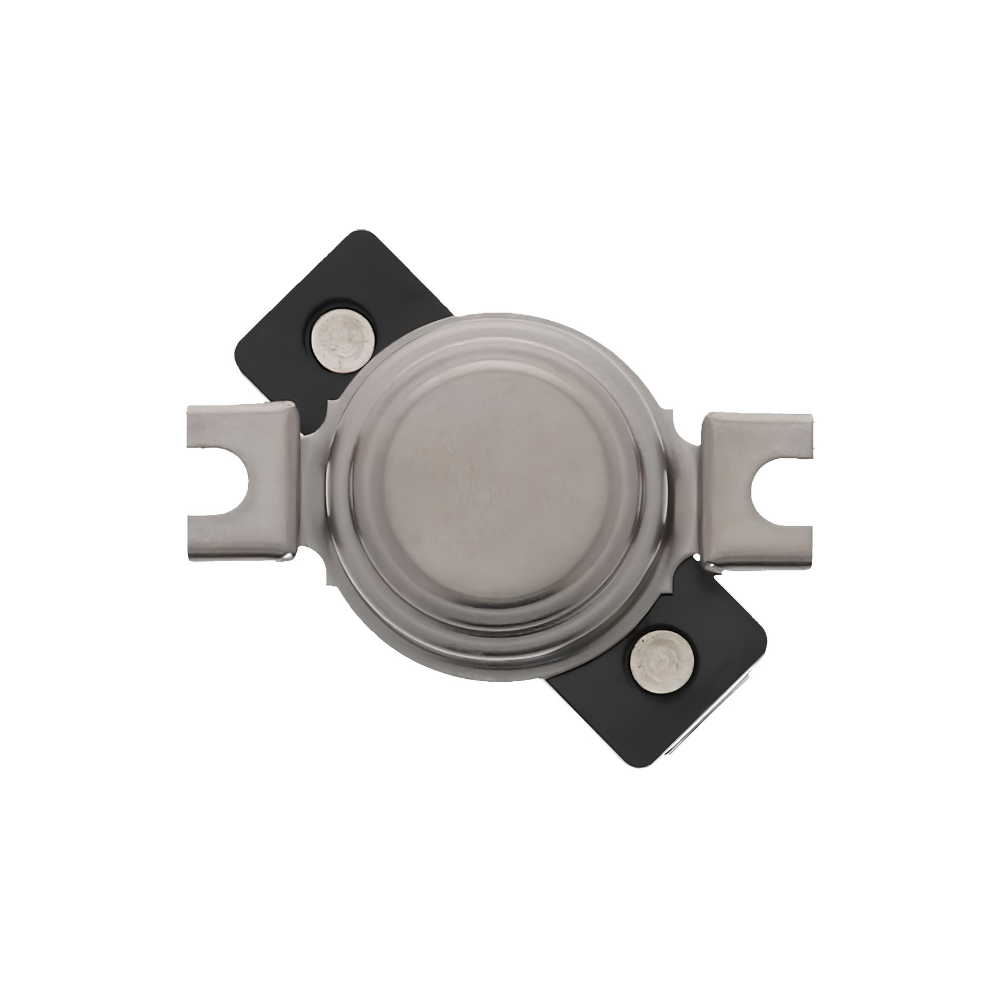

XPARTCO WE4M160 Dryer High Limit Thermostat
The XPARTCO WE4M160 is an aftermarket replacement high limit (safety) thermostat for GE, Hotpoint, and Kenmore dryers, and for some Fisher & Paykel dryers. This safety thermostat is part of the dryer's heating circuit. It shuts off power to the heating element when the dryer gets too hot, which protects the dryer from overheating. GE catalogs the original as the "Thermostat Safety Left."
This is a direct-fit aftermarket replacement for the original GE thermostat. If a high limit thermostat trips or fails, it is worth checking the cause of the overheating at the same time. A clogged lint trap or restricted exhaust vent is a common culprit.
Quick Answer
The XPARTCO WE4M160 High Limit Thermostat replaces the safety thermostat on a GE, Hotpoint, or Kenmore dryer that overheats, shuts off during the heat cycle, or won't heat because the thermostat has opened or failed. Classic symptom: the dryer gets too hot or quits on heat, and a vent check shows the airflow is clear.
Common Problems This Part Fixes
- Dryer runs too hot
- Dryer shuts off the heat during a cycle
- Dryer runs but doesn't heat because the safety thermostat has opened
- Dryer won't start if the thermostat has failed open
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This thermostat directly replaces the following part numbers:
WE4M160, WE04M0160, L210-30F, AGE25640, AP2042573, AH267911, EA267911, EAP267911, PD00008081, PS267911
These numbers span generations of GE's own part numbering for this thermostat. Confirm against your dryer's parts diagram, or contact our support team, if your model calls out a different number.
Compatibility
This thermostat is listed for GE, Hotpoint, and Kenmore dryers and for some Fisher & Paykel dryers, including these examples:
- GE DBLR333EE0CC, DBSR453EA0WW, DBXR453EA0AA, DBXR463EB0CC
- GE DPXR475EW0WW, DPSF505GW0WW, DCCB330ED0WC
- Model numbers 61140418, 62160T3WB
- Fisher & Paykel DE70FA1-96971, DE60FA2-96983
Note: The models above are a small sample of a list of hundreds, not a full list. GE sells more than one safety thermostat for its dryers, including the WE4M137, so check your model number against your dryer's parts diagram, or contact our support team to verify fit before ordering.
Key Features
- Direct-fit aftermarket high limit (safety) thermostat for GE-built dryers
- Shuts off power to the heating element when the dryer overheats
- Replaces GE WE4M160 and the older WE04M0160
- Listed for GE, Hotpoint, Kenmore, and some Fisher & Paykel dryers
Product Specifications
| Part Number |
XPWE4M160 |
| OEM Part Number |
WE4M160 |
| Part Type |
Dryer High Limit (Safety) Thermostat |
| Condition |
Aftermarket Replacement |
| Application |
GE, Hotpoint, Kenmore & Some Fisher & Paykel Dryers |
Installation Notes
⚠️ Unplug Power Before Installing Unplug the dryer before beginning, and shut off the gas supply first on gas models. Wear work gloves to protect your hands. Follow your model's service guide to reach the thermostat, note the wire positions before disconnecting them, and fit the new thermostat in the same position. Before closing the dryer, clean the lint trap and check the exhaust vent for restrictions, since poor airflow is a common cause of overheating.
Frequently Asked Questions
My dryer is running too hot. Is this the part I need?
This thermostat is designed to cut power to the heating element when the dryer overheats, and a failed one can cause heating problems. Clear the lint trap and exhaust vent first, since restricted airflow is a common cause of overheating.
Is this the same as the WE4M137 high limit thermostat?
They are different GE part numbers, so don't assume they are interchangeable. Check your model number against your parts diagram, or contact our support team, before ordering.
Is WE4M160 the same as WE04M0160?
Yes. WE04M0160 is the older GE number for this thermostat, and WE4M160 is the current number. This thermostat replaces both.
Will this fit my dryer?
It is listed for hundreds of GE, Hotpoint, Kenmore, and some Fisher & Paykel dryers, but the model list above is only a sample. Check your model number against your parts diagram, or contact our support team and we'll verify it before you order.
