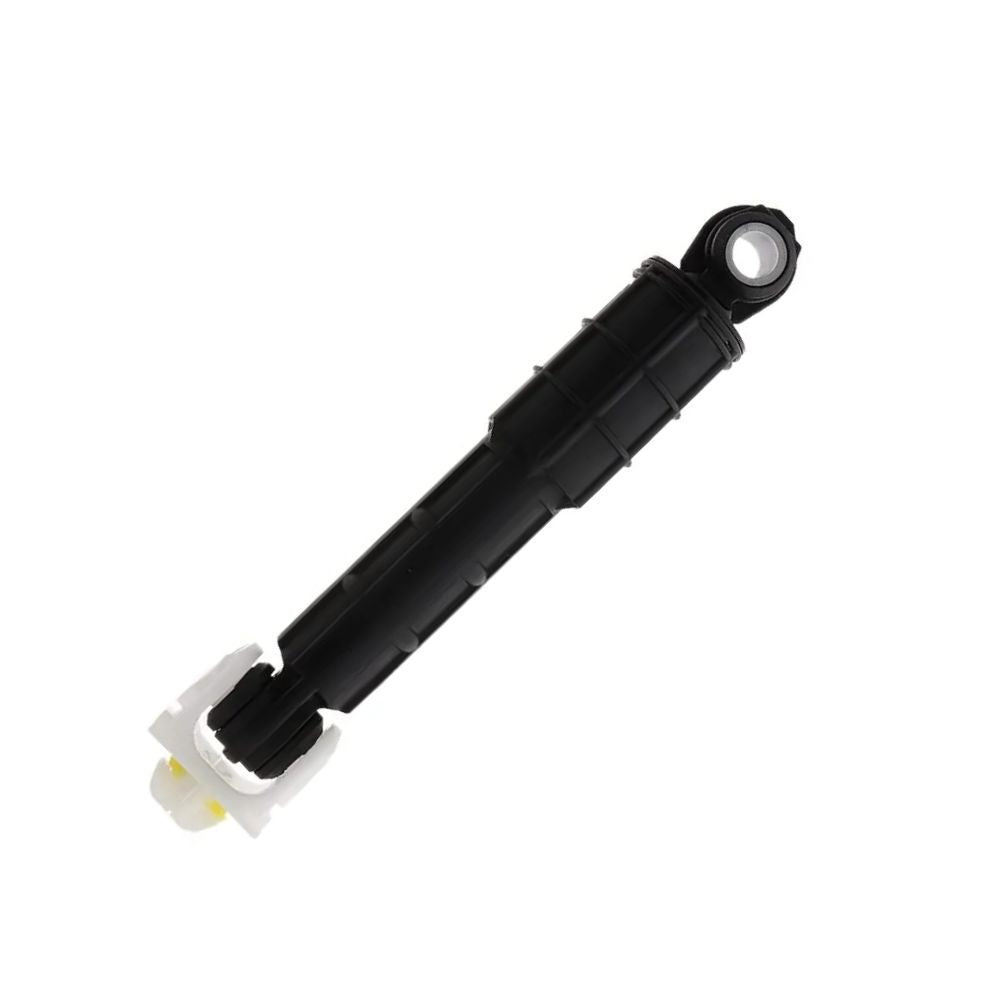

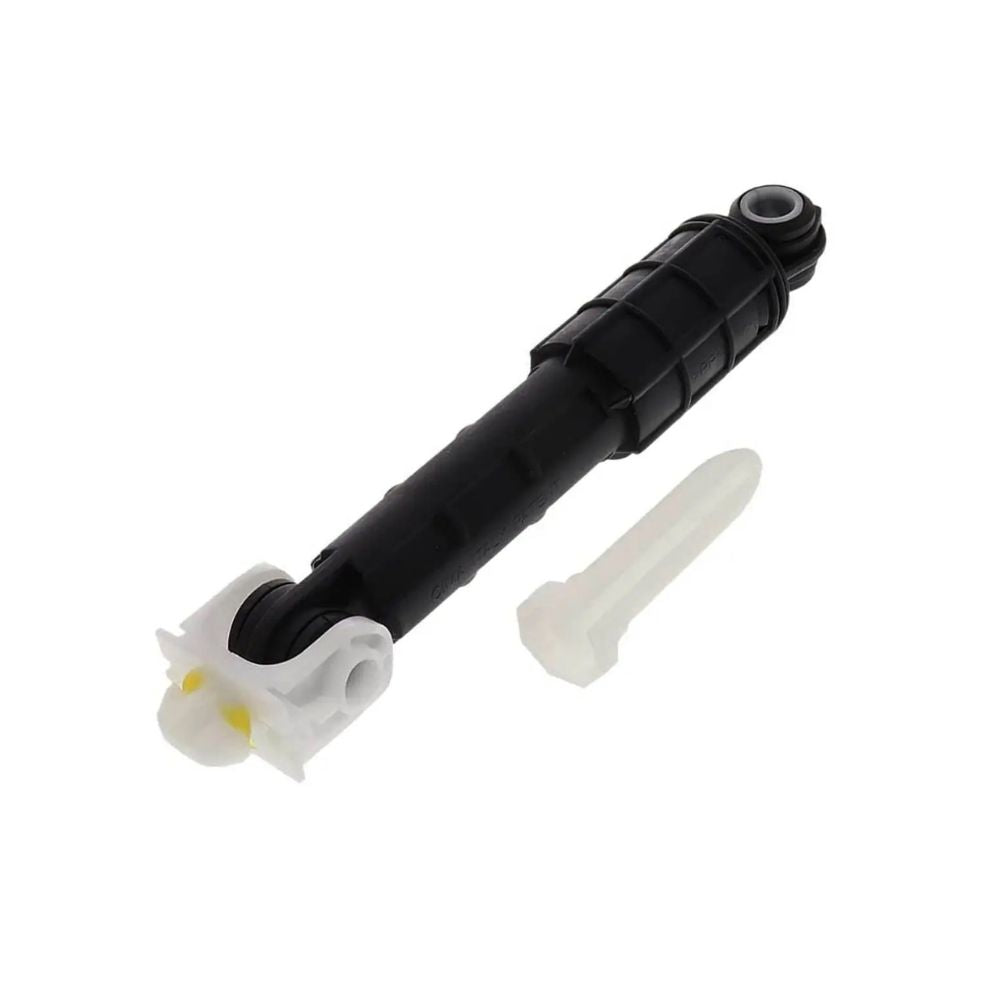

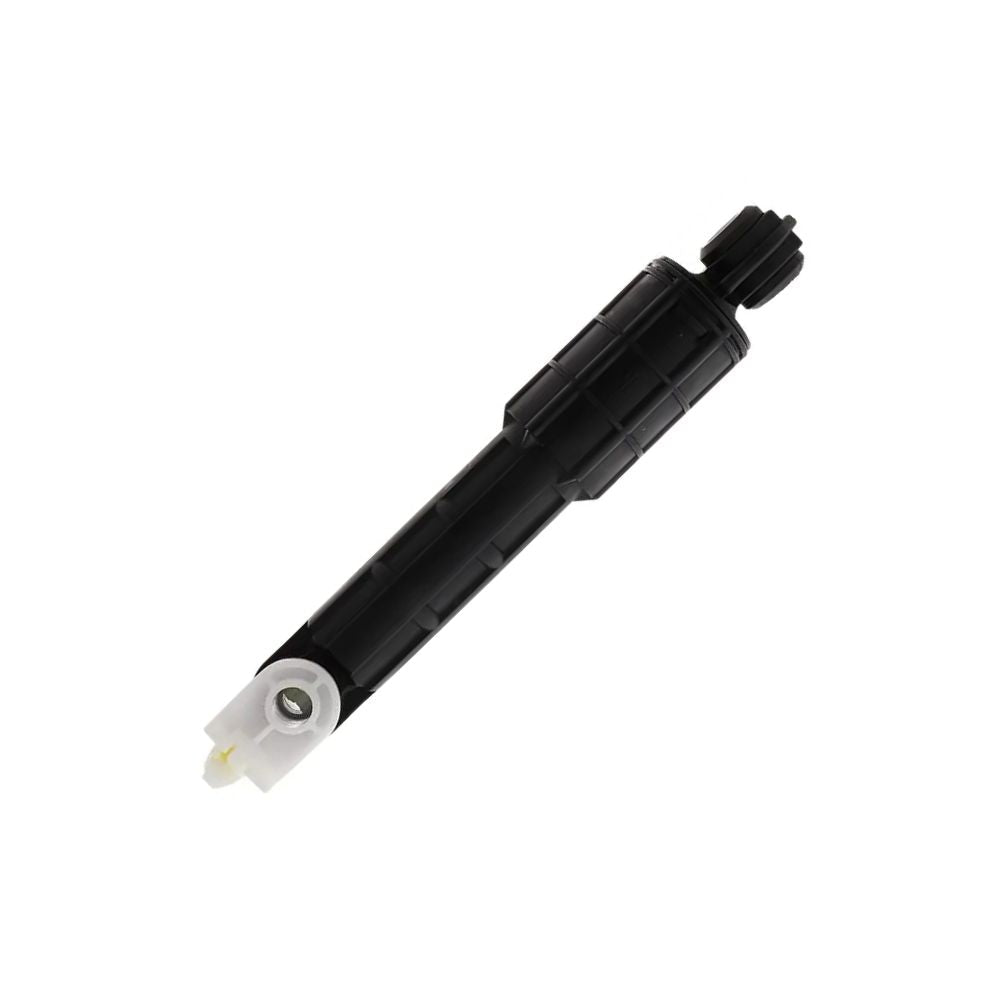

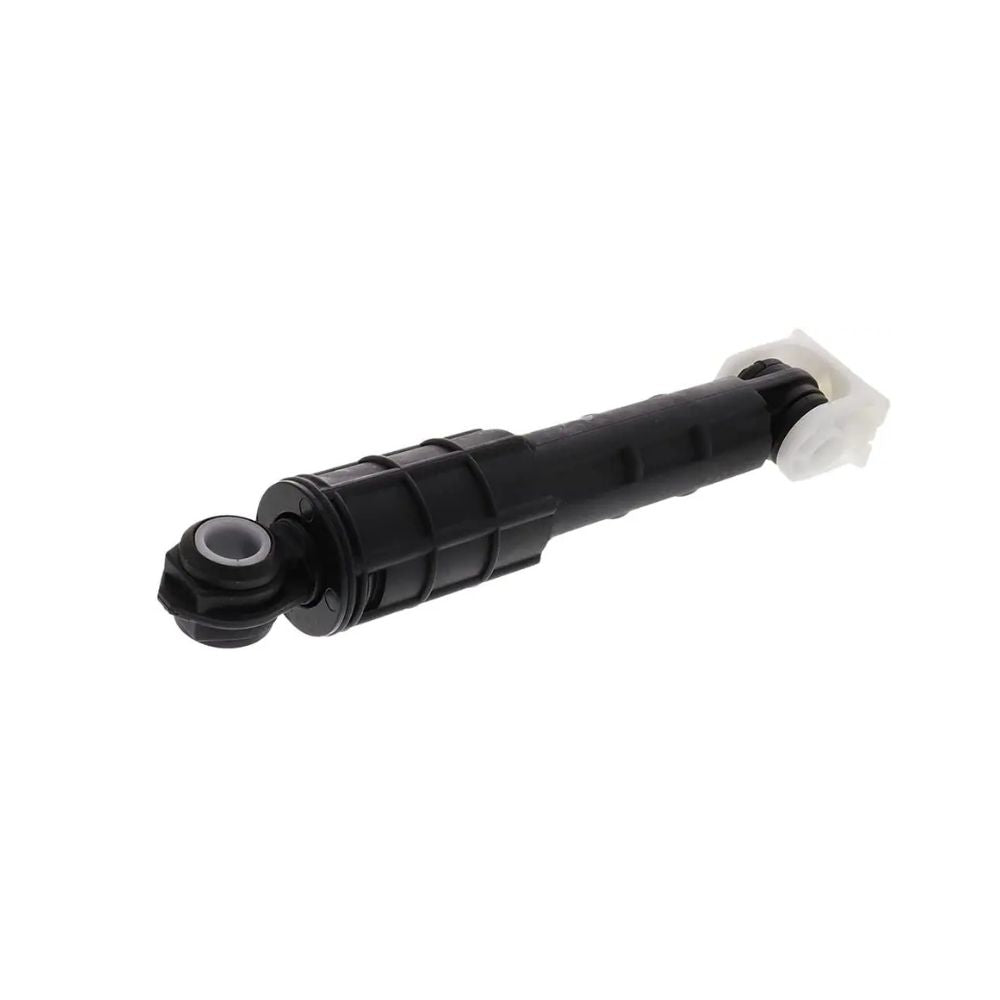

XPARTCO WH01X20826 Washing Machine Shock Absorber
The XPARTCO WH01X20826 is an aftermarket replacement shock absorber (damper) kit for GE front-load washers. The wash tub inside a front-load washer hangs suspended inside the cabinet, and a set of these shock absorbers is what controls that movement — dampening the tub's vibration and motion during spin so it doesn't bang against the cabinet or shake the whole machine. This kit includes 4 shock absorbers and 4 mounting pins, since these washers typically use a set of four working together around the tub.
Over time the internal damping material in these shocks wears out, or the shock can physically separate from its mounting point — something that can also happen if the washer is moved or shifted without the tub properly secured first. RepairClinic's own guidance on this part is direct: if one shock absorber is found broken or worn, replace the full set as a preventative measure, since the others are typically the same age and under the same stress. A worn or detached shock absorber produces a very recognizable symptom: excessive vibration, shaking, or banging noise during the spin cycle, sometimes strong enough that the washer visibly moves or "walks" across the floor. It directly replaces WH01X10343, WH01X10260, WH01X10385, WH01X10425, AP4265856, AH1482318, EA1482318, PS1482318, PD00001516, and 1264427.
Quick Answer
The XPARTCO WH01X20826 Washing Machine Shock Absorber fixes GE front-load washers (and select Kenmore models built on the GE platform) that vibrate, shake, or bang excessively during spin, or seem to "walk" across the floor. Kit includes 4 shock absorbers and 4 mounting pins. Replaces WH01X10343, WH01X10260, WH01X10385, WH01X10425, AP4265856, AH1482318, EA1482318, PS1482318, PD00001516, 1264427. If one shock has failed, replace the full set of 4 — they wear on the same schedule, and mixing old and new shocks can leave the tub unevenly supported.
Common Problems This Part Fixes
- Excessive vibration or shaking during the spin cycle
- Loud banging or knocking noise from inside the cabinet during spin
- Washer that seems to "walk" or move across the floor during operation
- Tub striking the cabinet frame or nearby panels
- Shock absorber that has visibly separated or detached from its mounting point
- Noise or vibration that started or worsened after the washer was moved or relocated
- Visible wear, cracking, or looseness in the shock absorber material
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washing machine shock absorber directly replaces the following OEM and cross-reference part numbers:
WH01X20826, AGE25988, AP5982139, EAP11701130, PD00037528, PS11701130.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This shock absorber kit is compatible with select GE front-load washers, and also fits select Hotpoint, Haier, and Kenmore washers built on the GE platform, including model numbers such as:
- GFW450SSM1WW, GFW450SPM1DG, GFW450SPK0DG, GFW450SSK0WW
- GFW400SCM1WW, GFW430SSM1WW, GFWN1600J1WW, GFWS1700H1WW
- WBVH5100H0WW, WBVH5100H1WW, WBVH5200JWW, WBVH5200J0WW, WBVH5200J1WW, WBVH5200J2WW
- WBVH6240F0GG, WBVH6240F0WW, WBVH6240H0WW, WBVH6240H1WW
- WCVH6260H0WW, WCVH6260H1WW, WCVH6400J0WW
- WCVH6600H0BB, WCVH6600H0GG, WCVH6600H0MB, WCVH6600H0MS, WCVH6600H0WW
- WCVH6600H1BB, WCVH6600H1GG, WCVH6600H1MB, WCVH6600H1MS
Note: GE uses several different shock absorber part numbers across its washer lineup, including separate parts such as WH01X10727 and WH03X29516 for other platforms. This WH01X20826 kit is specific to the front-load models listed above and is not interchangeable with those other GE shock absorbers. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
- Aftermarket replacement shock absorber kit — dampens tub vibration and movement during spin
- Complete kit includes 4 shock absorbers and 4 mounting pins
- Resolves "excessive vibration," "banging or knocking noise," and "washer walking across the floor" symptoms caused by worn or detached shocks
- Durable plastic and rubber construction for long-term damping performance
- Direct drop-in replacement — no modification required
- Replaces WH01X10343, WH01X10260, WH01X10385, WH01X10425, AP4265856, AH1482318, EA1482318, PS1482318, PD00001516, and 1264427
- Compatible with GE, Hotpoint, Haier, and select Kenmore front-load washers
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Part Number |
WH01X20826 |
| OEM Part Number |
WH01X20826 |
| Part Type |
Washing Machine Shock Absorber (Damper) |
| Condition |
Aftermarket Replacement |
| Application |
GE Front-Load Washers |
| Kit Contents |
4 shock absorbers + 4 mounting pins |
| Material |
Plastic and rubber |
| Function |
Dampens tub vibration and movement during spin |
| Quantity |
1 kit (4 shocks, 4 pins) |
| Compatible Brands |
GE, Hotpoint, Haier, Kenmore |
Installation Notes
⚠️ Unplug Washer Before Starting — Replace All Four Shocks Together Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Access to the shock absorbers typically requires removing the top and/or front panel of the washer to reach the tub suspension points — check your model's service diagram, since access varies. Photograph how each old shock absorber connects to the frame and the tub before removing anything, since these components are symmetrical around the tub and easy to reverse or mismatch. Working one at a time to avoid losing track of orientation, disconnect each old shock absorber from its mounting pin at both the frame and tub ends, then remove the mounting pin itself. Install the new shock absorber in the same position using the new mounting pin included in the kit, and repeat for all four positions — replace all four together even if only one has visibly failed, since they wear on the same schedule and mixing old and new shocks can leave the tub unevenly supported. Once all four are installed, gently rock the tub by hand to confirm even resistance at each corner before reassembling the panels. Restore power and run a full spin cycle to confirm the vibration, shaking, or banging noise has resolved. Tools needed: Phillips screwdriver, nut driver, work gloves.
Frequently Asked Questions
Do I really need to replace all 4 shock absorbers if only one is broken?
It's strongly recommended, and it's the guidance parts distributors themselves give for this exact part. All four shocks are typically the same age and have been under the same stress since the washer was new, so if one has failed, the others are likely not far behind. Replacing only the failed one risks having to open the washer back up again soon after for the next one, and in the meantime the tub may be unevenly supported.
My washer started shaking right after I moved it to a new spot. Is that related?
Yes, this is a documented cause of shock absorber problems on this platform. If the tub wasn't properly secured or the washer was tilted significantly during a move, one or more shock absorbers can separate from their mounting point. Check that all four shocks are still properly connected at both ends before assuming a shock itself has failed — sometimes reseating a separated shock is all that's needed, though if it shows wear it's worth replacing regardless.
How much vibration is normal, and how do I know it's actually the shocks?
Some vibration during high-speed spin is normal, especially with an unbalanced load. But vibration strong enough to move the washer across the floor, or accompanied by a banging or knocking noise from inside the cabinet, points to a suspension problem rather than a simple unbalanced load. Try redistributing the laundry evenly in the drum and running the spin cycle again — if the shaking persists with a balanced load, inspect the shock absorbers for wear, cracking, or separation.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the dimensions, mounting configuration, and damping performance of the original WH01X20826 shock absorber kit used in compatible GE, Hotpoint, Haier, and Kenmore front-load washers.
