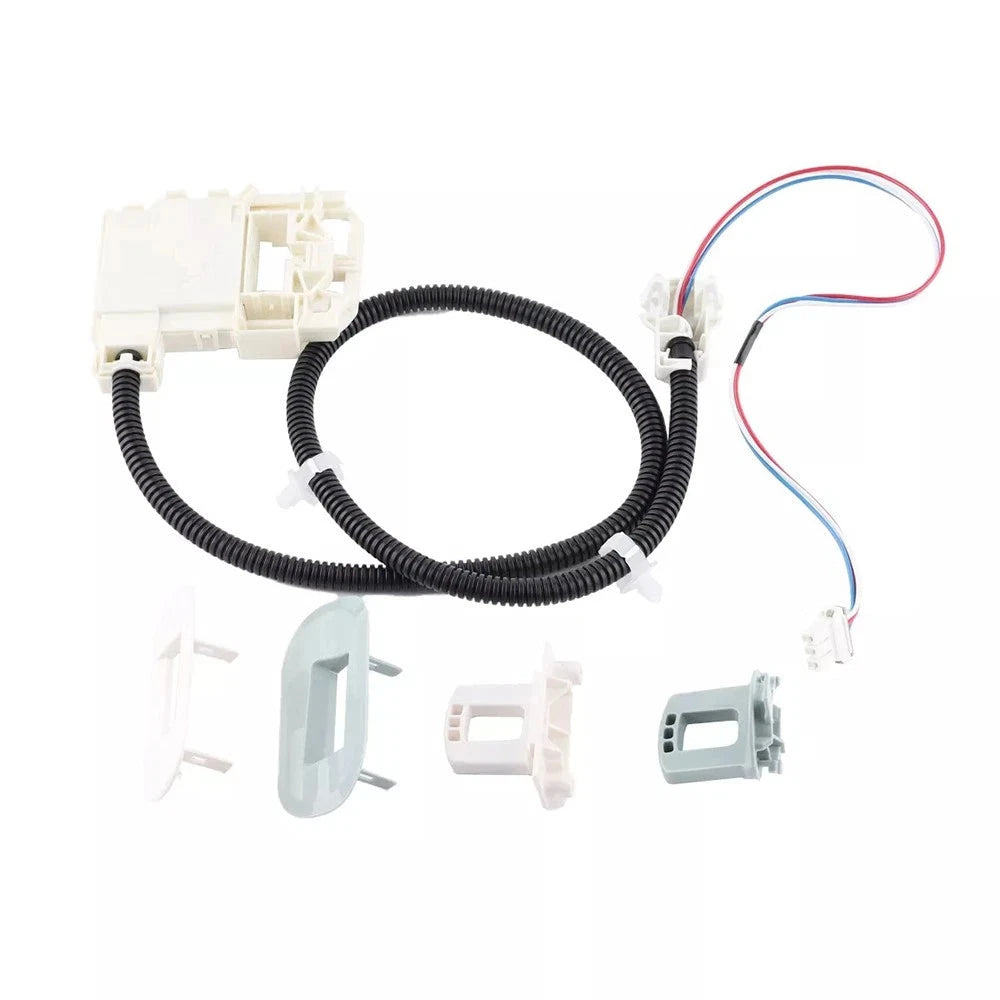

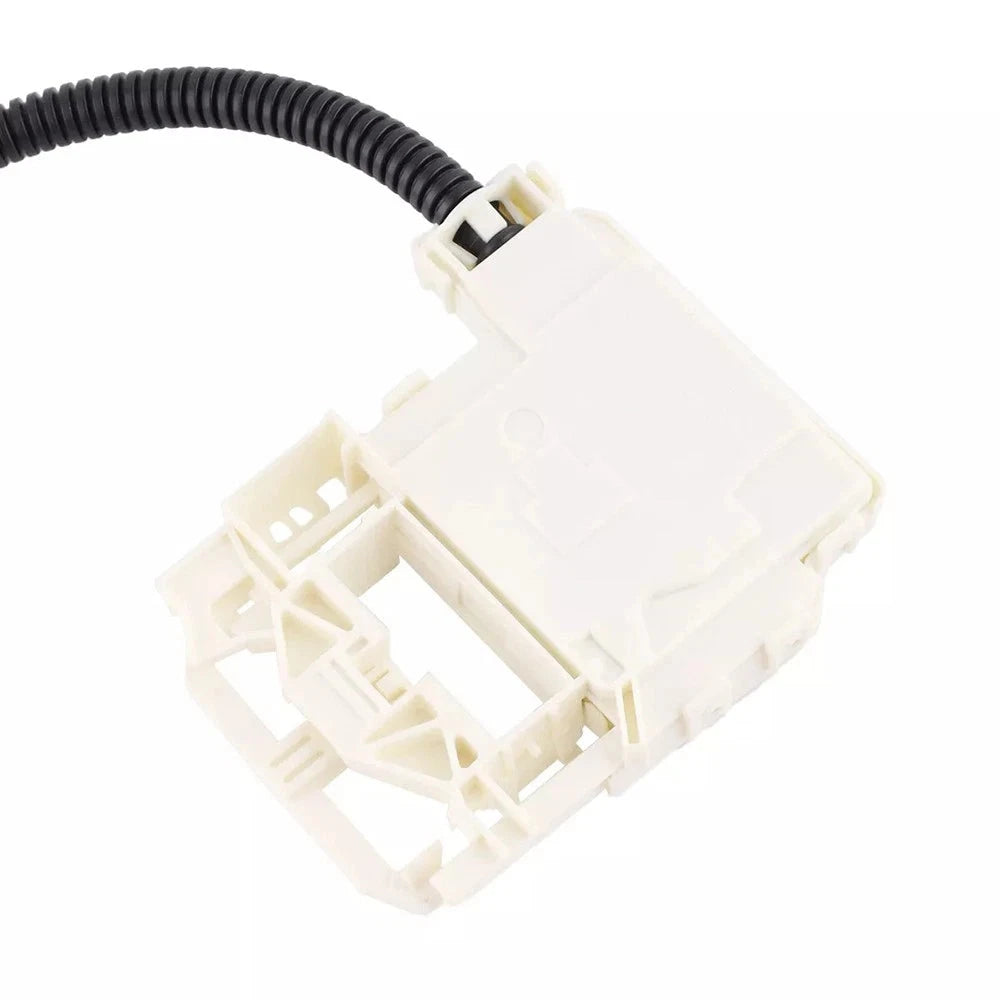

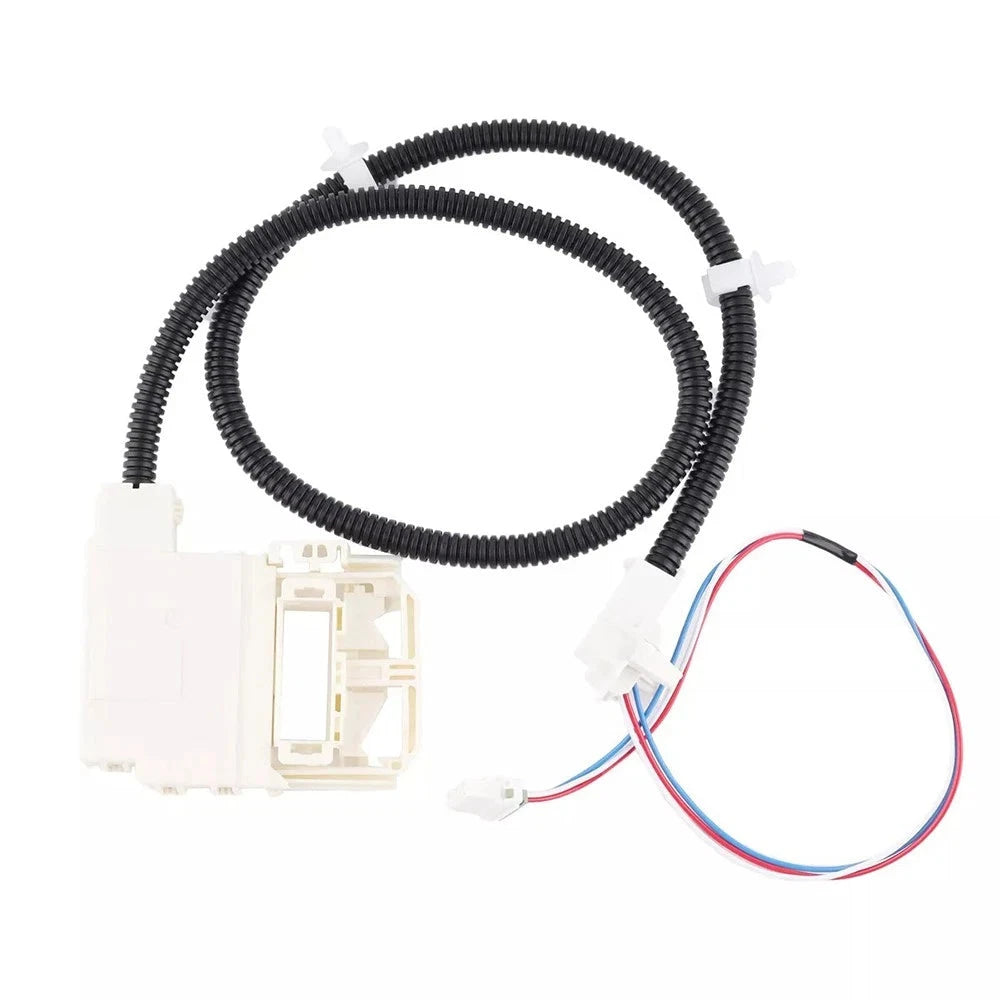

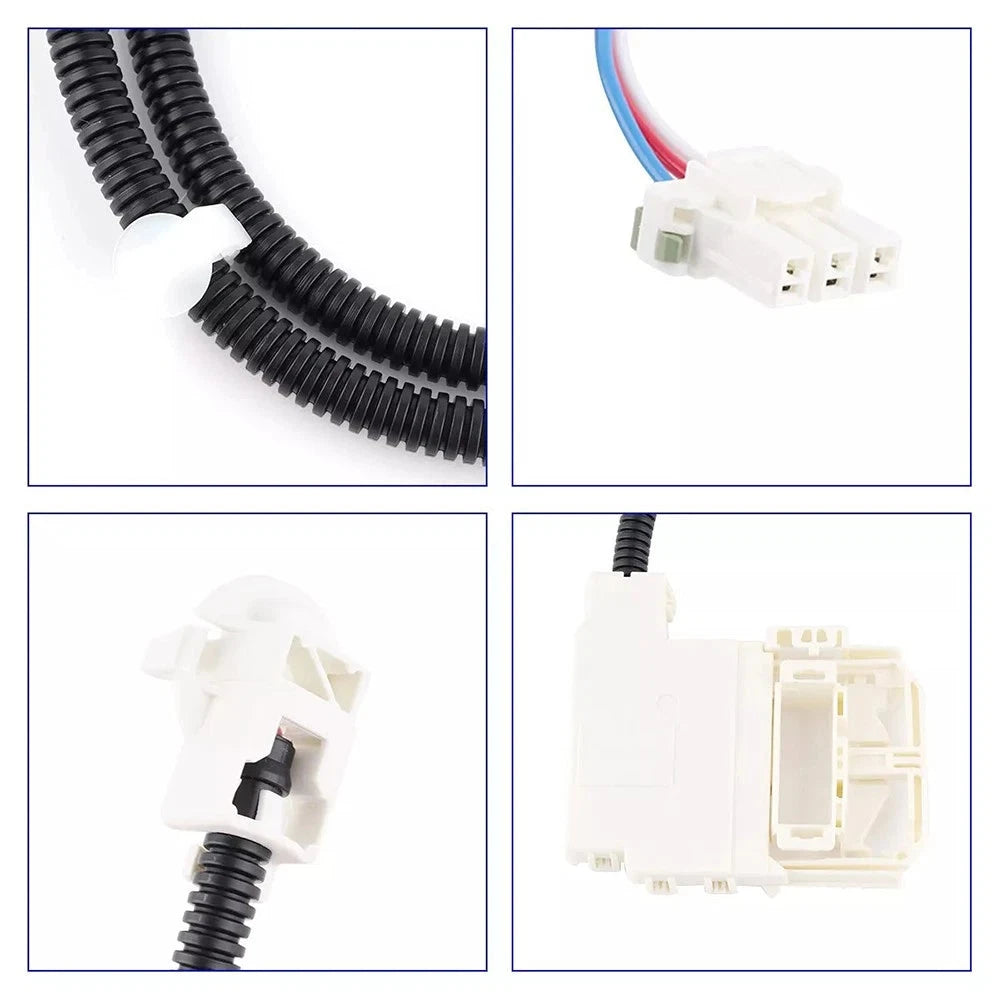

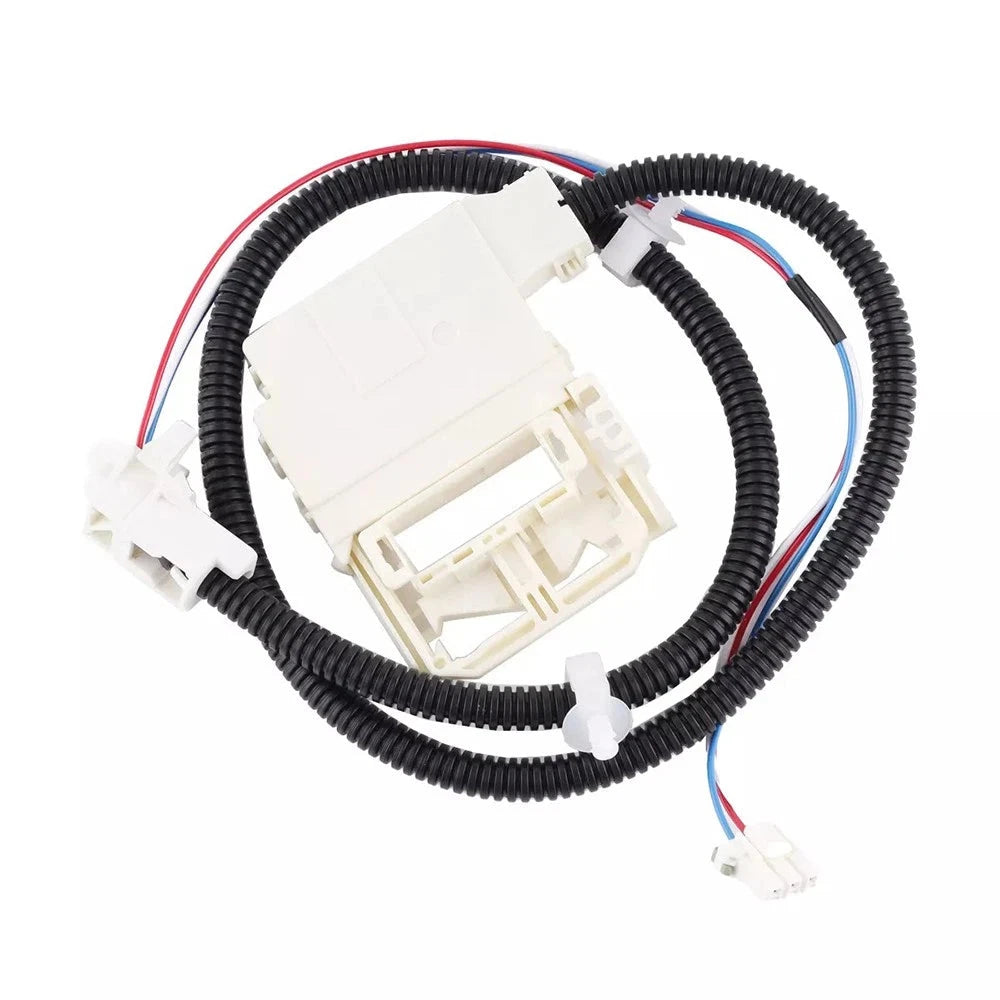

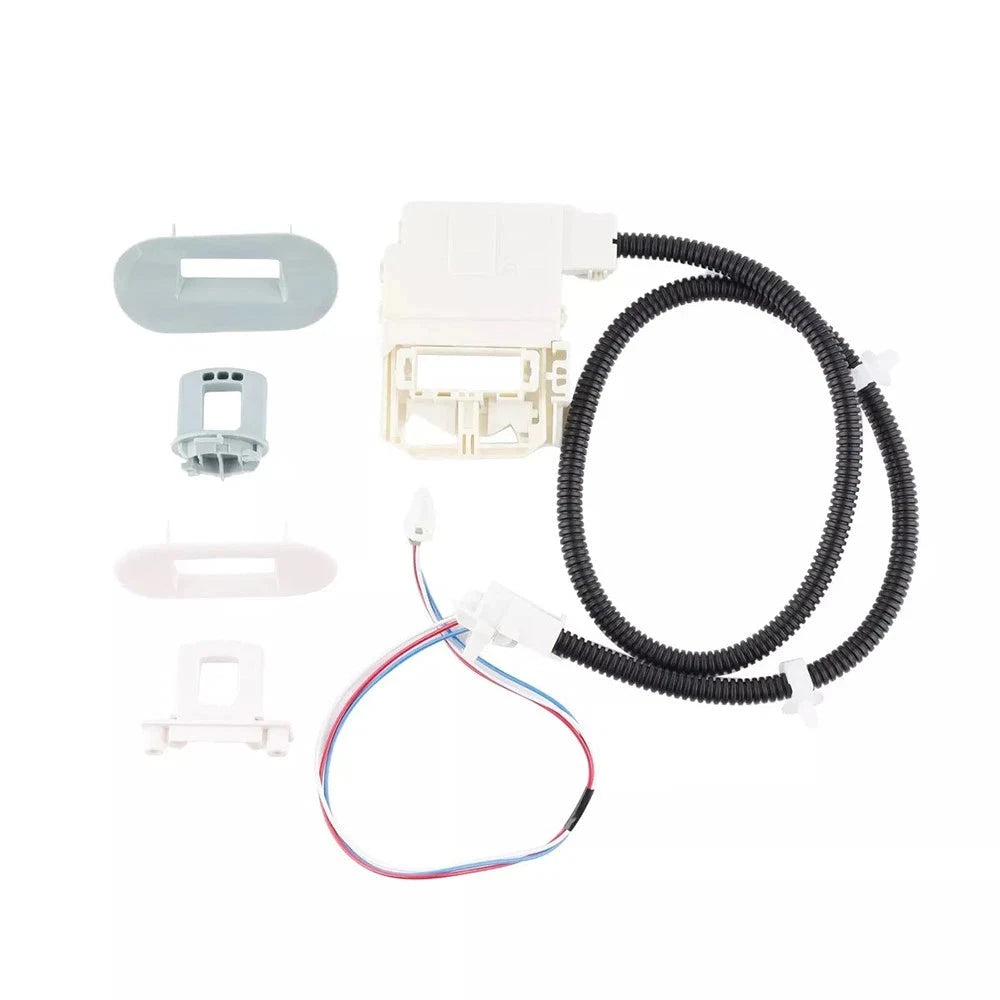

XPARTCO WH08X37938 Washer Lid Switch Assembly
The XPARTCO WH08X37938 is an aftermarket replacement lid switch (lid lock) assembly for GE and Hotpoint top-load washers, also used on select Kenmore models. The assembly locks the lid while the washer is running and releases it when the cycle ends, and it tells the control board the lid is closed and it's safe to run. When it wears out, cracks, or fails electrically, the washer may refuse to start, stop in the middle of a cycle, show a lid or door lock error, or fail to lock the lid at all.
This assembly replaces the original lock and switch as a unit, so you do not have to diagnose which internal contact has failed. It mounts on the washer cabinet with an electrical connector and is a straightforward repair, usually done in under an hour.
Quick Answer
The XPARTCO WH08X37938 Lid Switch Assembly fixes a GE or Hotpoint top-load washer that won't start, stops mid-cycle, won't lock the lid, or shows a lid or door lock error because the lid lock is worn or has failed. Complete replacement lock and switch assembly, aftermarket. Classic symptom: you close the lid and nothing happens, or the washer starts then stops and signals a lid or lock fault.
Common Problems This Part Fixes
- Washer won't start when the lid is closed
- Washer stops partway through the wash, rinse, or spin
- Lid will not lock, or stays locked after the cycle ends
- Lid or door lock error codes
- Loose, cracked, or visibly damaged lid lock
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This lid switch assembly replaces the following part numbers:
WH08X37938, WH08X32697, WH02X24399, WH08X32657, WH01X26694, WH01X24112, WH01X24114, WH01X26114, WH01X27954, WH08X31577, WH08X31222, 290D1580P001, 290D1580P002, 290D1580P003, 290D1580P004, 290D3070P001, EG-380843 M, AGE26076, AP7225583, EAP17626546, PD00087323, PS17626546
These are earlier GE numbers for the lid lock, as the part was updated over time. If your old lock or parts diagram shows any of them, match against this list.
Compatibility
This assembly is listed for select top-load washers from:
- GE and Hotpoint, including GTUN275EM0WW, GTUN275GM0WW, GTUP240EM0WW, and GTUP240EM2WW
- Kenmore, including 363.71542211, 363.71542310, and 363.71542410
Note: The model list above is only a sample, and lid locks differ between GE washer generations. Confirm fit by matching the number on your old lock or your parts diagram against the Replaces list, or contact our support team with your model number and we'll verify before you order. This part is for top-load washers.
Key Features
- Aftermarket replacement lid switch (lid lock) assembly
- Replaces the lock and switch as a unit, with no need to find the failed contact
- Restores starting, locking, and unlocking at the end of the cycle
- Cross-references to WH08X32697, WH08X31577, and other earlier GE numbers
- Fits select GE, Hotpoint, and Kenmore top-load washers
- Mounts on the cabinet with a plug-in electrical connector
Product Specifications
| Part Number |
XPWH08X37938 |
| OEM Part Number |
WH08X37938 |
| Part Type |
Washer Lid Switch (Lid Lock) Assembly |
| Condition |
Aftermarket Replacement |
| Application |
Select GE, Hotpoint & Kenmore Top-Load Washers |
Installation Notes
⚠️ Unplug Power and Shut Off Water Unplug the washer and turn off the water supply before starting. Work gloves are recommended. Open the lid and, following your model's service guide, remove the top panel or cabinet section to reach the lid lock mounted on the cabinet. Note the position of the old assembly, disconnect its wiring connector, and remove the screws holding it in place. Fit the new assembly in the same position, secure it, and reconnect the connector. Reassemble the washer, restore power and water, and run a short cycle to confirm the lid locks, the washer starts, and the lid releases at the end.
Frequently Asked Questions
My washer won't start with the lid closed. Is this the part I need?
A failed lid lock is a common cause. The control board won't start a cycle unless it sees the lid is closed and locked. Check that the lid closes fully and that nothing is blocking it. If it still won't start, the lid lock is a likely cause.
Is a lid switch the same as a lid lock?
On these washers, the lid switch and lock are combined in one assembly, which this part replaces.
My old part is marked WH08X32697 or WH08X31577. Will this work?
Those numbers are on the Replaces list. Compare the connector and mounting against your old part, or contact our support team with your model number and we'll confirm.
Will this fit my front-load washer?
No. This is for top-load washers.
Is this an OEM part?
No. This is an XPARTCO aftermarket replacement built to match the GE WH08X37938. If you prefer a genuine OEM assembly, contact us.
