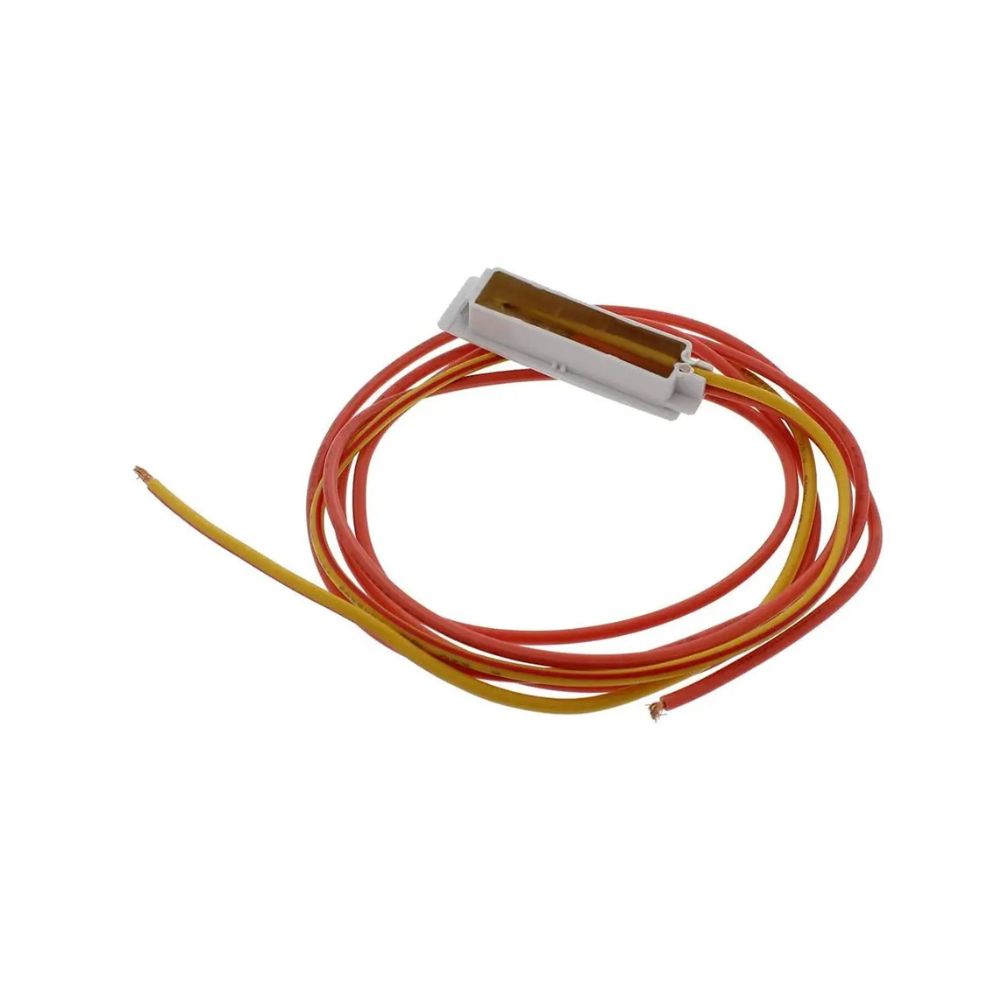

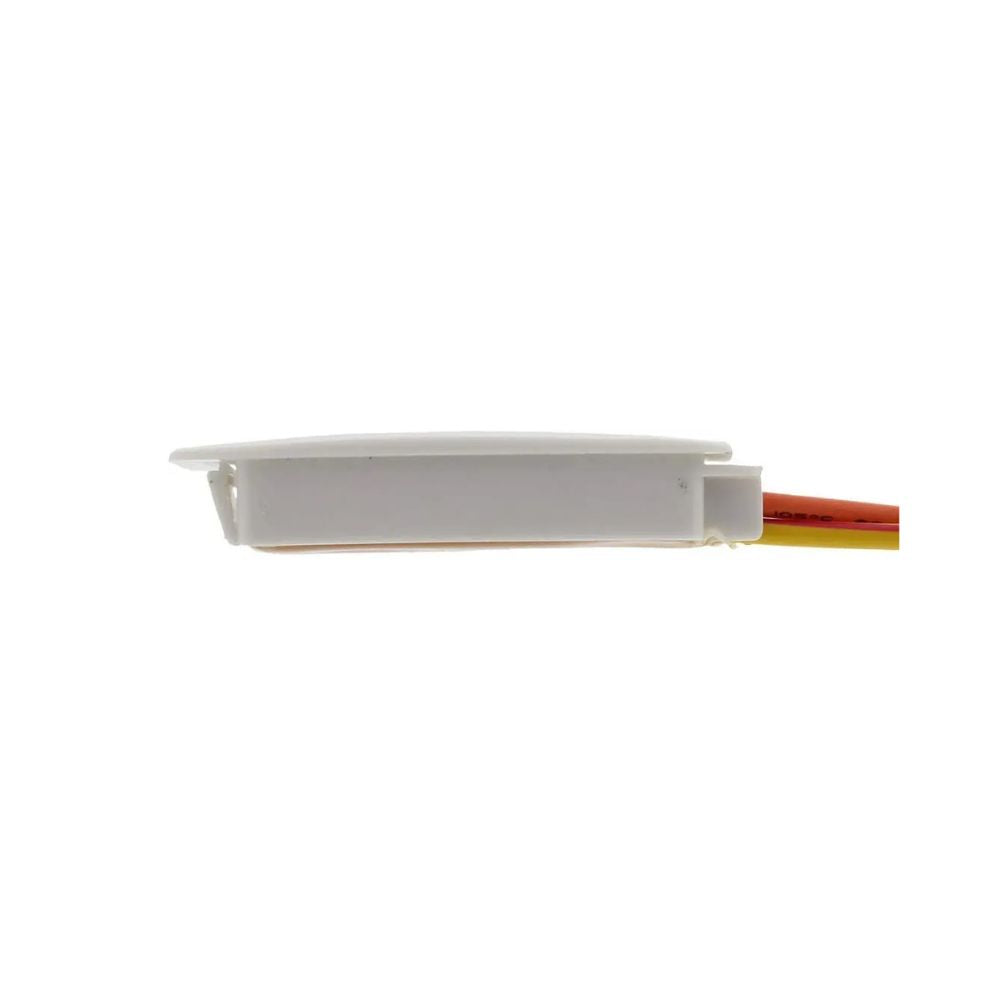

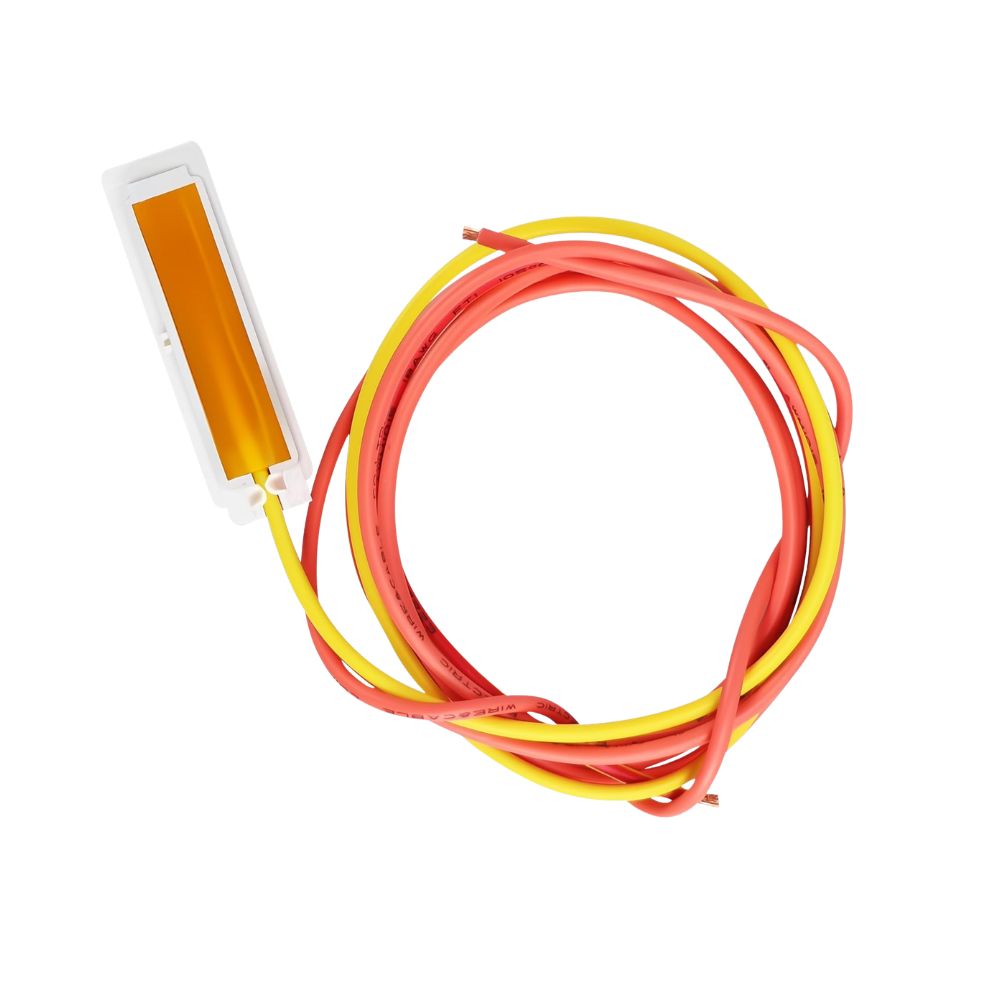

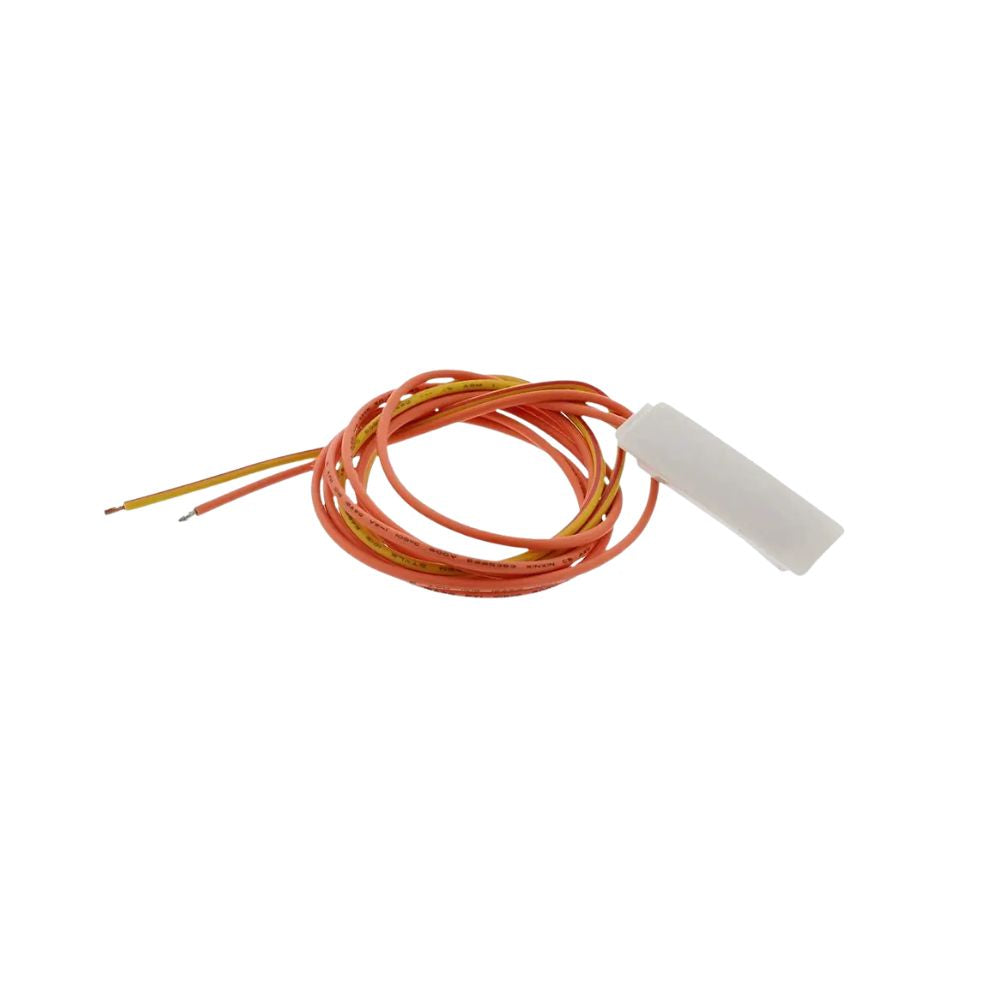

XPARTCO WH12X10334 Washer Lid Switch with Wire Harness
The XPARTCO WH12X10334 is an aftermarket replacement washer lid switch assembly with wire harness compatible with select GE, Hotpoint, RCA, and Kenmore top-load washers — including the GTWN4250, GCWN4950, GTW180, GTWN2800, GTWN5550, GTUP270, and HSWP1000 series. The lid switch is a magnetic switch mounted near the lid hinge that detects whether the washer lid is open or closed. A magnet attached to the lid activates the switch when the lid closes — a small pin on the switch presses against an internal lever to signal the control board that it is safe to agitate or spin. This safety mechanism prevents the washer from running with the lid open.
When the lid switch fails, the washer may not start, may fill with water but not proceed to the wash cycle, may stop mid-cycle, may not spin or agitate even with the lid closed, or may display lid-related error codes on models with digital displays. This assembly includes the switch and attached wire harness. It directly replaces WH12X10141, AP3968471, 1256927, AH1482372, EA1482372, and PS1482372. Installs in 20–30 minutes with basic hand tools.
Quick Answer
The XPARTCO WH12X10334 Washer Lid Switch fixes GE, Hotpoint, RCA, and Kenmore top-load washers that won't start, fill but don't proceed to wash, stop mid-cycle, or won't spin or agitate with the lid closed. Magnetic switch with wire harness — pin-and-lever design. Replaces WH12X10141, AP3968471, 1256927, AH1482372, EA1482372, PS1482372. Compatible with GE GTWN4250, GCWN4950, GTW180, GTWN2800, GTWN5550, GTUP270, and Hotpoint HSWP1000 series.
Common Problems This Part Fixes
- Washer not starting — lid switch not signaling the lid is closed
- Washer filling with water but not proceeding to the wash cycle
- Washer stopping mid-cycle even though the lid is closed
- Washer not agitating or spinning despite the lid being closed
- Washer running intermittently — switch contact making and losing connection
- Lid-related error codes displayed on models with digital control panels
- Washer running with the lid open — switch stuck closed (less common but possible safety concern)
Replaces Part Numbers
This lid switch assembly directly replaces the following OEM and cross-reference part numbers:
WH12X10334, 1256927, AGE26415, AH1482372, AP3968471, EA1482372, EAP1482372, PD00001112, PS1482372
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This lid switch assembly is compatible with select top-load washers from the following brands and series:
- GE top-load washers — GTWN4250D0WS, GTWN4250D1WS, GTWN4250M1WS series
- GE top-load washers — GCWN4950D2WS series
- GE top-load washers — GTW180SCJ0WW series
- GE top-load washers — GTWN2800D0WW series
- GE top-load washers — GTWN5550D0WW series
- GE top-load washers — GTUP270EM4WW series
- Hotpoint top-load washers — HSWP1000M4WW series
- RCA top-load washers (select GE-built models)
- Kenmore / Sears top-load washers (select GE-built models)
Always verify your appliance model number before ordering. Contact our support team if you're unsure.
Key Features
- Magnetic lid switch detects whether the washer lid is open or closed and signals the control board accordingly
- Pin-and-lever design — the lid's magnet activates the switch, which presses an internal pin against a lever to confirm the lid is closed
- Prevents the washer from agitating or spinning when the lid is open — important safety function
- Includes pre-attached wire harness for direct connection to the washer's wiring
- Replaces WH12X10141, AP3968471, 1256927, AH1482372, EA1482372, and PS1482372
- Compatible with GE, Hotpoint, RCA, and Kenmore top-load washers
- Aftermarket replacement built to OEM-equivalent quality standards
- DIY repair — installs in 20–30 minutes with basic hand tools
Product Specifications
| Part Number |
WH12X10334 |
| Part Type |
Washer Lid Switch Assembly with Wire Harness |
| Condition |
Aftermarket Replacement |
| Application |
Top-Load Washers |
| Switch Type |
Magnetic, pin-and-lever activation |
| Includes |
Lid switch and attached wire harness |
| Compatible Brands |
GE, Hotpoint, RCA, Kenmore |
Installation Notes
⚠️ Unplug Washer Before Starting — Wear Work Gloves Disconnect power before beginning. Wear work gloves to protect your hands. The lid switch is located near the lid hinge area at the top of the washer cabinet. Use a putty knife to release the spring clips along the front edge of the top panel (or console, depending on model), then lift the top panel to access the switch from underneath. Locate the lid switch — it is typically mounted near the hinge or under the console. Photograph the wire connections before disconnecting. Disconnect the wire harness connector, or if your model requires it, cut and splice the wires using wire strippers and crimpers. Remove the mounting screws (typically a 1/4" nut driver) and remove the old switch. Install the new WH12X10334 switch in the same position, secure the mounting screws, and reconnect or re-splice the wire harness. Reinstall the top panel by aligning and pressing down until the spring clips engage. Restore power and test by closing the lid and starting a cycle to confirm the washer agitates and spins normally. You can test the old switch's continuity with a multimeter before removal to confirm it has failed. Tools needed: Putty knife, 1/4" nut driver, wire strippers, crimpers.
Frequently Asked Questions
What does the washer lid switch do?
The lid switch is a safety device that detects whether the washer lid is open or closed. A magnet attached to the underside of the lid activates the switch when the lid closes, which presses a small pin against an internal lever to send a signal to the control board confirming the lid is securely shut. The washer's control board uses this signal to allow agitation and spin — both of which are blocked whenever the lid is detected as open, as a safety measure to prevent injury from a spinning or moving basket.
My washer fills with water but won't start the wash cycle — is it the lid switch?
Yes — this is one of the most common lid switch failure symptoms. The washer is able to complete the fill phase because filling is typically not gated by the lid switch, but the agitation and spin phases require lid switch confirmation that the lid is closed. If the switch has failed and is not properly signaling lid closure, the washer fills normally but then stalls before agitating. According to repair technicians, when a washer fills and drains but does not agitate or spin, the lid switch is the first part that should be checked and is often the cause.
How do I test if the lid switch has failed?
Unplug the washer and access the switch as described in the installation notes. Disconnect the wire harness and set your multimeter to continuity or resistance mode. With the lid closed and the magnet engaging the switch pin, a working switch should show closed continuity. With the lid open (pin released), the switch should show open continuity. If the switch shows the same reading (either always open or always closed) regardless of lid position, the switch has failed and needs replacement.
Could a bad lid switch cause water filling and draining issues too?
In some specific cases, yes — some owners have reported resolving combinations of fill, drain, and spin issues by ultimately tracing the root cause back to a faulty lid switch, even after replacing other components like the water level pressure switch or control board. If you've already addressed other suspected causes for irregular cycle behavior and the symptoms persist, testing or replacing the lid switch is a low-cost troubleshooting step worth trying before assuming a major component (like the control board) needs replacement.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the magnetic switch design and wire harness configuration of the original WH12X10334 lid switch assembly.
